socomec COUNTIS AMd User manual

COUNTIS AMd / AMt
Notice d’utilisation Operating instructions
Bedienungsanleitung Gebruiksaanwijzing
Instrucciones de servicio Manual de instruções
Istruzioni per l’uso
FGB
NL
D
SP P
I

F
Sommaire
OPERATIONS PREALABLES ____________________ 4
INFORMATIONS GENERALES___________________ 4
PRESENTATION _______________________________ 4
INSTALLATION ________________________________ 5
Environnement climatique
Consignes de sécurité
Raccordement
PROGRAMMATION ____________________________ 6
CARACTERISTIQUES TECHNIQUES _________ 6 - 7
GB
Contents
PRELIMINARY OPERATIONS ___________________ 8
GENERAL INFORMATION ______________________ 8
PRESENTATION _______________________________ 8
INSTALLATION ________________________________ 9
Climatic environment
Safety instructions
Connections
CONFIGURATION_____________________________ 10
TECHNICAL CHARACTERISTICS __________ 10 - 11
D
Inhaltsverzeichnis
VORAUSGEHENDE KONTROLLEN _____________ 12
ALLGEMEINE HINWEISE ______________________ 12
PRODUKTDARSTELLUNG_____________________ 12
INSTALLATION _______________________________ 13
Klimatische Bedingungen
Sicherheitsanweisungen
Anschluss
KONFIGURATION_____________________________ 14
TECHNISCHE DATEN _____________________ 14 - 15
NL
Inhoud
VOORAFGAANDE HANDELINGEN _____________ 16
ALGEMENE INFORMATIE _____________________ 16
VOORSTELLING ______________________________ 16
INSTALLATIE _________________________________ 17
Omgevingstemperatuur
Instructies m.b.t. de veiligheid
Aansluiting
PROGRAMMEREN____________________________ 18
TECHNISCHE EIGENSCHAPPEN __________ 18 - 19

SOCOMEC - Réf. : 875 090A 3
SP
Indice
OPERACIONES PREVIAS______________________ 20
INFORMACIONES GENERALES________________ 20
PRESENTACION ______________________________ 20
INSTALACION ________________________________ 21
Entorno climático
Consignas de seguridad
Conexión
PROGRAMACION_____________________________ 22
CARACTERISTICAS TECNICAS____________ 22 - 23
P
Indice
OPERAÇÕES PRELIMINARES _________________ 24
INFORMAÇÕES GERAIS ______________________ 24
APRESENTAÇÃO _____________________________ 24
INSTALAÇÃO_________________________________ 25
Meio ambiente
Medidas de segurança
Ligação
PROGRAMAÇÃO _____________________________ 26
CARACTERÍSTICAS TÉCNICAS____________ 26 - 27
I
Sommario
OPERAZIONI PRELIMINARI ___________________ 28
INFORMAZIONI GENERALI____________________ 28
PRESENTAZIONE_____________________________ 28
INSTALLAZIONE______________________________ 29
Condizioni di utilizzo
Prescrizioni di sicurezza
Schemi di collegamento
CONFIGURAZIONE ___________________________ 30
CARATTERISTICHE TECNICHE____________ 30 - 31

4SOCOMEC - Réf. : 875 090A
Pour la sécuritédu personnel et du
matériel, il est impératif de bien s’im-
prégner du contenu de cette notice
avant la mise en service.
Au moment de la réception du colis, il
est nécessaire de vérifier les points
suivants :
•l’emballage est bon état,
•le produit n’a pas eu de dommage
pendant le transport,
•la référence de l’appareil est confor-
me àla commande ;
•l’emballage comprend le produit
ainsi qu’une notice d’utilisation.
OPÉRATIONS PRÉALABLES
INFORMATIONS GÉNÉRALES

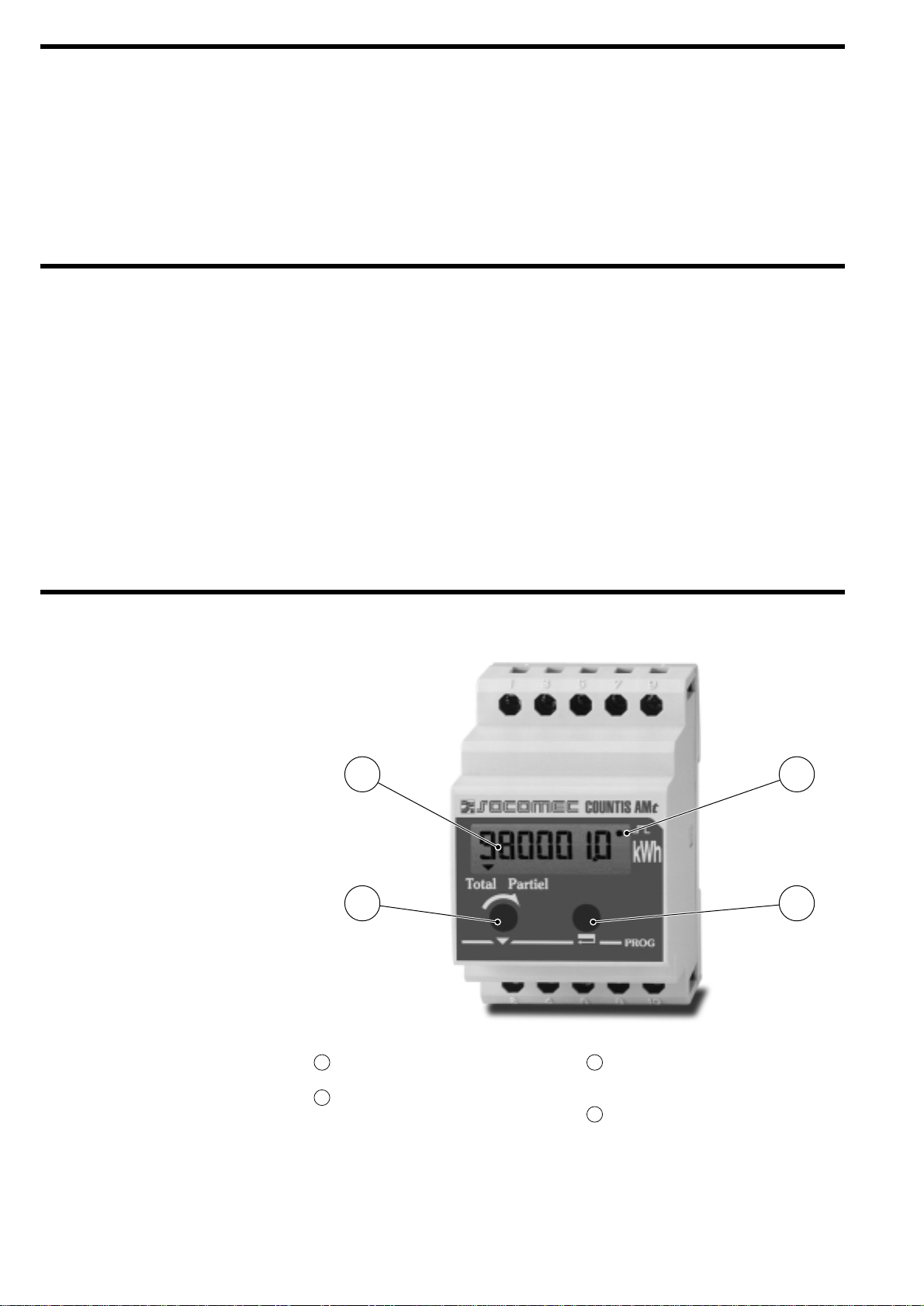

PRÉSENTATION
Ces produits sont entièrement confi-
gurable (TC jusqu’à 100 A (pour AMt)
et durée d’impulsions (de 60 à
900 ms)). En plus, ils mettent àdispo-
sition un compteur partiel que l’on
peut mettre àzéro dans le menu
configuration.
Nota :
L’accès à la configuration est limité à
la connaissance d’un code d’accès.
Le système Countis est composéde
plusieurs produits pour le comptage
d’énergie active. Parmi ces produits,
nous proposons 2 versions pour le
comptage sur des réseaux monopha-
sés:
•l’AMd, compteur d’énergie statique
avec une lecture directe en kWh et
une entrée courant directe jusqu’à
32 A,
•l’AMt, compteur d’énergie statique
avec une lecture directe en kWh et
une entrée courant sur un TC de 5 A.

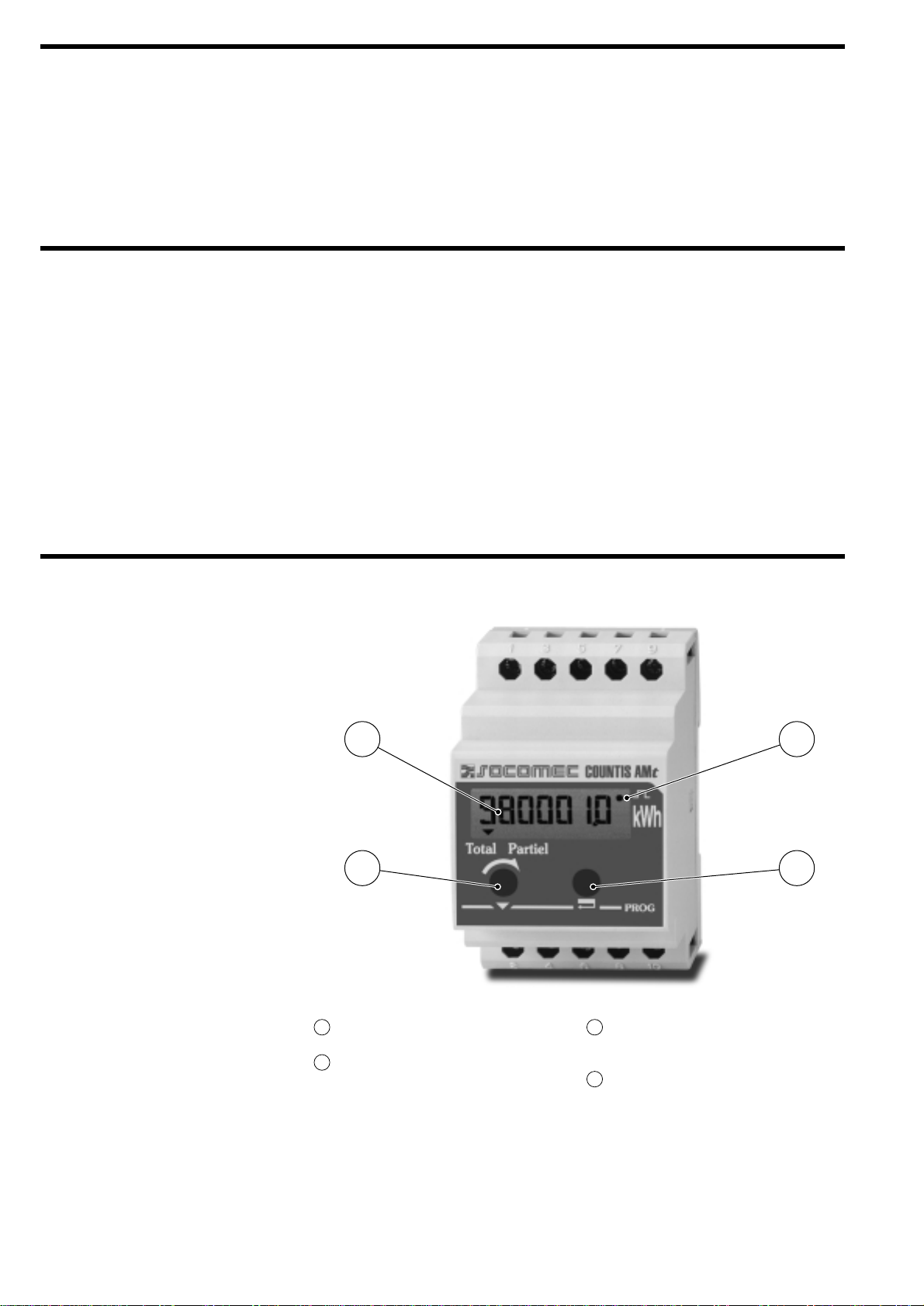

1 2
4 3
2
Affichage des kWh
Point lumineux pour l’indication
de la consommation
(10 Wh / impulsion)
Validation et défilement des
paramètres en programmation
Visualisation du compteur total
et du compteur partiel, ou
défilement des paramètres
en programmation.
1 3
4
COUNT 32A

SOCOMEC - Réf. : 875 090A 5
FRANÇAIS
INSTALLATION
ENVIRONNEMENT CLIMATIQUE
Pour garantir un fonctionnement opti-
mal, il est recommandéd’utiliser cet
appareil de - 5 °C à+ 45 °C avec
une
humiditérelative maximum de 85 %.
CONSIGNES DE SECURITE
Pour éviter toute détérioration de
l’appareil, il est nécessaire avant de
le raccorder, de veiller àrespecter :
•les indications sur le boîtier,
AMd AMt
RACCORDEMENT AU RESEAU
Nota :
L’AMd et l’AMt s’installent sur un rail
DIN EN 50022 (DIN 43880).
Recommandations :
Installer àune distance d’au moins
30 cm d’un appareil de coupure.
Eviter la proximitéavec des systèmes
générant des perturbations électro-
magnétiques et de soumettre les pro-
duits àdes vibrations comportant des
accélérations supérieures à1 G pour
des fréquences de 60 Hz.
Nota :
Lors d’un mauvais raccordement du
courant ou d’une mauvaise corres-
pondance courant/tension (energie
négative) le comptage est interrompu
et les flèches clignotent.
•la fréquence du réseau 50 ou 60 Hz,
•la tension de 230 V AC ± 20 %,
•le courant maximale de 32 A pour
l’AMd et de 7 A pour l’AMt.
N
13579
246810
L
L
N
N
13579
246810
L
Pour l’entrée courant :
•de 1 à25 A : 4 mm2minimum,
•de 25 à32 A : 6 mm2minimum.
Installer une protection par fusible am
32 A.
Installer une protection par fusible
500 mA.
COUNT 33A
COUNT 34A
RACCORDEMENT A LA SORTIE IMPULSION
Compteur externe
Alimentation externe
10
8
COUNT 35A

6SOCOMEC - Réf. : 875 090A
PROGRAMMATION
AMd
TOUCHES INSTRUCTIONS
Pendant environ 3 secondes pour
accéder àl’introduction du code
d’accés (CdE).
Pour introduire le code 167.
Pour valider le code et accéder àla
programmation du transformateur de
courant (ct) pour l’AMt ou directe-
ment àla durée d’impulsions (PLS)
pour l’AMd.
Pour sélectionner le primaire du ct
entre 25-40-50-60-75-100 A.
Pour valider la valeur et passer àla
durée d’impulsions (PLS).
Pour programmer la durée d’impul-
sions de 60 à900 ms.
Pour valider la valeur et passer àla
remise àzéro du comptage partiel
(rSET).
Pour sélectionner «YES»et remettre à
zéro ou «NO»dans le cas contraire.
Pour valider la remise àzéro et
revenir au ct (AMt) ou àPLS (AMd).
Pour quitter la programmation.
+
+
Nota :
Au bout de 25 secondes on quitte
automatiquement la programmation.
Nota :
Un appui permanent sur la touche
entraîne un défilement rapide et un
seul appui entraîne un défilement
point àpoint.

SOCOMEC - Réf. : 875 090A 7
FRANÇAIS
CARACTÉRISTIQUES TECHNIQUES
ENTRÉES
COURANT : AMd
En direct jusqu’à 32 A
Consommation de l’entrée : ≤2,5 VA àImax
Courant minimum mesuré: 100 mA
COURANT : AMt
A partir d’un transformateur de courant avec un :
•primaire configurable : 25, 40, 50, 60, 75 et 100 A
•secondaire non isolé:5A
Surcharge : 30 Imax pendant 10 ms
Surcharge : 20 Imax pendant 500 ms
Consommation de l’entrée : ≤1 VA àImax
Courant minimum mesuré: 15 mA
SORTIE IMPULSIONS
Relais reed (100 V DC - 0,5 A - 12 VA)
Durée d’impulsions : 60 à900 ms
Nombre de manœuvre maximum : 5 x 107à10 V DC / 10 mA
Poids d’impulsions fixe à100 Wh
PRÉCISION
Énergie active : CEI 1036 en classe 2
CONDITIONS D’UTILISATION
Température de fonctionnement : -5 à+45 °C
Température de stockage : -20 à+70 °C
Humiditérelative : 85 %
TENSION
Étendue de mesure : de 184 à276 V AC (90 à120 V AC sur demande)
Surcharge permanente : 289 V AC (phase / neutre)
Consommation : ≤15 VA
NORMES
Relative àla précision sur l’énergie active : CEI 1036 classe 2
Relative au marquage CE : CEI 1000-4-2/3-4-5-6-8-11
EN 50081-1
EN 50081-2
Relative aux conditions d’utilisation : CEI 68-2-11/30
Raccordement àpartir de bornes àcages de 1 à10 mm2
Poids : 300 gr
AFFICHEUR
BOÎTIER
LCD vert de 6 + 1 digit (999 999,9 kWh)
Taille des digits : 8 x 4 mm
Précision : +/- 1 digit
Indice de protection : IP40
Encombrement : 3 modules de 17,5 mm
Sous réserve des modifications techniques et de disponibilité
Nota :
L’appareil est auto-alimentéàpartir
de cette entrée tension

8SOCOMEC - Ref. : 875 090A
For personnel and product safety
please read the contents of these
operating instructions carefully.
Check the following points as soon
as you receive the package:
•the packing is in a good condition,
•the product has not been damaged
during transit,
•the product reference number con-
forms to your order,
•the package contains both the pro-
duct and the operating instructions.
PRELIMINARY OPERATIONS
GENERAL INFORMATION
PRESENTATION
These products are fully configurable
(CT up to 100A [for AMt] and pulse
duration [from 600 to 900ms]). They
also feature a partial meter, which
displays the kWh consumption since
the last reset occurred.
NB:
Entry to the configuration menu can
only be done via an access code.
The Countis system consists of seve-
ral products designed for active ener-
gy metering. Two versions are avai-
lable for metering on single-phase
networks:
•the AMd: static energy meter with
direct display in kWh and direct cur-
rent input up to 32A,
•the AMt: static energy meter with
direct display in kWh and current
input via a 5A current transformer
(CT).
1 2
4 3
2
kWh display
Flashing LED consumption
indicator (10Wh / pulse)
Validation / scrolling
of parameter settings
Total and partial meter display,
or scrolling parameter settings
1 3
4
COUNT 32A

SOCOMEC - Ref. : 875 090A 9
ENGLISH

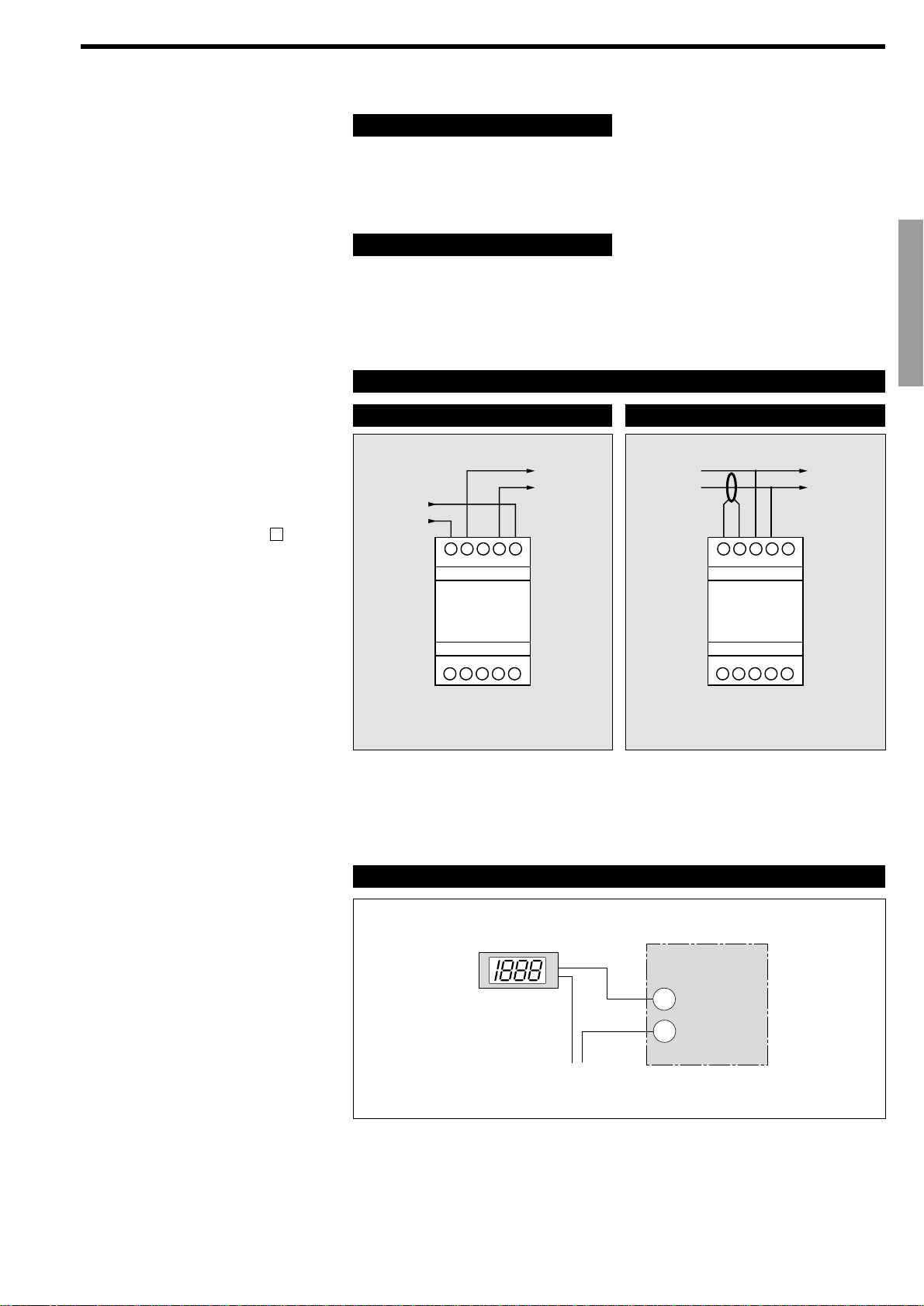

INSTALLATION
CLIMATIC ENVIRONMENT
For optimum operation this device
should be used within a temperature
range of -5°C up to 45°C with a
maximum relative humidity of 85 %.
SAFETY INSTRUCTIONS
To avoid damage to the device please
ensure the following points are res-
pected before connecting:
•case indications,
AMd AMt
CONNECTIONS TO THE NETWORK
•50 or 60Hz network,
•230V AC voltage +/- 20 %,
•32A and 7A maximum current for
the AMd and AMt respectively.
N
13579
246810
L
L
N
N
13579
246810
L
COUNT 33A
COUNT 34A
Note :
Both the AMd and AMt should be fitted
onto an EN 50022 DIN rail (DIN 43880).
Recommendations :
The device should be installed at least
30 cm from other switching devices.
Avoid installing near equipment liable
to cause electro-magnetic interference
or subjecting the device to vibrations
in excess of 1G with 60Hz frequencies.
For current input:
•from 1 to 25A: 4mm2minimum,
•from 25 to 32A: 6mm2minimum.
Install 32A-fuse protection.
Install 500mA-fuse protection.
CONNECTING PULSE OUTPUT
External counter
External supply
10
8
COUNT 35A GB
Note:
If the CT input connections are rever-
sed, or if the voltage and current
inputs do not correspond to the cor-
rect phases, energy metering is pre-
vented and flashing arrows are dis-
played.

10 SOCOMEC - Ref. : 875 090A
CONFIGURATION
AMd
KEY INSTRUCTION
For 3 seconds to access access-
code entry (CdE).
To enter code 167.
To accept code and access CT
configuration for the AMt, or directly
access pulse duration (PLS) for the
AMd.
To select CT primary between
25-40-50-60-75-100A.
To accept value and pass to pulse
duration (PLS).
To programme pulse duration from
60 to 900ms.
To accept value and pass to partial
meter zero reset (rSET).
To select «YES»and reset to zero
(or the contrary).
To accept zero reset and return
to CT (AMt) or PLS (AMd).
To quit programming.
+
+
Note :
The device will automatically leave
the configuration menu if no buttons
are pressed for a period of 25
seconds.
Note :
Press the button for a prolonged
period to scroll rapidly through the
configuration screens. Press for a
short period to scroll through each
screen one-by-one.

SOCOMEC - Ref. : 875 090A 11
ENGLISH
TECHNICAL CHARACTERISTICS
Connection: via 1 to 10mm2terminal shrouds
Weight: 300 g
FRONT PANEL
ENCLOSURE
Green LCD / 6 + 1 digits (999 999,9 kWh)
Digit height: 8mm x 4mm
Accuracy: +/- 1 digit
Protection index: IP 40
Size: 3 of 17.5 mm
INPUTS
CURRENT: AMd
Direct connection up to 32A
Input consumption: ≤2.5VA to Imax
Minimum measured current: 100 mA
CURRENT: AMt
Via transformer with:
•configurable primary: 25-40-50-60-75-100
•non-insulated secondary: 5A
Overload: 30 Imax for 10 ms
Overload: 20 Imax for 500ms
Input consumption: ≤1 VA to Imax
Minimum measured current: 15A
PULSE OUTPUT
Reed relay (100 V DC - O.5A - 12 VA)
Pulse duration: 60 to 900ms
Maximum tripping number: 5 x 107at 10V DC/10mA
Pulse output fixed at 100 Wh
ACCURACY
Active energy: IEC 1036 / Class 2
OPERATING CONDITIONS
Operating temperature: -5°C up to 45°C
Storage temperature: -20°C up to 70°C
Relative humidity: 85 %
VOLTAGE
Measurement range: from 184 to 276 V AC (90 to 120 V AC on request)
Permanent overload: 289 V AC (phase/neutral)
Consumption: ≤15 VA
STANDARDS
Active energy accuracy: IEC 1036 class 2
CE marking: EN 50081-2
EN 50082-2
IEC 1000-4-2/3-4-5-6-8-11
Operating conditions: IEC 68-2-11/30
Subject to the right to modify features
Note :
The device is self-supplied from the
voltage input.

12 SOCOMEC - Réf. : 875 090A
Für die Sicherheit von Personen und
Anlagen lesen Sie dieses Handbuch
aufmerksam durch, bevor das Gerät
in Betrieb genommen wird.
Bei Empfang des Gerätes mußfol-
gendes überprüft werden:
•Zustand der Verpackung,
•Sind Transportschäden zu melden?
•Entspricht der Packungsinhalt Ihrer
Bestellung?
•Die Verpackung enthält das Gerät
und eine Bedienungsanleitung.
VORAUSGEHENDE KONTROLLEN
ALLGEMEINE HINWEISE
PRODUKTDARSTELLUNG
Diese Produkte sind vollständig kon-
figurierbar (Stromwandler bis 100 A
für die Ausführung AMt und Impuls-
dauer von 60 bis 900 ms). Sie sind
außerdem mit einem Teilzähler aus-
gestattet, der im Konfigurationsmenü
zurückgestellt werden kann.
Anmerkung:
Ein Paßwort schützt die Konfigura-
tionsebene.
Das Countis-System besteht aus
mehreren Produkten für die
Wirk-energiezählung. Zwei dieser
Geräte sind Energiezähler für
Einphasennetze:
•Countis AMd: statischer Energie-
zähler mit direkter Ablesung in kWh
und einem direkten Stromeingang
bis 32 A.
•Countis AMt: statischer Energie-
zähler mit direkter Ablesung in kWh
und einem Stromeingang über 5A
Stromwandler.
1 2
4 3
2
Anzeige der kWh
Leuchtanzeige für die Energie
(10Wh/Impuls)
Bestätigung und Ablauf
der Konfigurationsparameter
Anzeige des gesamten Zählers
und des Teilzählers oder Ablauf
der Konfigurationsparameter.
1 3
4
COUNT 32A

SOCOMEC - Réf. : 875 090A 13
DEUTSCH
INSTALLATION
KLIMATISCHE BEDINGUNGEN
Eine Umgebungstemperatur von
–5°C bis +45°C und eine relative
Luftfeuchtigkeit von 85% sichern
einen optimalen Betrieb der Geräte.
SICHERHEITSANWEISUNGEN
Um jegliche Beschädigung des
Gerätes zu vermeiden, beachten Sie
bitte folgendes:
•die Angaben auf dem Gehäuse,
•die Netzfrequenz: 50 oder 60 Hz,
AMd AMt
NETZANSCHLUß
•die Versorgungsspannung: 230 VAC
± 20%,
•der Höchststrom: 32 A für die Aus-
führung AMd und 7 A für die Aus-
führung AMt.
N
13579
246810
L
L
N
N
13579
246810
L
COUNT 33A
COUNT 34A
Bemerkung :
Die Geräte AMd und AMt werden auf
einer DIN-Schiene befestigt (EN 50022,
DIN 43880).
Empfehlungen:
Installation der Geräte mit einen
Mindestabstand von 30 cm zu einem
Schaltgerät. Vermeiden Sie die Nähe
von Systemen, die elektromagneti-
sche Störungen erzeugen können.
Vermeiden Sie außerdem Schwingun-
gen mit Beschleunigungen von über
1G bei Frequenzen unter 60 Hz.
Stromeingang:
•von 1 bis 25 A: mindestens 4 mm2,
•von 25 bis 32 A: mindestens 6 mm2.
Einen Sicherungsschutz vorsehen:
gg-Sicherung 32 A.
Einen Sicherungsschutz vorsehen:
500 mA Sicherung
IMPULSAUSGANG
Externer Zähler
Externe Versorgung
10
8
COUNT 35A D
Bemerkung :
Im falle eines falschen stroman-
schlusses oder einem falschen
verhätnis von strom/spannhung
(negativleistung) hört die aufzählung
aunf und die pfeice blinken.

14 SOCOMEC - Réf. : 875 090A
KONFIGURATION
AMd
TASTE BEFEHL
ca. 3 Sekunden lang gedrückt
halten: Eingabe des Paßwortes (CdE).
Eingabe des Codes 167.
Bestätigung des Codes und Zugang
zur Konfigurationsebene des Strom-
wandlers für das Gerät AMt oder
Einstellung der Impulsdauer für das
Gerät AMd.
Einstellung der Primärseite des Strom-
wandlers: 25-40-50-50-75-100 A.
Bestätigung des eingestellten Wertes
und Zugang zur Konfigurationsebene
der Impulsdauer (PLS).
Einstellung der Impulsdauer (PLS) von
60 bis 900 ms.
Bestätigung des eingestellten Wertes
und Rückstellung des Teilzählers (rSET).
Die Rückstellung bestätigen «YES»
oder nicht «NO».
Die Rückstellung bestätigen und
Rückkehr zu den Ebenen Stromwandler
(AMt) oder Impulsdauer (AMd).
Die Konfigurationsebene verlassen.
+
+
Bemerkung :
Nach 25 Sekunden wird dieses
Verfahren automatisch beendet.
Bei ständigem Druck auf die Taste
erreichen Sie einen automatischen
Durchlauf der Menüpunkte. Einzelner
Tastendruck erlaubt ein schrittweis-
licher Durchlauf im Menü.

SOCOMEC - Réf. : 875 090A 15
DEUTSCH
TECHNISCHE DATEN
Anschluß: Käfigklemmen von 1 bis 10 mm2
Gewicht: 300 g.
VORDERSEITE
GEHÄUSE
LCD grün 6 + 1 digits (999 999,9 kWh)
Höhe der Anzeige: 8 mm x 4 mm
Genauigkeit: ± 1 Digit
Schutzgrad: IP 40
Maße: 3 module von 17,5 mm
EINGÄNGE
STROM: AMd
Direkt bis 32 A
Bedarf: ≤2,5 VA bei Imax
Gemessener Minimalstrom: 100 mA
STROM: AMt
Über Stromwandler:
•konfigurierbare Primärseite: 25-40-50-60-75-100
•unisolierte Sekundärseite: 5 A
Überlast: 30 Imax während 10 ms
Überlast: 20 Imax während 500 ms
Bedarf: ≤1 VA bei Imax
Gemessener Minimalstrom: 15 mA
IMPULSAUSGANG
Reed-Relais (100 VDC –0,5 A –12 VA)
Impulsdauer: 60 bis 900 ms
Max. Anzahl der Schaltspiele: 5 x 107bei 10 VDC/10 mA
Impulswertigkeit festgesetzt auf 100 Wh.
GENAUIGKEIT
Wirkenergie: IEC 1036 Klasse 2
BETRIEBSBEDINGUNGEN
Betriebstemperatur: -5 bis +45°C
Lagerungstemperatur: -20 bis +70°C
Relative Luftfeuchtigkeit: 85%
SPANNUNG
Meßbereich: von 184 bis 276 VAC (90 bis 120 VAC auf Anfrage)
Permanente Überlast: 289 VAC (Phase/Nulleiter)
Bedarf: ≤15 VA
NORMEN
Genauigkeit der Wirkenergie: IEC 1036 Klasse 2
CE-Markierung: EN 50081-2
EN 50082-2
IEC 1000-4-2/3-4-5-6-8-11
Betriebsbedingungen: IEC 68-2-11/30
Technische Änderungen und Verfügbarkeit der Geräte vorbehalten
Bemerkung :
Selbstversorgung des Gerätes
über diesen Spannungseingang.

16 SOCOMEC - Réf. : 875 090A
Voor de veiligheid van het personeel
en van het materiaal, is het nood-
zakelijk om deze gebruiksaanwijzing
grondig te lezen voor het in bedrijf
stellen.
Bij ontvangst van het pakket, dient u
de volgende punten te checken:
•is de verpakking in goede staat?
•werd het product niet beschadigd
tijdens het transport?
•stemt de referentie van het toestel
overeen met de bestelling?
•bevat het pakket zowel het product
als de gebruiksaanwijzing?
VOORAFGAANDE HANDELINGEN
ALGEMENE INFORMATIE
VOORSTELLING
Deze producten zijn volledig model-
leerbaar (CT tot 100 A [voor het AMt
systeem] en pulslengte [van 60 tot
900 ms]). Bovendien, wordt een par-
tiële meter ter beschikking gesteld
die in het configuratiemenu op nul
kan gezet worden.
Nota:
De toegang tot de configuratie be-
perkt zich tot een toegangscode.
Het Countis systeem bestaat uit ver-
schillende producten voor het meten
van het werkelijk vermogen. Onder
deze producten bieden wij u 2 versies
voor het meten in eenfase elektrici-
teitsnetten:
•Het AMd systeem: statische vermo-
gensmeter met rechtstreekse aflezing
in KWh en een directe aansluiting
tot een stroom van 32A;
•Het AMt systeem: statische vermo-
gensmeter met rechtstreeks aflezen
in KWh en een aansluiting op een
stroomtransformator (CT) met een
secundaire stroom van 5A.
1 2
4 3
2
Weergave van de KWh
Lichtindicatie om aan te geven
dat het apparaat in bedrijf is.
(10 Wu/impuls)
Opvragen en weergave van de
geprogrammeerde parameters
Visualiseren van de totale en
deelmetingen, of weergaven van
de geprogrammeerde parame-
ters.
1 3
4
COUNT 32A

SOCOMEC - Réf. : 875 090A 17
NEERLANDAIS
SOCOMEC - Réf. : 875 090A 17
INSTALLATIE
OMGEVINGSTEMPERATUUR
Om een optimale werking te garan-
deren, is het aan te raden dit toestel
te plaatsen in een omgeving van –5°C
tot 45°C met een relatieve vochtig-
heidsgraad van maximaal 85 %.
INSTRUCTIES M.B.T. DE VEILIGHEID
Om iedere beschadiging van het
toestel te voorkomen, moet u, vóór
installatie, de volgende punten in acht
nemen:
•de aanwijzingen volgen die vermeld
staan op de doos
AMd AMt
AANSLUITING OP HET NET
•frequentie van het net: 50 of 60 Hz
•spanning van 230 V AC +/- 20 %
•maximale stroom van 32A voor het
AMd systeem en 7A voor het AMt
systeem.
N
13579
246810
L
L
N
N
13579
246810
L
COUNT 33A
COUNT 34A
Nota:
De AMd en AMt systemen worden op
een DIN EN 50022 (DIN 43880) rail
gemonteerd.
Aanbevelingen:
Toestel op minstens 30 cm van een
onderbreker. Toestel niet in de nabij-
heid van systemen plaatsen die elek-
tromagnetische storingen kunnen
veroorzaken en de producten niet aan
trillingen blootstellen met versnellin-
gen hoger dan 1G voor 60 Hz fre-
quenties.
Voor toegang stroom:
•van 1 tot 25A: minimum 4 mm2,
•van 25 tot 32A: minimum 6 mm2.
Een bescherming installeren via
zekering am-32A.
Een bescherming aanbrengen via
500 mA.
AANSLUITING V/D IMPULS-UITGANG
Externe teller
Hulpuoeding
10
8
COUNT 35A NL
Nota:
Bij een verkeerde aansluiting van de
stroom of een foutieve overeen-
stemming tussen strom en spanning
(negatieve energie) wordt het tellen
onderbroken en knipperen de
pijltjes .

18 SOCOMEC - Réf. : 875 090A
PROGRAMMEREN
AMd
TOETS INSTRUCTIE
Ongeveer 3 seconden drukken om
toegang te krijgen tot de code (CdE).
Om code 167 in te voeren.
Om code te activeren en om toegang te
krijgen tot de stroomtransformator voor
het AMt systeem of rechtstreeks tot de
impulstijd (PLS) voor het AMd systeem.
Om de nominale stroomwaarde van de
primaire wikkeling te selecteren: keuze
25-40-50-60-75-100A.
Om de waarde te bevestigen en tot de
pulsduur over te gaan (PLS).
Om de pulsduur te programmeren van
60 tot 900 ms.
Om de waarde te activeren en de deel-
meting (rSET) weer op nul te zetten.
Om «YES»opnieuw te selecteren en
alles terug te resetten of «NO»in het
omgekeerde geval.
Om de terugkeer naar de nulstand te
activeren en terug te keren naar de
stroom (AMt) of PLS (AMd) -stand.
Om de programmeer-mode te verlaten.
+
+
Nota:
Na 25 seconden verlaat men de
programmeer-mode automatisch.
Nota :
Met eem éénmalige druk op de
knop kan u stapsgewijs door het
menu gaan. Als u de knop ingedrukt
houdt kan u het menu sneller
doorlapen.

SOCOMEC - Réf. : 875 090A 19
NEERLANDAIS
TECHNISCHE EIGENSCHAPPEN
Aansluiting: vanaf aansluitklem van 1 tot 10 mm2
Gewicht: 300 grs
VOORKANT
DOOS
Groen LCD scherm met 6+1 digits (999 999,9 kWh)
Hoogte v/d digit: 8mm X 4mm
Nauwkeurigheid: +/- 1 digit
Beschermingsfactor: IP 40
Afmetingen: 3 modules van 17,5 mm
TOEGANGSPUNTEN
STROOM: AMd
Directe aansluiting tot 32A
Verbruik van aansluiting: ≤2,5 VA tot Imax
Opgemeten minimumstroom: 100 mA
STROOM: AMt
Vanaf een transformator met een:
•instelbare nominale stroomwaarden van de primaire wikkeling: 25-40-50-60-75-100
•secundaire niet geïsoleerde wikkeling: 5A
Overbelasting: 30 Imax gedurende 10 ms
Overbelasting: 20 Imax gedurende 500 ms
Verbruik aansluiting: ≤1 VA tot Imax
Opgemeten minimumstroom: 15 mA
OUTPUT IMPULSEN
Relais reed (100 V DC –0,5 A –12 VA)
Impulsduur: 60 tot 900 ms
Aantal maximale handelingen: 5 X 107tot 10 V DC/10 mA
Gewicht vaste impulsen aan 100 Wh
NAUWKEURIGHEID
Actieve energie: CEI 1036 in klasse 2
GEBRUIKSVOORWAARDEN
Werkingstemperatuur: -5°C tot +45°C
Stokkeringstemperatuur: -20°C tot +70°C
Relatieve vochtigheidsgraad: 85 %
SPANNING
Metingen te verrichten: van 184 tot 276 V AC (90 tot 120 V AC op aanvraag)
Continue overbelasting: 289 V AC (faze / nul)
Verbruik: ≤15 VA
NORMEN
Met betrekking tot de nauwkeurigheid op de actieve energie: CEI 1036 klasse 2
Met betrekking tot de CE markering: EN 50081-2
EN 50082-2
CEI 1000-4-2/3-4-5-6-8-11
Met betrekking tot de gebruiksvoorwaarden: CEI 68-2-11/30
Onder voorbehaud van technische wijzigingen en beschikbaarheid
Nota:
Het toestel wordt zelf gevoed vanaf
deze aansluiting.

20 SOCOMEC - Réf. : 875 090A
Para seguridad del personal y del
material, es indispensable conocer
perfectamente el contenido de estas
instrucciones antes de la puesta en
marcha.
Al recibir el producto, es necesario
verificar los puntos siguientes :
•Que el paquete estáen buen estado;
•Que el producto no ha sufrido daños
durante el transporte ;
•Que la referencia del aparato cor-
responde con la del pedido ;
•Que el embalaje contiene el pro-
ducto asícomo las instrucciones de
servicio.
OPERACIONES PREVIAS
INFORMACIONES GENERALES
PRESENTACION
Estos productos son completamente
configurables (TC hasta 100 A [para
el AMt] y duración de impulso [de 60
a 900 ms]). Además, disponen de un
contador parcial que es posible poner
a cero en el menúde configuración.
Nota :
Para acceder a la configuración es
necesario conocer el código de acce-
so.
El sistema Countis se compone de
varios productos para el registro de la
energía activa.
Entre estos productos proponemos
2 versiones para el registro en redes
monofásicas :
•El AMd : contador de energía está-
tica con lectura directa en kWh y
una entrada de corriente directa
hasta 32 A ;
•El AMt : contador de energía estáti-
ca con lectura directa en kWh y una
entrada de corriente sobre un TC
de 5 A.
1 2
4 3
2
Indicación de los kWh
Punto luminoso para indicación
del consumo (10 Wh/impulsión)
Validación y deslizamiento de los
parámetros en el programa
Visualización del contador total
y del contador parcial, o desliza-
miento de los parámetros en el
programa.
1 3
4
COUNT 32A
This manual suits for next models
1
Table of contents
Languages:
Other socomec Protection Device manuals
Popular Protection Device manuals by other brands

Chamberlain
Chamberlain CPS-OPEN4 manual

Max-Air Systems
Max-Air Systems ME G Series Installation, operation and maintenance instructions

GE
GE MiCOM P40 Agile Technical manual

Intermatic
Intermatic AG48013 installation instructions

SYR
SYR SYR-Safe-T Instructions of use

Nivus
Nivus 220-Tr operating instructions

Hypercom
Hypercom ICE 4000 installation guide

FireFlex Systems Inc.
FireFlex Systems Inc. N2 BLAST Owner's operation & maintenance manual

ELCOS
ELCOS DIP-804/00 Instruction and user's manual

dehn
dehn DEHNcare APS Series User information

ABB
ABB REG650 ANSI Technical manual

Vestil
Vestil SBGD Series instruction manual
