Bushnell 119432CW User manual

Digital Trail Camera
w/Night Vision
Instruction Manual
04-14
Model#: 119422CW / 119432CW
119432CW
119422CW

Page Index
Introduction 5
Parts & Controls Guide 6-7
Battery and SD Card Installation 8
About the Setup Menu 9
Using the Setup Menu 9
SETUP MENU REFERENCE TABLE 10-12
Camera Operation 13
Mount the Camera 13
Power on the Camera 13
Test the Coverage Area 14
Secure the Camera 14
Viewing the Photos and Videos 15
Glossary 16
Technical Specications 17
Troubleshooting/FAQ 18-21

4
IMPORTANT NOTE
Congratulations on your purchase of one of the best Trail Cameras on the
market! Bushnell is very proud of this camera and we are sure you will be
pleased with it as well. We appreciate your business and want to earn your
trust. Please refer to the notes below and the instructions in this manual
to ensure that you are completely satised with this product.
If your Bushnell Trail Cam does not seem to be functioning properly
or if you are having photo/video quality issues, please check the
Troubleshooting/FAQ section on pages 18-21.
Problems are often due to something simple that was overlooked, or
require only changing one setting to solve.
If your problem continues after trying the solutions in the
Troubleshooting/FAQ section, please call Bushnell Customer Service
at [phone]. In Canada, call [phone].
Bushnell recommends using 4 Energizer® Lithium AA batteries in this
Trail Cam to obtain maximum battery life.
Do Not Mix Old and New Batteries
Do not mix battery types-use ALL lithium or ALL alkaline.
Rechargeable batteries are not recommended.
Bushnell recommends using SanDisk® SD and SDHC Cards
(up to 32GB capacity) in this Trail Cam.

5
INTRODUCTION
Congratulations on your purchase of the Bushnell 119422CW/119432CW
Digital Trail Camera. This camera is designed to record human or animal
activity in the outdoors with its still image and movie modes and
weatherproof, rugged construction. Your Trail Cam features a compact,
portable size and an extra long battery life.
Main Features:
• 5.0 MP digital sensor (up to 7MP images via interpolation)
• Compact Size (120mm*94mm*46mm)
• Long Battery Life (Up to 6 months)
• Trigger Time=1.0 second
• Automatic IR Filter
• LCD Display
• 18 Night Vision LEDs
• Adjustable Photo Delay: 5~ 59 second ,1~ 10mins (default 10S)
• Multiple Shot Mode (3 images per trigger)
• 640*480 at 30 FPS Videos
• Supports up to 32 GB SD Card
• Date, Time & Moon Phase Imprint
• Auto Exposure
• Auto White Balance
• Power Supply: 4 AA batteries (lithium or alkaline)
• Mounting Socket (1/4”-20) for Standard Tripods
• Weatherproof
• Brown (#119432CW) or Camo (#119422CW) exterior face
• Overwrite (Duty) option (user selectable) allows new photos/videos
to begin replacing oldest les when SD card is at max. storage
capacity, so recording will continue without interruption.

6
Parts and Controls Guide
Front of Camera
Camera
Lens
PIR Motion
Sensor
Tripod
Socket
Padlock
Hole
IR LED Array Detail
Light
Sensor
PIR
Indicator
(Setup
Mode
Only
Infrared
LED Array

7

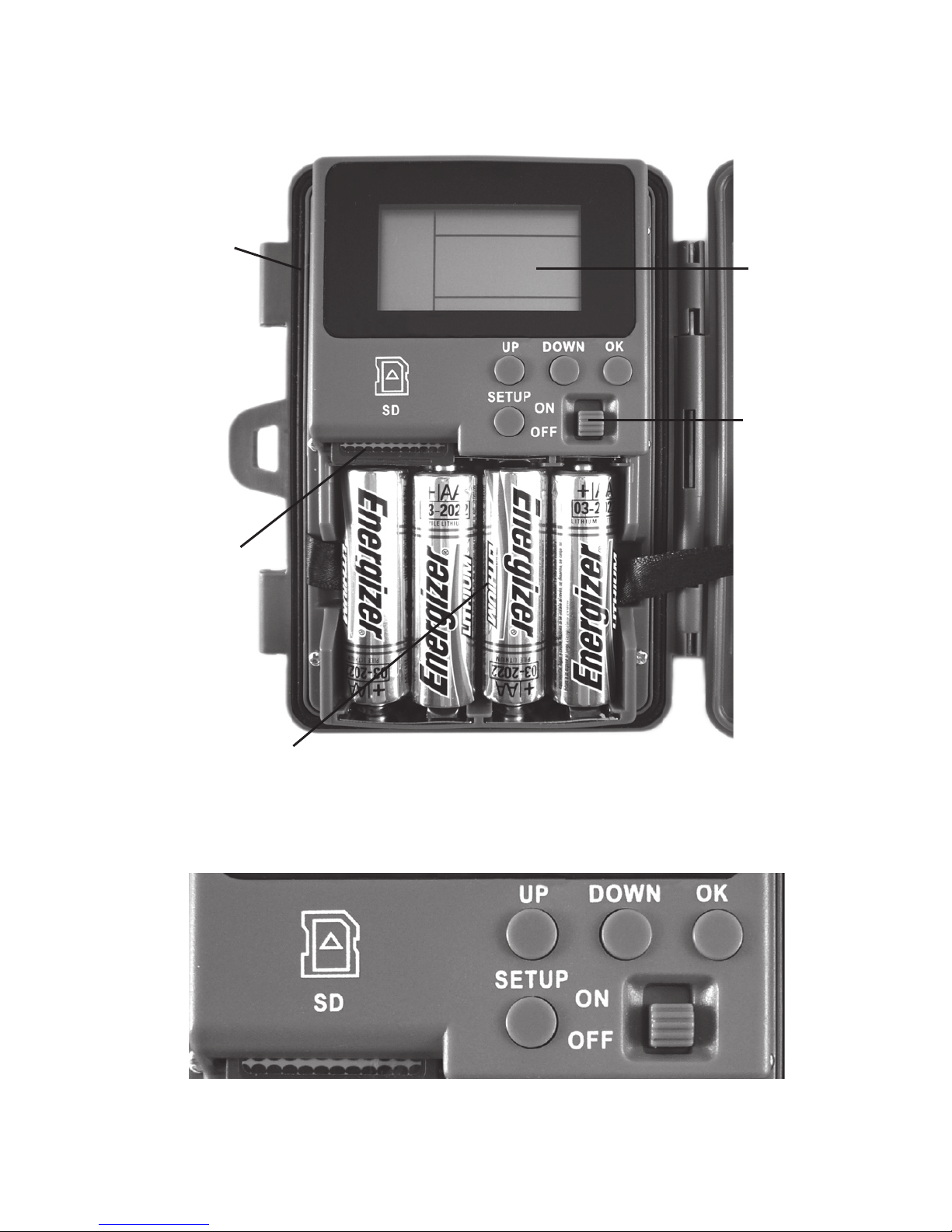

Control Panel Detail
Parts and Controls Guide
Control Panel
(Front Unlatched & Opened)
Power
Switch
USB Port LCD
Display
SD Card
Slot
Battery
Compartment

8
BATTERY and SD CARD INSTALLATION
The Bushnell 119422CW/119432CW Digital Trail Camera is designed to
operate using 4 AA batteries. We recommend using Lithium (for longest
life) or Alkaline Energizer® batteries.
NOTE: Always set the power switch to the OFF position when installing or
removing batteries.
Please make sure the batteries are inserted correctly, as indicated inside
the battery compartment. Incorrect voltage or polarity (+/-) will damage
the camera.
Do not mix old and new batteries.
Do not mix battery types-use ALL lithium or ALL alkaline.
Rechargeable batteries are not recommended.
Memory
Your 119422CW/119432CW Digital Trail Camera has a memory card slot,
to accept SD cards up to 32GB max. capacity (sold separately).
Inserting an SD card
• Make sure the power switch is in the OFF position whenever adding
or removing memory.
• Insert an SD card into the card slot completely and oriented correctly
as shown by the icon above the slot (label up, contacts facing down
and notched corner on the right).
• To remove the SD memory card, depress the SD card and pull out
the card gently.
Using a new, blank SD card is recommended. If the SD card has been used
in another device, please make sure to format using the Format option
in the Trail Camera’s Setup menu before you set the camera to capture
photos/videos. New cards are ready to use straight from the package.

9
ABOUT THE SETUP MENU
Slide the power switch to the On position.You’ll see“WAIT”on the display,
then the setup menu screen. Before you start using the camera, you’ll no
doubt want to set the date/time so they are imprinted correctly on your
photos, and maybe change the trigger delay time and image resolution
to your preferences. This is done by editing the settings of an item listed
in the Setup Menu.
To enter the Setup Menu at any time, press the SETUP button (to left of
the power switch).
USING THE SETUP MENU
The Setup Menu has 6 dierent items (see pgs. 10-12), which appear on a
list in the left frame of the display. Here’s how to edit (change) the setting
of a menu item:
1. Select the menu item you want to edit by pressing the UP or DOWN
button until the item is blinking. Note: you can see the current/
default setting for each item (without changing it) in the main center
frame as you move up and down the list of items.
2. Press the OK button.
3. You can now select the setting you prefer for the selected item by
pressing the UP or DOWN button. The setting displayed in the
center frame will blink until you press OK to conrm it is the setting
you want to save.
4. To exit the Setup menu at any time, simply press the Setup button.
SETUP MENU DISPLAY
SELECTED
MENU
ITEM
CURRENT
SETTING OF
SELECTED ITEM
Indicates Photo (1P or 3P) or Movie Mode
Battery Level

10
Menu Item Settings
(Bold=default)
Description
Date set year, month,
and day
Press OK and use the UP/DOWN
keys to change the year setting,
then press OK again and repeat
these steps to also set the current
month and day. Press OK after
setting the day to go to the next
menu item (setting Time).
Time set hour and
minute
Press OK and use the UP/DOWN
keys (to change the setting) then
OK again ( to move to the next
eld) to set the current hour (24-
hr format only, “00”=midnight,
“12”=noon) and minute.
Delay set minutes (0-
10) or seconds
(5-59)
Default delay
time= 5 sec.
Selects the length of time that
the camera will “wait” until it
responds to any additional
triggers from the PIR after an
animal is rst detected and
remains within the sensor’s
range. During this user set
“ignore triggers”interval, the
camera will not capture photos/
videos. This prevents the card
from lling up with too many
redundant images. Settings
begin with 10 second default
time. Press OK, set the delay time
in minutes (if desired), press OK
and set the delay in seconds.
The following table lists all of the menu items, their available settings,
and a description of their functions:

11
Menu Item Settings
(Bold=default)
Description
Mode 5M, 7M (with
Mode set to
1P or 3P for
photos),
5-60 Sec (in
Movie (video)
mode)
Select “Mode”and press OK. Use
UP/DOWN to select 1P (single
photo), 3P (burst of 3 photos), or
Movie (video mode). Press OK.
Use UP/DOWN to set LO (5MP)
or HI (7MP) still photo resolution
(High resolution provides higher
quality photos, low resolution
allows you to store more photos
on the SD card), or video length
from 5-60 sec. (if video mode was
selected).
Format FO/NO,
Y/N
Deletes (erases) all les stored
on a card to prepare it for reuse.
Always format a card that has
been previously used in other
devices. Caution! Make sure you
have downloaded and backed
up any les on the card that you
want to preserve rst! Press UP to
select “FO”, press OK, then select
“Y” (Yes) and press OK again to
conrm you want to format the
card. The extra step and “No”
defaults help prevent accidental
erasure of all your photos/videos.

12
Menu Item Settings
(Bold=default)
Description
Duty
(this sets the
“Overwrite”
feature)
Y/N
(NOTE: setting to “Y”
not recommended
when using SD cards
of 16GB or higher
capacity)
Press DOWN after Format to
select “Duty”. Setting window
reads “OVR”. Press OK. Select
“Y” (Yes) if you want the oldest
photos/videos to be replaced by
new images once the SD card is
full. Select “N”(No), and recording
will stop when the card is full.
Press OK.
When you’ve nished using the Setup Menu, and are ready to return the
camera to normal operating mode, so it will begin to capture photos or
videos for you, simply press the Setup button. After you exit the Setup
Menu, the display will go blank and the camera is in “sleep” mode. About
30 seconds later, the camera will begin taking photos or videos when
triggered, at intervals determined by the trigger delay time setting.

13
CAMERA OPERATION
Once your camera has been setup, you are ready to begin using it to
capture photos of activity in the area you choose to locate it. Just follow
these steps:
1. Mount the Camera
It is recommended that you mount the camera about 4 or 5 feet (1.2~1.5
meters) o the ground, with the camera pointed at a slight downward
angle. It’s best to avoid mounting the camera facing east or west as the
rising and setting of the sun could produce false triggers and overexposed
images. Clear branches and other debris away from the front of the
camera so as not to block the camera lens or PIR sensor.
Make sure that both door latches are securely locked in place, to ensure
proper weather resistance.
2. Power On the Camera
The camera will be in “sleep” status after it has been powered on. When
the PIR sensor is triggered, it will start to take photos immediately after
the delay time (as set) has passed.
3. Test the Coverage Area
One of 119422CW/119432CW Trail Camera’s most useful features is the
ability to test the coverage area.
• After mounting the camera, open the front housing and slide
the Power switch to the “ON” position. Press the SETUP button if
necessary to enter the Setup Menu.
• The PIR indicator light below the lens will blink when you have
entered the coverage area.
• Adjust the camera position as needed and repeat the test until the
desired coverage area is achieved.
• Press the SETUP button again when you are nished using the test

14
mode-the camera will be“sleeping”and waiting for the PIR sensor to
trigger the rst photo or video capture.
4. Secure the Camera
A standard padlock may be used in the camera’s lock hole to secure it and
prevent theft.
CAMERA OPERATION (continued)

15
VIEWING THE PHOTOS and VIDEOS
After your camera has been operating for awhile, you will of course want
to review the photos and/or videos it has been capturing. This can be
done by either of two methods, according to your preference or the
availability of accessory equipment:
Using an SD Card Reader
Push the SD card in slightly to release it then pull it out gently.
Put the SD card into any of the widely available SD card readers (either
a dedicated SD card reader or “multi-card reader” that features slots for
several dierent memory cards, including SD cards.
Follow the card reader supplier’s directions to view or download the
photo and/or video les on the SD card.
Connecting the Camera to Your Computer via USB
Slide the Power switch to the“ON”position, then press the SETUP button.
Connect your camera’s USB port (left side near the display with camera
unlatched and open) to a PC or Mac computer with a USB cable (not
included, available at most electronics/computer retailers) that has a
“Mini-B” USB plug on one end (camera) and a “Standard-A” USB plug
at the other end (computer). The PC will recognize the camera as an
external storage device, using the “USB Mass Storage” standard (no driver
installation necessary-not compatible with Windows 98 or earlier). The
PC will display a new disk symbol under “My Computer” or in Windows
Explorer (Macs-new disk appears on the desktop), and you will see a dialog
window on your desktop with several options to view, move, or copy the
photo and video les that are stored on the SD card. The camera’s LCD
will display “STO”, meaning the camera is in mass storage mode.

16
PIR (Passive Infrared Sensor): Senses motion like a typical security motion
detector. Requires infrared energy (heat) in addition to motion to trigger
the sensor to help limit detection to live subjects (rather than leaves, etc).
Camera Delay: Time elapsed between photos while events are sensed
and recorded. You should set this based on wildlife activity in the area.
Moon Phase: The Trail Cam has a feature which imprints a moon phase
stamp on each photo for reference.
IR Flash: Also called IR LED Array. This is a “night vision” feature, which
emits a burst of infrared light, invisible to the human eye. Especially
useful for night photos when a visible ash may be undesirable.
Battery Life: Time that camera will function in the eld. Dependent on
ambient temperature, number of images taken and number of times the
IR ash res. When the battery voltage drops below 4.5v, the IR ash stops
ring. When battery voltage is below 3.8v, the camera stops working.
Burst: The number of pictures the camera takes per PIR trigger (still
photo capture mode only).
1P: Single image captured for each PIR trigger
3P: Three image sequence captured for each PIR trigger
FULL: When memory capacity is full, the LCD display indicates“FULL”
Mass Storage: Connect the camera with a USB cable to a computer,
press the “SETUP” button, and the computer can access the contents of
the SD card. The camera is automatically recognized as an“external drive”,
without the need to install special drivers. (Win 98 and older operating
systems are not supported. Mac OSX is also compatible-the camera will
appear on your desktop as an external storage device or “disk”).
GLOSSARY

17
Technical Specications
Model Number 119422CW/119432CW
Image Sensor Type 1/2.5 inch CMOS
Eective Resolution 5.0 Megapixels (sensor resolution)
Eective Focal Length 7.6 mm
Lens Aperture f/2.8
IR Filter Automatic IR Filter
Display LCD (monochrome, text/graphics only)
PIR Sensor Yes
Trigger Speed 1.0 second
Number of IR LED 18 LEDs
Max Night Vision Lighting Distance 40 feet (12 meters)
Storage SD Card, up to 32 GB Capacity
PIR Indicator Yes (Setup mode only)
Adjustable Delay Time Range 5~ 59 second, 1~ 10mins (default 10S)
Selectable Image Resolution 5 or 7* MP (*7MP via software interpolation)
Multiple Image Mode Yes-3 photos
Video Resolution Movie: AVI 640 x 480 pixels @ 30 fps (15
seconds).
File Format (Still Photo/Video) JPEG/AVI
Date Time Imprint Yes
Moon Phase Imprint Yes
Exposure Auto
White Balance Mode Auto
Power Supply 4 AA Cell batteries (alkaline or lithium)
Water Resistant Yes
Do not mix old and new batteries.
Do not mix battery types-use ALL lithium or ALL alkaline.
Rechargeable batteries are not recommended.

18
Battery life is shorter than expected
1. Battery life will vary with operating temperature and the number
of images taken over time. Typically, the Trail Cam will be able to
capture several thousand images before the batteries die.
2. Check to make sure you have used new alkaline or lithium
batteries. Bushnell recommends using 4 Energizer® Lithium AA
batteries in this Trail Cam to obtain maximum battery life.
3. Make sure that the power switch was turned to the“ON”position
and that the camera was not left in Setup mode while in the eld.
4. Make sure that you are using a good quality name brand SD
card in your camera. Bushnell recommends SanDisk® brand SD
Cards up to 32GB. Our experience indicates that poor quality SD
cards can sometimes reduce your Trail Cam battery life.
Camera stops taking images or won’t take images
1. Please make sure that the SD card is not full. If the card is full, the
camera will stop taking images.
2. Check the batteries to make sure that they are new alkaline or
lithium AA batteries. See note above about short battery life.
3. Make sure that the camera power switch is in the “ON” position
and not in the “OFF” position or in Setup mode.
4. Make sure that you are using a good quality SD card in your
camera. Bushnell recommends SanDisk® SD Cards up to 32GB.
5. If the SD card has its write protect switch in the lock position, the
camera will not take images.
6. If you have used an SD card in another device before inserting
it in your Trail Cam, you might want to try formatting the card
using the “Format” parameter in Setup mode (make sure you
have backed up any important les rst, as formatting will erase
all previous les). In some cases, other devices may change the
formatting of the SD card so that it will not work properly with
the Trail Cam.

Troubleshooting / FAQ

19
Camera won’t power up
1. Make sure that you have installed all 4 batteries in the battery
compartment. Bushnell recommends using 4 Energizer®
Lithium AA batteries in this Trail Cam.
2. Make sure that the batteries are installed correctly, observing
proper polarity. Always place the negative (at) end of each
battery in contact with the spring tab side of its slot inside the
camera.
Still Photo and/or Video Quality Problems
1. Night photos or videos appear too dark
a. Try using a set of new batteries. The ash will stop operating
near the end of the battery life.
b. You will get the best results when the subject is within the
ideal ash range, no farther than 30’ (10m) from the camera.
Subjects may appear too dark at greater distances.
c. Please note that when the still photo mode is set to“3P”, or with
very short Delay time settings, some images may appear darker
than others due to the quick response and rapid retriggering
of the camera, allowing less time for the ash to fully recharge
before ring again.
2. Daytime photos or videos appear too dark
a. Make sure that the camera is not aimed at the sun or other
light sources during the day, as this may cause the auto exposure
to produce darker results.
3. Night photos or videos appear too bright
a. You will get the best results when the subject is within the
ideal ash range, no closer than 10’ (3m) from the camera.
Subjects may appear too light at closer distances.
4. Daytime photos or videos appear too bright
a. Make sure that the camera is not aimed at the sun or other
light sources during the day.
Troubleshooting / FAQ
Do not mix old and new batteries.
Do not mix battery types-use ALL lithium or ALL alkaline.
Rechargeable batteries are not recommended.

20
5. Photos with streaked subject
a. In some cases with low lighting conditions and fast moving
subjects, the default 7MP resolution setting (“HI”) may not
perform as well as the 5MP setting (“Lo”).
b. If you have multiple images where fast moving subjects
produce streaks on the photo, try the 5MP setting instead.
6. Red , green or blue color cast
a. Under certain lighting conditions, the sensor can become
confused resulting in poor color images.
b. If this is seen on a consistent basis, then the sensor may need
servicing. Please contact Bushnell customer service.
7. Short video clips—not recording to the length set
a. Check to make sure that the SD card is not full.
b. Make sure that the camera has good batteries in it. Near the
end of the battery life, the camera may choose to record shorter
video clips to conserve power.
Photos Do Not Capture Subject of Interest
1. Try to set your camera up in an area where there is not a heat
source in the camera’s line of sight.
2. In some cases, setting the camera near water will make the
camera take images with no subject in them. Try aiming the
camera over ground.
3. Try to avoid setting the camera up on small trees that are prone
to being moved by strong winds.
4. Remove any limbs which are right in front of the camera lens.
PIR Sensor LED Flashes/Doesn’t Flash
1. When the camera is in the “Setup” mode, the PIR Indicator LED
on the front of the camera will ash when it senses motion. This
is for setup purposes only and will help the user aim the camera.
2. During use, the LED will not ash when the camera takes an
image. This is to help keep the camera hidden from game.
Troubleshooting / FAQ
