BUTURE JR500 User manual
USER MANUAL
BUTURE JR500 Stick Vacuum Cleaner
[Read this user manual carefully before rst use. Keep this manual for
further guidance in case]
5EN
INTRODUCTION
WARNING
Personal Safety
Electrical Safety
Thank you for purchasing the BUTURE JR500 stick vacuum cleaner.
Please read the user manual carefully before using the product and take
safety protection measures to avoid malfunctions caused by accidental
operation. If the product is given to another person, please make sure to
also include this user manual.
The product provides a free 2-year warranty by default. To extend the
warranty to 3 years, please activated the warranty card in time!
01. Store it indoors in a dry place and out of the reach of children.
02. This product is suitable for children 10 years old and above. Users with
reduced physical functions, sensory or intellectual abilities, or lack
of experience and knowledge are advised to use the product safely
supervision or guidance and to be aware of the hazards involved.
03. Please pay attention to safety when children or pets near the vacuum
cleaner.
04. Children should not clean or use the product without supervision.
05. Use only manufacturer’s recommended attachments as described in
this manual; misuse or use of any accessory or attachment other than
those recommended may present a risk of personal injury.
06. Take extra care when cleaning stairs.
07. Keep the appliance and accessories away from the hot surface.
08. Do not block the appliances’ openings or hinder airow, keep openings
free of any objects including dust, lint, clothing, ngers (and all parts of
the body).
01. Only use batteries and chargers supplied by the manufacturer.
02. Never modify the charger in any way.
03. Do not pull the cord to disconnect it from a socket, grasp the plug and
6EN
Battery Safety
01. This appliance includes Li-ion batteries, do not incinerate batteries or
expose them to high temperatures, as they may explode.
02. Liquid ejected from the battery may cause irritation or burns.
03. In an emergency contact professional help immediately.
04. Leaks from the battery cells can occur under extreme conditions. Do
not touch any liquid that leaks from the battery. If the liquid gets on
the skin, wash immediately with soap and water. If the liquid gets into
the eyes, ush them immediately with clean water for a minimum of 10
minutes and seek medical attention. Wear gloves to handle the battery
and dispose of it immediately in accordance with local regulations.
05. When the battery pack is not in use, keep it away from paper clips,
coins, keys, nails, screws, or other small metal objects that could make
a connection from one terminal to another.
06. When you dispose of the appliance remove the battery and dispose of
the battery safely in accordance with local regulations.
pull to disconnect it.
04. Keep the charger cord away from hot surfaces and sharp edges.
05. The supply cord cannot be replaced. If the cord is damaged the charger
should be discarded and replaced.
06. Do not handle the charger or the appliance with wet hands.
07. Do not store, or charge the appliance outdoors.
08. The charger must be removed from the socket before removing the
battery, cleaning, or maintaining the appliance.
7EN
CONTENT OF PACKAGE
Please check and confirm the accessories and parts according to the
following sheet before using. If any parts are missing or damaged, please
contact customer service in time.
Part Name Quantity
Main Body 1
Battery Pack 1
Charger 1
Telescopic Aluminum Alloy Tube 1
Electric Brush Head 1
Hard And Soft Bristle Integrated Brush (Installed) 1
Crevice Nozzle 1
Soft Bristle Brush 1
Filter Cleaning Brush Tool 1
Hepa Filter 2
Air Filter (Installed) 1
Screws (Used to install wall mount stand) 4
Wall Mount Stand 1
User Manual 1
8EN
KNOW YOUR PRODUCT
⑳Charger
⑧Telescopic Tube
⑤Dust Cup
⑪Handle Unit
⑫Battery Release Button
⑬Battery
⑭Length Adjustment Button
⑨Floor Brush Release Button
⑩Electric Brush Head
⑲Hard And Soft Bristle Integrated
Brush (Installed)
①ON/OFF Button
②Suction Adjustment Button
③LED Indicators
⑥Dust Cup Cover Release
Button
④Dust Cup Release Button
⑦Tube Release Button
⑮Crevice Nozzle ⑯Soft Bristle Brush
⑰Small Cleaning
Brush
⑱Wall Mount
Stand
9EN
Number Name Introduction
①ON/OFF Button Turn on/off the vacuum cleaner
②Suction Adjustment Button To change suction power
③LED Indicators
The color of the indicator light represents the
suction level: Lowest level (white) - Mid level
(light blue) - Highest level (blue)
The number of indicator lights represents the
battery power
④Dust Cup Release Button To separate the dust cup from the main body
⑤Dust Cup /
⑥Dust Cup Cover Release
Button To release dust cup cover
⑦Tube Release Button To separate the telescopic tube from the main
body
⑧Telescopic Tube Could be adjusted the length according to
different needs
⑨Floor Brush Release Button To separate the oor brush from the telescopic
tube
⑩Electric Brush Head /
⑪Handle Unit /
⑫Battery Release Button To separate the battery from the handle
⑬Battery /
⑭Length Adjustment Button Press down to adjust the length of telescopic
tube
⑮Crevice Nozzle Remove dust in hard-to-reach area, such as
window gaps, bottom of beds, sofa crevice,
drawers, etc.
⑯Soft Bristle Brush Clean the surfaces of soft materials, such as
sofas, beds, curtains, fabrics, etc.
⑰Small Cleaning Brush Sweep away the dust on brushes and dust cup
⑱Wall Mount Stand Installed on the wall for easy storage of the
vacuum cleaner
⑲Hard And Soft Bristle
Integrated Brush
(Installed)
Used on hard or soft surfaces, such as wood
oors, cement oors, carpets, and sofas
⑳Charger Battery charging adapter
10EN
CHARGING
Turn off the power before charging.
Only charge with the original charger to avoid damage to the vacuum
cleaner. Please conrm the vacuum is fully charged before using.
To ensure the normal operation of the product, charge the battery for more
than 5 hours before rst use.
• The battery is installed on the vacuum cleaner. Plug the power adapter to
charge.
• The battery could be charged separately without installing it in the
vacuum cleaner. Plug the power adapter to charge.
1. Two charging ways:
2. While charging, the three LED Indicators keep ashing until
the battery is fully charged.
3. When the battery is fully charged, the three LED Indicators
will turn off after about 15 seconds.
Attention:
When the ON/OFF Button is pressed, the vacuum cleaner does not run
and just one of the three LED indicators is ashing, the battery needs to
be charged.
11 EN
ASSEMBLING
1. Install the Dust Cup
2. Install the Battery
3. Connect the Telescopic Tube
Align the buckle and press down. A click can be heard when installed in
place.
Insert the battery pack into the notch under the handle of the vacuum
cleaner. A click can be heard when installed in place.
Insert the telescopic tube into the main body and make sure it is secure.
Press the release button, the telescopic tube can be removed.
Ka da
Ka da
Ka da
Ka da
12EN

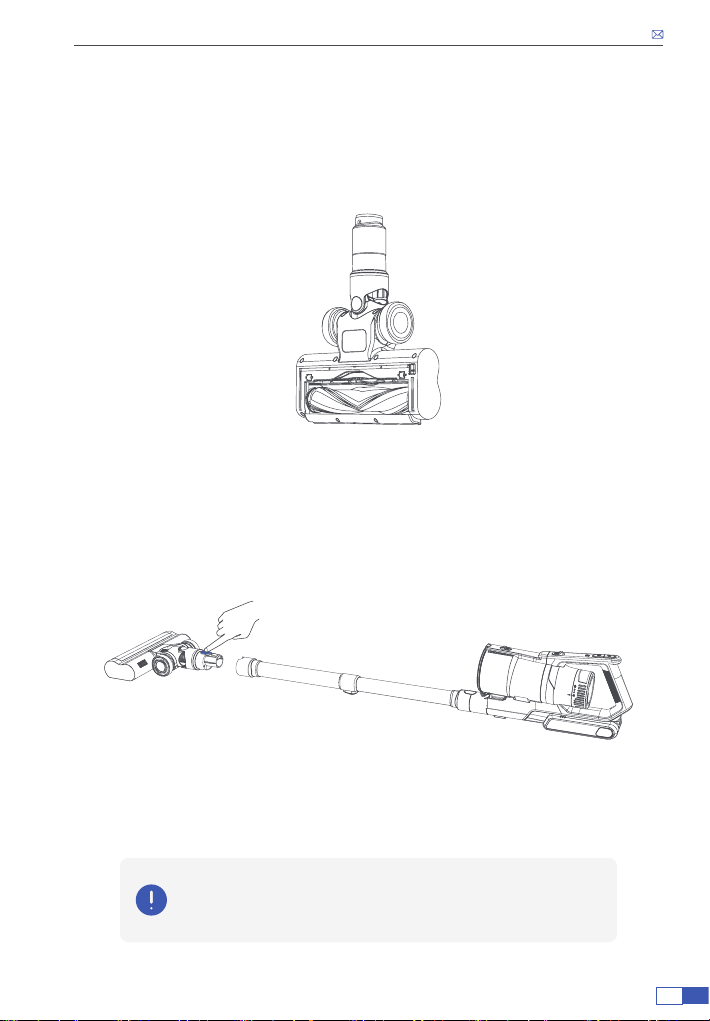

4. Connect Clean Heads
• To clean sofas and beds, the clean head can be assembled directly with
the main body without the telescopic tube.
• To clean floors, stairs and high places, it’s suggested to connect with
telescopic tube.
K
a
d
a
K
a
d
a
Ka da
Ka da
Warning:
The electric oor brush contains moving parts! To avoid personal injury,
do not touch the rolling brush when the vacuum cleaner is running.
Touching the rotating brush may cause cuts, injuries, or other injuries.
Turn off the vacuum cleaner during maintenance. Pay attention to the
safety of children nearby when using.
Ka d
a
13 EN
USING
1. Choose a brush head according to your needs.
2. Aim the clean head at the object to be cleaned. Before
turning it on, check whether there are sharp objects stuck on
the roller brush to avoid scratching the oor.
Do not let the rubbish exceed the "MAX" capacity of the dust cup.
Keep the suction nozzle unobstructed and avoid blockage.
Otherwise, the motor will overheat or be damaged, causing danger.
14EN
3. Press the ON/OFF button to activate the vacuum cleaner at
the lowest mode.
4. Press the suction adjustment button to change the suction
mode according to clean needs.
ON/OFF
• Press the speed control button to adjust to medium speed, the LED
indicator lights light blue.
• Press the speed control button to high speed, the LED indicator lights blue.
• Press the speed control button to come back to the low speed, the LED
indicator lights white.
Lowest level (white)
x1 Mid level (light blue)
x2 Highest level (blue)
15 EN
5. Adjust the length of the tube according to different needs.
6. After cleaning, press the ON/OFF button to turn off the
vacuum cleaner.
• Press the button behind the tube and pull out the tube at the same time
to extend the tube.
• Press the button and pull the tube back to shorten the tube.
CLEANEING
1. Empty the Dust Cup
To maintain good suction power, please empty the dust cup and clean the
lter after each use.
• Do not use the vacuum cleaner without a lter installed.
• After stopping the vacuum, place the vacuum cleaner above the trash
can and press the release button on the dust cup to open the dust cup lid,
dump out the trash.
16EN
2. Clean up HEPA Filters and Metal Filters
When there is hair ber winding on the metal lter, and there is obvious dust
on the surface of the HEPA lter, please clean it up in time.
If the HEPA lter is full of dust, the dust will enter the motor,
and the motor will be blocked, heated, losing the suction
power.
Push the dust cup release button to remove the dust cup.
Take off the HEPA filter first, then remove the metal filter in a clockwise
direction.
Clean the HEPA lter, gently tap or brush off the dust with the small cleaning
brush.
Wash the HEPA lter and the metal lter with warm water.
Dry the lters in a ventilated area for 24 hours.
• Check the lter frequently
• Disassembly of dust cup
• After cleaning up, close the dust cup lid. A click will be heard when it is
completely closed.
Tips: Please clean the lter in time, the use of a clean lter can make the
vacuum cleaner maintain the best suction effect. Or contact the after-sales
service by e-mail to purchase a new lter.
Tips:
Do not wash with dirty water.
Do not leave the metal lter and HEPA lter in a damp place.
Do not speed up the drying of the lter by exposing it to the sun or using a
hairdryer, as this may damage the lter and shorten its service life.
① ② ③
17 EN
Warning:
HEPA lters and lters must be used after drying.
Using the wet lter may cause product damage or other personal injury
and property damage.
1min
24h
Place the clean and thoroughly dried HEPA lter and the metal lter back
into the dust cup.
Screw the metal lter counter-clockwise into the dust cup.
• Installation of dust cup
① ② ③
Note:
The function of the air lter element is to allow the device to dissipate heat
and dredge the air more effectively during operation, without frequent
cleaning. If necessary, press the air lter release button to remove the air
lter.
18EN
3. Clean up Electric Brush Head
Tips: After using for a period of time, the ground brush may be wrapped
with threads, hair, fibers, and other debris, which will directly affect the
cleaning effect. Please clean up in time.
• Make sure the vacuum cleaner is turned off. Press the brush release
button to remove the floor brush and flip the brush to reveal the roller
brush.
• Flicking the roller brush release button to the “unlock” position. Remove
the small cover on the right sight of the oor brush.
• Remove the roller brush and remove the debris wrapping on the roller
brush. Use the small cleaning brush to sweep away the trash on the roller.
Ka d
a
19 EN
• After cleaning, install the roller brush into the oor brush.
First put the left side of the roller brush into the left connector.
Then press the right side of the roller brush into place.
Finally, install the small cover. When installed in place, you can hear a click.
4. Clean up the Blocked Extension Tube
• Press the tube release button to detach the tube from the electric oor
brush.
• Remove blocked adhered to the two inlets inside of the tube, such as
debris and pet hair.
Note :
There are wires installed inside the extension tube to power the electric
oor brush. Do not use sharp tools to clean the extension tube.
20EN
MAINTENANCE
TROUBLESHOOTING
01. The lter can be cleaned with warm water. After cleaning, it must be
thoroughly dried before use. Do not immerse the main unit in water or
any liquid.
02. Clean the vacuum cleaner casing only with a soft, slightly damp cloth.
03. Do not allow any liquid substances to enter the vacuum cleaner.
04. Do not use any corrosive chemicals or abrasives.
05. It is recommended to change the HEPA lter every 2 months (depending
on use) to ensure optimum performance. Do not use the HEPA lter or
metal lter when it is damaged or worn out.
If there is any problem during use, please check the following troubleshooting
table.
If the problem can't be solved, please contact the after-sales email:
Warning:
Turn off the vacuum cleaner before maintenance. Otherwise it may
cause electric shock or other personal injury.
Blockage Protection:
When the vacuum cleaner is blocked, it will automatically
stop working, then the three indicator lights will light up 5
times at the same time.
Please clean the dust cup, filter, telescopic tube and floor
brush thoroughly and promptly.
21 EN
Problems Possible Causes Solutions
Vacuum can
not work
1. Low battery power
2. The oor brush, telescopic
tube, dust cup, lter are
blocked by hair or other
debris
3. Does not charge with
original charger
4. The battery is not installed
properly
5. Battery damaged
1. Charge before use
2. Clean thoroughly blockage in brush
suction inlet, extension tube, dust
cup, HEPA lter and metal lter.
3. Make sure charging with the
original charger
4. Make sure the battery is in place
5. Contact after-sales email:
Suction power
becomes
weak
1. The dust cup is full
2. Metal lter blocked by dust
3. HEPA lter blocked by dust
4. Low battery power
5. Attachments such as
extension tube and clean
head are not installed
in place to the vacuum
cleaner
6. Air outlets or inlets are
blocked by rubbish
1. Clean the dust cup
2. Clean the metal lter
3. Clean up/Replace the HEPA lter
（Replacement HEPA lters can be
purchased by contacting the after-
sales email）
4. Charge the battery
5. Follow the instructions to reinstall
6. Clean the oor brush and extension
tube
Insufcient
running time
after charging
1. Insufcient charging time
2. Battery aging
3. The dust cup is full of dust
4. The lters are full of dust
5. The telescopic tube or
brush inlet blocked
6. Always use the highest
speed for cleaning the
whole house
1. Recharge the battery
2. Replace a battery
3. Empty the dust cup
4. Clean or change the HEAP lter
5. Remove blockage in tube and
brush inlet
6. For simple cleaning, it is
recommended to use the lowest
speed or the medium speed.
Only larger garbage needs
the highest speed, which can
effectively prolong the battery
life. If the house is larger,
contact customer service to get
additional spare batteries.
LED indicator
is not light
1. The charging cable is not
fully inserted into the
charging socket.
2. Foreign matter on the metal
contact of the charger or
on the battery charging
port prevent charging
3. The charging socket is
damaged
4. Motor of vacuum cleaner
damaged
5. Battery damaged
6. Charger damaged
1. Make sure the charger, battery,
and power socket are in good
contact
2. Make sure that the charging
contact is in good condition without
foreign matter or dust build-up
3. Change another charging socket
4. Contact customer service for a
replacement motor
5. Contact customer service for a
replacement battery
6. Contact customer service for a
replacement charger
22EN
Electric oor
brush roller
does not
rotate
1. The roller brush is wrapped
or entangled by hair
2. The roller brush is not
installed in place
3. The extension tube or
electric oor brush is not
installed in place
4. Extension tube
damaged
5. Floor brush damaged
1. Follow the instructions to clean the
oor brush and restart the vacuum
cleaner
2. Follow the instructions to reinstall
the roller brush
3. Follow the instructions to reinstall
the extension tube and oor brush
4. Extension tube damaged, please
contact the after-sales
5. The oor brush is damaged, please
contact the after-sales
Vacuum
cleaner leaks
dust
1. The HEPA lter is not
installed or not in place
2. The HEPA lter is full of
dust
3. The metal lter is full of
dust
4. HEPA lter damage needs
to be replaced
5. Turn off the vacuum cleaner
before the rubbish come
into the dust cup
1. Check that the HEPA lter is
installed in place
2. Clean the HEPA lter
3. Clean the metal lter
4. Contact customer service to
purchase a replacement HEPA lter
5. Make sure all the rubbish is in the
dust cup before turning off the
vacuum cleaner
The vacuum
cleaner stops
automatically
1. Out of battery
2. Clogged suction ports
cause the vacuum cleaner
to be overheated
3. Clogged HEPA lter causes
the vacuum cleaner to be
overheated
4. HEPA lter needs to be
replaced
1. Charge the battery
2. Clean all the air inlets. Let the
vacuum cleaner cool to room
temperature before turning it on
3. Clean up the HEPA lter, dust cup,
oor brush and metal lter
4. Replace the HEPA lter
WARRANTY
If there is any problem or malfunction during use, please send your question
and order number to our email.
We will provide you a good after-sales service within 24 hours.
E-mail: [email protected]
Other manuals for JR500
1
Table of contents
Other BUTURE Vacuum Cleaner manuals
