BUTURE VC30 User manual

BUTURE
USER MANUAL
Cordless Vacuum Cleaner
Model: VC30
Email: [email protected]

After-sales Service Email:[email protected]
1.WARNING
Thank you for purchasing the BuTure VC30 cordless vacuum cleaner. Before using this machine,
please read the following safety warning first and take safety protection measures to avoid
malfunctions caused by improper operation.
@ This BuTure appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction by a responsible person concerning use of the appliance to ensure that they
can use it safety.
@ suitable for dry locations only. Do not use or store outdoors with wet surfaces. Do not handle any
part of the plug or appliance with wet hands. Store properly in a dry place indoors.
@ Do not use a damaged cable or plug. If the device or charger does not work properly, dropped,
damaged, missed or dropped into water, please contact [email protected], BuTure
after-sales team for support
@ Do ot vacuum flammable or combustible liquids, such as petrol, or use in areas where liquids may
be present.
® Turn off the power switch before plug or unplug the adapter.
® Do not vacuum anything that is burning or smoking, such as cigarettes, matches or hot ashes
@ Do not use without filters or dust cup to avoid damaging the motor and contaminating the air. Wash
hands after using the vacuum cleaner.
® FIRE WARNING: Do ot place this product on or near a cooker or any other hot surface and do not
incinerate this appliance even f it is severely damaged. The battery might catch fire or explode
® Unplug the charger from the power outlet before performing routine cleaning or maintenance.
@ Battery leaks may occur under extreme conditions. If any liquid gets on your skin wash quickly with
soap and water. fliquid gets into your eyes, rinse with water for at least 15 minutes immediately. Seek
medical attention immediately.
@ Charge the unit with the charger we provided
@ Avoid using this product to vacuum hard, sharp objects, as this may cause damage.
Note: The vacuum cleaner adopted thermal protection technology to prevent overheating, will stop
working when the item is over-heated

After-sales Service Email:[email protected]
2.PACKAGE CONTENT
Please check and confimm the accessories and parts according to the following sheet before using
Part Name Quantity
Main Body 1
Battery Pack 1
Adjustable Extension Tube 1
Motorized Brush Head 1
Soft Rolling Brush (Installed) 1
Carbon Fiber Rolling Brush 1
Long Crevice Nozzle 1
2in 1 Upholstery Brush 1
Wall Mount Stand 1
Extra Air Inlet HEPA 1
Charger 1
Screw 3
User Manual 1

After-sales Service Email:[email protected]
3.KNOW THE PRODUCT

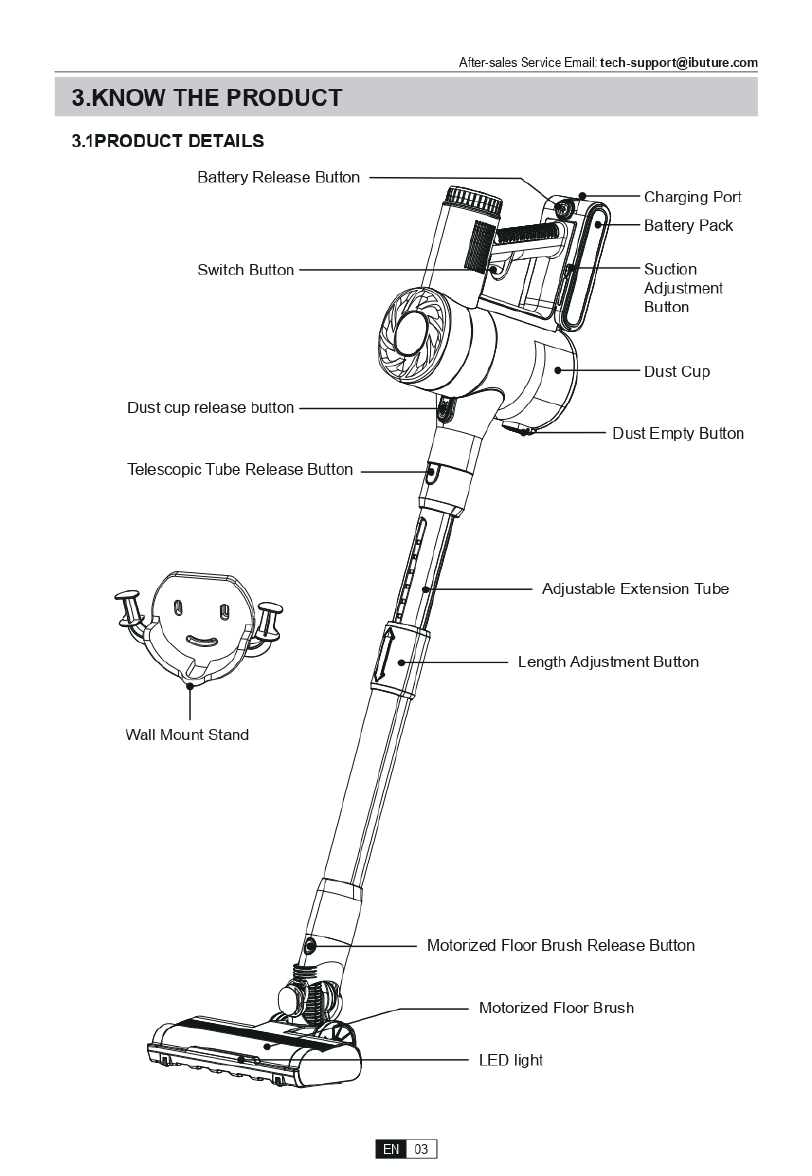

3.1PRODUCT DETAILS
Battery Release Button
Charging Port
Battery Pack
Suction
Adjustment
Button
Switch Button
Dust Cup
Dust cup release button
Dust Empty Button
Telescopic Tube Release Button
Adjustable Extension Tube
Length Adjustment Button
‘Wall Mount Stand
Motorized Floor Brush Release Button
Motorized Floor Brush
LED light

After-sales Service Email:[email protected]
3.2 ACCESSORIES FUNCTION
2in 1 Upholstery Brush
Easy to snap-on design,can help you remove
dust and hair on the carpet.
o &
==\ g—i
Wall Mount Stand
Hold the vacuum and accessories on the
wall-mounted plate for easy storage and
battery charging.
Long crevice Nozzle
Remove dust on the hard-to-reach areas like
windows, bed feet, gaps between sofa, etc.
@ Soft rolling Brush
Remove dust, debris, and hair from hard floors.
(5) Carbon Fiber Rolling Brush
Remove debris, dust, and hair in carpets, velvet
ot

After-sales Service Email:[email protected]
4.PRODUCT ASSEMBLY
4.1 Install Vacuum Cleaner
(D Directly Install Cleaning Accessories
Install the extension tube and cleaning accessories
Press and hold the extension tube length adjustment button, push forward or pull backward to select
the appropriate length of the extension tube.
==

After-sales Service Email:[email protected]

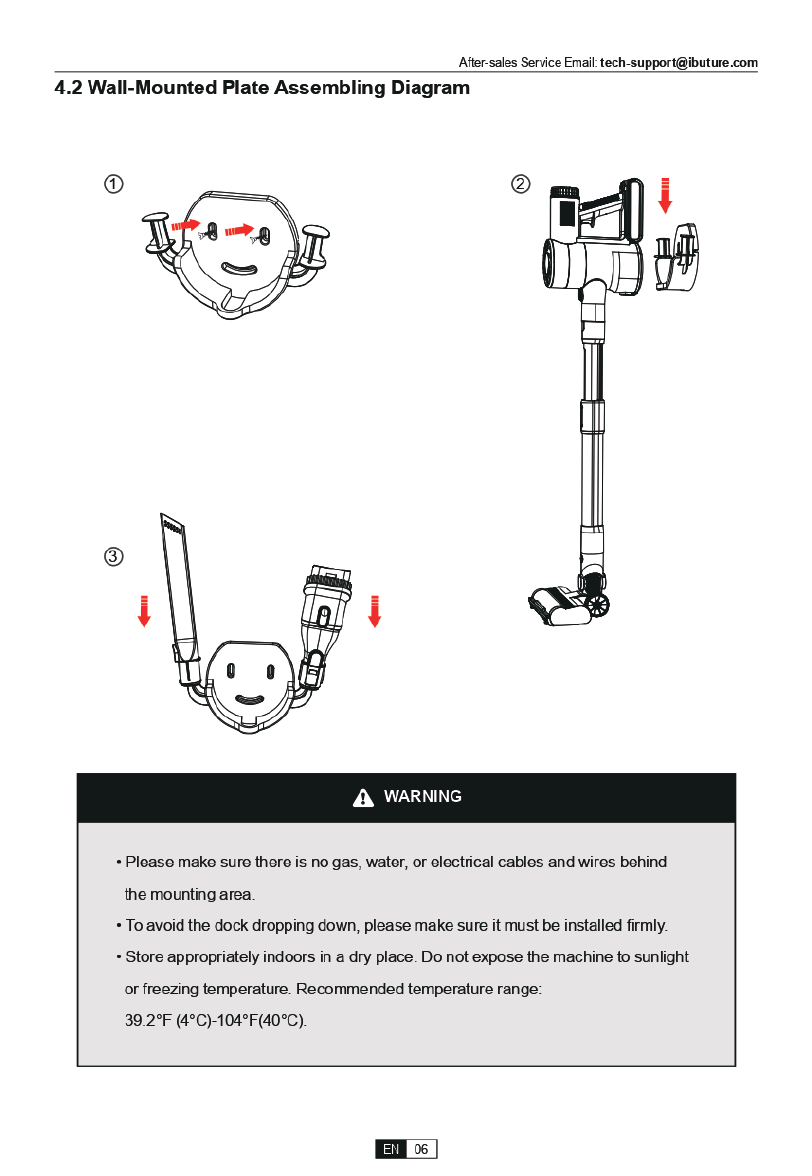

4.2 Wall-Mounted Plate Assembling Diagram
A WARNING
+ Please make sure there is no gas, water, or electrical cables and wires behind
the mounting area
« To avoid the dock dropping down, please make sure it must be installed firmly.
« Store appropriately indoors in a dry place. Do not expose the machine to sunlight
or freezing temperature. Recommended temperature range:
39.2°F (4°C)-104°F(40°C),

After-sales Service Email:[email protected]
5.HOW TO USE
5.1 Charging
+ When using a new battery or using it for the first time after long-term
storage, please fully charge the battery first.
+ When storing and not using the vacuum cleaner for along time, please
ensure that it is charged and discharged at least once every three months.
« Charging Methods
(D Connect the main body to charge Hang on the wall mount to charge

After-sales Service Email:[email protected]
5.2 Operating
Before each use, make sure that
« The battery is fully charged, and fixed in place.
« The dust cup and filters are cleaned, and fixed in place.
« Start to Work
Press the switch button to turn it on and it will start Min mode suction . Press again to turn it off.
« Select Suction Level Min-Max
Press the button +/- to adjust the suction
6.HOW TO USE
Tip: Please clean the vacuum cleaner regularly to extend its lifespan
6.1 Main Body Cleaning
« Turn off the power before cleaning the body.
« Please use a netral detergent, wipe the body with half-wet cloth
« Please avoid sun exposure and store in a cool and dry place.

After-sales Service Email:[email protected]

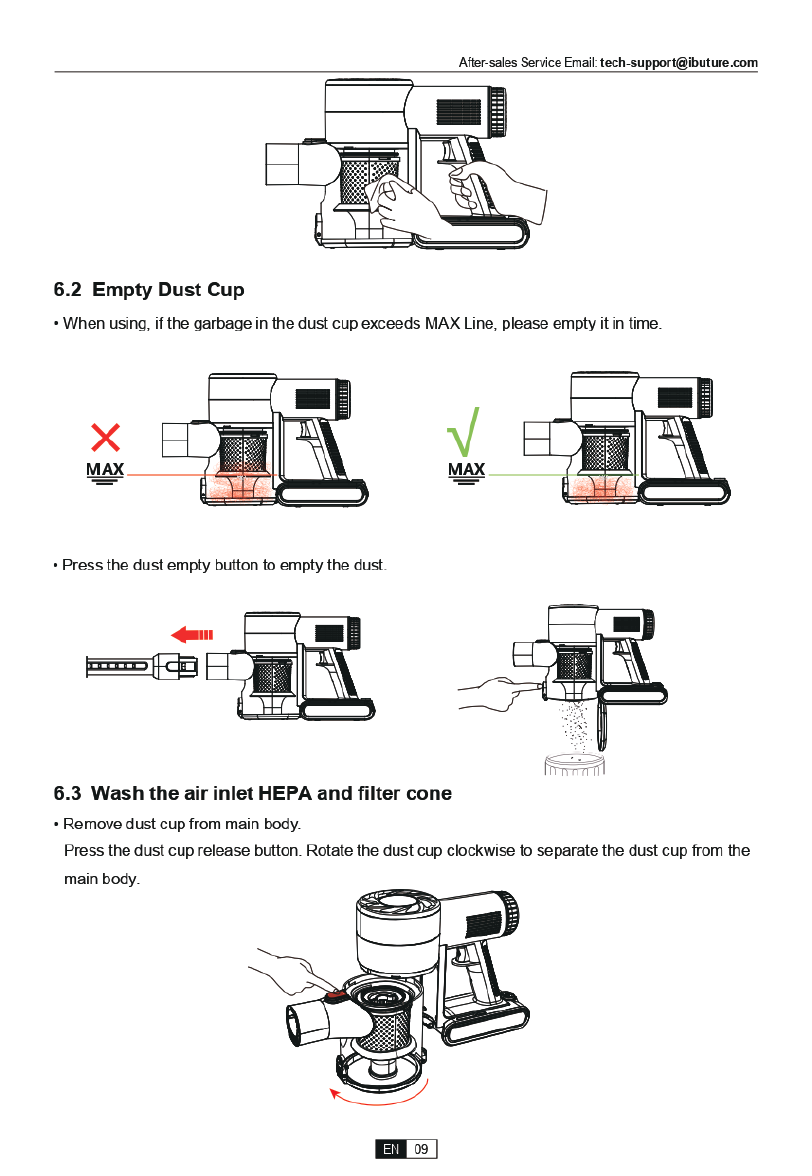

6.2 Empty Dust Cup
« When using, if the garbage in the dust cup exceeds MAX Line, please empty it in time.
i
g %
6.3 Wash the air inlet HEPA and filter cone
« Remove dust cup from main body.
Press the dust cup release button. Rotate the dust cup clockwise to separate the dust cup from the
main body.

After-sales Service Email:[email protected]

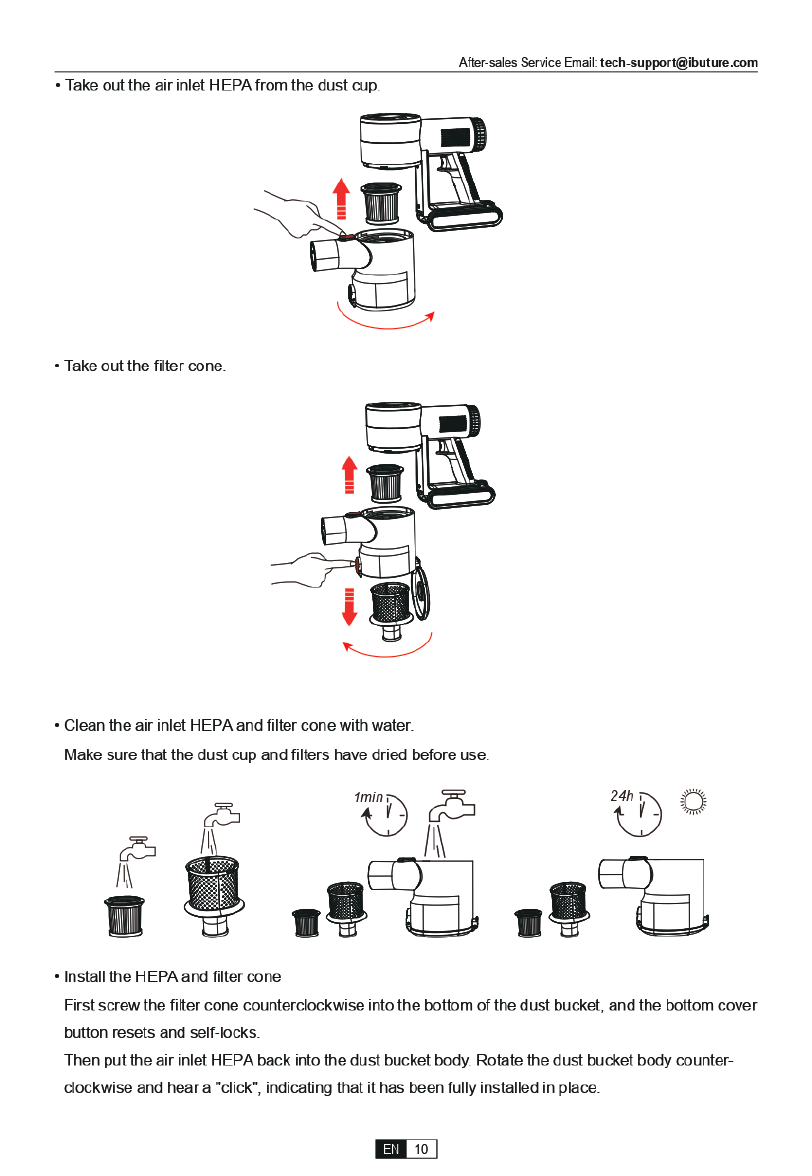

« Take out the air inlet HEPA from the dust cup.
« Take out the filter cone.
'®
<
~ =/
« Clean the air inlet HEPA and filter cone with water.
Make sure that the dust cup and filters have dried before use.
« Install the HEPA and filter cone
First screw the filter cone counterclockwise into the bottom of the dust bucket, and the bottom cover
button resets and self-locks.
Then put the air inlet HEPA back into the dust bucket body. Rotate the dust bucket body counter-
clockwise and hear a "click”, indicating that it has been fully installed in place.

After-sales Service Email:[email protected]

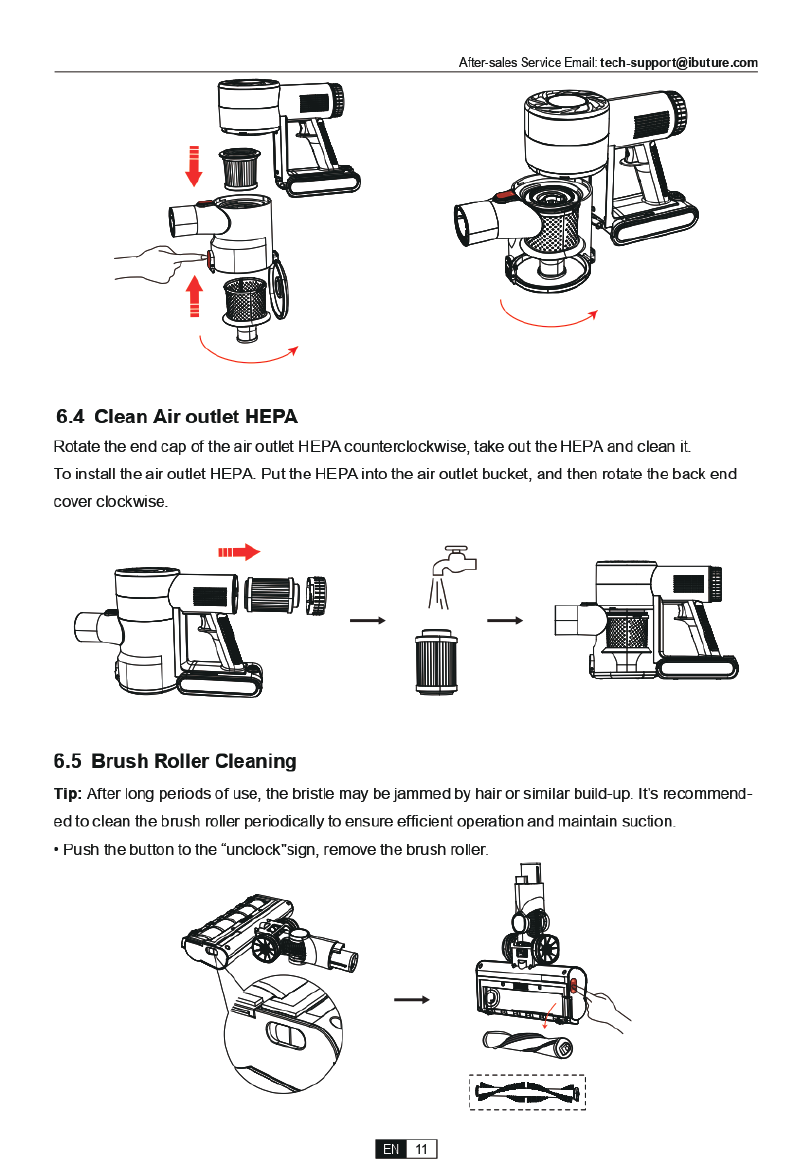

6.4 Clean Air outlet HEPA
Rotate the end cap of the air outlet HEPA counterclockwise, take out the HEPA and clean it.
To install the air outlet HEPA. Put the HEPA into the air outlet bucket, and then rotate the back end
cover clockwise.
6.5 Brush Roller Cleaning
Tip: After long periods of use, the bristle may be jammed by hair or similar build-up. It's recommend-
edto clean the brush roller periodically to ensure efficient operation and maintain suction.
« Push the button to the “unclock"sign, remove the brush roller.

After-sales Service Email:[email protected]

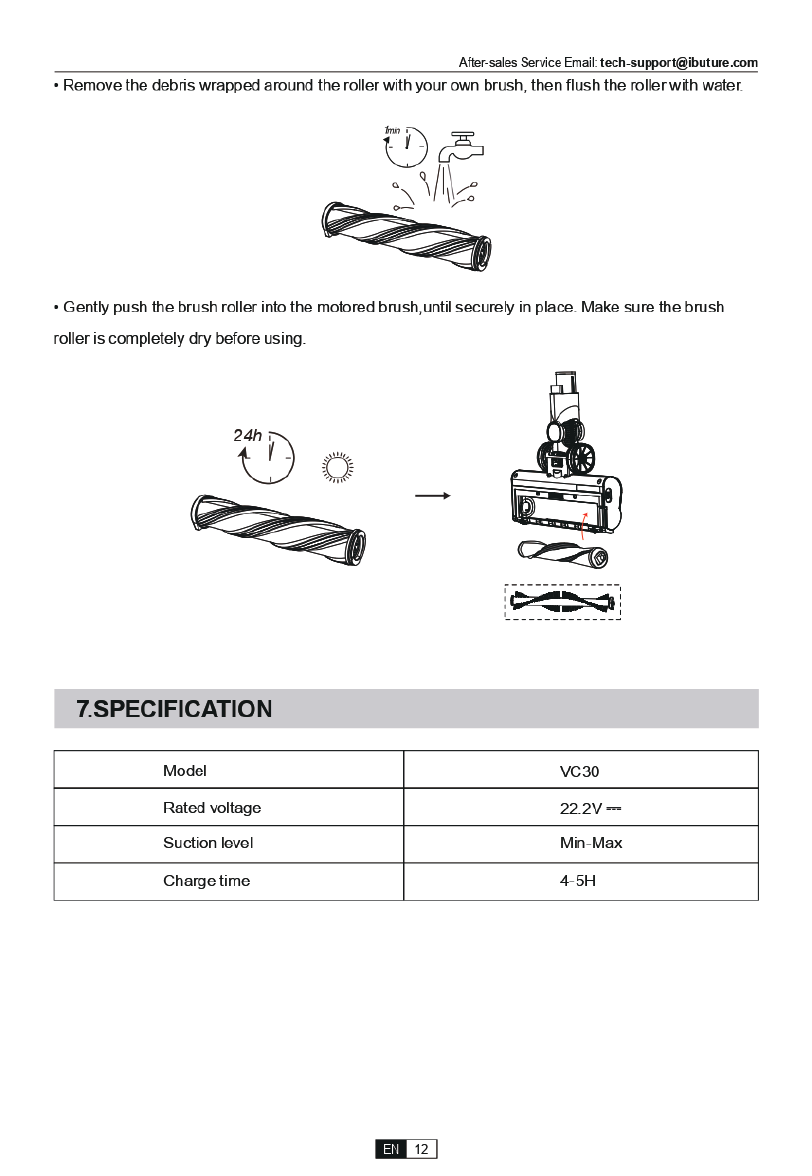

* Remove the debris wrapped around the roller with your own brush, then flush the roller with water.
« Gently push the brush roller into the motored brush,until securely in place. Make sure the brush
roller is completely dry before using.
7.SPECIFICATION
Model VC30
Rated voltage 222V
Suction level Min-Max
Charge time 4-5H

After-sales Service Email:[email protected]

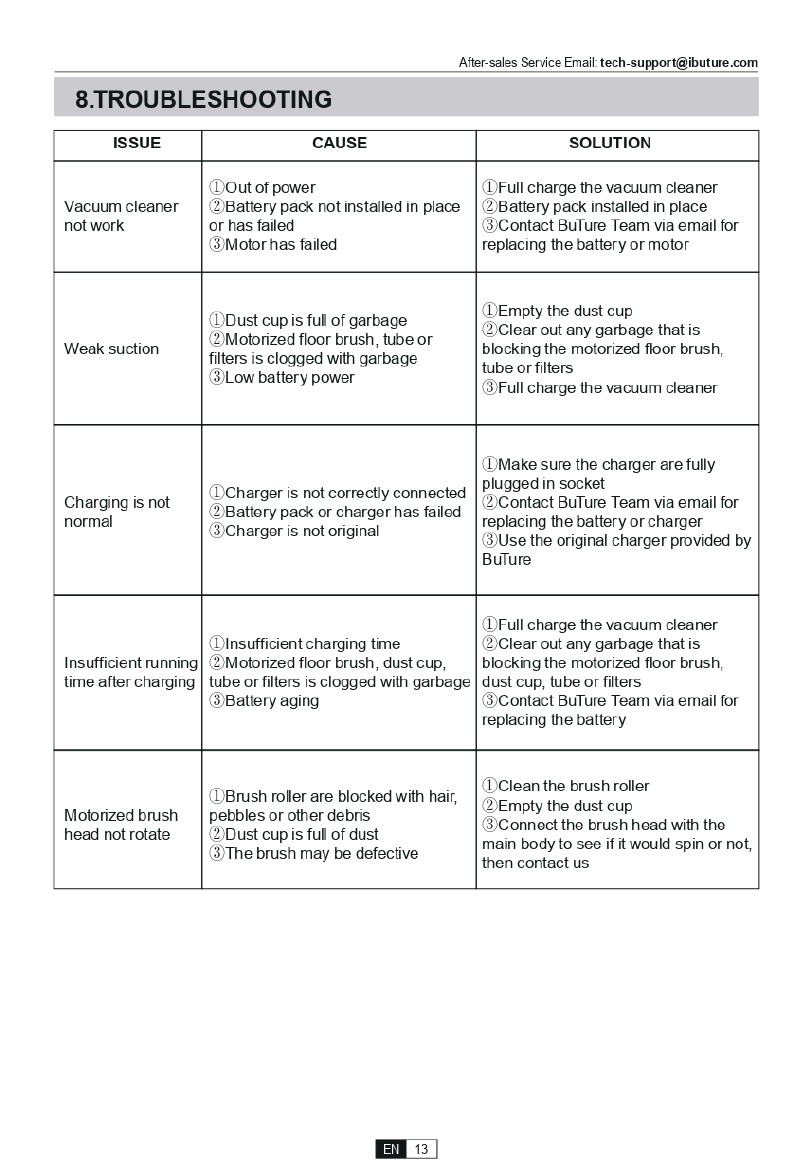

8.TROUBLESHOOTING
ISSUE CAUSE SOLUTION
‘Vacuum cleaner
Out of power
(2)Battery pack not installed in place
Full charge the vacuum cleaner
(2)Battery pack installed in place
not work or has failed (3)Contact BuTure Team via email for
(®Motor has failed replacing the battery or motor
(DEmpty the dust cup
Moronsed Toor e wpoor | LCiearoutany gatbage tatis
Weak suction ) : blocking the motorized floor brush,
filters is clogged with garbage
(3Low battery power
tube orfilters
(®Full charge the vacuum cleaner
Charging is not
normal
(DCharger is not correctly connected
(2)Battery pack or charger has failed
(3Charger is not original
(DMake sure the charger are fully
plugged in socket
{2)Contact BuTure Team via email for
replacing the battery or charger
(3Use the original charger provided by
BuTure
Insufficient running
time after charging
nsufficient charging time
Motorized floor brush, dust cup,
e orfilters is clogged with garbage
(3Battery aging
(DFull charge the vacuum cleaner
(2)Clear out any garbage that is
blocking the motorized floor brush,
st cup, tube or filters
(3)Contact BuTure Team via email for
replacing the battery
Motorized brush
head not rotate
(DBrush roller are blocked with hair,
pebbles or other debris
(@Dust cup s full of dust
(3The brush may be defective
Clean the brush roller
(@Empty the dust cup
(3Connect the brush head with the
main body to see if it would spin or not,
then contact us
