BVA Hydraulics PU55M3N025B User manual

Printed in Taiwan
PU55M3N025B-M0_102018
Electric Pump
Instruction Manual
MODELS: PU55M3N025B, PU55M3N03B, PU55M3N05B,
PU55M4N025B, PU55M4N03B, PU55M4N05B
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
PU55M4N025B shown
Maximum Operating Pressure 10,000 PSI
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
© October 2018
Model No. E83A2
Approved By:
Checked By:
Drawn By: 蔡門成
Date: 2017.05.05
File name: E83A2_1705OUT
WARNING: Cancer and Reproductive Harm.
www.P65Warnings.ca.gov

2
SAFETY AND GENERAL INFORMATION
Save these instructions. For your safety, read and understand the information contained within. The owner and operator shall
have an understanding of this product and safe operating procedures before attempting to use this product. Instructions and
safety information shall be conveyed in operator's native language before use of this product is authorized. Make certain that the
operator thoroughly understands the inherent dangers associated with the use and misuse of the product. If any doubt exists as
to the safe and proper use of this product as outlined in this factory authorized manual, remove from service immediately.
Inspect before each use. It is recommended that, prior to each use, an inspection be done by qualied personnel and that any
missing or damaged parts, decals, warning / safety labels or signs be replaced with factory authorized replacement parts only. Any
pump that appears to be damaged in any way, is worn, leaking or operates abnormally shall be removed from service immediately
until such time as repairs can be made. Any pump that has been subjected to a shock load (a load dropped suddenly, causing
the system pressure to exceed 10,000 PSI), shall be removed from service immediately until checked by qualied personnel.
Owners and operators of this equipment shall be aware that the use and subsequent repair of this equipment does require special
training and knowledge.
PRODUCT DESCRIPTION
This Pump is engineered to meet most industrial standards for Performance and Safety. Its allows quick displacement of hydraulic
uid under no load conditions and easy pumping in loaded conditions. This electric hydraulic pump supplies compressed hydraulic
uid to compatible single and double acting applications. Such applications include rams, presses, spreaders, compactors
and crimping machines, anywhere that 10,000 PSI of single acting uid pressure is needed. Special skill, knowledge and training
may be required for a specic task and the product may not be suitable for all the jobs described above. Unsuitable applications
would include applications that call for a device to move, level or support persons, animals, hazardous materials, mobile homes/
dwellings in general, mirrors and/or plate glass, and/or to connect/secure hatches, components, etc. between bulkheads. The
user must make the decision regarding suitability of the product for any given task and assume the responsibility of safety for
himself/herself and others in the work area.
TO AVOID ELECTROCUTION HAZARD:
• Owner, Operator must read, understand and follow all printed material provided with this device before use.
• Connect ONLY to properly grounded electrical source. Connect to GFI outlet ONLY! For use in dry locations.
• Avoid the use of extension cords. If necessary, for extension cords lengths up to 25 ft, use SJT-14X3 or heavier.
For cords up to 50 ft, use SJT-12X3 or heavier. For extension cord lengths up to 100 ft, use SJT-10X3 or heavier
NEVER use a 3 prong adapter.
• Do not operate this device in an explosive atmosphere or in the presence of conductive liquids.
Figure 1: Typical 4-Way, 3-Position
PU55 Series (PU55M4N025B Shown)
SPECIFICATIONS
Model No.
Usable
Oil
Capacity
(Gal.)
Output Flow Rate
(In
3
/ Min)
Valve
Type
Valve
Function
Motor
Voltage
Current Draw
@10,000 PSI
(Amp)
Noise
Level
(dBA)
Weight
(w/Oil,
Lbs.)
700
PSI
5,000
PSI
10,000
PSI
PU55M3N025B 2.5
439.0 80.5 64.0
3-Way,
3-Position Advance/
Hold/
Run
120VAC,
50/60HZ 23 90
63.1
PU55M3N03B 3.0 80.5
PU55M3N05B 5.0 100.0
PU55M4N025B 2.5
4-Way,
3-Position
63.1
PU55M4N03B 3.0 80.5
PU55M4N05B 5.0 100.0
CAUTION
!
Pendant Switch
Reservoir
Drain Plug
Oil Level
View Gauge
Control Valve
Power Cord Motor
Oil Outlet Port
Vent Cap
Enclosure /
Control Box
Figure 1: Typical 4-Way, 3-Position PU55 Series
(PU55M4N025B Shown)

3
• Read, understand, and follow all instructions provided with
and on this device before use.
• All WARNING statements must be carefully observed to
help prevent personal injury.
•
No alteration shall be made to this device.
• Always wear protective gear when operating
hydraulic equipment. Tie up long hair, wear
eye and ear protection, and non slip foot
wear.
• Keep hydraulic equipment away from ames
and heat. Hydraulic uid can ignite and burn.
Do not operate if leaks are detected.
• Crush Hazard. Keep hands and feet away
from loading area. Avoid pinch points or
crush points that can be created by the load,
cylinder, or system components.
• To avoid crushing and related injuries:
NEVER work on, under or around a lifted
load before it is supported by appropriate
mechanical means. Never rely on hydraulic
pressure alone to support load.
HYDRAULIC PUMPS
• The user must be a qualied operator familiar with the
correct operation, maintenance, and use of pumps. Lack
of knowledge in any of these areas can lead to personal
injury.
• Do not exceed rated capacity of the pump or any equipment
in the system.
• Never attempt to lift a load weighing more than the capacity
of the output device (cylinder, spreader etc.)
• Do not subject pump and its components to shock loads.
• Burst hazard exists if hose or connection pressure exceeds
rated pressure.
• Inspect pump, cylinder, hoses and connections before each
use to prevent unsafe conditions from developing. Do not
use if they are damaged, altered or in poor condition. Do
not operate the system with bent or damaged coupler or
damaged threads.
• Never hold or stand directly in line with any hydraulic
connections while pressurizing.
• ALWAYS use gauge or other load measuring instrument to
verify load.
• Never attempt to disconnect hydraulic connections
under pressure. Release all line pressure before
disconnecting hoses.
• Use of incorrect power source will damage the motor.
• Do not use an ungrounded (two-prong) extension cord.
• Do not install, remove or rewire the motor with power
applied. Have qualied technician to install, adjust and
service the motor.
• Do not operate this device in an extreme temperature,
explosive atmosphere or in the presence of conductive
liquids.
• Always inspect hoses and connections for damage prior
to use.
• Ensure the device is placed on a hard, level surface.
• Ensure that application is stable to work on and around.
• Use only approved accessories and approved hydraulic
uid.
• Never attach ANY component not authorized by
manufacturer.
• Do not connect to application which can return more oil to
the reservoir than the pump reservoir can hold.
• Do not connect pump to hydraulic system powered by
another pump.
• This device is not suitable for use as support device! As
the system load is lifted, use blocking and cribbing to
guard against a falling load.
• All personnel must be clear before lowering load or
depressurizing the system.
• Never try to disassemble a hydraulic pump, refer repairs
to qualied, authorized personnel.
HYDRAULIC HOSES & FLUID TRANSMISSION LINES
• Avoid short runs of straight line tubing. Straight line runs
do not provide for expansion and contraction due to
pressure and/or temperature changes.
• Reduce stress in tube lines. Long tubing runs should
be supported by brackets or clips. Before operating
the pump, tighten all hose connections with proper
tools. Do not overtighten. Connections should only be
tightened securely and leak-free. Overtightening can
cause premature thread failure or high pressure ttings
to burst.
• Should a hydraulic hose ever rupture, burst or need to
be disconnected, immediately shut off the pump and
release all pressure. Never attempt to grasp a leaking
pressurized hose with your hands. The force of escaping
hydraulic uid can inict injury.
• Do not subject the hose to potential hazard such as re,
sharp objects, extreme heat or cold, or heavy impact.
• Do not allow the hose to kink, twist, curl, crush, cut or bend
so tightly that the uid ow within the hose is blocked or
reduced. Periodically inspect the hose for wear.
• Do not pull, position or move setup by the hose.
• Hose material and coupler seals must be compatible with
hydraulic uid used. Hoses also must not come in contact
with corrosive materials such as battery acid, creosote-
impregnated objects and wet paint. Never paint a coupler
or hose.
• FAILURE TO HEED THESE WARNINGS MAY RESULT
IN PERSONAL INJURY AS WELL AS PROPERTY
DAMAGE.
WARNING
!

4
BEFORE USE
Read, understand, and follow all printed materials carefully
before attempting to assemble or operate these pumps.
NOTICE: E-Pumps are shipped dry. Add oil before use.
Electrical Connections:
Compare motor nameplate against power availability
to prevent motor burnout and dangerous electrical
overloading. The motors are wired for 120V unless
otherwise specied.
DANGER: Motor, connections and remote on/off switch
are energized components containing line voltage.
Ensure supply is grounded and GFI protected.
Hydraulic Connections:
1. Make sure to use the hydraulic oil specified by the
manufacturer. Ensure oil level in reservoir is ~ 2" from top
of reservoir plate, with cylinders retracted and motor off.
2. Use of pressure gauge is strongly recommended. Attach a
pressure gauge between the pump and cylinder to monitor
pressure on cylinder.
3. Make sure coupler, hose, valve, gauge are tighten securely
to prevent accidental removal of components while in use.
Hoses must not be kinked or twisted.
NOTICE: Always secure threaded port connections with non-
hardening pipe thread compound. Take care not to introduce
compound into port orices.
To ensure smooth operation, bleed air from the system by fully
advancing and retracting the cylinder several times.
4. Do not exceed the rated capacity of the equipment connected
to the pump. Ensure that all hydraulic equipment used
with this pump is rated at 10,000 psi or greater.
OPERATION
WARNING: ALWAYS monitor pressure, force and load
position. Pressure may be monitored by means of an
optional manifold and gauge. Force may be monitored
by means of a load cell and digital indicator. Correct
application position can only be determined by the
operator of the equipment.
1. Check oil level, add oil if necessary.
2. Make sure system ttings and connections are tight and
leak free.
3. Place control valve lever in the middle (Neutral/Hold)
position to prevent accidental lifting or moving of load.
4. To start the motor: Toggle the ON/OFF switch located on
the control box to 'ON' position OR for momentary use:
Leave control box switch in the 'OFF' position and toggle
remote ON/OFF pendant switch.
5. It is recommended to use to ON/OFF switch at the control
box to let the pump idle for a few minutes before putting
into operation.
WARNING: This pump is for use with a single acting
cylinder ONLY! Connect one hose from either pump
oil output port to the input port of a single acting
application such as a cylinder. Block the unused output
port securely. This model can not be used with double
acting cylinders.
6. Use the control valve lever to control the direction of uid
ow. These pumps are equipped with a 3-way 3-position
valve for use with single acting cylinder applications ONLY.
Refer to Figure 2 below for the ow path.
7. Always monitor the pressure, load and position.
8. Do not exceed the rated capacity of the equipment
connected to the pump. To reduce system component
stress, material fatigue, and the risk of personal injury
and property damage, never load a hydraulic application
(cylinder, spreader, etc.) to more than 80% of its rated
capacity.
9. Shift the control valve until the desired pressure, load or
position is reached. Note: Do not continue to operate pump
after cylinder plunger is fully extended or retracted.
10. To turn off the motor: Toggle the ON/OFF switch on the
control box to 'OFF' position.
11. Depressurize all connections before disconnect. If you
have any questions, call BVA Technical Service @ (888)-
332-6419.
!
!
!
Position 1: Pressurized oil
ows to port A, port B returns
ow to reservoir
Position 3: Pressurized oil
ows to port B, port A returns
ow to reservoir.
Position 2: Neutral, ports
A and B are closed. Hold
Position.
Port A Port B Port A Port B Port A Port B
P R P R P R
(a) 4-Way, 3-Position Valve for Double Acting Cylinder
Position 1 (Advance): Pres-
surized oil ows to port A.
Position 3 (Retract): Port A
returns ow to reservoir.
Position 2 (Hold): Neutral, port
A is closed. Hold Position.
Port A Port A Port A
(b) 3-Way, 3-Position Valve for Single Acting Cylinder
P R P R P R
Figure 2 - Flowpath of the valve positions
and operations.
Port A Port B
1
2
3

5
3. Remove vent cap on the top plate of the reservoir.
4. Use a funnel to ll reservoir to about 2" from top of reservoir
plate.
5. Wipe up any spilled uid and reinstall the vent cap.
Changing Hydraulic Oil
1. For best results, change hydraulic oil once a year.
2. Remove drain plug, tilt the pump then pour used uid into
a sealable container.
3. Dispose the hydraulic oil in accordance with local
regulations.
4. Fill hydraulic oil, then reinstall vent cap.
Cleaning
Clean oil lter screen periodically with nonammable solvent,
then blow dry before reassemble back to pump.
Storage
1. When not in use, depressurize and disconnect hydraulic
hoses from application.
2. Wipe clean, thoroughly.
3. Store in clean, dry environment. Avoid temperature
extremes.
4. For transportation or long term storage, shield pump with
a protective cover.
TROUBLESHOOTING
A system failure may or may not be the result of a pump malfunction. The following information is intended to be used as an
aid in determining if a problem exists. Pumps should be repaired only be repaired by authorized BVA Service Center.
MAINTENANCE
1. Keep areas around pump unobstructed in order to provide
good air ow around the motor and pump. Try keep the
motor and pump as clean as possible.
2. Inspect hoses and connections daily. Replace damaged
components immediately with BVA Hydraulics
replacement parts only.
3. Tighten connections as needed. Use non-hardening pipe
thread compound when servicing connections.
4. Check hydraulic oil level every 40 hours of operation. Add
hydraulic oil if necessary.
5. Completely change the hydraulic oil every 300 hours of
operation. Change the oil more frequently when pump is
used in an extremely dusty environment or when the oil
has been overheated. Use only good quality hydraulic oil.
We recommend BVA FJZ01 hydraulic oil. To order the oil,
refer to service parts section. Use only the manufacturers
recommended hydraulic oil. Use of other hydraulic oil
may result in pump failure and will void warranty.
Adding Hydraulic Oil
1. Make sure electric motor is OFF.
2. Depressurize and disconnect hydraulic hose from
application.
Symptom Possible Causes Corrective Action
Motor will not start
• No power or wrong voltage
• Damaged power cord
• Tripped circuit breaker
• Loose or faulty wiring
• Check the power supply & voltage
•Contact Customer Service
•Ensure electrical supply is adequate
•Contact Customer Service
Erratic cylinder action
• Air in system or pump cavitation
• External leak
• Internal hydraulic leak
• Follow pump instructions for bleeding air
• Tighten all connections
• Contact Service Center
Pump fails to maintain
pressure
• External leak
• Internal hydraulic leak
• Pump or valve malfunction
• Tighten all connections
• Contact Service Center
Cylinder extends partially
•Hydraulic oil level too low in pump
•Load is above the capacity of system
•Cylinder is sticking or binding
•Fill and bleed the system
•Use the correct equipment
•Contact Service Center
Cylinder moves slower than normal
• Loose connection or coupler
• Restricted hydraulic line or tting
• Pump not working correctly
• Cylinder seals leaking
• Tighten
• Clean and replace if damaged
• Check pump operating instructions
• Replace cylinder
Cylinder leaks hydraulic uid • Worn or damaged seals • Replace cylinder
Cylinder will not retract or
retracts slower than normal
• Loose couplers
• Weak or broken retraction springs
• Cylinder damaged internally
• Pump reservoir too full
• Tighten couplers
• Replace cylinder
• Replace cylinder
• Drain hydraulic uid to correct level
Motor cuts out
• Extension cord too long
• Faulty motor
• Overheated motor trips circuit breaker
• Replace
•Replace or repair
•Allow motor to cool, reset circuit breaker

6
Parts List
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
Electric Pump
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
No. Part No. Description Qty.
1
E83-1-2010-101 Motor Pump Assembly
(120V, 50/60 HZ) 1
E83-1-3030-102 Motor Pump Assembly
(240V, 50/60 HZ)
2
PUW3
(PU55M3N025X)
Control Valve, 3-way/3
position 1
PUW4
(PU55MN025X)
Control Valve, 4-way/3
position 1
3 E83-4-9005-101 Reservoir Assembly 1
MODELS: PU55M3N025B, PU55M3N03B, PU55M3N05B,
PU55M4N025B, PU55M4N03B, PU55M4N05B
2
1
3
File name: V83H2_1705EXP
Date: 2017.05.05
Drawn By: 蔡門成
Checked By:
Approved By:
Model No. V83H2

7
MODELS: PU55M3N025B, PU55M3N03B, PU55M3N05B,
PU55M4N025B, PU55M4N03B, PU55M4N05B
Parts List
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
Motor Assembly
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
1
3
2
4
5
6
7
11
10
8
9
File name: E83-1-2010-101_1704EXP
Date: 2017.04.27
Drawn By: 蔡門成
Checked By:
Approved By:
Model No. E83-1-2010-101
No. Part No. Description Qty.
1 N/A Reservoir cover Assy. 1
2 E83-4-3001-103 Gear Wheel Shaft Assy. 1
3 E83-4-5003-107 Hydraulic Manifold Block
(Refert to Page #8) 1
4 E10-4-4000-109 Piston Block Assy.
(Refer to page #9) 2
5 511-7-0064-109 O-ring 2
6 E83-4-5100-105 Lower Plate Assembly
(Refer to page #10) 1
7 E05-4-6020-102 Gear Pump Assembly
(Refer to page #11) 1
8 E05-4-2000-106 Air Vent Seat 1
9 H18-6-8104-106 Hex Plug 1
10
E83-4-9001-103 Motor, 120V, 50/60 HZ
(Refer to page #12) 1
E83-4-9002-105 Motor, 240V, 50/60 HZ
(Refer to page #12) 1
11
E83-4-9701-101
Enclosure / Control Box Assy.
(120V, 50/60HZ),
Refer to Page #13
1
E83-4-9702-103
Enclosure / Control Box Assy.
(240V, 50/60HZ),
Refer to Page #13
1
* E83-4-9702-103 Not shown

8
Parts List
Manifold Block
Assembly Parts
MODEL: E83-4-5003-107
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
No. Part No. Description Qty.
1 N/A Hydraulic Manifold
Block 1
2 622-6-2012-108 Bearing Needle 1
3 E82-4-5101-100** Check valve base
group 1
4 E82-4-1004-102** Seat post 1
5 E82-4-5110-101** Stick valve 1
6 E05-6-3004-101 Ball retainer 2
7 * Special washer 1
8 E82-4-8000-109** Block-unloading assy. 1
9 * Special washer 1
10 E82-4-8100-103** Low Pressure Relief
Valve Assy. 1
11 E05-6-3003-109 Thrust washer 1
12 E82-4-5113-107** Pole plug group 1
13 433-6-2401-106 Parker hex plug 1
1
2
3
4
5
13
6
7
9
8
10
11
12
14
14
14
14
18
21
15
15
15
17
Repair kit :
E83-3-9901-106
19
16
20
Approved By:
Checked By:
Drawn By: 蔡門成
Date: 2017.04.19
File name: E83-4-5003-107_1704EXP
No. Part No. Description Qty.
14 641-1-0050-105 Screw 4
15 609-1-0075-105 Hex socket pipe plug 11
16 * O-ring 2
17 E05-6-3001-105 Pin 4
18 666-7-0004-105 Male hose-barb
connector 1
19 667-7-0004-102 Male hose-barb elbow 2
20 V83-6-7530-105 Hose clamp 2
21 507-9-0960-103 Oil Tube (10 In.) 1
* E83-3-9901-103 Manifolds Group Repair
kit 1

9
Parts List
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
Piston Block
Assembly Parts
MODEL: E10-4-4000-109
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
1
2
6
7
4
5
6
3
File name: E10-4-4000-109_1101EXP
Date: 2011.01.07
Drawn By: 蕭益彰
Checked By:
Approved By:
Model No. E10-4-4000-109
No. Part No. Description Qty.
1 E10-6-4000-101 Piston 1
2 * Spring 1
3 E10-6-4001-103 Piston Block 1
4 H18-6-8103-104 Washer 1
5 E05-6-4002-102 Hex Head Plug 1
6 * O-Ring 2
7 * Ball 1
* O-Ring (Not Shown) 2
* E05-3-9940-102 PISTON BLOCK
ASSEMBLY REPAIR KIT 1

10
Parts List
Lower Plate Assembly
Service Parts
MODEL: E83-4-5100-105
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
No. Part No. Description Qty.
1 N/A Lower Plate 1
2 601-7-0008-009 Steel Ball 7
3 609-1-0075-105 Plpe Plug 1
4 E05-4-5002-105 Low Pressure Seat Assy. 2
5 E05-6-3004-101 Ball Retainer 2
6 E05-6-3003-109 Thrust Washer 1
7 611-6-0158-102 Bearing Ball 1
8 622-6-0127-206 Bearing Needle 2
9 649-1-0063-403 Bolt 4
6
4
5
7
1
3
8
2
8
9
Model No. E83-4-5100-105
Approved By:
Checked By:
Drawn By: 蔡門成
Date: 2017.03.20
File name: E83-4-5100-105_1703EXP

11
Parts List
Gear Pump Assembly
Service Parts
MODEL: E05-4-6020-102
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
No. Part No. Description Qty.
1 * Retaining Ring-External 4
2 E05-6-6002-102 Drive Shaft-Gear Pump 1
3 E05-6-6003-104 Idler Shaft-Gear Pump 1
4 * Key 2
5 E05-6-6004-106 Gear 2
6 * Pin Dowel 2
7 N/A Center Gear Plate 1
8 N/A Lower Gear Plate Assy. 1
9 433-6-2401-106 Hex Plug 1
10 649-1-0063-504 Hex Bolt 4
E05-3-9960-109 Gear Pump Assembly
Repair Kit 1
1
2
5
6
7
8
9
10
1
4
3
1
5
1
No Part Name Part No Q'ty
1
C形扣環 667-5-0127-005 4
2
#3 齒輪軸(1) E05-6-6002-102 1
3
#3齒輪軸(2) E05-6-6003-104 1
4
雙頭圓鍵 E05-6-6008-104 2
5
#3齒輪 E05-6-6004-106 2
6
定位針 E05-6-5001-105 2
7
#3中板 E05-6-6000-108 1
8
下板組<H> E05-4-6004-104 1
9
阻油螺栓 433-6-2401-106 1
10
六角承窩螺絲 649-1-0063-504 4
File name: E05-4-6020-102_1801EXP
Date: 2018.01.15
Drawn By: 蔡弼任
Checked By:
Approved By:
Model No. E05-4-6020-102

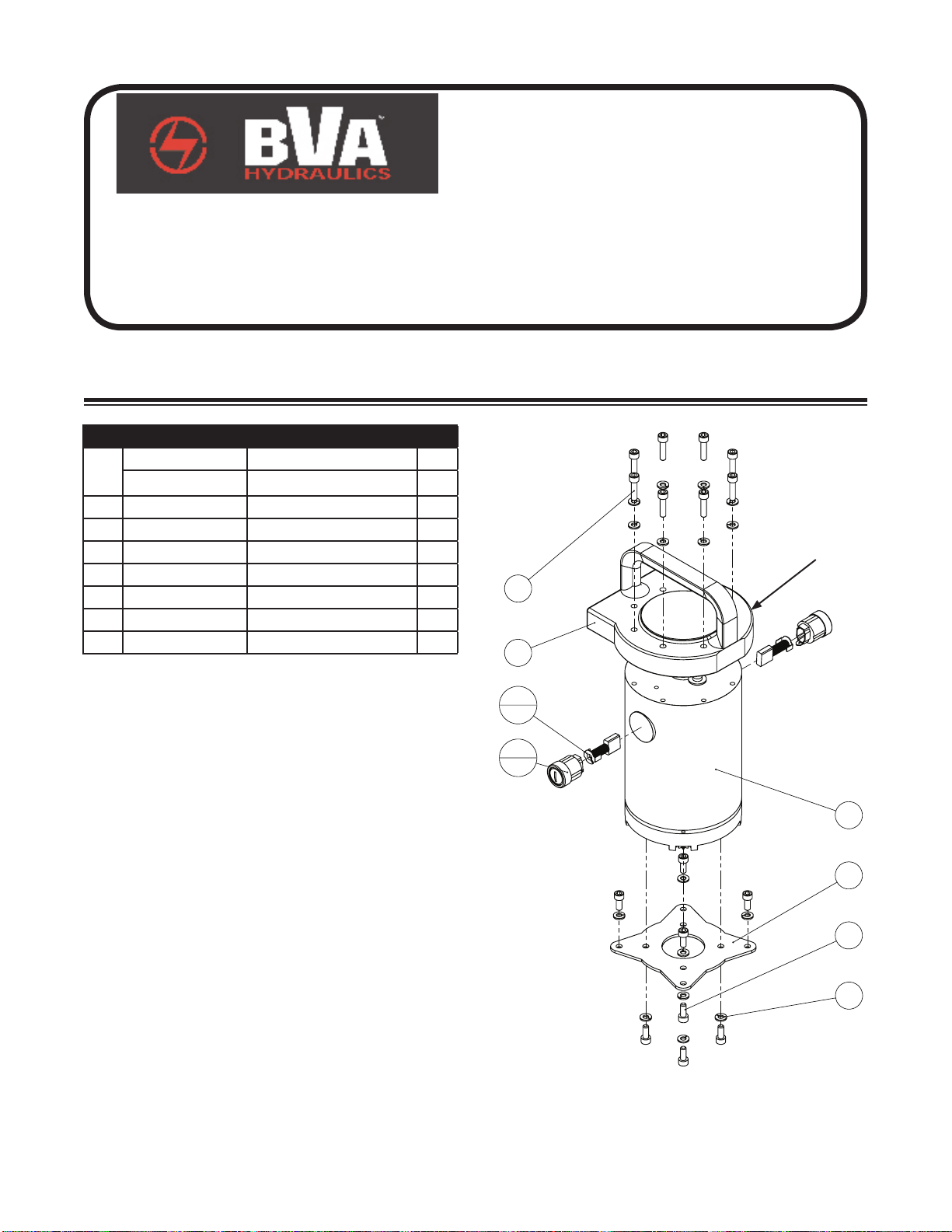

12
Parts List
Motor Assembly
Service Parts
MODELS: E83-4-9001-103 & E83-4-9002-205
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
No. Part No. Description Qty.
1E83-4-9000-101 Motor (120V, 50/60 HZ) 1
E83-4-9000-202 Motor (240V, 50/60 HZ) 1
-7 E83-6-9110-100 Carbon brush 2
-8 E83-6-9111-102 Carbon brush seat 2
2 E83-6-9102-101 Flange 1
3 649-1-0060-040 Bolt 8
4 605-3-0060-005 Washer 16
5 E83-6-9101-109 Handle 1
6 649-1-0060-407 Bolt 8
1
3
2
1
7
5
4
6
1
8
項目 名稱 件號 材質 規格 數量 備註
1 馬達(串激115V) E83-4-9000-101 universal motor 1800W 115V 50/60Hz 1
2
馬達固定板 E83-6-9102-101 SS41 D153 X 3t 1
3
六角承窩螺栓 649-1-0060-040 SCM3 M6X1X15L 8
4
彈簧墊片 605-3-0060-005 SWRH62A M6X1.5T 16
5
提把蓋 E83-6-9101-109 A356 153.9X147X86.5 1
6
六角承窩螺絲 649-1-0060-407 SCM435 M6X1X25L 8
7
碳刷 E83-6-9110-100 碳 POWERTEK RT-08 2
8
碳刷座組 E83-6-9111-102 電木+青銅 POWERTEK RT-08 2
File name: E83-4-9001-103_1704EXP
Date: 2017.04.27
Drawn By: 蔡門成
Checked By:
Approved By:
Model No. E83-4-9001-103
Max Torque
5 ft-lb

13
Parts List
Reservoir
Service Parts
MODEL: RES025-01
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
No. Part No. Description Qty.
1 E83-3-9005-108 Reservoir 1
2 611-8-0076-101 Oil Level View Gauge 1
3 511-7-0251-108 O-Ring 1
4 E83-6-8007-102 Reservoir Screw Seat 1
6 E05-3-9901-103 Hex Plug Assembly 1
7 E83-6-9001-105 Hex Nut 1
8 644-1-0060-05311 Set Screw 1
9 E05-6-9004-101 Reservoir Gasket 1
10 601-3-0064-106 Washer 10
11 649-1-0060-407 Hex Socket Bolt 10
12 H23-6-1000-102 Magnet 1
13 E11-3-6006-102 Filter 1
9
12
3
7
8
4
6
21
10
11
13
File name: E83-4-9005-101_1704EXP
Date: 2017.04.13
Drawn By: 蔡門成
Checked By:
Approved By:
Model No. E83-4-9005-101
Max Torque
7 ft-lb

14
Parts List
RES03 Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
15
10
11
Model No. E1503
No. Part No. Description Qty.
1 E15-3-9005-103 Reservoir 1
2 E05-3-9901-103 Drain Plug Assembly 1
4 E11-3-6005-100 Screen 1
5 E11-6-7003-109 Pipe Nipple 1
6 E11-6-3007-107 Drain Line 1
7 E05-6-9004-101 Reservoir Gasket 1
8 E05-3-9902-105 Bolt & Washer Assembly 1
10 E10-4-2000-109 Adaptor Assembly 1
11 H23-6-1000-102 Magnet 1

15
Parts List
RES05 Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
1 5
10
11
No. Part No. Description Qty.
1 E30-3-9005-104 Reservoir 1
2 E05-3-9901-103 Drain Plug Assembly 1
4 E11-3-6005-100 Screen 1
5 E11-6-7004-101 Pipe Nipple 1
6 E11-6-3008-109 Drain Line 1
7 E05-6-9004-101 Reservoir Gasket 1
8 E05-3-9902-105 Reservoir Bolt Repair Kit 1
10 E10-4-2000-109 Adaptor Assembly 1
11 H23-6-1000-102 Magnet 1

16
Parts List
Enclosure
E83-4-9701-101
& E83-4-9702-103
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
No. Part No. Description Qty.
1 N/A Switchboard 1
2 E82-6-9711-109 Power Supply Unit 1
3 614-1-0030-050 Screw 2
4 N/A Switch Base 1
5 E82-6-9200-104 ON/OFF 4P Toggle Switch 1
6 E83-6-9712-108 Power Relay 1
7 614-1-0040-017 Screw 3
8 N/A Carrier Rail 1
9 N/A End Stop (TS 35) 2
10 N/A Terminal (Fuse) 1
11 E06-6-9740-100 Fuse (120 V) 1
E06-6-9739-105 Fuse (240 V) 1
12 N/A Terminal (Fuse) 1
13 E06-6-9735-107 Fuse (Tubing) 1
14 E06-6-9715-101 Nylon Screw Plugs 2
15 E06-6-9716-103 Nylon Lock Nuts 2
16 E05-6-9105-107 Cable Gland (I) 1
25
20
26
19
24
21
22
23
12
6
7
9 108 12
28
14
15
212327
1311
345
16
17
18
No. Part No. Description Qty.
17 E30-6-9107-100
Cable Gland (II) 1
Cable Gland (II), 240V
Model 2
18 E30-6-9101-108 Cable Gland (III) 1
None PU55 Series, 240 V Model -
19 996-3-0100-108 Power Cord 1
20 614-1-0030-207 Screw 12
21 649-1-0060-113 Bolt 3
22 649-1-0060-010 Bolt 2
23 605-3-0060-005 Spring Washer 5
24 E82-4-9200-102 Pendant stations , 120V 1
E06-6-9202-102* Pendant stations , 240V 1
25 E08-6-9500-104 Power Cord , 120V 1
E06-6-9501-102 Power Cord , 240V 1
26 N/A Enclosure Cover 1
27 N/A Wire Markers Assy. 1
28 N/A Wiring Accessories 1
*E06-6-9202-102, not shown

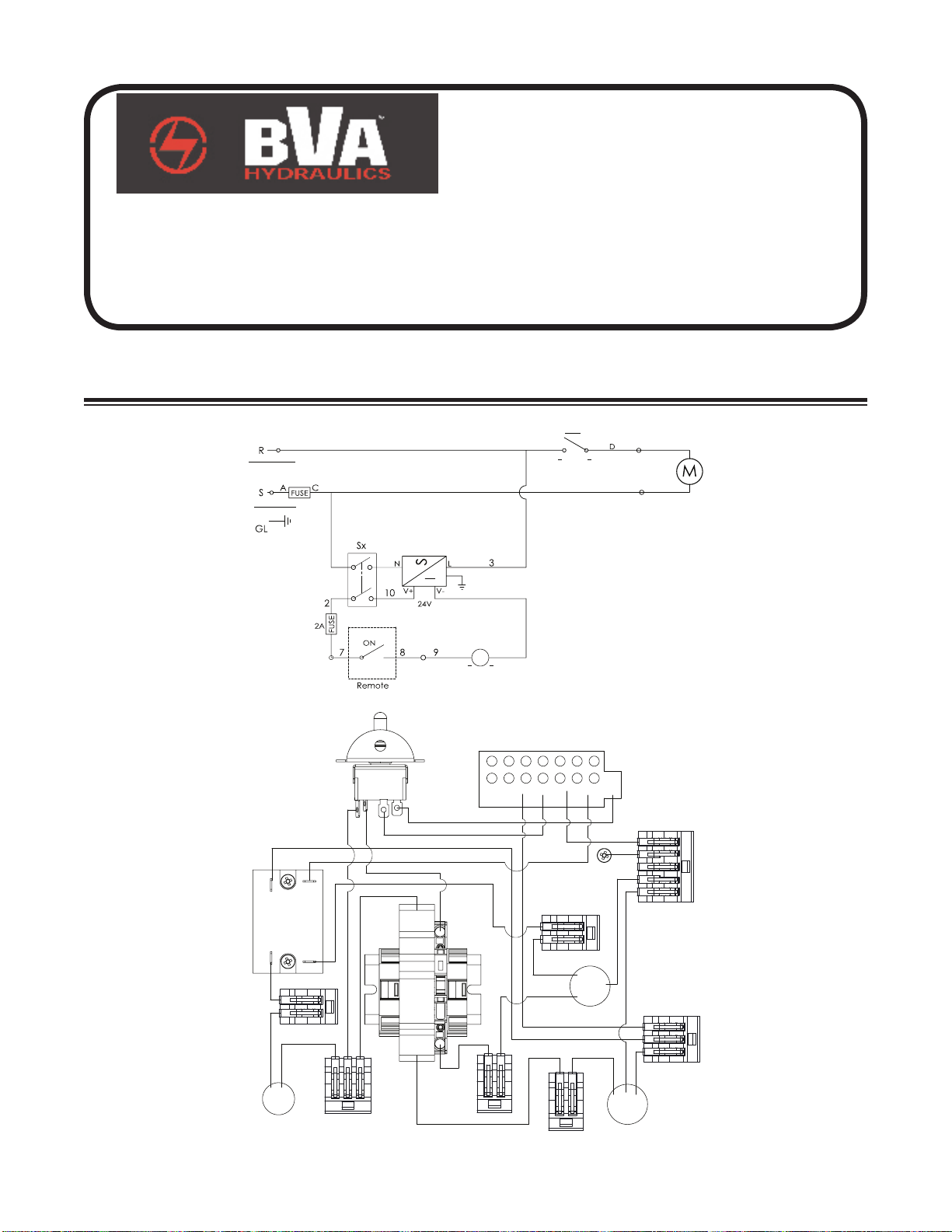

17
PU55 Series
Basic Wiring
MODELS: PU55M3N025B, PU55M3N03B, PU55M3N05B,
PU55M4N025B, PU55M4N03B, PU55M4N05B
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
(White or Blue)
(Black or Brown)
R1
56
4 1
1
6
B
4
5
R1
使用產品: E83A2 之同類型產品
例如:
E8392、E8397、...
E82D2、E83D7、...
E83E2、E83E7、E83F2...
等等
說明 :
電動串激馬達油壓幫浦 1.
採 24 VDC (電源供應器)控制 2.
使用 R1 : Relay 3.
二段式搖頭為開關: 4.
ON: 開啟 •
OFF:關閉 •
以Remote 線控開關作動 5.
配線說明 : 6.
地線 :綠線 or 黃綠線 •
主線路：黑 •
控制線路 : 紅 •
Model No. E83A2 TYPE 電路圖
蔡門成Drawn By:
120V or 240V
M
REMOTE
POWER
L N GL -V +V
1
4
6
5
2
2
6
67
7
8
8
9
9
1
110
10
4
4
3
3
C
C
5
5
B
B
A
S R
GL
使用產品: E83A2 之同類型產品
例如:
E8392、E8397、...
E83F7、E83A2、E83A7、E83B2、E8
E82D2、E83D7、...
E83E2、E83E7、E83F2...等等
說明 :
電動串激馬達油壓幫浦 1.
採 24 VDC (電源供應器)控制 2.
使用 R1 : Relay 3.
二段式搖頭為開關: 4.
ON: 開啟 •
OFF:關閉 •
以Remote 線控開關作動 5.
配線說明 : 6.
地線 :綠線 or 黃綠線 •
主線路：黑 •
控制線路 : 紅 •
Model No. E83A2 TY
Approved By:
Checked By:
Drawn By: 蔡門成
Date: 2017.09.01
File name: E83-2-0001-115 _1709ECE

18
LIMITED LIFETIME WARRANTY
BVA Hydraulics®, represented in the United States by SFA Companies [“SFA”] warrants this product to be free from defects in
material and workmanship for the life of the product as long as the original purchaser owns the product. The warranty is non-
transferable and is subject to the terms, exclusions, and limitations described below:
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as
well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not
provide any warranty credit for such damaged components.
• This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted repairs not
performed by BVA Hydraulics or one of its authorized personnel), improper uid use, or use of the product in any manner for
which the product was not intended or the use of which is not in accordance with the instructions or warnings provided with
the product.
• In the unlikely event that a BVA Hydraulics product fails due to material defect in workmanship, you may contact SFA for dis-
position. In such cases, the customer’s sole and exclusive remedy for any breach or alleged breach of warranty is limited to
the repair or replacement of the defective product.
• Under no circumstances is BVA Hydraulics liable for any consequential or incidental damage or loss whatsoever.
• THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD THROUGH AUTHORIZED DISTRIBUTORS AND OTHER CHAN-
NELS DESIGNATED BY BVA HYDRAULICS. NO AGENT, EMPLOYEE OR OTHER REPRESENTATIVE OF BVA HYDRAU-
LICS IS AUTHORIZED TO MODIFY THIS WARRANTY.
• THE FOREGOING IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FOR A FITNESS FOR A PARTICULAR
PURPOSE.
• Components not manufactured by BVA Hydraulics including certain motor systems, gasoline engines, and other are not
covered by this warranty and instead are covered by the manufacturer’s separate manufacturer’s warranty provided in the
package.
• BVA Hydraulics’ liability in all cases is limited to, and will not exceed the purchase price paid for the product.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

19
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]
NOTES:

20
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]
NOTES:
