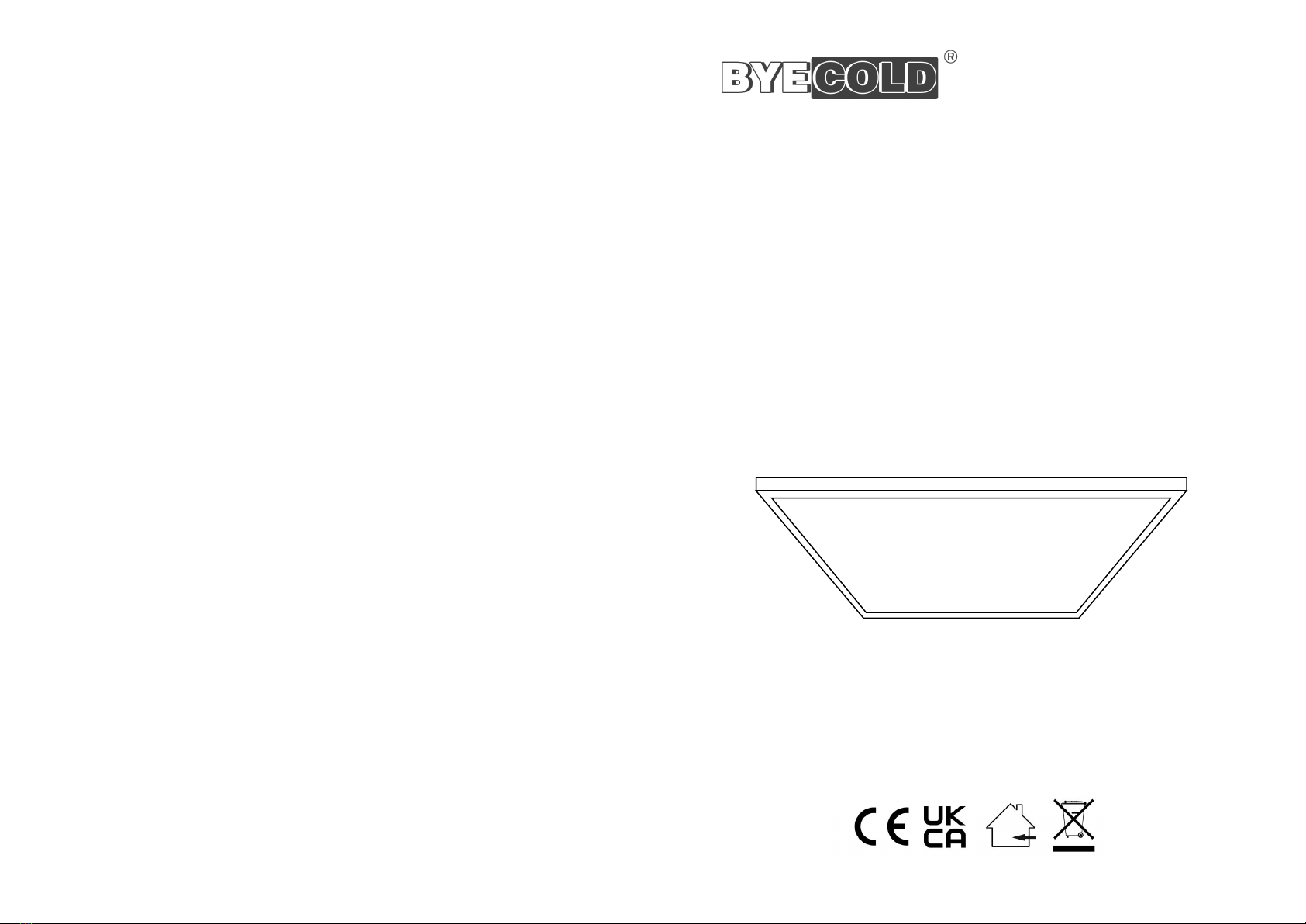

BYECOLD IGT1-HH0606-1 User manual

INFRARED CEILING HEATER
INSTRUCTION MANUAL
(EN+DE)

SYMBOLS
Warning
This signal word indicates a hazard with an average risk level which, if not
avoided, can result in serious injury or death.
Warning of electrical voltage
This symbol indicates dangers to the life and health of persons
due to electrical voltage.
Symbols
Meaning
This symbol located on the device indicates that it is
prohibited to place objects (such as towels, clothes etc.)
above or directly in front of the device.
In order to avoid overheating and fire hazards, the
device must not be covered.

Dear Customer,
Thank you for purchasing this device. Please
read the following instructions carefully and
follow them to prevent possible damages.
We assume no liability for damage caused by
disregard of the instructions and improper use.
Scan the QR code to get access to the latest
user manual and more product information.
CONTENT
1┃WARNING & PRECAUTION
2┃FEATURES
3┃TECHNICAL INFORMATION
4┃SCOPE OF SUPPLY
5┃DEVICE STRUCTURE
6┃INSTALLATION
7┃TROUBLESHOOTING
8┃OPERATION INSTRUCTIONS
9┃MAINTENANCE & SERVICING
10┃STORAGE
11┃TECHNICAL ANNEX
12┃DISPOSAL
1┃WARNING & PRECAUTION
Read this manual carefully before starting or using the device. Always
store the manual in the immediate vicinity of the device or its site of use!
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire
and / or serious injury. Save all warnings and instructions for future reference.
Warning
Mounting height of this device should not be less than 1.8 meters！
Warning
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Warning
Children of less than 3 years should be kept away unless continuously
supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the
appliance provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children aged from 3 years and less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.

Warning
Do not use the device in small rooms if persons are present who cannot leave the
room independently and who are not under constant supervision.
Warning
Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
•To avoid the possibility of burns, the following people should be much more
careful when using the heaters: infants and kids, people with sensitive skin,
the old, the sick, people who is drunk, people who takes sleeping pills.
•It’s dangerous of installation close to curtains and other combustible materials.
•Remove the protective film(if any) before using.
•Be sure the operation voltage is between 220-240V, 50/60Hz, and power
supply has been strictly in accordance with local electrical codes (Wiring is
required to follow the local wiring regulations), and the product must be well
grounded.
•The devices will draw more current than small appliances, so a separate 5A
socket is required.
•Do not use the device in potentially explosive rooms.
•Do not use the device in aggressive atmosphere.
•Set the device up in a stable position.
•Do not clean the heating part or let the water flow into the electric parts.
•Do not use the device with wet or damp hands.
•Do not expose the device to directly squirting water.
•Never insert any objects or limbs into the device.
•Do not cover or transport the device during operation.
•Do not sit on the device.
•This appliance is not a toy! Keep away from children and animals.
•Do not leave the device unattended during operation.
•Check accessories and connection parts for possible damage prior to every use
of the device. Do not use any defective devices or device parts.
•Ensure that all electric cables outside of the device are protected from damage
(e.g. caused by animals). Never use the device if electric cables or the power
connection are damaged!
•The electrical connection must correspond to locally relevant Electricity and
Wiring Regulations.
•Insert the mains plug into a properly secured mains socket.
•Do not use the device when the socket or wire overloaded.
•Observe the device's power input, cable length and intended use when
selecting extensions to the power cable. Completely unroll extension cables.
Avoid electrical overload.
•Before carrying out maintenance, care or repair work on the device, remove
the mains plug from the mains socket. Hold onto the mains plug while doing
so.
•Switch the device off and disconnect the power cable from the main socket
when the device is not in use.
•Do not use the device under any circumstances if any damages on the mains
plug or power cable. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard. Defective power cables pose a serious health risk.
•During the installation of the device observe the minimum distances from
walls and other objects as well as the storage and operating conditions
specified in the related chapter.
•Never drill into the heating device.
•Do not use the device in immediate proximity to curtains.
•Do not place the device on combustible ground.
•Do not touch the surface during the device working to avoid burns.
•Allow the device to cool down before transport and / or maintenance work.
•Do not use this device near bathtubs, shower trays, swimming pools or other
water containers. Risk of electric shock!
•The device must be placed where the switches and controllers cannot be
touched by a person in a bathtub or shower.
•Do not use this device in a child-care centre and bathroom.(Only for Sweden)

2┃FEATURES
•The device is designed to provide an efficient, comfortable and healthy heating
system for any domestic users.
•The device can reduce air circulation and help to maintain a clean, silent, dust
free environment.
•A wide range of devices s and styles.
3┃TECHNICAL INFORMATION
Infrared Ceiling Heater
Heating element
Carbon
Heating way Far infrared heating
Input Voltage 220-240V/50Hz
Surface temperature Main 130-150℃
Frame Aluminum
Power cord length ≤1.9m
Model NO. Size(mm) Heating
Power
(W)
Voltage
Frequency
Rated
Current
IGT1-HH0606-1 595*595*35 400W
230V/50HZ
1.7A
IGT1-HH1006-1 1005*605*35 660W 2.9A
IGT1-HH1006-1 1055*605*35 660W 2.9A
IGT1-HH1206-1 1195*595*35 860W 3.7A

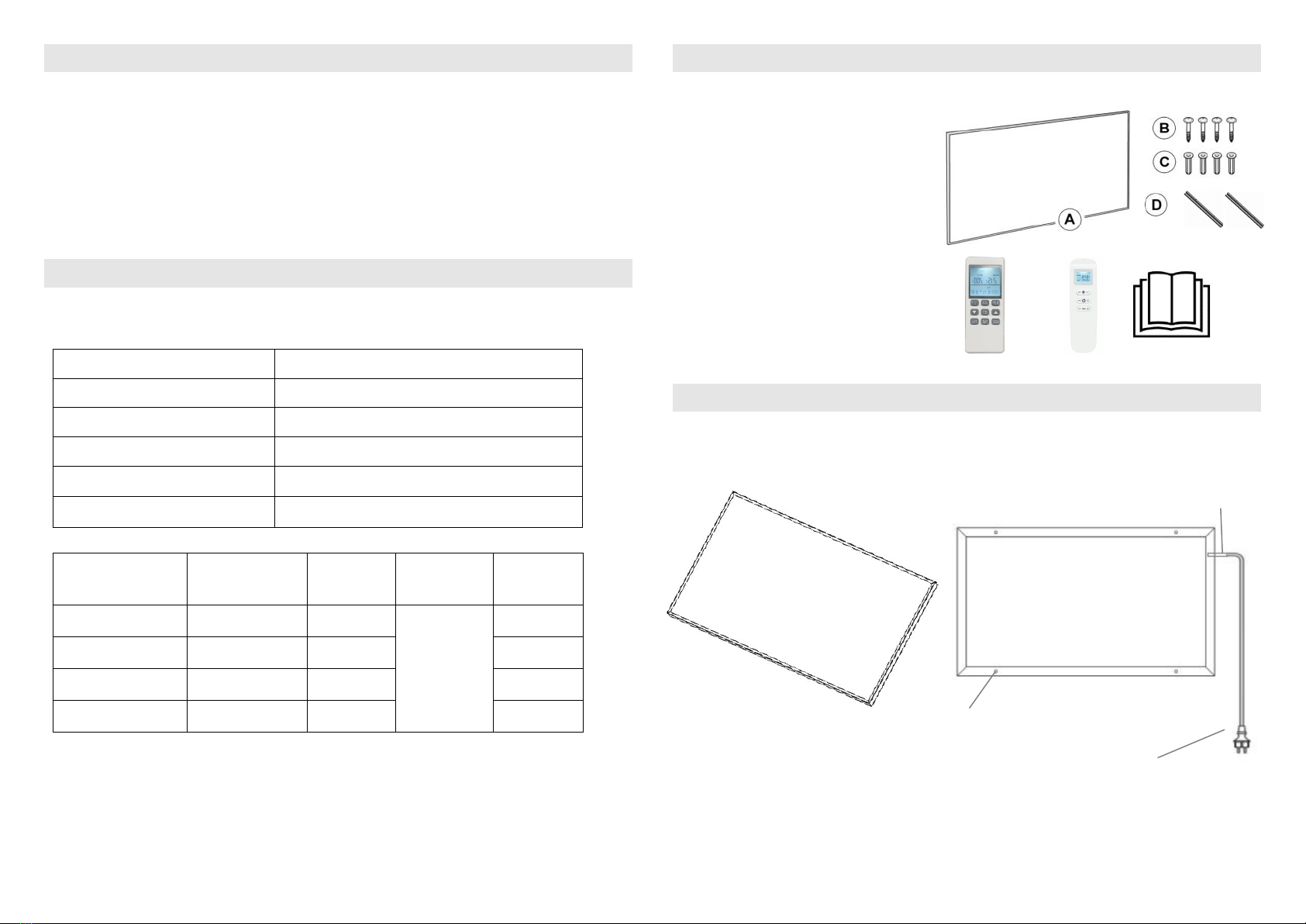

4┃SCOPE OF SUPPLY
•(A)1 x heating device
•(B)4 x Screws
•(C)4 x Dowels
•(D)2 x hanging units
•1 x Remote Controller(Optional)
•1 x Manual OR
5┃DEVICE STRUCTURE
Front surface
Front Rear
limit screw
power cord
power cord plug
Mode B Mode C

6┃INSTALLATION
Warning
•Never install the device in a way that it radiates directly onto walls or other
objects. Observe the minimum distances from walls or other objects as
described in the following.
·A minimum distance of 180cm and a maximum distance of 270cm from the floor.
·A minimum distance of 100cm to the front or from objects.
·A minimum distance of 20cm to the sides.
•No any sticking ways are allowed to be used for hanging or suspending support!
•Ensure that mounting surface is capable of supporting the weight of the device.
•The device must be permanently installed by a licensed electrician in accordance
with local electrical codes. Assembly procedure must be performed with no
electrical power to unit.
•Power input cords must be connected or wired to those lines with switches which
can freely cut off the live lines!
•Make sure that the power cable is guided along the back of the device. Never
guide the power cable along the front of the device!
•Power input cords must be well grounded!

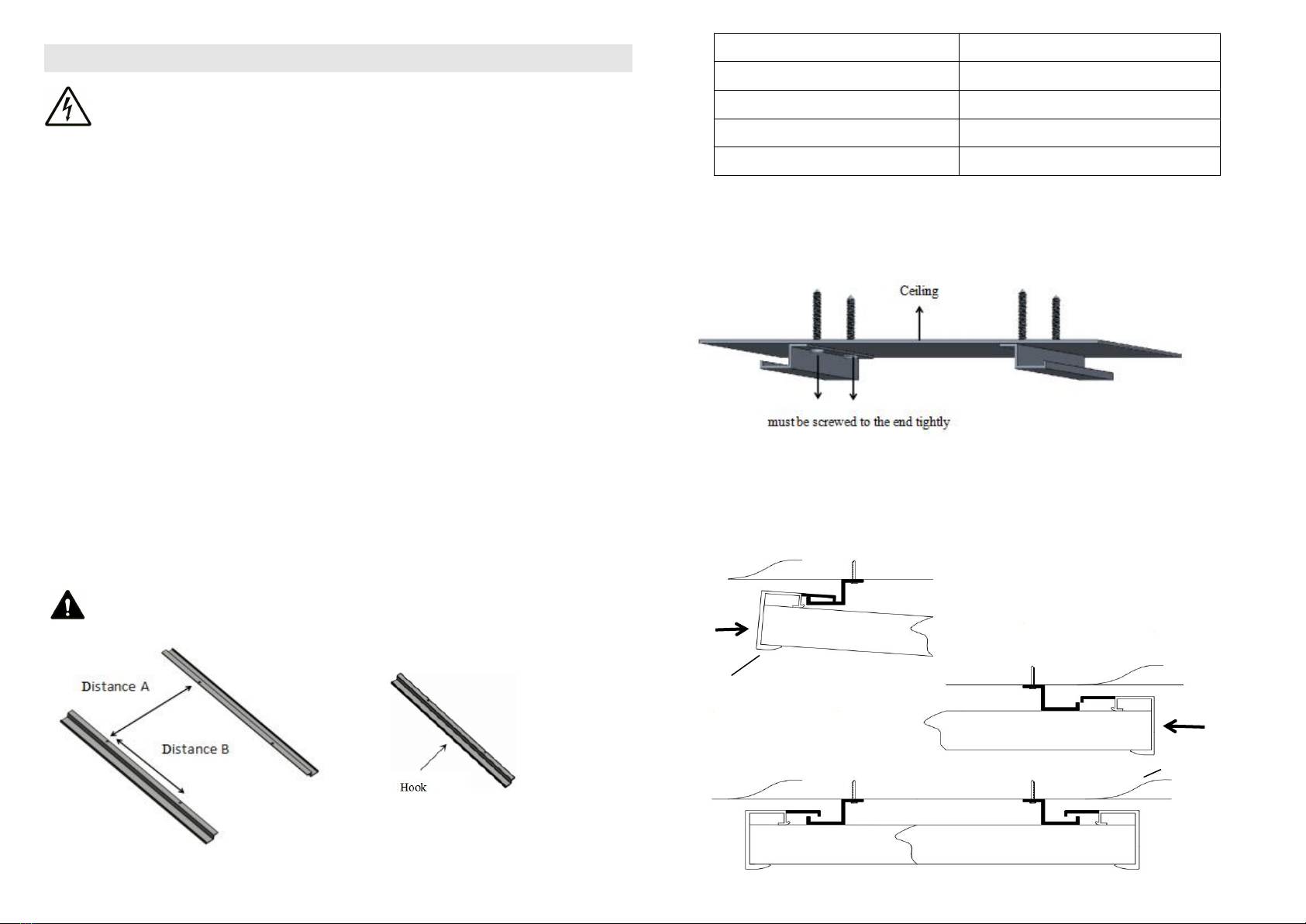

1. Drill 4 holes on the ceiling with correct distance A and distance B.
Must use CORRECT diameter drilling bit to avoid panel falling!
Panel Size/mm
Hole Distances of Screws/mm
595*595 (or similar)
A485*B100mm
1005*605(or similar)
A495*B300mm
1055*605(or similar)
A495*B300mm
1195*595 (or similar)
A485*B300mm
Note: 595 x 595 mm and 1195 x 595 mm size panel are also applicable to
the installation of suspended ceiling grid system.
2. Mount the 2 hanging hooks onto ceiling with screws, and turn the screws to the
end tightly. (This is very important).

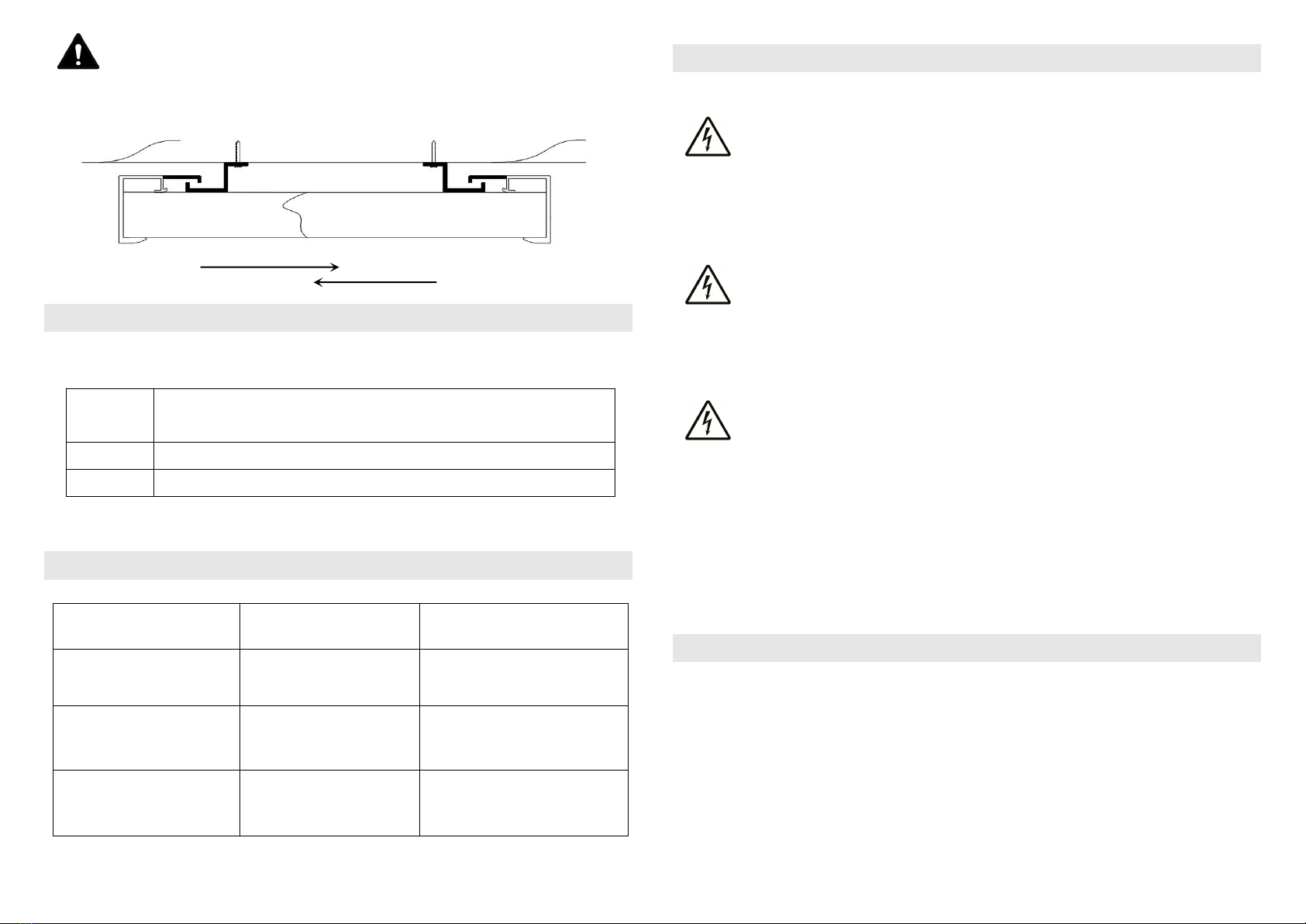

3. Push the rear of the left long frame into the hook, and then push back to make
the rear of the right long frame into the other hook.
Note: 1.Hooks are for the two long frames only, not the two short ones!
2. Make sure the hooks are between the two limit screws !
PUSH
PUSH
Panel
Panel
Ceiling
Left long frame
Right long frame

WARNING
To avoid falling off, slide the panel left and right to make sure the two hooks
have been completely put into the rear of the two long frames!
7┃OPERATION INSTRUCTIONS(additional instructions)
The device can operate in 3 different modes.
Mode A
Insert the mains plug into a properly fused mains socket or
hardwire the device with a fused switch, control it with a switch.
Mode B
Control the device with a built-in remote thermostat
Mode C
Control the device with a built-in WIFI and remote thermostat
Please check more details in the additional page.
8┃TROUBLESHOOTING
Problem
Reason
Measure
It has noise when original
charged with electricity
Due to the structure
stress of the heat
insulator.
It is a normal phenomenon.
Don't worry about it.
The surface of the device
was slightly raised.
Due to the thermal
expansion of the surface
material.
It is a normal phenomenon.
Don't worry about it.
The surface of the heating
device is slightly warm.
1. The voltage is low.
2. In a low-temperature
environment.
1. Install a voltage regulator.
2. It is normal.
9┃MAINTENANCE & SERVICING
Activities required before starting maintenance
Warning of electrical voltage
•Do not touch the mains plug with wet or damp hands.
•Hold onto the mains plug while pulling the power cable out of the mains
socket.
•Allow the device to cool down completely.
Warning of electrical voltage
•Tasks which require the housing to be opened must only be carried out by
authorized specialist companies.
Cleaning the device
Warning of electrical voltage
•Never immerse the device in water!
•Clean the device with a soft, damp and lint-free cloth.
•Ensure that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning agents
such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to
dampen the cloth.
•Wipe the housing dry after cleaning
10┃STORAGE
When the device is not being used, observe the following storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and direct sunlight
• with a cover to protect it from invasive dust, if necessary.
• Place no further devices or objects on top of the device to prevent it from
being damaged.
PUSH
PUSH

11┃TECHNICAL ANNEX
Information requirements for electrical local space heaters
Model(s)
Rated
voltage
(V AC)
Rated
input
frequen
cy (Hz)
No. of
Heating
Stages
Nomina
l heat
output,
Pnom
(kW)
Max.con
tinuous
heat
output,
Pmax,c
(kW)
Min.
heat
output,
Pmin
(kW)
Product
Type
IGT1-HH0606-1
220-240
50/60
1
0.40
0.40
0.40
Fixed
IGT1-HH1006-1
220-240
50/60
1
0.70
0.70
0.70
Fixed
IGT1-HH1206-1
220-240
50/60
1
0.84
0.84
0.84
Fixed
Item
Uni
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat
N/A
manual heat charge control with room and/or outdoor temperature feedback
N/A
electronic heat charge control with room and/or outdoor temperature
N/A
fan assisted heat output
N/A
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control
[no]
Two or more manual stages, no room temperature control
[no]
with mechanic thermostat room temperature control
[no]
with electronic room temperature control
[no]
electronic room temperature control plus day timer
[no]
electronic room temperature control plus week timer
[yes]
Other control options (multiple selections possible)
room temperature control, with presence detection
[no]
room temperature control, with open window detection
[yes]
with distance control option
[no]
with adaptive start control
[no]
with working time limitation
[yes]
with black bulb sensor
[no]
12┃DISPOSAL
The icon with the crossed-out waste bin on waste electrical or
electronic equipment stipulates that this equipment must not be
disposed of with the household waste at the end of its life. You will
find collection points for free return of waste electrical and electronic
equipment in your vicinity. The addresses can be obtained from your municipality
or local administration.
The separate collection of waste electrical and electronic equipment aims to
enable the re-use, recycling and other forms of recovery of waste equipment as
well as to prevent negative effects for the environment and human health caused
by the disposal of hazardous substances potentially contained in the equipment.

Infrared Ceiling Heater
Model
IGT1-HH0606-1
IGT1-HH1006-1
IGT1-HH1206-1
Operation Voltage
220-240V/50-60Hz
Rated Power
400W
660W
860W
Manufacturer
Jiangsu Byecold Technology Co.,Ltd
Address
No.666,Mingzhu Industry Zone, Zhaodun Town, Pizhou
221300,Jiangsu
Importer
Xuzhou Goton Technology Co.,Ltd
Address
Room 513, Unit 2,Commercial outer street 6, SOHO
building No.3&4, Shimao Plaza, Yunlong District ，
Xuzhou City，Jiangsu，221004，CN
Contact Info
86-516-83567656
[e-mail]
CET PRODUCT SERVICE LTD. (for authorities only)
Chase Business Centre, 39-41 Chase Side
London N14 5BP, UK
