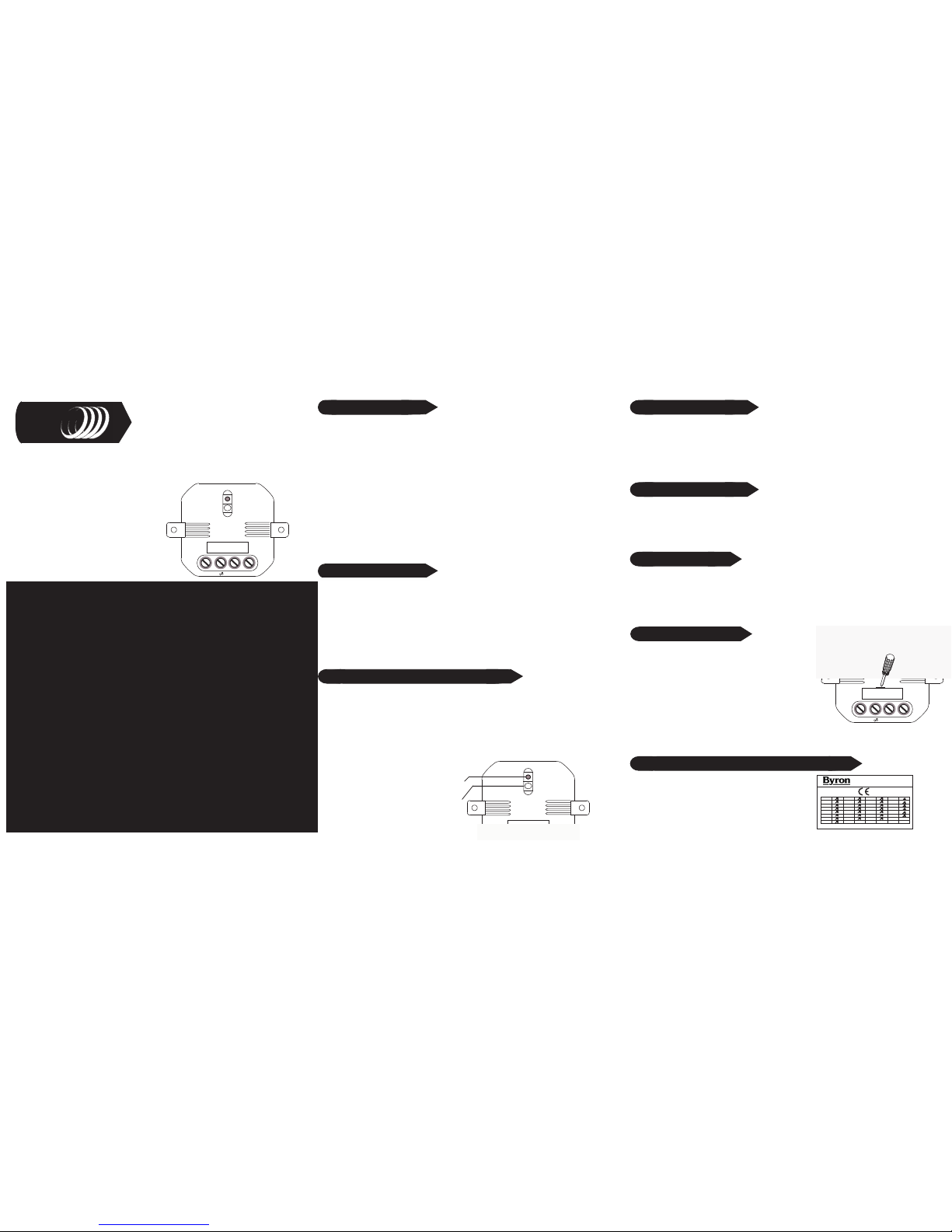

Byron Home Easy HE-204 User manual
LNN
Ceiling Receiver Module:
Input: 230V ~ 50Hz
Max Load: 300W
(Incandescent Load)
Frequency: 433.92MHz
Up to Six remote control units can be paired with each receiver module.
To program a receiver module, press "Learn" button.The LED will start to
flash, now press the selected "ON" button on the remote control,the LED
will stop flashing.
The units are now paired together, you can test this by pressing the
selected "ON/OFF" button.
To delete a remote control that has been paired with a HE-204 receiver
module, simply press "Learn" button.The LED will start to blink; press the "Off"
button on the remote control,the LED will blink twice to confirm that the
remote control has been removed from the receivers memory.
Warning: Never Exceed the Product Specification
C H Byron
34, Sherwood Rd
Aston Fields
Bromsgrove
B60 3DR
433MHz
R&TTE
APPROVED
CH Byron Electrical United Kingdom. www.chbyron.com
A
B
DK
FIN
F
D
GR
LT
IRL
I
L
NL
P
E
S
UK
BG
CZ
EST
H
IS
LV
M
N
SK
SLO
CH
PL
RO
0560
Tel: 0845 2301231
Fax: 01527 557701
Web: www.chbyron.com
E-mail:
HE-204 300W
Dimmer Ceiling Module
V1.0
The Byron HomeEasy range allows you to individually tailor your lighting
ambience and mood scenes in your home or business at the touch of a button.
The system operates by sending wire free
signals from the remote control to the
receiver units.
30 Metre Range
Remote On/Off setting
Max Load: 300W Incandescent
Lighting Only
INSTALLATION WARNINGS:
BEFORE COMMENCING INSTALLATION
ISOLATE YOUR MAINS ELECTRIC SUPPLY
Read the instructions care fully before starting the installation process and keep
them for future reference. If you are in any doubt on the installation process,
consult a qualified electrician.
This product should be installed in accordance with the relevant sections of
the building
regulations code,and the current edition of the IEE Wiring Regulations
(BS 7671:Requirements for electrical installations) and appropriate statutory
regulations.
As of1 April 2004, new installations in the UK should be wired using the EU
harmonised colours for the supply conductors:
New colours:
BROWN = Live BLUE = Neutral Earth = Yellow/Green
Old colours:
RED = Live BLACK = Neutral
Electrical installations in bathrooms, kitchens, gardens, floor and heating systems,
swimming
pools, saunas and extra-low voltage lighting are classed as special installations and
must
Do not install ceiling receivers on lighting circuits used to supply other
products such as extractor fans and shaver socket outlets.
Do not exceed the Maximum Power Rating of 300W,Incandescent lighting
only
The following lighting types will NOT work with the HE-204 Ceiling Modules:
G23, Metal Halide High Pressure sodium,
CLF, Linear/Compact Fluorescents,
SLE-PRO, PLE-C Pro,
Single Ended High Pressure Lamps
The HE-204 Ceiling Modules are compatible with the following lighting types:
G9, Strip & Architectural, PAR30,
PAR36, SES (Candle/Round, PAR38,
PAR20, GLS BC, GLS ES,
GU10, SBC (Candle/Round), K1/9/11/12,
G4, G6.35, MR16,
MR11
Product Compatability:
Product Specification:
Pairing/Deleting the Remote Control Socket:
Deleting Remote Control:
Ceiling Module Reset:
To delete all the remote control units from the memory of the receiver
module, hold the "Learn" button for more than 6 seconds,the LED will start to
blink continuously. Press the learn button again, the LED will blink twice to
confirm the deletion of all remote controls from the receiver memory.
Contact Details: HelpLine - 0845 2301231
HOME
easy
LNN
Fused: 1.6A
Indoor Use Only
LNN
Learn Button:
Learn LED:
Changing Fuse:
2. Using a small screw driver,remove the fuse
holder and replce the fuse with a new 1.6A fuse.
3. Replace the fuse holder and reconnect the
mains supply
The HE-204 is fuse protected,to change the fuse:
1. Isolate the mains power supply from the ceiling module
Dimming Module:
To dim the ceiling module, switch the unit on by pressing the "On" button
and the press "On" again.This will start the dimming cycle to select the
required level press "On".
Read the instructions care fully before starting the installation process and keep
them for future reference. If you are in any doubt on the installation process,
consult a qualified electrician.
Wiring Diagram: Low Voltage
When installing HE-204 Ceiling Modules in a existing lighting circuit,
conventional light switches should be disconnected and terminated as part of
the installation.
If your lighting circuits using ceiling roses,it is recommended that the current
wiring connections should be re-terminated using a suitable junction box.
Any existing switches currently controlling the light fitting should be
disconnected and suitably terminated.
The HomeEasy Ceiling Module is designed to be connected to the existing
permanently live lighting circuit between a convenient junction box and the
light fitting.
Any existing switches currently controlling the light fitting should be
disconnected and appropriately terminated.
Lighting circuits supplying Ceiling Receivers should always be protected by a 5
Amp rewire-able fuse or equivalent Miniature Circuit Breaker (MCB) located
within the Consumer Unit. Under no circumstances should any protection
devices with higher ratings be used.
** Ceiling Modules, are not designed to be used with loop-in/loop-out wiring, a
suitable junction box needs to be used if its necessary to connect the supply to
further fittings, the unit is designed for permanent installation.
The HE-204 Ceiling Modules are designed to be mounted inside a suitable
enclosed housing, which are dry and adequately ventilated (indoor use).
For outdoor use a suitable IP56 enclosure must be used. The ceiling receiver
module is designed to be maintenance free, but where possible access should
be available when needed.
Installation Notes:
* All Earth conductors must be suitably sleeved with Green/Yellow
* Ensure that all bare conductor
ends are fully inserted into each
terminal, that all terminal
Standard Ceiling Rose Standard Ceiling R ose
240V Mains Ring
** Ceiling Module
Earth
Connection to
Standard Light Connection to
Standard Light
Sutiable Junction Box
Earth Sleaving Must Be Used
Neutral
Live
Earth
Wiring Diagram: Standard Installation
WARNING: Before installing the HomeEasy Ceiling Modules, isolate the circuit at the fuse/MCB board.
Connect the supply Live and Neutral conductors to the Receiver terminals marked L and N SUPPLY.
Connect the cable from the light fitting to the Receiver terminals marked L(Load) and N(Neutral).
For earth continuity the supply and load Earth conductors must be terminated externally using a sutiably insulated terminal block.
Standard Ceiling Standard Ceiling
240V Mains Ring
** Ceiling Module
Earth Connection
Connection to
Low Voltage Light Fitting
Sutiable Junction Box
Earth Sleaving Must Be Used
Neutral
Live
Earth
Manufacturer
Specified
Transformer
Manufacturer
Specified
Transformer
* All Earth conductors must be suitably sleeved with Green/Yellow
If in any doubt consult a qualified Electrician
LNN
LNNNeutral
Neutral
Load Live
Live
LNN
LNNNeutral
Neutral
Load Live
Live
IN INOUT
LNN
IN INOUT
LNNConnection to
Low Voltage Light Fitting
