BZB Gear BG-BSHA User manual

BG-BSHA
Full HD Integrated HDMI/SDI/IP 20X/30X Zoom Camera with Audio
Input
User Manual

BZBGEAR BG-BSHA PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-BSHA PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 6
Camera Menu Settings 7
Network Connection 11
Camera Web Interface 15
Tech Support 19
Warranty 19
Mission Statement 19
Copyright 20
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-BSHA PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●The product has no power switch. Remove power immediately if the camera is not in
proper working condition to avoid electrical shock.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
●Please refer to the user installation manual carefully during installation. Handle the
camera components gently to avoid damage to the camera. The camera lens is an
advanced optical product - protect the lens from contact to avoid scratching and
affecting image quality.
●Do not aim the camera at a bright object. Whether powered on or not, never aim at the
sun or other bright objects as this can damage the sensors and cause blurred or haloed
images.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-BSHA PRODUCT MANUAL
Introduction
The BG-B20SHA/BG-B30SHA 20X/30X optical zoom IP-streaming camera utilizes a
high-quality CMOS sensor to deliver crisp HD video signals. Its compact design provides
ease-of-use and versatile placement options in a sleek low-profile housing. This camera is
well-suited for a wide variety of broadcast and professional A/V applications including
lecture streaming, room monitoring, studios, and more.
Features
●Video Output: 3G-SDI / HDMI / IP Streaming
●Audio Input: 3.5mm Audio Input
●Input/Output Control Interface: 2 PIN Terminal, 3.50mm
●Power Interface: 2 PIN Terminal, 3.50mm or POE+
●RS232C or RS485 protocols allow a PTZ controller or PC to control the camera.
●Improved image quality from a newly developed digital signal processor.
●Built-in attenuation filter that physically removes IR (infrared). This filter can be turned
on or off automatically, providing high quality images in environments with different
brightness levels. The five-direction button on the back of the camera allows users to
quickly and easily change any parameters of the camera.
●Built-in Audio Input, Audio encode standard support G.711,G.722,G.722.1,
G.728,G.722.1C, ACC
●SDI/HDMI/IP stream simultaneously
●Power over Ethernet (PoE) functionality
Packing List
●1x BG-BSHA Camera
●1x Power Cable
●1x 12V/ 2.0 A DC Power Adapter
●1x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-BSHA PRODUCT MANUAL
Specifications
Camera Specs
Sensor
1/2.8″ Exmor CMOS Sensor, 2.38MP
Frame Rate
1080p@60Hz/50/30/25, 1080i@60Hz/50/30/25, 720p@60Hz/50
Zoom
20X/30X Optical, 12X Digital Zoom
Focus
f=4.7mm-94.0mm
Aperture
F=1.6(W)-3.5(T)
Horizontal Field of View
2.9°(T)-65°(W)
Zoom Control
VISCA, PELCO D/P
Input/Output Interface
Video Output
3G-SDI / HDMI / IP Streaming
Audio Input
N/A
Power On
JEITA type (DC IN 12V)
Communication interface
RS485 / RS232
Generic
Dimensions (W x H x L)
70 x 70 x 122mm
Weight
0.44 lbs [0.2kg]
Operating Temperature
-10°C ~ 50°C
Max Consumption
12W DC12V @1A
Operation Controls and Functions
1. Lens
2. Terminal Pin Interface
A: RS485+
B: RS485-
-/+: DC12V Power Interface
3. Five-direction Button
4. Audio-IN
5. HDMI
6. 3G-SDI
7. LAN
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-BSHA PRODUCT MANUAL
Dimensions
Camera Menu Settings
Menu Settings
1. Press and hold the center button for 3 seconds to enter the
Main Menu
2. Use the directional keys to navigate the menu and settings.
MAIN MENU
EXPOSURE
COLOR
ADVANCED
PRIVACY
SYSTEM
EXIT
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-BSHA PRODUCT MANUAL
Exposure
Enter the main menu and navigate to【EXPOSURE】. Press right
to enter the sub-menu.
●【AE MODE】
Options: AUTO/SHUTTER/IRIS/BRIGHT
●【SHUTTER/IRIS/BRIGHT】
Different auto exposure parameters can be modified depending
on the selected mode. The range of settings are as follows:
MAIN MENU
EXPOSURE
COLOR
ADVANCED
PRIVACY
SYSTEM
EXIT
Shutter: 1/1-1/10000
IRIS：F1.6-F14
Bright：F14/0DB-F1.6/28DB
●【EXCOMP】 ON/OFF
●【BACKLIGHT】 Backlight Compensation ON/OFF
●【HLC】 Highlight Compensation 0 - 15
●【FLICKER】 Anti-Flicker 50Hz/60Hz/OFF
●【GAMMA】 Gamma Adjustment 0 – 9
Color
Enter Main Menu, navigate to【COLOR】, press right to enter
sub-menu.
●【WB MODE】
Options: AUTO, INDOOR, OUTDOOR, ATW, OPW, MANUAL
●【R GAIN/B GAIN】
When the WB MODE is set to MANUAL the R Gain\B
Gain values can be independently adjusted.
COLOR
WB MODE： AUTO
R GAIN： N/A
B GAIN： N/A
COLOR GAIN 100
COLOR HUE 0
BACK
EXIT
●【COLOR GAIN】
Setting Valued range：60 - 200
●【COLOR HUE】
Setting Valued range：-14 - 14
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-BSHA PRODUCT MANUAL
Enter Main Menu, navigate to【PICTURE】, press the Right Button
to enter the sub-menu.
●【FREEZE】 Setting: ON/OFF
●【APERTURE】 Setting Value range：0-15
●【2D NR】 Setting Value range：0-5
●【FLIP 】 Setting: ON/OFF
●【ICR 】 Setting: AUTO, B&W, COLOR
●【GAMMA 】 Setting Value range：0-4
●【BLC 】 Setting: ON/OFF
FREEZE： OFF
APERTURE： 5
2D NR： OFF
FLIP： OFF
ICR: AUTO
GAMMA: NORMAL
BLC: OFF
BACK
EXIT
P/T/Z
Press the 【MENU】 button to display the OSD menu, then
press the arrow keys to highlight 【P/T/Z】 and press right to
enter the submenu.
●【FILP】: ON/OFF
●【L/R DIRECTION】: ON/OF
●【AF MODE】: AUTO/MANUAL/ZOOM
●【AF SENS】: HIGH/NORMAL/LOW
●【PRESET FREEZE】: ON/OFF
●【D ZOOM】: ON/OFF
P / T / Z
FLIP: OFF
L/R DIRECTION: OFF
AF MODE: AUTO
AF SENS: NORMAL
PRESET FREEZE: OFF
D ZOOM: ON
BACK
EXIT
Noise Reduction
Press the 【MENU】 button to display the OSD menu, press the
arrow keys to highlight 【NOISE REDUCTION】, then press right
to enter the sub-menu.
●【2D NR】: 0-5 / OFF
●【3D NR】: 0-5 / OFF
●【DYN HOT PIXEL】: ON/OFF
NOISE REDUCE
2D NR: 2
3D NR: 3
DYN HOT PIXEL: OFF
BACK
EXIT
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR BG-BSHA PRODUCT MANUAL
Video Format
Press the 【MENU】 button to display the OSD menu, press the
arrow keys to highlight 【VIDEO OUT】, then press right to enter
the sub-menu.
●【VIDEO OUT】:
1080P60/59.9 4/50/30/29.97/25
1080I60/59.94/50/30/25
720P/60/50
VIDEO OUT
VIDEO OUT: 720P50
720P60
1080I25
1080I30
1080I50
1080I59.94
1080I60
1080P25
1080P29.97
1080P30
1080P50
1080P59.94
1080P60
BACK
System Settings
Press the 【MENU】 button to display the OSD menu,
press the arrow keys to highlight 【SYSTEM SETTING】,
then press right to enter the sub-menu.
●【SYSTEM INFO】: press right button to enter the
submenu
●【LANGUAGE】: CHINESE/ENGLISH
●【ZOOM LEVEL】: ON/OFF
●【PROTOCOL】: VISCA/PELCO-D/PELCO-P
SYSTEM SETUP
SYSTEM INFO
LANGUAGE: CHINESE
ZOOM LEVEL: ON
PROTOCOL: VISCA
ADDRESS: AUTO
BAUDRATE: 9600
BACK
EXIT
●【ADDRESS】: 1-255
●【BAUDRATE】: 2400/4800/9600/19200/38400
Restore Default
Press the 【MENU】 button to display the OSD menu, press
the arrow keys to move to 【DEFAULT】, press the right
button to make the OSDparameters return to default.
DEFAULT SETUP
FACTORY
DEFAULT
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 10

BZBGEAR BG-BSHA PRODUCT MANUAL
Network Connection
To successfully complete this process, you will need several pieces of information. The first
is the IP address of your computer. You will also need to select an unused IP address on
your local network (This is the address you will set the camera to). The third piece is the
default IP address of your camera. Finally, you will need the IP address of your Default
Gateway/Router.
All versions of the BZBGEAR BG-BSHA series cameras have the following default IP
address:
192.168.1.162
The computer must be on the same subnet as the camera to connect successfully,
therefore the computer must be connected to the 192.168.1.x subnet. If your network is
already using this IP address pool, simply enter the camera's IP address to connect. If it is
not,you will need to change the adapter settings in the Local Area Network Properties on
the computer.
• Right-click on the internet connection in the lower right corner of the desktop and
select "Open Network & Internet Settings".
• Select “Change Adapter Options".
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 11

BZBGEAR BG-BSHA PRODUCT MANUAL
• Right-click on your connection (Wi-Fi or Ethernet) and select “Properties."

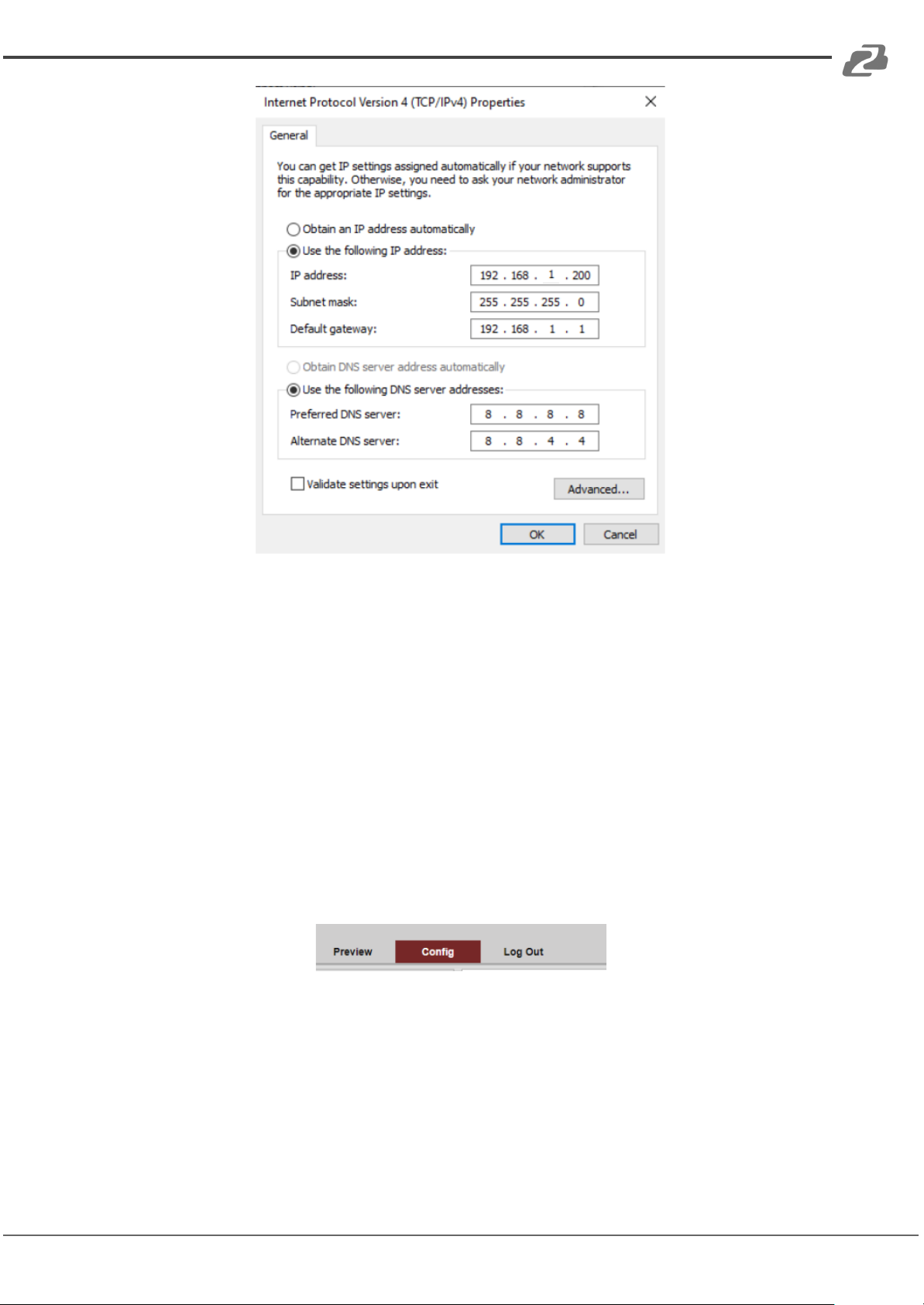

• Select “Internet protocol version 4 (TCP/IPv4)" as shown below and click
“Properties."
• For the following steps refer to the diagram below. Select “Use the following IP
address."
• In the IP address field enter a non-conflicting IP address on the same subnet as the
camera. If there is another device with the same IP address you will not be able to
connect. In the example below we are using 192.168.1.200
• In the Subnet mask field enter 255.255.255.0 In the Default gateway field type
192.168.1.1 You can leave the DNS fields blank.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 12

BZBGEAR BG-BSHA PRODUCT MANUAL
NOTE: When you are finished configuring the camera you will need to return to this screen
and select “Obtain an IP address automatically" and “Obtain DNS server automatically" to
restore internet connectivity to your computer. Also make sure to reconnect any ethernet
cables you may have unplugged.
• Click OK to apply your settings.
• Click OK to close the network properties screen.
• Once you have applied your settings open your web browser and enter the IP
address of your camera.
• Enter the login information to access the interface.
o The username and password should both be ‘admin’ for a default camera.
• You will now be looking at the camera preview window. At the top left of your screen
select Config.
• On the left side of your screen select Network. In the IP address field, you will enter
the unused IP address you selected at the beginning. Our example will use an
address of 192.168.20.186.
*This address MUST NOT be in use by any other device on your network
or you will create an IP conflict and be unable to access your camera. *
• In the Subnet Mask field enter 255.255.255.0 then enter the IP address of your
Default Gateway in the field below. Double-check your values and click the Save
Button.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 13

BZBGEAR BG-BSHA PRODUCT MANUAL
• Unless you are given different information by your network administrator you should
enter 8.8.8.8 for DNS1 and 8.8.4.4 for DNS2. Click Save.
• Once you complete the camera setup, repeat the steps on your computer to adjust
"Internet Protocol Version 4 (TCP/IPV4) Properties" and select "Obtain IP address
automatically" and "Obtain DNS server address automatically." Click OK to close all
network-related screens.
• Your computer and camera should now be on your network. Open your web
browser and enter the IP address you assigned to your camera and your setup is
complete.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 14

BZBGEAR BG-BSHA PRODUCT MANUAL
Camera Web Interface
From the Web Interface you can control the camera, view the video feed, and adjust various
camera settings and functions.
Preview Screen
From the preview screen you can view the live video feed, preview the embedded audio,
and adjust PTZ, Focus, and Iris controls.
Directional Arrows: Use the Up/Down/Left/Right/Diagonal buttons to rotate the camera.
Home Button: Use the Home button to return the camera to the Home position.
Zoom In/Out: Use the Zoom buttons to adjust the zoom level of the camera.
Focus In/Out: Use the Focus buttons to manually adjust the camera's focus.
Speed Control: Use the slider to adjust the PTZ speed of the camera.
Preset Tab: Use the Preset tabs to Set, Recall, and Delete Preset positions. To record a
preset, adjust the camera to the desired location and zoom level. Highlight the preset
number you wish to record and click the “Set" button. To recall a preset, highlight the preset
number you wish to recall and click the "Call" button. To delete a preset, highlight the preset
number you wish to delete and click “Delete".
Configuration Screen
From the configuration screen you can set and adjust all the functions and parameters of
the camera.
System Page
The system page contains information regarding the camera, time settings, firmware, and
main video output resolution.
Version Tab: The version tab contains camera information including model number, serial
number, firmware and hardware versions, and MAC address.
Time Tab: The time tab allows you to adjust time, date, and time zone settings.
Maintain Tab: This tab allows you to reboot, restore factory default settings, and update the
firmware.
Config Tab: Name the camera, select menu language, select Video Standard (not used), set
output resolution, and enable/disable UVC (USB) video output.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 15

BZBGEAR BG-BSHA PRODUCT MANUAL
Network Page
The network page includes network settings, port settings, and streaming settings.
ETH Tab: Select static (Config IP Address) or DHCP (Auto IP Address), select Auto or
Manual DNS settings.
Service Tab
MSG Port: default 8080
RTSP Port: default 554
HTTP Port: default 80
VISCA Port: default 52381
WebSocket Port: default 8880
Note: Changing the port number requires restarting the camera to valid. In order to
avoid port conflicts, please be careful to modify.
RTMP Tab
Enable RTMP: (Check box)
Server: Enter the server URL and Stream Key of your streaming platform in the format of :
rtmp://serverURL/StreamKey.
(Ex. rtmp://a.rtmp.youtube.com/live2/du36-z46c-1p31-4kxw-29yx)
Port: Set according to your streaming platform (YouTube=1935, Facebook=443)
Stream Type: Select desired stream
ONVIF Configuration Tab
ONVIF Authentication: Authentication enable, default disable.
ONVIF Server Port: default 8554.
ONVIF RTSP Authentication: Authentication enable, default disable.
RTSP Port: ONVIF RTSP Port, default 8554.
AV Page
The AV page is where you will find all the audio and video settings for stream encoding.
Stream Type: Use the pull-down to select which of the 3 streams you wish to adjust. When
you select a stream, all options and settings on the page affect the selected stream.
Stream Key: This shows the address information for your streaming output. This is not
adjustable and should be added to the end of your camera's IP address as shown below:
Default Main Stream: rtsp://192.168.1.162:554/0/0/0
Default Sub-Stream: rtsp://192.168.1.162:554/0/0/1
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 16

BZBGEAR BG-BSHA PRODUCT MANUAL
Frame Rate: Specify frame rate (1-30). Frame Rate Priority prioritizes frame rate over image
quality when VBR mode is enabled.
GOP: Frame interval (1-60). Default is 30.
Bitrate: Video Bit Rate (1-10240). Default is 4096
Resolution: Set streaming video resolution
Stream Mix Type: Select Complex or Video Stream. Complex Stream includes audio.
Encode Type: Select video encoding format.
Bitrate Type: CBR (Coded Bit Rate), VBR (Variable Bit Rate), Fix QP (Fixed Bit Rate).
⎯When CBR is selected stream quality, IFrame, and PFrame settings are unavailable.
⎯When VBR is selected IFrame and PFrame settings are unavailable.
⎯When Fix QP is selected stream quality setting is unavailable.
Audio Encode Type: Select audio encoding format. AAC is recommended for most
streaming platforms.
Audio Input Mode: Select Mic Level or Line Level
Audio Input Gain: Set the audio input gain level (1-10, mute)
Audio Quality: Select High or Low
Image Page
On the image page you will find all the image, iris, and focus settings for adjusting the
camera's picture.
Display Tab-
Brightness: Brightness adjustment slider
Contrast: Contrast adjustment slider
Hue: Hue adjustment slider
Saturation: Color saturations adjustment slider
Sharpness: Video sharpness adjustment slider
Mirror: Horizontal image reverse
Flip: Vertical image reverse
Flicker: Lighting flicker compensation
AWB Mode: Auto White Balance Mode settings
BLC: Backlight Compensation adjustment
DNR(3D): 3D Digital Noise Reduction Control
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 17

BZBGEAR BG-BSHA PRODUCT MANUAL
Camera Tab-
Focus Mode: Change camera focusing mode
Near Limit: Set the distance from the lens for auto focusing. The camera will not focus on
anything closer than the set value.
Sensitivity: Auto focus sensitivity level
ICR Mode: Infrared Cut Filter Removal Mode
AE Mode: Auto Exposure Mode
AE Level: Auto Exposure Level adjustment
HLC: Highlight Compensation Level
DNR(2D): 2D Digital Noise Reduction adjustment
Gamma: Gamma adjustment
Safety Page
From this screen you can modify the login information
PTZ Page
From this screen you can view and modify the PTZ control settings of the camera.
PTZ Address: Set the PTZ control address of the camera
Protocol: Set the serial control protocol
Baud Rate: Set the serial control baud rate
LR-Direction: Reverse the left and right controls
Vertical Axis: Reverse the up and down controls
Display Mag: Display current magnification (zoom) level
Status Page
On this screen you can view the current bit rates of the 3 IP streams.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 18

BZBGEAR BG-BSHA PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 19

BZBGEAR BG-BSHA PRODUCT MANUAL
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 20
