BG-BWEB-S | BG-BWEB-W
Desktop HD Video Camera
User Manual

1
Attention
This manual briefly introduces the camera functions, installation and operation. Please read carefully
before application.
1. Application instructions
To prevent damages to this camera or any products connected to it, this product can only be used within the
specified parameters:
1) Do not expose the camera to rain or moisture;
2) To prevent the risk of electric shock, do not disassemble the camera, only qualified technical personnel to
perform installation and maintenance;
3) Do not use the camera in situations which is excess of the specified temperature, humidity or power
specifications;
4) When cleaning the camera lens, wipe with a soft and dry cloth. If with too much dust, wipe gently with a mild
detergent. Do not use strong or corrosive detergent, so as not to scratch the lens, affecting the image effect.
2. Electrical Safety
This product must be installed in strict compliance with local electrical safety standards.
3. Caution during transport
Avoid heavy pressure, severe vibration, and moisture damage to the product in transportation, storage and
installation.
4. Careful installation
The camera body is made of organic material, please keep way from corrosive liquid, gas or solid material.
5. Do not disassemble
We are not responsible for any damage caused by unauthorized disassembling.
6. Magnetic field interference
The electromagnetic field at a specific frequency may affect the camera image. As this is a Class A product, in
household environment it may cause radio interference, users need to take appropriate measures.

2
Content
1. Quick Installation Instructions .............................................................................................................................3
1.1. Product Interfaces ......................................................................................................................................3
1.2. Usage of the Product ..................................................................................................................................3
2. Product Introduction...........................................................................................................................................4
2.1. Product Introduction ..................................................................................................................................4
2.2. Product Features ........................................................................................................................................4
2.3. Technical parameters..................................................................................................................................5
3.Maintenance and Troubleshooting.......................................................................................................................6
3.1. Camera Maintenance .................................................................................................................................6
3.2. Troubleshooting .........................................................................................................................................6
Warranty.................................................................................................................................................................7
Mission Statement..................................................................................................................................................7

3
1. Quick Installation Instructions
1.1. Product Interfaces
Picture 1.1 Interfaces Instructions
1. Lens(fixed)
3.USB2.0 cable outlet hole(unplug)
5.Screw hole for tripod
2. Audio IN (built in pick-up)
4. Flexible clip/base
6.mounting and locating
holes
The USB 2.0 port available for plug and play; can output video and power the camera.
1.2. Usage of the Product
1) Attach the webcam to LCD screen, the top of laptop, desk or tripod directly.
2) Connect the USB cable with computer, video conference devices or other USB input device.
3) Open the video software, select the video device to get video output.

4
2. Product Introduction
2.1. Product Introduction

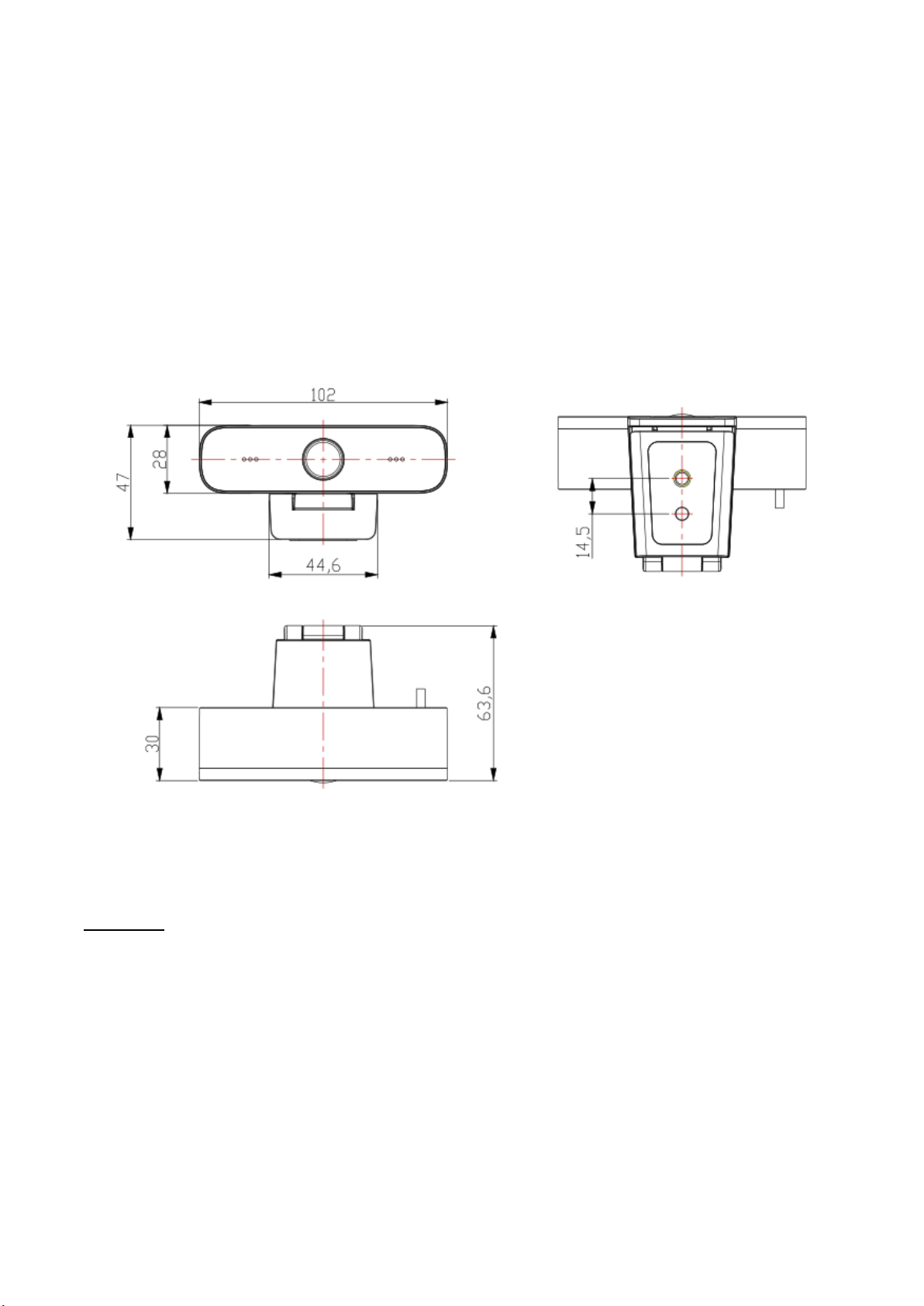

Product Dimension:
Pic. 2.1 Dimension
Accessories:
User Manual x 1
Warranty Card x 1
2.2. Product Features
BG-BWEB-S / BG-BWEB-W offers excellent performance. It utilizes advanced ISP processing algorithms to
provide vivid images with evenly clear brightness, strong color layering, high resolution, and fantastic color
rendition. Easy and convenient to install and maintain, stable and reliable.

5
Advantages
a. High-definition Image: high quality CMOS sensor. Supports resolutions up to 1920x1080 with framerate up
to 30fps. Provides clear, vivid HD image.
b. Multiple installation: Flexible installation options, the device is equipped with a clamp which enables it to be
installed on a LCD screen, the top of a laptop or directly on a desk or tripod.
c. Wide Application: Personal Video Platform, Videoconferencing, Cooperative Office etc.
d. Convenient operation: No need to download driver or extra software, it is used-conveniently and easily.
Features:
a. USB2.0: Easy plug and play, power and upgrade support
b. Multiple Lens Optional: 80 degree, 120 degree wide angle lens with free distortion.
c. Advanced Focus Technology: VCM motor auto focusing lens and advanced focus algorithm to auto focus fast,
accurately and stably.
d. Built-in Mic: Integrated microphones for clear and natural stereo sound without external pickup equipment.
e. Multiple Video Encoding: Support H.264, H.26, .MJPEG, YUV video encoding which enables the video to play
more fluently.
Specification:
Specification
BG-BWEB-S
BG-BWEB-W
Camera Parameter
Image Sensor
high quality CMOS sensor
Effective Pixels
2.07MP,16:9
Video Resolution
USB Output:
960x540/320x180/432x240/640x360/800x448/800x600/864x480/960x720/1024x576/
1280x720/1600x896/1920x1080/272x144/368x208/384x216/480x272/624x352/
912x512/424x240/640x480/320x240/160x120/P30
View Angle
88°(D) /80°(H)/ 50°(V)
113°(D) /120°(H)/ 57°(V)
Focal Length
3.24mm
2.90mm
Minimum Illumination
0.5Lux(F1.8, AGC ON)
Focus
Manual
AF
Fixed
Backlight
contrast
On/off
Exposure
Auto / Manual
Video Adjustments
Brightness, Definition, Saturation, Contrast, white balance, gain, anti-flicker, low brightness
compensation adjustable
SNR
>50dB
Output Parameter
Video Output
USB2.0 (Power, upgrade support)
Video Compression
MJPEG,YUV2,H.264,H.265
Audio Input
Inbuilt omni-directional mics
Other Parameter
Input Voltage
5V
Input Current
500mA (max)
Power
2.5W(max)
Store Temperature
-10℃~ +60℃
Store Humidity
20% ~ 95%
Working Temperature
-10℃~ +50℃
Working Humidity
20% ~ 80%
Dimension
102mm*46mm*30mm
Weight
0.15kg
Accessories
User Manual, Warranty card

6
3. Maintenance and Troubleshooting
3.1. Maintenance
1) If camera is not used for a long time, please turn off power adapter switch and AC plug.
2) Use soft cloth or tissue to clean the camera cover.
3) Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. Do NOT use strong or corrosive
cleanser.
3.2. Trouble shooting
No video output & video staccato
a. Make sure camera USB Cable is connected properly, USB Port is normal, Power indication light on.
b. Disconnect the camera with computer and re-connect by USB.
c. Make sure video software selects the right device.

7
4. Warranty
BZBGEAR wants to assure you peace of mind. All BZBGEAR cameras and camera-related products include our
Stress-Free Three-Year Warranty.
For complete warranty information, please visit BZBGEAR.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
5. Mission Statement
BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the
customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone
deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
BZBGEAR is the solution for small to medium-sized applications requiring the latest professional products in AV.
We live in a DIY era where resources are abundant on the internet. With that in mind, our team offers system
design consultation and expert tech support seven days a week for the products in our BZBGEAR catalog. You’ll
notice comparably lower prices with BZBGEAR solutions, but the quality of the products is on par with the top
brands in the industry. The unparalleled support from our team is our way of showing we care for every one of our
customers. Whether you’re an integrator, home theater enthusiast, or a do-it-yourselfer, BZBGEAR offers the
solutions to allow you to focus on your project and not your budget.
