BZB Gear BG-LVPTZ-10XHSP User manual

BG-LVPTZ-10XHSP / BG-LVPTZ-12XHSP
BG-LVPTZ-20XHSP / BG-LVPTZ-30XHSP
HD Color Video Camera
User Manual

1
Warnings
Electrical Safety
Installation and operation must conform with local electric safety standards.
Use care when moving
Avoid stress, vibration and moisture in transportation, storage and installation.
Polarity of power supply
The power supply of the product is ±12V, the max electrical current is 2A. Polarity of the power supply drawing.
Use Caution During Installation
Never move the camera by seizing the camera head. Never rotate the camera head by hand as mechanical
damage may occur. Damage due to mishandling will void your warranty.
This unit must be installed on a smooth and level surface. Unit will not display level image if installed in a
non-level position.
Ensure the base is solidly secured to the mounting surface.
Avoid using corrosive or abrasive materials to clean the camera as these may damage the finish.
Ensure that the camera is free of obstacles throughout its range of rotation.
Never power on before installation is completed.
Do not disassemble or open the housing. This will void your warranty!
To prevent the risk of electric shock, do not open the case. Installation and maintenance should only be carried
out by qualified technicians. There are no serviceable parts inside the camera. BZB Gear is not responsible
for any damage due to unauthorized disassembly.

2
Content
1. Quick Installation ............................................................................................................................................... 4
1.1 Camera Overview ..................................................................................................................................... 4
1.2 Power on initial configuration................................................................................................................... 4
1.3 Video Output............................................................................................................................................ 4
2. Product overview............................................................................................................................................... 5
2.1 Product Introduction ................................................................................................................................ 5
2.1.1 Dimensions ............................................................................................................................. 5
2.1.2 Accessories .................................................................................................................................... 5
2.2 Main Features .......................................................................................................................................... 6
2.2.1 Camera Performance ..................................................................................................................... 6
2.2.2 Network performance.................................................................................................................... 6
2.3 Technical Specification.............................................................................................................................. 7
2.4 Connections Overview.............................................................................................................................. 8
2.4.1 External Connections ..................................................................................................................... 8
2.4.2 Bottom Dial Switch......................................................................................................................... 8
2.4.3 RS-232 Interface............................................................................................................................. 9
3. Operating Instructions.......................................................................................................................................11
3.1 Video Output...........................................................................................................................................11
3.1.1 Power-On Initial Configuration......................................................................................................11
3.1.2 Video Output ................................................................................................................................11
3.2 Remote Control ...................................................................................................................................... 12
3.2.1 Key Description ........................................................................................................................................... 12
3.2.2 Remote Control Operation........................................................................................................... 13
3.3 MENU SETTINGS..................................................................................................................................... 14
3.3.1 Main Menu.................................................................................................................................. 14
3.3.2 System Setting ............................................................................................................................. 15
3.3.3 Camera Setting ............................................................................................................................ 15
3.3.4 P/T/Z............................................................................................................................................ 18
3.3.5 Video Format............................................................................................................................... 18
3.3.6 Version......................................................................................................................................... 19
3.3.7 Restore Defaults........................................................................................................................... 19
4. Network Connection ................................................................................................................................ 20
4.1 Connection Mode ........................................................................................................................... 20
4.2 Web Browser Login................................................................................................................................. 21
4.2.1 Web client ................................................................................................................................... 21
2)Download/Manage Plug in ................................................................................................................ 21
4.2.2 Preview........................................................................................................................................ 22
4.2.3 Configuration............................................................................................................................... 22
4.2.4 Audio Configuration..................................................................................................................... 22

3
4.2.5 Video configuration...................................................................................................................... 22
4.2.6 Network configuration ................................................................................................................. 23
4.2.7 System configuration ................................................................................................................... 24
4.2.8 Logout ......................................................................................................................................... 25
4.2.9 Wireless network......................................................................................................................... 25
5. Serial Communication Control.......................................................................................................................... 25
5.1 VISCA protocol list .................................................................................................................................. 26
5.1.1 Camera return command ............................................................................................................. 26
5.1.2 Camera control command............................................................................................................ 26
5.1.3,Inquiry command......................................................................................................................... 29
5.2,Pelco-D protocol command list............................................................................................................... 30
5.3 Pelco-P protocol command list................................................................................................................ 31
6. Camera Maintenance and Troubleshooting ...................................................................................................... 32
6.1 Camera Maintenance ............................................................................................................................. 32
6.2 Troubleshooting ..................................................................................................................................... 32
7. Warranty.......................................................................................................................................................... 33
8. Mission Statement ........................................................................................................................................... 33
9. Copyright Notice .............................................................................................................................................. 33

4
1. Quick Installation
1.1 Camera Overview
Figure 1.1 Interface
1. Camera Lens
2. Camera Base
3. Remote Controller Receiver Light
4. Bottom Dial Switch
5. Tripod Screw Hole
6. RS232 Control Interface (input)
7. RS232 Control Interface (output)
8. RS485 Input (left +, right-)
9. Audio Input Interface
10. 3G-SDI interface
11. HDMI Interface
12. 10/100M Network Interface
13. DC12V Input Power Supply Socket
1.2 Power on initial configuration
1) Power on: Connect DC12V power supply adapter with power supply socket.
2) Initial configuration: Power on with power indicator light on and remote control receiver light blinking, camera head moves from
bottom left to the bottom, and then goes to the HOME position (intermediate position of both horizontal and vertical), while the
camera module stretches. When remote control receiver light stops blinking, the self-checking is finished
Note: If you set preset 0, when Power on self-test is completed, the camera automatically moves to the preset 0 position.
1.3 Video Output
This model has video outputs from LAN, HDMI and 3G-SDI.
1) Video Output from LAN
a. Network Cable Connection Port: No.12 in Figure1.1
b. Webpage Login: Open your browser and enter 192.168.5.163 in the address bar (factory default); press Enter to reach the login
page; click on “player is not installed, please download and install!" and follow the steps to install the plugin. When complete
enter the username admin and password admin (factory default) and press Enter to reach the preview page. From here users
can carry out PTZ control, system configuration and other operations.

3
2) HDMI Video Output
a. HDMI Video Cable Connection: refer to No.11 in Figure1.1.
b. Connect the camera and the monitor via HDMI video cable; video output is available after camera self-test.
3) 3G-SDI Video Output
a. 3G-SDI video cable connection: refer to No.10 in Figure1.1
b. Connect the camera and the monitor via 3G-SDI video cable; video output is available after camera self-test.
1.4 Bracket mount
Note: Bracket can be wall or ceiling mounted. Ensure bracket is securely fastened to a solid surface such as wood or concrete. Do
not fasten to drywall or bracket may come loose and damage or destroy the camera.

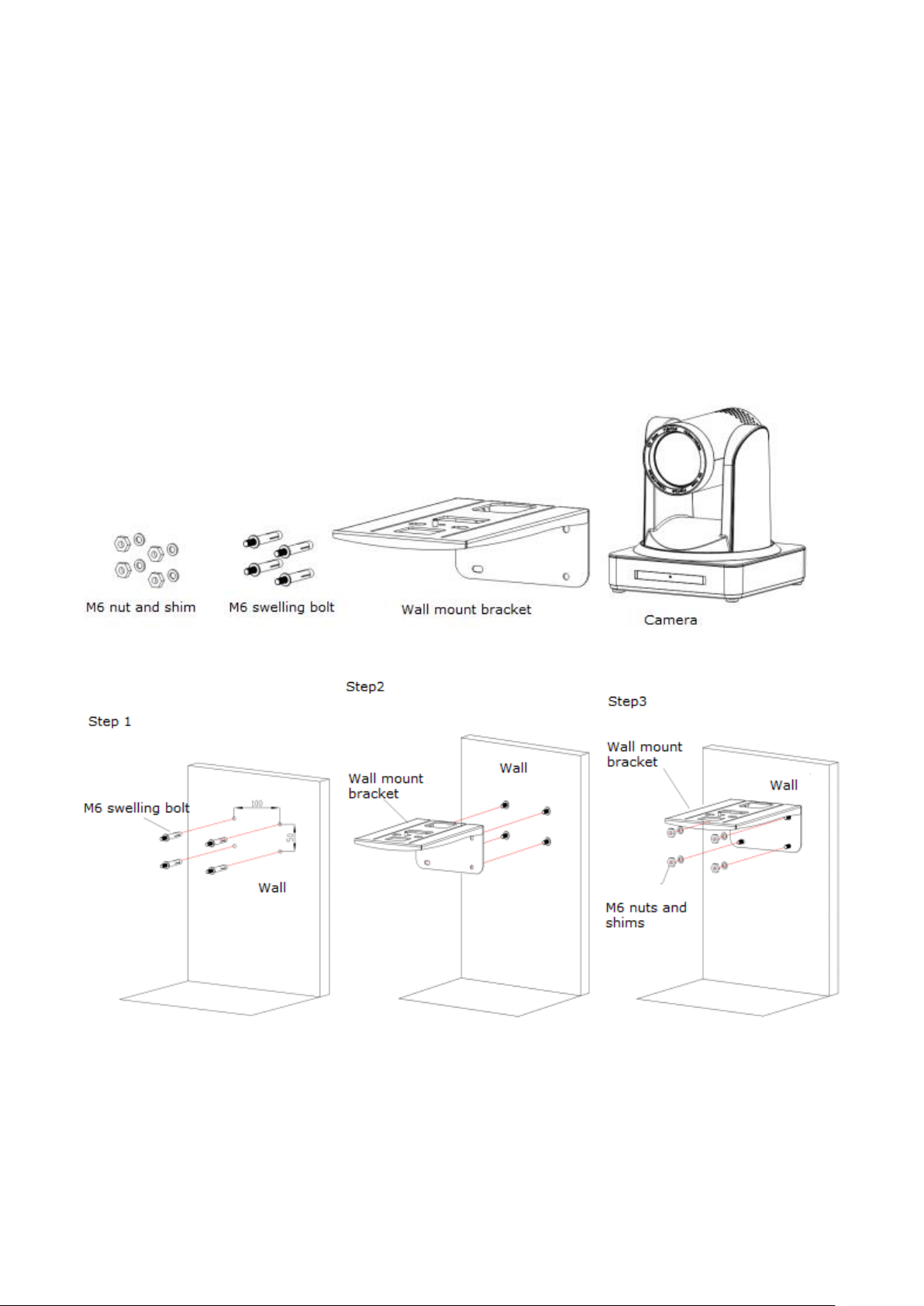

1) Wall mount guide

4
2. Ceiling mount guide

5
2. Product overview
2.1 Product Introduction
2.1.1 Dimensions
Figure 2.2 Camera Dimensions
2.1.2 Accessories
When you unpack, check that all the supplied accessories are included:

6
Configuration
Accessories
Standard
Power adapter 1piece
RS232 cable 1 piece
User manual 1
Double-side glue shim 4pcs
Warranty card 1 piece
Optional
IR Remote controller 1 piece
Wireless controller 1 piece
Wall mounting bracket
Upside-down mounting bracket(optional)
Cascade cable
2.2 Main Features
2.2.1 Camera Performance
This camera offers superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide
vivid images with a strong sense of depth, high resolution and accurate color rendition. It supports H.265/H.264 encoding which
makes motion video fluent and clear even with less than ideal bandwidth conditions.
1.Superb High-definition Image: It employs a 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up
to 60 fps.
2.Variable Optical Zoom Lens: It has 10X/12X/20X/30X optical zoom lens for options.
3. Auto Focus Technology: Auto focus algorithm makes allows for fast, accurate, and stable auto-focusing.
4. Low Noise and High SNR: Low Noise CMOS effectively ensures high SNR of camera video.
Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
5.Quiet PTZ: By adopting a high accuracy step driving motor mechanism, it works extremely quietly while moving smoothly and
quickly to the designated position.
6.Multi-Format Video Outputs: Supports HDMI, 3G-SDI, USB, wired LAN, and wireless LAN interfaces. 3G-SDI provides a 1080p60
signal up to 100m.
7.Multiple Remote Controls: Included IR and optional 2.4G wireless remote controls. The 2.4G wireless remote controller will not be
affected by angle, distance or IR interference. Supports transparent transmission function.
8.Low-power Sleep Function: Supports low-power sleep/wake up, consumption is lower than 500mW under sleep mode
9.Support Multiple Control Protocol: Supports VISCA, PELCO-D, and PELCO-P protocols which can be automatically recognized.
Supports VISCA control protocol through IP port.
10.RS-232 Cascade Function: supports RS-232 cascade function which is convenient for installing.
11.255 Presets Positions: Up to 255 presets (10 presets by remoter).
2.2.2 Network performance
1. Audio Input Interface: Supports 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, PCM audio coding.
2. Multiple Audio/Video Compression: Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support
compression of resolution up to 1920x1080 with frame rates up to 60 fps and 2 channel 1920x1080p with 30 fps compression.

7
3. Multiple network protocol: Supports NDI, ONVIF, RTSP, and RTMP protocols as well as RTMP push mode making it easy to link
streaming media servers. (Wowza, FMS)
4. 5G WIFI function: If the product contains the 5G module, you can connect and transmit via WiFi.
2.3 Technical Specification
Model
10X
12X
20X
30X
Camera Parameter
Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels
16: 9 2.07 megapixel
Video Format
HDMI/SDI video format
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
Optical Zoom
10X
f＝4.7～47mm
12X
f＝3.9～46.8mm
20X
f＝5.5～110mm
30X
f＝4.3～129mm
View Angle
6.43°（tele）
64.2°（wide）
6.3°（tele）
72.5°（wide）
3.3°（tele）
54.7°（wide）
2.34°（tele）
65.1°（wide）
AV
F1.6 –F3.0
F1.8 –F2.4
F1.6 –F3.5
F1.6–F4.7
Digital Zoom
10X/12X/20X/30X
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus
Auto/Manual
Aperture
Auto/Manual
Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
Video adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR
>55dB
Input/Output Interface
Video Interfaces
BG-LVPTZ-10XHSP / BG-LVPTZ-12XHSP / BG-LVPTZ-20XHSP / BG-LVPTZ-30XHSP: HDMI, 3G-SDI, LAN.
Image code stream
Double streams outputs simultaneously
Video Compression
format
H.264, H.265
Control Signal Interface
RS-232 Ring through RS232 output, RS-485
Control Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio input Interface
Double track 3.5mm linear input;
Audio Compression
Format
AAC/MP3/PMC Audio compression
HD IP Interface
100M IP port(100BASE-TX); 5G WiFi (optional), support NDI & IP Visca control protocol
Network Protocol
NDI, RTSP/RTMP, ONVIF
Power Interface
HEC3800 outlet (DC12V)
PTZ Parameter
Pan Rotation
±170°
Tilt Rotation
-30°～+90°
Pan Control Speed
0.1 -180°/sec
Tilt Control Speed
0.1-80°/sec
Preset Speed
Pan: 60°/sec, Tilt: 30°/sec
Preset Number
255 presets (10 presets by remote controller)
Other Parameters
Supply Adapter
AC110V-AC220V to DC12V/2A
Input Voltage
DC12V±10%
Input Current
1A(Max)

8
Consumption
12W (Max)
Store Temperature
-10℃to +60℃
Store Humidity
20% - 95%
Working Temperature
-10℃to +50℃
Working Humidity
20%--80%
Dimension
150mmX150mmX167.5mm
Weight
1.4KG
Working Environment
Indoor
Remote Operation (IP)
Remote Upgrade, Reboot and Reset
Accessory
Power Supply, RS232 Control Cable, Remoter, Manual, Warranty card
Optional Accessory
Bracket
2.4 Connections Overview
2.4.1 External Connections
1) External interface: RS232 Input /Output, RS485 Input, Audio Input,3G-SDI Output, HDMI Output, LAN, DC12V Power
Interface.
Figure 2.3 external interface diagram
2.4.2 Bottom Dial Switch
Bottom Dial Switch diagram shown in Figure 2.6 and 2.7:

9
Figure 2.6 Bottom Dial Switch Diagram Figure 2.7 Bottom Dial Switch diagram
Two DIP switches are set to ON or OFF to select different modes of operation as shown in Table 2.2
Table 2.2 Dial Switch setting
2.4.3 RS-232 Interface
1) RS-232C interface specification as shown below
Computer or keyboard and camera connection method
Camera
WindowsDB-9
1.DTR
1.DCD
2.DSR
2.RXD
3.TXD
3.TXD
4.GND
4.DTR
5.RXD
5.GND
6.GND
6.DSR
7.IR OUT
7.RTS
8.NC
8.CTS
9.RI
2) RS-232 Mini-DIN 8-pin Port Definition
No.
SW1
SW2
Explanation
1
OFF
ON
Working mode
2
ON
OFF
Updating mode
NO.
Port
Definition
1
DTR
Data Terminal Ready
2
DSR
Data Set Ready
3
TXD
Transmit Data

10
3) RS232 (DB9) Port Definition
2) VISCA networking as shown below:
Camera cascade connection method
Camera 1
Camera 2
1.DTR
1.DTR
2.DSR
2.DSR
3.TXD
3.TXD
4.GND
4.GND
5.RXD
5.RXD
6.GND
6.GND
7.IR OUT
7.OPEN
8. NC
8.OPEN
Note: Has RS232 input and output interface allowing for cascading inputs.
4
GND
System Ground
5
RXD
Receive Data
6
GND
System Ground
7
IR OUT
IR Commander Signal
8
NC
No Connection
NO.
Port
Definition
1
DCD
Data Carrier Detect
2
RXD
Receive Data
3
TXD
Transmit Data
4
DTR
Data Terminal Ready
5
GND
System Ground
6
DSR
Data Set Ready
7
RTS
Request to Send
8
CTS
Clear to Send
9
RI
Ring Indicator

11
3. Operating Instructions
3.1 Video Output
3.1.1 Power-On Initial Configuration
After connecting the power, the camera will initiate self-test mode. The IR indicator light will start flashing. When the camera returns
to the HOME position (middle position for P/T) and lens finishes zoom in/out, the self-testing is finished. The IR led will stop flashing.
If the preset 0 is set, the camera will rotate to the (0) preset position after initial configuration.
3.1.2 Video Output
Connect the video output cable; this may vary based on camera model and application.
Figure 1.4.1 is for your reference (output interface introduction for each product)
1) Network Output: Connect this product and your computer via network cable. Open the browser and enter the camera IP
address (factory default 192.168.5.163) in the address bar. On the login page enter username and password - factory default
is “admin” for both. Once logged in you will be prompted to download and/or enable manage the plugin, click allow and
video will be displayed.
(Note: If you forget your username, password, IP address, you can manually restore the default by the remote controller key
combination * #)
2) 3G-SDI output or DVI (HDMI) output: Connect the monitor with the corresponding video output interface and the image will
be displayed after initial power-on.

12
3.2 Remote Control
3.2.1 Key Description
1. Power/Standby Key
Press and hold for 3 seconds to place the camera into standby mode. Press and hold for 3 seconds a
second time and the camera will self-test again and return to the HOME position. Note: Camera will
default to preset 0 if no command is sent within 12 seconds of power on.
2. Camera Select
Select the ID of the camera you wish to control.
3. Number Key
Set or run preset 0-9.
4.* # Key
Used for command modifiers –See tables in sections 11 and 12 below.
5. Focus Control Key
Auto: Activate auto focus mode.
Manual: Activate manual focus mode.
+/-: Adjust focus in manual focus mode.
6. Zoom Control Key
Zoom＋: Zoom In
Zoom－: Zoom Out
7. Set or Clear Preset key:
Set Preset: Press and hold while selecting desired number key to record a preset.
Clear Preset key: Press and hold while selecting desired number key to clear a preset.
8. Pan/Tilt Control Key
Tilt camera up
Tilt camera down
Pan camera left
Pan camera right
HOME: Return to the middle position/ confirm on-screen menu selection.
9. BLC ON/OFF
Turn on or off remote control button backlighting.
10. MENU
Enter or exit on-screen menu/previous menu.
11. Camera IR Remote Control Address Setting
【*】+【＃】+【F1】:Camera Address No.1
【*】+【＃】+【F2】:Camera Address No. 2
【*】+【＃】+【F3】:Camera Address No. 3
【*】+【＃】+【F4】:Camera Address No. 4
12. Key Combination Functions
1) 【#】+【#】+【#】: Clear all camera presets
2) 【*】+【#】+【6】:Restore factory defaults
3) 【*】+【#】+【9】: Flip image
4) 【*】+【#】+【3】: Menu set to Chinese
5) 【*】+【#】+Manual: Restore default IP address and login
6) 【*】+【#】+【4】:Menu set to English
7)【#】+【#】+【1】: Switch the video format to 1080P50
8) 【#】+【#】+【0】:Switch the video format to 1080P60
9)【#】+【#】+【3】: Switch the video format to 1080I50
10)【#】+【#】+【2】:Switch the video format to 1080I60
11)【#】+【#】+【5】: Switch the video format to 720P50
12)【#】+【#】+【4】:Switch the video format to 720P60
13)【#】+【#】+【7】: Switch the video format to 1080P25
14)【#】+【#】+【6】:Switch the video format to 1080P30
15)【#】+【#】+【9】:Switch the video format to 720P25
16)【#】+【#】+【8】:Switch the video format to 720P30

13
3.2.2 Remote Control Operation
Following initialization, the camera can receive and execute the IR commands. The indicator will flash when the camera receives a
command. Users can control the pan/tilt/zoom, settings, and run preset positions via the IR remote controller.
Key Instruction:
1. In this instruction, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for
more than one second is required.
2. When a key-combination is required, do it in sequence. For example, “【*】+【#】+【F1】”means press “【*】”first, then press
“【#】” and last press “【F1】”.
1) Camera Selection
Select the camera address to control.
2) Pan/Tilt Control
Up: press Down: press
Left: press Right: press
Back to middle position: press “【HOME】”
Press and hold the up/down/left/right key, the pan/tilt will keep
running, from slow to fast, until it runs to the endpoint; the
pan/tilt running stops as soon as the key is released.
3) Zoom Control
ZOOM IN: press “ZOOM “ key
ZOOM OUT: press “ZOOM ” key
Press and hold the key, the camera will keep zooming in or
zooming out and stop as soon as the key is released.
4) Focus Control
Focus (near): Press “【focus+】” key (Valid only in manual focus
mode)
Focus (far): Press “【focus-】”key (Valid only in manual focus
mode)
Auto Focus: Support
Manual Focus: Support
Press and hold the key, the action of focus will keep continue and
stops as soon as the key is released.

14
5) BLC Setting
BLC ON / OFF: support
6) Presets - Setting, Running, Clearing
1. Preset setting: to set a preset position, the users should press
the “【SET PRESET】” key first and then press the number key 0-9
to record a preset.
Note: 10 preset positions in total are available by remote
controller.
2. Preset Running: Press a number key 0-9 to run a preset.
3. Preset Clearing: To clear a preset position, the user can press
the “【CLEAR PRESET】” key first and then press the number key
0-9 to clear the preset.
Note: press the “【#】” key three times to erase all presets.
7) Camera Remote Controller Address Setting
【*】+【＃】+【F1】:Camera Address No.1
【*】+【＃】+【F2】:Camera Address No. 2
【*】+【＃】+【F3】:Camera Address No. 3
【*】+【＃】+【F4】:Camera Address No. 4
3.3 MENU SETTINGS
3.3.1 Main Menu
In normal working mode, press 【MENU】key to display the menu and use the arrow keys to navigate the options.
MENU
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Language English
(Setup)
(Camera)
(P/T/Z)
(Video Format)
(Version)
(Restore Default)
[↑↓]Select [←→]Change
Value
[Menu]Back [Home]OK

15
LANGUAGE: Language setting, Chinese / English
SETUP:System setting
CAMERA OPTION:Camera setting
PTZ OPTION:Pan tilt setting
VERSON:camera version setting
Restore Default:Reset setting
[↑↓] Select:for selecting menu
[← →] Change Value:for modify parameters
[MENU] Back:Press [MENU] to return
[Home] OK:Press [Home] to confirm
3.3.2 System Setting
Move the pointer to the (Setup) in the Main Menu, click the【HOME】key and enter the (System Setting) as shown below.
PROTOCOL: VISCA/Pelco-P/Pelco-D/Auto
Visca ADDR: VISCA=1~7 Pelco-P=1~255 Pelco-D = 1~255
Baud rate: 2400/4800/9600/115200
Visca Address Fix: On/Off
3.3.3 Camera Setting
Highlight (CAMERA) in the Main Menu, click the【HOME】key to enter camera settings.
EXPOSURE: Enter Exposure setting
COLOR: Enter color setting
CAMERA
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
(Exposure)
(Color)
(Image)
(Focus)
(Noise Reduction)
[↑↓]Select [←→]Change
Value
SETUP
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Protocol Auto
Visca Address 1
Visca Address Fix OFF
PELCO-PAddress 1
PELCO-D Address 0
Baudrate 9600
[↑↓]Select [←→]Change
Value
[Menu]Back
[↑↓]选择 [←→]修改
[菜单]返回

16
Image: Enter into image setting
Focus: Enter into focus setting
Noise Reduction: Enter noise reduction
1) EXPOSURE SETTING
Highlight (EXPOSURE) in the Main Menu, click the【HOME】key to enter exposure settings.
Mode: Auto, Manual, Shutter priority, Iris priority and Brightness priority.
EV: On/Off (only available in auto mode)
Compensation Level: -7~7 (only available in auto mode when EV is ON)
BLC: ON/OFF for options (only available in auto mode)
Anti-Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes)
Gain Limit: 0~15 (only available in Auto/ Iris priority /Brightness priority mode)
WDR: Off,1~8
Shutter Priority: 1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000,1/6000,1/10000
(only available in Manual and Shutter priority mode)
IRIS Priority: OFF,F11.0,F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2.8,F2.4,F2.0,F1.8 (only available in Manual and Iris priority mode)
Brightness: 0~23 (only available in Brightness priority mode)
2) COLOR SETTING
Highlight (COLOR) in the Main Menu and click the【HOME】key to enter Color Settings.
COLOR
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
WB Mode Auto
Saturation 80%
Hue 7
AWB Sensitivity High
Color style Default
Color temp Low
[↑↓]Select [←→]Change
Value
[Menu]Back
EXPOSURE
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Mode Auto
EV OFF
BLC OFF
Anti-Flicker 50Hz
Gain Limit 3
WDR 5
[↑↓]Select [←→]Change
Value

17
WB Mode: Auto, Manual, One Push
Red Gain: 0~255(only available in Manual mode)
Blue Gain: 0~255(only available in Manual mode)
Saturation: 60%,70%,80%,90%,100%,110%,120%,130%
Hue: 0~14
AWB Sensitivity: high/middle/low
Color Style: Default, style1~4.
Color Temp: high/middle/low
3) IMAGE
Highlight (IMAGE) in the Menu and click the【HOME】key to enter Image Settings.
Brightness: 0~14
Contrast: 0~14
Sharpness: 0~15
Flip-H: On/Off
Flip-V: On/Off
B&W Mode: color, black/white
Gamma: default, 0.47, 0.50, 0.52, 0.55
DZoom: digital zoom options: On/Off
DCI: Dynamic Contrast: Off,1～8
4) FOCUS
Highlight (FOCUS) in the Menu and click the【HOME】key to enter Focus Settings.
FOCUS
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Focus Mode Auto
AF-Zone Center
AF-Sensitivity Low
[↑↓]Select [←→]Change
Value
[Menu]Back
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Brightness 6
Contrast 8
Sharpness 7
Flip-H OFF
Flip-V OFF
B&W-Mode Color
Gamma Default
DZoom OFF
DCI Close
[↑↓]Select [←→]Change
Value
