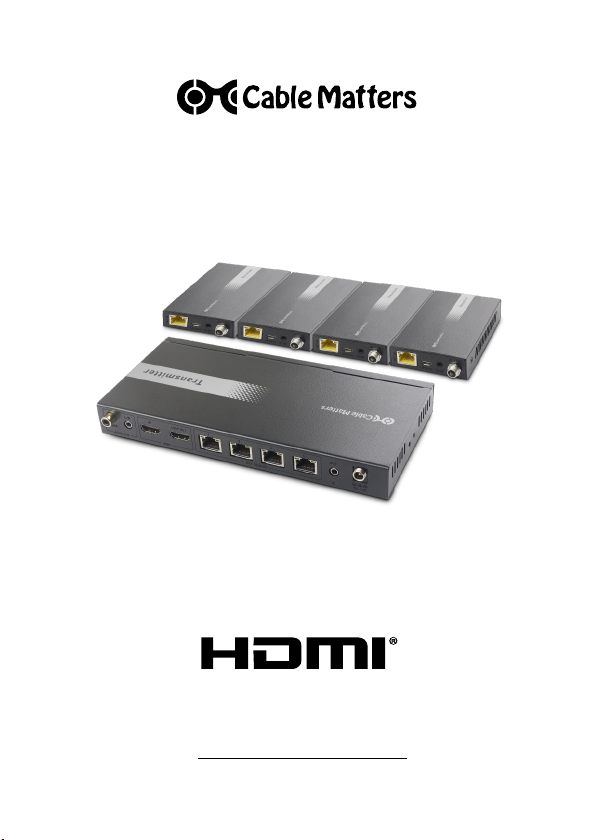

1x4 18Gbps 4K Audio/Video Extender and Splitter
Model 103095
User Manual
Extend a signal from an HDMI source to 4
remote displays simultaneously
• Download the user manual at:
www.cablematters.com/dl/103095

www.cablematters.com
1x4 18Gbps 4K Audio/Video Extender and Splitter
1. INTRODUCTION .......................................................................................... 1
1.1 Introduction
1.2 Copyright and Trademarks
1.3 FCC Compliance Statement
2. PRODUCT OVERVIEW
2.1 Package Contents
2.2 Product Description ................................................................................ 2
2.3 Product Features
3. CONNECTION AND OPERATION .............................................................. 3
3.1 Installation Checklist
3.2 Transmitter Panel Connections
3.3 Receiver Panel Connections..................................................................... 4
3.4 Connections Instructions
3.5 EDID Management ................................................................................. 5
3.6 IR Remote Control.................................................................................. 7
3.7 Troubleshooting Notes ............................................................................ 7
4. TECHNICAL SPECIFICATIONS.................................................................. 9
5. WARRANTY AND SUPPORT.................................................................... 10
5.1 Customer Support and Contact Information
5.2 Warranty Information
5.3 Limitations of Liability
Table of Contents

www.cablematters.com
1
1x4 18Gbps 4K Audio/Video Extender and Splitter
1. INTRODUCTION
1.1 Introduction
Thank you for your purchase from Cable Matters®Inc., the ‘Reliable Connectivity’ company. This
User Manual provides an overview of the features and installation of your new
1x4 18Gbps 4K Audio/Video Extender and Splitter
Please read these instructions carefully before connecting, operating or configuring this product.
Please keep this manual for future reference.
Contact [e-mail] for questions or product support.
1.2 Copyright and Trademarks
Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All
other trademarks are the property of their respective owners.
Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
1.3 FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This
device must not cause harmful interference, and 2) this device must accept any interference received, including
interference that may cause undesired operation.
2. PRODUCT OVERVIEW
2.1 Package Contents
Please check that the following items are contained in the package:
• 1x 1x4 18Gbps 4K Audio/Video Extender and Splitter Transmitter
• 4x 1x4 18Gbps 4K Audio/Video Extender and Splitter Receivers
• 1x AC Power Adapter
• 5x IR Cables (1xTx and 4xRx)
• 4x Mounting Brackets with screws, Mounting Screws
• 2x HDMI®Cables—6 Feet
• 1x User Manual

www.cablematters.com
1x4 18Gbps 4K Audio/Video Extender and Splitter
2
2.2 Product Description
2.3 Product Features
• Extend up to 4 displays from a single equipment source with 4K 60Hz video and audio up to 164 feet,
4K 30Hz up to 196 feet, or 1080p HDMI video and audio up to 229 feet
• Split audio from the HDMI stream over a coaxial cable or a 3.5mm audio cable
• Support for a local display to mirror the output of the remote displays
• Use a Cat 6 cable instead of a long and heavy HDMI cable
• Supports 4K@60Hz video resolution and YCbCr 4:4:4 8-bit color depth
• Supports advanced video features including HDR, HDR10+, HLG, and Dolby Vision
• HDCP 2.2 support for viewing protected content
• Copy the local or remote display EDID info to the source HDMI device with a switch
• Dolby Digital, Dolby True HD, DTS-HD Master Audio, DD+, DTS-ES, DTS HD-HRA, and DTS-X audio
support
• Rugged metal housing construction reduces EMI electromagnetic noise
• Screw-on locking power cord prevents an accidental disconnection of the power
• Surface-mountable with the included brackets and screws
• 2-Pack of HDMI Cables included
The Cable Matters 1x4 18Gbps 4K Audio/Video Extender and Splitter provides the ideal solution
for connecting 4 remote displays with 4K 60Hz HDMI video and audio up to 164 feet simultaneously
(up to 196 feet at 4K 30Hz or 229 feet at 1080p 60Hz). Extend the signal from a computer, video
streamer, Blu-ray player or Cable box to 4 remote displays with HDMI. Control the HDMI source at
the far end with an IR Receiver. An optional local display can mirror the video sent to the remote
displays. Split audio from HDMI to an external amplifier or speaker via a coaxial or 3.5mm audio
cable.
Local Display
DVD or
Blue-ray Player IR-T
AC Adapter
AUDIO OUT HDMI
OUT
DC 12VNET OUTPU T
IN LOOP OUT 1 2 3 4
IR
Remote Display
IR-R
Remote Display
IR-R
Remote Display
IR-R
Remote Display
IR-R
Amplifier or Speaker
(Optional)

www.cablematters.com
3
1x4 18Gbps 4K Audio/Video Extender and Splitter
3. CONNECTION AND OPERATION
3.1 Installation Checklist
Please review this information before installing the 1x4 18Gbps 4K A/V Extender and Splitter
• Installation with a surge protector is recommended to protect the equipment
• Power-off the source and display equipment before connecting
• Check for a nearby AC outlet for the power adapter
• Recommended maximum total HDMI cable distance In/Out is 25/25ft
• IR cables require line-of-sight with the source equipment
• Test the Extender and cables before installing in a permanent location
• Directly connect to a Cat 6 cable, do not use with an active hub, network switch or router
3.2 Transmitter Panel Connections
1. ON/OFF: Power switch
2. POWER LED: LED is RED when the transmitter is powered on
3. IN LED: LED is GREEN when an active HDMI source device is connected
4. LOOP LED: LED is GREEN when a display is connected to the transmitter for local loopback
5. OUT LEDs: LEDs turn GREEN when an RJ45 cable is connected from the corresponding transmitter port to a
receiver
6. AUDIO OUT ports: Connect an optional external amplifier or audio device over an analog coax or 3.5mm audio
connector
7. HDMI IN: Connect HDMI source equipment
8. LOOP OUT: Connect an optional HDMI display to mirror the output of the remote displays locally
9. NET OUTPUT 1-4: Four RJ45 ports for Cat6 cable. Green light indicates a connection to the receiver. Orange
light indicates an HDMI signal (illuminating for HDMI signal with HDCP, flashing for HDMI signal without HDCP)
10. IR OUT: 3.5mm port for IR blaster cable
11. DC 12V: Threaded locking barrel port for power adapter
12. EDID switch: Change the EDID mode for the transmitter.
13. UPDATE port: Used for firmware updates
12 3 4 5
67810 11
12
13
9
AUDIO OUT HDMI
OUT
DC 12VNET OU TPUT
IN LOOP O UT 1234
IR
IN LOOP 1 2 3 4
ON
OFF
EDID
1
0
UPD ATE

www.cablematters.com
1x4 18Gbps 4K Audio/Video Extender and Splitter
4
3.3 Receiver Panel Connections
1. HDMI OUT: Connect to the remote extended display with HDMI
2. NET IN: RJ45 port for Cat 6 cable
3. UPDATE: Used for firmware updates
4. IR IN: 3.5mm port for IR Receiver cord
5. DC 12V: Optional receiver power connector. Receivers are powered via Ethernet. An external
AC adapter is NOT required.
3.4 Connection Instructions
1. Power off all the source equipment and output displays
2. Connect the AC power adapter to the Transmitter and secure the locking ring
3. Connect an HDMI cable to the HDMI IN port of the Transmitter and the HDMI out port of the
host device. Connect HDMI cables to the HDMI OUT ports on the receivers and to remote
displays. OPTIONAL: Connect an HDMI cable to the HDMI LOOP OUT port on the Transmit-
ter and a local display.
4. OPTIONAL: Connect a coax or 3.5mm audio cable to the AUDIO OUT port of the transmitter
and to the audio in port of an external stereo, amplifier, speaker, or other audio equipment.
5. Connect the Cat 6 cable to the RJ45 ports on the Transmitter and Receiver
6. Connect the IR Transmitter and Receiver cables (See Page 7)
7. Plug the Transmitter power adapter into an AC outlet and depress the On/Off button to turn on
the Transmitter (look for a Red LED)
8. Power on all the equipment and check for a video signal on the extended remote display
9. Select an EDID Mode (See Page 5) if there is no video signal
Notes:
• Test all the equipment and cables before installing permanently
• Don't stack the Cat 6 cables together. Spread them out to get the best network performance
123 4 5
HDMI OUT
DC 12V
IR INUPDATE
NET IN

www.cablematters.com
5
1x4 18Gbps 4K Audio/Video Extender and Splitter

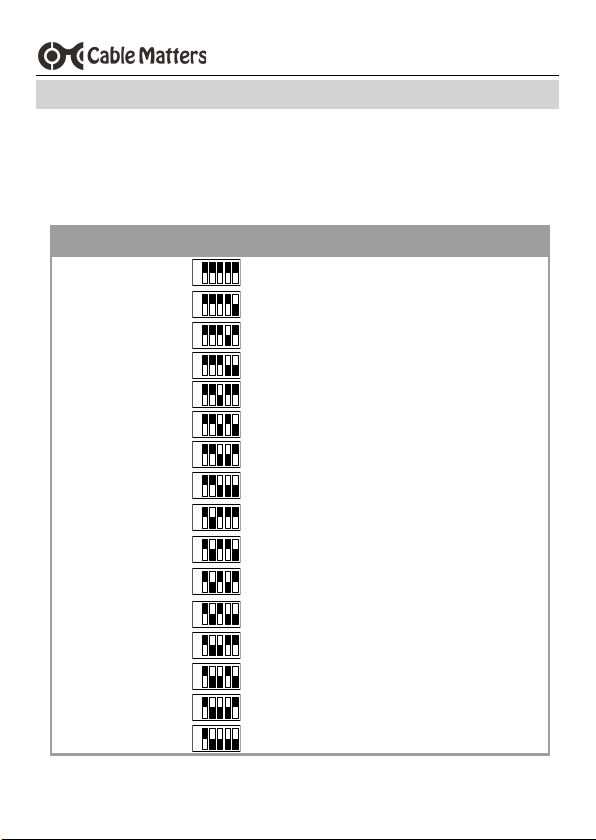

Number EDID Position EDID Description
1 11111 1080p Stereo Audio 2.0
2 11110 1080p Dolby DTS 5.1
3 11101 1080p HD Audio 7.1
4 11100 1080i Stereo Audio 2.0
5 11011 1080i Dolby DTS 5.1
6 11010 1080i HD Audio 7.1
7 11001 1080p 3D Stereo Audio 2.0
8 11000 1080p 3D Dolby DTS 5.1
9 10111 1080p 3D HD Audio 7.1
10 10110 4K 30Hz, 4:4:4, Stereo Audio 2.0
11 10101 4K 30Hz 4:4:4, Dolby DTS 5.1
12 10100 4K 30Hz 4:4:4 HD Audio 7.1
13 10011 4K 60Hz 4:2:0 Stereo Audio 2.0
14 10010 4K 60Hz 4:2:0 Dolby DTS 5.1
15 10001 4K 60Hz 4:2:0 HD Audio 7.1
16 10000 4K 60Hz 4:4:4 Stereo Audio 2.0
3.5 EDID Management
EDID chart continues on next page.
This 1x4 18Gbps 4K Audio/Video Extender and Splitter can connect HDMI source equipment and output
displays with different video resolutions and audio output settings. These settings can be individually
programmed using the EDID management function on the transmitter and receivers.
For Dolby Vision support, set the EDID to copy the EDID from the OUTPUT the Dolby Vision-compatible
television or monitor is connected to (values 22-26 on this chart).
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1

www.cablematters.com
1x4 18Gbps 4K Audio/Video Extender and Splitter
6

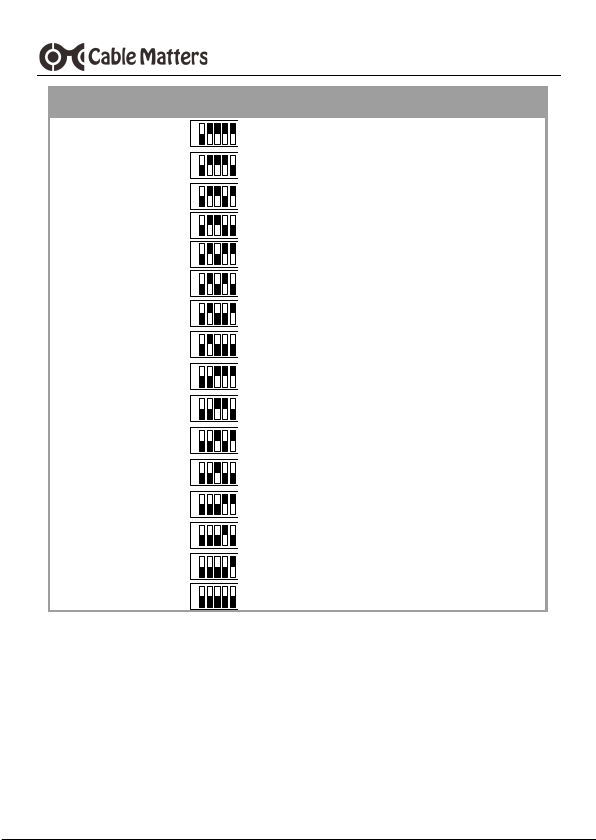

Number EDID Position EDID Description
17 01111 4K 60Hz 4:4:4 Dolby DTS 5.1
18 01110 4K 60Hz 4:4:4 HD Audio 7.1
19 01101 4K 60Hz 4:4:4 Stereo Audio 2.0 HDR
20 01100 4K 60Hz 4:4:4 Dolby DTS 5.1 HDR
21 01011 4K 60Hz 4:4:4 HD Audio 7.1 HDR
22 01010 Copy EDID from LOOP OUT monitor
23 01001 Copy EDID from NET OUTPUT 1 monitor
24 01000 Copy EDID from NET OUTPUT 2 monitor
25 00111 Copy EDID from NET OUTPUT 3 monitor
26 00110 Copy EDID from NET OUTPUT 4 monitor
27 00101 720p Stereo Audio 2.0
28 00100 1080p Stereo Audio 2.0 (Excluding 24Hz)
29 00011 1080p Stereo Audio 2.0
30 00010 1080p Dolby DTS 5.1
31 00001 1080p HD Audio 7.1
32 00000 PC Control Mode
EDID Selection Notes: Set the dip switches for the audio/video setting above. The
Extender and Splitter should adjust to the new settings within a few seconds.
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1

www.cablematters.com
7
1x4 18Gbps 4K Audio/Video Extender and Splitter
IR Transmitter (Blaster) Cable IR Receiver Cable
IR Transmitter Cable: Connect to the IR-T port on the Transmitter box. Requires line-of-sight with
the HDMI source equipment IR window. Tip: Shine a light on the source box to reveal the IR
window, if it is not labeled. Source equipment should be within 5 feet of the IR-T bulb. (Check your
HDMI source equipment documentation).
IR Receiver Cable: Connect to the IR-R port on the Receiver box. Requires line-of-sight with the
IR remote.
Note: RF and Bluetooth remotes are not compatible.
3.6 IR Remote Control
3.7 Troubleshooting Notes
• Check that all connected equipment have power.
• Check that both the Transmitter and Receiver have power. The red power LED on the Transmitter
and green LED of the Cat 6 port on the Receiver should be lit.
• Check the LEDs on the Receiver’s Ethernet port. A green LED indicates the receiver is powered.
An orange LED indicates data transfer.
• Check that all cables are connected to the correct input and output ports. Secure the power cable
with the locking ring.
• Directly connect the HDMI source equipment to each display to test for compatibility.
• Test the Cat 6 cable with a network tester.
• Try different EDID settings, test with only 1 display (local and extended).
• Test with a different display for compatibility issues.
• Check that the correct video input source and output display is selected.
• Check the audio output settings from the source device or computer.
• Try a lower resolution and/or refresh rate.

www.cablematters.com
1x4 18Gbps 4K Audio/Video Extender and Splitter
8
• Test each HDMI cable by connecting it with other equipment.
• Recommended maximum total HDMI cable distance In/Out is 25/25ft.
• Connecting an HDMI cable with a coupler or wall plate may degrade the signal transmission.
• Place the Extender away from fluorescent lighting or equipment that generates electrical noise.
• A ‘Not Supported’ error message may indicate that the connected equipment does not support
HDCP (or more than 2 outputs) for viewing content-protected video.
• Check that the IR window on the source equipment is not blocked. The IR cables require line-of-
sight. Test at a closer range, some IR remotes transmit a weaker signal.
• Wait 10 seconds for a handshake signal when connecting a computer.
• Unplug and re-plug the HDMI cable.
• Reboot the video source and output displays.
• If Dolby Vision does not work, set the EDID to copy the OUTPUT the Dolby Vision-compatible
television or monitor is connected to (values 22-26 on the chart on Page 6).
Contact [email protected] with any questions.

www.cablematters.com
9
1x4 18Gbps 4K Audio/Video Extender and Splitter
HDMI Input 1x HDMI Female
HDMI Output 5x HDMI Female
Audio Output 1x Coaxial Audio Out, 1x 3.5mm Stereo Audio Out
CAT Ports 8x RJ45 ports for Cat 6 cable
IR Ports 1x IR out (Transmitter), 4x IR in (Receiver)
Update Port 5x Micro USB Female
Power Supply DC 12V/2.5A with threaded ring
Extender and Splitter Ports (Transmitter and Receiver)
Audio/Video Compatibility
HDMI Compatibility HDMI 2.0b and below
HDCP Compatibility HDCP 2.2 and below
Video Resolution Up to 4K@60Hz
Color Spaces RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8-bit, 10-bit, 12-bit (1080p, 4K 60Hz 4:2:2/4:2:0), 8-bit (4K 60Hz 4:4:4)
HDR HDR10, HDR10+, HLG, Dolby Vision
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1CH, Dolby Digital, Dolby True HD, DTS-HD Master
Audio, DD+, DTS-ES, DTS HD-HRA, DTS-X
Audio Out Port Formats Coaxial: PCM 2.0, Dolby Digital / Dolby Digital Plus, DTS 2.0 / 5.1, Analog: PCM 2.0
Mechanical
Transmitter Housing (LxWxH) 8.2 x 3.9 x 0.9 Inches / 21.8 Ounces
Receiver Housing (LxWxH) 3.5 x 2.4 x 0.7 Inches / 5.5 Ounces
Operating Temperature 32F - 104F
Note: Specifications are subject to change without notice
4. TECHNICAL SPECIFICATIONS Model 103095
Miscellaneous
Regulatory Compliance C E, FCC, RoHS, UKCA
Warranty Limited One-Year

www.cablematters.com
1x4 18Gbps 4K Audio/Video Extender and Splitter
10
5.1 Customer Support and Contact Information
5. WARRANTY AND SUPPORT
Cable Matters offers lifetime technical support as an integral part of our commitment to provide
industry leading solutions.
Email us with any questions at [e-mail].
This product is backed by a limited one-year warranty. The warranty covers parts and labor costs
only. Cable Matters does not warrant its products from defects or damages arising from misuse,
abuse, or normal wear.
5.2 Warranty Information
In no event shall Cable Matters Inc. (including their officers, directors, employees or agents) be
liable for any damages (whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of profits, loss of business, loss of data, or any pecuniary loss, arising out of, or
related to the use of this product exceeding the actual price paid for the product (as allowed by
state law.
5.3 Limitation of Liability

www.cablematters.com
11
1x4 18Gbps 4K Audio/Video Extender and Splitter
View related products at www.cablematters.com
3-Pack Certified Ultra High Speed HDMI Cables
Model 300029
150’ Snagless Cat 6 Patch Cable
Model 160001
150’ Shielded Cat 6 Patch Cable
Model 160012
