HDBaseT HDMI Extender

1
www.cablematters.com
HDBaseT HDMI Extender
1. Introduction
1.1 Introduction
Thank you for your purchase from Cable Matters® Inc., the ‘Reliable Connectivity’ company. This
User Manual provides an overview of the features and installation of your new
HDBaseT HDMI Extender over Single Cat 6 Cable up to 330 Feet
Please read these instructions carefully before connecting, operating or configuring this product.
Please keep this manual for future reference.
Contact [email protected] for questions or product support.
1.2 Copyright and Trademarks
Specifications are subject to change without notice. Cable Matters is a registered trademark or
trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their
respective owners.
1.3 FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
2. PRODUCT OVERVIEW
2.1 Package Contents
Please check that the following items are contained in the package:
1 x HDMI Extender Transmitter
1 x HDMI Extender Receiver
2 x AC Power Adapter
2 x HDMI Cables
4 x IR Cables
4 x Mounting Brackets with screws
1 x User Manual (available as a PDF from Cable Matters)
NOTE: Two HMDI cables are included. Additional cables are sold separately.

2
www.cablematters.com
HDBaseT HDMI Extender
2.2 Product Description
The Cable Matters® HDBaseT HDMI Extender over Cat 6 connects
devices with HDMI up to 330 Feet. One cable transmits video, audio,
Ethernet, and control signals using HDBaseT technology.
2.3 Product Features
 Connect devices with HDMI up to 330 feet apart over a Cat 6 cable
 Video resolution support for 4K UHD up to 230 feet
 Supports video over Cat 5e up to 150 feet
 Supports HDBaseT uncompressed video technology
 Plug & Play installation with no drivers required
 Dolby Digital, DTS, Dolby TrueHD, and DTS HD-Master Audio Support
 Bi-directional IR Control with the included RX and TX cables
 Bi-directional RS-232 support to connect a PC for control
 Bi-directional Ethernet to connect a router to a PC or smart device
 HDCP compliant with HDCP compatible equipment
 Surface mountable with included brackets and hardware
 Rugged metal housing with side cooling air vents
 Includes 2-Pack of 4K rated HDMI cables

3
www.cablematters.com
HDBaseT HDMI Extender
3. CONNECTION AND OPERATION
3.1 Installation Checklist
Please review these steps before installing the HDMI Extender
 Power-off the source and display equipment before connecting
 Extenders must be located within 3.7 feet of an electrical outlet
 Recommend max total distance for HDMI cables (in/out) is 20 feet
 4K displays require 4K rated HDMI cables in the shortest length needed
 Use high quality 22-28 AWG HDMI cables for the best performance
 Unshielded cable is appropriate for shorter lengths in a low EMI area
 Shielded cable is appropriate for longer lengths in a high EMI area
 CATV STB or A/V receivers with HDMI 1.2 may block the signal
 IR TX & RX cables must have line of sight with source and remote
 Test the Extender and cabling before installing in a permanent location
3.2 Front Panel Connections - Transmitter
1) HDMI IN: Connect the HMDI input video source cable
2) IR RX/TX: Connect the IR Receiver and Transmitter cables to RX
and the TX ports (optional)
3) Ethernet: Connect an RJ45 patch cable to a router to provide
internet access. LEDs: Status=green and Data Transfer=yellow

4
www.cablematters.com
HDBaseT HDMI Extender

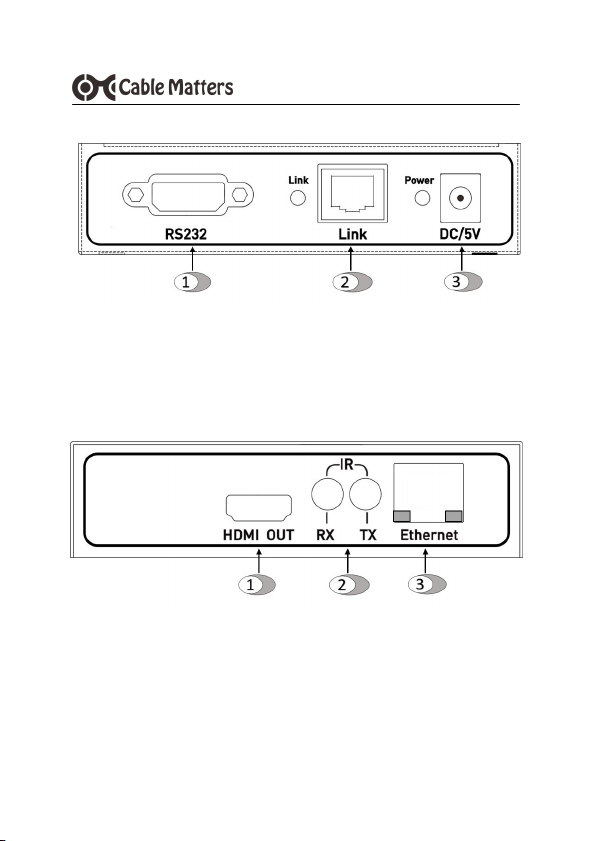

3.3 Rear Panel Connections - Transmitter
1) RS232: Female DB-9 serial port connects an RS-232 controller
2) Link: Connect a Cat 6 cable with 568B wiring. Green LED Link status
indicator verifies a live connection
3) DC/5V: AC power adapter port. Red LED confirms power.
3.4 Front Panel Connections - Receiver
1) HDMI OUT: Connect the HMDI output display cable
2) IR RX/TX: Connect the IR Receiver and Transmitter cables to RX and
the TX ports (optional)
3) Ethernet: Connect an RJ45 patch cable to a router to receive internet
access. LEDs: Status=green and Data Transfer=yellow

5
www.cablematters.com
HDBaseT HDMI Extender
3.5 Rear Panel Connections - Receiver
1) RS232: Male DB-9 serial port connects an RS-232 device
2) Link: Connect a Cat 6 cable with 568B wiring. Green LED Link status
indicator verifies a live connection
3) DC/5V: AC power adapter port. Red LED confirms power.

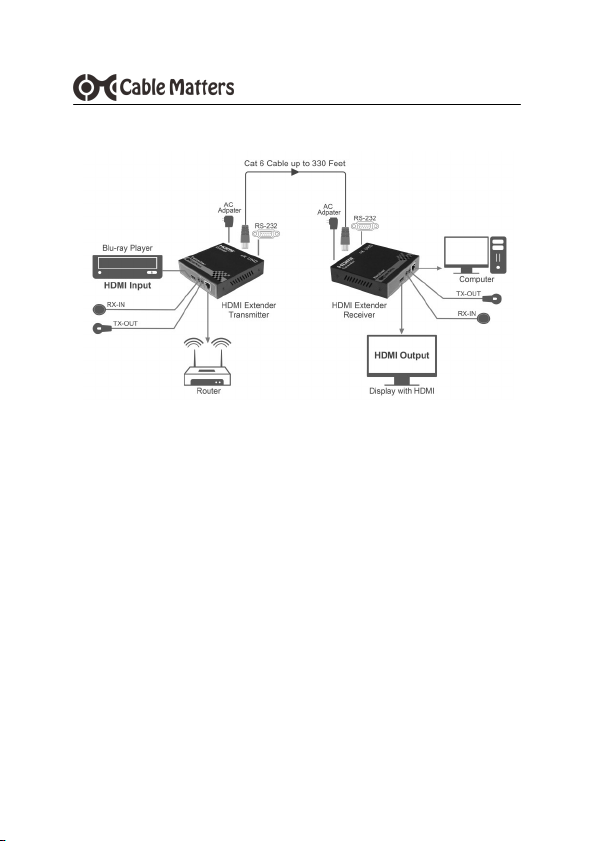

See Section 3.7 for
Extender connection
instructions

6
www.cablematters.com
HDBaseT HDMI Extender
3.6 IR Cable Installation
HDMI Extender transmits bi-directional IR control signals over a Cat 6
cable using HDBaseT technology. Control both the HDMI input source
and output display with a paired handheld remote for either side.
1) Connect an IR Transmitter cable to the Transmitter TX port
 It must have line of sight with the remote for the Output display
2) Connect an IR Receiver cable to Transmitter RX port
 It must have line of sight to the source HDMI Input IR sensor
3) Connect an IR Transmitter cable to the Receiver TX port
 It must have line of sight with the remote for the Input source
4) Connect an IR Receiver cable to the Receiver RX port
 It must have line of sight to the source HDMI Output IR sensor

7
www.cablematters.com
HDBaseT HDMI Extender

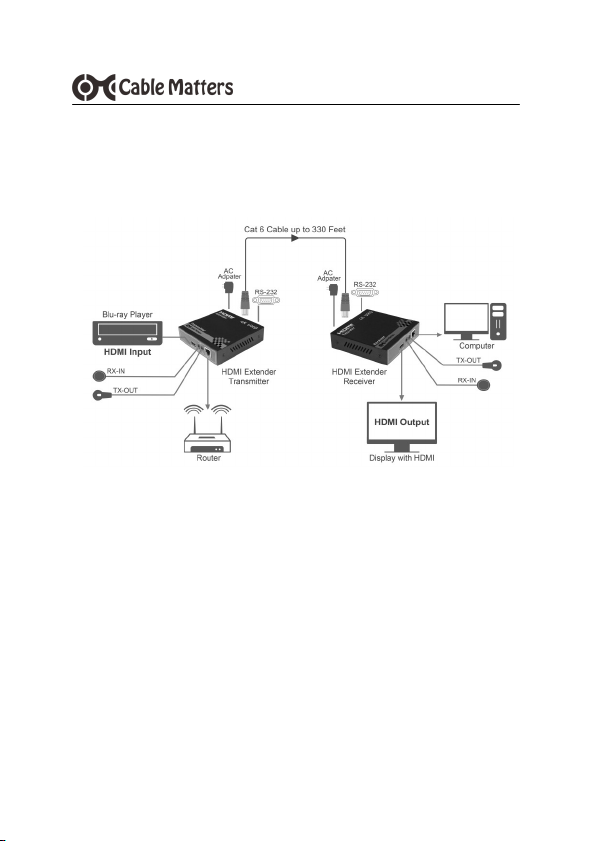

3.7 Extender Connection Instructions
1) Power off all the equipment before connecting any cables
2) Connect the HDMI cables to the Transmitter and Receiver boxes
3) Connect the Cat 6 cabling to the Transmitter and Receiver boxes
4) Connect the IR RX and TX cables (optional)
5) Connect the RS-232 cables (optional)
6) Power on all the equipment
7) Select the input source from the display menu
8) Connect the AC power adapters to the Extender boxes
9) Check that the red power LED is lit
10) Check that the green Link LED is lit
11) Check the Ethernet status indicators if a router is connected
Note: Test the Extender boxes and connections before installing in a
permanent location or mounting with the included brackets.

8
www.cablematters.com
HDBaseT HDMI Extender
3.8 Troubleshooting Notes
 Verify that the Extender and all connected equipment have power. The red power
LED indicator should be lit on the Extender.
 Verify that all cables are connected to the correct input and output ports.
 Verify that the correct input source is selected from the display menu. Check the
green LED indicators on the front panels of the Extender boxes.
 All connected equipment must support HDCP. Set-top CATV boxes or A/V
receivers with HDMI 1.2 may not function with this HDBaseT Extender.
 Directly connect the video source to the output display to test for compatibility.
 Check the audio output settings from the source input device.
 Test each HDMI cable by connecting it with other equipment.
 Test the Cat 6 cable with a cable tester. It must be terminated using the 568B
wiring standard.
 High resolution 4K displays may require a heavy gauge AWG 22-24 or RedMere
HDMI cable for cables over 10 feet.
 Place the Extender boxes away from fluorescent lighting or equipment that
generates electrical noise.
 A ‘Not Supported’ error message may indicated that the connected equipment
does not support HDCP (or more than 2 outputs) for content protected video.
 Check that the IR sensor on the input source or output display is not blocked
(check the user manual of your equipment for the exact location).
 Reboot the video source and output displays after making changes.
Contact [e-mail] with any questions.

9
www.cablematters.com
HDBaseT HDMI Extender
4. TECHNICAL SPECIFICATIONS Model 103078
Extender Connections - Transmitter/Receiver (each)
HDMI Input/Output................................................. 1 x HDMI 19 pin female
Ethernet (Local) ..................................................... 1 x RJ45 8P/8C (568B) female
HDBaseT (Link) ..................................................... 1 x RJ45 8P/8C (568B) female
IR RX & TX IrDA (Infrared SIR/FIR 30-60 kHz).... 2 x 3.5mm TRS
RS-232 Serial/Transmitter..................................... 1xDB-9 (9 pin: D-Sub) female
RS-232 Serial/Receiver ......................................... 1xDB-9 (9 pin: D-Sub) male
Power..................................................................... 1 x 5V DC power input
Video Resolution Support
Maximum ............................................................... 4096 x 2160 @ 30Hz (up to 70m)
3D Support............................................................. HDMI 1.4b 1080P @ 60hz
HDCP..................................................................... HDCP 1.4
Audio Support...........................................2 Ch/Dolby/DTS/7.1 Surround Sound
Extender Dimensions - Transmitter/Receiver (each)
(L x W x H) / Weight ...................................4.2. x 4.2 x 1 Inches / 9.5 Ounces
Included Cables
HDMI 4K Rated...........................................2 x HDMI 19 pin male to male - 6 Ft.
IR RX & TX .................................................2 x Transmitter and Receiver - 3.7 Ft. cord
(Cat 6, RS-232, and additional HDMI cables are sold separately)
Environmental
Operating Temperature ..............................32°F to 104°F
Storage Temperature .................................-4°F to 140°F
AC Power Supply......................................US Standard 5V/2A - 3.7 Ft. cord
Regulatory Approvals
Extender......................................................FCC, C E, RoHS
Warranty ....................................................Limited One Year
User Manual...............................................English Version
NOTE: Specifications are subject to change without notice.

10
www.cablematters.com
HDBaseT HDMI Extender
5. Warranty and Support
5.1 Customer Support and Contact Information
Cable Matters offers lifetime technical support as an integral part of our
commitment to provide industry leading solutions.
Email us with any questions at [email protected].
5.2 Warranty Information
This product is backed by a limited one-year warranty. The warranty covers
parts and labor costs only. Cable Matters does not warrant its products
from defects or damages arising from misuse, abuse, or normal wear.
5.3 Limitation of Liability
In no event shall Cable Matters Inc. (including their officers, directors,
employees or agents) be liable for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of profits,
loss of business, or any pecuniary loss, arising out of, or related to the use
of this product exceeding the actual price paid for the product (as allowed
by state law.
View our compatible HDMI products at www.cablematters.com
