Cable-Tronix CT-HDBASET-330 User manual

www.nacebrands.com www.cabletronix.com
Version: V1.0.0
User Manual
CT-HDBASET-330
330 Feet HDBaseT Extender with Bi-directional PoE

www.nacebrands.com www.cabletronix.com
Important Safety Instructions
Warnings
To reduce the risk of fire, electric shock or product damage:
1. Do not expose apparatus to
rain, moisture, dripping, or
splashing. Do not place objects
filled with liquids, such as vases,
on apparatus.
6. Clean this apparatus
only with dry cloths.
2. Ensure the unit is well
ventilated. Do not install or place
unit in a bookcase, built-in
cabinet or other confined space.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
ventilation openings of unit
with, tablecloths, curtains, or
similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of open
flames, such as lighted candles,
on the unit.
7. Unplug device during
lightning storms or when
unused for long periods
of time.
8. Protect the power cord
from being walked on or
pinched, particularly at
plugs.
9. Only use
attachments/accessories
specified by the
manufacturer.
10.Refer all servicing to
qualified service
personnel.

Introduction
Overview
The CABLETRONIX CT-HDBASET-330 is a cost effective HDBaseT
extender solution featuring Power over Ethernet (PoE), and offers distribution
of uncompressed 4K@60Hz UHD video, HD audio, Ethernet, RS232, and
two-way IR control up to 100m/330ft along a single CAT5E/6 cable.The unit
also features HDCP 2.2 compatibility for distribution of encrypted content.
The bi-directional Power over Ethernet technology of the CT-HDBASET-330
ensures only one power adapter is needed at either TX (transmitter) or RX
(receiver) side to power both units. LEDs indicate power is being supplied to
the units, and indicates an established connection between connected
devices.

Features
Via Cat 6a/7 cables:
4K@60Hz output up to 70m/230ft
1080p up to 100m/330ft.
Via Cat 5e/6 cables
4K@60Hz output up to 60m/195ft
1080p up to 100m/330ft.
HDMI 1.4 with 4k@60Hz (Chroma sub-sampling 4:2:0 8-bit only) and
HDCP 2.2 compliance.
Bi-directional PoE - Only one power adapter required at either TX or RX
side.
Bi-directional RS232 and IR pass-through over HDBaseT.
Automatic EDID management.
DIP adjustment to update Valens firmware via RS232.
All connectors on one side for easy cable management.
Note:
Actual signal transmission distance can vary depending on signal
resolution, cable quality, graphics card, and/or display used in the system.
Package Contents
1 x Transmitter CT-HDBASET-330
1 x Receiver CT-HDBASET-330
1 x 18V 1A DC Power Supply
1 x Power Cable
4 x Mounting Ears
2 x IR Emitter Cables
2 x IR Receiver Cables

Specifications
Transmitter
Technical Specifications
Video
Input
1 x HDMI
Input Signal Type
HDMI: HDMI1.4 w/ HDCP 2.2 pass through
Input Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080p, 1080i, 720p, 576p, 576i, 480p, 480i;
Input Video Level
0.5~1.0 Vp-p
Maximum Pixel Clock
297MHz
Output
1 x HDBT
Output Signal Type
HDBT
Output Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080p, 1080i, 720p, 576p, 576i, 480p, 480i;
Video Impedance
100ohms

Transmission Distance
Cat 5e/6:
4K: max. 60m/195ft; 1080p: max. 100m/330ft
Cat 6a/7:
4K: max. 70m/230ft; 1080p: max. 100m/330ft
Audio
Support Audio Format
Stereo, LPCM 5.1, LPCM 7.1; Dolby True
HD, DTS-HD Master Audio
Control
Control Method
1x IR TX, 1x IR RX, 1 x RS232, 1 x Ethernet
General
Operating Temperature
0°C ~ 45°C (32 ~ 113 °F),
10% ~ 90%, non-condensing
Storage Temperature
-20°C ~ 70°C (-4 ~ 158 °F),
10% ~ 90%, non-condensing
Product Weight
250g/8.8oz
Power Supply
DC 18V 1A
Power Consumption
11W Max (Pair)

Case Dimension
175mm x 135mm x 90mm (Pair)
7in x 5.5 in x 3.5in
Product Dimension
(L x W x H)
162mm × 74mm × 25mm
6in x 3in x 1in
ESD Protection
±8kV(Air-gap discharge)/
±4kV(Contact discharge)

Receiver
Technical Specifications
Video
Input
1 x HDBT
Input Signal Type
HDBT
Input Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080p, 1080i, 720p, 576p, 576i, 480p, 480i;
Input Video Level
0.5~1.0 Vp-p
Maximum Pixel Clock
297MHz
Output
1 x HDMI
Output Signal Type
HDMI: HDMI1.4 w/ HDCP 2.2 pass through
Output Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080p, 1080i, 720p, 576p, 576i, 480p, 480i;
Video Impedance
100ohms
Transmission Distance
Cat 5e/6:

4K: max. 60m/195ft; 1080p: max. 100m/330ft
Cat 6a/7:
4K: max. 70m/230ft; 1080p: max. 100m/330ft
Audio
Support Audio
Stereo, LPCM 5.1, LPCM 7.1; Dolby True
HD, DTS-HD Master Audio
Control
Control Method
1x IR TX, 1x IR RX, 1 x RS232, 1 x Ethernet
General
Operating Temperature
0°C ~ 45°C (32 ~ 113 °F),
10% ~ 90%, non-condensing
Storage Temperature
-20°C ~ 70°C (-4 ~ 158 °F),
10% ~ 90%, non-condensing
Product Weight
250g/8.8oz
Power Supply
DC 18V 1A
Power Consumption
11W Max (Pair)

Case Dimension
175mm x 135mm x 90mm (Pair)
7in x 5.5 in x 3.5in
Product Dimension
(L x W x H)
162mm × 74mm × 25mm
6in x 3in x 1in
ESD Protection
±8kV(Air-gap discharge)/
±4kV(Contact discharge)

Panel
Transmitter

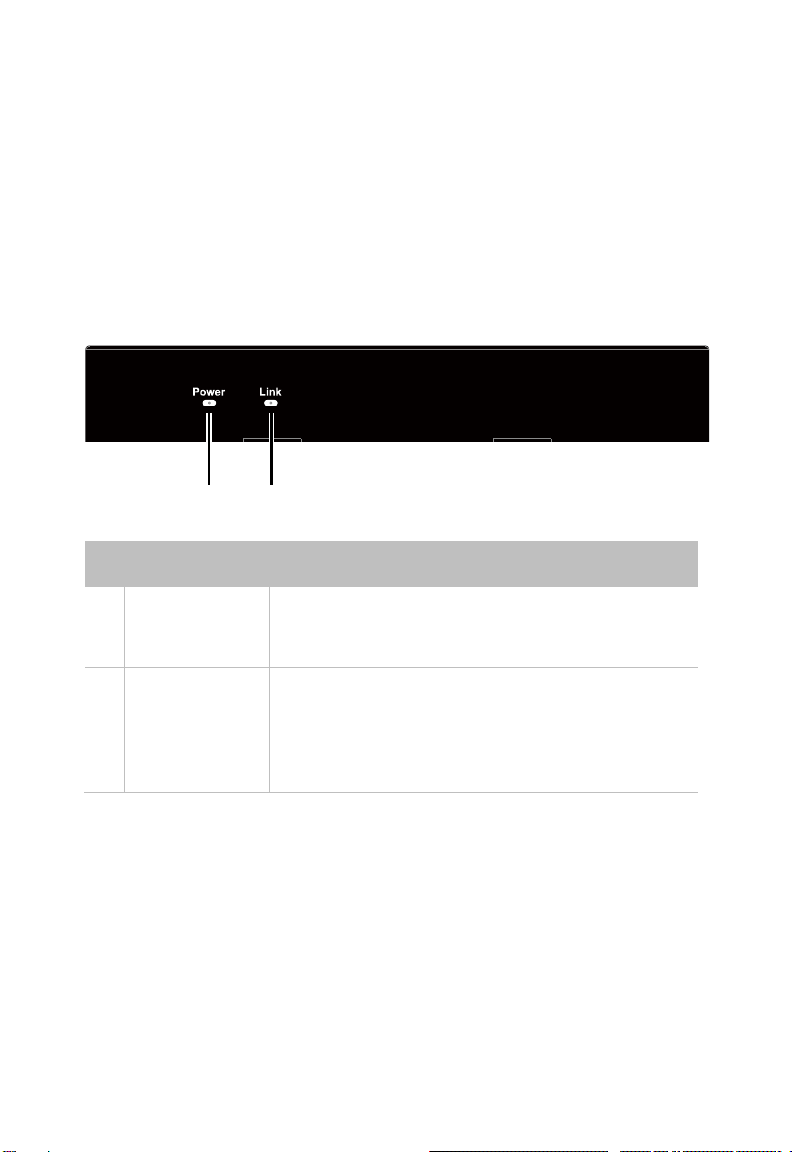

Front Panel
ID
Name
Description
1
Power LED
On: Transmitter is powered on.
Off: Transmitter is powered off.
2
Link LED
On: Transmitter and Receiver are linked.
Blinking: Poor connection
Off: No link.
1 2

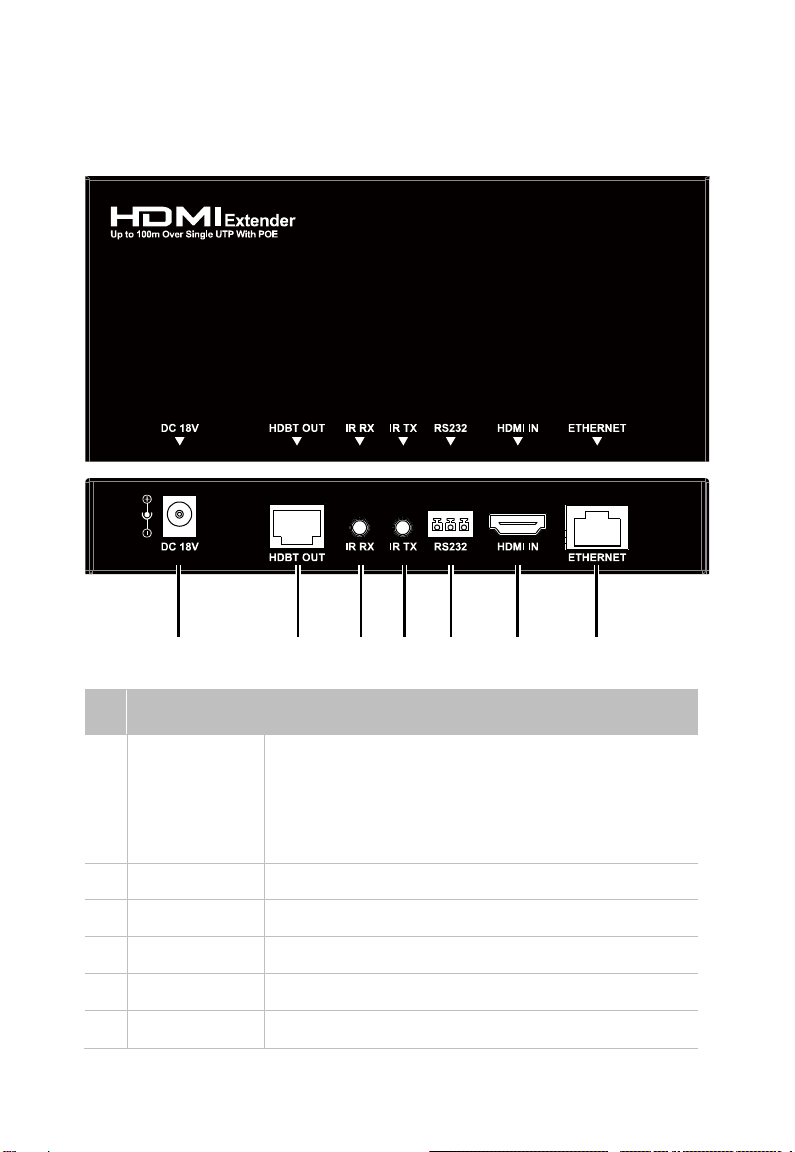

Rear Panel
ID
Name
Description
1
Power
Connects to a power supply via power adapter.
If Transmitter is connected to a power supply,
Receiver will be powered over PoE.
2
HDBT OUT
Connects to the Receiver via a CAT5E/6 cable.
3
IR RX
Connects to an IR receiver cable.
4
IR TX
Connects to an IR emitter cable.
5
RS232
RS232 pass through
6
HDMI IN
Connects to a source device via an HDMI cable.
1 2 3 4 5 6 7

ID
Name
Description
7
ETHERNET
Connects to an Ethernet device.
Receiver
Front Panel
ID
Name
Description
1
Power LED
On: Receiver is powered on.
Off: Receiver is powered off.
2
Link LED
On: Transmitter and Receiver are linked.
Blinking: Poor Connection.
Off: No link.
1 2

Rear Panel
ID
Name
Description
1
Power
Connects to a power supply via power adapter.
If Transmitter is connected to a power supply, receiver
will be powered over PoE.
2
HDBT IN
Connects to the Transmitter via a CAT5E/6 cable.
3
IR RX
Connects to an IR receiver cable.
4
IR TX
Connects to an IR emitter cable.
5
RS232
RS232 pass through
1 2 3 4 5 6 7

ID
Name
Description
6
HDMI OUT
Connects to a display via an HDMI cable.
7
ETHERNET
Connects to an Ethernet device.

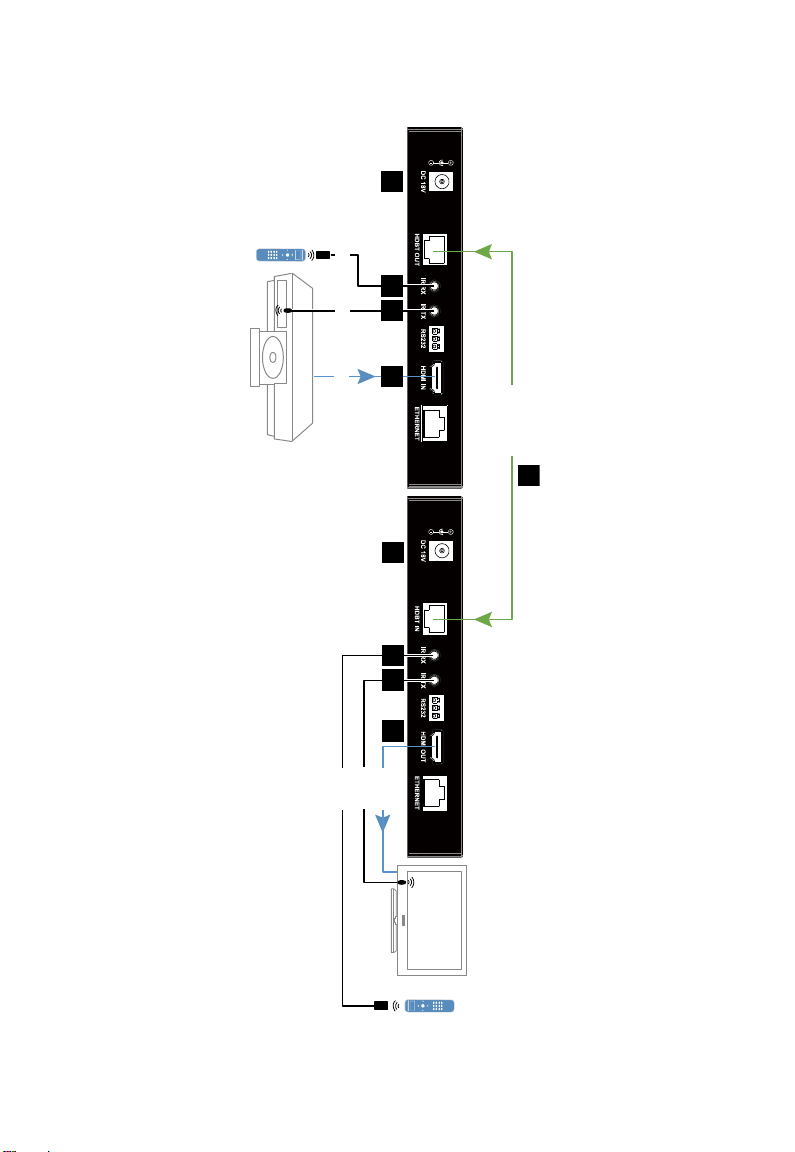

Hardware Installation
1. Connect an HDMI source (such as a Blu-Ray, gaming console, media
server etc.) to Transmitter using high-quality HDMI cables.
2. Connect a high-quality, well terminated Cat5e/6 cable between the HDBT
output of the Transmitter and HDBT input of the Receiver.
3. Connect the HDMI display (LED/LCD display or projector) to the HDMI
output of the Receiver
4. Connect IR emitters from the IR OUT ports of the Transmitter and
Receiver and firmly attach the IR emitter eye directly over the infrared
receiving sensors of the source and display device to be controlled.
Location of the emitter eye on each device may need to be adjusted later
to achieve best IR performance.
5. Insert IR receivers into IR IN ports of the Transmitter and Receiver.
Position the IR receiver eye on or near the display or source device,
ensuring a clear line of sight to the remote handset used to control it.
6. Connect the power supply to the Transmitter or Receiver and power on
all devices.

TV
3
6
6
DVD
2
DVD Remote
TV Remote
Transmitter Receiver
Cat X Cable
4
5
IR TX
IR RX HDMI
154HDMI
IR TX
IR RX

IR Control
IR pass-through function allows you to control the source from the display
location or control the display from source location.

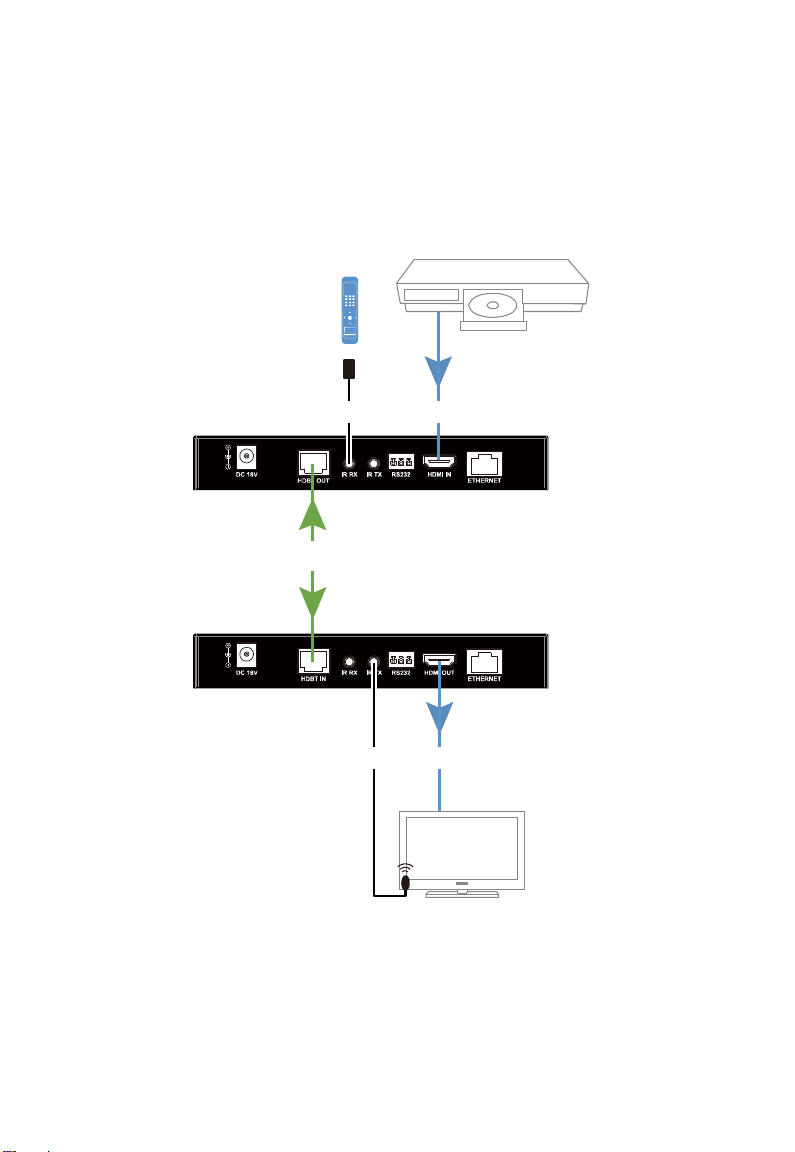

Scenario 1
In this case, you can control the TV on the Transmitter side.
DVD
TV
DVD remote
Transmitter
Receiver
Cat XCable
IR TX HDMI
IR RX HDMI

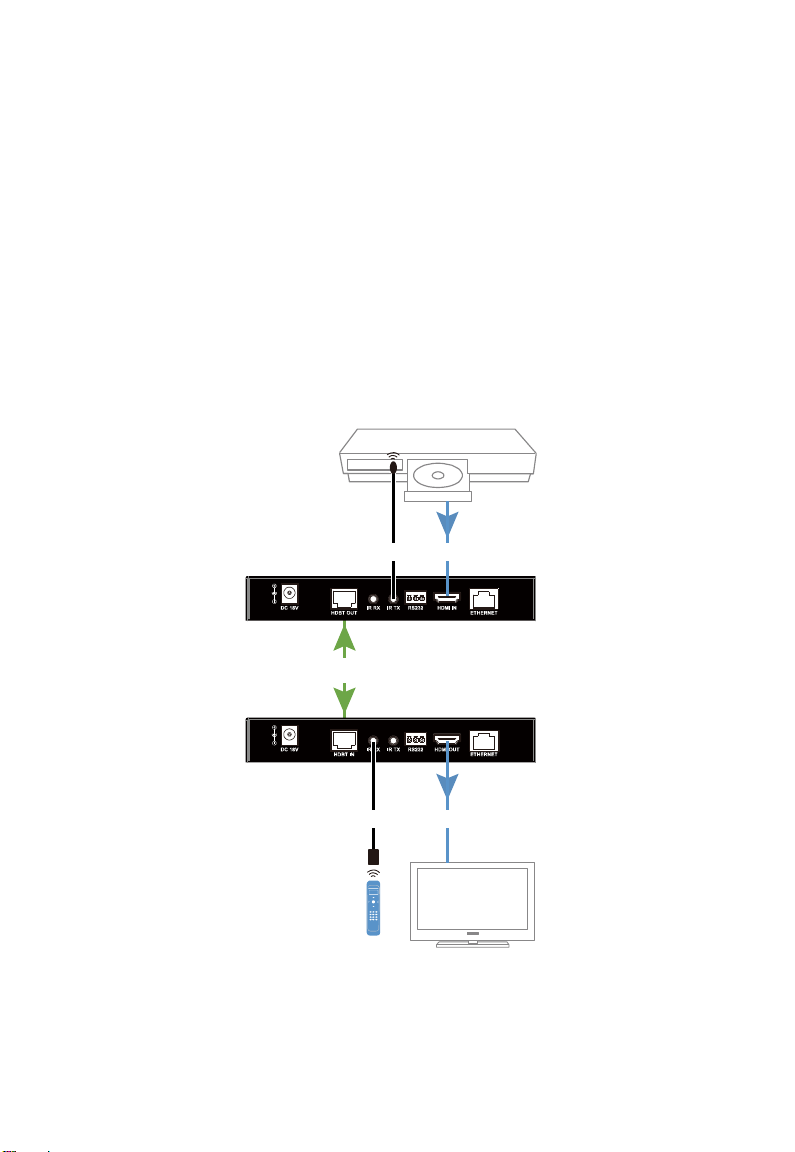

Scenario 2
In this case, you can control the Blu-Ray on the Receiver side.
TV remote
DVD
TV
Transmitter
Receiver
IR RX HDMI
Cat XCable
IR TX HDMI

Troubleshooting
1. Why is the power LED off?
Check that all the devices are powered on.
Check that all the cables are qualified and connected properly.
2. Why is the Link LED off or blinking?
Check that all the devices are powered on.
Check that all the cables are qualified and connected properly.
Check that the length of Cat5e/Cat6 is appropriate. For more
information, see cable requirements under specification charts.
Check that Transmitter and Receiver work properly.
3. Why does the display connected to the Receiver show no picture?
Check that all the devices are powered on.
Check that all the cables are qualified and connected properly.
Check that the display works properly, and that source devices have
normal signal output.
Check that your display is switched to the correct source input mode,
such as switching to HDMI-1 if HDMI-1 interface is connected to the
Receiver via HDMI cable.
Check that no compatibility issues exist between Receiver and display.
