Cable-Tronix CT-HDVD-EXT-IR120 User manual

Model No.: CT-HDVD-EXT-IR120
USER MANUAL
CT-HDVD-EXT-IR120

WARNINGS
CAUTION: To reduce the risk of electrical shock do not remove
the cover or back of this unit. No user serviceable parts are
inside.
CAUTION: To prevent electric shocks and risk of fire hazards, do
not use other than specified power source.
CAUTION: To prevent electric shocks and risk of fire hazards, do
not expose this equipment to rain or moisture.
CAUTION: Pay attention to NEC articles 810-21, 820-22, and
820-40 that provide guidelines for proper grounding.
Inspect the front and rear of the equipment for shipping damage.
Make sure the equipment is clean, and no connectors are broken,
damaged, or loose. If equipment appears to be damaged or
defective please contact your distributor or CableTronix at
1-610-429-1511 for assistance.

Introduction
The CT-HDVD-EXT-IR120 is an HDMI extender that utilizes CAT-5E/6 cable as
transmission media.
Benefits from using the CT-HDVD-EXT-IR120:
1) The length of an HDMI cable is limited due to technical reasons. The
CT-HDVD-EXT-IR120 allows the user to extend the reach of an HDMI
signal up to 120 feet.
2) By using the CT-HDVD-EXT-IR120, the transmission distance for 1080P
reaches up to 120 feet.
3) The CT-HDVD-EXT-IR120 has the ability of buffering and amplifying the
signal for the best quality. Connecting two CT-HDVD-EXT-IR120 in series
(Daisy chained) achieves a longer distance transmission of the HDMI
signal.
4) The CT-HDVD-EXT-IR120 allows for IR system control from the
destination back to the source.

Contents
HDMI Extender......................................................................................................1
Product Overview..................................................................................................1
Features................................................................................................................1
Package Contents.................................................................................................3
Connections and Operations................................................................................3
Specifications........................................................................................................6
Panel Descriptions................................................................................................7
TypicalApplication.................................................................................................8
Maintenance..........................................................................................................9
Product Service.....................................................................................................9
Provided Service..............................................................................................9
Mail-In Service......................................................Error! Bookmark not defined.
Warranty..............................................................................................................10
Warranty LimitsAnd Exclusions...........................Error! Bookmark not defined.

Page 1
HDMI Extender(By single CAT-5E/6E cable)
■Product Overview ( Model Number: CT-HDVD-EXT-IR120)
■Features
Automatic adjustment of equalization and amplification for
optimal signal.
Use of a single UTP LAN cable (CAT-5E/6) to extend an HDMI
signal to achieve long distance transmission.
UTP cable termination follows the standard of IEEE-568B.
Transmission distance reaches up to 120 feet at the video format
of 1080P.
HDMI V1.3b supported.
Each port supports HDMI or DVI inputs.
HDCP compliant.
LED indicators to show the power and video signal status.
ESD protection inside.
Mounting ears supplied.
Passes IR control signal together with the HDMI signal.
Cascadable.

Page 2
Notice
CableTronix reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior
written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Page 3
■Package Contents
①CT-HDVD-EXT-IR120.
②Mounting ears.
③Operating Instructions.
④2x 5VDC power supply
⑤IR TX UNIT (IR emitter cable).
⑥IR RX UNIT (IR receiver cable).
■Connections and Operations
1) Connect the HDMI input source (such as: HD-DVD、PS3、STB etc.) to the
CT-HDVD-EXT-IR120 transmitter.
2) Connect a CAT-5E/6 cable to both the transmitter output and the input of the
receiver. (The cables must follow the standard of EIA/TIA 568B )
3) Connect the HDMI receiver (such as: HD-LCD、HD-DLP) into the receiver
unit.
4) Connect the IR TX UNIT into receiver IR TX; Connect the IR RX UNIT into
transmitter IR RX.
5) DIP SWITCH Description.

Page 4
■DIP Switch Settings
NOTE: The DIP switch position from left to right matches the table below. (DisregardA-F
Values)
CT-HDVD-EXT-IR120
Position
Transmitter Functions
0
1080P stereo (Note1)
1
1080p 5.1 (Note2)
2
EDID Copy Mode (Copy EDID from display ) (Note3)
3
1080i stereo (Note4)
4
1080P stereo (LC mode)
5
1080p 5.1 (LC mode)
6
EDID Copy Mode (LC mode)
7
1080i stereo (LC mode)
CT-HDVD-EXT-IR120 (below are settings to select when using different lengths
of CAT-5E/6 UTP).
Position
Receiver Functions
0
0-35 feet CAT-5E/6 UTP cable length
1
6
36-120 feet CAT-5E/6 UTP cable length
7
Note1: The CT-HDVD-EXT-IR120 will use the embedded 1080P-stereo
compatible EDID when the DIP switch is in this mode.
Note2: The CT-HDVD-EXT-IR120 will use the embedded 1080p 5.1 EDID
when the DIP switch is in this mode.
Note3: The CT-HDVD-EXT-IR120 will receive EDID from the display when
the DIP switch is in this mode.
Note4: The CT-HDVD-EXT-IR120 will use the embedded 1080i stereo EDID

Page 5
when the DIP switch is in this mode.

Page 6
■Specifications
Operating Temperature Range
-5 to +35°C (-41 to +95 °F)
Operating Humidity Range
5 to 90 % RH (no condensation)
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Video Format Supported
DTV/HDTV: 1080p/1080i/720p/576p
/480p/576i/480i
Output Video
HDMI 1.3+HDCP
Output Audio
Support DTS-HD, Dolby-HD
Maximum Transmission Distance
120 feet
Power Supply
5VDC
Power Consumption
1.5 Watts (Max.)
Dimensions
60mmW×115mmH×23mmD/1.8’’W×3
.3’’H×0.9’’D
Weight (pair)
0.3Kgs (Pairs)/1.16lb
IR wavelength & frequency
Wavelength: 940nm IR Frequency:
38KHZ
NOTE1: Specifications are subject to change without notice. Weight and dimensions are
approximate.

Page 7

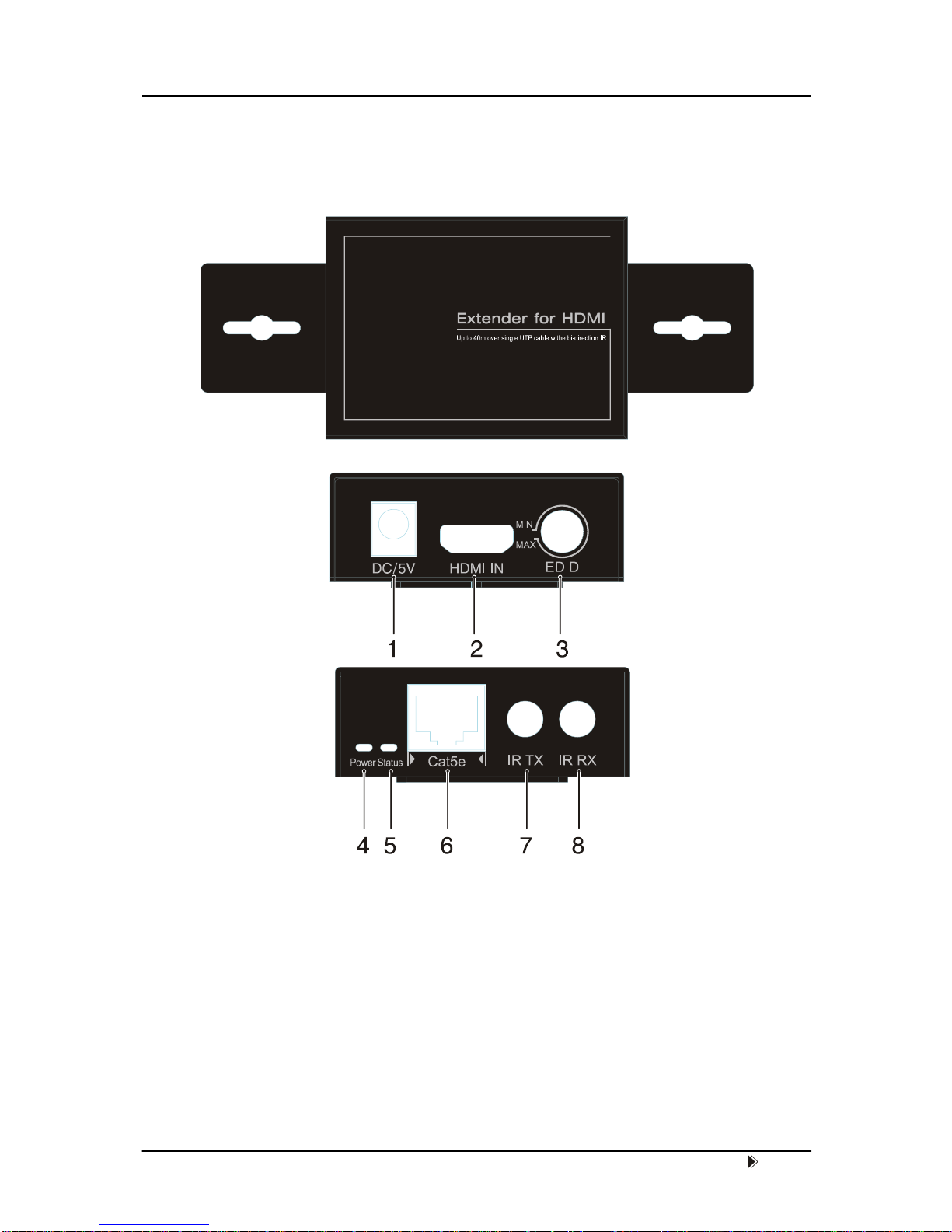

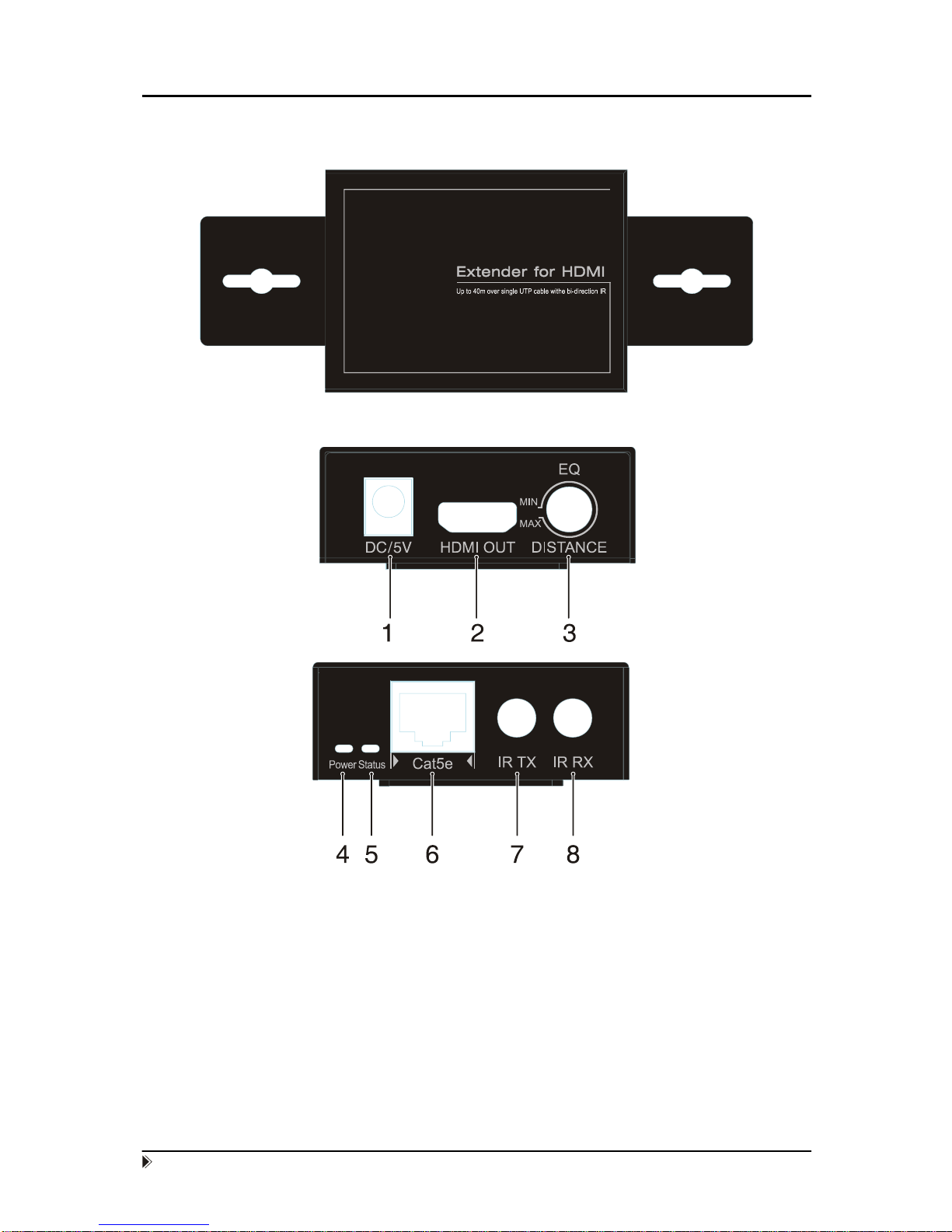

■Panel Descriptions
1. CT-HDVD-EXT-IR120
①Power input, 5VDC.
②HDMI input.
③DIP switch.
④Status of power input.
⑤Status of signal connection.
⑥CAT-5E output.
⑦IR TX.
⑧IR RX.

Page 8
2. CT-HDVD-EXT-IR120
①Power input, 5VDC.
②HDMI output.
③DIP switch equalization and gain.
④Status of power input.
⑤Status of signal connection. CAT-5E input.
⑥CAT-5E Input
⑦IR TX.
⑧IR RX.

Page 9
■Typical Application
■Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or other
solvents to clean this unit.
■Product Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
The DC power supply cord or AC adaptor has been damaged;
Objects or liquids have migrated into the unit;
The unit has been exposed to rain;
The unit does not operate normally or exhibits a marked change in
performance;
The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service agent
uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result in

Page 10
fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service agency to perform
safety checks to confirm that the unit is in proper working condition.
●Warranty
CABLETRONIX 1-Year Limited Warranty
CABLETRONIX. (The "Company") warrants to the Original Purchaser that the
item purchased is free from defects in workmanship or material under normal
use. This warranty starts on the date of shipment of the hardware to the Original
Purchaser.
During the warranty period, the Company agrees to repair or replace, at its sole
option, without charge to Original Purchaser, any defective component. To
obtain service, the Original Purchaser must return the item to the Company
properly packaged for shipping. All defective products must be returned to the
Company within thirty (30) days of failure. Products must be returned with a
description of the failure and Return Merchandise Authorization (RMA)
number supplied by the Company. To receive a RMA number and a return
shipping address on where to deliver the hardware, call 610-429-1821. The
shipping and insurance charges incurred in shipping to the Company will be
paid by Original Purchaser, and all risk for the hardware shall remain with the
Original Purchaser until such time as Company takes receipt of the hardware.
Upon receipt, the Company will promptly repair or replace the defective unit
and then return said unit to Original Purchaser with shipping prepaid. The
Company may use reconditioned or “like-new” parts or units, as its sole option,
when repairing any hardware. Repaired products shall carry the same amount of
outstanding warranty from the original purchase. Any claim under the warranty
must include dated proof of purchase or invoice. In any event, the Company's

Page 11
liability for defective hardware is limited to repairing or replacing the hardware.
This warranty is contingent upon proper use of the hardware by Original
Purchaser and does not cover: Damage due to Acts of God (including fire,
flood, earthquake, storm, hurricane or other natural disaster), accident, unusual
physical, electrical, or electromechanical stress, modifications, neglect, misuse,
operation with media not approved by the Company, tampering with or altering
of the hardware, riot, war, invasion, act of foreign enemies, hostilities
(regardless of whether war is declared), civil war, rebellion, revolution,
insurrection, military or usurped power or confiscation, terrorist activities,
nationalization, government sanction, blockage, embargo, labor dispute, strike,
lockout or interruption or failure of electricity, air conditioning, or humidity
control, internet, network, or telephone service.
The warranties given herein, together with any implied warranties covering the
hardware, including any warranties of merchantability or fitness for a particular
purpose, are limited in duration to one year from the date of shipment to the
Original Purchaser. Jurisdictions vary with regard to the enforceability of
warranty limitations, and you should check the laws of your local jurisdiction to
find out whether the above limitation applies to you.
The Company shall not be liable to your for loss of data, loss of profits, lost
savings, special, incidental, consequential, indirect, or other similar damages
arising from breach of warranty, breach of contract, negligence, or other legal
action even if the Company or its agent has been advised of the possibility of
such damages, or for any claim brought against your by another party.
Jurisdictions vary with regard to the enforceability of provisions excluding or
limiting liability for incidental or consequential damages. Check the laws of
your local jurisdiction to find out whether the above exclusion applies to you.
This warranty allocates risks of product failure between Original Purchaser and

Page 12
the Company. The Company's hardware pricing reflects this allocation of risk
and the limitations of liability contained in this warranty. The warranty set forth
above is in lieu of all other express warranties, whether oral or written. The
agents, employees, distributors, and dealers of the Company are not authorized
to make modification to this warranty or additional warranties binding on the
Company. Accordingly, additional statements, such as dealer advertising or
presentations (whether oral or written) do not constitute warranties by the
Company and should not be relied upon.
This warranty gives you specific legal rights. You may also have other rights
which vary from one jurisdiction to another.
