Cable-Tronix CT-HDVD-EXT-IR230 User manual

www.nacebrands.com www.cabletronix.com
Version: V1.0.0

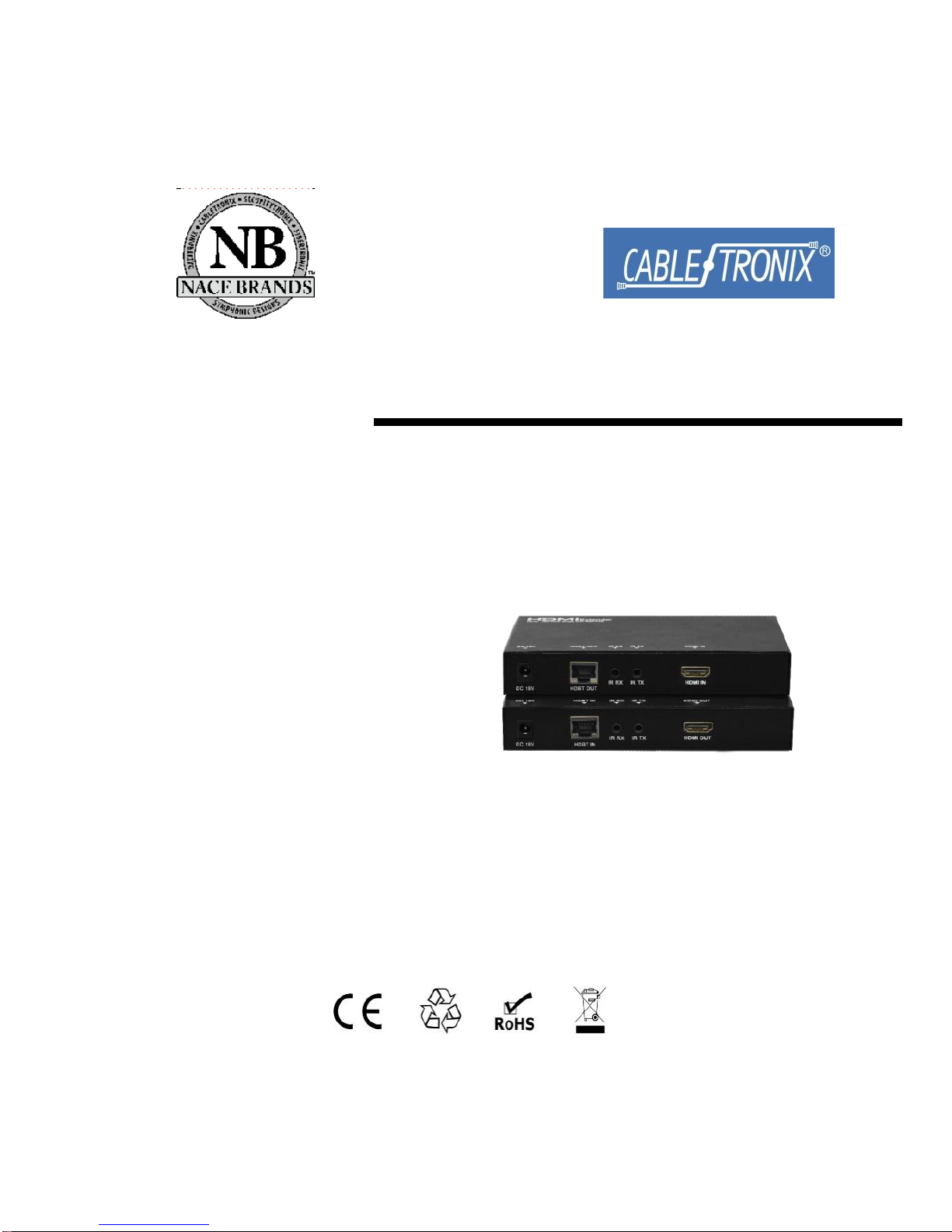

User Manual
CT-HDVD-EXT-IR230
230 Feet HDBaseT Extender with Bi-directional PoE

www.nacebrands.com www.cabletronix.com

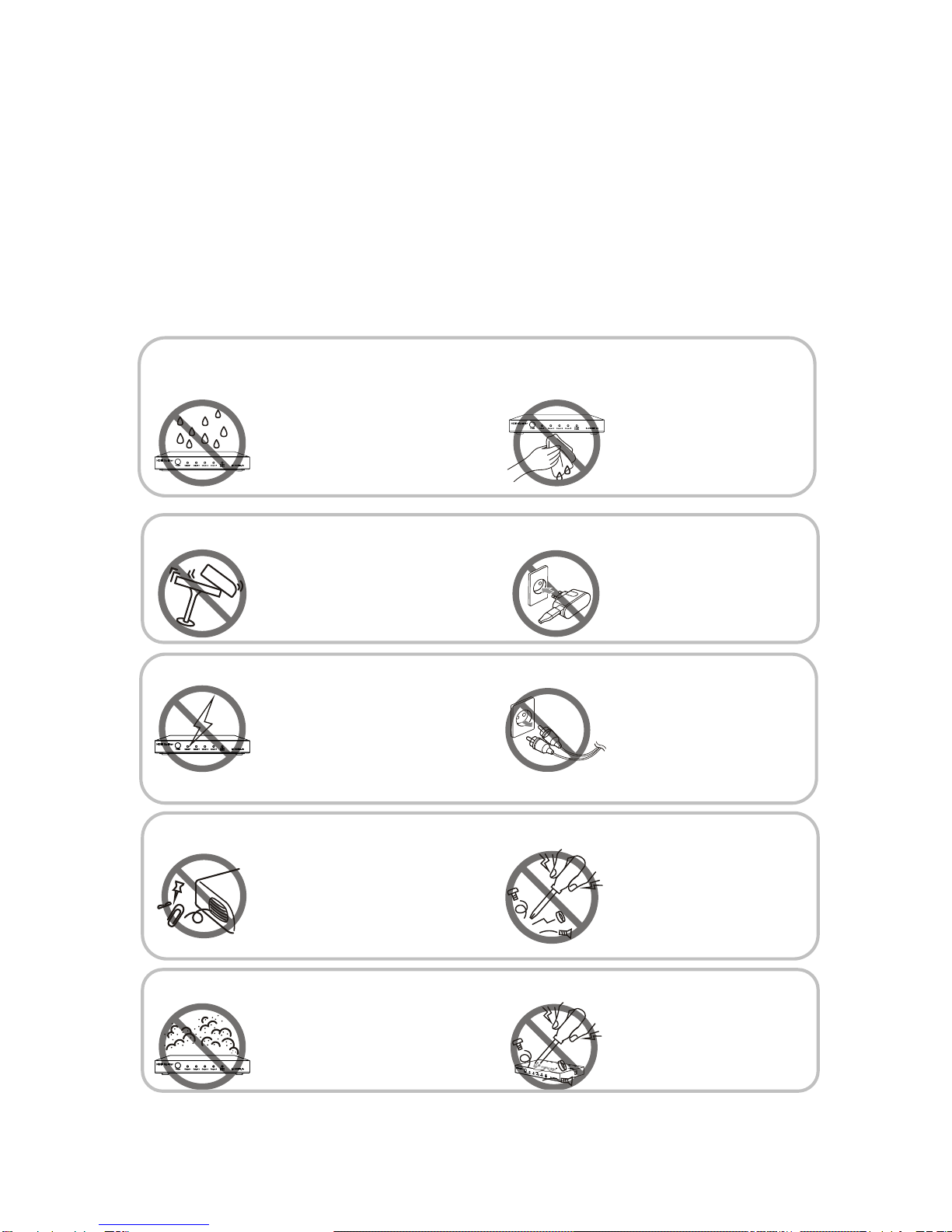

Important Safety Instructions
Warning:
To reduce the risk of fire, electric shock or product damage:
1. Do not expose apparatus to
rain, moisture, dripping, or
splashing. Do not place objects
filled with liquids, such as vases,
on apparatus.
6. Clean this apparatus
only with dry cloths.
2. Ensure the unit is well
ventilated. Do not install or place
unit in a bookcase, built-in
cabinet or other confined space.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
ventilation openings of unit
with, tablecloths, curtains, or
similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of open
flames, such as lighted candles,
on the unit.
7. Unplug device during
lightning storms or when
unused for long periods
of time.
8. Protect the power cord
from being walked on or
pinched, particularly at
plugs.
9. Only use
attachments/accessories
specified by the
manufacturer.
10.Refer all servicing to
qualified service
personnel.

1
www.nacebrands.com www.cabletronix.com
Introduction
Overview
The CABLETRONIX CT-HDVD-EXT-IR230 is a cost effective HDBaseT
Extender solution featuring Power over Ethernet (PoE), and offers
distribution of uncompressed 4K@60Hz UHD video, HD audio, Ethernet and
two-way IR control up to 70m/230ft along a single CAT5E/6 cable.
The unit also features HDCP 2.2 compatibility for distribution of encrypted
content.
The bi-directional Power over Ethernet technology of the
CT-HDVD-EXT-IR230 ensures only one power adapter is needed at either

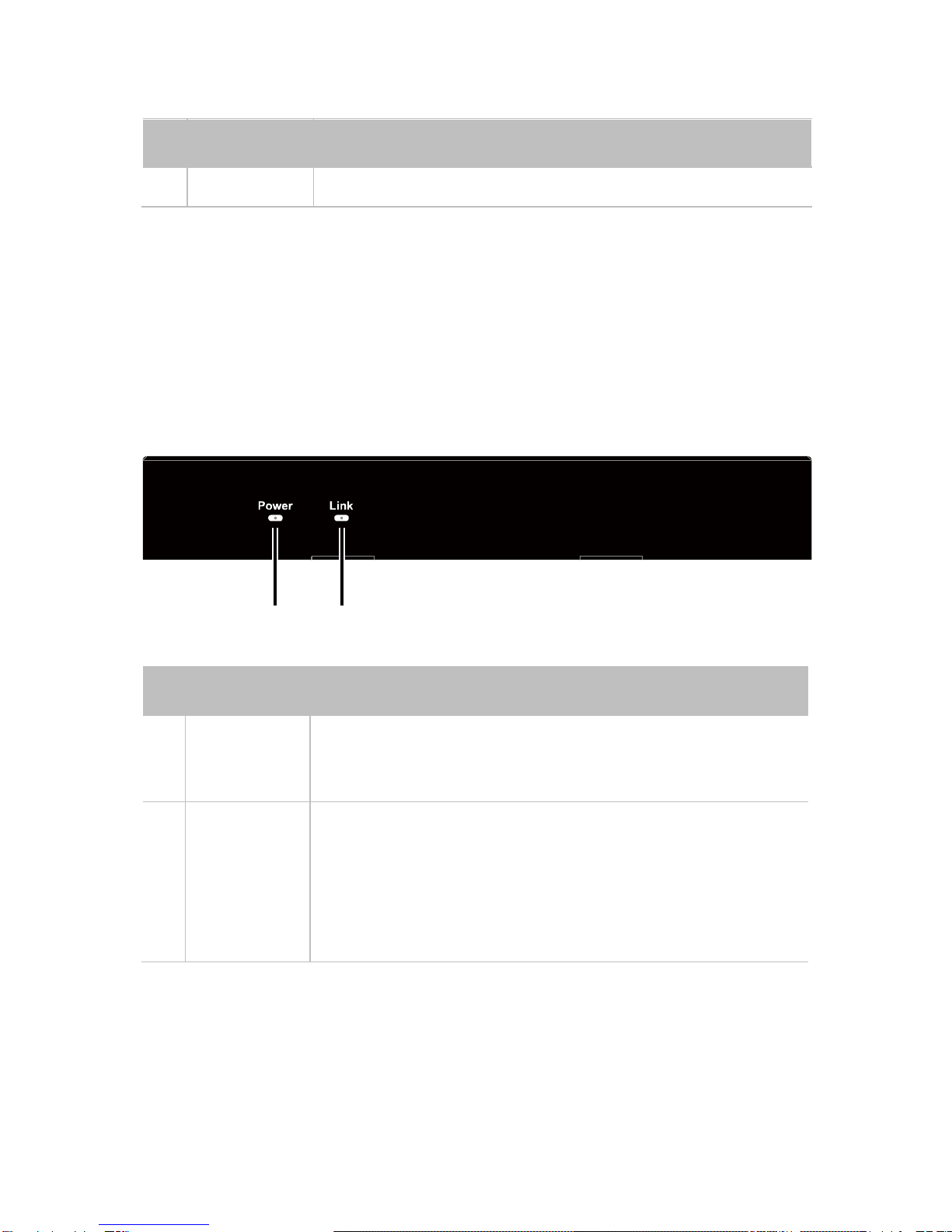

TX (transmitter) or RX (receiver) side to power both units. LEDs indicate
power is being supplied to the units, and indicates an established connection
between connected devices.

2
www.nacebrands.com www.cabletronix.com
Features
Via Cat 6a/7 cables:
4K@60Hz output up to 40m/131ft
1080P up to 70m/230ft
Via Cat 5e/6 cables:
4K@60Hz output up to 35m/115ft
1080P up to 60m/197ft.
HDMI 1.4 with 4k@60Hz (Chroma sub-sampling 4:2:0 8-bit only) and
HDCP 2.2 compliance.
Bi-directional PoE - Only one power adapter required at either TX or RX
Bi-directional and IR pass-through over HDBaseT.
Automatic EDID management.
All connectors on one side for easy cable management.
Note:
Actual signal transmission distance can vary depending on signal
resolution, cable quality, graphics card, and/or display used in the system.
Package Contents
1 x Transmitter CT-HDVD-EXT-IR230
1 x Receiver CT-HDVD-EXT-IR230
1 x 18V 1A DC Power Supply
4 x Mounting Ears
2 x IR Emitter
2 x IR Receiver (30KHz-50KHz)

3
www.nacebrands.com www.cabletronix.com
Specifications

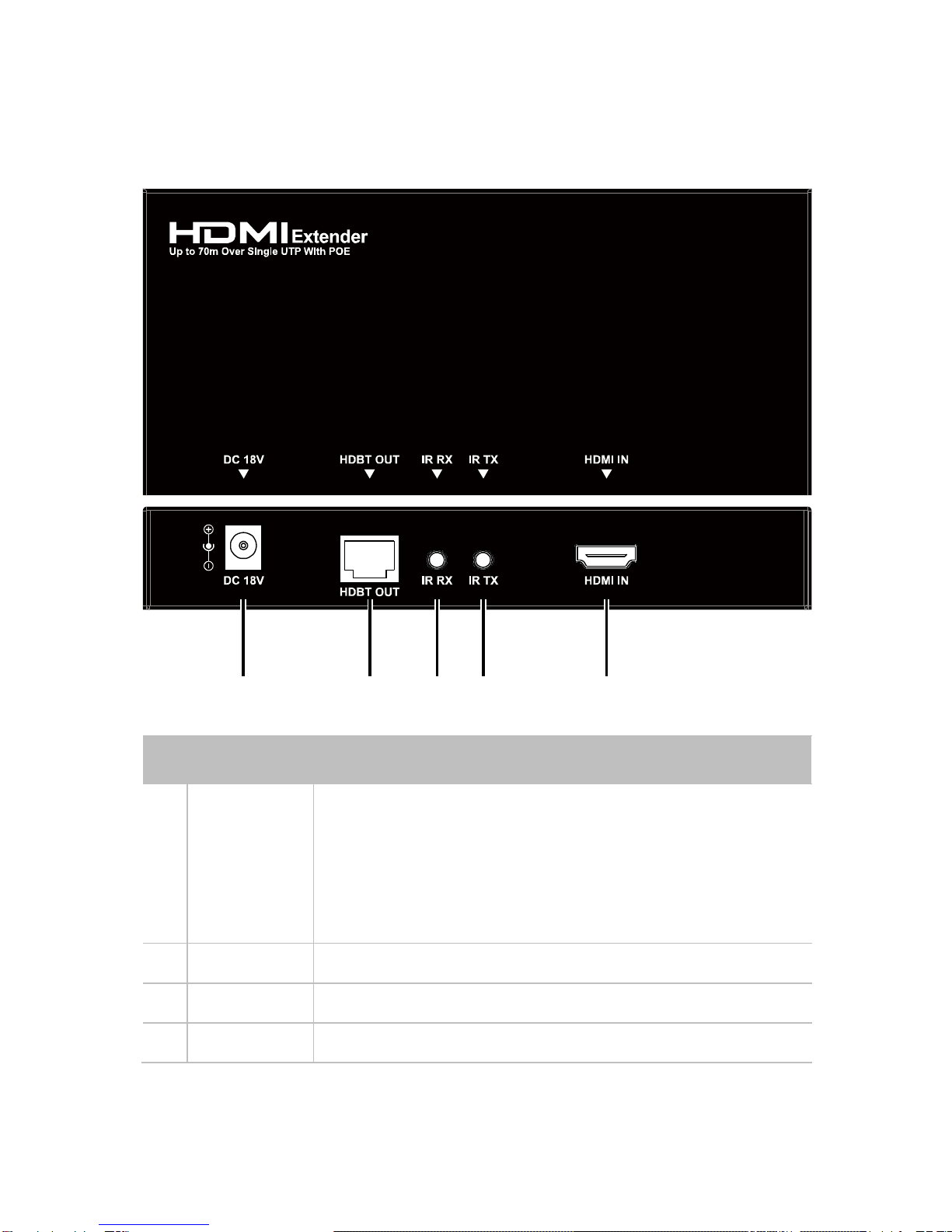

Transmitter
Technical
Video
Input
1 x HDMI
Input Signal Type
HDMI: HDMI1.4 w/ HDCP 2.2 pass through
Input Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080p, 1080i, 720P, 576p, 576i, 480p, 480i;
Input Video Level
0.5~1.0 Vp-p
Maximum Pixel Clock
297MHz
Output
1 x HDBT
Output Signal Type
HDBaseT (HDBT)
Output Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080p, 1080i, 720p, 576p, 576i, 480p, 480i;

4
www.nacebrands.com www.cabletronix.com
Video Impedance
100ohms
Transmission Distance
Cat 5e/6:
4K: max. 35m; 1080p: max. 60m/197ft
Cat 6a/7:
4K: max. 40m; 1080p: max. 70m/230ft
Audio
Support Audio Format
Stereo, LPCM 5.1, LPCM 7.1; Dolby True
HD, DTS-HD Master Audio
Control
Control Method
1x IR TX,
1x IR RX
General
Operating Temperature
0°C ~ 45°C (32°F ~ 113 °F),
10% to 90%, non-condensing
Storage Temperature
-20°C ~70°C (-4°F to ~ 158 °F),
10% to 90%, non-condensing

5
www.nacebrands.com www.cabletronix.com
Product Weight
200g/7oz
Power Supply
DC 18V 1A
Power Consumption
11W Max (Pair)
Case Dimension
175mm x135mm x 90mm (Pair)
7in x 5.5in x 3.5in
Product Dimension
(L x W x H)
162mm × 74MM × 25mm
6in x 3in x 1in
ESD Protection
±8kV(Air-gap discharge)/
±4kV(Contact discharge)

6
www.nacebrands.com www.cabletronix.com
Receiver
Technical Specifications
Video
Input
1 x HDBT
Input Signal Type
HDBT
Input Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080p, 1080i, 720p, 576p, 576i, 480p, 480i;
Input Video Level
0.5~1.0 Vp-p
Maximum Pixel Clock
297MHz
Output
1 x HDMI
Output Signal Type
HDMI: HDMI1.4 w/ HDCP 2.2 pass through
Output Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080p, 1080i, 720p, 576p, 576i, 480p, 480i;
Video Impedance
100ohms
Transmission Distance
Cat 5e/6:

7
www.nacebrands.com www.cabletronix.com
4K: max. 35m; 1080p: max. 60m/197ft
Cat 6a/7:
4K: max. 40m; 1080p: max. 70m/230ft
Audio
Support Audio
Stereo, LPCM 5.1, LPCM 7.1; Dolby True
HD, DTS-HD Master Audio
Control
Control Method
1x IR TX, 1x IR RX
General
Operating Temperature
0°C ~ 45°C (32 ~ 113 °F),
10% to 90%, non-condensing
Storage Temperature
-20°C ~ 70°C (-4 ~ 158 °F),
10% to 90%, non-condensing
Product Weight
200g
Power Supply
DC 18V 1A
Power Consumption
11W Max (Pair)

8
www.nacebrands.com www.cabletronix.com
Case Dimension
175mm x135mm x 90mm (Pair)
7in x 5.5in x 3.5in
Product Dimension
(L x W x H)
162mm × 74mm × 25mm
6in x 3in x 1in
ESD Protection
±8kV(Air-gap discharge)/
±4kV(Contact discharge)
