Cabletron Systems SmartSTACK 100 ELS100-16TX User manual

Getting Started with the SmartSTACK 100 ELS100-16TX
PWR
CPU
RESET COM
PORT STATUS MODE
TX ACT FDX MON
RX COL 100 USR
STATUS
ELS100-16TX EPIM100
EPIM100
10X 12X 14X 16X
9X 11X 13X 15X
2X 4X 6X 8x
1X 3X 5X 7X
LINK
STATUS
LINK
STATUS
2 4 6 8 10 12 14 16
13579111315
9032406-01

– i –
NOTICE
Cabletron Systems reserves the right to make changes in specifications and other information contained in this
document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether
any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FORANY INCIDENTAL, INDIRECT,
SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO
LOST PROFITS)ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEENADVISED OF, KNOWN, OR
SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.
 Copyright 1998 by Cabletron Systems, Inc., P.O. Box 5005, Rochester, NH 03866-5005
All Rights Reserved
Printed in the United States of America
Order Number: 9032406-01
Cabletron Systems
,
SPECTRUM
, and
LANVIEW
are registered trademarks and
SmartSTACK
,
ELS100-16TX
,
and EPIM-FX
are trademarks of Cabletron Systems, Inc.
All other product names mentioned in this manual may be trademarks or registered trademarks of their
respective companies.
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment uses,
generates, and can radiate radio frequency energy and if not installed in accordance with the operator’s
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause interference in which case the user will be required to correct the interference at his own
expense.
WARNING: Changes or modifications made to this device which are not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
DOC NOTICE
This digital apparatus does not exceed the ClassA limits for radio noise emissions from digital apparatus set
out in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le
ministère des Communications du Canada.
VCCI NOTICE
This is a Class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio
disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.
CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT
IMPORTANT: Before utilizing this product, carefully read this License Agreement.
This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets
forth your rights and obligations with respect to the Cabletron software program (the “Program”) contained in
this package. The Program may be contained in firmware, chips or other media. BY UTILIZING THE
ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS
AGREEMENT, WHICH INCLUDES THE LICENSEAND THE LIMITATION OF WARRANTY AND
DISCLAIMER OF LIABILITY. IFYOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT,
PROMPTLY RETURN THE UNUSED PRODUCT TO THE PLACE OF PURCHASE FOR A FULL
REFUND.
Only qualified personnel should perform installation
procedures.

– ii –
CABLETRON SOFTWARE PROGRAM LICENSE
1. LICENSE. You have the right to use only the one (1) copy of the Program provided in this package
subject to the terms and conditions of this License Agreement.
You may not copy, reproduce or transmit any part of the Program except as permitted by the Copyright
Act of the United States or as authorized in writing by Cabletron.
2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the Program.
3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the laws and in
the state and federal courts of New Hampshire. You accept the personal jurisdiction and venue of the New
Hampshire courts.
EXCLUSION OF WARRANTY AND DISCLAIMER OF LIABILITY
1. EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in writing,
Cabletron makes no warranty, expressed or implied, concerning the Program (including its
documentation and media).
CABLETRON DISCLAIMSALL WARRANTIES, OTHER THAN THOSE SUPPLIED TOYOU BY
CABLETRON INWRITING, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT
LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FORA
PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THEACCOMPANYING
WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.
2. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL CABLETRON OR
ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT
LIMITATION, DAMAGES FOR LOSS OF BUSINESS, PROFITS, BUSINESS INTERRUPTION,
LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR
RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE
THIS CABLETRON PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, OR ON THE DURATION OR LIMITATION OF IMPLIED WARRANTIES, IN SOME
INSTANCES THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
UNITED STATES GOVERNMENT RESTRICTED RIGHTS
The enclosed product (a) was developed solely at private expense; (b) contains “restricted computer software”
submitted with restricted rights in accordance with Section 52227-19 (a) through (d) of the Commercial
Computer Software - Restricted Rights Clause and its successors, and (c) in all respects is proprietary data
belonging to Cabletron and/or its suppliers.
For Department of Defense units, the product is licensed with “Restricted Rights” as defined in the DoD
Supplement to the Federal Acquisition Regulations, Section 52.227-7013 (c) (1) (ii) and its successors, and
use, duplication, disclosure by the Government is subject to restrictions as set forth in subparagraph (c) (1) (ii)
of the Rights in Technical Data and Computer Software clause at 252.227-7013. Cabletron Systems, Inc., 35
Industrial Way, Rochester, New Hampshire 03867-0505.
DECLARATION OF CONFORMITY
Application of Council Directive(s): 89/336/EEC
73/23/EEC
Manufacturer’s Name: Cabletron Systems, Inc.
Manufacturer’s Address: 35 Industrial Way
PO Box 5005
Rochester, NH 03867
European Representative Name: Mr. J. Solari
European Representative Address: Cabletron Systems Limited
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England
Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950
Equipment Type/Environment: Networking Equipment, for use in a
Commercial or Light
Industrial Environment.
We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with
this notice conforms to the above directives.
Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari
___________________________________ ___________________________________
Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.
___________________________________ ___________________________________
Title Title
Rochester, NH, USA Newbury, Berkshire, England
___________________________________ ___________________________________
Location Location

– iii –
Contents
Welcome to the SmartSTACK 100 ELS100-16TX................................................................... 1
Getting Help .............................................................................................................................1
Setting Up and Powering Up the ELS100-16TX ......................................................................2
Attaching Power Cord and Connecting to a Power Source..................................................... 2
Checking the Power-up Diagnostics Sequence .......................................................................2

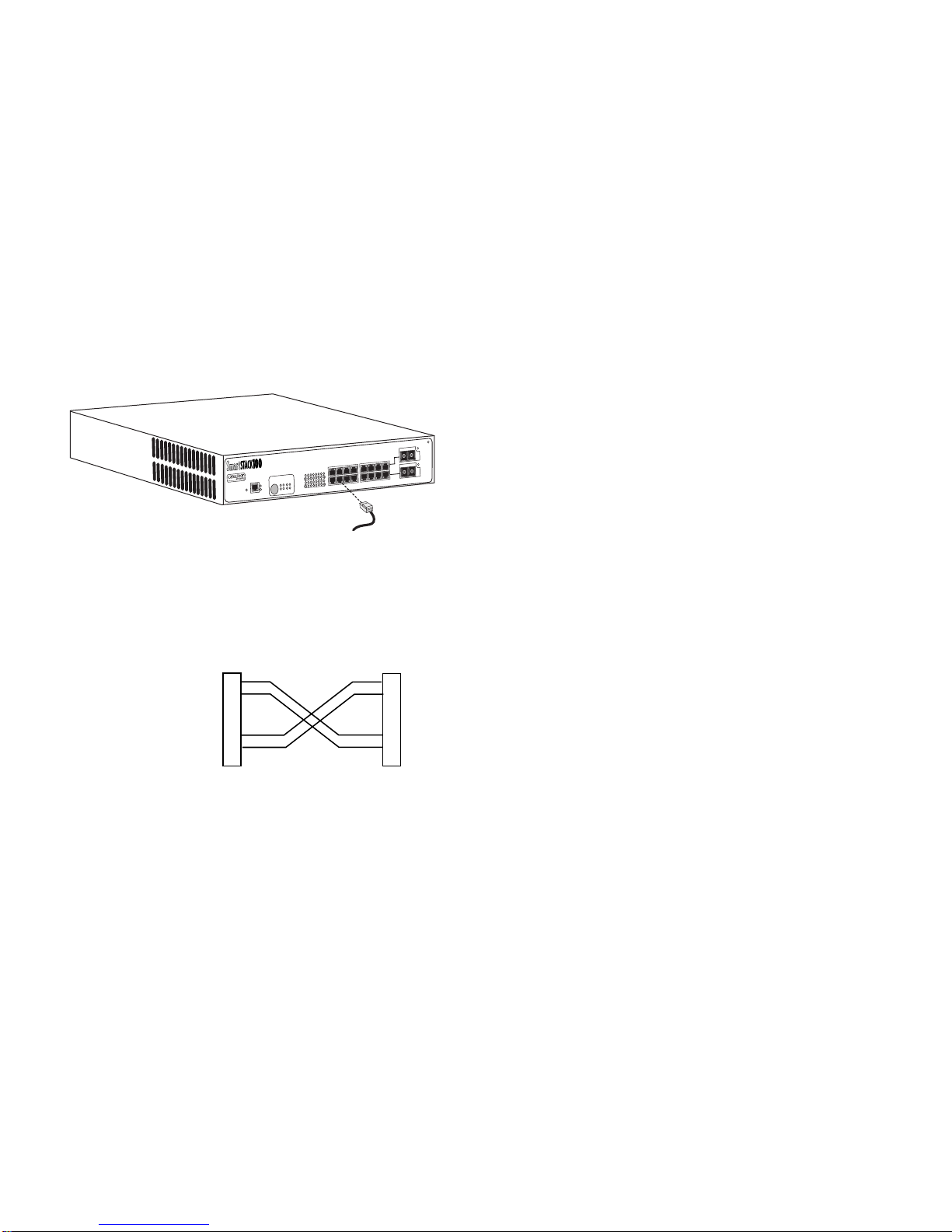

Connecting UTP Cables ..........................................................................................................4
Installing an Ethernet Port Interface Module (EPIM) ...............................................................5
Connecting a Multimode Segment to the EPIM-100FX ...........................................................6
Fiber Optic Network Connection ..............................................................................................6
Connecting the Local Console Manager to a Terminal ............................................................7
LCM Commands ......................................................................................................................8

– iv –

– 1 –
Welcome to the SmartSTACK 100
ELS100-16TX
This Getting Started Guide will tell you what you need to get your
SmartSTACK100 ELS100-16TX up and running, out of the box.By
using the factory-set default configuration, you can quickly
integrate the ELS100-16TX into your network.This guide will
provide you with what you need to know to:
• set up and power up the SmartSTACK 100 ELS100-16TX
• connect devices to the SmartSTACK 100 ELS100-16TX
• connect the SmartSTACK 100 ELS100-16TX to the network
• connect the Local Console Manager to a terminal
• install a Ethernet Port Interface Module (EPIM)
• troubleshoot the SmartSTACK 100 ELS100-16TX
The SmartSTACK 100 ELS100-16TX is an intelligent Ethernet-to-
Ethernet desktop switch that lets you to link multiple Local Area
Networks (LANs) together.The SmartSTACK 100 ELS100-16TX
has sixteen 100 Mbps Ethernet ports, and two slots for optional
EPIMs (Ethernet Port Interface Module).
Getting Help
If you need additional support related to the SmartSTACK 100
ELS100-16TX, contact the Cabletron Systems Global Call Center:
By phone [phone]
By Internet mail suppor[email protected]
By FTP ctron.com (134.141.197.25)
Login
anonymous
Password your email address
BBS: [phone]
Modem setting: 8N1: 8 data bits, No parity, 1 stop bit
WWW: www.ctron.com
PWR
CPU
RESET COM
PORT STATUSMODE
TX ACT FDX MON
RX COL 100 USR
STATUS
ELS100-16TX EPIM100
EPIM100
10X 12X 14X 16X
9X 11X 13X 15X
2X 4X 6X 8x
1X 3X 5X 7X
LINK
STATUS
LINK
STATUS
2 4 6 8 10 12 14 16
13579111315

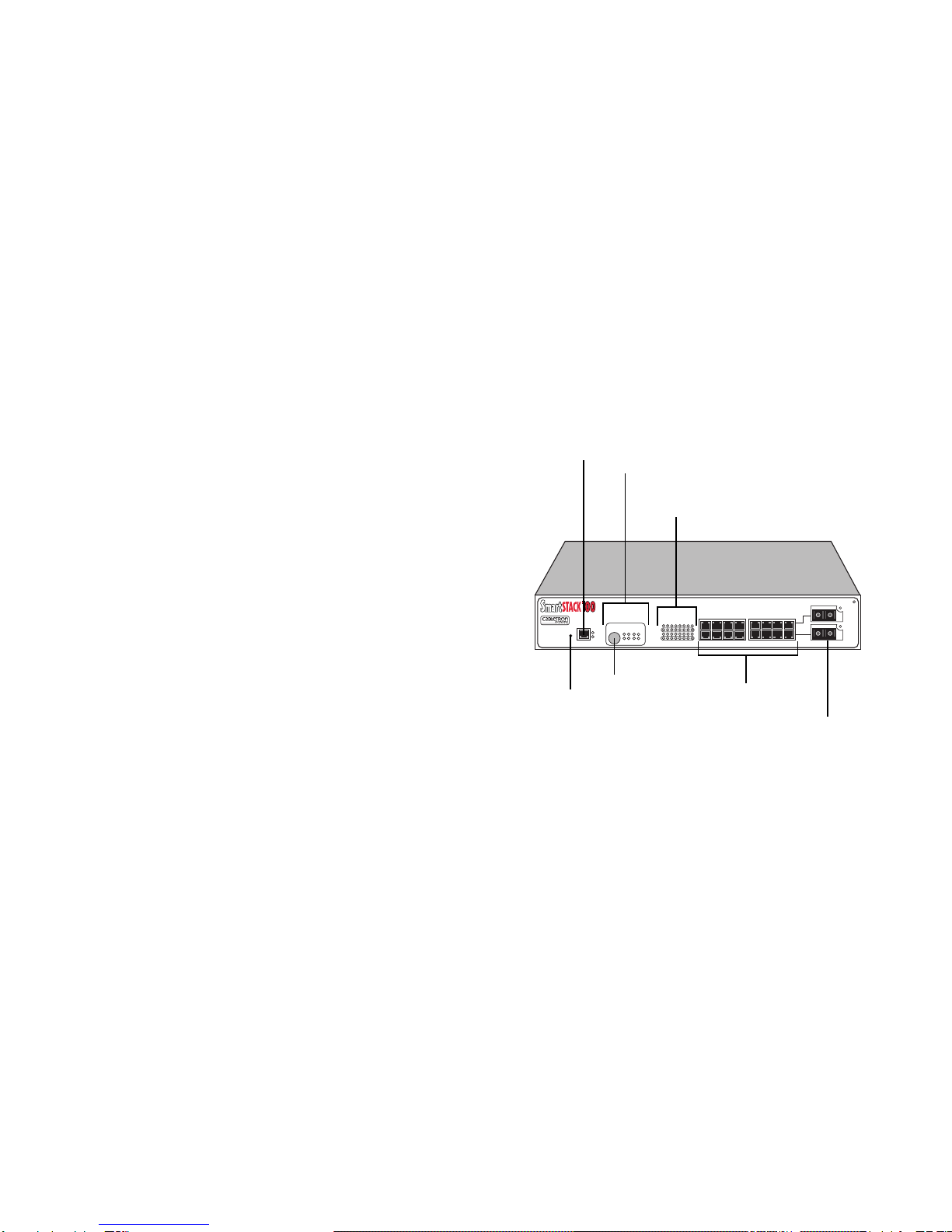

Com Port
Port Status LEDs
LEDs
Reset Switch
Status Button 100BASE-T Ports
EPIMs

– 2 –
Setting Up and Powering Up the
ELS100-16TX
Setting up and powering up your ELS100-16TX is a simple
process that requires you to:
• attach the power cord and connect to a power source
• check power-up diagnostics sequence

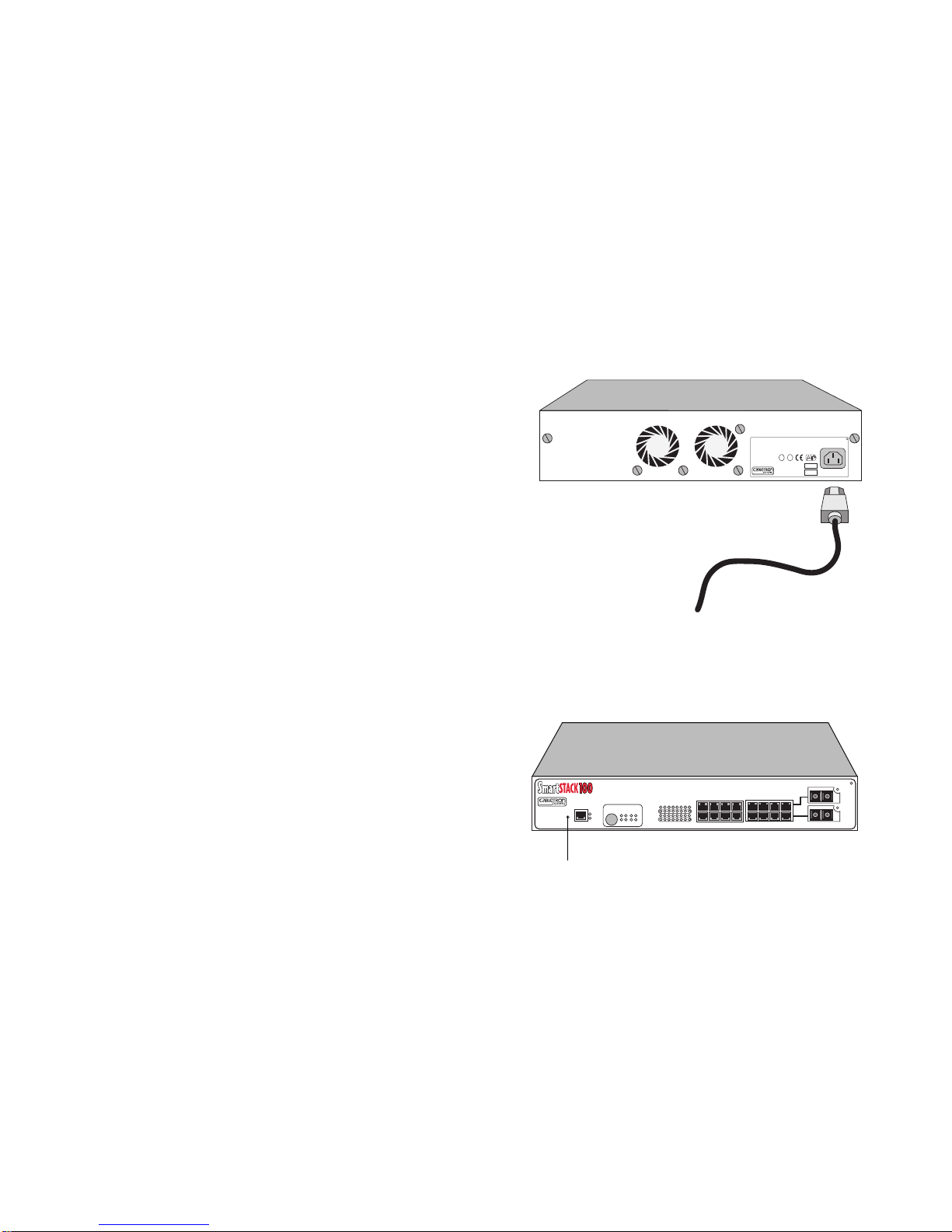

Attaching Power Cord and Connecting to a Power
Source
A power cord is provided with the ELS100-16TX. Attach the power
cord to the power cord connector on the back of the
ELS100-16TX.
The ELS100-16TX is not equipped with an on/off switch.To power-
up the unit, connect the power cord to a 120VAC or 240 VAC
single-phase stress grounded outlet.
Checking the Power-up Diagnostics Sequence
Before connecting any devices to the ELS100-16TX, power on the
unit and observe the power-up diagnostics sequence to check for
proper operation.
To observe the power-up diagnostics sequence completely, you
may want to repeat it.To restart the power-up sequence press the
reset switch on the front panel.
When you power up the ELS100-16TX, the following occurs:
1. The Power (Pwr) LED is on.
2. The CPU LED starts flashing.Two of the Port Status Mode
LEDs are on.
THISDEVICE COMLPIES WITH PART 15 OF THE FCC RULES.
OPERATIONIS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTEFERENCE, AND
(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDINGINTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
ELS100-16
LISTED
16EO
ITEMULTIPORT
SWITCHUNIT
LINE:
100-125V~1.0A
200-240V~ 0.5A
50/60Hz
UL
®
UL
®
C
TUV Rheinland
gaprOfte
Sicherheit
SN
NET.
ADD.
PWR
CPU
RESET COM
PORT STATUSMODE
TX ACT FDX MON
RX COL 100 USR
STATUS
ELS100-16TX EPIM100
EPIM100
10X 12X 14X 16X
9X 11X 13X 15X
2X 4X 6X 8x
1X 3X 5X 7X
LINK
STATUS
LINK
STATUS
2 4 6 8 10 12 14 16
13579111315
Reset Switch

– 3 –
3. After several seconds, the CPU LED will stay on and only one
Port Status LED is lit.This indicates the power-up diagnostics
sequence is complete.
Note: If a critical component fails diagnostics, the CPU LED will
turn off and the ELS100-16TX will attempt to reboot. If the CPU
LED does not stay on, contact the Cabletron Systems Global Call
Center.
PWR
CPU
RESET COM
PORT STATUSMODE
TX ACT FDX MON
RX COL 100 USR
STATUS
ELS100-16TX EPIM100
EPIM100
10X 12X 14X 16X
9X 11X 13X 15X
2X 4X 6X 8x
1X 3X 5X 7X
LINK
STATUS
LINK
STATUS
2 4 6 8 10 12 14 16
13579111315
CPU
LED
Segment Status LEDs
Port Status LED
Port Link LED

– 4 –
Connecting UTP Cables
Before connecting a segment to the ELS100-16TX, check each
end of the segment to verify wire crossover.
Connect a twisted pair segment to the ELS100-16TX as follows:
1. Ensure that the device at the other end of the segment is
connected to the segment and is powered ON.
2. Connect the twisted pair segment to the ELS100-16TX by
inserting the RJ45 connector on the twisted pair segment into
the desired RJ45 port (refer to upper figure).
3. Verify that a Link exists by checking that the port LINK LED is
on (solid green).If the LINK LED is off, perform the following
steps until it is on:
a. Check that the 100BASE-T device at the other end of the
twisted pair segment is ON and connected to the segment.
b. Verify that the RJ45 connectors on the twisted pair segment
have the proper pinouts (refer to lower figure) and check the
cable for continuity.
c. Check that the twisted pair connection meets the dB loss
and cable specifications.
If a link is not established, contact the Cabletron Systems
Global Call Center.Refer to the Getting Help section at the
beginning of this guide for details.
4. Repeat step 2, above, until all connections have been made.
PWR
CPU
RESET
COM
PORT STATUSMODE
TX ACT FDX MON
RX COL 100 USR
STATUS
EPIM100
EPIM100
10X 12X 14X 16X
9X 11X 13X 15X
2X 4X 6X 8x
1X 3X 5X 7X
LINK
STATUS
LINK
STATUS
2 4 6 8 10 12 14 16
13579111315
ELS100-16TX
1
2
3
6
1
2
3
6
TX+
TX-
RX+
RX-
TX+
TX-
RX+
RX-
TO
ELS100-16TX RJ-45 TO 100Base-T Device Port
Note: RX+/RX- and
TX+/TX-mustshare a
common color pair.
Caution: To establish a link, you must have an odd number of
crossovers (preferably one) between 10BASE-T devices of the
same type (i.e., from repeater to repeater or transceiver to
transceiver).

– 5 –
Installing an Ethernet Port Interface
Module (EPIM)
The ELS100-16TX provides two slots for a Cabletron EPIM-100FX
(Ethernet Port Interface Module).The ELS100-16TX is shipped
without EPIMs.To install an EPIM, follow the procedure below:
1. Remove the coverplate or the existing EPIM (whichever
applies).
2. Slide the new EPIM into place, making sure that the
connectors on the rear of the EPIM align correctly and firmly
with the connector inside the ELS100-16TX. Refer to figure.
3. Install the mounting screw.
Caution: When removing an EPIM, pull the module straight out to
prevent damage to the connector.
Only qualified personnel should perform installation
procedures.
Note: The EPIM is hot swappable. Also, the RJ45 port
corresponding to the EPIM port is disabled once an EPIM is
installed.
10X 12X 14X 16X
9X 11X 13X 15X
EPIM100
EPIM100
EPIM-100FX
LNK
EPIM-100FX
LNK

– 6 –
Connecting a Multimode Segment to the
EPIM-100FX
The EPIM-100FX has an SC style network port. Cabletron
Systems supplies fiber optic cable that uses SC style connectors
that are keyed to ensure proper crossing over of the transmit and
receive fibers.
Fiber Optic Network Connection
1. Remove the protective plastic covers from the fiber optic ports
on the applicable port on the module and from the ends of the
connectors.
2. Insert one end of the SC connector into the EPIM-100FX
installed in the ELS100-16TX.
3. At the other end of the fiber optic cable, attach the SC
connector to the other device.
4. Verify that a Link exists by checking that the port LINK LED is
on solid green.If the LINK LED is off, perform the following
steps until it is on:
a. Check that the cable is properly connected at both ends.
b. Check that the power is turned on for the device at the other
end of the Link.
c. Verify proper crossing over of fiber strands between the
applicable port on the ELS100-16TX and the fiber optic
device at the other end of the fiber optic link segment.
d. Verify that the fiber connection meets the dB loss
specifications.
If a Link has not been established, contact the Cabletron Systems
Global Call Center. Refer to the Getting Help section in this guide
for details.
Caution: An odd number of crossovers (preferably one) must be
maintained between devices so that the transmit port of one
device is connected to the receive port of the other device and vice
versa.
If the fiber optic cable being used has SC style connectors that do
not resemble MIC style connectors, or has SC connectors on one
end and a different type on the other, such as ST connectors,
ensure that the proper crossing over occurs.
Caution: Do not touch the ends of the fiber optic strands, and
do not let the ends come in contact with dust, dirt, or other
contaminants.Contamination of the ends causes errors in
data transmissions.If the ends become contaminated, clean
them with alcohol using a soft, clean, lint-free cloth.
10X 12X 14X 16X
9X 11X 13X 15X
EPIM100
EPIM100
EPIM-100FX
LNK
EPIM-100FX
LNK

– 7 –
Connecting the Local Console Manager
to aTerminal
The Local Console Manager (LCM) is a command-line interface
for configuring, monitoring, and managing the ELS100-16TX
through the out-of-band RS232C connection on the front panel.
To connect LCM:
1. Connect your VT series terminal or terminal emulator to the
out-of-band management RS232C port on the front panel of
the ELS100-16TX using the twisted pair cable with RJ45
connectors shipped with the unit. (Only three of the nine wires
are necessary: Receive Data, Transmit Data and ground.)
2. Set the terminal to 9600 baud, 8N1: 8 data bits, no parity, 1
stop bit, and no flow control.
3. Press the Enter key several times.If the ELS100-16TX is
operational, LCM responds with the
ELS100-16TX >
prompt.
LCM is now ready to use. Refer to the SmartStack 100
ELS100-16TX User’s Guide for an overview of LCM and the
command syntax. LCM commands for the ELS100-16TX are
provided in the User’s Guide in chapters dealing with those topics.
A complete list of LCM commands appears on the following pages.
Pin Signal Name
1 Transmit Data (XMT)
2 Data Carrier Detect (DCD)
3 Data Set Ready (DSR)
4 Receive Data (RCV)
5 Signal Ground (GND)
6 Data Terminal Ready (DTR)
7 Request to Send (RTS)
8 Clear to Send (CTS)
PWR
CPU
RESET
COM
PORTSTATUS MODE
TX ACT FDX MON
RX COL 100 USR
STATUS
ELS100-16TX EPIM100
EPIM100
10X 12X 14X 16X
9X 11X 13X 15X
2X 4X 6X 8x
1X 3X 5X 7X
LINK
STATUS
LINK
STATUS
2 4 6 8 10 12 14 16
13579111315
PWR
CPU
RESET
COM
PORTSTATUS MODE
TX ACT FDX MON
RX COL 100 USR
STATUS
ELS100-16TX EPIM100
EPIM100
10X 12X 14X 16X
9X 11X 13X 15X
2X 4X 6X 8x
1X 3X 5X 7X
LINK
STATUS
LINK
STATUS
2 4 6 8 10 12 14 16
13579111315
VT Terminal Connection
PC Terminal Emulator Connection

– 8 –
LCM Commands
addresses display
Displays learned addresses.
Options:
any
ADDRESS
MASK
Example: address display any
arp display
Displays the ARP table.
Example: arp display
baud
Displays the current baud rate of your LCM console connection,
and allows you to change the baud rate.
Options:
200
2400
4800
9600
19200
Example: baud 9600
bridge
Displays the bridging status for all ports, and allows you to set
bridging options for a single port or a range of ports.
Options:
off
on
no
BPDU
Example: bridge 2-6 on
clearstats
Allows you to clear statistics on all ports.
Example: clearstats
community
Allows you to assign a new community name or change an existing one.
Example: community
disable
Allows you to disable a port or range of ports.
Example: disable 7-9
duplex
Allows you to display or set the duplex mode for a port or range of ports.
Options:
auto
half
full
Example: duplex 7-9 full
enable
Allows you to enable a port or range of ports.
Option:
no
RIP
Example: enable 7
erase
Allows you to erase all configuration information on the next system reset.You
are prompted to confirm this action.
Example: erase
exit (logout)
Allows you to log out of your current LCM session.
Example: exit
Enter
Enter
Enter
Enter
Enter
Enter
Enter
Enter
Enter
Enter
Enter

– 9 –
help
Displays the available LCM commands.You can also type a
question mark ( ? ) to display the available LCM commands.
Example: help
ident
Displays the ELS100-16TX serial number, the EPIM up-link module
number (if installed), power-up test codes, and diagnostic information.
Example: ident
ipaddr
Displays the IP addresses, address masks, and MAC addresses for all
monitored ports.This command also allows you to assign an IP address
to a port on the ELS100-16TX.
Example: ipaddr 6 192.138.217.40
mirror
Allows you to display a mirrored port or turn mirroring on or off for a port.The
command syntax requires that you enter two port numbers.The first number
indicates the port to mirror and the second number indicates the mirrored to
port.
Options:
Rx
Tx
both (half duplex mode only)
off
Example: mirror 2 6Tx
ping
Allows you to send ICMP ECHO_REQUEST packets
Options:
-rvsx
HOST
DATASIZE
COUNT
Example: ping -r
reboot
Allows you to enter the number of seconds the ELS100-16TX waits before
rebooting.
Options:
SECONDS
off
Example: reboot 60
route display
Displays routing table information.
Options:
IPADDR
Example: route display IPADDR
speed
Allows you to display or set the speed for the Fast Ethernet ports.
Options:
auto
10 (mbps)
100 (mbps)
Example: speed 16 100
status
Displays the status of the ELS100-16TX, including the currently running
software version, the number of learned addresses, system up time, unit
temperature, CPU utilization, and the status of each port or range of ports.
Options:
port number
port number range
Example: status
sttimer
Displays the current SpanningTree Address Table aging time, and
allows you to enter a new aging time.
Example: sttimer 300
Enter
Enter
Enter
Enter
Enter
Enter
Enter
Enter
Enter
Enter

– 10 –
traplog
Displays the traps messages captured by the ELS100-16TX.
Example: traplog
trunk
Displays the current trunking status for all monitored ports, and
allows you to set trunking for a specific port or range of ports.
Options:
on
off
Example: trunk 7-10, 15 on
workgroups
Allows you to display or set workgroups.
Options:
NAME
delete
INFO
Example: workgroup a 6-9
Enter
Enter
Enter
