Cabrinha Switchblade 2 User manual





ユーザー・マニュアル
SWITCHBLADE 2
CK07SwitchbladeUserManual.indd 1 8/10/06 3:40:08 AM

CK07SwitchbladeUserManual.indd 2 8/10/06 3:40:10 AM

DO NOT USE THIS PRODUCT UNLESS YOU HAVE READ AND UNDERSTAND THESE WARNINGS,
CAUTIONS, AND INSTRUCTIONS WHICH ARE FOR YOUR SECURITY AND PROTECTION. THIS
INFORMATION MAY BE SUBJECT TO CHANGE AT ANY TIME. FOR CURRENT UPDATES, PLEASE
VISIT OUR WEBSITE AT: WWW.CABRINHAKITES.COM
IF YOU ARE BELOW THE AGE OF 18, YOU SHOULD HAVE YOUR PARENT OR GUARDIAN READ
THESE WARNINGS, CAUTIONS AND INSTRUCTIONS AND SHOULD NOT USE THIS PRODUCT
UNLESS YOU ARE UNDER THE PROPER GUIDANCE AND SUPERVISION OF SUCH A PERSON.
The use of this product exposes the user to many unavoidable and unexpected risks, dangers
and hazards. The suppliers of this product are not responsible for any damage to property or any
personal injury caused by any active negligence of the suppliers or by any use, misuse, abuse or
irresponsible use of this product by the user.
Kitesurfing is an extreme sport. Power kites and their lines and control equipment can be danger-
ous to flyers and to anyone in the vicinity of their use. Kitesurfing must be taken seriously and we
recommend that, at least in the early stages of your use, you seek the guidance of professional
instructors and experienced kiteboarders. Improper and/or unreasonable use of this kite may
result in death or serious injury to any part of your body and to others. Do not use your kite near
power lines, airports or streets, and keep your kite fly lines away from people and obstacles. Al-
ways fly in an open area and observe wind and weather conditions, particularly in circumstances
where you may encounter offshore, onshore winds or strong winds. Do not attempt to use your
kite on water until you are confident and comfortable with the use of a trainer kite on land. Spend
time to become familiar with the operation of your kite and remember that you are responsible
for its operation and for the security of those around you. As you learn the sport, work within
your own limitations and do not exceed them. If you intend to use the kite on water, always
use appropriate protective gears and flotation devices and do not attach yourself or tie yourself
permanently to the kite lines. The kite is not intended for use as a flying device nor indeed is it
intended as a means of flotation.
...continues to next page
CK07SwitchbladeUserManual.indd 3 8/10/06 3:40:11 AM

continued from previous page...
KITESURFING is an extremely diverse sport, with
many disciplines and ability levels. As with all
sports, there can be certain inherent risks. The fol-
lowing contains key security points to remember
when operating your Cabrinha kite.
• Kitesurfing is a HAZARDOUS activity and the use of Kitesurf-
ing equipment involves the risk of serious personal injury to
any part of the user’s body or death.
• Injuries are an INHERENT RISK of kitesurfing and the par-
ticipation in kitesurfing implies the user’s acceptance and
express assumption of those risks.
• Children should always be under adult supervision.
• It is strongly recommended that beginners take lessons.
• ALWAYS inspect your equipment for signs of wear and tear
each time before use, particularly all lines, canopy, bladders,
screws and fittings.
• IF any products are found to show signs of wear & tear these
should be repaired or replaced immediately and before further
use. If in doubt about any signs of wear & tear, please contact
your local vendor. Contact details are available from www.
cabrinhakites.com
• NEVER place yourself in a situation where breakage of any
one of the various kitesurfing components would pose a risk
to yourself or others, or make it impossible to return to the
shore securely & unassisted.
• Make sure you use properly designed and manufactured
parts from reputable suppliers.
• Take time to study the conditions including sea state, tides,
currents, weather conditions and forecasts before you decide
to go sailing. Beware of sailing in offshore or onshore winds.
• Familiarize yourself with any new location before venturing
onto the water. Ask the locals to tell you about any hazards.
• Watch out for other beach users, especially swimmers and
small children. Make sure you keep your board and rig under
control at all times and that they don’t get blown about on the
beach or in the water.
• Always use appropriate protective gear and flotation devices.
Wear the correct protective clothing for the conditions such as
a wetsuit or a UV top. It is recommended to wear a helmet.
• Make sure someone knows where you’ve gone & when you
are expected back – always sail with a buddy.
• Be aware of the conditions as they change. Always return to
the beach if there is a significant change in the conditions.
i.e. wind dropping or wind & waves increasing.
• As you learn the sport, work within your own limitations and
do not exceed them.
• Do not alter, modify or change this product.
• This product is designed and manufactured only for kitesurf-
ing on water or snow.
• Keep these warnings, cautions and instructions for future
reference.
SNOW USE
GENERAL GUIDELINES
1) Always stay in control and be able to stop or avoid other
people or objects
2) SNOWKITE: People downwind or down slope have right of
way. It is your responsibility to avoid them
3) SNOWBOARD: People down slope have right of way. It is
your responsibility to avoid them
4) You must not stop where you obstruct others or are not visible.
5) Whenever starting or merging with others look upwind/up hill
and yield to others.
6) Always use devices to help prevent runaway equipment.
7) Observe any and all posted signs and warnings
8) Keep out of closed areas
9) SNOWBOARD: Prior to using any lift you must have the
knowledge and ability to load, ride and unload safely.
10) Do not snowboard/snowkite when tired or under the influ-
ence of alcohol or drugs.
11) Snow terrain and snowboarding/snowkiting conditions vary
constantly--watch out for and avoid any man made struc-
tures, trees, rocks, debris, variations in terrain or slopes,
avalanche areas, crevasse, cliffs, power lines, water hazards,
changes in snow surfaces or texture due to altitude and sun
exposure, wind and weather changes, and any other condi-
tions which could affect your ability to properly control your
snowboard/snowkite.
RECOMMENDED
KITESURFING PRACTICE:
CK07SwitchbladeUserManual.indd 4 8/10/06 3:40:11 AM

USER MANUAL
INDEX
2 Introduction
3 Important Information
4 Wind, Water, & Weather Conditions / Wind Range Chart
5 Know Your Ability Level / Kiteboarding Location
6 Important Information
7 Beach Etiquette
KITE OVERVIEW & CONTROL SYSTEM

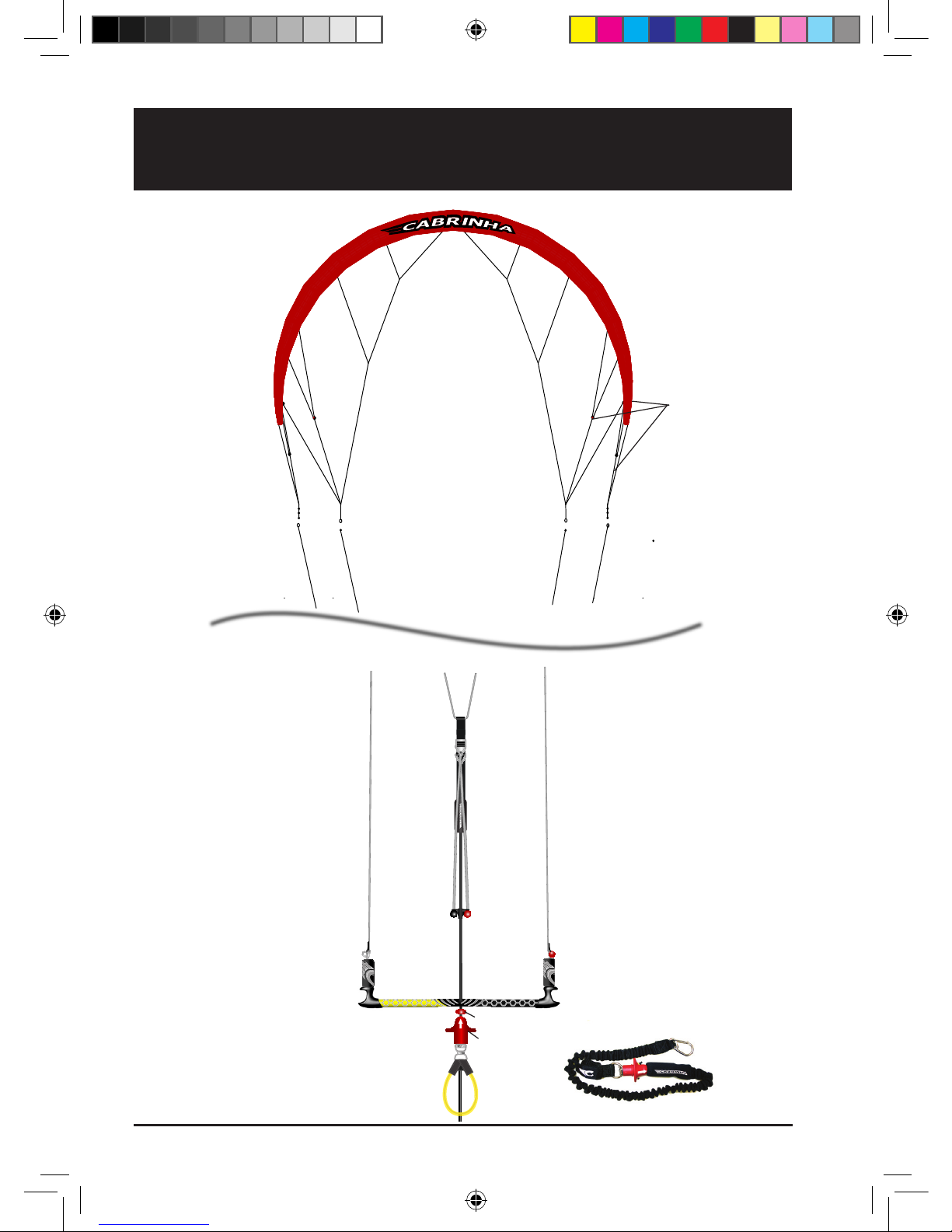

8 Switchblade 2 Overview
SETUP

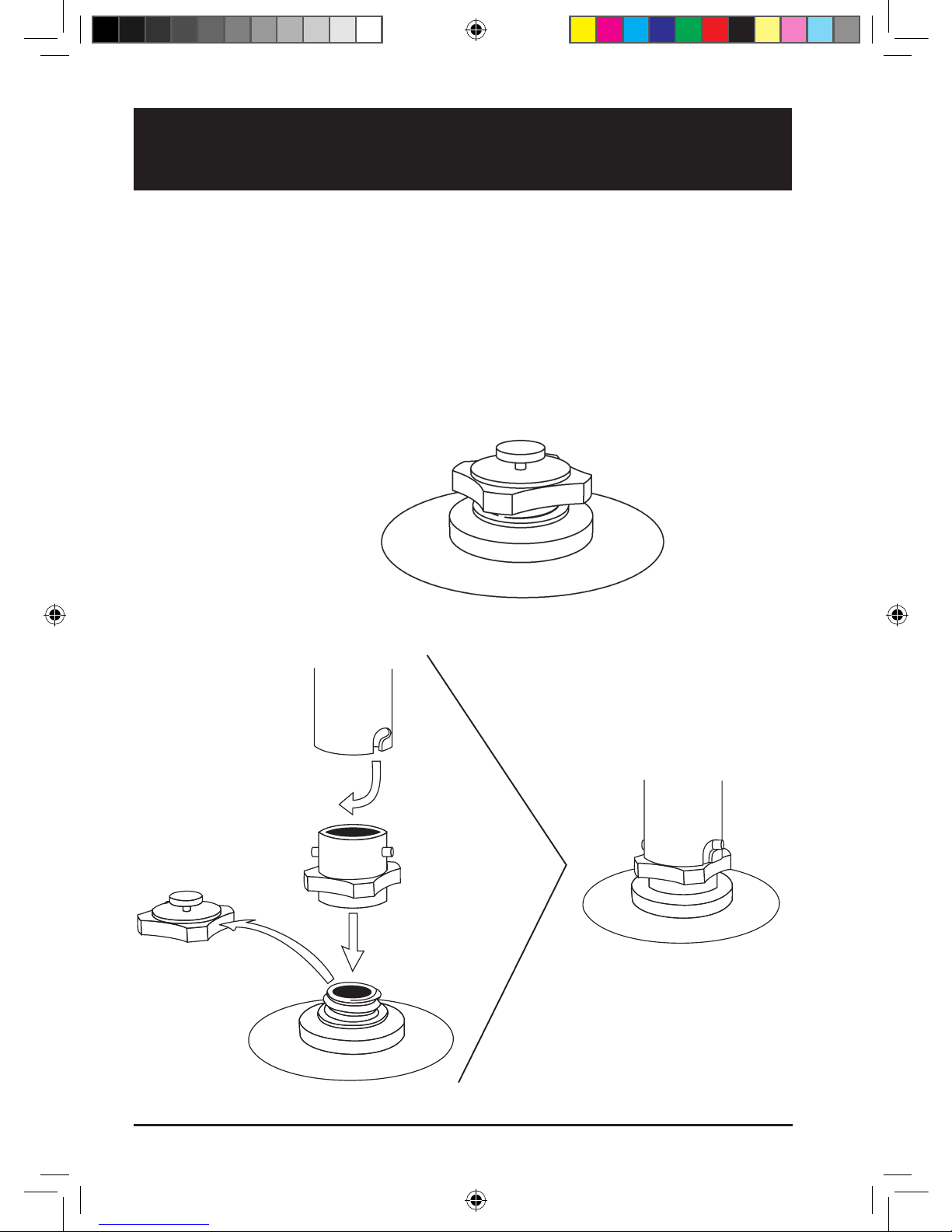

10 Sprint Inflation System
11 Inflating the Kite
12 Tips for Securing Your Kite
Deflating the Kite
16 Attaching Control Lines
HOW TO:

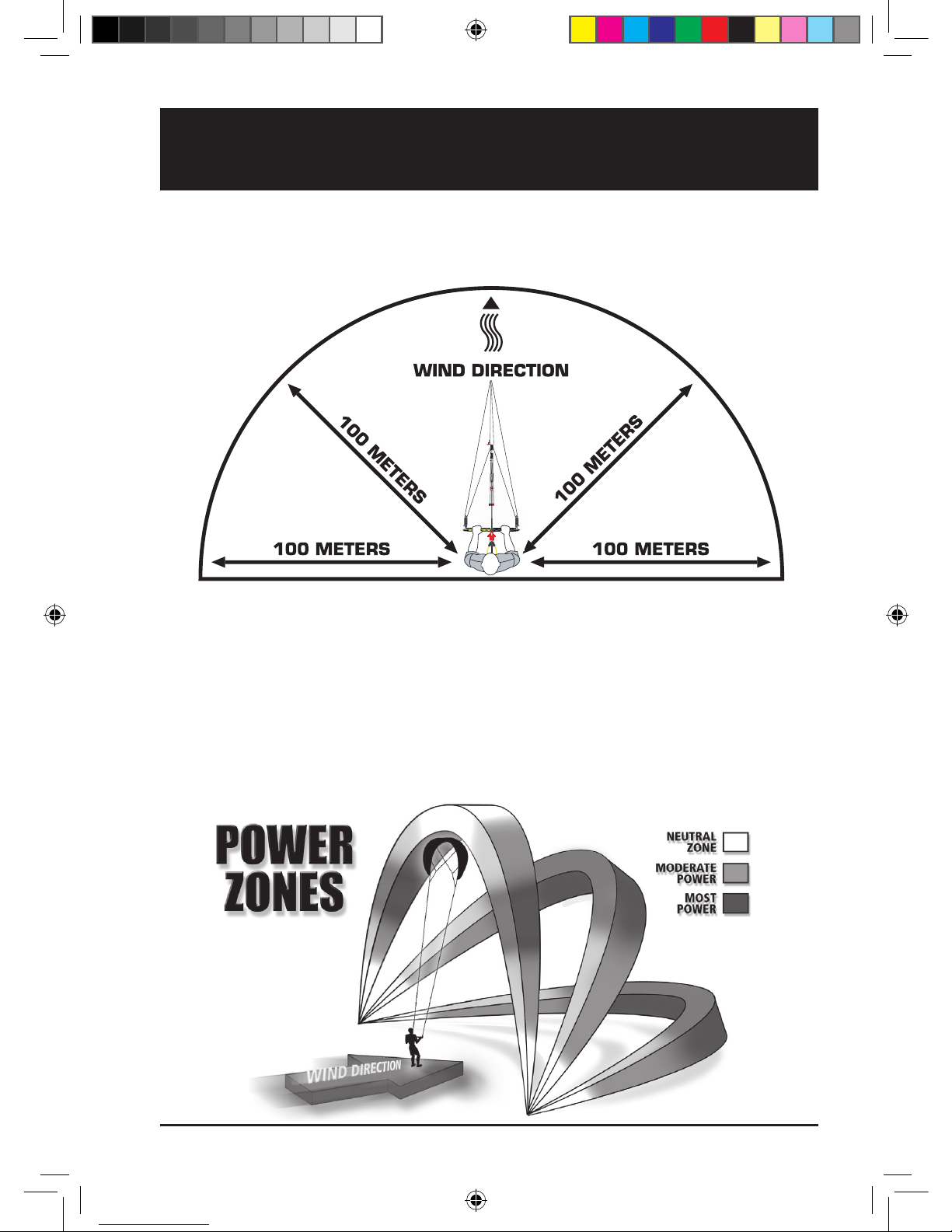

17 Area of Operation / Kite Positions, Zones & Power
19 Steering
20 Planning Your Launch
21 Launching & Landing with a Partner
23 Relaunching
24 Tuning The Kite
25 Repairs - Tears / Struts Bladders
27 Repairs - Leading Edge Bladders
29 Glossary
1
SWITCHBLADE 2
CK07SwitchbladeUserManual.indd 1 8/10/06 3:40:12 AM

2
THANK YOU for purchasing a Cabrinha kite and welcome to the sport of kiteboarding.
As you may know, the excitement of Kiteboarding is attracting people of all ages from all corners of the globe. It’s one of the most
dynamic and fastest growing sports in the world.
CAUTION: It can also be overwhelming if not approached in an educated man-
ner. That’s why we have supplied this extensive user’s manual. It will help to educate
you about your new kite and about the ways in which to use it. It contains information
regarding the setup, care and maintenance of your Switchblade kite. For information
about operation of the kite including how to power up and de-power your kite you must
refer to the manual supplied with your Cabrinha control system. Please note that only a
Switchblade compatible control system will provide all of the security and performance
functions associated with this bow kite. Consult www.cabrinhakites.com for a list of
compatible control systems for use with this kite.
Please read this user’s manual carefully and entirely before using this kite. This manual is not intended to replace proper kiteboard-
ing instruction, but rather to supplement it. Do not attempt to kiteboard without appropriate instruction. It will make this sport more
enjoyable, not only for yourself, but for those around you.
INTRODUCTION
CK07SwitchbladeUserManual.indd 2 8/10/06 3:40:12 AM

3
IMPORTANT INFORMATION
KITEBOARDING is an extremely diverse sport, with many disciplines and ability levels. As with all sports, there are certain inherent
risks. The following contains key points to remember when operating your Cabrinha kite.
• Be familiar with the set up and use of the supplied security systems: OVERRIDE and the Harness Loop Quick Release
systems.
• Make sure your control system is rigged and used according to the supplied instructions.
• Make sure your kite is compatible with the control system.
• Always use your Cabrinha kite with a security system.
• NEVER permanently attach yourself to this kite, the control bar, or lines.
• NEVER use this kite as a flying device.
• NEVER touch the kite lines while they are under tension; do not catch the kite using these lines.
• When inflated but not in use, secure your kite with sand or with something heavy and non-abrasive; the more weight the
better (see “Kite Care” for more information). An inflatable power kite will still fly, even without a rider, so be mindful of
those around you and secure your kite. Your kite may cause serious injury or death if it launches unexpectedly.
• Do not lend your gear to someone who has not been fully instructed on the use of inflatable kites. Other users should also
read this user’s manual and be proficient in all its points.
• Check your gear before use. Insure that your flying lines, security systems, kite, board, etc. are all rigged properly and are
in working order.
PROTECTIVE GEAR
We strongly recommend the use of the following protective gear:
• Helmet
• Life Jacket, Impact Vest, or Flotation Vest
• Neoprene Wet Suit
• Gloves
• Foot Protection
• Eye Protection
• Knife
• Sunscreen
IMPORTANT INFORMATION
CK07SwitchbladeUserManual.indd 3 8/10/06 3:40:13 AM

4










 




















 











* How to read: Gray = best suited for. Light Gray = usable. White = not recommended.
WIND, WATER, AND WEATHER CONDITIONS
• Do not underestimate the power of the wind.
• Be aware of unpredictable and changing weather conditions.
• Avoid “offshore” or “onshore” wind conditions.
• Avoid strong, gusty wind.
• Be careful of wave conditions, especially when learning.
• Be educated about tides and rip currents.
• Be mindful of your ability level. Do not kiteboard if conditions are beyond your ability level.
• Be educated about air and water temperatures and wear appropriate protection against the elements.
• Do not use this product in thunderstorms.
• Consult an anemometer to determine wind speeds if necessary.
• Do not use an oversized kite. Consult your Wind Range Chart for the correct recommended size. Use your common
sense. If in doubt about what kite size to use, choose smaller rather than bigger.
• Make certain that you are physically capable of operating the security Quick Release(QR) and Override™ devices provided
with this kite. This kite and control system has been designed around a typical rider weight of 75kg.
Riders with a weight greater than 75kg may need to use more force to operate the QR than lighter riders. Increases in
wind strength may also result in greater force being required to operate the QR. Be certain to seek the advice of a profes-
sional such as your Authorized Cabrinha Dealer about the performance of the security systems in relation to body weight.
IMPORTANT INFORMATION
WIND, WATER, & WEATHER CONDITIONS / WIND RANGE CHART

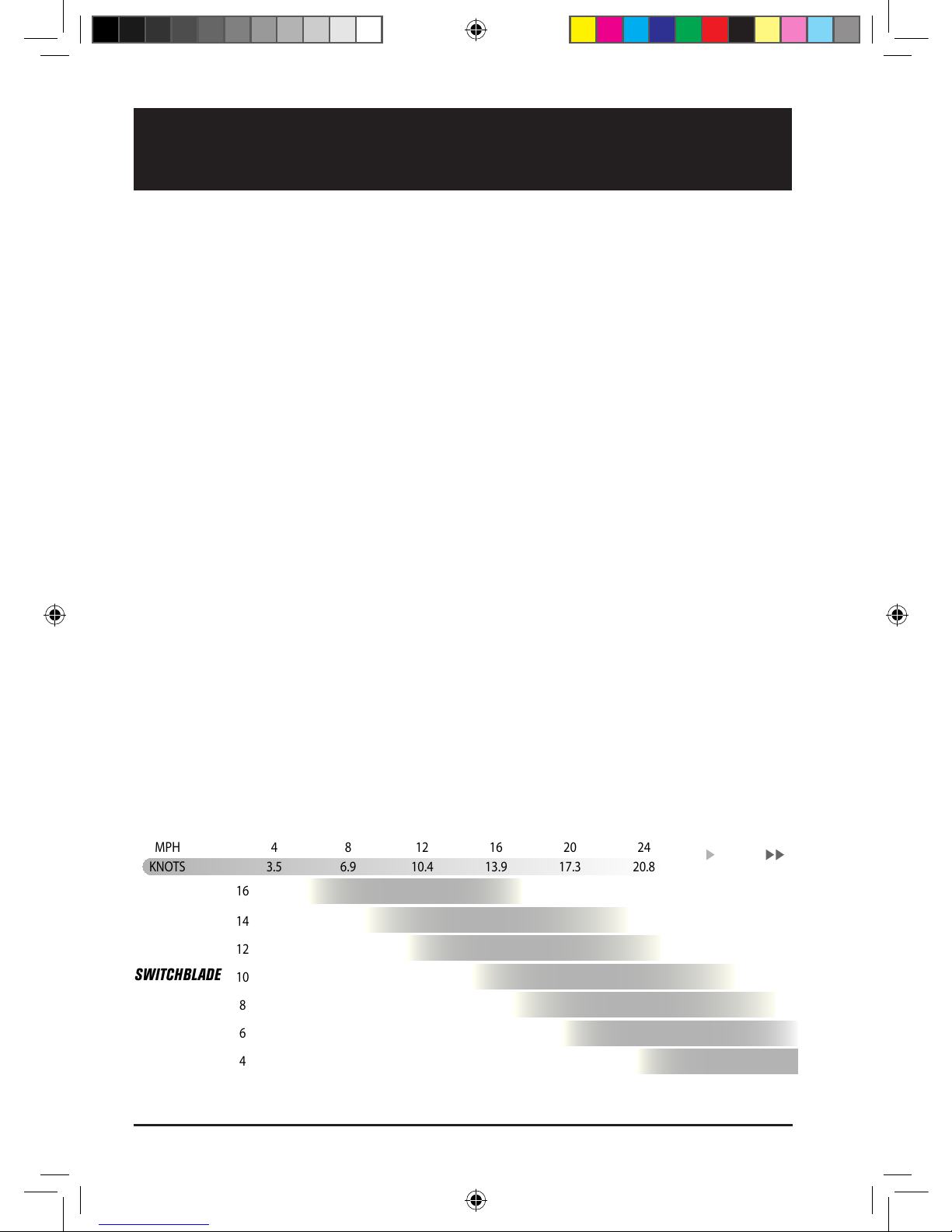

WIND RANGE CHART
This wind range chart is only to be used as a point of reference. It is based upon a rider who is approximately 170 lbs. (75 kg).
Actual use may vary based on your body weight, ability level, water conditions, board size, and riding style. When choosing a kite
size, please use your personal experience, common sense, and always check what other riders are using on the water for a size
reference. Lighter riders should use a smaller kite and heavier riders may need a size larger. Be certain to seek the advice of a
professional such as an instructor or Authorized Cabrinha Dealer before making your decision.
CK07SwitchbladeUserManual.indd 4 8/10/06 3:40:14 AM

5
KNOW YOUR ABILITY LEVEL
• Do not attempt kiteboarding without appropriate instruction.
• Do not kite alone.
• Launch, land, and ride together with a partner or have some-
one on shore who can keep an eye on you.
• Make sure you are in good physical condition before using
this product.
• Practice flying a small, traction kite or a “trainer kite” before
flying this kite.
• The more time spent on the “trainer kite”, the faster you will
learn.
• Make sure you are a proficient swimmer before using this
product in or near the water.
• Make sure the wind and water conditions are within your
ability level and that you have made the correct equipment
choices.
• Never kiteboard further from shore than you are able to swim
back.
• Always save a reserve of energy; end your kiteboarding ses-
sion before you are exhausted.
• Make sure you’ve done your homework and that you know
the security precautions of all aspects of the sport: rigging,
Launching, landing, flying, riding, kiting among other water
users, self rescuing, etc.
• Understand your security systems before ever launching your
kite.
• Understand the technique of self-rescue before using this
product in or near the water.
• Never let someone who is not familiar with inflatable kites
launch, catch, or use your kite. You will endanger them, as
well as yourself and those around you.
• You are responsible for the proper operation of your kite.
KITEBOARDING LOCATION
• Observe local laws and regulations regarding this product
and the usage area.
• Talk to the local riders about the weather conditions and
beach rules.
• Check your area thoroughly before launching your kite.
• Make sure you have considerable space in which to launch,
land, and use this product.
• You should have at least 100 meters of space on both
sides and downwind of you. Be especially aware of your
downwind area.
• Be mindful and aware of the wind direction in relation to
your launch area.
• Avoid areas with rocks and/or shallow or exposed reefs.
• Be mindful of tide changes. As water levels change, you
may be exposed to new obstructions.
• Avoid launching, landing or using this product near power
lines, telephone poles, trees, people, pets, buildings, auto-
mobiles, streets, sharp objects and airports.
• Avoid crowded beaches and waterways.
• Make sure your lines do not cross a walkway or passage.
• Do not let others walk between you and your kite.
• Be careful and mindful of other water users, including
windsurfers, boaters, jet skiers, swimmers, floating objects,
etc.
• Before launching, make sure you have scouted a backup
landing area, in case you do not make it back to your
launch spot.
IMPORTANT INFORMATION
KNOW YOUR ABILITY LEVEL / KITEBOARDING LOCATION
CK07SwitchbladeUserManual.indd 5 8/10/06 3:40:14 AM

6
IMPORTANT INFORMATION
KITE CARE
Due to the often extreme nature of kiteboarding, a thorough approach should be taken when caring for your kite and all its as-
sociated rigging, as well as your protective gear.
PREPARING FOR YOUR SESSION
• Thoroughly check your protective equipment (helmet, etc.) to make sure it is in working order and in good condition.
• A frequent inspection of the kite and the control system should be made in order to identify punctures, tears, or abrasions
in the canopy, struts, or security systems. It is also necessary to check the fly lines for wear and for unwanted knots, which
may reduce the strength of the fly lines.
• Do not rig on asphalt, cement, gravel, or other abrasive surfaces; doing so may damage your equipment. It is best to rig on
sand or grass. Damage done to your equipment by rigging on abrasive surfaces will not be covered under warranty.
• Do not rig among sharp objects that could tear the canopy or puncture the struts and leading edge bladder.
• Take care not to expose your flying lines to sharp objects that may wear through them.
• While setting up, secure your kite with sand or sand bags. Do not secure your kite with rocks or other sharp or abrasive
objects that may damage your kite.
BETWEEN SESSIONS
• Never leave an inflated kite unattended on the beach for a long period of time. Winds may shift or change and the kite may
become unsecured and fly off.
• Do not leave an inflated kite (secured or not), directly exposed to the wind for any length of time. This allows the trailing edge
to flutter excessively, which can damage the kite or tangle the bridles/control lines. If you must leave the kite exposed to the
wind on the beach, place sufficient amounts of sand between each strut and near the trailing edge to minimize or stop the
fluttering
• Do not leave your kite exposed to sunlight for long periods of time. Between sessions, choose a shaded area to secure your
kite. When not in use, stow away.
PROPER STORAGE
• It is recommended to wash your kite with fresh water and dry thoroughly before rolling and storing.
• Do not roll up kite when wet.
• Clear the kite of sand or other foreign objects before stowing.
• Once it is clean and dry, stow your kite in the supplied bag in a clean, dry, cool place.
• Do not place heavy objects on the bag containing the kite.
• Do not leave your kite inflated in your car or car rack box; exposing the kite to extreme temperatures while inflated may
damage the internal bladders.
• Wash your control system with fresh water from time to time by placing the entire control system (with lines wound onto the
bar) into a bucket of fresh water and let it sit for 5 minutes. Allow to dry thoroughly before storing in a dry location.
• Once it is clean and dry, stow your control bar in the supplied bag in a clean, dry, cool place.
CK07SwitchbladeUserManual.indd 6 8/10/06 3:40:14 AM

7
BEACH ETIQUETTE
BEACH ETIQUETTE
Here are some basic things to consider when sharing beaches and water accesses with other users:
SAFETY
• Follow the instructions outlined in this manual.
• Follow the instructions and rules and regulations posted at the areas you use.
• Check with local kiteboarding associations and shops prior to launching in a new area. There may be local rules and regula-
tions to follow which are not posted.
• Utilize common sense.
• Do not touch other people’s gear, unless instructed to do so by the owner. Picking up their bars, kites, etc. may disrupt a
setup ritual they have.
• Always secure your kite with sand or sand bags. An unmanned kite is dangerous.
• Never leave an inflated kite unattended. Winds may shift and cause the kite to become unsecured and fly off.
SETTING UP
• Set up only the gear that you plan on using immediately. Deflate and put away your kites when not in use.
• Set up in an area where you have plenty of space.
• Set up in a manner conducive to having multiple users in the area.
• Roll up your lines when not in use.
• Always keep other beach and water access users in mind when launching, landing, and kiteboarding.
• Yield to other beach users. Be courteous and cooperative.
• Always be ready to lend assistance to other kiteboarders. The favor may be returned sooner than you think.
CK07SwitchbladeUserManual.indd 7 8/10/06 3:40:14 AM

8
KITE OVERVIEW
Switchblade 2
*image not to scale
12 13
14
19/20/21
22
26
29
25
24
1
8
6
72
34
15
23
28 30
1213
14
16
17
18
27
5
CK07SwitchbladeUserManual.indd 8 8/10/06 3:40:29 AM

9
SWITCHBLADE 2 OVERVIEW - POWERDRIVE 121
1. 4-Line Kite Body
2. Bridle
3. Steering (Rear) Line Attachment Point
4. Depower (Front) Line Attachment Point
5. Pulleys (KS6SEBP)
6. Multi-Segmented Dacron Leading Edge
7. True Match 3-D Battens
8. Airlock High Volume Valve (KS6ALVA)
9. SPRINT Single point inflation valves
10. SPRINT Air distribution tubes (KS6STCOLA)
11. SPRINT Air clips (KS6PINCHC)
12. Front Flying Line (KS6RFL)
13. Rear Flying Lines (KS6RFL)
14. Line Connectors (FRONT/REAR) (KS6RECOST)
15. Front Leader Lines
16. Flagging Ring
17. Centerline Adjustment Strap (KS6OVUPKT)
18. Power/Depower Extensions
19. Override Unit
20. Override Sleeve (KS6ORT2)
21. Tension Ring (KS6ORTRING)
22. Depower Main Line (KS6SQCLDL)
23. Leash Interface Ball (KS6SPLIB)
24. Rear Leaders (KA6CCBL)
25. Bar Floats (KS6CBBF)
26. Line Managers
27. Multi-Function Bar Ends (KS6CBEF)
28. Harness Loop Quick Release
29. Harness Loop (KS6HL)
30. Bypass Leash (KS6BPLS)
9
11
10
KITE OVERVIEW
Switchblade 2
18
21
CK07SwitchbladeUserManual.indd 9 8/10/06 3:40:34 AM

10
SPRINT INFLATION SYSTEM
The Sprint inflation system is a simple to use feature to quickly inflate your kite to an even pressure. The Sprint system uses a
single inflation point to connect your high volume, two way Cabrinha pump. As you pump your kite with air, all struts and your
leading edge inflate quickly and simultaneously to the desired pressure. The supplied leash pump and threaded valve connection
keeps your kite under control even when pumping up directly in the wind.
Once the kite is pumped you can choose to clip off the air to the struts. This way if you damage a strut while in use, the rest of
the kite will maintain its pressure. At the end of the session you can choose to deflate your kite completely by disengaging the
strut clips.
You can also keep your struts inflated and put your kite away rolled up so that the next session will take just minutes to set up.
The Upper Section is
The Inflation Cap
The Lower Section is
the Release Valve
SETUP
INFLATING THE KITE
3
2
1
CK07SwitchbladeUserManual.indd 10 8/10/06 3:40:34 AM

11
INFLATION BASICS
See the section on Kite Care before inflating your kite.
• Unroll your kite with the struts facing up.
• Make sure your back is to the wind and that the leading edge of the kite is closest to your body. Secure the kite with sand
or sand bags to keep it from flapping in the wind.
• Use the supplied pump leash to connect the pump to the kite. This will free your hands to pump the kite.
• Open the inflation cap by turning it counter-clockwise.
• Make sure that the release valve is seated firmly by turning clockwise. Do not over tighten the release valve when the kite is
not inflated. Doing so may twist and damage the bladder. The valve base is held in place by a Velcro disc
• Attach the pump using the supplied Cabrinha adapter (or use a standard nozzle). To attach the adapter, remove the adapter
from retaining strap. Thread the adapter on to the upper section of the Airlock™. Attach the hose and pump the kite. Be
sure to secure the adapter before launching the kite.
• Open all of the Air Clips to allow air to flow from the LE into the struts.
• When inflating, hold the pump with both hands and provide even pressure to the handle. This will help maintain the life of
the Pump.
• Confirm that the corners of each strut under the leading edge are able to fully inflate. Lightly push air around in the bladders
until the corners are free and correctly lined up.
• It is common that the LE will inflate before the struts. If a strut is not inflating, make sure that the air clip is open and the
air tube is not pinched or damaged.
• When the leading edge is fully inflated, remove pump hose and screw the inflation cap back on. Lightly turn/tighten until
inflation cap is firmly secured.
• Tighten the lower release valve.
• Do not under-inflate or over-inflate the kite. Proper inflation will make it difficult but not impossible to bend the ends of the
kite in. If it is very easy to bend the wing tips in, the leading edge is under-inflated. Your kite should be firm enough that
while on its back, the wing tips should extend into the air and the kite should retain its bowed shape. If the leading edge is
under-inflated, it may cause poor performance and re-launching problems. NOTE: The pumps are rated to 1bar of pressure,
however due to wear and tear; pumps can fail at a much lower pressure.
• It is recommended that you isolate the air in your struts. After the kite is inflated, close the clips on the air distribution
tubes.
• Once the kite is properly inflated, turn the kite over and secure with sand. (see SETUP TIPS ON SECURING YOUR KITE)
SETUP
INFLATING THE KITE
Properly-Inflated Kite Under-Inflated Kite
CK07SwitchbladeUserManual.indd 11 8/10/06 3:40:37 AM

12
TIPS FOR SECURING YOUR KITE
• Never leave an inflated kite unattended on the beach for a long period of
time. Winds may shift or change and the kite may become unsecured and
fly off.
• Always secure your kite with sand or sand bags, using more weight than
you think you need. An unmanned kite is dangerous.
• Never secure your kite with rocks or sharp objects (including your board);
they will compromise the life of the kite. If you do not have a sandy beach
launch, consider sand bags.
• Do not leave an inflated kite (secured or not), directly exposed to the wind
for any length of time. This allows the trailing edge to flutter excessively,
which can damage the kite or tangle the control lines. If you must leave
the kite exposed to the wind on the beach, place sufficient amounts of
sand between each strut and near the trailing edge to minimize or stop
the fluttering. Also, if possible, leave the kite in a shaded area.
• Keep in mind other beach users and make sure your kite and lines will not
be a danger to others.
• Wind your lines onto the bar when you are not kiting. This will keep the
beach free of lines and will prevent other beach users from becoming
tangled in your equipment.
DEFLATING THE KITE
The kite may be deflated completely or partially for your convenience. To deflate
the Leading Edge, you must unscrew the release valve and not the inflation cap.
The release valve is the lower portion of the AIRLOCK. After deflating, clear the
valve of any sand or debris; then seal the valve before stowing kite to prevent
debris from getting inside internal bladder. To deflate the struts, unclip the air
clips at each strut. This will allow air to flow through the leading edge and out
of the airlock.
Important: CAUTION
When closing valve on deflated kite, hold bladder in place to prevent twisting
the bladder. Do not over tighten valve when kite is deflated. You may tighten it
further when kite is partially inflated again.
SETUP
SECURING YOUR KITE / DEFLATING THE LEADING EDGE
CK07SwitchbladeUserManual.indd 12 8/10/06 3:40:40 AM

13
FOR SETUP OF YOUR CABRINHA CONTROL SYSTEM, REFER
TO YOUR SUPPLIED CONTROL SYSTEM MANUAL.
IF YOU ARE UNSURE AS TO WHICH CONTROL SYSTEMS ARE
COMPATIBLE WITH THIS KITE, PLEASE REFER TO THE KITE/
CONTROL SYSTEM COMPATIBILITY CHART AND CONTROL
SYSTEM USER MANUALS AVAILABLE ONLINE AT
WWW.CABRINHAKITES.COM.
WHEN YOU ARE READY TO CONNECT YOUR CONTROL SYS-
TEM TO THIS KITE, RESUME READING ON PAGE 14.
SETUP
PAUSE!
CK07SwitchbladeUserManual.indd 13 8/10/06 3:40:41 AM

14
SETUP
ATTACHING CONTROL LINES
Once you have completed SET UP 1 & 2, you are ready to connect your control system to your inflated kite.
• With your lines laid out, carry the kite to the end of the flying lines farthest from your control bar. Make sure the leading edge
is facing into the wind.
• Secure the kite with sand or sand bags. Do not secure kite with anything sharp or abrasive.
• You will notice four connection bridles on your kite (two bridles on each wingtip. There are three knots on each rear bridle
and one larks head loop on each front bridle. Utilize the middle knot on the rear bridle; the other knots are there for tuning
purposes. (Fig. 1)
• Slip the knot on your yellow de-power (center) line into the larks head loop on the yellow bridle on the left wing tip of the
kite. Give the knot a tug to secure.
• Using a larks head knot, attach your yellow steering (outside) line to the yellow bridle on the left wing tip of the kite. Give the
knot a tug to secure.
• Slip the knot on your black de-power (center) line into the larks head loop on the black bridle on the right wing tip of the
kite. Give the knot a tug to secure.
• Using a larks head knot, attach your black steering (outside) line to the black bridle on the right wing tip of the kite. Give the
knot a tug to secure.
CAUTION: See “Kite Overview” as reference.
1
CONNECT AND LAUNCH - ATTACHING CONTROL LINES
2 3
123
CK07SwitchbladeUserManual.indd 14 8/10/06 3:40:44 AM

15
AREA OF OPERATION
This is the 100 meters of area to each side and downwind of the rider. Do not launch your kite if you do not have this distance
between yourself and other people, or obstructions.
KITE POSITIONS, ZONE & POWER
It is important to understand kiteboarding’s basic zones of power before you launch a kite. MANY OF THE ACCIDENTS THAT HAPPEN
IN KITEBOARDING happen on land, and many also happen when kiteboarders put their kites in what is called neutral position.
Unfortunately, people often think that the kite is stable in neutral position. However, wind fluctuates-it gusts and lulls-and in neutral
position, something known as lofting can occur when wind fluctuates. When a kite luffs (or receives less wind in its foil), the kite
will move slightly away from the pilot. When a gust hits, the kite receives a surge of power, and often that surge of power is too
much for a kiteboarder standing with the kite high overhead. As a result, the kiteboarder may be lofted (lifted) into the air. Lofting
can be serious, but you may reduce the chances of lofting by understanding the power zones, and by avoiding putting your kite
in the neutral position while on land.
KITEBOARDING BASICS
AREA OF OPERATION / KITE POSITIONS, ZONES & POWER
CK07SwitchbladeUserManual.indd 15 8/10/06 3:40:46 AM

16
Neutral Position - This is the position just above the pilot’s head in the sky. If the pilot levels out the bar, the kite will gravitate
to the neutral position. However, it is difficult and dangerous to keep the kite in this position. Although in this position the kite
may feel steady and may feel like it has the least amount of power or pull, it is also the position in which on land the pilot is
most susceptible to lofting. On the water, the neutral position can be utilized to rest while you reel in your board, but on land, we
strongly suggest you do not utilize the neutral position. After launching, it is best to make your way to the water without delay. Do
NOT linger on land with the kite in neutral position. It is VERY dangerous.
Lofting – Lofting occurs when the kite is above the riders head in the neutral position. Instability in the wind can cause sudden
vertical force and lift a rider off of their feet.
Neutral Zone - This is the area that includes the neutral position and the area to the left and right of the pilot. It encompasses
the most upwind or windward positions in which to fly the kite. When flown here, the kite has less power or pull than when it
is in the power zone. However, use caution when the kite is in this zone, especially when on land, and especially in gusty wind
conditions.
Power Zone - This is the area in front and to the sides of the pilot, but excluding the neutral position and zones. It is the area
in which the kite has the most power and pull. When flown in this area, the kite can be powerful and dangerous, so avoid flying
your kite in this zone when learning. Use extreme caution when flying the kite in this zone.
Generating Power - One way to generate power from your kite is by steering your kite from low to high or from high to low in
the sky. The movement of your kite in the sky creates lift, which creates power. Keep this in mind, especially when learning. When
bringing the kite from a low position up to the neutral position, the movement of the kite actually creates power and generates
speed, so be prepared. When under-powered, you may use this ability of the kite to your advantage by creating power and speed
to get planing.
HOW TO:
AREA OF OPERATION / KITE POSITIONS, ZONES & POWER
CK07SwitchbladeUserManual.indd 16 8/10/06 3:40:47 AM
