Cabrinha FUSION HYBRID User manual

00:00 FUSION FOIL
USER MANUAL ENGLISH

ii
DO NOT USE THIS PRODUCT UNLESS YOU HAVE READ AND UNDERSTAND THESE WARNINGS, CAUTIONS,
AND INSTRUCTIONS WHICH ARE FOR YOUR SECURITY AND PROTECTION. THIS INFORMATION MAY BE
SUBJECT TO CHANGE AT ANY TIME. FOR CURRENT UPDATES, PLEASE VISIT OUR WEBSITE AT: WWW.
CABRINHAKITES.COM
IF YOU ARE BELOW THE AGE OF 18, YOU SHOULD HAVE YOUR PARENT OR GUARDIAN READ THESE
WARNINGS, CAUTIONS AND INSTRUCTIONS AND SHOULD NOT USE THIS PRODUCT UNLESS YOU ARE
UNDER THE PROPER GUIDANCE AND SUPERVISION OF SUCH A PERSON.
The use of this product exposes the user to many unavoidable and unexpected risks, injury, DANGERS and
HAZARDS. The suppliers of this product are not responsible for any damage to property or any personal
injury caused by any use, misuse, abuse or irresponsible use of this product by the user.
Kiteboarding is a HAZARDOUS sport. Power kites and their lines and control equipment can be DANGEROUS
to yers and to anyone in the vicinity of their use. Kiteboarding must be taken seriously and we recom-
mend that, at least in the early stages of your use, you seek the guidance of professional instructors and
experienced kiteboarders. Improper and/or unreasonable use of this kite may result in DEATH or SERIOUS
INJURY to ANY part of your body and to OTHERS. Do NOT use your kite near power lines, airports, buildings,
automobiles, trees, streets, parking lots, rocks, piers, breakwaters, buoys, etc. and keep your kite y lines
away from people and ALL obstacles. Always y in an open area and observe wind and weather conditions,
particularly in circumstances where you may encounter oshore, onshore, variable or strong winds. Do NOT
attempt to use your kite on water until you are condent and comfortable with the use of a trainer kite on
land. Spend time to become familiar with the operation of your kite and remember that you are responsible
for its operation and for the security of those around you. As you learn the sport, work within your own limita-
tions and do NOT exceed them. If you intend to use the kite on water, always use appropriate protective gears
and otation devices and do NOT attach yourself or tie yourself permanently to the kite lines. The kite is NOT
intended for use as a ying device nor indeed is it intended as a means of otation.

iii
RECOMMENDED KITEBOARDING PRACTICE:
Kiteboarding is an extremely diverse sport, with many disciplines and ability levels. As with all sports,
there can be certain inherent risks. The following contains key security points to remember when operat-
ing your Cabrinha kite.
• Kiteboarding is a HAZARDOUS activity and the use of Kiteboarding equipment involves the risk of serious
personal injury to any part of the user’s body, or death.
• Injuries are an INHERENT RISK of kiteboarding and the participation in kiteboarding implies the user’s
acceptance and assumption of those risks.
• Children should ALWAYS be under adult supervision.
• It is strongly recommended that beginners take lessons.
• ALWAYS inspect your equipment for signs of wear and tear each time before use, particularly all lines,
canopy, bladders, screws and ttings.
• If ANY products are found to show signs of wear & tear, STOP using the product immediately and repair
or replace before further use. If in doubt about any signs of wear & tear, please contact your local vendor.
Contact details are available from www.cabrinhakites.com
• NEVER place yourself in a situation where breakage of any one of the various kiteboarding components
would pose a risk to yourself or others, or make it dicult to return to the shore securely & unassisted.
• Make sure you use properly designed and manufactured parts from reputable suppliers.
• Take time to study the conditions including sea state, tides, currents, weather conditions and forecasts
before you decide to go sailing. Beware of sailing in oshore, onshore, variable or strong winds.
• Familiarize yourself with any new location before venturing onto the water. Ask the locals to tell you about
any hazards.
• Watch out for other beach users, especially swimmers and small children. Make sure you keep your board
and rig under control at all times and that they don’t get blown about on the beach or in the water.
• Always use appropriate protective gear and otation devices. Wear the correct protective clothing for the
conditions such as a wetsuit or a UV top.
• We STRONGLY recommend wearing a kiteboarding specic helmet
• Make sure someone knows where you’ve gone & when you are expected back – always sail with a buddy.
• Be aware of the conditions as they change. ALWAYS return to the beach if there is a signicant change in
the conditions. i.e. wind dropping or wind & waves increasing.
• As you learn the sport, work within your own limitations and do NOT exceed them.
• Do NOT alter, modify or change this product.
• This product is designed and manufactured only for kiteboarding on water or snow.
• Keep these warnings, cautions and instructions for future reference.

iv
DANGERS FROM THE KITEBOARD AND FOIL
Kite foilboarding is a sport that carries a lot of risk and can be incredibly dangerous if performed incor-
rectly. This could result in serious injury and/or death of the user or others in close proximity. Individuals
using the Cabrinha foil must be aware of the dangers involved such as loosing control, being hit by the
board, even drowning. As some of the foil’s components are incredible sharp and potentially hazardous,
extra care must be taken at all times, from assembling to riding in order to avoid injury to the user and
others.
The Cabrinha foil comes with detailed product information. you must read all material concerning warn-
ings, assembling, maintenance and care of the foil prior to use. We will not accept any liability for those
who choose not to follow our requirements.
We recommend that you always wear a certied helmet as well as an approved impact/life/protection vest,
neoprene wetsuit and shoes.
Do not surpass your foiling capabilities and always maintain control of the foil.
Ride within your limits and do not use at speeds that exceed your comfort zone.
Be aware and familiarise yourself with your surroundings. do not put yourself or other water users in dan-
ger by riding close to swimmers, boats, docks and other objects that could interfere with you and your foil.
Do not use the foil in shallow waters as it will cause harm to both, you and your gear. Also, be aware that
the components that make up this product are exposed to natural forces and are subject to wear and tear.
only use Cabrinha approved replacement parts for repairs and adjustments.
Check your foil each time you ride, and ensure that the screws are tightened with the tightening torque as
described in this manual.
Failure to follow these instructions may increase the risk of serious personal injury or death, damage to the
product, or both.
We accept no liability.
By purchasing the Cabrinha foil you are agreeing to take full responsibility, and Cabrinha is entirely free
from any liability, including nancial responsibility for injuries or death incurred, regardless of whether
injuries are caused by negligence or any use not consistent with our instructions.

v
CONTENTS
1 Foil Kit Installation / Assembly with the Board
(FUSION HYBRID / FUSION CARBON)
4 Mast, Rear Fuselage and Wings Assembly
5 Foil and Board Care Instructions

12020 FOIL USER MANUAL
1. Locate and conrm foil mounting hardware (4 hex bolts and 4 T-nuts).
2. Start two of the brass nuts onto the screws by just a couple turns (Fig 1).
3. Use the screw head to insert the nut into both of the tracks (one each) and slide
down near the end. (Fig 2).
4. Unscrew and leave the brass nuts sitting near the bottom of each track. For Alloy
top plate, repeat this process for 2 remaining screws as shown in Fig 3.
5. Insert a screw into both of the counter sunk front holes of the Carbon foil top plate
and attach both of the brass nuts with only a couple of turns so they can drop into
the track. (Fig 4).
FOIL KIT INSTALLATION - ASSEMBLY WITH THE BOARD
FUSION HYBRID
INVENTORY::
1. Alloy mast (70cm or 90cm)
2.. Aluminium rear fuselage
3. 4 x m6 x 30 screws
4. 1 x m6 x 25 screw
5. T30 & T 40 torx T-handle wrench
NOTE:
Mast / board assembly - T40 torx T-handle wrench
Foil assembly - T30 torx T-handle wrench
Board mounting screws sold with board
INVENTORY::
1. Carbon Mast (70cm)
2. 3 x mast threaded inserts
3. 4 x m6 x 30 screws
4. 1 x m6 x 25 screw
5. Carbon Rear Fuselage
6. T30 & T40 torx T-handle wrench
FUSION CARBON
AUTOPILOT, X:BREED FOIL, CUTLASS FOIL, CROSSFLY, MACRO BOARDS:
FIG 1
FIG 4
FIG 3
FIG 2

22020 FOIL USER MANUAL
FOIL KIT INSTALLATION - ASSEMBLY WITH THE BOARD

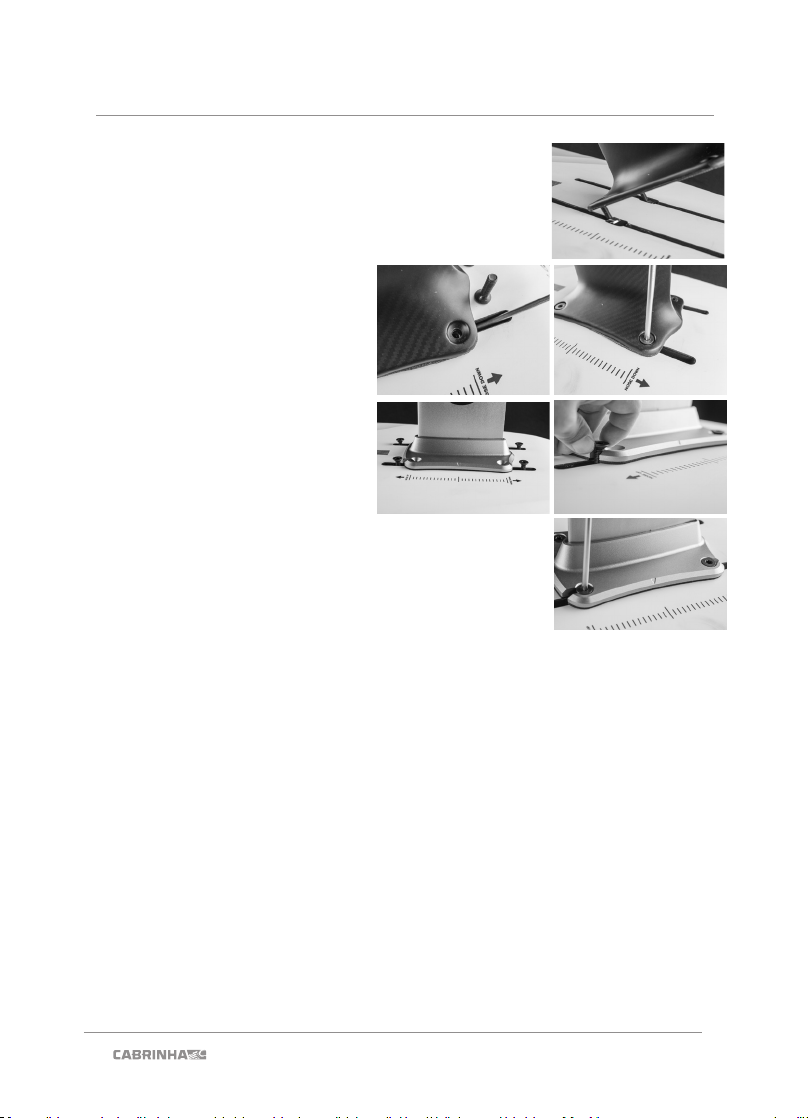

6. With the foil top plate aligned as shown, drop both front
ttings into the track and slide back into the desired
position. Foil further toward the nose will produce more
lift (nose up). Foil further towards the tail will produce
less lift (nose down). (Fig 5).
7. Guide the rear two T nuts up into position to align with
the rear screws and tighten all four down evenly. (Fig
6 and 7)
8. For Alloy plate, align into desired position ontop of
tracks. Slide hex bolts over grooves and into counter-
sunk holes (Fig 8 and 9).
9. Tighten all 4 bolts down evenly. (Fig 10). Your setup is
complete and your foil is ready to y!
FIG 10
FIG 8
FIG 7FIG 6
FIG 9
FIG 5

32020 FOIL USER MANUAL
MAST, REAR FUSELAGE AND WINGS ASSEMBLY
1. Join the rear fuselage with your front wing fuselage using the indexed t to help slot
together.
2. Fasten the rear fuselage securely by using the supplied 30mm and 24mm m6 screws.
Tighten by hand using the supplied T30 Torx T-handle wrench. DO NOT OVERTIGHTEN.
3. Attach the stabilizer (rear wing) as shown wit the m6 x 15mm screws, using your T30
Torx T-handle wrench.
4. Slot the mast into the fuselage connection and tighten the 3 pcs m6 x 30mm screws.
NOTE: WINGS SOLD SEPARATELY
FIG 2
FIG 1
FIG 4
FIG 3

42020 FOIL USER MANUAL
TO GIVE YOUR BOARD AND FOIL A LONG LIFE
• Use recommended Cabrinha ns, foot straps and accessories.
• Do not use any powertools to install any of the hardware and accessories; doing so
will void the warranty.
• Tighten all screws rmly, but do not over tighten.
• The screws are subject to extreme loads and forces, and should be checked
regularly if still tight.
• Regularly check your board and wings for holes, coming from any damage.
• Rinse with fresh water after each use.
• Disassemble and rinse with fresh water before prolonged storage.
• In case you nd any damage make sure these are sealed and xed properly before
further use.
• Store your Cabrinha board in a board bag to prevent unnecessary sun exposure,
scratches and other wear and tear while the board is not in use.
• Store your Cabrinha Foil in a Foil Bag when not in use, to prevent unnecessary sun
exposure, scratches and other wear.
• While this Cabrinha board and accessories has been built tough, it is not
indestructible. Direct impact with a hard object such as a rock or reef can damage
the board, mast and wings; such damage is not coverable by warranty.
FOIL AND BOARD CARE INSTRUCTIONS
