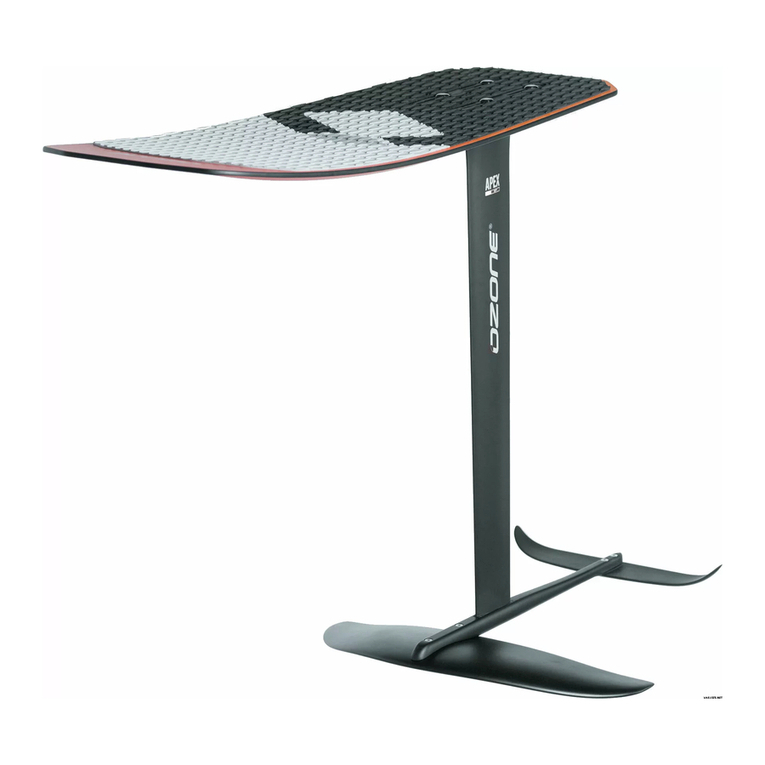

Ozone Apex V1 User manual

Apex V1 Foil Quick set up guide
MAST
FRONT WING
REAR WING
FUSELAGE
4x M6 T30 22mm Titanium Screws
4x Titanium T-Nut Deck Washers
(Supplied with Apex V1 board)
2x M6 T30 28mm Titanium Screws
1x M6 T30 16mm Titanium Screw
(Trailing Edge)
1x M6 T30 22mm Titanium Screw
(Leading Edge)
2x M6 T30 22mm Titanium Screws
2x M6 T25 Titanium Barrel Nuts
(Fixed inside the Fuselage)
2x M6 T30 Titanium Barrel
Nuts (Fixed inside the Mast)
2x M6 T25 Titanium Barrel Nuts
(Fixed inside the Fuselage)
• Before assembling check all connecting surfaces, screws and
barrel nuts are clean and free of sand, salt or other debris.
• Do not tighten screws until all screws are in position and
correctly threaded.
• Do not over tighten the screws, rmly hand tighten (approx.
8N.m torque wrench setting) and release screws by hand only.
Do not use power tools.
• The Fuselage barrel nuts are glued in place. These have a T25
head so the supplied T30 tool cannot be used to mistakenly
tighten or loosen. Do not tighten or loosen the Fuselage barrel
nuts, only tighten or loosen the screw. If a Fuselage barrel nut
becomes loose, use standard super glue to x it back into place.
• The Mast barrel nuts are glued in place. These have a T30 head
so the supplied T30 tool can be used to rotate the nuts to align
with the screws if necessary. If a Mast barrel nut becomes loose,
use standard super glue to x it back into place.
• The Fuselage to Mast connection is designed to be a tight t.
Align the screws, get them started and proceed to tighten.
Approximately the last 2mm of Mast tuttle section will be
pulled into the Fuselage by tightening the screws. The
connection will then become ush.
• If stored set up, before each use check the screws and parts are
tting tight, retighten screws if necessary.
IMPORTANT NOTES:
By assembling and/or using this Ozone product, you agree that you have read and
understood the entire Ozone product owners manual, including all instructions and
warnings contained in that manual, prior to using the Ozone product in any way.

set-up
APEX V1 BOARD USING TITANIUM TNUT DECK
WASHERS:
1: Fit the 4x T-Nut Deck Washers into the board slots.
2: Fit the 4x M6 T30 22mm screws into the T-Nut Deck Washers. Turn
each screw one full rotation to get the thread started.
3: Slide the screws and washers to the ends of the board slots.
4: Place the mast on the board and align the slots.
5: Slide each screw into the slot on the mast, ensuring the T-Nut Deck
Washers remain connected.
6: Slide the screws until they t at the countersunk section of each slot
on the mast.
7: Firmly hand tighten each screw (approx. 8N.m torque wrench setting)
MAST TO BOARD
FUSELAGE TO MAST
OTHER BOARDS WITH US BOX USING M6 TNUTS:
1: Assemble the 4x M6 T30 22mm Titanium screws with the T-Nuts. Turn
each screw one full rotation to get the thread started.
2: Fit the screw and T-Nuts into the US box.
3: Slide the screws and T-nuts to the ends of the tracks.
4: Place the mast on the board and align with the tracks.
5: Slide each screw into the slot on the mast, ensuring the T-Nuts remain
connected.
6: Slide the screws until they t at the countersunk section of each slot
on the mast.
7: Firmly hand tighten each screw (approx. 8N.m torque wrench setting)
1: Fit the Fuselage onto the Mast tuttle.
2: Push the Fuselage down until the t feels snug and it can
not be pushed further.
3: Align the 2x M6 T30 22mm screws with the Barrel Nuts
inside the Mast and begin to tighten. Ensure the screws
are threaded correctly.
4: Tighten each screw a few turns at a time so they tighten
evenly and slowly pull the Mast tuttle
into the Fuselage.
5: Firmly hand tighten each screw (approx. 8N.m torque
wrench setting)
FRONT WING TO FUSELAGE:
1: Fit the Front Wing onto the Fuselage.
2: Align the 2x M6 T30 28mm screws with the Barrel Nuts inside the
Fuselage and begin to tighten. Ensure the screws are threaded
correctly.
3: Tighten each screw a few turns at a time so they tighten evenly.
4: Firmly hand tighten each screw (approx. 8N.m torque wrench
setting)
REAR WING TO FUSELAGE:
1: Fit the Rear Wing onto the Fuselage.
2: Align 1x M6 T30 22mm screw (Leading Edge) and 1x M6 T30 16mm
Titanium Screw (Trailing Edge) with the Barrel Nuts inside the Fuselage
and begin to tighten. Ensure the screws are threaded correctly.
3: Tighten each screw a few turns at a time so they tighten evenly.
4: Firmly hand tighten each screw (approx. 8N.m torque wrench setting)
