Caliber RMD 803DAB-BT User manual

RMD 803DAB-BT
MANUAL
ENGLISH

Power the DAB Antenna with the
blue(/white cable) (12V Remote)
ISO Connector 3A
Make sure to strip the wires before connecting them.
Male SMA
SUB V-OUT F-CAM
R-OUT R-IN R-CAM
L-OUT L-IN V-IN
ANT
USB 5V 1,5A
DAB+
MIC
Attach to the metal of
the car frame.
Please note!
It’s not necessary to
remove any paint!

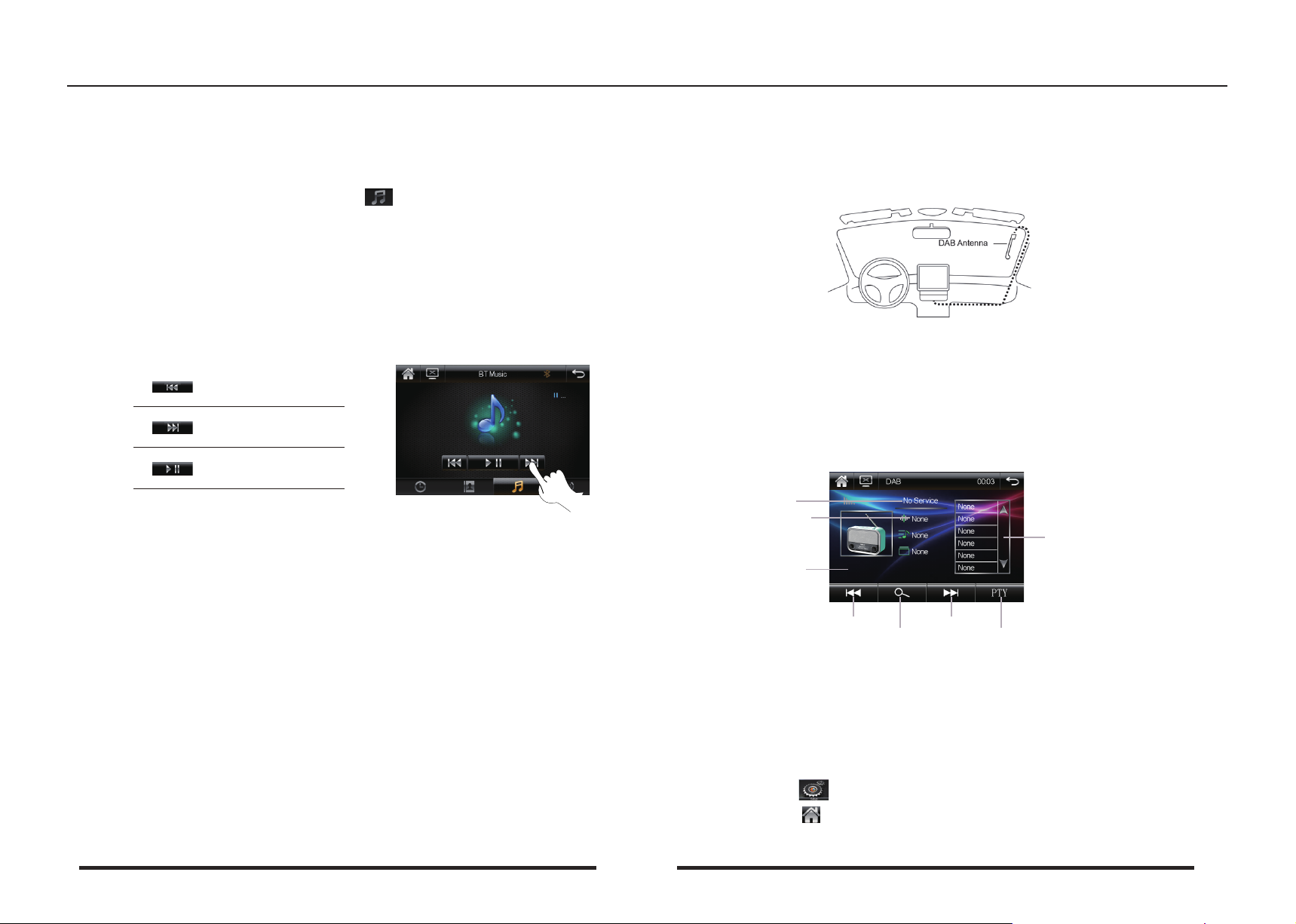

Remove the cover of the A-post
Place the antenna on the windshield near the 'A post'
12V remote
Stick the transparent part of the
antenna on the windshield and put the
black part on the metal frame.
DAB ANTENNA INSTALLATION
FrequencyRange:
FM 87.5-108 MHz
AM 522-1620 KHz
DAB 174 ~ 240MHz
CAUTION:
+12V DCNegative Ground
Bluetooth freq range: 2402-2480 Mhz,
Max e.r.p: <100mW/20dBm
USB/SD - DAB
+
/FM/AM tunerAUX-input
and Bluetooth
®
wireless technology
Serial no.:
CALIBER EUROPE BV
KORTAKKER 10 • 4264 AE VEEN
THE NETHERLANDS
88 mm
75 mm
Place unique serial number here
SN range: 320123 - 00001
320123 - 00500
RMD 803DAB-BT
9
10
11
12
SUB-OUT
RIGHT-OUT
LEFT-OUT
VIDEO-OUT
AUX-AUDIO-R-IN
AUX-AUDIO-L-IN
REAR-CAM-IN
FRONT-CAM-IN
AUX-VIDEO-IN
RADIO-Antenna
USB 5VDC 1,5A
(Charge output only)
DAB
13
MIC-IN
1
2
3
4
5
6
7
8
910 11
13
12
SUB V-OUT F-CAM
R-OUT R-IN R-CAM
L-OUT L-IN V-IN
ANT
USB 5V 1,5A
DAB+
MIC
FrequencyRange:
FM 87.5-108 MHz
AM 522-1620 KHz
DAB 174 ~ 240MHz
CAUTION:
+12V DCNegative Ground
Bluetooth freq range: 2402-2480 Mhz,
Max e.r.p: <100mW/20dBm
USB/SD - DAB
+
/FM/AM tunerAUX-input
and Bluetooth
®
wireless technology
Serial no.:
CALIBER EUROPE BV
KORTAKKER 10 • 4264 AE VEEN
THE NETHERLANDS
88 mm
75 mm
Place unique serial number here
SN range: 320123 - 00001
320123 - 00500
RMD 803DAB-BT
9
10
11
12
SUB-OUT
RIGHT-OUT
LEFT-OUT
VIDEO-OUT
AUX-AUDIO-R-IN
AUX-AUDIO-L-IN
REAR-CAM-IN
FRONT-CAM-IN
AUX-VIDEO-IN
RADIO-Antenna
USB 5VDC 1,5A
(Charge output only)
DAB
13
MIC-IN
1
2
3
4
5
6
7
8
910 11
13
12
SUB V-OUT F-CAM
R-OUT R-IN R-CAM
L-OUT L-IN V-IN
ANT
USB 5V 1,5A
DAB+
MIC
RMD 803DAB-BT CONNECTION DIAGRAM

1. Notes on installation .........................................................................1
2. Wiringdiagram..................................................................................1
3. Remote Control Operation..................................................................2
4. ...............................................................................3Basic Operation
5. Introduction to main interface function icons.................................. ............4
6. Radio function operation..............................................................................5
7. USB function operation...........................................................................7
8. SD functionoperation.........................................................................8
9. AUXfunctionoperation......................................................................9
10. Mirror Link Description........................................................................10
11. Bluetooth functionoperation............................................................. 11
12. DAB+ instructions..................................................................................13
Contents

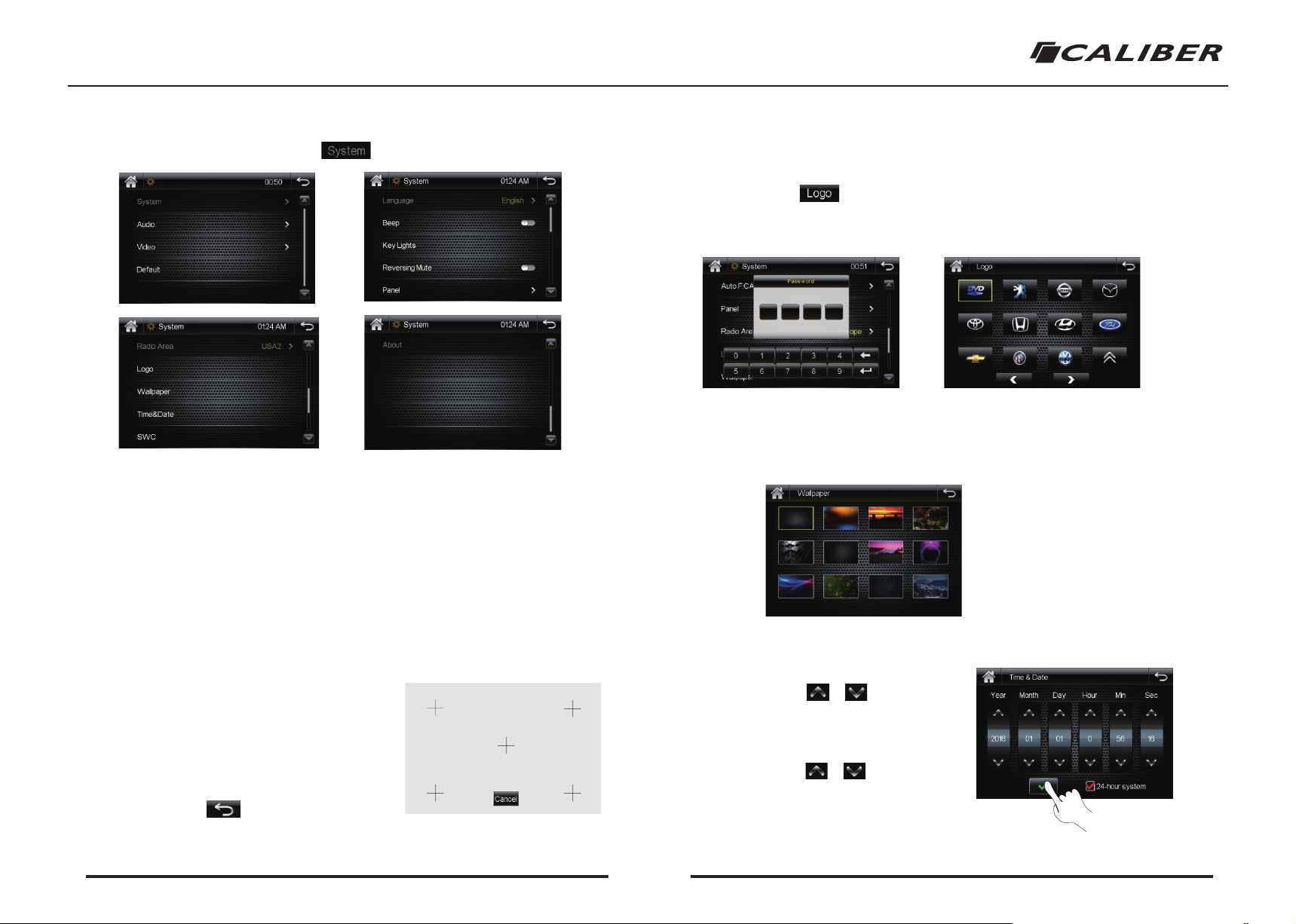

13. System setup........................................................................................14
14. Audio/video support format list...............................................................20

MANUAL
1 234
MUTE ▲MENU
5MODE ENT 11
612
USB
713
SD
814
Basic Operations9B
A
A
M
N
S
DVOL- SEL VOL+ 15
10 16
Installing the lithium coin battery(CR2025) 123 17
●Aim theremote control directlyat the remote sensoron the unit
456 18
●DO NOT expose the remote sensor to stronglight
789 0 19
(direct sunlight or artificial light)
WARNING: To prevent accidents anddamage
●DO NOT installany battery other than CR2025 or its equivalent
●Store the battery in a safe palce where children cannotreach
●DO NOT charge, decompose,heat up the battery or disposeit in a fire.
●DO NOT pokeorpierce the batterywithtweezers or similar tools.
●Wrap the battery with tape for insulation when throwing it away for
keepingit for future use.
1. Power switch 11. Left
2. Mute 12. Confirm / Play / Pause
3. Up 13. Next song
4. Menu 14. Under the
5. Mode switch 15. Volume -
6. Right 16. Choice
7. USB / SD 17. Answer the phone
8. Last song 18. Hang up
9. Band / Automatic 19. Digital key
10. Volume +
2
1
The unit is designed for 12V DC negative ground operation system only.
Before installing the unit, make sure your vehicle is connected to DC12V
negative ground electrical system.
The negative battery terminal must be disconnected before making
connections, which can decrease the chance of damaging the unit due to
short circuit.
Be sure to connect the color coded leades correctly according to the
diagram. Incorrect connection may cause the unit malfunction or damage the
vehicle’s electrical system.
Be sure to connect the speaker (-) leads to the speaker (-) terminal. Do not
connect the left and right channel speaker cables to each other or to the vehi-
cle body.
Do not block vent or radiator panel. Blocking them will cause heat build up
inside and may result in fire.
After the completion of the installation and begin to play the unit (including
replacing the battery), please press the RESET button on the front panel with
pointed objects (such as ball-point pen) to set the unit to initial status.
1. Notes On Installation
3
. Remote Control Description

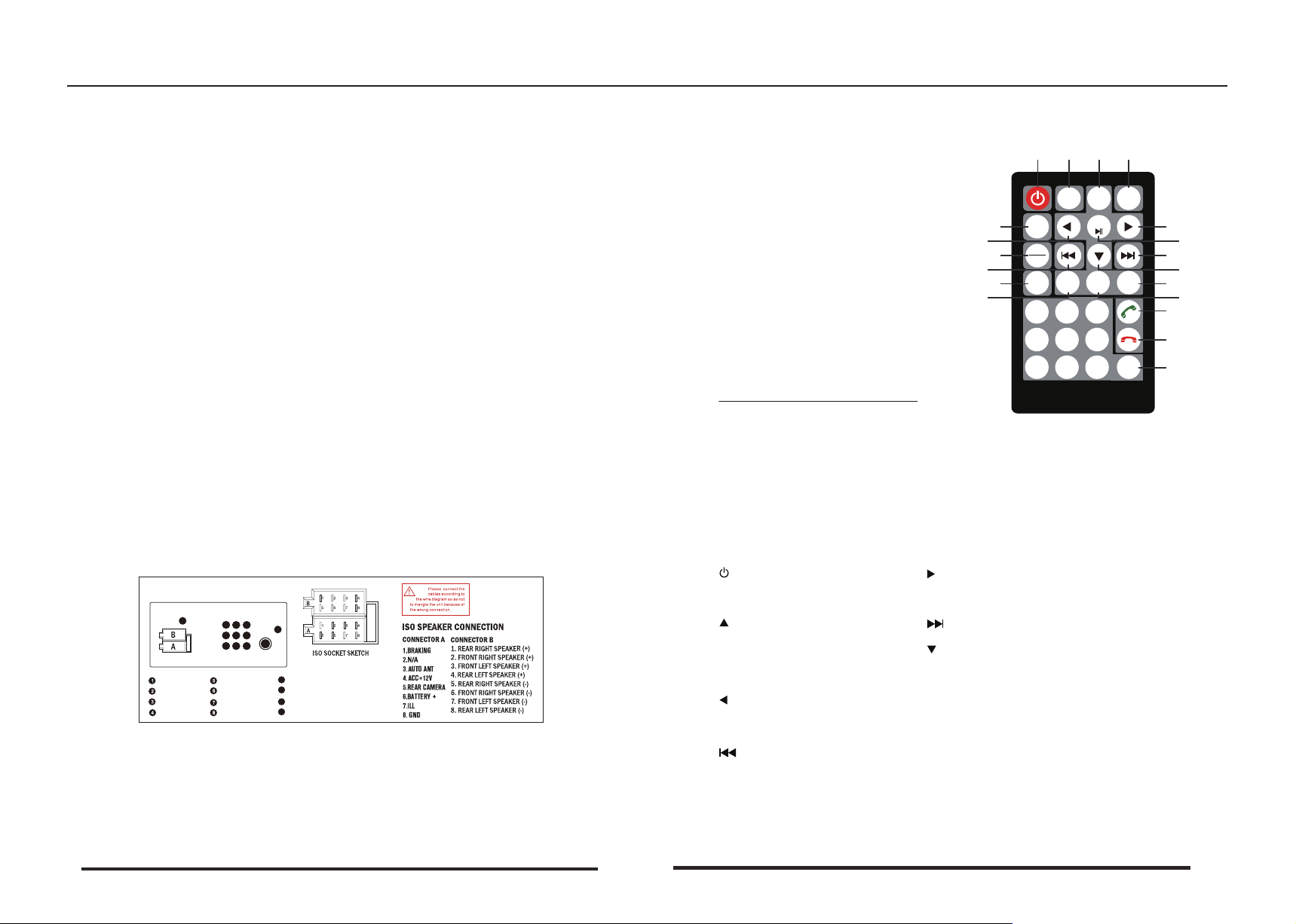

2. Wiring Diagram
1
2
3
4
5
6
7
8
9
10
11
12
ISO SOCKET SKETCH
9
10
11
12
SUB-OUT
REAR-R-OUT
REAR-L-OUT
VIDEO-OUT
AUX-AUDIO-R-IN
AUX-AUDIO-L-IN
REAR-CAM-IN
FRONT-CAM-IN
AUX-VIDEO-IN
RADIO-Antenna
GPS (OPTIONAL)
DAB(OPTIONAL)

5. INTRODUCTION TO MAIN INTERFACE FUNCTION ICONS
Enter radio mode, listen to FM/AM Enter bluetooth interface connect
whole wave band broadcasting bluetooth mobile phone to achieve
handfree talk function
program· .
Only.connected to the phone can be
Enter system setup interface. used
Enter USB play mode (It is valid DAB radio.
when the main unit is connected
with USB device).
4. BASIC OPERATION
(1) Turn on/off the Host Unit
a)Turn on
If you pug out the car key to turn off the unit last time, insert the key again, and the unit will be turn
on automatically.
If you press the PWR (power) button on the panel to turn off the unit last time, press the power
button slightly again to turn on the unit.
b)Turn off
Pull out the car key, and the system will recognize the information to turn off the unit.
Press and hold the PWR (power) button for more than 3s, and the system will turn off automatically.
(2) Enter system main interface
Enter SD card play mode (It is valid
After startup of the system, operating mode AUX play mode (External input when the main unit is equipped with
before power -off is the default of the machine. audio, video signal). multimedia play card slot).
For example, in the interface of radio mode,
touch icon at top right corner to enter the
system main interface. Multiple preset EQ JAZZ/ROCK/POP/
CLASSIC.
After startup of the system, in any operating
mode, press MENU button on panel to enter
the system main interface as a shortcut. Change the background image of
The main interface is mainly composed of the main interface of the system
function mode icons. By touching the function (select the preset background
image).
icons, you may enter the corresponding operating mode.
Touch icon to close screen display, but touching the screen in screen -off state may restore
Turn off screen display, touch the
screen for returning to display
display.
.
Touch icon to switch twelve different background images preset by the system.
Function shortcut icon / on the,
radio state can switches the upper
Display date and tim e inf
orm ation.
a
pn ld aylo cw ae n r spr wio tg cr ha em s t fr o e pq ru ee vi n oc uie s s a, nw dhen
next song,
pause / play.
Note If touch the above-mentioned icon slight, and "No Device" will be
indicated, which represents no connection between the device and the
host unit at present.
3 4

MANUAL
Note
a). In the system main interface, touch icon to enter radio interface.
Automatic sear ching stations
a). In the radio mode, press and hold icon
to activate Auto-search status, the system will
automatically save the channels according to
the radio frequency once found.
b). Touch the same icon again to stop searching
when in searching process.
Notice:
1). Before searching stations, you may touch icon to select long or short distance
searching. When "LOC" is displayed on the screen, only the local radio stations with strong
signal can be searched; when "LOC" is hidden, long and short distance radio station
searching can be synchronously searched.
2). FM wave band can store 18 radio stations (FM1/2/3), and AM wave band can store 12 radio
stations (AMI/2).
( 2) Semi-automatic station sear ching and saving
a). In the radio interface, press and hold (minimum
2 seconds) icon / to enter low
frequency band / high frequency band semi-
automatic searching state.
b). When a radio station is reached, it automatically
locks up. At this time, press and hold any button
frequency icon below to save the radio frequency.
c). Touch this icon to step forward 0.05 MHZ for FM
waveband and 9KHz for AM waveband.
( 3) Wave band selection
In the radio interface, touch icon to switch over among the wave bands of FM1, FM2,
FM3,AM1 and AM2 in circulation.
6. RADIO FUNCTION OPERATION
(1)Enter/Exit
b). Touch icon at top right corner of the radio interface to return to the system main interface
and touch other function icons to exit from the radio mode.
( 4) Select station to play
1. When listening to AM wave band, stereo function operation is invalid.
2. In AM wave band, LOC function setup is invalid.
3. During searching radio stations, TUNE button on the panel can be used for adjusting
frequency steadily.
4. When selecting radio stations, if to touch the frequency icon for delay over 3 seconds,
the system will only perform saving function.
5. Tuch icon to enter each radio Station playing for 5 seconds in a browsing
state, touch it again to recover normal broadcasting.
a). Touch frequency icon to select the
corresponding radio station to listen to.
b). When listening to FM wave band, touch icon
to select stereo or single track
broadcasting.
c). Touch icon to enter audio setting
interface.
5 6

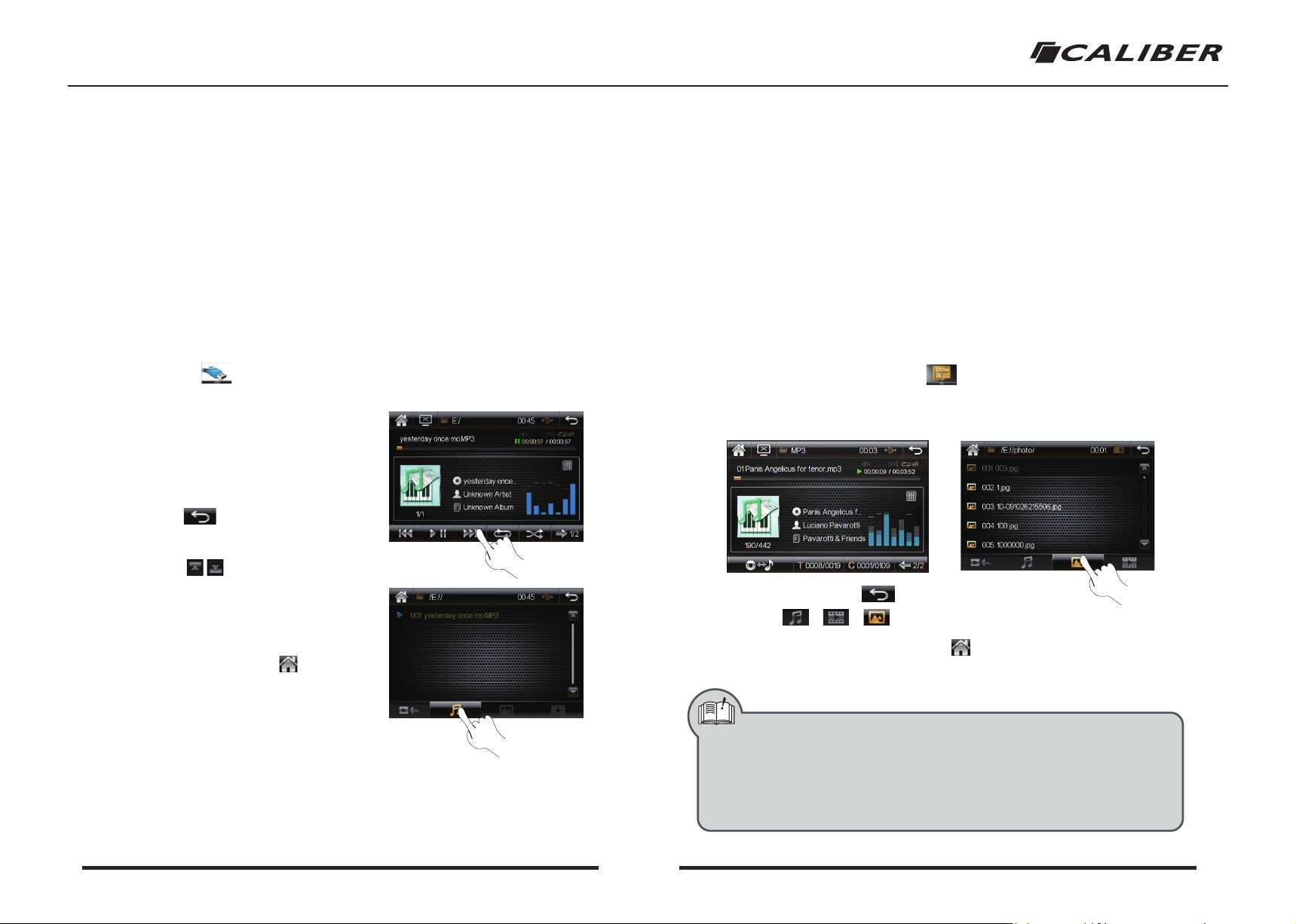

7. USB FUNCTION OPERATION 8. SD CARD FUNCTION OPERATION
( 1) Insert/Eject USB device
The item supports USB, the USB must be correctly connected before use, the system will switch-
over to USB play mode automatically.
a). Insert the U disk with multimedia folders in the USB interface through USB data lines or directly.
b). When it is needed to eject the U disk, exit the USB play mode first and eject the U disk.
( 2) Play interface operation
a). Touch the icon to enter USB play interface at the system main interface.
b). System would first read supported media files in USB device If there are media files of several
different forms, it would enter music play.
c). When playing music, it would enter music
player interface. Use touch icon for more
play controls.
d). When playing music, ID3 and playing
state of current music would be displayed
in the middle of screen.
e). Touch icon to return to playing list.
On the left it’s file list and on right it is
current file list.
f ). Touch icon to page up and down.
Touch the file name and listed music name
to play.
g). For detail instructions of several forms of
media files, please refer to introductions of
“DVD function operation”.
h). To exit USB player, touch icon to return
to system main interface.
Then select other audio and video player.
When the main unit is equipped with slot for multimedia storage card, this operation is available.
( 1) Insert/Take out SD card
a). Insert the SD card, with media information into the SD card slot directly until the card is locked.
b). For taking out the SD card, exit from SD card playing status first, and then press the SD card
slightly to cancel the locking status of the SD card and eject the card automatically.
( 2) Enter to SD Card Playing Mode
a). In the system main interface, touch icon to enter SD card play interface.
b). The system firstly reads the supported media document in the storage card.
c). When there are various types of media document in the card, it will take the priority to enter
music play state, as shown in the picture below.
d). In playing state, touch icon to return to list interface.
e). Touch icon / / to switch displaying files of different types and touch file
name to start playing.
f ). If it is needed to exit SD play mode, touch icon to return the system main interface,
and then enter other play mode.
Note 1). Due to the limit of screen resolution and compatibility of the video file format, some
video files do not play well. You can transfer the files with formats conpatible with
the equipment.
2). If the type of storage card does not match card slot of the main unit or there is no a
SD card slot in the main unit, it can be connected to the USB port of the equipment
to be played with a card reader and USB cable.
78

MANUAL
9. AUX FUNCTION OPERATION
Themachinesupportsexternalvideosignalandinput of two-way stereoaudiosignals.
Whenthevehiclehasothermultimediaequipment, the audioandvideooutputsignalcan be
connected to theaudioandvideoinputport.
(1) Enter/Exit
( 2) Function operation
No te If the syetem fails to detect external audio or video signal input, the screen will
dispaly the prompt. “No Video Signa’
a). In the system main interface, touch icon to enter AUX(external audio/video)mode.
b). Touch the top right corner of the screen to display the operation icons, touch icon to
return to the system main interface, and then touch other function icons toexit from AUX mode.
a). In playing status, touch the screen and the invisible operational icons will be displayed.
b). Touch icon to turn off screen display, touch the sreen for returning to display.
c) Touch icon to exit the AUX mode to the system main interface
9 10
(3) Corresponding to the role of the icon
10. MIRROR LINK DESCRIPTION
(1) Notes
a).Support Android two way control, version to Android 10; iOS 13 Version and latest,
Model under iPhone X
b).The connection must be under the screen unlocked
c).Android phone’s Bluetooth must be connected, to have sound output.
(2) Connecting way
a).Connect the phone data cable.
b).Open the phone developer option interface and turn on USB debugging.
c).Automatic into mirror link interface, like below picture, download app according to prompts
Exit the mirror link
Volume adjustment
Return to the mobile home page (iOS not support)
Return to the previous operation (iOS not support)
Screen saver
Horizontal screen (iOS not support)

( 1) Enter/Exit
a). In the system main interface, touch icon
to enter Bluetooth interface.
b). Touch icon to exit from Bluetooth interface.
( 2) Touch menu function description
Enter the dial up interface
Enter the phonebook
Download mobile contacts
Shut off or resume the sound
Enter Bluetooth setting interface
Display the answered phone number
record
Display the missed phone number
record
(3) Paired connection and disconnecting connection
BeforeusingBluetoothfunction of thesystem, it is a must to makepairedconnectionwith
Bluetoothmobilephone,andconnectionwill be completedwiththemobilephone.
a). Activate the Bluetooth function of the mobilephone.
b). Select thehands free option, when the mobilephonehassearched the device, the name " CAR -BT"
will be displayed, select the name andconnect the device in light of the tips.
C). The password" 0000" must be entered during the connecting process and press“confirm”.
D). After this is done, "connected" will be displayed on the system screen.
Dial and answer
Hang up or reject the incoming call
Enter Bluetooth music play interface
Switch over talk to mobile phone or the
car amplifier
Delete the wrong number entered
Display the dialed phone number record
( 4) Dial a call
a). In case of connection of the mobile phone with
the system, you may touch numeric keys on the
screen to enter telephone number.
b). The entered characters are displayed in the
number column, in case of a wrong entering,
touch icon for deletion one by one.
c). When completing entering, touch icon
of green speaker to dial a call.
d). During the phone call, touch icon
switch over the voice on the line between car
sound and mobile phone.
( 5) Answer a call
a). In the state of Bluetooth connected, in case of
call in, the system will automatically switch
over to Bluetooth interface and play ring of the
call in any mode, the phone call number will
be displayed in the number column.
b). Touch icon or to select
answering the call or refusing the call.
( 6) Telephone book
a). Touch icon to enter the phonebook.
download stored phone numbers in
telephone directory book.
delete the wrong number entered.
b). Touch icon to download telephone directory book to the system , slide up and down the
telephone list to page up and down.
c). When the user intends to make a phone call, touch and select the number in the phone list, and
touch icon.
d). In telephone directory book, quick search by initial word in small keyboard.
Tips: This function could be used only after Bluetooth connection between phone and system.
11 12
11. BLUETOOTH FUNCTION OPERATION
The system provides Bluetooth hands free communication function. if your mobile phone is
Bluetooth enabled, it can establish a point-to-point connection with the system, providing telephone dial
up and call answering phonebook, Bluetooth music play functions.
Tips: As the Bluetooth modules and software of cell phones with different brands are different,
some functions may be different or even not compatible with other systems in actual use
please forgive us for this.
BT name:CAR-BT

MANUAL
12. DAB+ instructions
INSTALLATION OF DAB ANTENNA
For this operation, contact a professional installer.
(1)The DAB antenna supplied requires installation on the front windscreen in a vertical position (see
figure).
(2)Clean the glass where you want to attach the antenna.
(3)Carefully remove the protective film from the adhesive on the antenna and place it in the chosen
location. The antenna must be positioned so that the ground contact can be spread on the metal
body of the car (it is not necessary to remove the paint).
( 7) Play Bluetooth music
a). In the main interface of Bluetooth, touch the icon to enter the interface of playing
Bluetooth music.
b). If the connected mobile phone supports Bluetooth music play function, the audio played by the
mobile phone can be transmitted to the car audio system for playing.
c). In the state of connection of the equipment with Bluetooth, enable connection of mobile phone
stereo and play music, at this time, audio signal of the mobile phone can be transmitted to the car
audio system.
tips: Setup methods differ due to different mobile phones , the objective is to use this system as
a Bluetooth earphone by setup, refer to the related instructions for detailed steps of setup.
d). Touch five icons at left side of the screen to play music saved in the mobile phone.
e). Exiting from Bluetooth play interface or closing music play function of the mobile phone will
close the music play function of the Bluetooth.
Tips: 1.Only support Bluetooth mobile phone has " stereo player" or "telecontrol" function, which
can operate music playing interface.
2.Music of the cell phone can be played only while in the Bluetooth music play interface.
Play/pause
Play previous trach
Play next track
13. SYSTEM SETUP
Thissectiondescribesthesystemsetupinformation,includinggeneral,audio,date & time , wallpaper
andothers.
(1) Enter exit
a). Touch the icon at the system main interface to enter system setting interface.
b). Touch the icon to exit the setting interface and return to system main interface.
13 14
(4)Position the cable (length 3 m) inside the car dashboard until you reach the position of the radio.
Connect the cable with golden connector to the DAB antenna input on the rear of the car radio
and secure it by screwing the connector.
If a second thinner black cable is present, it must be connected to the main power supply + 12V
(key).
Caution:
- Do not install the antenna in a position that obstructs the driver's view.
- Do not place the cable and the antenna where they could interfere with the proper
functioning of the AirBag or other safety devices or where they could impede the driving
of the vehicle.
- The use on shielded glass reduces the antenna performance.
RADIO DAB OPERATIONS
Previous station Next station
Auto searching Program type
Radio name
Radio frequency
Programme list
Radio content

( 2) General settings
a). Language( Language selection)
1). Set operating language of system through this function.
2). Touch xx icon to pop up the list of languages which are supported by system.
3). Touch language items to select the needed language in the system for operations.
b).
c).
In the system setting interface, touch the icon to enter the general settings interface.
Beep(Key-pressingtone)
If this option is enabled,you can hear click sound while operating
Key�lights
When enter the key lights interface,you can choose the color you want.
d).Reversingmute (Mute when reversing vehicles)
Endble this option,and the system mutes when reversing vehicles.
g).
c).T ouch icon to exi t.
Tips:The accuracy of coordinates clicked during calibration will affect the preciseness
of touching panel.
e).
f
)
① ②
③ ④
⑤
15 16
1) .
�
.
Panel(Touch panel calibration)
Bri ghtness
Set brightness of dimmer by sliding the icon
Touch panel calibration
a).Use stylus click cross center,the order shall
be the upper left,upper right,lower left,lower
right,conter of the panel to be calibrated.
b). The calibration is completed.
Touch the icon
to pop up password in putkeyboard,enter logo setting interface by
inputting"0000".
2) .T
ouc h the favorite car flag pictures to set the selected car flag as the startup pictures for the
system.
Radio regional settings
Defaultarea is"Europe" if itis used in territory of Europe.
Logo setting
Tip:When system is restaring,auto logos would be displayed.
h).Wallpaper
Touch in to can select a different background image.
). System time & date settings
1). Year, month and day setting
Touch the icon / above and below
the year, month and day display box to adjust
the year, month and day respectively.
2). Hour, minute and second adjustment
Touch the icon / above and below the
hour and minute display box to adjust the hour
and minute respectively.
i

MANUAL

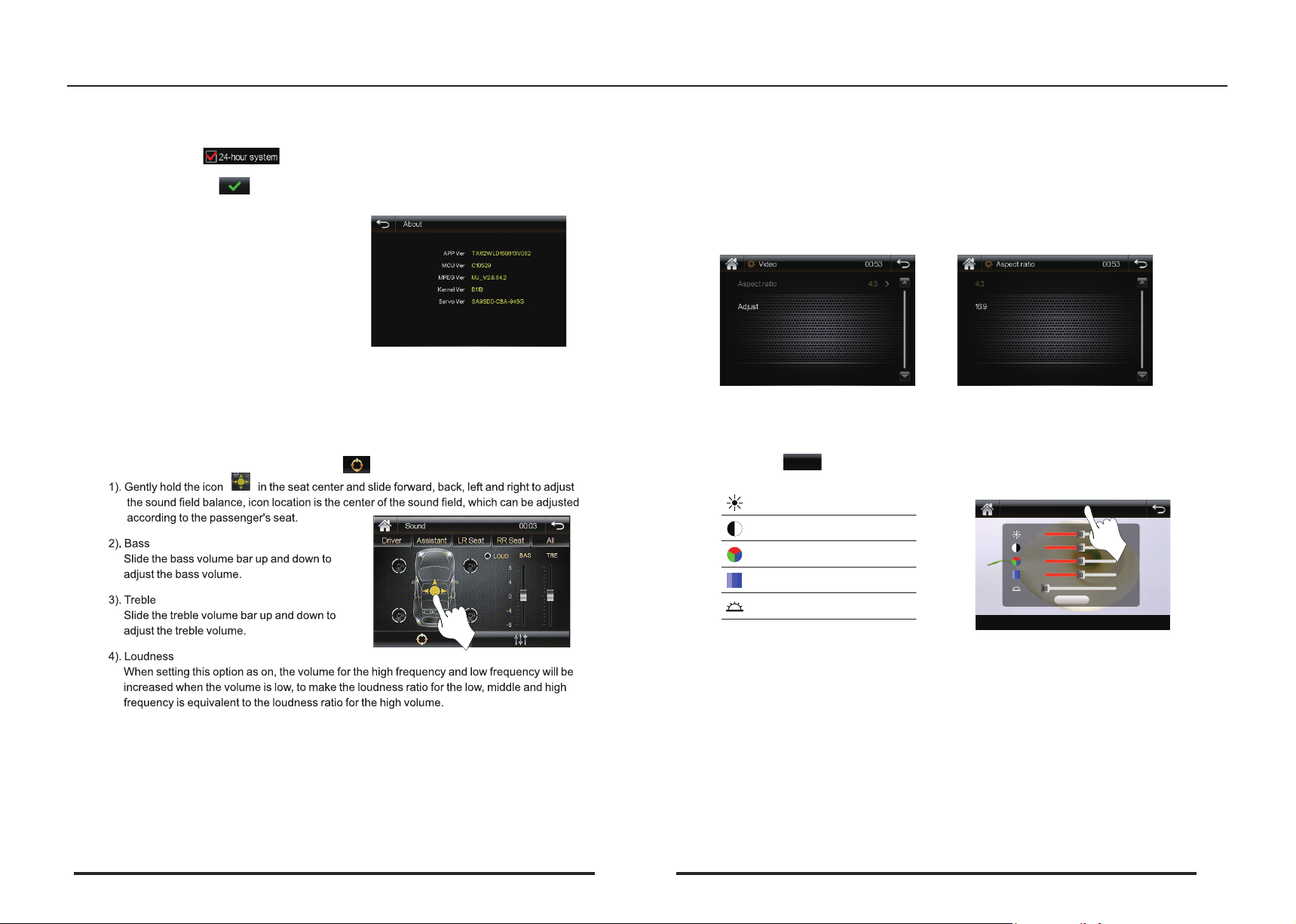

3). Time system
Touch icon at the right side to set the time system as 12 hour system or 24
hour system.
Touch the icon to save and exit the time & date setting interface.
). About
Click to see the software version of the product
(If the customer requirements are different,
the software used is different, the version is
not the same).

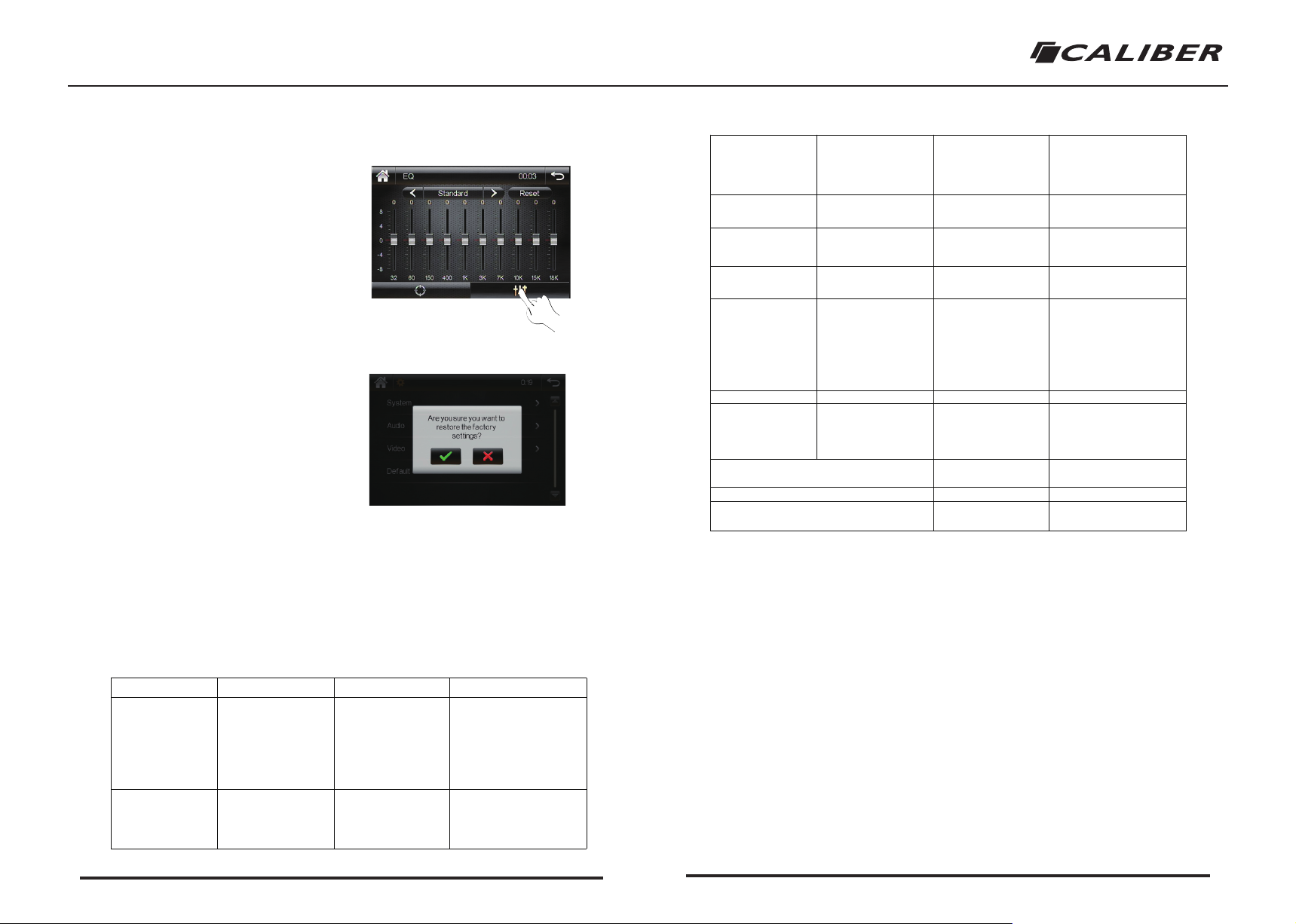

( 3) Audio setting
a). Sound field balance settings
In the sound setting interface, touch the icon to switch to the sound field settings interface.
b). Surround settings
Touch Concert, Wide, Church, Live or Passive to select the default surround effect for the system.
Touch icon to enter video setting interface for setting display effec of video played.
RESET
16
16
16
16
0
BRI
CON
HUE
SAT
SHA
Adjust
Adjust
: Brightness
: Contrast
: Hue
: Saturation
: Sharpness
1). Brightness
This is used to adjust the brightness of the pictures while playing the video.
2). Contrast
This is used to adjust the contrast of the pictures while playing the video.
3). Hue
This is used to adjust the hue of the pictures while playing the video.
4). Saturation
This is used to adjust the saturation of the pictures while playing the video.
b). Adjust settings
17 18
( 4) Video settings
a). Aspectraio settings
The default value is 16:9, in stead of 4:3 PS options, the left and right margins of the picture
will be cut while playing wide screen video,in stead of 4:3LB options, there will be a black
border on the top and the bottom while playing wide screen video.
k

5). Sharpness
This is used to adjust the sharpness of the pictures while playing the video.
19
( 6) Default(
Switch to audio settings interface
Switch to sound field b
20
14 . Audio/video support format list
This list only state that this unit support such kind of format, it doesn’t state that all of the
files can be supported, only for reference.
C on t a i n er V i d eo C od ec A u d i o C od ec R esol u t i on
AVI
MP4V Dolby Digital(AC3)
720*480/576(30fps)
(.avi/.divx)
DIVX3.xx/4.xx/5.xx/6.xx WMA/PCM/LPCM
Xvid AAC-LC(2ch)
MPEG 1- MPEG-Audio
(MP1/MP2/MP3)
MPEG 1/MPEG 2
MPG
--
Dolby Digital(AC3)
720*480/576(30fps)
(.mpg/.mpeg) LPCM/MPEG-Audio
(MP1/MP2/MP3)
C od ec u
factory settings, will shut down and restart,
when boot the h
b) W
res ore th sys em efa t
.
)a).a WhW en choose“√”thehostrestoresthe
te d ul
ost will restore the system
default settings.
hen choose “ X ” the host will cancel
settings.
DAT(.dat) MPEG-1/MPEG-2
Dolby /igital(AC3)
720*480/576(30fps)
LPCM/MPEG-Audio
(MP1/MP2/MP3)
FLV(.flv) H.264
LPCM/MP3 720*480/576
AAC-LC(2ch) (30fps)
RV8/9/10
RMVB COOK AAC-LC(2ch) 1280*720 (30fps)
Dolby
(.rm/.rmvb/.rmv/ra)
VOB(.vob) MPEG-1/MPEG-2
MP4V
MP4/MOV
Dolby Digital(AC3)
720*480/576(30fps)
(.mp4/.mov)
WMA/LPCM
AAC-LC(2ch)
MPEG-Audio
(MP1/MP2/MP3)
OGG Vorbis(.ogg) OGG
WMA
WMA Only
SupportWMA7 、WMA8 、WMA9
（CBR、VBR）(Only Support353)
Audio
MP3 16kbps~320kbps 8K~48KHz
WMA7 、WMA8 、WMA9（only CBR、VBR）16kbps~320kbps 8K~48KHz
(Only Support353 格式)
Digital(AC3)
Dolby Digital(AC3) 720*480/576(30fps)
、、
、
Bit Rate Sam Pling Rate

WWW.CALIBEREUROPE.COM
CALIBER EUROPE BV • Kortakker 10 • 4264 AE Veen • The Netherlands
