Caliber HFG 509BTN User manual

IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and
manufactured to ensure your personal safety. However, improper use can
result in potential electrical shock or fire hazards. Please read all safety
and operating instructions carefully before installation and use, and keep
these instructions handy for future reference. Take special note of all
warnings listed in these instructions and on the unit.
1. Water and Moisture
The unit should not be used near water. For example: near a bathtub,
washbowl, kitchen sink, laundry tub, swimming pool or in a set basement.
2. Ventilation
The unit should be situated so that its location or position does not
interfere with its proper ventilation. For example, it should not be situated
on a bed, sofa, rug or similar surface that may block the ventilation
openings. Also, it should not be placed in a built-in installation, such as a
bookcase or cabinet, which may impede the flow of air through the
ventilation openings.
3. Heat
The unit should be situated away from heat sources such as radiators,
heat registers, stoves or other appliances (including amplifiers) that
produce heat.
4. Power Source
The unit should be connected to a power supply only of the type described
in the operating instructions or as marked on the appliance.
5. Power Cord Protection
Power supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them. It is always
best to have a clear area from where the cord exits the unit to where it is
plugged into an AC wall outlet.

1
6. Cleaning
Clean only with dry cloth – The appliance should be cleaned only as
recommended by the manufacturer.
7. Object and Liquid Entry
Care should be taken so that objects do not fall and liquids are not spilled
into any openings or vents located on the product,
8. Attachments
Do not use attachments not recommended by the product manufacturer
9. Lightning and Power Surge Protection
Unplug the unit from the wall outlet. This will prevent damage to the
product due to lightning and power-line surges.
10. Overloading
Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire of electric shock.
11. Damage Requiring Service
This unit should be serviced by qualified service personnel when;
A. The power supply cord or plug has been damaged.
B. Objects have fallen into or liquid has been spilled into the enclosure.
C. The unit has been exposed to rain.
D. The unit has been dropped or the enclosure damaged,
E. The unit exhibits a marked change in performance or does not
operate normally.
12. Periods of Nonuse
If the unit is to be left unused for an extended period of time, such as a
month or longer, the power cord should be unplugged from the unit to
prevent damage or corrosion.

2
13. Servicing
The user should not attempt to service the unit beyond those methods
described in the user's operating instructions. Service methods not
covered in the operating instructions should be referred to qualified service
personnel.
14．WARNING :
- To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture. The apparatus shall not be exposed to dripping or
splashing and that objects filled with liquids, such as vases, shall not be
placed on apparatus.
- The mains plug is used as disconnect device, the disconnect device
shall remain readily operable.
- Batteries shall not be exposed to excessive heat such as sunshine, fire
or the like.
These symbols may be found on the device and shall indicate the
following:
The lightning symbol warns the user of dangerously high
voltages inside the case.
The exclamation mark symbol points to important instruction or
maintenance remarks in the accompanying guidelines.
CAUTION: Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.

3

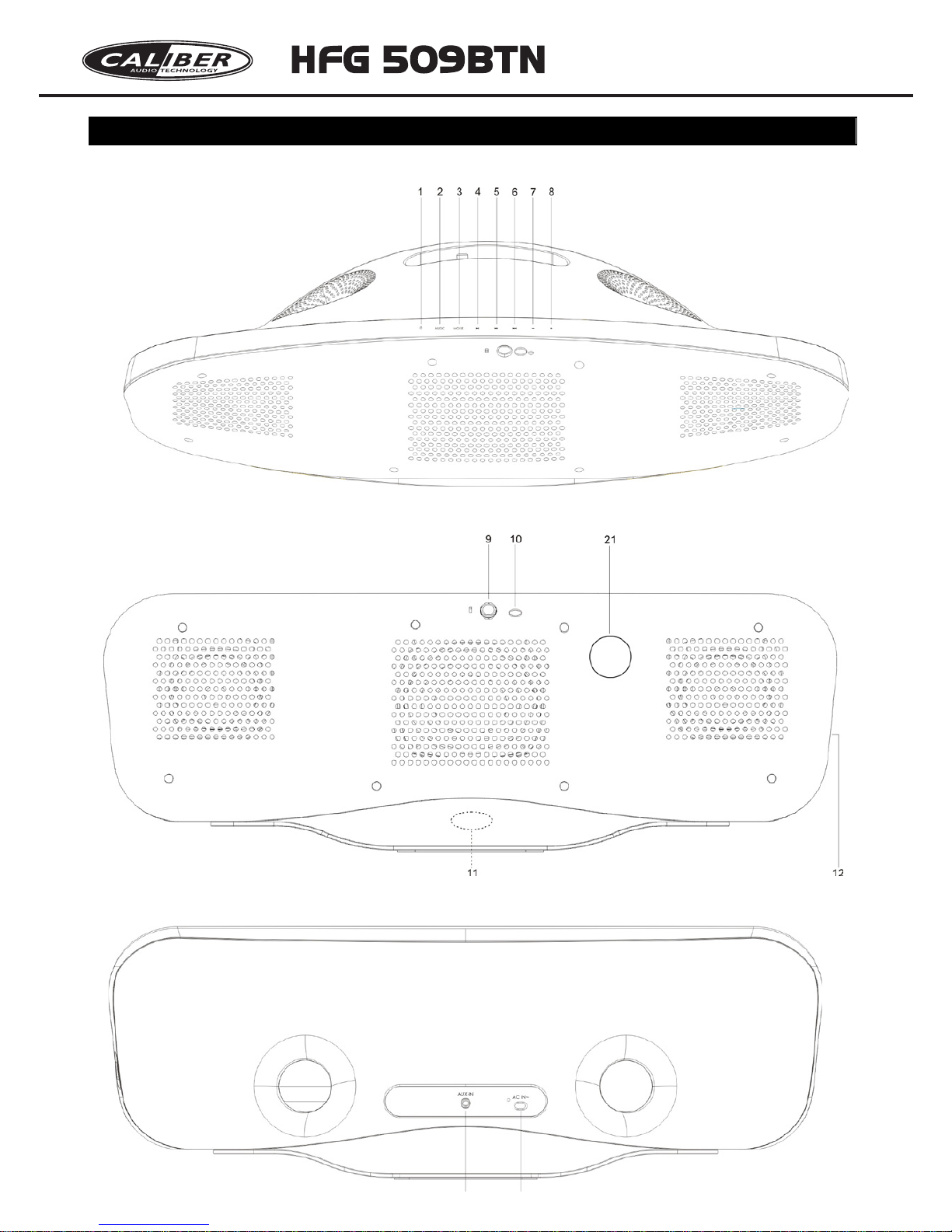

LOCATION OF CONTROLS
Top View
Front View
Back View

4
REMOTE CONTROL
1. Power On/Standby Button
Press to turn on/off the unit
2. MUSIC Button
Press to choose music mode
3. MOVIE Button
Press to choose movie surround mode
4. Play/Pause button
Press to play or pause the current track
When there is a phone call, press to answer or end call.
5. Button
Press once to return to the beginning of current track or previous track.
6. Button
Press once to advance to the next track.
7. -/ Button
Press to adjust volume level down.
8. +/▲Button
Press to adjust volume level up.
9. Remote Sensor
10. Microphone
11. Pilot Lamp

5
12. USB Port
13. AUX-IN JACK
14. AC Power Cord
15. Button
Press to hang up the phone
16. PAIR Button
Press and hold for 3 seconds to activate pairing mode.
If the speaker is already connected and you would like to connect to a
different device, press and hold for 3 seconds to break the current
connection and initiate pairing.
17. MUTE Button
Press to mute the sound
18. MODE Button
To select different play modes: Bluetooth/USB/Aux
19. Button
To search down during play
20. Button
To search up during play
21. NFC tab area

6
FIRST USE OF THE DEVICE/INTRODUCTION
Power Supply
This unit is designed to operate on AC 100-240V～50/60 Hz household
mains supply.
Power of Remote Control
To use the remote control, please ensure the remote control battery
CR2032 (included) is installed properly and take the insulation clarity
paper out.(Once you stop to use the remote control, please Insert in it
same as before). Replace the remote control battery when it stops
working. It is highly recommended to use a good quality button cell.
BATTERY NOTE AND CARE
!Danger of explosion if the battery is replaced incorrectly. Replace only
with the same type battery.
!Only use a good quality known brand battery to ensure the longest life
and best performance.
!If the remote is not to be used for an extended period of time, remove
the battery. An old or leaking battery can cause damage to the remote
and may void the warranty.
!Do not dispose of batteries in fire. Batteries may leak or explode.
!Do not try to recharge batteries that are not intended to be recharged;
they can overheat, rupture and leak (Follow battery manufacturer’s
directions).
GETTING STARTED
WARNING: Do not apply power to the unit until all of your connections are
made.
1. Plug the AC cord plug into a convenient AC wall outlet.
2. The Pilot lamp on the bottom of the unit will lights up in Red color. The
unit enters into STANDYBY Mode.
3. Press the power button turn on/off the unit.
4. Remove the AC cord out of the wall outlet if you want to switch off the
main voltage completely.

7
SPECIAL TIPS
Pilot lamp to show different play mode
Press the MODE Button during power on, the play mode will be changed
circularly from Bluetooth mode, USB mode, AUX-IN mode, meanwhile, the
Pilot lamp on the bottom of the unit will lights with different colors:
Blue for Bluetooth mode
Blue+ Green for USB mode
Green for Aux-in mode
PLAYBACK VIA BLUETOOTH
Bluetooth involves a technology for wireless radio connection of devices
over a short distance. Devices with Bluetooth standard are transmitting
between 2.402 and 2.480 GHz in the ISM band (Industrial, Scientific and
Medical). Interference can be caused for example by WLAN-networks,
DAB radios, cordless phones, or microwave ovens which work on the
same frequency band.
This device offers you the possibility to use a Bluetooth enabled device.
The functional radius is limited to approx.10 metres depending on the
surroundings and the unit used.
If your playing device supports the A2DP profile (Advanced Audio
Distribution Profile) and has a music-player function, then you can also
wirelessly transfer music to the device. The A2DP profile involves a
multi-vendor Bluetooth profile. By streaming, stereo-audio signals are
wirelessly transferred between the playing device (source) and the
receiving device.
Due to the different device manufacturers, models, and software versions,
a full functionality cannot be guaranteed.

8
Pair the Speaker using NFC (Near Field Communication)
With Near Field communication (NFC), you can easily pair and connect
this speaker to your compatible devices.
If the compatible device supports NFC, activate its NFC feature, and touch
the NFC area of the speaker (make sure that the speaker is in pairing
mode) with the NFC area of your device, the speaker connects to the
device automatically, the Blue color indicator on the speaker stops flashing
once pairing has been carried out successfully,.
For details on NFC, see the user guide of the device.
If the device does not support NFC, pair the speaker manually.
Pair the Speaker manually
Before you listen to music via the unit, you must pair the devices.
1. Ensure, that the Bluetooth function is activated in your player (e.g.
mobile phone). For this, refer to the operation manual of your player.
2. Press the MODE button repeatedly until the Pilot lamp changes to blue
to access to the Bluetooth mode. The blue color indicator flashes to show
that the unit is in pairing mode.
3. Choose the Bluetooth menu in your player and register the device in
your player. For this, refer to the operation manual of your player. The
device “HFG509BTN”will show in your player as a selection.
NOTE:
Only one playback unit can be connected to the speaker. If the speaker is
already connected to another playback unit, the speaker will not appear
in the BT selection menu.
4. If your device asks for a passkey (depending on the device
manufacturers, model, and software version), then enter digits “0000”
(four zeros) and press OK.
If pairing has been carried out successfully, the Blue color indicator stops
flashing.
For the further procedure, please refer to the user manual of the playback
unit. If possible, adjust the volume of the external unit to a comfortable
level.

9
NOTE:
�Depending on the device manufacturer, you need to perform the
registration (PAIRING) again to connect the devices
�The Bluetooth compatibility cannot be ensured for devices (e.g. mobile
phones) getting released in the future.
�To ensure an optimal connection, make sure that the battery of your
player is completely charged.
�Some of the mobile phone brands have an energy-saving mode.
Deactivate the energy-saving mode as it can otherwise result in
problems during the data transfer through Bluetooth.
�To be able to transfer audio data, Bluetooth needs to stay activated in
your player Observe the operation manual of your player.
�If a mobile phone on which you are playing music receives a call, the
music will be interrupted. The sound however is not played back via the
speaker. After you have ended the call, the devices are connected to
each other again and playback continues.
Using The Speaker as a Handfree Bluetooth Speakerphone
1. Link your cell phone to the speaker via Bluetooth as described above .
2. When receiving an incoming call on your cell phone , tap button on
the main unit or button on the remote to switch the incoming call
from cell phone to the speaker. A short beep sound will be heard
confirming the call was answered. Complete your call using the built-in
microphone and speaker.
3. Adjust the volume control of your cell phone to obtain the desired sound
level.
4. To end the call, press the button on the main unit or button on
the remote again, a short beep sound will be heard and the call will end.
If you were playing music from your cell phone to the speaker before
answering the call, the music will automatically resume playing when
you hang up.
5. To ignore an incoming call, simply press the button on the remote.

10
USB OPERATION
This device has been developed in line with the latest technical advances
in the USB filed. The wide range of different USB storage devices of all
types which are currently on the market, unfortunately do not allow us to
guarantee full compatibility with all USB storage devices. For this reason,
in rare cases there may be problems in playing back files from USB
storage devices. This is not a malfunction of the device.
1. Connect a USB storage device directly into the port to access to USB
mode, the Pilot lamp changes to Blue+Green color, The USB will start
playing automatically once the contents scanning is finished.
2. Press the + / - button on the speaker or on the remote to adjust to the
desired volume level.
3. To remove your USB device, simply stop the playback and gently
unplug it from the connector.
NOTE:
�Always directly connect a USB storage medium to the USB port to
prevent any malfunctions.
�The USB port is also designed for charging external devices except for
Apple devices.
�During USB mode, if you plug an audio cable into the unit, the play
mode will automatically change to AUX-IN mode.

11
OPERATING THE SPEAKER IN AUX-IN MODE
1. Press the power button to turn on the unit.
2. Connect an audio cable to the headphone or line-out jack of an audio
device and plug the other end into the Aux -in jack located on back of
the main unit, it will access to AUX-IN mode automatically, the Pilot
lamp changes to Green color
3. Turn audio device on and play this device.
4. Press the + / - button on the speaker or on the remote to raise/lower
the volume level, When finished, press the power button to turn off
the main unit. Remember to turn off the speakers and your audio
device, too.
Notes:
1). If you're connected to the Line out Jack of your external device, then
you only need to adjust the volume control of this speaker. If you're
connected to the Headphone Jack of your external device, then you may
need to adjust both the volume control of your external device and the
volume control of this unit to find the most desirable volume setting.
2). During AUX mode, if you plug a USB device into the unit, the play
mode will automatically change to USB mode.

12
TROUBLESHOOTING GUIDE
Should you experience difficulties in the use of this player, please refer to
the following chart.
Fault Cause Solution
Unit cannot be
operated.
Unit crashes and
“hangs”
Disconnect from the mains for around 5
seconds. Then switch the unit on again.
No audio signal
via the Bluetooth
connection
Speaker is not
paired to the audio
source.
Check whether a connection exists. If
necessary, pair the speaker again to
the audio source.
Volume too low
Increase the volume on the speaker
Increase the volume on the the audio
source.
Speaker cannot
be connected
Pairing does not
work
Check whether the audio source
supports the A2DP protocol
Audio source is
switched off Switch on the audio source
Bluetooth is
switched off at the
audio source.
Switch on the Bluetooth function in the
audio source.
Bluetooth version is
not supported. Use a different playback unit.
Poor sound
quality from a
Bluetooth®
device
Bluetooth device
is almost out of
range of the
HFG509BTN
Move your Bluetooth device
closer to the HFG509BTN
Remote control is
not functioning
properly.
Low battery. Replace the battery with correct type
CR2032
Remote Control
is not pointed
to ward the IR
window
Point the Remote Control to ward the
unit IR window, use with in 10 feet of
the unit.

13
SPECIFICATIONS
Power Supply
Power Input............................................................... 100-240V~50/60Hz
Power Consumption:..........................................................................50 W
Power of Remote control.............. 1 xDC 3V CR2032 button cell (included)
Protection class:.......................................................................................II
Net weight:.............................................................................approx. 3.8kg
Working Temperature ......................................................................0-45℃
Working Humidity........................................................................ 20%~80%
Bluetooth
Bluetooth support:...........................................................................V4.0
Range:..................................................................................upto 10 metres
Transmission frequency:................................................................2.4 GHz
Protocols:....................................................................................A2DP 1.2
The right to make technical and design modifications in the course of
continuous product development remains reserved.
