Califone PABT31 User manual

Model PABT31
Bluetooth Speaker
User Manual
NFC

PABT31 Bluetooth Speaker
Thank you for purchasing the Califone®Model PABT31 Bluetooth Speaker.
We encourage you to visit www.califone.com/registration to register
your product for its warranty coverage, to sign up to receive our
newsletter, download our catalog, and learn more about the
complete line of Califone®audio visual products, including portable
and installed wireless PA systems, multimedia players and recorders,
headphones and headsets, computer peripheral equipment, visual
presentation products and language learning materials.
Before operating the system, please read this guide thoroughly
and keep it for future reference.
Important Safety Instructions
1) Read and keep this manual.
2) Follow all instructions.
3) Clean only with soft and dry cloth.
4) Keep away from water.
Install instructions
1) Do not put the PABT31 close to any heat sources such
as radiators, heat registers, stoves, or other equipment
(including amplifiers).
2) Protect the power cord from being walked on or pinched.
3) Unplug it during lightning storms or when unused for
long periods of time.
1

Function of Parts
Important Safety Instructions
Before operating the system, please read this guide
thoroughly and keep it for future reference.
1) Do not put the device close to any heat sources such as radiators, heat
registers, stoves, or other equipment (including amplifiers) that generate
heat.
2) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
device.
3) Only use attachments/accessories specified by the manufacturer.
4) Unplugthis device during lightning storms or when unused for long
periods of time.
Install instructions
01
EM-78 Smart Audio System User Manual 02 EM-78 Smart Audio System User Manual
1) Read and retain this manual.
2) Follow all instructions of this manual.
3) Clean only with soft and dry cloth.
4) Keep water away this equipment.
6
1
2
3
4
5
6
7
8

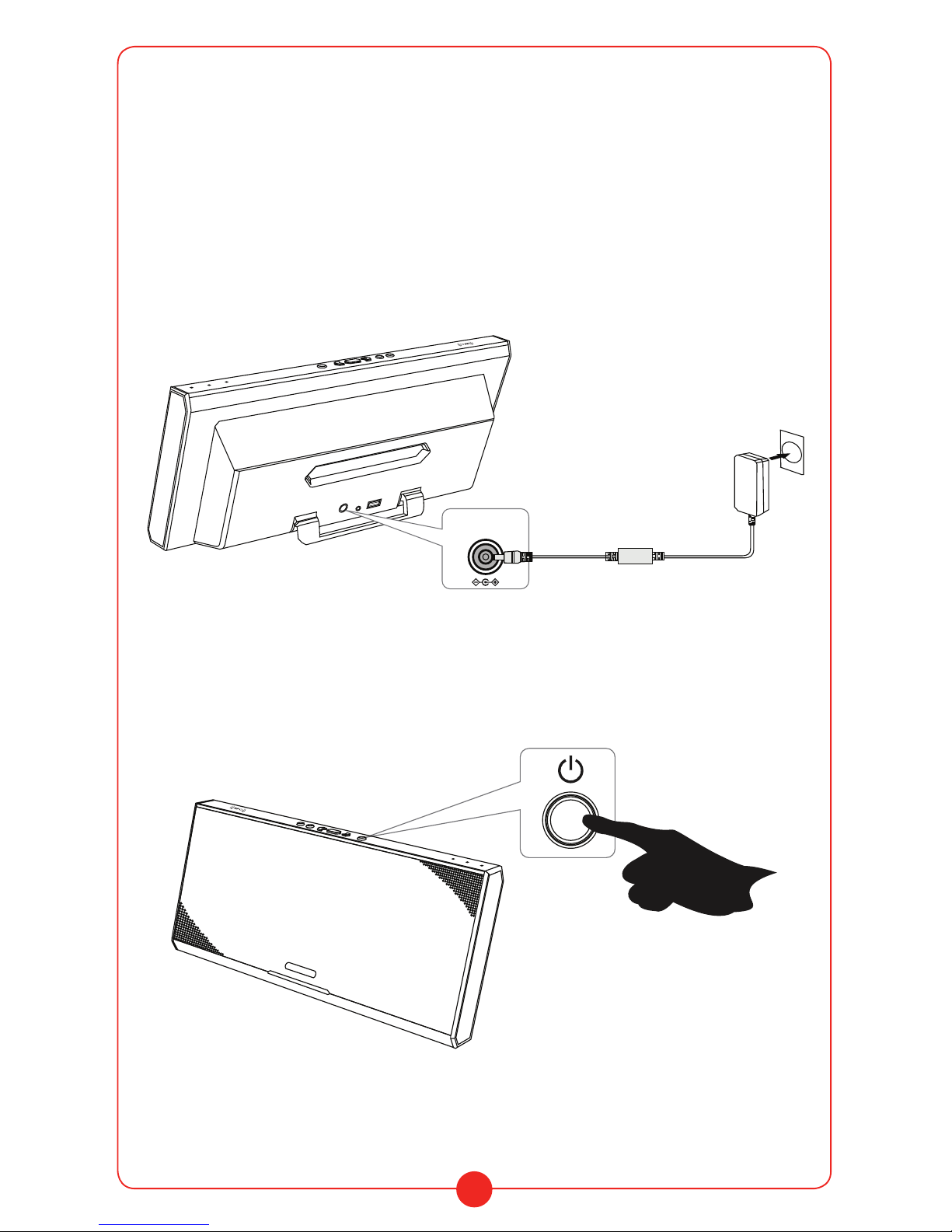

On/Off Button
Turns the system on/off.
EQ
BLUETOOTH-PAIRING button
Press one time to pair or disconnect with a Bluetooth device.
Call button �Pause/Play�
Press to call or operate during a call.
EQ button
Press to select a sound effect.
VOLUME -/+ buttons
Adjusts the volume.
N-mark
Touch to make Bluetooth connection with an NFC compatible
smartphone.
MIC (Microphone )
Use during a call.
BATTERY CHARGE indicator
Indications of bulit-in battery charge status:
Battery requires charging Flashes (red)
Charging battery Lights up (red)
Charging complete Off
Function of Parts
10 Illumination lamp (blue)
Lights up after system open
When pressing EQ button:
Flashes once to enter MEGA Bass effect
Flashes twice to enter Surround Sound effect
When pressing VOLUME buttons:
Flashes once when press once
Flashes stop when the volume reach the maximum or minimum
Note
please make sure there is no audio cable connected with Aux in
port before using Bluetooth. As Bluetooth is not workable when
audio cable connected
Long press 3 second to disconnect the present connected
Bluetooth device and re enter pairing mode
2
4
5
3
5
1
9
8
7
10
1. On/O Button
Turns the system on/o.
2. BLUETOOTH PAIRING button
Press one time to pair or disconnect
with a Bluetooth-enabled device.
Note
Please make sure there is no audio cable connected with Aux in port before using Bluetooth
since Bluetooth capability will not function when an audio cable is connected. “Long
press” for 3 seconds to disconnect a presently synced Bluetooth device and re enter the
pairing mode.
3. Call button Pause/Play
Press to call or operate during a call.
4. EQ button
Press to select a sound eect.
5. VOLUME −/+ buttons
Adjusts the volume.
6. NFC-mark
Touch to make the Bluetooth connection with an NFC-compatible device.
7. MIC (Microphone)
Use during a call.
8. Mode indicator (blue)
• Flashes slowly after the system is turned on
• Flashes quickly during Bluetooth searching
• Lights after making a Bluetooth connection
• Flashes slowly after Bluetooth is disconnected and on stand by
• Lights o in Aux-in mode
9. BATTERY CHARGE indicator
• Built-in battery charge status:
• Battery requires charging - flashes red
• Charging battery - lights red
• Charging complete - lights green
10. Illumination lamp (blue)
• Lights up after the system is turned on
• When pressing EQ button:
• Flashes once to enter “MEGA Bass” eect
• Flashes twice to enter “Surround Sound” eect
• When pressing VOLUME buttons:
• Flashes once when pressed once
• Flashing stops when the volume reaches maximum or minimum levels
Important Safety Instructions
Before operating the system, please read this guide
thoroughly and keep it for future reference.
1) Do not put the device close to any heat sources such as radiators, heat
registers, stoves, or other equipment (including amplifiers) that generate
heat.
2) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
device.
3) Only use attachments/accessories specified by the manufacturer.
4) Unplugthis device during lightning storms or when unused for long
periods of time.
Install instructions
01
EM-78 Smart Audio System User Manual 02 EM-78 Smart Audio System User Manual
1) Read and retain this manual.
2) Follow all instructions of this manual.
3) Clean only with soft and dry cloth.
4) Keep water away this equipment.
6
1
2
3
4
5
6
7
8
On/Off Button
Turns the system on/off.
EQ
BLUETOOTH-PAIRING button
Press one time to pair or disconnect with a Bluetooth device.
Call button �Pause/Play�
Press to call or operate during a call.
EQ button
Press to select a sound effect.
VOLUME -/+ buttons
Adjusts the volume.
N-mark
Touch to make Bluetooth connection with an NFC compatible
smartphone.
MIC (Microphone )
Use during a call.
BATTERY CHARGE indicator
Indications of bulit-in battery charge status:
Battery requires charging Flashes (red)
Charging battery Lights up (red)
Charging complete Off
Function of Parts
10 Illumination lamp (blue)
Lights up after system open
When pressing EQ button:
Flashes once to enter MEGA Bass effect
Flashes twice to enter Surround Sound effect
When pressing VOLUME buttons:
Flashes once when press once
Flashes stop when the volume reach the maximum or minimum
Note
please make sure there is no audio cable connected with Aux in
port before using Bluetooth. As Bluetooth is not workable when
audio cable connected
Long press 3 second to disconnect the present connected
Bluetooth device and re enter pairing mode
2
4
5
3
5
1
9
8
7
10
Important Safety Instructions
Before operating the system, please read this guide
thoroughly and keep it for future reference.
1) Do not put the device close to any heat sources such as radiators, heat
registers, stoves, or other equipment (including amplifiers) that generate
heat.
2) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
device.
3) Only use attachments/accessories specified by the manufacturer.
4) Unplugthis device during lightning storms or when unused for long
periods of time.
Install instructions
01
EM-78 Smart Audio System User Manual 02 EM-78 Smart Audio System User Manual
1) Read and retain this manual.
2) Follow all instructions of this manual.
3) Clean only with soft and dry cloth.
4) Keep water away this equipment.
6
1
2
3
4
5
6
7
8
On/Off Button
Turns the system on/off.
EQ
BLUETOOTH-PAIRING button
Press one time to pair or disconnect with a Bluetooth device.
Call button �Pause/Play�
Press to call or operate during a call.
EQ button
Press to select a sound effect.
VOLUME -/+ buttons
Adjusts the volume.
N-mark
Touch to make Bluetooth connection with an NFC compatible
smartphone.
MIC (Microphone )
Use during a call.
BATTERY CHARGE indicator
Indications of bulit-in battery charge status:
Battery requires charging Flashes (red)
Charging battery Lights up (red)
Charging complete Off
Function of Parts
10 Illumination lamp (blue)
Lights up after system open
When pressing EQ button:
Flashes once to enter MEGA Bass effect
Flashes twice to enter Surround Sound effect
When pressing VOLUME buttons:
Flashes once when press once
Flashes stop when the volume reach the maximum or minimum
Note
please make sure there is no audio cable connected with Aux in
port before using Bluetooth. As Bluetooth is not workable when
audio cable connected
Long press 3 second to disconnect the present connected
Bluetooth device and re enter pairing mode
2
4
5
3
5
1
9
8
7
10
Important Safety Instructions
Before operating the system, please read this guide
thoroughly and keep it for future reference.
1) Do not put the device close to any heat sources such as radiators, heat
registers, stoves, or other equipment (including amplifiers) that generate
heat.
2) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
device.
3) Only use attachments/accessories specified by the manufacturer.
4) Unplugthis device during lightning storms or when unused for long
periods of time.
Install instructions
01
EM-78 Smart Audio System User Manual 02 EM-78 Smart Audio System User Manual
1) Read and retain this manual.
2) Follow all instructions of this manual.
3) Clean only with soft and dry cloth.
4) Keep water away this equipment.
6
1
2
3
4
5
6
7
8
On/Off Button
Turns the system on/off.
EQ
BLUETOOTH-PAIRING button
Press one time to pair or disconnect with a Bluetooth device.
Call button �Pause/Play�
Press to call or operate during a call.
EQ button
Press to select a sound effect.
VOLUME -/+ buttons
Adjusts the volume.
N-mark
Touch to make Bluetooth connection with an NFC compatible
smartphone.
MIC (Microphone )
Use during a call.
BATTERY CHARGE indicator
Indications of bulit-in battery charge status:
Battery requires charging Flashes (red)
Charging battery Lights up (red)
Charging complete Off
Function of Parts
10 Illumination lamp (blue)
Lights up after system open
When pressing EQ button:
Flashes once to enter MEGA Bass effect
Flashes twice to enter Surround Sound effect
When pressing VOLUME buttons:
Flashes once when press once
Flashes stop when the volume reach the maximum or minimum
Note
please make sure there is no audio cable connected with Aux in
port before using Bluetooth. As Bluetooth is not workable when
audio cable connected
Long press 3 second to disconnect the present connected
Bluetooth device and re enter pairing mode
2
4
5
3
5
1
9
8
7
10
Important Safety Instructions
Before operating the system, please read this guide
thoroughly and keep it for future reference.
1) Do not put the device close to any heat sources such as radiators, heat
registers, stoves, or other equipment (including amplifiers) that generate
heat.
2) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
device.
3) Only use attachments/accessories specified by the manufacturer.
4) Unplugthis device during lightning storms or when unused for long
periods of time.
Install instructions
01
EM-78 Smart Audio System User Manual 02 EM-78 Smart Audio System User Manual
1) Read and retain this manual.
2) Follow all instructions of this manual.
3) Clean only with soft and dry cloth.
4) Keep water away this equipment.
6
1
2
3
4
5
6
7
8
On/Off Button
Turns the system on/off.
EQ
BLUETOOTH-PAIRING button
Press one time to pair or disconnect with a Bluetooth device.
Call button �Pause/Play�
Press to call or operate during a call.
EQ button
Press to select a sound effect.
VOLUME -/+ buttons
Adjusts the volume.
N-mark
Touch to make Bluetooth connection with an NFC compatible
smartphone.
MIC (Microphone )
Use during a call.
BATTERY CHARGE indicator
Indications of bulit-in battery charge status:
Battery requires charging Flashes (red)
Charging battery Lights up (red)
Charging complete Off
Function of Parts
10 Illumination lamp (blue)
Lights up after system open
When pressing EQ button:
Flashes once to enter MEGA Bass effect
Flashes twice to enter Surround Sound effect
When pressing VOLUME buttons:
Flashes once when press once
Flashes stop when the volume reach the maximum or minimum
Note
please make sure there is no audio cable connected with Aux in
port before using Bluetooth. As Bluetooth is not workable when
audio cable connected
Long press 3 second to disconnect the present connected
Bluetooth device and re enter pairing mode
2
4
5
3
5
1
9
8
7
10
Important Safety Instructions
Before operating the system, please read this guide
thoroughly and keep it for future reference.
1) Do not put the device close to any heat sources such as radiators, heat
registers, stoves, or other equipment (including amplifiers) that generate
heat.
2) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
device.
3) Only use attachments/accessories specified by the manufacturer.
4) Unplugthis device during lightning storms or when unused for long
periods of time.
Install instructions
01
EM-78 Smart Audio System User Manual 02 EM-78 Smart Audio System User Manual
1) Read and retain this manual.
2) Follow all instructions of this manual.
3) Clean only with soft and dry cloth.
4) Keep water away this equipment.
6
1
2
3
4
5
6
7
8
On/Off Button
Turns the system on/off.
EQ
BLUETOOTH-PAIRING button
Press one time to pair or disconnect with a Bluetooth device.
Call button �Pause/Play�
Press to call or operate during a call.
EQ button
Press to select a sound effect.
VOLUME -/+ buttons
Adjusts the volume.
N-mark
Touch to make Bluetooth connection with an NFC compatible
smartphone.
MIC (Microphone )
Use during a call.
BATTERY CHARGE indicator
Indications of bulit-in battery charge status:
Battery requires charging Flashes (red)
Charging battery Lights up (red)
Charging complete Off
Function of Parts
10 Illumination lamp (blue)
Lights up after system open
When pressing EQ button:
Flashes once to enter MEGA Bass effect
Flashes twice to enter Surround Sound effect
When pressing VOLUME buttons:
Flashes once when press once
Flashes stop when the volume reach the maximum or minimum
Note
please make sure there is no audio cable connected with Aux in
port before using Bluetooth. As Bluetooth is not workable when
audio cable connected
Long press 3 second to disconnect the present connected
Bluetooth device and re enter pairing mode
2
4
5
3
5
1
9
8
7
10
Important Safety Instructions
Before operating the system, please read this guide
thoroughly and keep it for future reference.
1) Do not put the device close to any heat sources such as radiators, heat
registers, stoves, or other equipment (including amplifiers) that generate
heat.
2) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
device.
3) Only use attachments/accessories specified by the manufacturer.
4) Unplugthis device during lightning storms or when unused for long
periods of time.
Install instructions
01
EM-78 Smart Audio System User Manual 02 EM-78 Smart Audio System User Manual
1) Read and retain this manual.
2) Follow all instructions of this manual.
3) Clean only with soft and dry cloth.
4) Keep water away this equipment.
6
1
2
3
4
5
6
7
8
On/Off Button
Turns the system on/off.
EQ
BLUETOOTH-PAIRING button
Press one time to pair or disconnect with a Bluetooth device.
Call button �Pause/Play�
Press to call or operate during a call.
EQ button
Press to select a sound effect.
VOLUME -/+ buttons
Adjusts the volume.
N-mark
Touch to make Bluetooth connection with an NFC compatible
smartphone.
MIC (Microphone )
Use during a call.
BATTERY CHARGE indicator
Indications of bulit-in battery charge status:
Battery requires charging Flashes (red)
Charging battery Lights up (red)
Charging complete Off
Function of Parts
10 Illumination lamp (blue)
Lights up after system open
When pressing EQ button:
Flashes once to enter MEGA Bass effect
Flashes twice to enter Surround Sound effect
When pressing VOLUME buttons:
Flashes once when press once
Flashes stop when the volume reach the maximum or minimum
Note
please make sure there is no audio cable connected with Aux in
port before using Bluetooth. As Bluetooth is not workable when
audio cable connected
Long press 3 second to disconnect the present connected
Bluetooth device and re enter pairing mode
2
4
5
3
5
1
9
8
7
10
Important Safety Instructions
Before operating the system, please read this guide
thoroughly and keep it for future reference.
1) Do not put the device close to any heat sources such as radiators, heat
registers, stoves, or other equipment (including amplifiers) that generate
heat.
2) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
device.
3) Only use attachments/accessories specified by the manufacturer.
4) Unplugthis device during lightning storms or when unused for long
periods of time.
Install instructions
01
EM-78 Smart Audio System User Manual 02 EM-78 Smart Audio System User Manual
1) Read and retain this manual.
2) Follow all instructions of this manual.
3) Clean only with soft and dry cloth.
4) Keep water away this equipment.
6
1
2
3
4
5
6
7
8
On/Off Button
Turns the system on/off.
EQ
BLUETOOTH-PAIRING button
Press one time to pair or disconnect with a Bluetooth device.
Call button �Pause/Play�
Press to call or operate during a call.
EQ button
Press to select a sound effect.
VOLUME -/+ buttons
Adjusts the volume.
N-mark
Touch to make Bluetooth connection with an NFC compatible
smartphone.
MIC (Microphone )
Use during a call.
BATTERY CHARGE indicator
Indications of bulit-in battery charge status:
Battery requires charging Flashes (red)
Charging battery Lights up (red)
Charging complete Off
Function of Parts
10 Illumination lamp (blue)
Lights up after system open
When pressing EQ button:
Flashes once to enter MEGA Bass effect
Flashes twice to enter Surround Sound effect
When pressing VOLUME buttons:
Flashes once when press once
Flashes stop when the volume reach the maximum or minimum
Note
please make sure there is no audio cable connected with Aux in
port before using Bluetooth. As Bluetooth is not workable when
audio cable connected
Long press 3 second to disconnect the present connected
Bluetooth device and re enter pairing mode
2
4
5
3
5
1
9
8
7
10
2
NFC

11. Back stand
Open the built-in stand for it to function as a support.
12. DC IN 18V jack
Connects the supplied AC adaptor.
13. AUX IN jack
Connects to the headphone jack from another audio device or computer with a
3.5mm audio cable
14. DC OUT ONLY (USB)
Charges devices, such as a smartphone by connecting to the DC OUT
ONLY connector (USB connector).
Bluetooth profiles of the system: V 4.0
Maximum communication range
Use Bluetooth devices within 30’ (line of sight) of the PABT31.
Maximum Reception Range may shorten under the following conditions.
• If there is a wall or obstacle such as people between the PABT31
and synced Bluetooth device.
• An operating microwave oven is nearby.
• If a nearby wireless LAN device is in use.
• Any nearby devices which generate electromagnetic radiation.
Interference with other devices
Microwaves emitting from a Bluetooth device can aect the operation of electronic
medical devices. Turn o the PABT31 and other Bluetooth devices in the following
locations, as it may cause an accident.
3
03 04
EM-78 Smart Audio System User Manual EM-78 Smart Audio System User Manual
11
12
13
14
13
14
Back stand
Open the back stand which functions as a support while
using the system.
DC IN 18V jack
Connects the supplied AC adaptor.
AUX IN jack
Connects to the headphone jack of a portable audio device,
computer, etc., using a connecting 3.5mm audio Cable
DC OUT ONLY (USB)
Charges devices, such as your smartphone, etc.
by connecting to the DC OUT ONLY connector (USB connector).
11
12
Bluetooth profiles of the system: V 4.0
Bluetooth Specification.
Maximum communication range
Use Bluetooth devices within 10 m (line of sight) of the system.
Maximum Reception Range may shorten under the following cases.
There is a wall and big obstacle such as persons between the system and
Bluetooth device.
Microwave oven is in use near the system.
Wireless LAN device is in use nearby the system.
Any devices that generates electromagnetic radiation is in use near the
system.
Interference to other devices
Microwaves emitting from a Bluetooth device may affect the operation of
electronic medical devices. Turn off the system and other Bluetooth devices
in the following locations, as it may cause an accident.
Where inflammable gas is present, in a hospital, train, airplane, or a gas
station near automatic doors or a fire alarm
Charging the system
This system can operate by AC adaptor or built-in lithium-ion battery
(rechargeable). Charge the battery before using the system for the first time.
Charge the battery at least twice a year.
Connect the supplied AC adaptor.
The BATTERY CHARGE indicator (red) lights up when the battery is being
charged, and turns off when charging is complete. It takes approximately 6
hours to charge the empty battery.
Notes
When the BATTERY CHARGE indicator flashes as below, charge the
system. In these cases, you cannot charge devices via the DC OUT ONLY
connector.
Flashes (red) (Battery power is low), the indicator then turns off after turning
DC IN 18V
18V

4
03 04
EM-78 Smart Audio System User Manual EM-78 Smart Audio System User Manual
11
12
13
14
13
14
Back stand
Open the back stand which functions as a support while
using the system.
DC IN 18V jack
Connects the supplied AC adaptor.
AUX IN jack
Connects to the headphone jack of a portable audio device,
computer, etc., using a connecting 3.5mm audio Cable
DC OUT ONLY (USB)
Charges devices, such as your smartphone, etc.
by connecting to the DC OUT ONLY connector (USB connector).
11
12
Bluetooth profiles of the system: V 4.0
Bluetooth Specification.
Maximum communication range
Use Bluetooth devices within 10 m (line of sight) of the system.
Maximum Reception Range may shorten under the following cases.
There is a wall and big obstacle such as persons between the system and
Bluetooth device.
Microwave oven is in use near the system.
Wireless LAN device is in use nearby the system.
Any devices that generates electromagnetic radiation is in use near the
system.
Interference to other devices
Microwaves emitting from a Bluetooth device may affect the operation of
electronic medical devices. Turn off the system and other Bluetooth devices
in the following locations, as it may cause an accident.
Where inflammable gas is present, in a hospital, train, airplane, or a gas
station near automatic doors or a fire alarm
Charging the system
This system can operate by AC adaptor or built-in lithium-ion battery
(rechargeable). Charge the battery before using the system for the first time.
Charge the battery at least twice a year.
Connect the supplied AC adaptor.
The BATTERY CHARGE indicator (red) lights up when the battery is being
charged, and turns off when charging is complete. It takes approximately 6
hours to charge the empty battery.
Notes
When the BATTERY CHARGE indicator flashes as below, charge the
system. In these cases, you cannot charge devices via the DC OUT ONLY
connector.
Flashes (red) (Battery power is low), the indicator then turns off after turning
DC IN 18V
18V
Charging the system
This system can operate by AC adaptor or built-in lithium-ion battery (rechargeable).
Charge the battery before using the system for the first time. Charge the battery
at least twice a year.
Connect the supplied AC adaptor.
The BATTERY CHARGE indicator (red) will light up when the battery is charging and
turns green when charging is complete. It takes approximately 6 hours to charge an
empty battery.
Notes
Charge the system when the BATTERY CHARGE indicator flashes (as below). When
this occurs, you cannot charge devices via the DC OUT ONLY connector. Flashes
(red) (Battery power is low), the indicator then turns o after turning on the system
if no battery power remains.
Turning the System On /O
Turning the System on /o
05 06
EM-78 Smart Audio System User Manual EM-78 Smart Audio System User Manual
Turning the System On /Off
Turning the System on /off
You can use the system by battery instead of the AC adaptor by charging the
system before use.
How to Make Wireless Connection with
Bluetooth Devices
You can enjoy music and hands-free calling with the system wirelessly by
using your device’s Bluetooth function. Three connection methods as
following :
First time to pair with a Bluetooth device: see Option A
Bluetooth devices need to be “paired” with each other beforehand.
Connecting with a paired device: see Option B
To listen to music with a Bluetooth device that has been paired, see this
option
One touch connection with a smartphone (NFC): see Option C
Using an NFC compatible smartphone to establish a Bluetooth connection
by just touching the system with it.
Check the following before operating the system.
The system is connected to the AC adaptor, or the battery is sufficiently
charged. Please make sure there is no audio cable connected with Aux in
port before using Bluetooth. As Bluetooth is not workable when audio cable
connected
Option A
First time to Pair and connect with a Bluetooth device
1Open Bluetooth function of the Bluetooth device (such as smartphone)
2 Turn on the system by press on/off button, the mode indicator flash slowly
3 Short Press the Bluetooth Pairing button, the mode indicator will flashes
quickly enter pairing mode(no matter there is audio cable connected or not)
4 Perform the pairing procedure on the Bluetooth device to detect the
system.
5 Select “EM-78” shown in the display of the Bluetooth device.
If “EM-78” does not appear on the device’s display, repeat from step 2.
Notes
Pairing mode of the system is cancelled after about 3 minutes, and the Mode
indicator (blue) flashes slowly. If the pairing mode is cancelled while
performing this procedure, start over from step 2.
Once Bluetooth devices are paired, there is no need to pair those devices
again. However, in the following case, you will need to perform the pairing
procedure again.
The system can be paired with up to 8 Bluetooth devices. If a new device is
paired after 8 devices have been paired, the device whose latest connection
time is the oldest among the 8 paired devices is replaced by the new one.
You can use the
system by battery
instead of the AC
adaptor by charging
the system before use.
