caligri AIRTUBE User manual

MANUAL
FAQ & VIDEO
SUPPORT.CALIGRI.COM
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO

INDEX
*WE RECOMMEND SETTING UP
THE AIRTUBE WITH TWO PEOPLE
> 1.2M / 4FT*
TIP
• PACKAGE CONTENTS
• USAGE EXAMPLE
• AIRTUBE DIAGRAM
• INTENDED USE
• MAINTENANCE
• SAFETY INSTRUCTIONS
• INSTALLATION
• ADDITIONAL ACCESSORIES

AIRTUBEBAG MANUAL
VELCRO SLEEVE CARDBOARD
TUBE

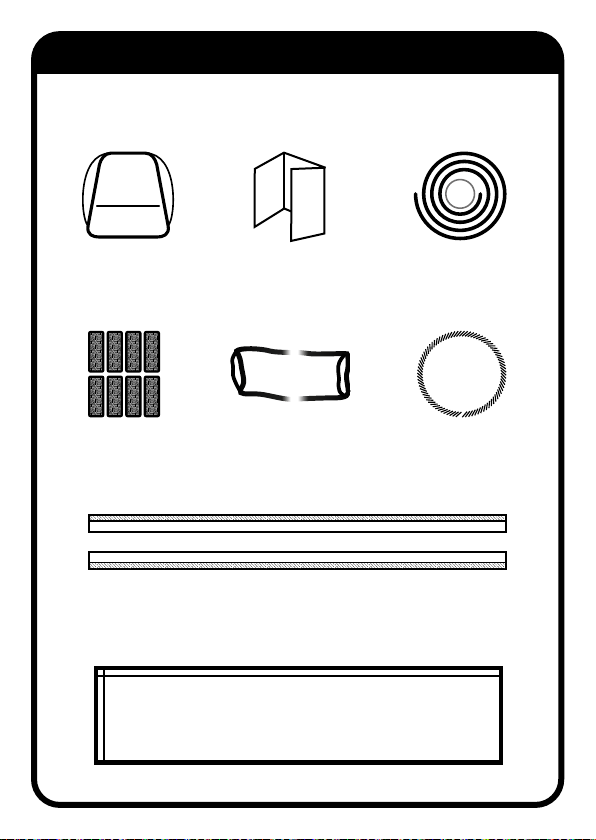

PACKAGE CONTENTS
SPILL LIGHT COVER
2X SKIRT
EN

USAGE EXAMPLE
LED TUBE
FOR EXAMPLE, ASTERA
VELCRO
STRAP
TIP
A LARGE VARIETY OF LED TUBES CAN BE
USED AS SINGLE OR DOUBLE FIXTURE

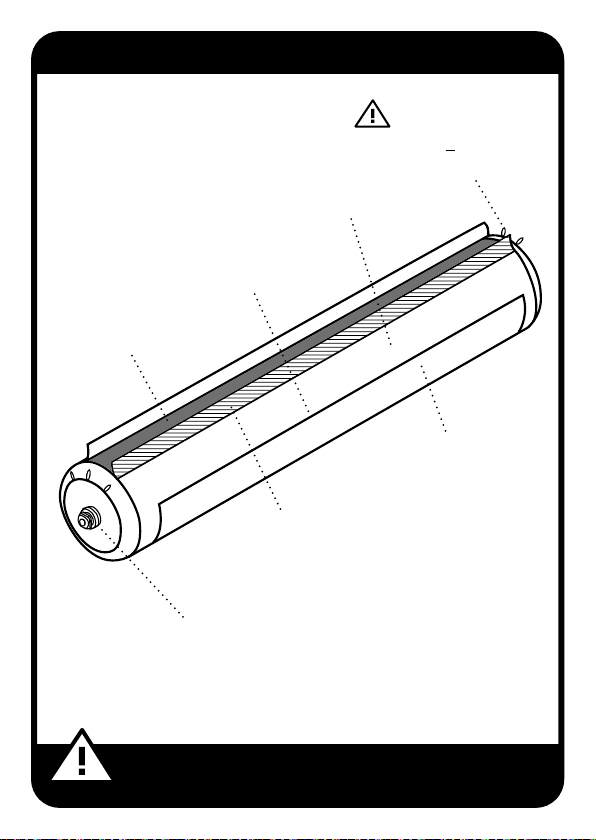

AIRTUBE DIAGRAM
VALVE
VELCRO
BAND
LOOPS
OPENING
FOLDING
SEAM
MAX 4 KG / 9 LBS
PER SIDE
MAGIC CLOTH®
EN
SMALL RING: INFLATE
LARGE RING: DEFLATE
ULTRABOUNCE®
MAX . AMBIENT TEMPERATURE +45°C / 113°F
MAX . SURFACE TEMPERATURE +85°C / 185°F

INTENDED USE
THIS PRODUCT IS AN ACCESSORY FOR
MANY TYPES AND SIZES OF LED TUBES
USED IN THE PROFESSIONAL FILM AND TV
INDUSTRY.
THE PRODUCT IS MOUNTED IN FRONT OF
LED TUBE(S) AND INFLATED IN ORDER TO
ENLARGE THE LIGHT APERTURE. OTHER
CALIGRI®ACCESSORIES CAN BE ATTACHED
TO IT SECURELY.
ALWAYS FOLLOW THE SAFETY
INFORMATION.
ANY USAGE OTHER THAN DESCRIBED
ABOVE CAN DAMAGE THE PRODUCT.
DO NOT MODIFY THE PRODUCT.
MAINTENANCE
INSPECT THE PRODUCT REGULARLY FOR
VISIBLE DAMAGE.
DO NOT USE A PRODUCT WITH A DEFECTIVE
COMPONENT.
ALWAYS USE THE PROTECTIVE SLEEVE AND
CARDBOARD ROLL.

SAFETY INSTRUCTIONS
BEFORE FIRST USE, PLEASE READ ALL
INSTRUCTIONS PROVIDED WITH THE
PRODUCT. THE INSTRUCTIONS CONTAIN
IMPORTANT INFORMATION FOR SAFE
HANDLING.
PLEASE KEEP ALL INSTRUCTIONS PROVIDED
WITH THE PRODUCT FOR POSSIBLE
SUBSEQUENT OWNERS. THE USER MUST BE
QUALIFIED FOR THE APPROPRIATE USE OF
THE PRODUCT.
USE THE PRODUCT IN ACCORDANCE WITH
REGULATIONS.
ATTACH YOUR SAFETY CABLE TO A LOOP
OF THE AIRTUBE. ATTACH YOUR LIGHT
FIXTURE IN ACCORDANCE TO THE LIGHT
FIXTURE INSTRUCTION.
DO NOT USE AGGRESSIVE CLEANING
AGENTS.
BE AWARE OF INCREASED HEATING OF
YOUR LIGHT FIXTURE WHILE BEING
OPERATED WITH AN AIRTUBE.
CALIGRI®GMBH IS NOT LIABLE FOR DAMAGE
CAUSED BY IMPROPER USE OR INCORRECT
OPERATION OF THE PRODUCT.
EN

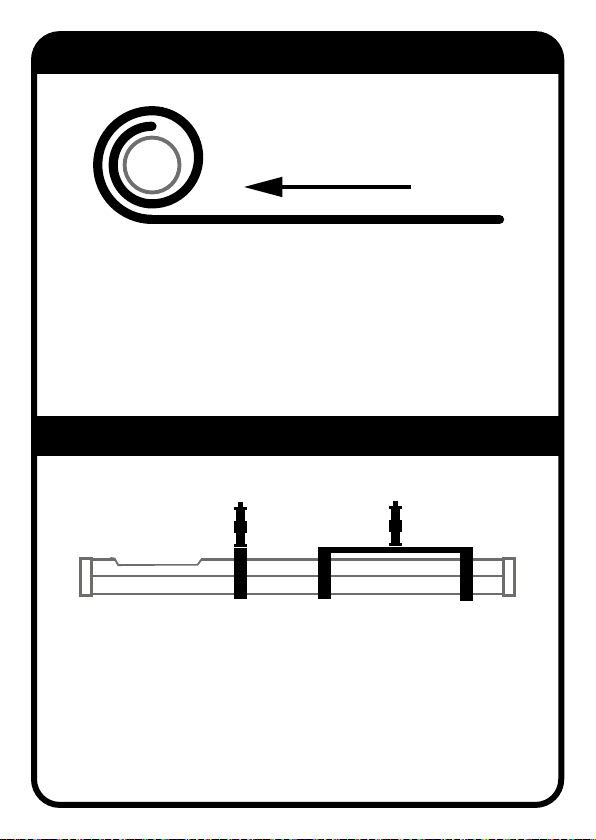

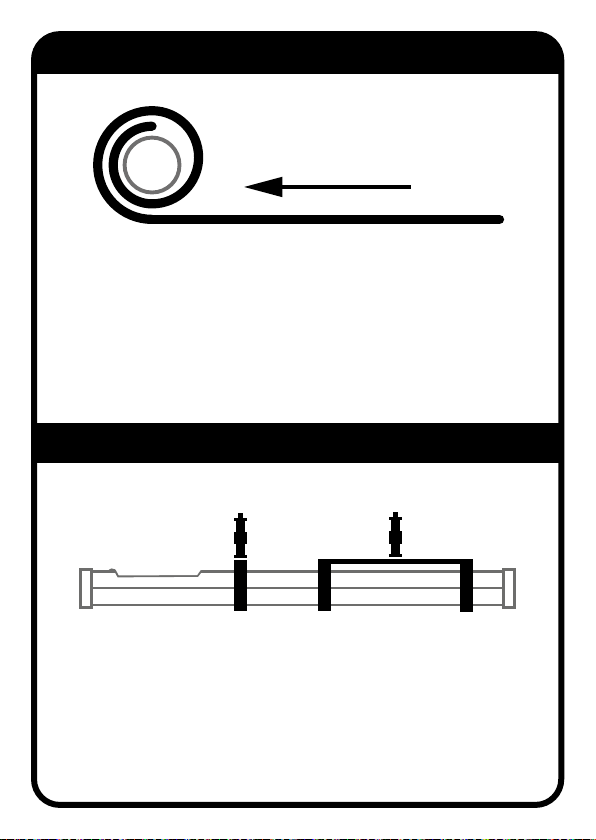

1UNROLL
UNROLL THE AIRTUBE FROM
THE CARDBOARD ROLL
REMOVE THE PROTECTIVE SLEEVE
AND PLACE THE AIRTUBE ON IT
2PREPARATION
IF NECESSARY, ATTACH YOUR
LED TUBE MOUNTINGS FIRST

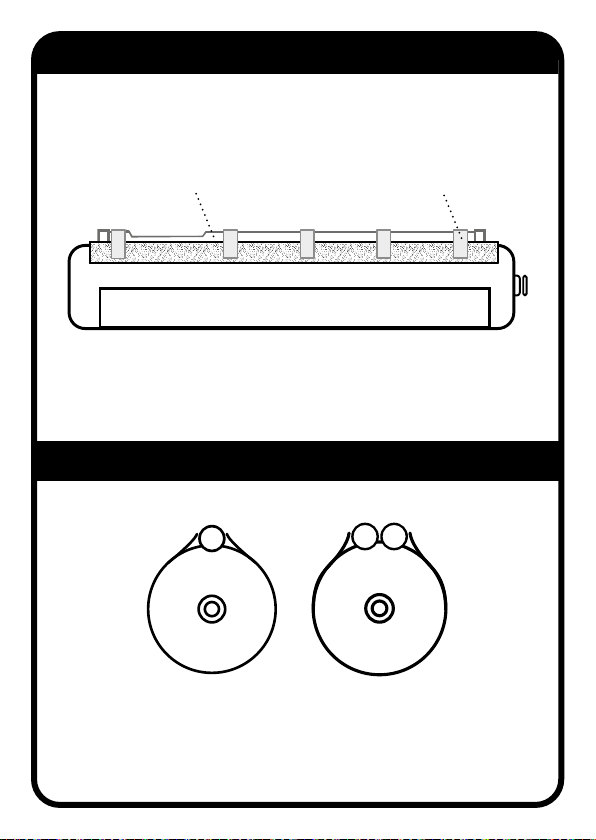

3LED MOUNTING
PLACE THE LED TUBE(S) ON THE DEFLATED
AIRTUBE OR ATTACH IT TO PRE-RIGGED LED
LIGHT FIXTURES AND FASTEN IT
WITH THE PROVIDED VELCRO STRAPS
4INFLATION
OPEN THE SMALLER RING AND
INFLATE THE AIRTUBE SLOWLY
KEEP AIR PRESSURE IN MIND
WHEN USING AN AIR PUMP
EN
max. 0,05 bar / 0,72 pSI

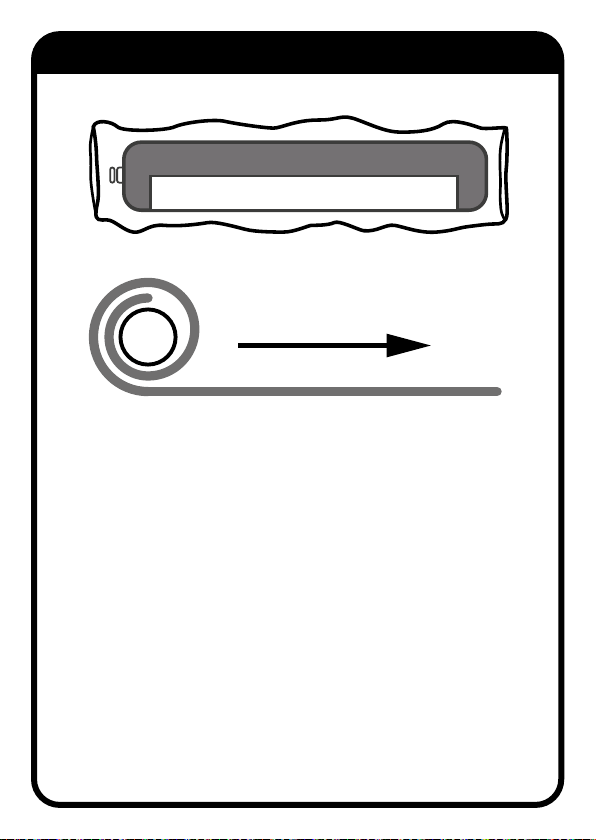

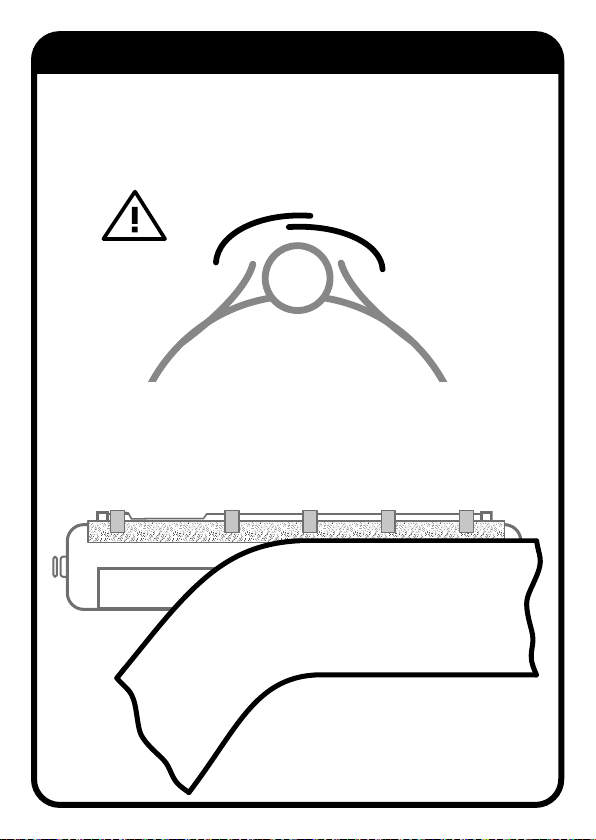

5DEFLATION AND WRAPPING
REMOVE THE LED FIXTURE(S) AND PLACE
THE STILL INFLATED AIRTUBE INTO THE
PROTECTIVE SLEEVE
OPEN THE VALVE BY OPENING
THE LARGER OF THE TWO RINGS
DO NOT FORCE THE DEFLATION PROCESS
FOLD THE AIRTUBE ONLY ALONG
THE FOLDING SEAM TO PREVENT
DIRT AND CREASES
