cam PFF Series User manual

Flexibility & experience
Pallet forks frame
PFF-series
Operating manual
Original
operating manual
01/2022 – V01
from serial n° 001

2/28
© 01-2022. CAM attachments is a trademark of TVH Parts Holding NV, Brabantstraat 15, B-8790 Waregem. All rights reserved. No part of this publication may
be reproduced or communicated in any form or by any means, electronic or mechanical, including copying, recording or use in an information storage
or retrieval system, without prior and explicit permission of TVH Parts Holding NV. Printing errors reserved. Photographs and illustrations are included for
reference purposes only.
Responsible editor: TVH Parts Holding NV, Brabantstraat 15, BE-8790Waregem
TVH is a supplier of after-market spare parts and accessories that are suitable for the maintenance and repair of OEM equipment.

3/28
www.tvh.com/pffrv01
BG Bulgarian Можете да намерите това ръководство на Вашия език чрез линка, посочен по – долу.
CS Czech Tento návod najdete ve svém jazyce prostřednictvím odkazu níže.
DA Danish Du kan finde denne vejledning på dit sprog via nedenstående link.
DE German Sie finden diese Bedienungsanleitung in Ihrer Sprache unter folgendem Link.
EL Greek Μπορείτε να βρείτε αυτό το εγχειρίδιο στη γλώσσα σας μέσω του παρακάτω συνδέσμου.
EN English You can find this manual in your language via below link.
ES Spanish Encontrarás este manual en tu propio idioma a través del siguiente enlace.
ET Estonian Oma emakeelse juhendi leiate allolevalt lingilt.
FI Finnish Löydät tämän manuaalin omalla kielelläsi alla olevan linkin taka.
FR French Vous trouverez ce manuel dans votre langue via le lien ci-dessous.
GA Irish Tá an lámhleabhar seo ar fáil i do theanga tríd an nasc thíos.
HR Croatian Ovaj prirucnik mozete pronaci na svom jeziku putem donjeg linka.
HU Hungarian Ez a kézikönyv az Ön nyelvén az alábbi link alatt található.
IS Icelandic Hægt er að finna þessa handbók á þínu tungumáli á tenglinum hér að neðan.
IT Italian Cliccando sul link sottostante troverai il manuale nella tua lingua.
LT Lithuanian Šį vadovlėlį savo kalba rasite spustelėję žemiau esančią nuorodą.
LV Latvian Rokasgrāmatu latviešu valodā Jūs varat atrast izmantojot zemāk esošo saiti.
MT Maltese Tista’ssib dan il-manwal bil-lingwa tiegħek permezz tal-link ta’hawn taħt.
NL Dutch Je vindt deze handleiding in jouw taal via onderstaande link.
NO Norwegian Du finner denne håndboken på ditt språk via linken nedenfor.
PL Polish Niniejsza instrukcja obsługi dostępna jest w Twoim języku za pośrednictwem poniższego linku.
PT Portuguese Pode encontrar este manual no seu idioma através do link abaixo.
RO Romanian Puteți găsi acest manual în limba dvs. prin link-ul de mai jos.
SK Slovak Manuál vo vašom jazyku môžete nájst v priloženom vysvietenom riadku.
SL Slovenian Ta priročnik najdete v svojem jeziku preko spodnje povezave.
SV Swedish Du kan hitta denna manual på ditt språk via länken nedan.
TR Turkish Bu kılavuzu aşağıdaki bağlantıdan kendi dilinizde bulabilirsiniz.

4/28
Thank you for using our product. For your safety and to ensure a correct operation, we would like to
bring to your attention some aspects of this manual:
• This booklet supplies useful instructions for the correct operation and maintenance of the product.
It is, therefore, necessary to pay the utmost attention to all of the paragraphs that illustrate the most
simple and secure way to operate and use this product.
• This booklet must be considered an integral part of the machine and must be included with the
deed of sale.
• Neither this publication, nor part of it, can be reproduced without written authorisation on the part
of the manufacturer.
• All of the information reported herein is based on data available at the moment of printing; the
manufacturer reserves the right to carry out modifications to its own products at any moment,
without notice and without incurring in any sanction. It is therefore suggested to always check for
possible updates.
The person responsible for the use of the product must make sure that all of the safety rules in force in
the country of its use are applied, to guarantee that the equipment is used in conformity with the use
for which it is destined and to avoid any dangerous situation for the user.
The following warning signs are used in this manual to warn you for dangers and risks:
Informative, be careful.
Warning, can lead to injury and damage if instructions aren’t followed.
Danger, can lead to serious or fatal injury and serious damage if instructions aren’t
followed.

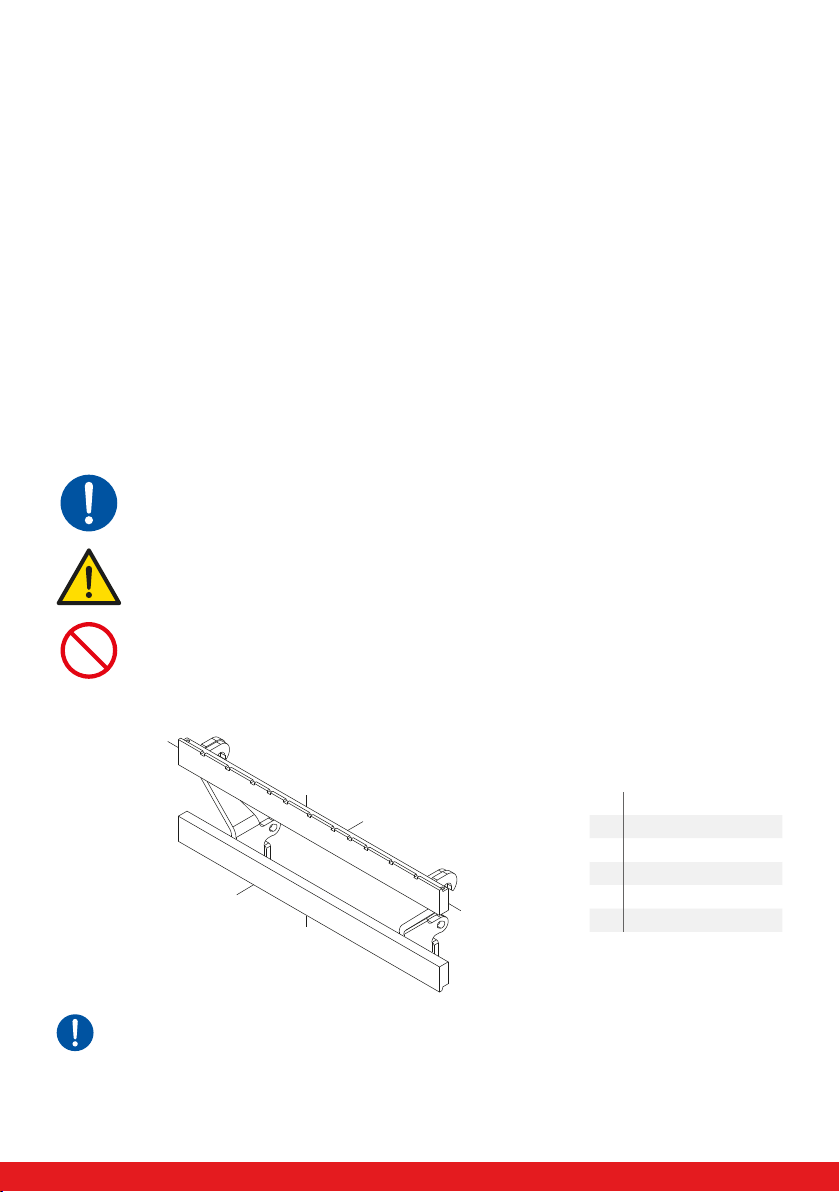

The following conventions are used in this manual:
4
3
6
5
1
2
1 Right
2Left
3 Bottom
4Top
5 Front
6 Back
Unless otherwise stated, directions apply as seen from the operators control seat when facing
the attachment.

5/28
CONTENTS
1. INTRODUCTION ..................................................................................................... 6
2. DESCRIPTION ........................................................................................................ 7
2.1. Technical data......................................................................................................................7
2.2. Main components of the product .........................................................................................9
2.3. Placement of the decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4. Type plate..........................................................................................................................10
3. SAFETY INSTRUCTIONS .........................................................................................11
3.1. General safety instructions..................................................................................................11
4. TRANSPORT AND STORAGE....................................................................................13
5. ASSEMBLY AND INSTALLATION...............................................................................15
5.1. Packing list.........................................................................................................................15
5.2. Safety instructions for assembly and installation of the product............................................15
5.3. Assembly of the product ....................................................................................................15
6. OPERATION..........................................................................................................18
6.1. Safety instructions for operating the product.......................................................................18
6.2. Operating instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7. MAINTENANCE .....................................................................................................20
7.1. Safety instructions for the maintenance of the product........................................................20
7.2. Maintenance schedule .......................................................................................................20
7.3. Maintenance instructions ...................................................................................................20
8. TROUBLESHOOTING..............................................................................................22
9. FINAL DECOMMISSIONING AND DISPOSAL ..............................................................23
10. ANNEXES .............................................................................................................24
10.1. CE certificate......................................................................................................................24

6/28
1. INTRODUCTION
This manual contains all the necessary information on the installation and operation of the pallet forks
frame.
Some of the maintenance operations should only be carried out by professional technicians.
If you require this information and the maintenance steps, please contact your dealer.
Also included in this manual are a number of safety instructions to create a safe working environment.
A pallet forks frame allows you to attach attachments or forks with a FEM connection. A pallet forks
frame turns your telehandler/tractor-loader into a multifunctional machine that’s ready for any job.
Check your machine manual to make sure you opt for the right pallet forks frame with the correct load
capacity. Do not use this product for any other purposes.
Please read the manual thoroughly and observe the safety procedures before putting the unit into
operation. The operator and all persons who come into contact with the equipment should read it
carefully and regularly and have access to it at all times.
Keep this manual near the equipment and in a safe place for future reference!
Contact your dealer for any further questions or concerns you may have.
We guarantee a long period of trouble free operation if the unit is operated and maintained correctly.
We hope you will enjoy working with your pallet forks frame.
This pallet forks frame may be unsafe if adequate maintenance is neglected.Therefore,
adequate maintenance facilities, trained personnel and procedures should be provided.
Maintenance and inspection shall be performed conformity to the following practices:
1. A scheduled planned maintenance, lubrication and inspection system should be followed
(see maintenance instructions chapter 7).
2. Only qualified and authorised personnel shall be permitted to maintain, repair, adjust, and
inspect the pallet forks frame.
3. Modifications and additions which affect capacity and safe operation shall not be
performed by the customer or user without the manufacturer’s prior written approval.
Capacity, operation and maintenance plates or decals shall be changed accordingly.
4. If modifications are made without the written approval of the manufacturer, the warranty
will no longer apply.
Any person in charge of putting the machine into operation, the operation itself or the
maintenance of the machine is urged to carefully read and observe the following instructions.
Make sure that the operators of this product are familiar with the safety instructions and follow
all the procedures. Neglecting these instructions can risk injury or death.

7/28

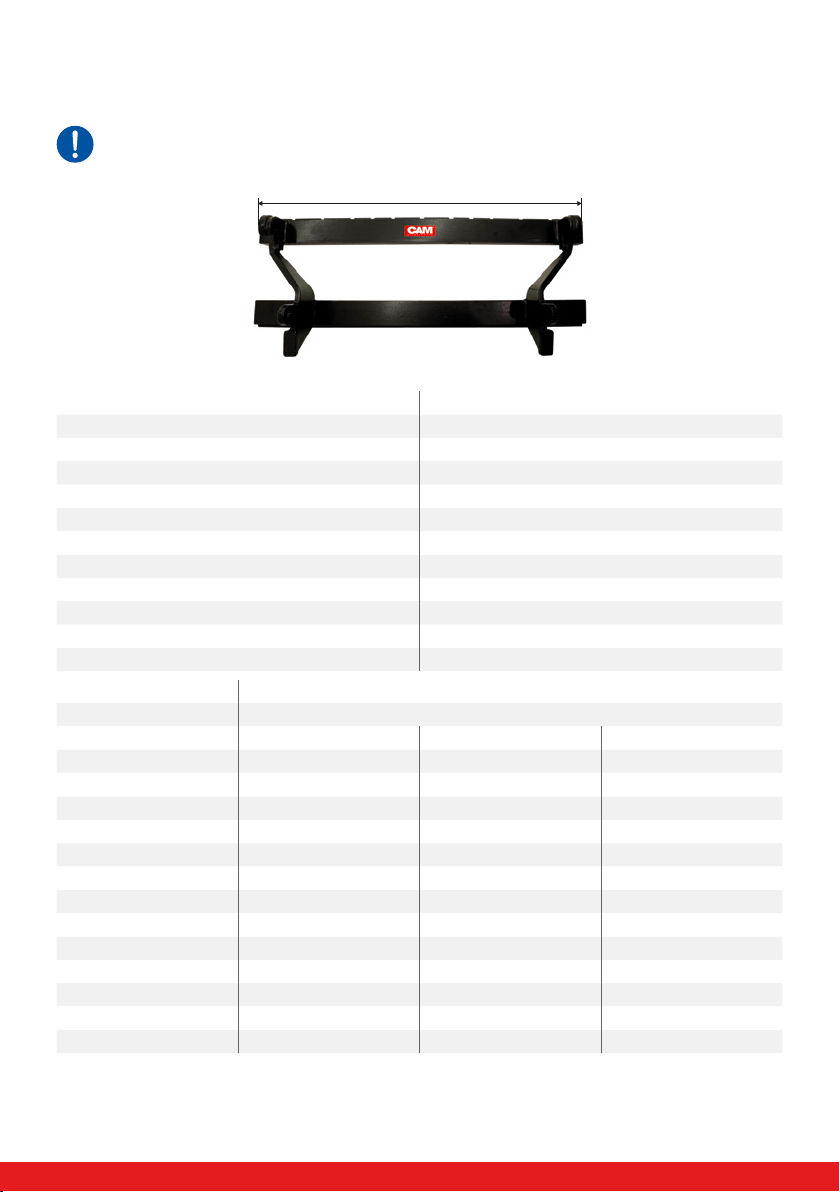

2. DESCRIPTION
2.1. Technical data
Always check the type plate for the correct information.
Telehandler
Fork carriage FEM 2
Capacity (kg) 1500
Frame width (mm) (A) 1200
Machine type CAM REF
Manitou CC26544
JCB Q-fit CC26560
Merlo ZM2 CC26660
Matbro CC26662
Dieci CC26682
Genie CC26700
Kramer 180-350 CC26712
Weidemann CC26608
Fork carriage FEM 2
Capacity (kg) 2500
Frame width (mm) (A) 1200 1500 2000
Machine type CAM REF CAM REF CAM REF
Manitou CC26548 CC26546 CC26550
JCB Q-fit CC26562 CC26564 CC26566
Merlo ZM2 CC26574 CC26576 CC26578
Matbro CC26582 CC26584 CC26586
Dieci CC26684 CC26686 CC26688
Genie CC26702 CC26704 CC26706
Kramer 180-350 CC26592 CC26594 CC26596
Kramer 380-580 CC26598 CC26600 CC26602
Claas CC26714 CC26716 CC26718
Weidemann CC26610 CC26612 CC26614
Schaeffer CC26620 CC26622 CC26624
Pin & Cone CC26734 CC26736 CC26738
A

8/28
Fork carriage FEM 3
Capacity (kg) 5000
Frame width (mm) (A) 1200 1500
Machine type CAM REF CAM REF
Manitou CC26538 CC26552
JCB Q-fit CC26540 CC26568
Merlo ZM2 CC26542 CC26580
Matbro CC26588 CC26590
Merlo ZM3 CC26672 CC26674
Dieci CC26690 CC26692
Genie CC26708 CC26710
Kramer 380-580 CC26604 CC26606
Claas CC26720 CC26722
Weidemann CC26616 CC26618
Schaeffer CC26626 CC26628
Pin & Cone CC26740 CC26742
Fork carriage FEM 4
Capacity (kg) 8000
Frame width (mm) (A) 1500 2000 2400
Machine type CAM REF CAM REF CAM REF
Manitou CC26554 CC26556 CC26558
JCB Q-fit CC26570 CC26572 CC26670
Matbro CC26664 CC26666 CC26668
Merlo ZM3 CC26676 CC26678 CC26680
Dieci CC26694 CC26696 CC26698
Tractor
Fork carriage FEM 2
Capacity (kg) 1500
Frame width (mm) (A) 1200
HCG (mm)
Weight (kg)
Machine type CAM REF
3-punkt Cat 2 CC26630
ÅLÖ (Quicke n° 3) CC26638
EURO (Quicke n° 8) CC26646
VILA/VALTRA CC26652
Chilton CC26744
MX Mailleux CC26752
Faucheux CC26760

9/28
Fork carriage FEM 2
Capacity (kg) 2500
Frame width (mm) (A) 1200 1500 2000
Machine type CAM REF CAM REF CAM REF
3-punkt Cat 2 CC26632 CC26634 CC26636
ÅLÖ (Quicke n° 3) CC26640 CC26642 CC26644
EURO (Quicke n° 8) CA99536 CC26648 CC26650
VILA/VALTRA CC26654 CC26656 CC26658
Chilton CC26746 CC26748 CC26750
MX Mailleux CC26754 CC26756 CC26758
Faucheux CC26762 CC26764 CC26766

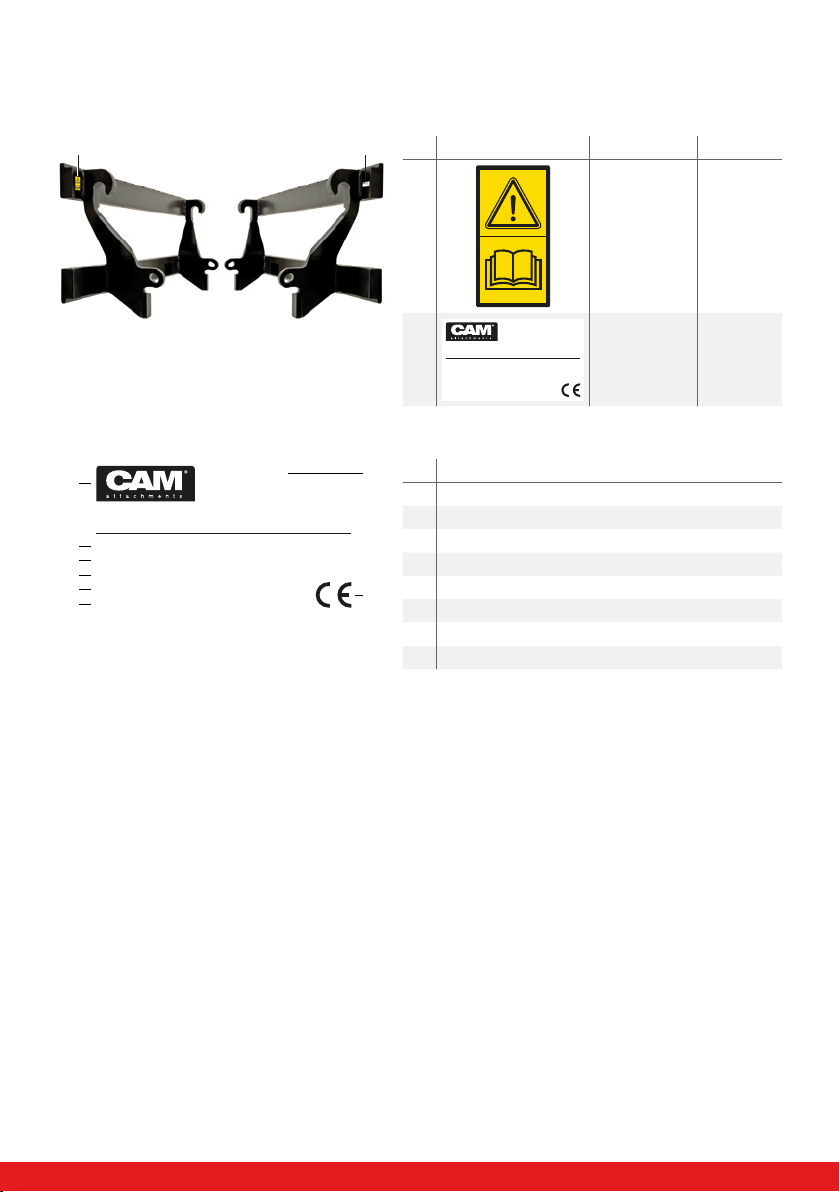

2.2. Main components of the product
2
1
2
N° Component
1 Frame
2 Hooks

10/28
2.3. Placement of the decals
The safety and warning labels should be placed as described in the pictures below. See chapter 3 for
the explanation of the safety warnings. If the decals are damaged or missing, replace them.
12
N° Decal Explanation Reference
1Read the
instructions
in the manual
before use
138TA3912
2
T [phone]
F [phone]
www.camattachments.com
[email protected]
Type
Serial No
Month/Year
Weight(kg)
Capacity (kg at mm)
CAM attachments
Brabantstraat 15
BE – 8790 WAREGEM
BELGIUM
Manufactured in the EU for TVH PARTSHOLDING NV
With this type
plate, you can
identify your
product
166TA4349
2.4. Type plate
T [phone]
F [phone]
www.camattachments.com
[email protected]
Type
Serial No
Month/Year
Weight (kg)
Capacity (kg at mm)
CAM attachments
Brabantstraat 15
BE – 8790 WAREGEM
BELGIUM
Manufactured in the EU for TVH PARTS HOLDING NV
1
7
8
2
3
4
5
6
N° Explanation
1CAM attachments logo
2 Type
3Serial number
4 Month/Year
5Weight (kg)
6Capacity (kg at mm)
7 Address
8CE logo

11/28
3. SAFETY INSTRUCTIONS
3.1. General safety instructions
• Never exceed the maximum allowed capacity that is indicated on the type plate or in this
manual.
• Read the operating manual before operating.
• Do not use a pallet forks frame unless you are of age.
• The person responsible for the use of the product must make sure that all of the safety rules
in force in the country of its use are applied, to guarantee that the equipment is used in
conformity with the use for which it is destined and to avoid any dangerous situation for the
user.
• People who come into contact with this equipment and use procedures, working practices
or tools that are not described in this manual are responsible for the safe and proper
operation of the equipment.
• Never allow people to climb on or move under the equipment or load.
• The safety precautions and warnings are indicated in the manual and on the equipment
by means of visual messages. Failure to pay attention to these warning messages may
jeopardise the safety of the operator with serious consequences for himself and for other
people.
• Do not use the pallet forks frame for any other uses than those intended.
• The operator should wear safety shoes and gloves when using or maintaining the pallet
forks frame.
• Before taking the pallet forks frame into operation in combination with a telehandler or
tractor-loader, it must be inspected by a certified organisation.
• Make sure you opt for the right pallet forks frame that corresponds to your approved
telehandler or tractor-loader.

12/28
In addition to the safety regulations described in this section, please take not of all the
information provided in the manual of the lifting device onto which the pallet forks frame has
to be mounted.
Failure to comply with the basic safety norms or precautions may lead to accidents during
operation, maintenance or repair of the equipment.
It is often possible to avoid accidents by recognizing potentially dangerous situations before
they occur. The operations must be aware of potential dangers and possess the training,
competence and the equipment necessary to correctly carry out the work.
CAM attachments cannot under any circumstances be held responsible for accidents or
damage resulting from the use of the equipment by inadequately trained personnel or if
inappropriate use has been made of the same, as well as the, even partial, non-observance of
the safety norms and the intervention procedures contained in the present manual and in that
of the lifting device.
CAM attachments cannot envisage each possible circumstance that may result in danger.
Therefore the warnings given in this publication and which appear on the equipment are not
exhaustive.
In the event that equipment, procedures, work methods or working techniques are used that
are not specifically advised by the CAM attachments company, it is necessary to make sure
that there is no danger to the operator or other people.

13/28
4. TRANSPORT AND STORAGE
1. Transport
If you want to transport the pallet forks frame on a pallet, make sure that the attachment is securely
attached so that it can’t fall off.
Safely transport the pallet forks frame by following the next steps:
1. Check the type plate to know the weight of the pallet forks frame. Select the appropriate material
according to the weight (ropes, cables, hooks, etc.).
2. Attach the lifting device to the pallet forks frame.
3. Lift the pallet forks frame with a crane. Only use a crane with sufficient capacity and secure the
pallet forks frame to the crane, so that it can be lifted safely.
4. Place the pallet forks frame onto a pallet.
5. Secure the pallet forks frame onto a transport pallet with retaining bands.
6. Wrap the attachment with film to protect weather influences and corrosion during transport.
• Adjust your driving speed while driving over rough terrains and slopes.
• Only transport the pallet forks frame in its lowest position.
• Before transporting the pallet forks frame, carefully read the instructions in the manual of
the lifting device.
When the machine is not in use, avoid unexpected movement by ensuring that the machine is in a
stable position.
2. Storage
The pallet forks frame must always be stored in a dry and temperature-controlled environment. Do not
store this product outside in a wet environment.
Store the pallet forks frame in a safe place and make sure it can’t fall over.
Lubricate metal parts with an anti-corrosive agent (REF 166TA1570 or REF 143TA6901).
Avoid direct sunlight.
Do not leave the truck unguarded without applying the handbrake and switching off the
engine first.
Disconnect the pallet forks frame on a flat surface by following these instructions:
1. Bring the pallet forks frame to its lowest
position.
2. Remove the pins from the quick coupling
frame.

14/28

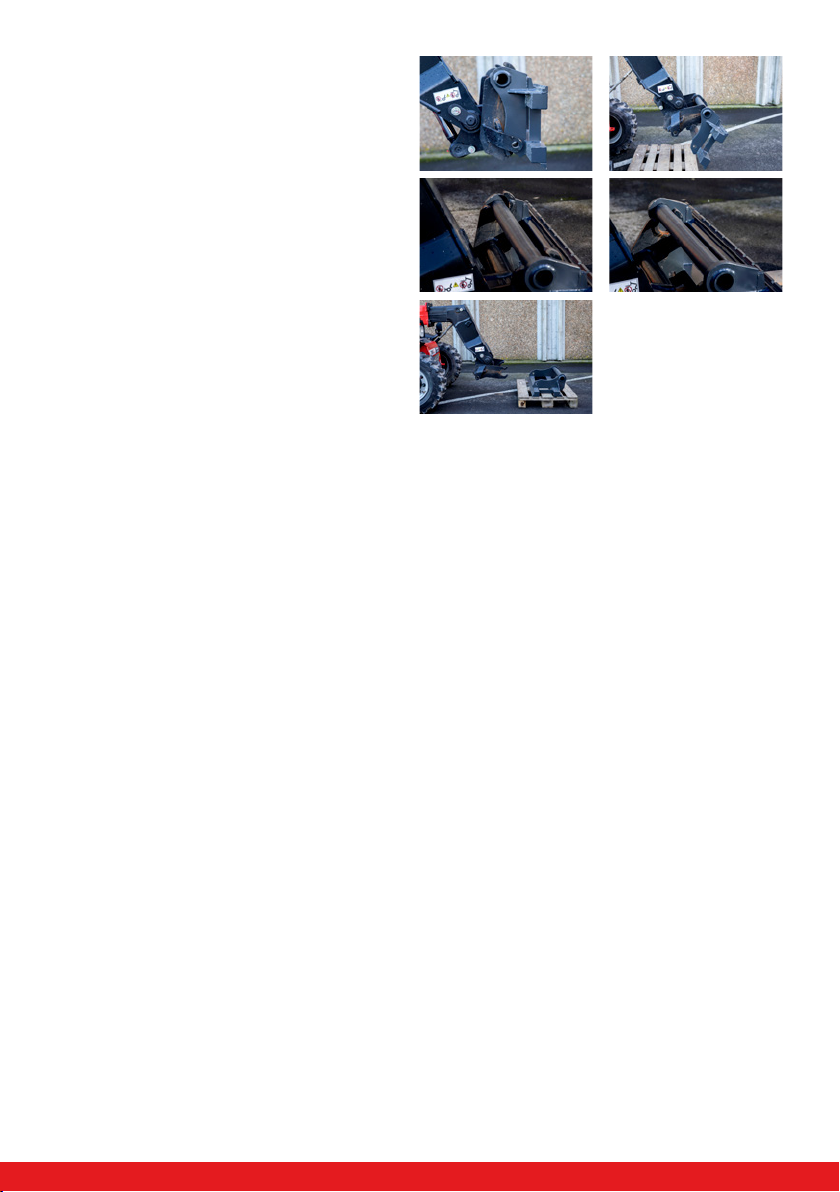

3. Use the tilt cylinders to tilt the quick-release
frame forward.
4. Unlock the hooks from the guide lugs on the
quick-coupling system.
5. Drive backwards with the hooks in the
correct position.
6. Your pallet forks frame is now disconnected
from the telehander/tractor-loader.

15/28
5. ASSEMBLY AND INSTALLATION
5.1. Packing list
Description Amount Reference
Frame 1 See‘2.1.
Technical data’
Operating manual 1 167TA2180
Product is delivered in one piece and immediately ready to use.
5.2. Safety instructions for assembly and installation of the product
• Wear safety gloves and safety shoes when assembling the pallet forks frame.
• The assembly and installation must be carried out by an expert.
• Make sure that the goods and packaging are in good condition.
• Before commissioning, carry out a risk analysis on the assembly of the CAM attachment with
the forklift.
• Before using the pallet forks frame, carefully read the instructions in the manual of your
lifting device.
• Wear safety gloves and safety shoes when assembling the pallet forks frame.
5.3. Assembly of the product
Product is delivered in one piece and immediately ready to use.
The coupling of the attachment depends on the lifting vehicle.
• Before installing the equipment, a thorough visual check must be carried out in order to
make sure that no damage has occured during the transportation and handling stage.
• In the event that one or more components are found to be damaged, it is necessary to
notify CAM attachments and agree on the measures to be taken.
• The lifting device with attachment installed needs to be approved for use prior to
commissioning.
• Be sure to obtain the lifting device manufacturer’s certification concerning the residual
capacity of the lifting device after installing the attachment.
Installation
Telehandler/tractor coupling:
1. Remove the packing materials carefully.
2. Place the pallet forks frame on a flat surface.
3. Remove the pins from the quick-coupling
frame.

16/28
4. Use the tilt cylinders to tilt the quick-release
frame forward.
5. Attach the pallet forks frame to the front
loader.
6. Make sure that the hooks fall between the
guide lugs on the quick-coupling system.
7. Use the tilt cylinders to tilt the quick-release
frame backwards.
8. Make sure that the pins are securely fastened
by inserting the locking clips.
9. The pallet forks frame is now ready for use.
Tractor with three-point coupling:
1. Remove the packing materials carefully.
2. Place the pallet forks frame on a flat surface.
3. Make sure that the lower links of the tractor linkage are at the same height.
4. Attach the pallet forks frame onto the three-point linkage of the tractor.
5. Secure the pallet forks frame with the supplied pins and locking clips.
6. Adjust the top link so that the pallet carrier is positioned horizontally.
7. Adjust the lateral play of the pallet forks frame with the stabilisers of the linkage. The lateral play
must be minimal.
8. The pallet forks frame is now ready for use.

17/28
• Make sure that the locking pins of the machine locked the attachment securely to the
loader.
• After the installation of the attachment and before putting the device into operation,
check if all the functions work correctly.
Any failure of the safety devices can cause malfunctioning and damage to the attachment.
If you want to disconnect the pallet forks frame, you need to follow the procedure the other
way round. (See chapter 4: transport and storage)

18/28
6. OPERATION
6.1. Safety instructions for operating the product
• Define and demarcate the working area and make sure that everyone stays sufficiently clear
of the pallet forks frame working area at all times.
• The pallet forks frame must remain horizontal and centred.
• Only operate the pallet forks frame from the operator’s seat and make sure you have a
complete overview of the work activities.
• Be aware of overhead clearances and obstacles.
• Never stand or work under the pallet forks frame to prevent third parties from being hit by
falling objects during work.
• Sharp braking is prohibited with a load on the pallet forks frame.
• Do not exceed the maximum speed of 20 mph. Adjust your speed according to the terrain.
• A damaged and malfunctioning machine must never be used. If damage or malfunctions
are discovered during pre-operation inspection or function tests, the machine must be
tagged and removed from service.
• The lifting device may only be driven by qualified drivers who have also been trained in the
operation of a lifting device fitted with the equipment.
• Check all the parts of the equipment for rust, cracks or other damage before each use.
• Only use the equipment if it is in perfect condition.
• Only use the equipment in aisles and gangways that are wide enough for the necessary
manoeuvres to be made while driving or handling the load.
• If you use the equipment outdoor, never do so in high winds as the forklift could tip over.
• Check the correct installation before you put the pallet forks frame into use.
• Never lift or transport an unlocked attachment.
• Do not use if there is a risk of unexpected movement, only use the vehicle on solid ground.
• Only operate in sufficiently illuminated areas.
• When the machine is not in use, avoid unexpected movement by ensuring the machine is
in a stable position.
• Do not leave the truck unguarded without lowering the load to the ground, applying the
handbrake and switching off the engine first.
• Do not wear loose clothing or belts, cuffs, large sleeves, scarves, shirts or anything else that
may get caught in the moving parts.
• For safety reasons, arbitrary adaptations or modifications to the equipment are prohibited.
• In the event of non-envisaged workmanship or intervention or following a procedure
different to that indicated in the manual, consult CAM attachments before proceeding in
order to ascertain its feasibility.
• Transportation of non-permitted materials is forbidden.
• Not intended for use in areas at risk of explosion and fire.
• Do not lift loads on inclines and gradients.
• Make sure the load cannot move or fall.
• Before using the pallet forks frame, carefully read the instructions in the manual of your
lifting device.
• Only use the pallet forks frame in open and free spaces.
• Under no circumstances may the values on the type decal be exceeded. Observe the
capacity limits on the type decal.

19/28
6.2. Operating instructions
Perform the daily maintenance check before each use as described in chapter‘7.3. Maintenance
instructions’.
Make sure you follow the steps below before you put the pallet forks frame into operation:
1. Mount the FEM attachment/FEM forks onto your pallet forks frame (see chapter‘5. Assembly and
installation of the product’).
2. Before lifting the FEM attachment/FEM forks, make sure it is/they are secured safely.
3. Slightly lift the FEM attachment/FEM forks to make sure the attachment is secured. If not, lower
and reposition to provide full stability.
4. Do not lift higher than recommended.
5. During transport, keep the pallet forks frame centred and horizontal, gradually accelerate/brake,
slow down before turning and drive carefully on rough terrain.

20/28
7. MAINTENANCE
7.1. Safety instructions for the maintenance of the product
• For maintenance, place the pallet forks frame in its lowest position to the ground. Switch off
the vehicle’s engine and remove the key.
• Use tools and equipment suited to the work to be undertaken.
• Do not leave any tools or equipment behind on any part of the machine.
• The operator should wear safety shoes and gloves when using or maintaining the pallet
forks frame.
• Before maintaining the pallet forks frame, carefully read the instructions in the manual of
your lifting device.
• Make sure you read the operating manual before carrying out maintenance.
• This manual contains all the necessary information on the installation and operation of the
pallet forks frame.
• Some of the maintenance operations should only be carried out by professional technicians.
If you require this information and the maintenance steps, please contact your dealer.
7.2. Maintenance schedule
Task 2H D W M 6M Y
1. Daily maintenance check
2. Cleaning
2H: every 2 hours, D: daily, W: weekly, M: monthly, 6M: every 6 months, Y: yearly
7.3. Maintenance instructions
In the event of problems or if operations are to be undertaken that are not specifically
described in this manual, consult CAM attachments or the retailer.
1. Daily maintenance check
A daily check of the pallet forks frame can limit wear to a minimum.
• Make sure that the instruction manual is complete, legible and available for reference.
• Check the entire machine for damage, corrosion or cracks in structural components before each
use.
Can be done by the user.
