Introduction
This guide provides basic instructions for setting up and configuring a PTP 820E 1+0 link. For more detailed instructions:
•Installation Guide for PTP 820E – Detailed instructions for hardware assembly of all supported PTP 820E link
types.
•User Guide for PTP 820C, PTP 820S, and PTP 820E – Detailed instructions for software configuration.
PTP 820E Rear View (Left) and Front View (Right)
PTP 820E Interfaces
Cable Gland Construction

Page 4 of 16
PoE Injector
PoE Injector Interfaces

Page 5 of 16
Pole Mount Assembly and Installation
Note
Do not remove the transparent pressure window located on the
antenna interface.
For horizontal
polarization, locate
the twist with the
letter “H” at 3
o’clock and fasten
the two screws.
For vertical
polarization, locate
the twist with the
letter “V”
at 3
o’clock
and fasten
the two screws.

Page 6 of 16
Mount the PTP 820E on the antenna using the four
M8 captive screws and washers that are supplied,
assembled, in the PTP 820E, and tighten the screws.
When tightening the captive screws, use 20 Nm
torque. In order to avoid misalignment, screws should
be tightened progressively.

Page 7 of 16
Cabling
To connect an optical Ethernet cable and SFP:

Page 8 of 16
To connect an electrical Ethernet cable:
To connect a DC power cable:

Page 9 of 16
Cable Grounding
•No grounding is required for optical (SFP) cables.
•External shielded CAT5E cable should be grounded to the antenna tower at the top (next to the PTP 820 unit)
and the bottom of the external run and every 50m using the kit CAT5E_gnd_kit.

Page 10 of 16
Installing and Connecting a PoE Injector
To mount a PoE Injector on the wall:
Mount and tighten the PoE Injector to a
wall using two M6 bolts and anchors.
Use Anchor Stainless Steel with
flanged Hexagonal nut M6X70.
12Drill two 6mm diameter
holes with 100mm
between the center of the
holes.
Insert the anchors with the bolts, place
the washers on the bolts, and tighten the
nuts.
3

Page 11 of 16
To mount a PoE Injector on a pole: To mount a PoE Injector on a 19” rack:
Mount and tighten the
Injector to a 114mm
pole using a stainless
steel hose clamp.
1
2Pass the hose
clamp through the
pole mount slots.
Connect the ends of the
hose clamp and tighten
using the captive screw.
4
3Attach the Injector
to the pole.
Mount the Injector to a 19"
rack using a 19" rack adaptor.
1
2
Mount the Injector on
the adaptor through
the wall mounting
holes, using M6
screws and washers.
Mount the adaptor
to the rack using
four M6 screws
and cage nuts.
3
To mount a PoE Injector on an ETSI rack:
Mount the PoE Injector to an ETSI
rack using a 19" rack adaptor and
ETSI adapting ears.
1
3
Mount the PoE Injector
on the adaptor through
the wall mounting holes,
using M6 screws and
washers.
4
2Connect ETSI adapting
ears to a 19" rack adaptor
using four M6 screws.
Mount the 19" rack
adaptor with the ETSI
ears on the ETSI rack
using four M6 screws
and cage nuts.
To ground a PoE Injector:
1. On the right side of the PoE Injector, loosen the screw,
plain washer, and serrated washer.
2. Place the cable lug supplied with the PoE Injector kit
between the plain and serrated washer.
3. Tighten the screw.
To connect the PoE Injector cables:
•The total length of the cable between the PTP 820E
port and the Switch/Router the device is connected to
should not exceed 100m/328ft. This length includes the
connection between the PTP 820E and the PoE Injector
(X1 + X2 ≤100m/328ft in the figure to the right).
•
The length of the cable connecting the customer
equipment to the PoE injector should not be longer
than 10m (according to ANSI/TIA-568 standard).

Page 12 of 16
Grounding the PTP 820E
Loosen the nut, plain washer, and serrated
washer from the GND stud, using the metric
offset hexagon key and the wrench.
1
2
Place the cable lug supplied with the grounding kit
in place on the screw and secure the cable lug.
3
Connect the second side of the GND cable to
the main or terminal ground bar of the site.
4
Perform a resistance test between the 2 lugs of the
GND cable and verify that the result is 0-2 ohms.
Notes:
The unit’s earthing screw terminal shall be permanently
connected to protective earth in a building installation in
accordance with applicable national code and regulations
by a service person.
A 2-pole circuit breaker, a branch circuit protector, suitably certified in accordance with applicable national code and
regulations, rated maximum 20A, shall be installed for full power disconnection in a building installation.
Any outdoor antenna cable shield shall be permanently connected to protective earth in a building installation.
Connecting to the Unit:
1. Connect your laptops LAN port to the MGT port on the PTP 820E.
2. Configure an IP address on the laptop within the same subnet as
the PTP 820E unit. The default PTP 820 IP address is 192.168.1.1. Set
the PC address to e.g. 192.168.1.10 and subnet mask to
255.255.255.0. Record the initial settings before changing.
3. On the laptop, open the Internal Protocol (TCP/IP) Properties page
and set the parameters shown in the figure on the right.
4. Open a web browser (Internet Explorer or Mozilla Firefox), enter
the default IP address “192.168.1.1” in the Address Bar. Once the
Login page opens, enter “admin” in both the User Name and
Password fields, and click Apply.

Page 13 of 16
Changing the Default IP Address

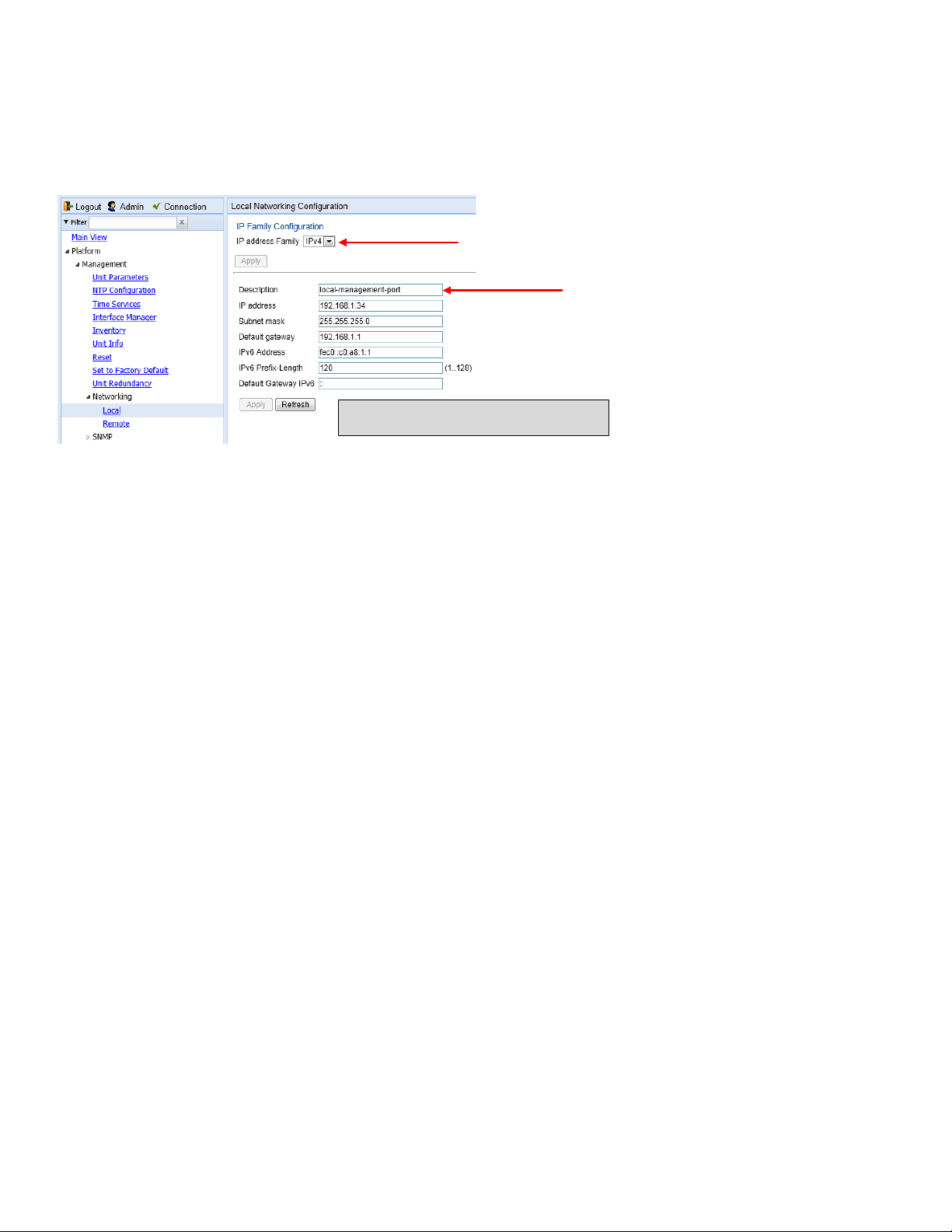

Select Platform > Management > Networking > Local. The Local Networking Configuration page opens.
Select IPv4 or IPv6. The unit will
use the selected protocol when
initiating communications.
Description of
unit (optional)
You can enter an IP address
in IPv4 format (use the IP
address field) or IPv6 format
(use the IPv6 Address field).
Before configuring the radio link, ensure that
both ends of the link have unique IP addresses.

Page 14 of 16
Installing the Activation Key
New PTP 820E units are delivered with a default activation key that enables you to manage and configure the unit.
Additional feature and capacity support requires you to enter an activation key cipher in the Activation Key Configuration
page. Contact your vendor to obtain your activation key cipher.
If the activation-key-enabled capacity and feature set is exceeded, an Activation Key Violation alarm occurs and the Web
EMS displays a yellow background and an activation key violation warning. After a 48-hour grace period, all other alarms
are hidden until the capacity and features in use are brought within the activation key’s capacity and feature set.
Demo mode is available, which enables all features for 60 days. When demo mode expires, the most recent valid activation
key goes into effect.

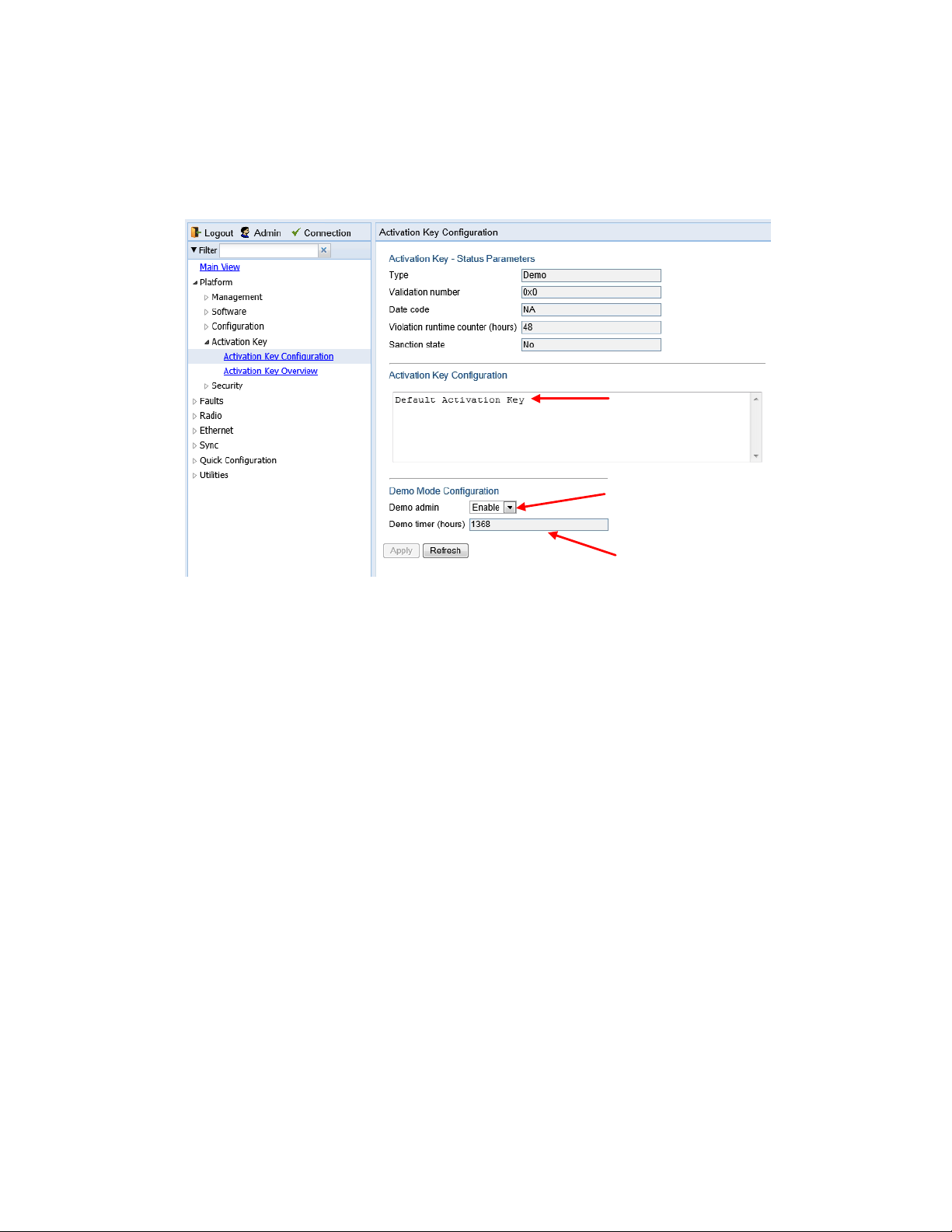

To enter a new activation key, select Platform > Activation Key > Activation Key Configuration. The Activation Key
Configuration page opens.
Enter the activation
key cipher here
and click Apply.
To activate Demo mode,
select Enable here and
click Apply.
Displays the number of
hours that remain before
demo mode expires.

Page 15 of 16
Configuring the Link
The Web EMS provides wizards to configure radio links. The wizards guide you through configuration of the basic radio
parameters and services necessary to establish a working pipe link.

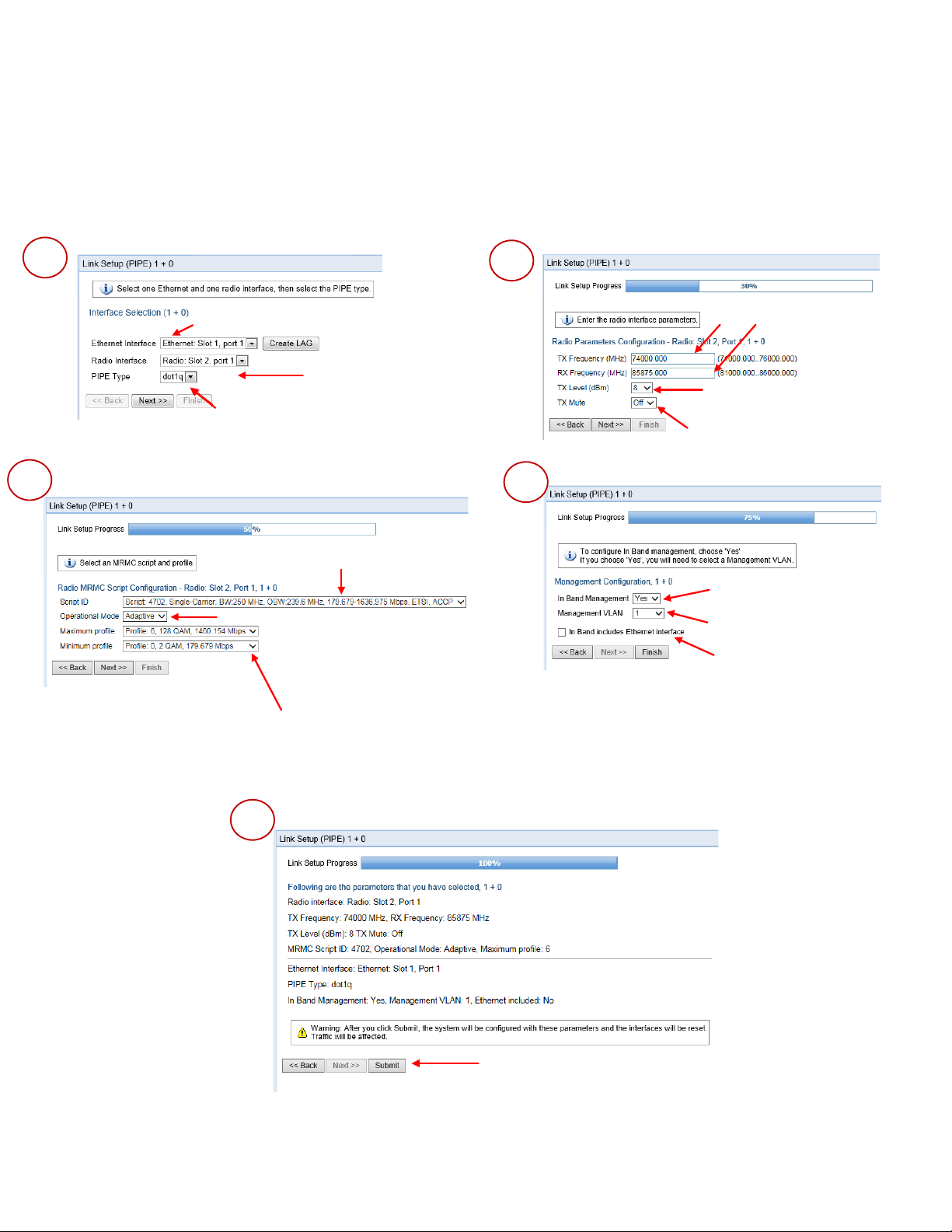

To configure a 1+0 link using the Quick Configuration wizard, select Quick Configuration > PIPE > Single Carrier > 1+0.
Page 1 of the 1+0 Quick Configuration wizard opens.
Set the transmission and
received radio frequency in MHz.
Enter the desired TX signal level
(TSL). The range of values depends
on the frequency and RFU type.
Select On or Off to mute or
unmute the TX output of the RFU.
Select the MRMC script you want
to assign to the radio.
Select the ACM mode: Fixed or Adaptive.
If you selected Fixed in the Operational Mode field, the Profile field
appears instead of these fields. Select the ACM profile for the radio in
the Profile field.
If you selected Adaptive in the Operational Mode field, enter the
maximum and minimum profiles for the script in these fields.
• Fixed ACM mode applies constant TX and
RX rates.
• In Adaptive ACM mode, TX and RX rates are
dynamic. An ACM-enabled radio system
automatically chooses which profile to use
according to channel fading conditions.
Select Yes to configure in-band
management or No if you do not
need in-band management.
If you selected Yes above, select
the management VLAN.
Select this box if you want to use the
Ethernet interface as well as the radio
interface for in-band management.
Review the parameters and click Submit to
complete configuration of the link. After you
click Submit, the unit is reset.
2
3
4
5
Select the Attached Interface type for
the service that will connect the radio
and Ethernet interfaces:
Select a radio
interface for the link.
Select an Ethernet interface or LAG for the link.
Click Create LAG to open a wizard that guides
you through the steps to create a LAG.
• s-tag – All S-VLANs and untagged
frames are classified into the service.
• dot1q – All C-VLANs and untagged
frames are classified into the service.
1

Page 16 of 16
Link Verification
Verify that the Received Signal Level (RSL) is up to +/- 4 dB from
the expected (calculated) level at both ends of the link.

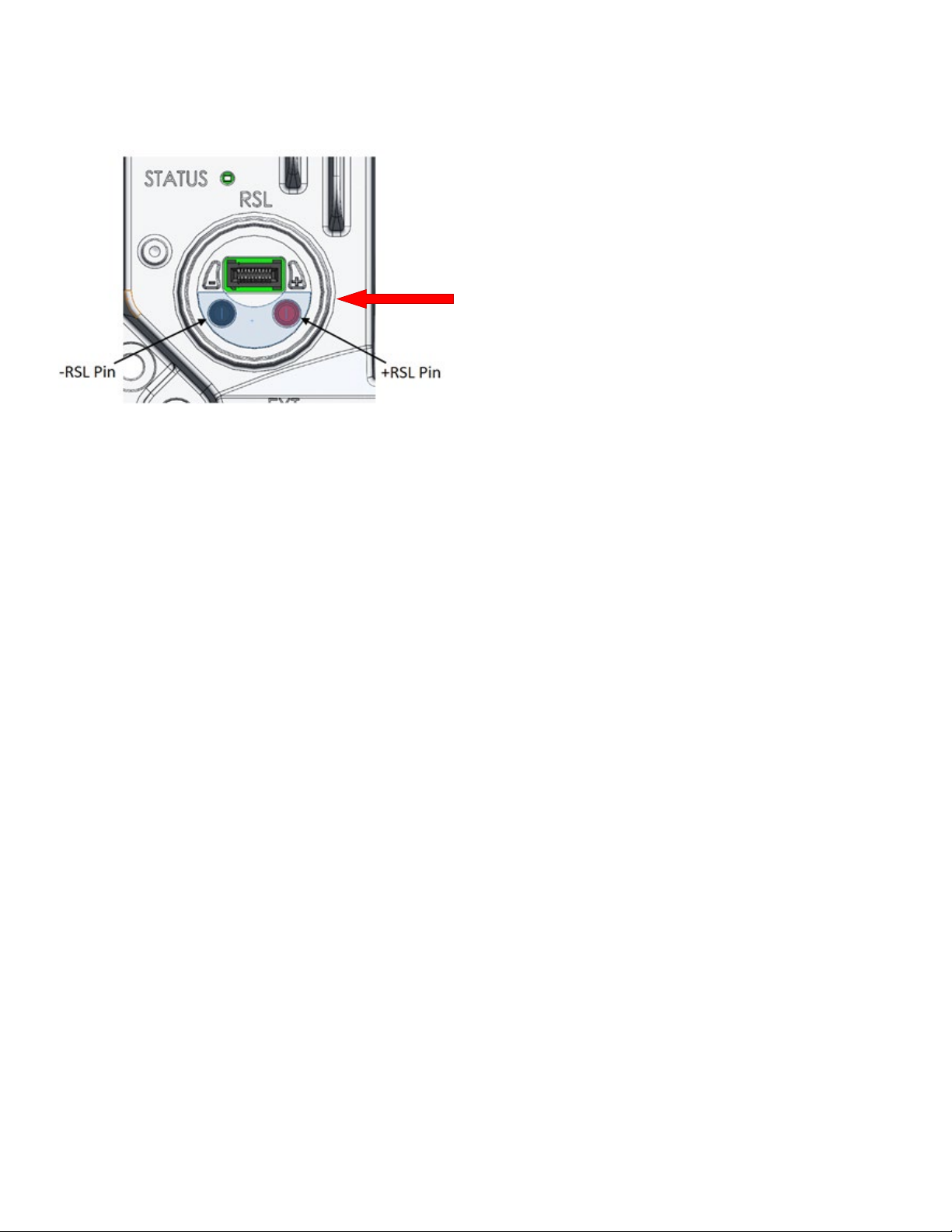

You can measure the RSL at the BNC port indicated in the figure
to the left. The voltage at the BNC port is 1.XX where XX is the
RSL level. For example: 1.59V means an RSL of -59 dBm. Note
that the voltage measured at the BNC port is not accurate and
should be used only as an aid).
Verify that the Radio Bit Error Rate (BER) is 10E-11 or higher.
If working with ATPC, verify that ATPC is operating as expected
(RSL = reference level).
To display the BER using the Web EMS,
go to the Aggregate PM report (Radio >
PM & Statistics > Aggregate).
To display the current RSL (RX)
using the Web EMS, go to the
Radio Parameters page (Radio >
Radio Parameters).
To display the RSL PMs using the Web
EMS, go to the Radio Parameters page
(Radio > PM & Statistics > Signal Level).
