WARNING
RISK OF ELECTRIC
SHOCK
CAUTION
The lightning ash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufcient magnitude to constitute a
risk of electric shock to persons.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTS
INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within an
equilateral triangle, is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
USE WITH AN EXTENSION CORD, RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
IMPORTANT SAFETY INSTRUCTIONS
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
Do not defeat the safety purpose polarized or grounding type
plug. A polarized plug has two blades with one wider than
the other. A grounding plug-type plug has two blades and a
third grounding prong. The wide blade or or the third prong
are provided for your safety. If the provided plug does not t
into your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and at the point
where they exit from the apparatus.
Only use attachments / accessories specied by the
manufacturer.
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as when the power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
The appliance shall not be exposed to dripping or splashing
water and that no object lled with liquid such as vases shall
be placed on the apparatus.
The AC wall plug is used as the disconnect device. It should
remain readily accessible at all times.
8.
9.
10.
11.
12.
13.
14.
15.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
1.
2.
3.
4.
5.
6.
7.
810-00000S-190

Page Index
Product Carton Contents ................................................ 2
Introduction ..................................................................... 4
Getting Started ............................................................ 5-6
Setting the Clock ............................................................ 7
Tone Alarm Backup Battery Installation .......................... 7
Standby and On .............................................................. 8
AM/FM Operation ...................................................... 8-10
Convenience Features.............................................. 11-12
Quick Reference Guide ......................................... 13-16

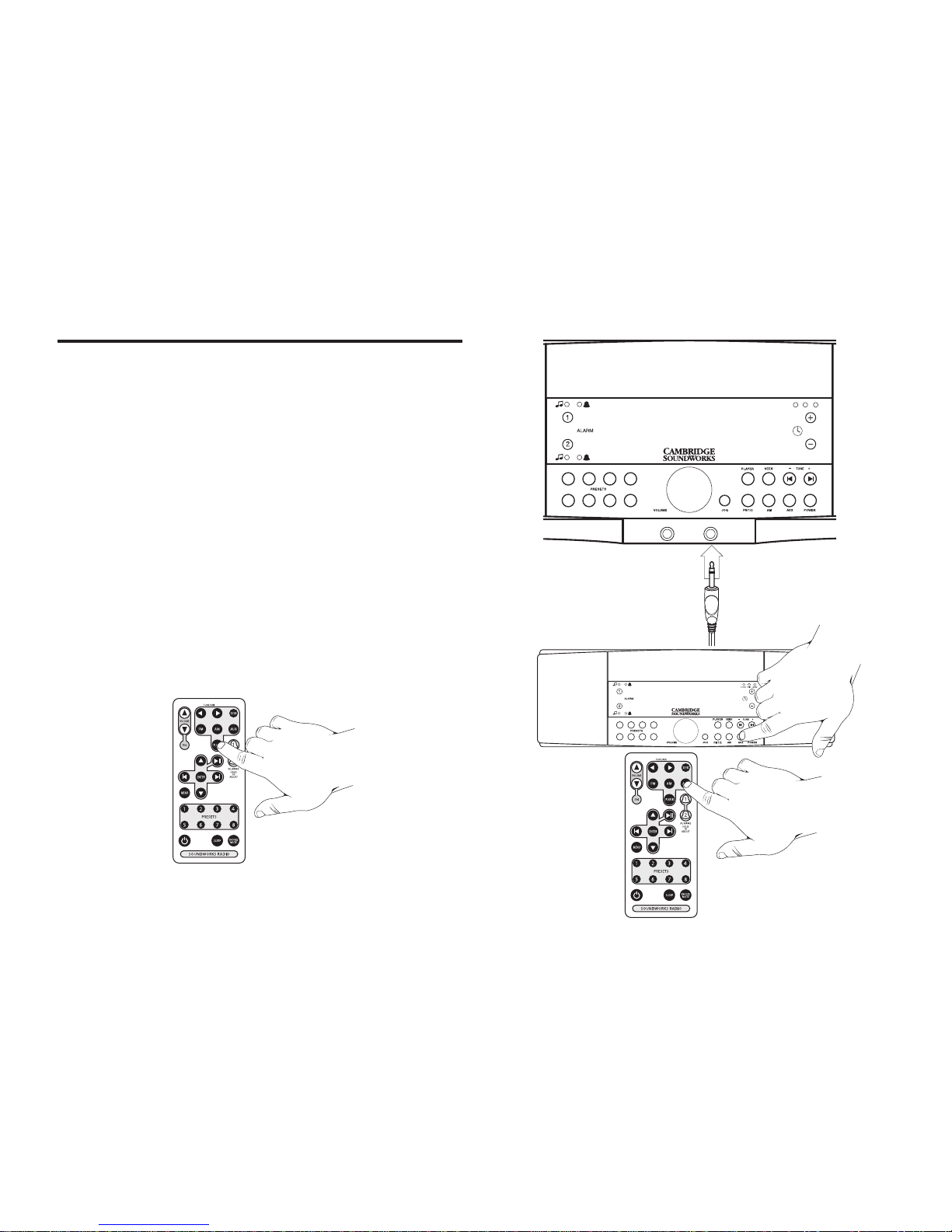

Connecting an External Audio Source .......................... 17
Radio and Disc Text Displays ....................................... 18
JOG Function .......................................................... 19-20
Wakeup Function ..................................................... 21-24
PLAYER DOCK - Made for iPod (Optional) ............. 25-27
Specications ................................................................ 28

- 2-
Product Carton Contents
1) SoundWorks Radio 735
2) External AM Loop Antenna
3) Infrared Remote Control
4) (Optional) Made for iPod Dock
Not Pictured:
5) External FM Wire Antenna
6) SoundWorks Radio 735 User Manual
1
23
4
ALARM
STEREO
WIDE
MONO
1
1
2
234
5
678
SNOOZE/MUTE
PRESETS
POWER
PLAYER
AUX
AM
JOG
SEEK
FM1/2

- 3-

- 4-
INTRODUCTION
The people at Cambridge SoundWorks hope you enjoy
your new high-performance SoundWorks Radio 735.
Your new radio has great FM stereo sound and plays
useful AM band stations. It stores 16 FM station presets
along with 8 AM station presets. The large 32-character
display and full-function remote makes radio operation
easy from across the room.
The SoundWorks Radio 735 displays Radio Data Service
(RDS) FM station text.
An automatic dimmer function reduces display brightness
in dark rooms while maintaining good legibility in bright
light. An internal long-life power cell maintains the current
time accurately for many years. By inserting a 9V battery
(not supplied), a user ensures that an activated wakeup
function will work even during a power outage.
A front input jack allows easy connection of audio program
sources (like portable digital music and cassette players).
A convenient JOG button lets you select from a variety of
secondary adjustments (Bass and Treble, Snooze time
and Text display mode, among others).

- 5-

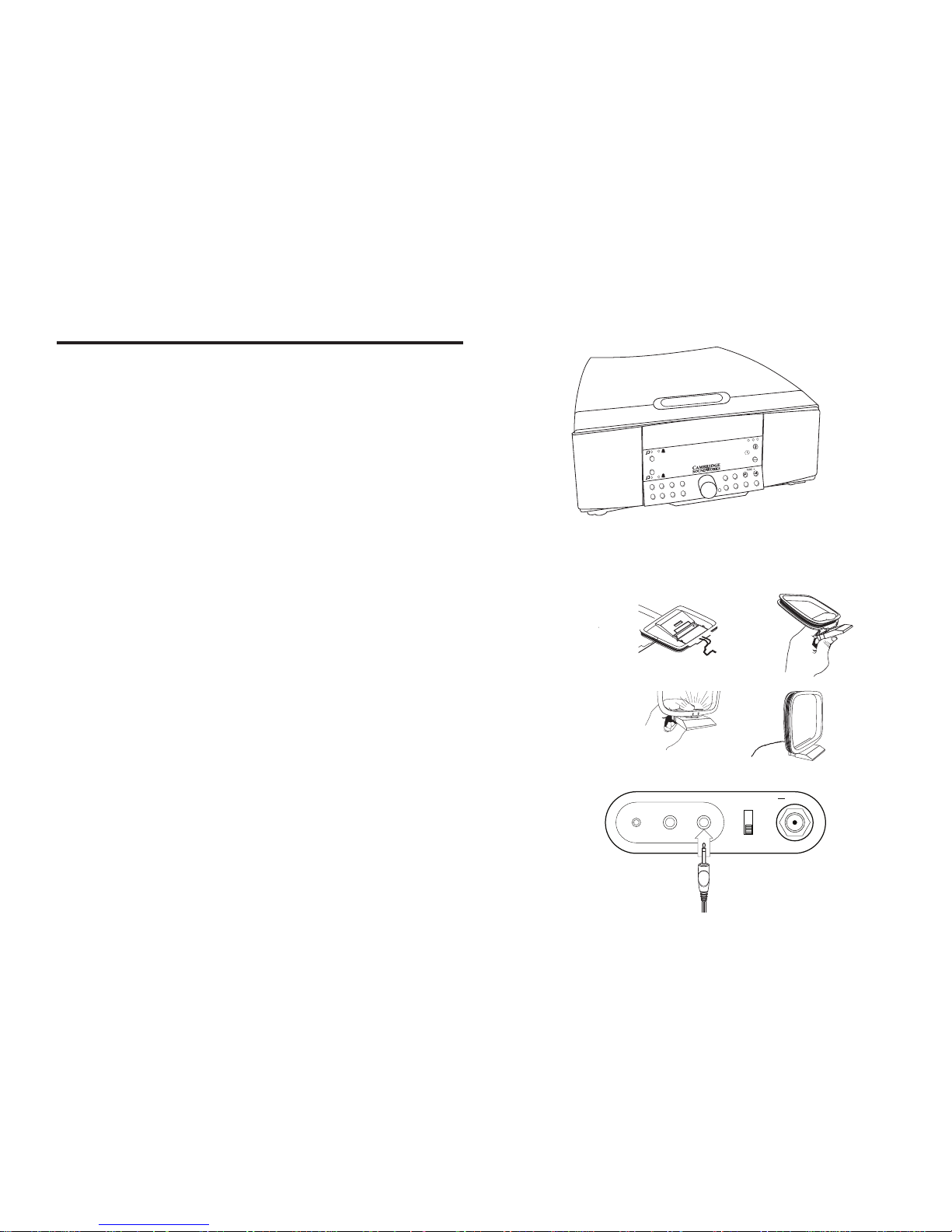

GETTING STARTED
Remove the SoundWorks Radio (See A) from its protec-
tive polybag and place it in your preferred location. The
Radio’s Tone alarm sound and bass output will be re-
duced if the Radio is placed on a compliant, soft surface.
Connect the AM antenna (See B): To prepare the an-
tenna (1), fold the base (2) and snap it into place (3).
Position the AM antenna (4) in any out-of-the-way site,
preferably at least 8 inches apart from the Radio. Insert
the AM Antenna’s miniplug into the Radio’s rear panel
minijack marked AM ANTENNA (5).
Rotate the AM antenna to achieve the best signal for
individual AM stations.
A
ALARM
STEREO
WIDE
MONO
1
1
2
234
5
678
SNOOZE/MUTE
PRESETS
POWER
PLAYER
AUX
AM
JOG
SEEK
FM1/2
PLAYER
POWER
OUTPUT INPUT
AM
ANTENNA
FM ANTENNA
EXT
INT
INPUT
75 OHMS
PLAYER
INPUT
B1 2
3 4
5

- 6-
Connect the cord by inserting the SoundWorks Radio’s
AC plug into a convenient outlet.
The AC cord is also the Radio’s primary FM antenna. It
will function better if at least 50% or more of its length
follows a straight line (See C). Check to make sure
the FM antenna switch on the rear panel of the Radio
enclosure is in the INT (internal) position (factory default).
If desired, the external FM antenna can be connected and
used instead of the internal antenna (See D). Connect
the external antenna to the “F”-type connector of the rear
panel. Set the FM antenna switch to EXT (external).
C
D
PLAYER
POWER
OUTPUT INPUT
AM
ANTENNA
FM ANTENNA
EXT
INT
INPUT
75 OHMS
PLAYER
INPUT
GETTING STARTED (Continued)
ALARM
STEREO
WIDE
MONO
1
1
2
234
5
678
SNOOZE/MUTE
PRESETS
POWER
PLAYER
AUX
AM
JOG
SEEK
FM1/2

- 7-
1 2 3 4
5 6 7 8
GETTING STARTED (Continued)
Setting the Clock
You can adjust the current time whether the radio is in
Standby or On.
Just press the TIME ADJUST BUTTONS (next to the symbol)
on the right hand side of the display (see E).
Note: The current time can only be adjusted from the
Radio’s faceplate. The remote control can adjust the
wakeup time setting, but not the current time.
Tone Alarm Backup Battery
For 48 hours of alarm function backup during an AC
power failure, obtain and install a 9V battery in the radio’s
battery compartment. Release the battery cover, attach
the battery and restore the cover.
If either alarm is set to activate (music or tone wake-up)
and the power fails, the battery sounds the tone alarm
at the appropriate time. Press POWER on the radio to
silence the alarm. Remove the battery if the unit is un-
plugged for more than 24 hours. Replace the battery after
30 minutes of emergency tone alarm operation (see F).
TIME SET
9:43 AM
E
F

- 8-
1 2 3 4
5 6 7 8
GETTING STARTED (Continued)
Standby and On
Pushing the POWER button chooses Standby or On
operation (see G).
The faceplate POWER button can also be used to engage
Sleep Delay operation (see page 12).
Selecting the Radio Bands
Pressing the FM1/2 button cycles through two banks
of FM station presets. You can store eight FM
stations in the Preset bank FM1, eight different FM
stations in Preset bank FM2 (see H).
If you switch from another mode to FM/AM, the radio
will return to the last Preset bank used (from Standby,
PLAYER or from the AUX input). Pressing the FM1/2
button during FM operation selects the next present
bank (FM1, FM2).
Pressing the AM button selects the AM radio band.
The AM band has one Preset bank.
1.
2.
3.
9:43 AM
H
G
1 2 3 4
5 6 7 8
ALARMS
TAPTO S ET
PRESS & HOLD TO ADJ UST
CD TIM E
FM2 P1
88.1 9:43AM

- 9-

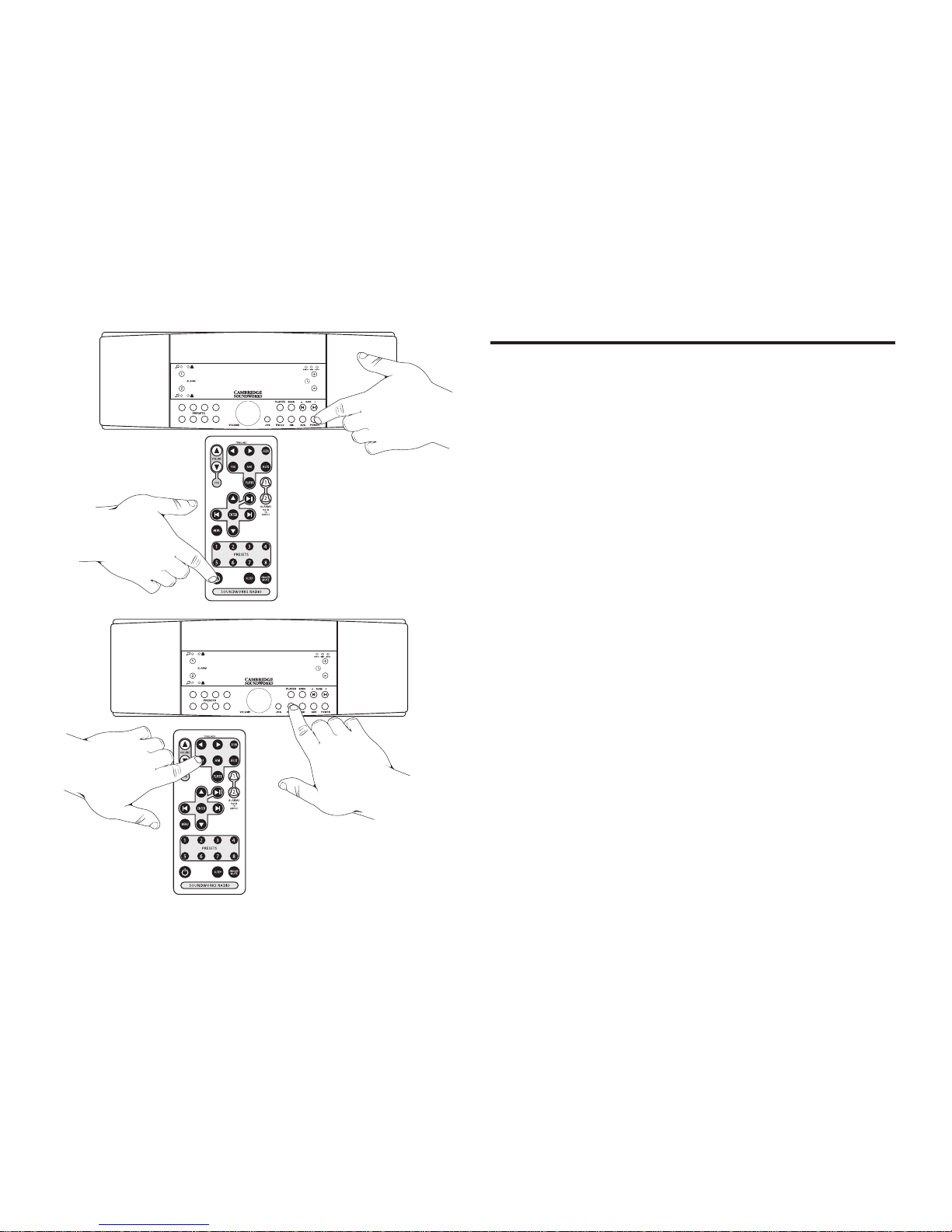

Tuning Stations
Autotune Method 1: Press the SEEK button (remote
or radio face) to automatically nd the next station or
higher frequency (see I).
Autotune Method 2: Press and hold either TUNE
button to seek the next station (the button seeks
down, the button seeks up) (see J).
Manual Tune: To nd a specic frequency, tap the
appropriate TUNE button ( or ).

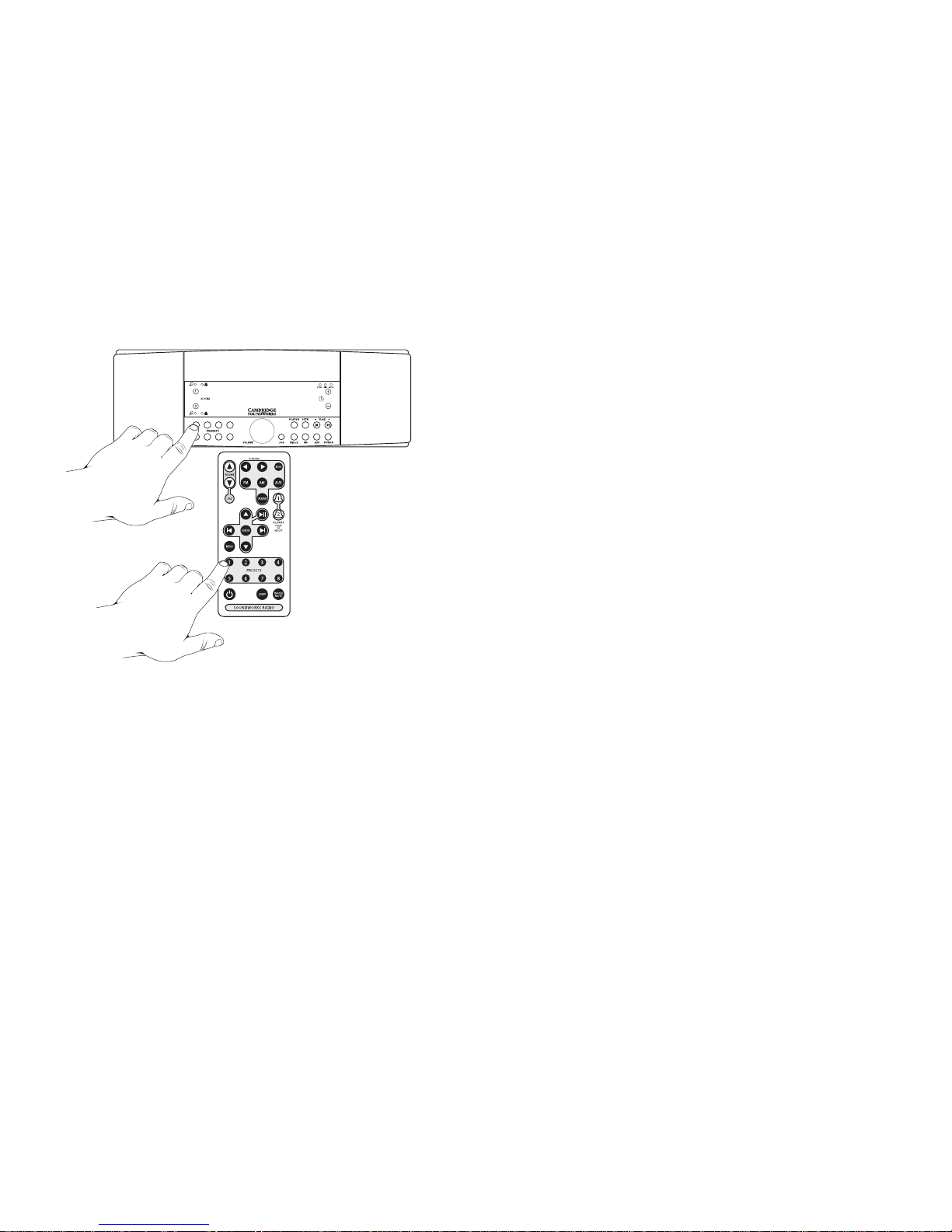

Storing Stations in PRESET Banks
Press the FM1/2 button to choose the desired Preset
bank (FM1, FM2) or choose the AM radio band. Tune to
the desired station. Press and hold the desired PRESET
button until a short tone is heard. The station is stored
(see K).
When an FM frequency is stored on a Preset, the current
Stereo/Wide/Mono and RDS Text setting is also stored. When the
Preset is tapped, the stored setting will override the JOG menu
setting. Storing a weak FM stereo station in MONO will insure
cleaner reproduction under varying reception conditions. You can
also elect to store FM stations with RDS text you do not wish to see in
STATIC or NO TEXT mode.
•
•
•
1 2 3 4
5 6 7 8
GETTING STARTED (Continued)
X
I
J
1 2 3 4
5 6 7 8
FM2 P1
88.1 9:43AM
FM2 P1
88.1 9:43AM

- 10 -
1 2 3 4
5 6 7 8
K
FM2 P1
88.1 9:43AM

- 11 -
ALARM
STEREO
WIDE
MONO
1
1
2
234
5
678
SNOOZE/MUTE
PRESETS
POWER
PLAYER
AUX
AM
JOG
SEEK
FM1/2

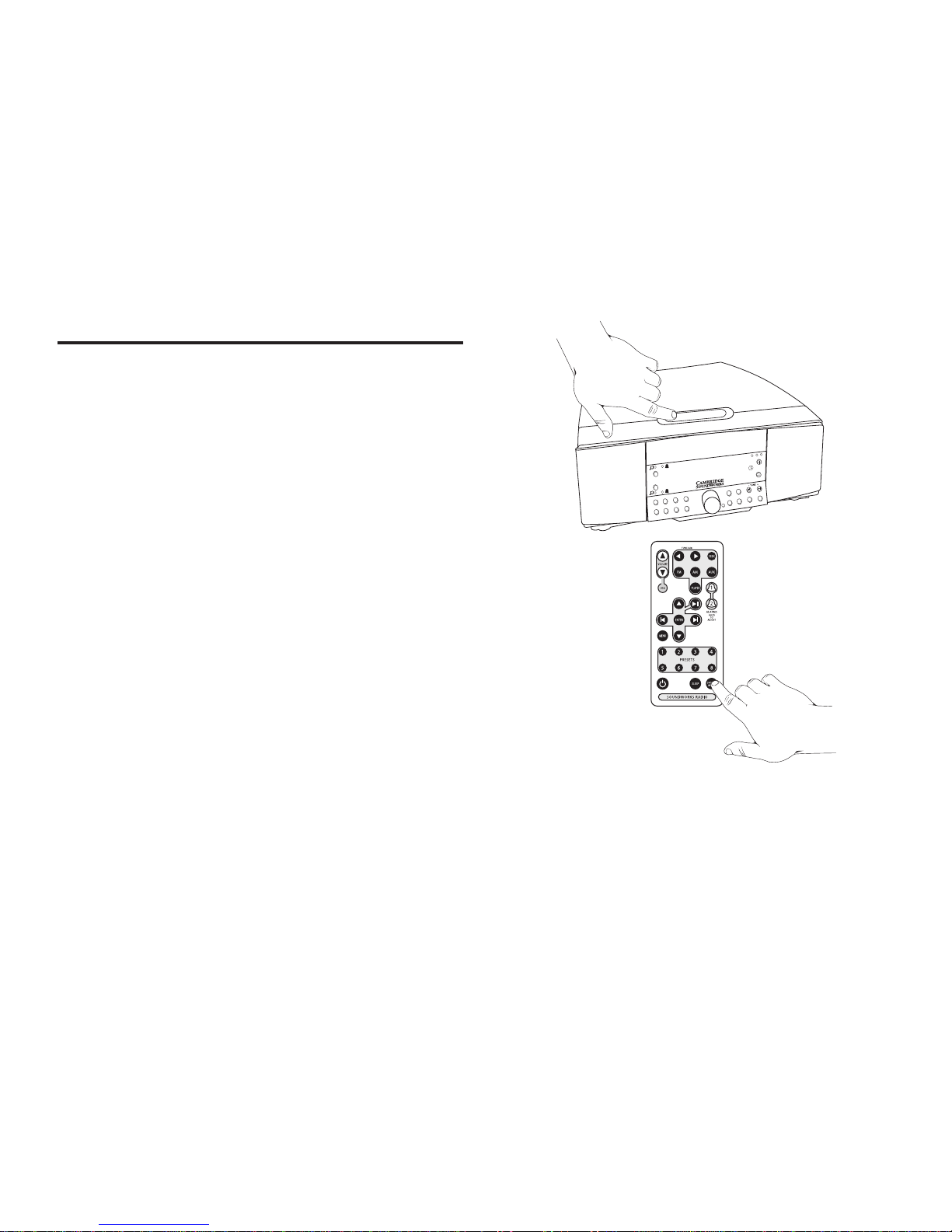

Mute
To mute the SoundWorks Radio: Press the
SNOOZE/MUTE bar (located on top of the radio) or the
SNOOZE/MUTE button on the remote control (see T).
Mute is cancelled if the POWER button is pressed, if a
disc is inserted or the volume is adjusted.
CONVENIENCE FEATURES
T

- 12 -
1 2 3 4
5 6 7 8
SLEEP DELAY
45 MIN
Sleep Delay
To make the SoundWorks Radio automatically turn off
after a specic period of time:
With the radio in standby, rapidly tap the POWER
button until the desired amount of play time is
reached (see U).
OR
Press the SLEEP button on the remote control until
the desired amount of play time is reached (see V).
Sleep delay is available for 15, 20, 30, 45, 60, 90 and 120
minute lengths. Sleep delay is cancelled if the POWER
button is pressed or if a disc is inserted. If you wish
to use the sleep function during disc play, insert a disc
before choosing the sleep function.
•
•
CONVENIENCE FEATURES (Continued)
U
V

- 13 -
HEADPHONES
1 2 3 4
5 6 7 8
2:11AM
INDICATES ALARM STATUS
= MUSIC WAKEUP
= TONE WAKEUP
RADIO STATION PRESET BUTTONS:
PRESS AND HOLD TO STORE CURRENT STATION
TAP TO ACTIVATE ALARM
PRESS AND HOLD TO ADJUST ALARM

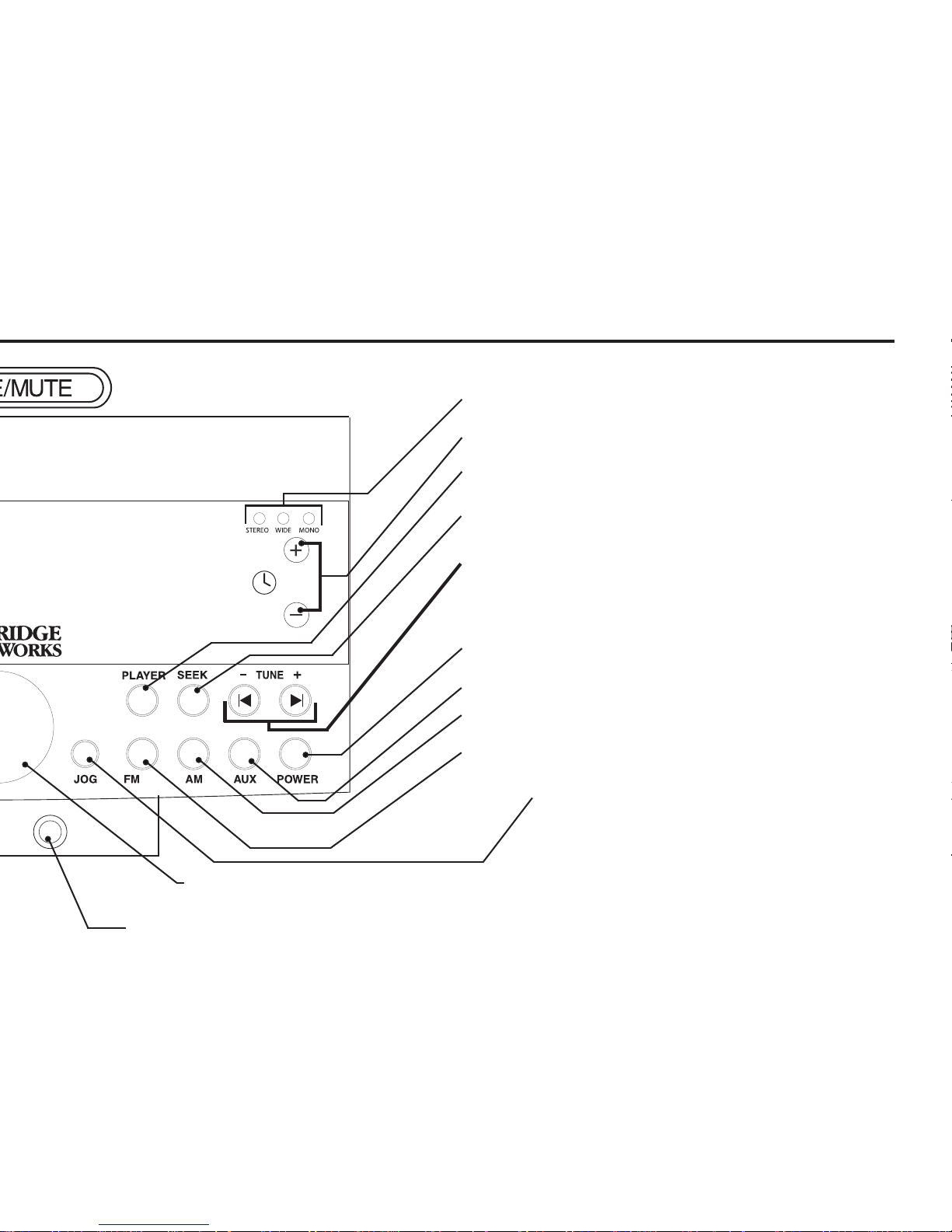

QUICK REFERENCE GUIDE - SOUNDWORKS RADIO FACEPLATE
INSERT HEADPHONES WITH 3.5mm STEREO MINIPLUG HERE FOR PRIVATE LISTENING
NORMAL OPERATION: PRESS TO MUTE SOUND.
DURING WAKEUP: PRESS TO ACTIVATE SNOOZE FEATURE.

- 14 -
AUX
2:11AM
INSERT AUDIO SOURCE WITH 3.5mm STEREO MINIPLUG HERE, PRESS AUX TO HEAR IT
ADJUSTS VOLUME DURING NORMAL OPERATION:
ADJUSTS SETTINGS IN JOG BUTTON OPERATION
PRESS REPEATEDLY TO VIEW MANY RADIO SETTINGS.
USE VOLUME TO ADJUST SETTINGS.
BASS- +4 TO -4
TREBLE- +4 TO -4
STEREO, WIDE, MONO
LOUDNESS- ON, OFF
SNOOZE TIME- 5 MIN TO 22 MIN
RDS TEXT- SCROLLING, FIXED, OFF
TIME DISPLAY- 12 hr AM/PM OR 24 hr
DISPLAY LANGUAGE- ENGLISH, SPANISH,
FRENCH, ITALIAN OR GERMAN
SELECTS FM RADIO BAND
PRESS AGAIN TO SWITCH BETWEEN FM PRESET BANK 1 OR 2
SELECTS AM RADIO BAND
SELECTS AUX INPUT
SELECTS RADIO “ON” OR “OFF”
(ALARMS ACTIVE IN“OFF” MODE)
PRESS REPEATEDLY FOR SLEEP DELAY FUNCTION
(15 MIN TO 120 MIN)
RADIO:TAP TO MANUAL TUNE, PRESS AND HOLD TO SEEK TO NEXT STATION.
RADIO:TAP TO AUTOMATICALLY SEEK THE NEXT STATION UP THE BAND.
DISC:TAP TO STOP PLAY.
SELECTS PLAYER INPUT
FOR USE WITH OPTIONAL PLAYER DOCK
INDICATES AUDIO MODE
SETS CURRENT TIME IN NORMAL OPERATION
SETS WAKEUP TIME IN ALARMS MODE
1/2

- 15 -
QUICK REFERENCE GUIDE - SOUNDWORKS RADIO CD REMOTE CONTROL
ADJUSTS VOLUME DURING NORMAL OPERATION
ADJUSTS SETTING IN JOG BUTTON OPERATION
FM:TAP TO MANUAL TUNE, PRESS
AND HOLD TO SEEK NEXT STATION
ALARM SET: ADJUST WAKEUP TIME
PLAYBACK AND
NAVIGATION
CONTROL FOR USE
WITH OPTIONAL
PLAYER DOCK
TAP TO AUTOMATICALLY
SEEK THE NEXT STATION
UP THE BAND
SELECTS AUX INPUT
NORMAL OPERATION: PRESS TO MUTE
SOUND.
DURING WAKEUP: PRESS TO ACTIVATE
SNOOZE FEATURE.
RADIO STATION PRESET
BUTTONS:
PRESS AND HOLD TO
STORE CURRENT STATION
TAP TO ACTIVATE ALARM
PRESS AND HOLD TO ADJUST ALARM
SELECTS FM BAND
PRESS REPEATEDLY TO SWITCH
BETWEEN FM1 and FM2
SELECTS AM BAND (ONE PRESET BANK)
SELECTS PLAYER INPUT
FOR USE WITH OPTIONAL
PLAYER DOCK
PRESS REPEATEDLY TO CHOOSE SLEEP
TIME (15 MIN TO 120 MIN)
SELECTS RADIO “ON” OR “OFF”
ALARMS OPERATE IN “OFF” MODE
PRESS REPEATEDLY TO VIEW MANY RADIO SETTINGS
USE VOLUME TO ADJUST SETTINGS
SEE *JOG MENU ITEMS
SOUNDWORKS RADIO 735 REMOTE CONTROL
BASS- +4 TO -4
TREBLE- +4 TO -4
STEREO,WIDE, MONO
LOUDNESS- ON, OFF
SNOOZE TIME- 5 MIN TO 22 MIN
RDS TEXT- SCROLLING, FIXED, OFF
TIME DISPLAY- 12 hr AM/PM OR 24 hr
DISPLAY LANGUAGE- ENGLISH,
SPANISH, FRENCH, ITALIAN OR
GERMAN
*JOG MENU ITEMS:

- 16 -
PLAYER
POWER
OUTPUT INPUT
AM
ANTENNA
FM ANTENNA
EXT
INT
INPUT
75 OHMS
PLAYER
INPUT
POWER OUTPUT FOR OPTIONAL PLAYER DOCK
AM ANTENNA INPUT MINIJACK
3.5mm STEREO MINIJACK PLAYER INPUT
FOR OPTIONAL PLAYER DOCK
QUICK REFERENCE GUIDE - SOUNDWORKS RADIO REAR CONNECTIONS
INTERNAL / EXTERNAL FM
ANTENNA SELECTOR
EXTERNAL FM ANTENNA “F”
TYPE INPUT

- 17 -
1 2 3 4
5 6 7 8
WIDE
STEREO MONO
1 2 3 4
5 6 7 8
AUX
HEADPHONES
FM2 P1
88.1 9:43AM
Q
CONNECTING AN EXTERNAL AUDIO SOURCE
R
FM2 P1
88.1 9:43AM
Listening to External Sound Sources
If you have an external audio program source you want
to connect to the SoundWorks Radio, like a portable MP3
player, connect it to the AUX input on the front panel (see
Q). The AUX button on the front panel or remote control
selects this input (see R).
Using the PLAYER input with optional PLAYER DOCK
The PLAYER button on the front panel or remote control
selects this input.
Connection of a PLAYER DOCK and Dock Use
instructions are detailed on page 25.
