CAME G4040E Owner's manual

INSTALLATION AND OPERATION
G4040E - G4040IE
AUTOMATIC BARRIERS
FA00132-EN
English
EN

p.
2
2 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.
Danger of hand crushing
Danger! High voltage.
No transiting while the barrier is moving
WARNING!
important safety instructions for people:
READ CAREFULLY!
PREMISE
• EMPLOY THIS PRODUCT ONLY FOR THE USE FOR WHICH IT WAS EXPRESSLY MADE.
ANY OTHER USE IS DANGEROUS. CAME CANCELLI AUTOMATICI S.P.A IS NOT LIABLE
FOR ANY DAMAGE CAUSED BY IMPROPER, WRONGFUL AND UNREASONABLE USE •
THE SAFETY OF THIS PRODUCT AND ITS PROPER FITTING DEPENDS, THEREFORE, ON
RESPECTING ITS TECHNICAL CHARACTERISTICS AND PROPER FITTING, TO BE DONE IN
STATE-OF-THE-ART FASHION, AND UNDER SAFE CONDITIONS AS EXPRESSLY EXPLAINED
IN THE LITERATURE THAT COMES WITH THE PRODUCT. • KEEP THESE WARNINGS
TOGETHER WITH THE INSTALLATION AND OPERATION MANUALS THAT COME WITH THE
OPERATOR.
BEFORE INSTALLING
(CHECKING WHAT'STHERE: IF SOMETHING IS MISSING, DO NOT CONTINUE UNTIL YOU
HAVE COMPLIED WITH ALL SAFETY PROVISIONS)
• FITTING AND TESTING MUST BE BE ONLY PERFORMED BY QUALIFIED TECHNICIANS •
LAYING THE CABLES, INSTALLATION AND TESTING MUST FOLLOW STATE-OF-THE-ART
PROCEDURES AS DICTATED BY REGULATIONS • BEFORE BEGINNING ANY OPERATION IT
IS MANDATORY TO CAREFULLY READ ALL INSTRUCTIONS; IMPROPER INSTALLATION MAY
RESULT IN SERIOUS HARM TO PEOPLE AND THINGS • MAKE SURE THE BOOM IS IN
GOOD MECHANICAL STATE, BALANCED AND ALIGNED, AND THAT IT OPENS AND CLOSES
PROPERLY. ALSO, IF NEEDED, FIT SUITABLE PROTECTIONS OR USE PROPER SAFETY
SENSORS • IFTHE OPERATOR IS TO BE INSTALLED AT AHEIGHT OF OVER 2.5 MFROM
THE GROUND OR OTHER ACCESS LEVEL, MAKE SURE YOU HAVE ANY NECESSARY PRO-
TECTIONS AND/OR WARNINGS IN PLACE • IFANY PEDESTRIAN OPENINGS ARE FITTED
INTO THE OPERATOR, THERE MUST ALSO BE AASYSTEM TO BLOCK THEIR OPENING
WHILE THEY ARE MOVING • MAKE SURE THAT THE OPENING AUTOMATIC BARRIER CAN-
NOT ENTRAP PEOPLE AGAINST THE FIXED PARTS OF THE OPERATOR • DONOT INSTALL
THE OPERATOR UPSIDE DOWN OR ONTO ELEMENTS THAT COULD YIELD AND BEND. IF
NECESSARY, ADD SUITABLE REINFORCEMENTS TO THE ANCHORING POINTS • DONOT
INSTALL ON TILTED SURFACES • MAKE SURE THE TEMPERATURE RANGE SHOWN ON
THE PRODUCT LITERATURE IS SUITABLE TO THE CLIMATE WHERE IT WILL BE INSTALLED
AS EXPLAINED IN THE MANUAL.
INSTALLING
• SUITABLY SECTION OFF AND DEMARCATE THE ENTIRE INSTALLATION SITE TO PRE-
VENT UNAUTHORIZED PERSONS FROM ENTERING THE AREA, ESPECIALLY MINORS AND
CHILDREN • BECAREFUL WHEN HANDLING OPERATORS THAT WEIGH OVER 20 KG.
IFNEED BE, USE PROPER SAFETY HOISTING EQUIPMENT • THE CE-MARKED SAFE-
TY DEVICES (PHOTOCELLS, STEPPING PLATES, SENSITIVE SAFETY-EDGES, EMERGENCY
BUTTONS, AND SO ON), MUST BE FITTED IN COMPLIANCE WITH THE REGULATIONS
IN EFFECT AND ACCORDING TO STATE-OF-THE-ART CRITERIA, TAKING INTO ACCOUNT
THE ENVIRONMENT, THE TYPE OF REQUIRED SERVICE AND OF THE WORKING FORCES
APPLIED TO MOVING LEAVES. ANY SHEARING OR CONVEYING POINTS MUST BE SENSOR-
PROTECTED • ANY RESIDUAL RISKS MUST BE POINTED OUT TO END USERS AND
HIGHLIGHTED WITH PICTOGRAMS AS PROVIDED BY THE LAW. • ALL OPENING COM-
MANDS (THAT IS, BUTTONS, KEY SWITCHES, MAGNETIC READERS, AND SO ON) MUST
BE INSTALLED AT LEAST 1.85 MFROM THE PERIMETER OF THE BARRIER'SWORKING
AREA, OR WHERE THEY CANNOT BE REACHED FROM OUTSIDE THE BARRIER. ALSO, ANY
DIRECT COMMANDS (BUTTONS, TOUCH PANELS, AND SO ON) MUST BE INSTALLED AT
LEAST 1.5 MFROM THE GROUND AND MUST NOT BE REACHABLE BY UNAUTHORIZED
PERSONS • THE AUTOMATIC BARRIER MUST VISIBLY SHOW ITS IDENTIFICATION DATA. •
BEFORE CONNECTING THE MAIN POWER SUPPLY MAKE SURE THAT THE IDENTIFICATION
DATA CORRESPOND TO THE THOSE OF THE NETWORK • THE AUTOMATIC BARRIER MUST
BE CONNECTED TO AN EFFECTIVE REGULATION GROUNDING SYSTEM.
• THE MANUFACTURER DECLINES ANY LIABILITY FOR USING NON-ORIGINAL PRODUCTS;
WHICH WOULD RESULT IN WARRANTY LOSS • ALL MAINTAINED ACTION COMMANDS,
MUST BE FITTED IN PLACES FROM WHICH THE MOVING BARRIER AND TRANSIT AND
DRIVING AREAS ARE VISIBLE • APPLY, IF MISSING, APERMANENT SIGN SHOWING THE
POSITION OF THE RELEASE DEVICE • BEFORE DELIVERING TO THE USERS, MAKE SURE
THE SYSTEM IS EN 12453 AND EN 12445 STANDARD COMPLIANT (REGARDING
IMPACT FORCES), AND ALSO MAKE SURE THE SYSTEM HAS BEEN PROPERLY ADJUSTED
AND THAT ANY SAFETY, PROTECTION AND MANUAL RELEASE DEVICES ARE WORKING
PROPERLY • APPLY WARNING SIGNS WHERE NECESSARY AND IN AVISIBLE PLACE
(SUCH AS THE GATE'SLICENSE PLATE)
SPECIAL USER-INSTRUCTIONS AND RECOMMENDATIONS
• KEEP BARRIER OPERATION AREAS CLEAN AND FREE OF ANY OBSTRUCTIONS. MAKE
SURE THE PHOTOCELL'SOPERATING FIELD IS CLEAR OF ANY OBSTRUCTIONS • DONOT
ALLOW CHILDREN TO PLAY WITH FIXED COMMANDS, OR TO LOITER IN THE BARRIER'S
MANEUVERING AREA. KEEP ANY REMOTE CONTROL TRANSMITTERS OR ANY OTHER
COMMAND DEVICE AWAY FROM CHILDREN, TO PREVENT THE OPERATOR FROM BEING
ACCIDENTALLY ACTIVATED • THE APPARATUS MAY BE USED BY CHILDREN OF EIGHT
YEARS AND ABOVE AND BY PHYSICALLY, MENTALLY AND PERCEPTIVELY CHALLENGED
PEOPLE, OR EVEN ONES WITHOUT ANY EXPERIENCE, PROVIDED THIS HAPPENS UNDER
CLOSE SUPERVISION OR ONCE THEY HAVE BEEN PROPERLY INSTRUCTED TO USE THE
APPARATUS SAFELY AND TO THE POTENTIAL HAZARDS INVOLVED • CHILDREN MUST
NOT PLAY WITH THE APPARATUS. CLEANING AND MAINTENANCE BY USERS MUST NOT
BE DONE BY CHILDREN, UNLESS PROPERLY SUPERVISED • FREQUENTLY CHECK THE
SYSTEM FOR ANY MALFUNCTIONS OR SIGNS OF WEAR AND TEAR OR DAMAGE TO
THE MOVING STRUCTURES, TO THE COMPONENT PARTS, ALL ANCHORING POINTS,
INCLUDING CABLES AND ANY ACCESSIBLE CONNECTIONS • FREQUENTLY CHECK THE
SYSTEM FOR ANY MALFUNCTIONS OR SIGNS OF WEAR AND TEAR OR DAMAGE TO
THE MOVING STRUCTURES, TO THE COMPONENT PARTS, ALL ANCHORING POINTS,
INCLUDING CABLES AND ANY ACCESSIBLE CONNECTIONS. KEEP ANY HINGES, MOVING
JOINTS AND SLIDE RAILS PROPERLY LUBRICATED. PERFORM FUNCTIONAL CHECKS ON
THE PHOTOCELLS AND SENSITIVE SAFETY EDGES, EVERY SIX MONTHS. CONSTANTLY
CLEAN THE PHOTOCELLS' GLASS COVERS USING ASLIGHTLY WATER-MOISTENED CLOTH;
DO NOT USE SOLVENTS OR CHEMICALS THAT COULD DAMAGE THE DEVICES • IF
REPAIRS OR MODIFICATIONS ARE REQUIRED TO THE SYSTEM, RELEASE THE OPERATOR
AND DO NOT USE IT UNTIL SAFETY CONDITIONS HAVE BEEN RESTORED • CUT OFF
THE POWER SUPPLY BEFORE RELEASING THE OPERATOR FOR MANUAL OPENINGS AND
BEFORE ANY OTHER OPERATION, TO PREVENT POTENTIALLY HAZARDOUS SITUATIONS.
READ THE INSTRUCTIONS • IFTHE POWER SUPPLY CABLE IS DAMAGED, IT MUST BE
REPLACED BY THE MANUFACTURER OR AUTHORIZED TECHNICAL ASSISTANCE SERVICE,
OR IN ANY CASE, BY SIMILARLY QUALIFIED PERSONS, TO PREVENT ANY RISK • ITIS
FORBIDDEN FOR USERS TO PERFORM ANY OPERATIONS THAT ARE NOT
EXPRESSLY REQUIRED OF THEM AND WHICH ARE NOT LISTED
IN THE MANUALS. FOR ANY REPAIRS, MODIFICATIONS AND ADJUSTMENTS AND FOR
EXTRA-ORDINARY MAINTENANCE, CALL TECHNICAL ASSISTANCE • LOG THE
JOB AND CHECKS INTO THE PERIODIC MAINTENANCE LOG.
FURTHER RECOMMENDATIONS FOR ALL
• KEEP AWAY FROM AND DO NOT LOITER NEAR THE BARRIER AND MECHANICAL
MOVING PARTS • DONOT ENTER THE BARRIER'SAREA OF OPERATION WHEN IT IS
MOVING • DONOT COUNTER THE OPERATOR'SMOVEMENT AS THIS COULD RESULT
IN DANGEROUS SITUATIONS • ALWAYS PAY SPECIAL ATTENTION TO ANY DANGEROUS
POINTS, WHICH HAVE TO BE LABELED WITH SPECIFIC PICTOGRAMS AND/OR BLACK AND
YELLOW STRIPES • WHEN USING ASELECTOR SWITCH OR ACOMMAND IN MAINTAINED
ACTIONS, KEEP CHECKING THAT THERE ARE NO PERSONS WITHIN THE OPERATING RANGE
OF ANY MOVING PARTS, UNTIL THE COMMAND IS RELEASED • THE BARRIER MAY MOVE
AT ANY TIME AND WITHOUT WARNING • ALWAYS CUT OFF THE POWER SUPPLY BEFORE
PERFORMING ANY MAINTENANCE OR CLEANING.


 


 MAX

p.
3
3 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.
LEGEND
This symbol shows which parts to read carefully.
⚠This symbol shows which parts describe safety issues
☞This symbol shows which parts to tell users about.
DESCRIPTION
Barrier made of varnished galvanized steel or AISI 304 satin finished stainless steel, set up for accessories.
Intended use
The automatic barrier is designed for private and public parking facilities.
Any installation and/or use other than that specified in this manual is forbidden.
Limits to use
Type G4040E - G4040IE
Maximum clearance width of the passage (m) 3.75
Technical data
Type G4040E - G4040IE
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Power supply motor (V) 24 DC
Max draw (A) 15
Power rating (W) 300
Torque (Nm) 200
Opening time a 90° (s) 2 ÷ 6
Duty cycle INTENSIVE USE
Operating temperature (°C) -20 ÷ +55
Reduction ratio (i) 1/202
Insulation class I
Weight (kg) 55
Dimensions (mm)

3
2
4
5
6
1
8
12
15
14
11
10
7
9
13
1
2
3
4
5
7
6
8
9
11
10
p.
4
4 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.

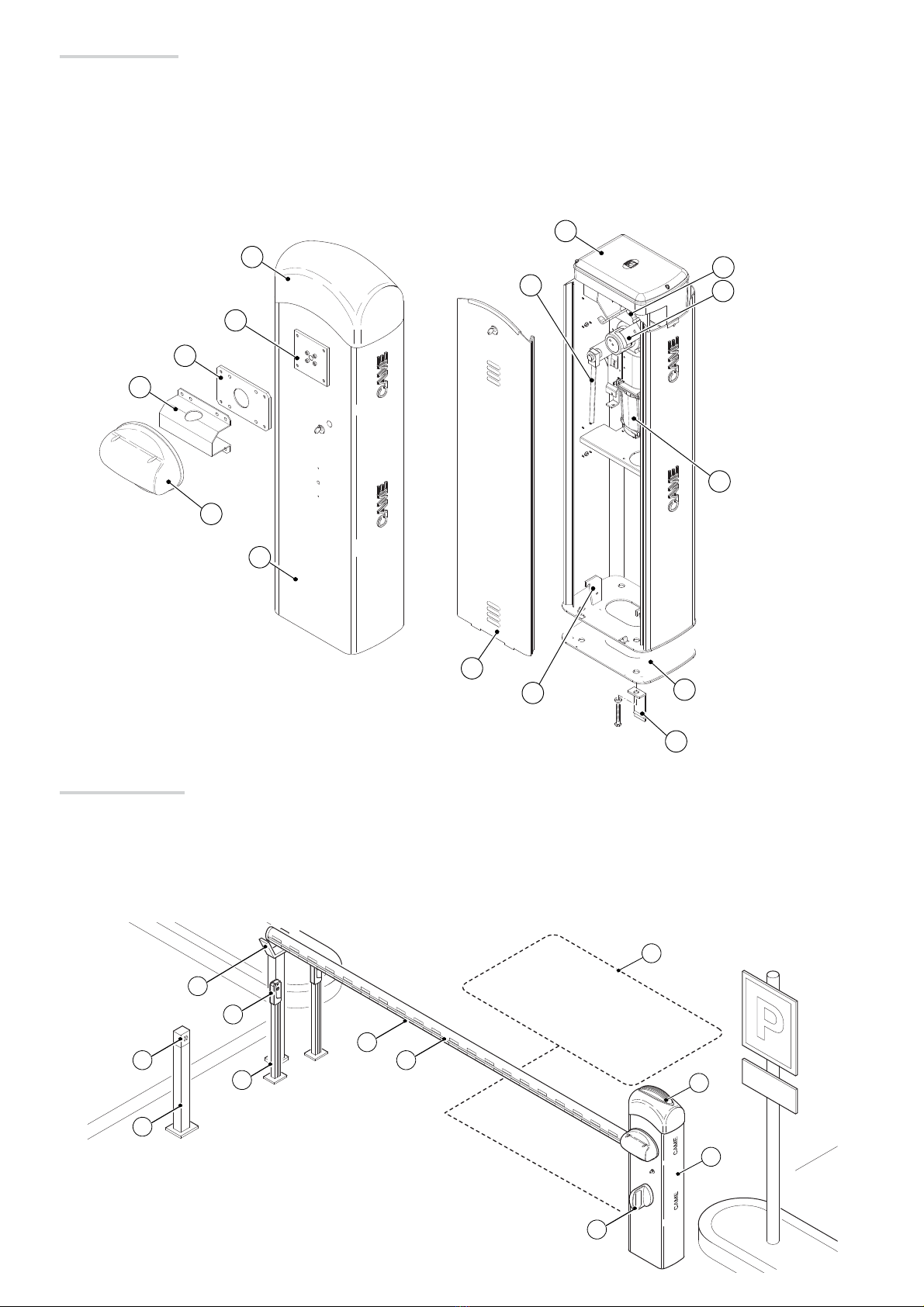

Description of parts
1. Dome
2. Motor-shaft plate
3. Mid plate
4. Boom-attachment cover
5. Protective casing shear proof
6. Cabinet
7. Anchoring pin
8. Control panel
9. Boom setting mechanical stop
10. Lever arm
11. Gearmotor with encoder
12. Inspection hatch
13. Anchoring bracket
14. Anchoring plate
15. Anchoring bracket
Standard installation
1. Barrier with boom
2. Reflective strips
3. Luminous cord
4. Flashing light
5. Photocell casing
6. Photocell
7. Small photocell post
8. Fixed rest
9. Coil
10. Control device post
11. Control device (keypad selector, transponder sensor)

p.
5
5 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.
GENERAL INSTRUCTIONS FOR INSTALLING
⚠Only skilled, qualified staff must install this product.
Important! Using original CAME control and safety devices and accessories ensures easy installation and system maintenance.
Preliminary checks
⚠Before beginning, do the following:
• make sure the plate is anchored to a solid spot;
• make sure you have set up a suitable dual pole cut off device along the power supply that is compliant with the installation rules. It should
completely cut off the power supply according to category III surcharge conditions (that is, with minimum contact openings of 3 mm);
•Make sure that any connections inside the casing (ones that ensure continuity to the protection circuit) are fitted with additional insulation
with respect to those of other electrical parts inside;
• set up suitable tubes and conduits for the electric cables to pass through, making sure they are protected from any mechanical damage.
Tools and materials
Make sure you have all the tools and materials you will need for installing in total safety and in compliance with applicable regulations. The figure
shows some of the equipment installers will need.
Connection Cable type Cable length
1 < 10 m
Cable length
10 < 20 m
Cable length
20 < 30 m
Power supply 230 V AC
FROR CEI
20-22
CEI EN
50267-2-1
3G x 1.5 mm23G x 2.5 mm23G x 4 mm2
Flashing light 2 x 0.5 mm2--
Photocell transmitters 2 x 0.5 mm2
Photocell receivers 4 x 0.5 mm2
Command and safety device 2 x 0.5 mm2
Antenna RG58 max 10 m
Metal mass detector (see product literature)
If cable lengths differ from those specified in the table, establish the cable sections depending on the actual power draw of the connected
devices and according to the provisions of regulation CEI EN 60204-1.
For multiple, sequential loads along the same line, the dimensions on the table need to be recalculated according to the actual power draw and
distances. If connecting products that are not contemplated in this manual, see the literature accompanying said products
Cable types and minimum thicknesses

500
340
400
r 40
p.
6
6 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.

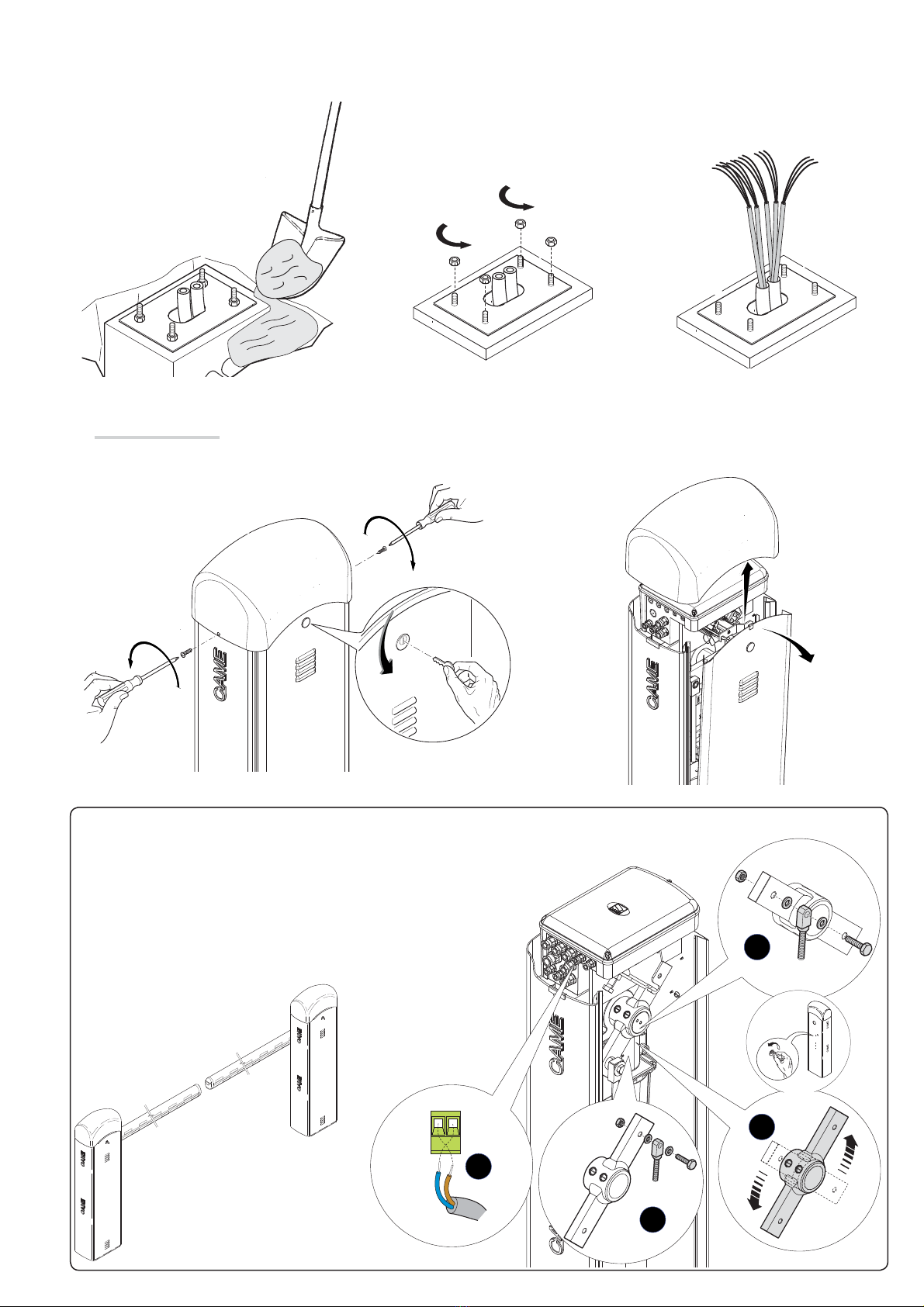

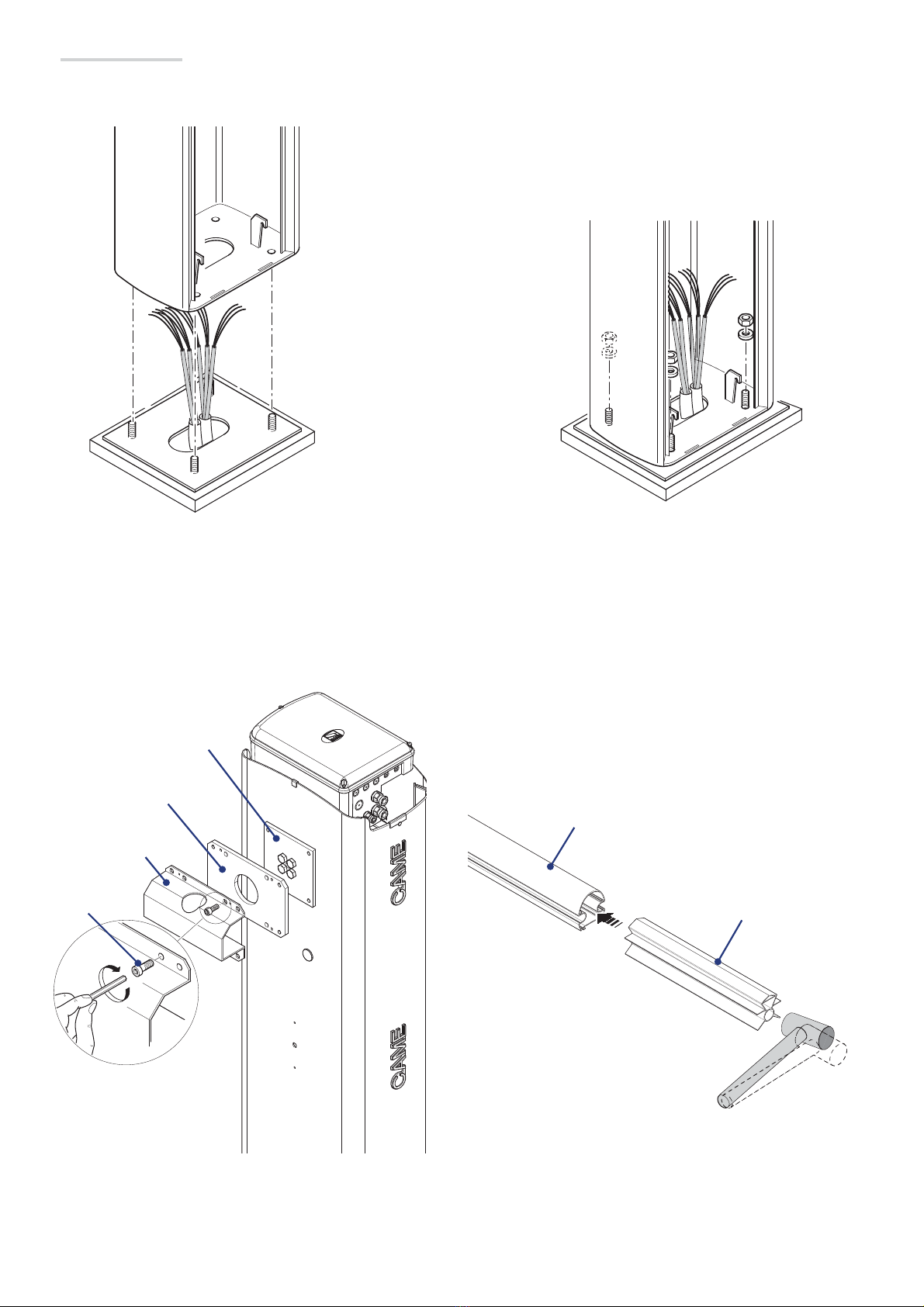

INSTALLATION
⚠The following illustrations are mere examples. Consider that the space available where to fit the barrier and accessories will vary depending
on the area where it is installed. It is up to each installer to select the most suitable solution.
⚠Warning! Use hoisting equipment to transport and position the barrier.
During the set up and installing stages the barrier could be unstable and tip over. So, be careful to not lean on it until it is completely fastened.
Preparing the fastening plate.
⚠If the flooring does not allow for a sturdy fastening of the entry unit, you will have to set up a cement slab.
Dig a hole for the foundation frame.
Set up the corrugated tubes needed for making the connections coming out of the junction pit.
The number of tubes depends on the type of system and the accessories you are going to fit.
Set up a foundation frame that is larger than the anchoring plate and sink it into the dug hole.
Fit an iron cage into the foundation frame to reinforce the concrete.
Assemble the four anchoring brackets to the anchoring plate.
Place the plate over the iron cage.
Fill the foundation frame with concrete. The base must be perfectly level with the bolts which are entirely above surface.
Wait at least 24 hrs for the concrete to solidify.
Remove the foundation frame.

1
NM
4
2
3

p.
7
7 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.
Preparing the barrier
Remove the screws from the dome, fit the key into the lock and turn it counter clockwise .
Lift the dome and remove the inspection hatch .
⚠Warning! The barrier is set up for installing on the left.
When installing on the right, invert the boom's opening direction, as follows:
- remove the anchoring pin from the lever arm ;
- release the gearmotor by using the key;
- turn the lever arm by 90° ;
- lock the motor again;
- fasten the anchoring pin to the opposite hole on the arm ;
- invert motor phase M with N .
Left
Right
Fill the hole with earth around the concrete block.
Remove the nut and washer from the bolts
Fit the electric cables into the tubes so that they come out about 600 mm.

G03756
G03750
p.
8
8 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.
UNI5931 M8x20
Assemble the boom-attaching cover, the mid plate and motor-shaft plate with a screw. Leave the screw loose to then facilitate fitting the boom.
⚠To mount with the G03750 boom, you will need to fit the G03756 reinforcement.
Attachment plate
Mid plate
Boom-attachment
cover
Installing the barrier
The cabinet should be installed with the inspection hatch on the most accessible side to make any adjusting easier.
Place the cabinet onto the anchoring plate and fasten it using nuts and washers.

UNI5931 M8x12
UNI5931 M8x20
L
1
3
4
2
UNI6954 ø2,9x13
UNI6954 ø3,9x19

p.
9
9 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.

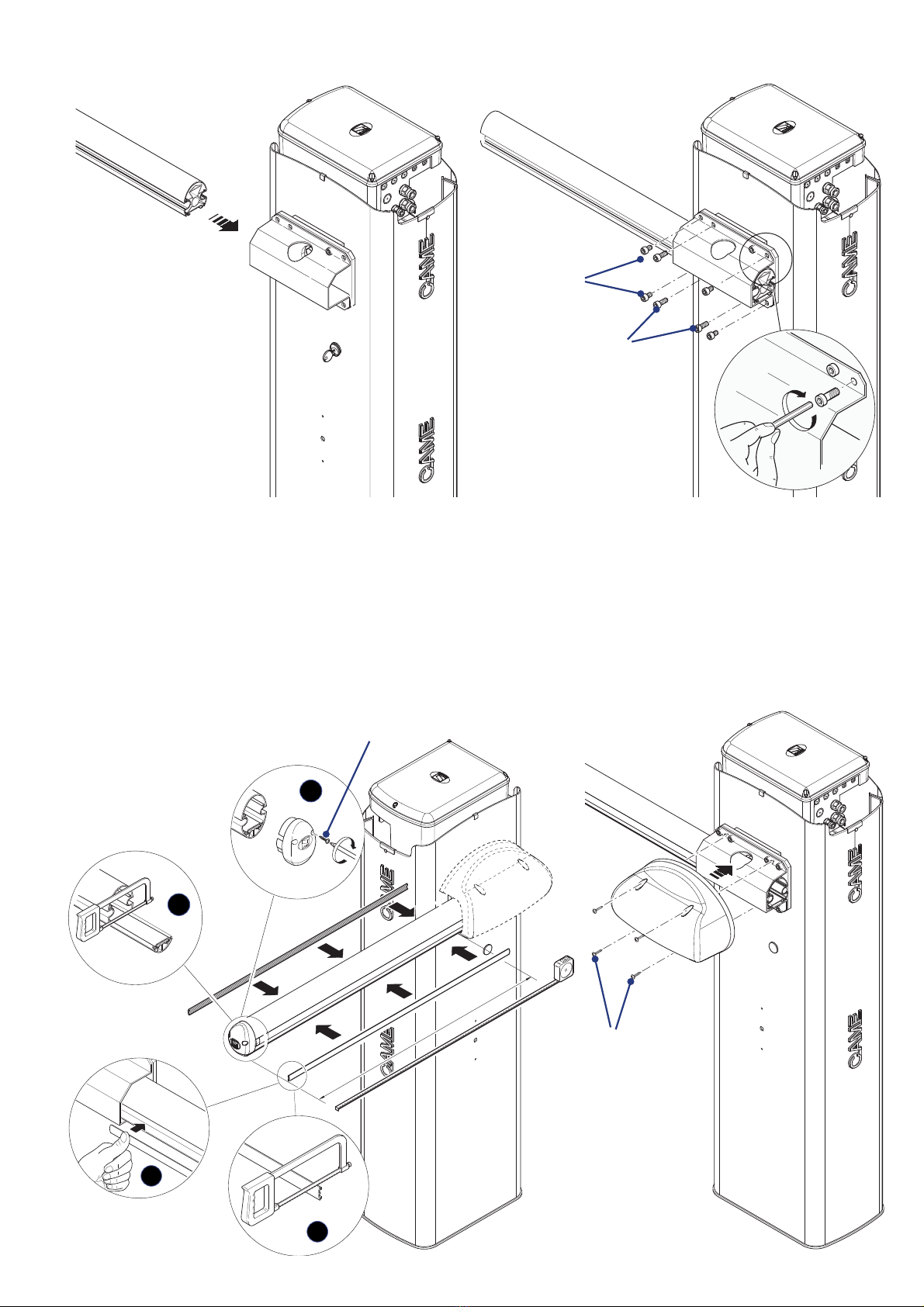

Fit the boom into the boom-attachment cover and fasten it using the screws.
Cut the groove cover profiles to measure, and fit them into the grooves on both sides of the boom .
Fit the rubber anti-shock profile into the boom and cut off any excess .
Fasten the endcap using the screws .
Fit the anti-shearing protective cover onto the boom-attachment cover and fasten it using the screws .

1
2
3
p.
10
10 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.

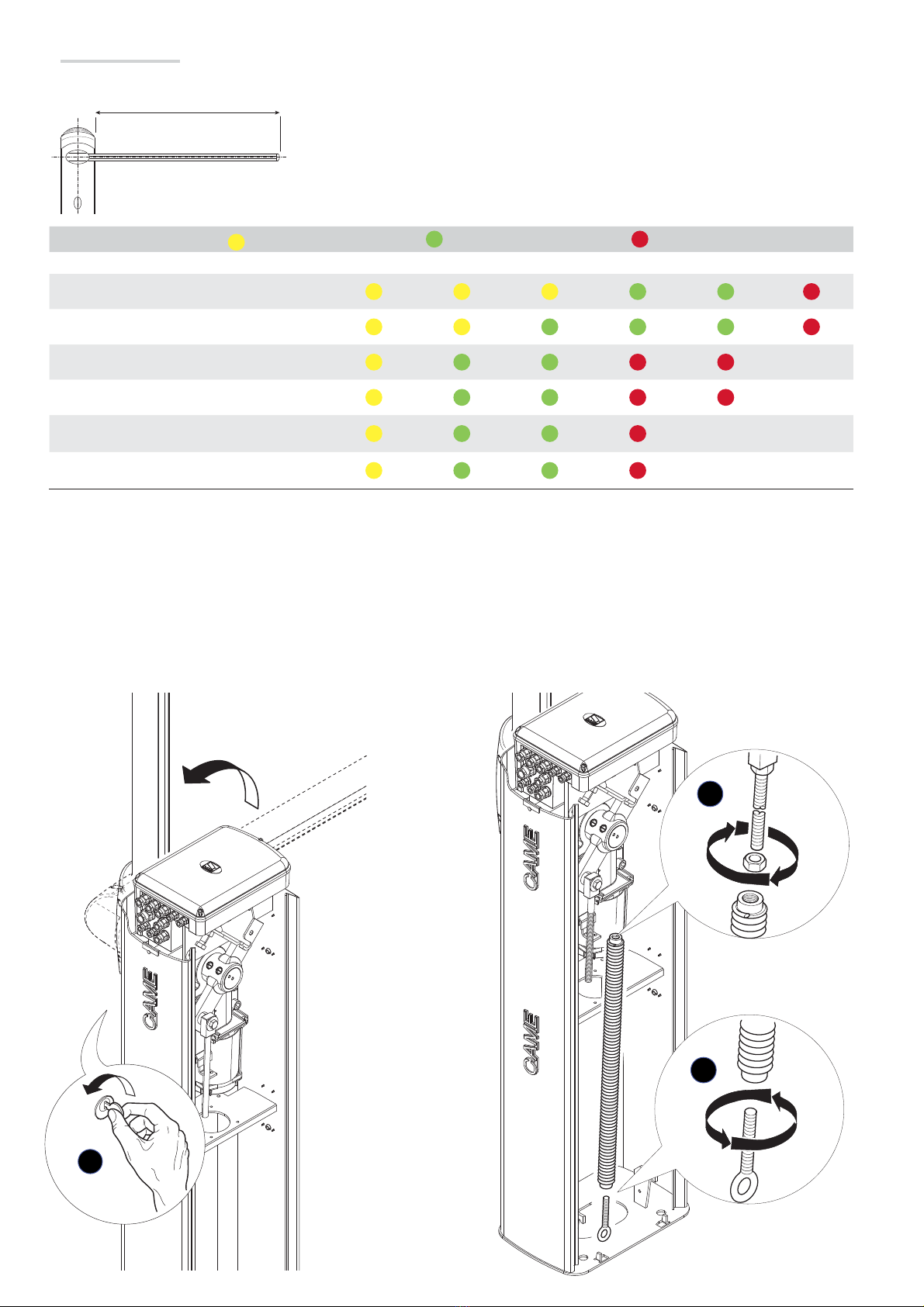

Balancing the boom
Before balancing the boom, check on the table below for congruences between the chosen spring, accessories and passage clearance.
⚠WARNINGS!
001G02802 Cannot be used on barriers fitted with the 001G0465 skirt or 001G02808 swing rest
001G02808 For passage widths of up to 3 m.
001G02807 MUST be used with passage widths exceeding 3 m.
001G0465 - 001G02808 Cannot be used together.
Release the gearmotor and position the boom vertically . Lock the gearmotor again.
Tighten the eyelet rod under the spring . The spring should be screwed to the anchoring pin .
PASSAGE CLEARANCE 8(max 3.75 m)
The boom includes the transparent groove cover and end cap.
A
Spring 001G02040 Ø 40 mm
B
Spring 001G04060 Ø 50 mm
C
Spring 001G06080 Ø 55 mm
BOOM LENGTH (m) 1,5 ÷ 1,75 1,75 ÷ 2,25 2,25 ÷ 2,75 2,75 ÷ 3,25 3,25 ÷ 3,5 3,5 ÷ 3,75
Boom with shock-proof profile
AAABBC
Boom with shock-proof profile and 001G028401
luminous cord
A A B B B C
Boom with skirt 001G0465
A B B C C
Boom with 001G028401 luminous cord and
001G0465 skirt
A B B C C
Boom with shock-proof profile and 001G02808 swing
rest
A B B C
Boom with shock-proof profile, 001G028401 luminous
cord and 001G02808 swing rest
A B B C

45°
45°
4
5
p.
11
11 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.

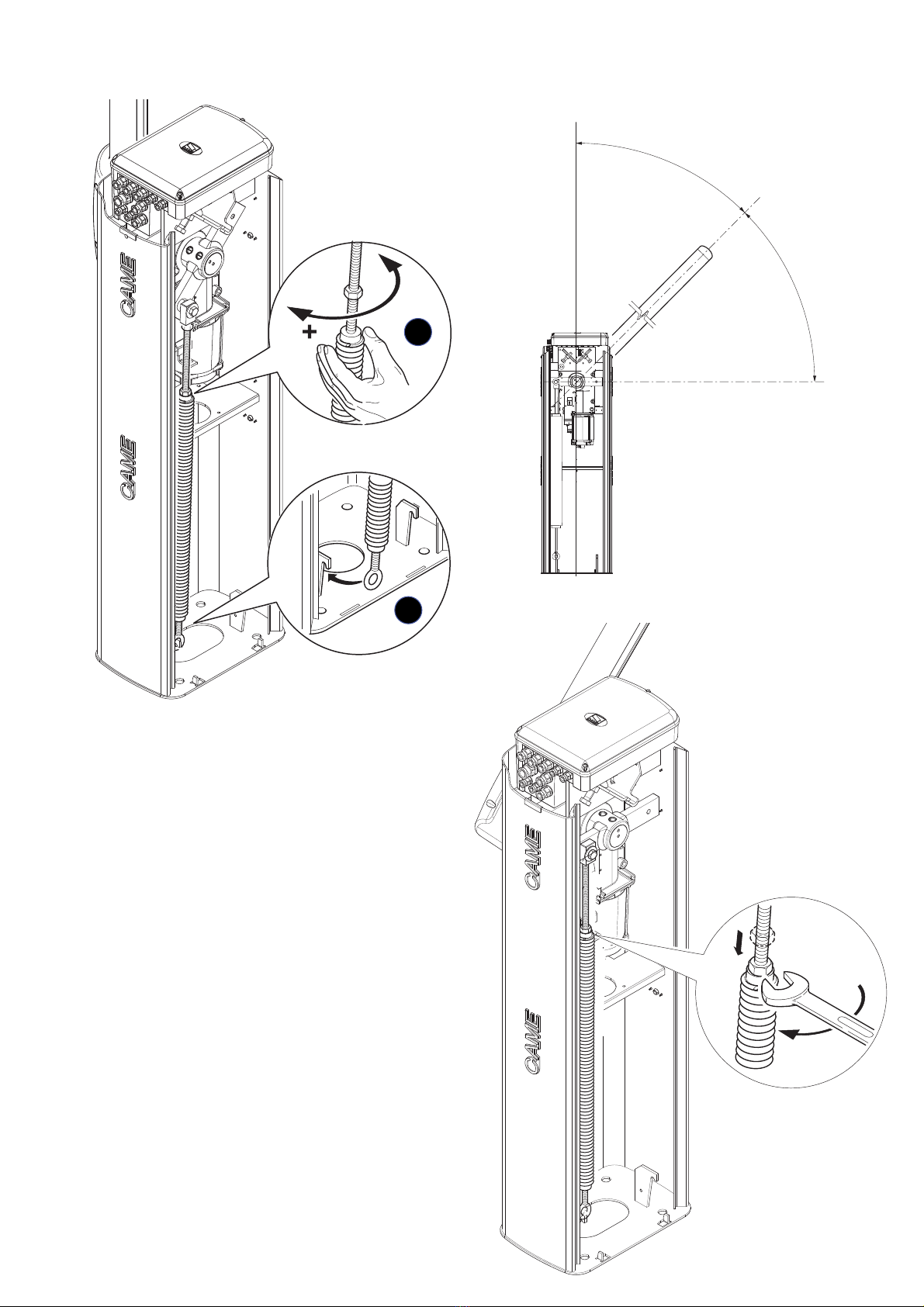

Fasten the counter nut and lock the gearmotor again.
Check the proper working state of the spring.
With the boom raised vertically the spring is not taut.
With the boom lowered horizontally the spring is taut.
Hook the eyelet rod to the anchoring rod .
Release the gearmotor and manually turn the spring to increase or reduce traction . The boom should stabilize at 45°.

17 19 18
4
5
14 13 9 7
16
2
10
11
12 6
21
3
822
3
26V 0V
230
0
20
1
15
p.
12
12 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.
Description of parts
1. Transformer
2. Power supply terminals
3. Transformer terminals
4. Gearmotor terminal
5. Encoder terminals
6. Control board fuse
7. Power supply on warning LED
8. Programming warning LED
9. Memory roll board connector
10. Programming buttons
11. Connector for the R700 / R800 card
12. RSE board connector
13. AF card connector
14. Antenna terminal
15. Terminals for control and safety devices
16. Terminals for paired / alternate / CRP connections
17. Keypad selector terminal
18. Terminals for transponder devices
19. Display
20. Accessories fuse
21. Line fuse
22. Overheating protection terminals
ELECTRICAL CONNECTIONS
⚠Warning! Before working on the control panel, cut off the main current supply and, if present, remove any batteries.
Power supply to control panel and control devices: 24 V AC/DC.
Functions on input and output contacts and time and user management details, are set up and viewable on the control panel's display.All connections
are quick-fuse protected.
FUSE TABLE ZL39
- Line 3.15 A-F = 120 V
1.6 A-F = 230 V
- Card 1 A-F
- Accessories 2 A-F

L N L1T L2T M N FC FA F + E -
10 11 E1 E6
+
-
26V
0V
230
0
24V 0 THERMAL
L N L1T L2T
p.
13
13 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.
Power supply
Terminals for powering up accessories:
- a 24 V AC normally;
- a 24 V DC when the emergency batteries
are operating;
Overall allowed power: 40 W
Transformer
Red
White
Blue
Orange
24 V DC gearmotor with encoder
The gearmotor is already connected.
To install the barrier on the right, follow the instructions in the PREPARING THE BARRIER section.
Factory wiring
White
Brown
Green
Brown
Blue
Eyelet with screw and washer for
ground connection
230 V AC, 50/60 Hz

10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
A B GND A B S1 GND
CAME
ACCESSCONTROL
AF
R700
R800
p.
14
14 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.
Red
Black
White
Blue
ONLY CLOSE function from control device (NO contact).
Warning: in MAINTAINED ACTION mode, the control
device must be connected to 2-4.

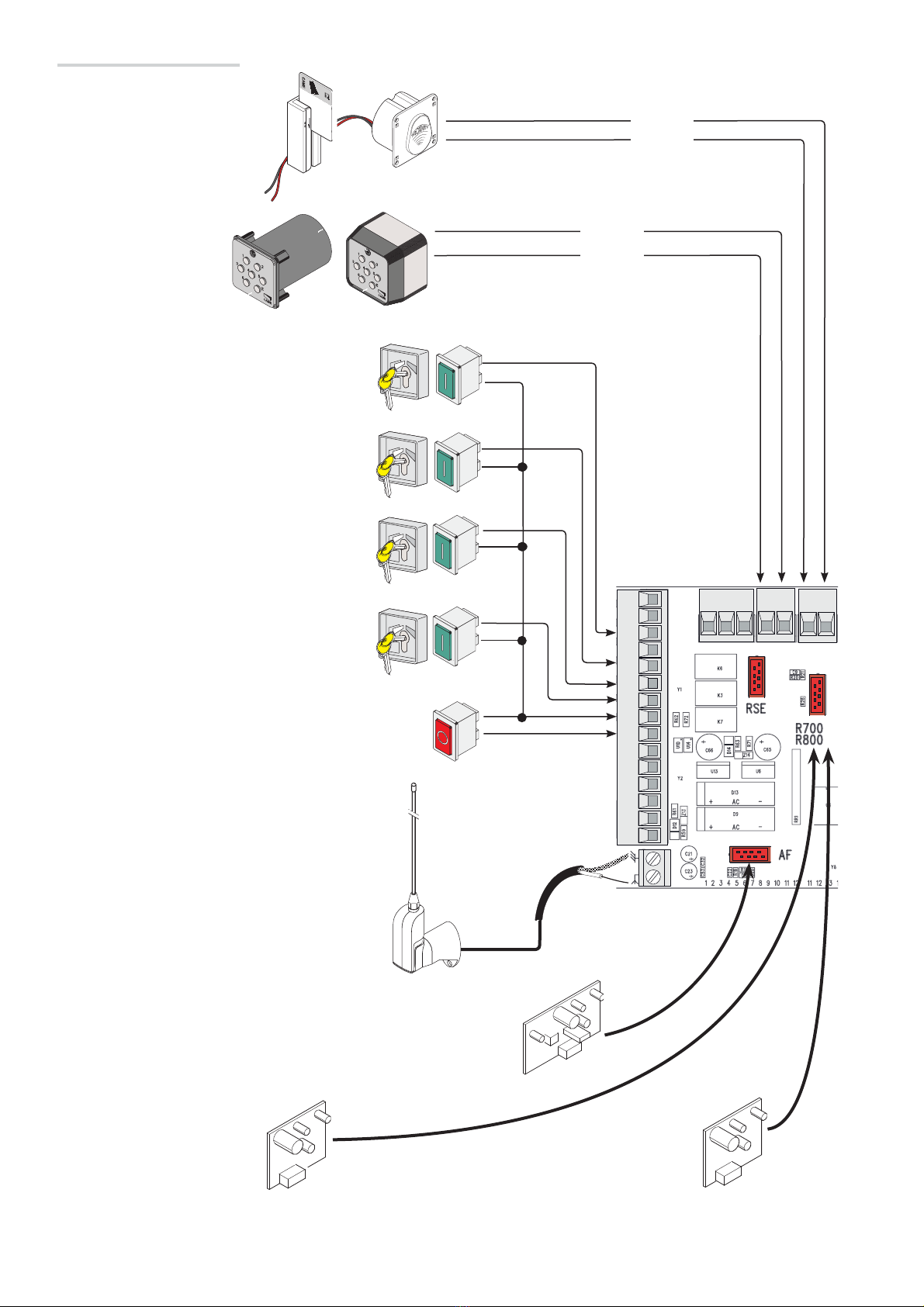

Command and control devices
Antenna with RG58 cable
STOP button (NC contact). It is for stopping the barrier while
excluding automatic closing. To resume movement, press the
control button or one on another control device.
If unused, select 0 (Deactivated) from function F1.
OPEN-CLOSE-INVERT function (step-step) from control
device (NO contact).
Keypad selector
Transponder or card reader
Fit the R700 decoding card for
recognition of the TSP00 sensor or the
LT001 card reader.
Fitthe R800 decoding card for
recognition of the keypad selector.
WARNING! For the system to work properly, before fitting any plug-in card, such as the AF or R800 one, YOU MUST CUT OFF THE
MAIN POWER SUPPLY and, if present, disconnect any batteries.
Fit the AF card to control the barrier
with a transmitter.
Warning! OPEN ONLY function from control device with NO
contact. Connect only to paired or alternate installations.
(See PAIRED CONNECTION or ALTERNATE CONNECTION).
OPEN ONLY function from control device with NO contact.
Warning: in MAINTAINED ACTION mode, the control
device must be connected to 2-3.

10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
RX TX
./ # .#

10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
RX TX
10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
p.
15
15 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.
Photocells
DIR
Photocells
DELTA-S
Photocells
DELTA
Safety devices
Configure contact CX or CY (NC), input for safety devices such as
photocells, that are EN 12978 regulation compliant.
See CX input functions (Function F2) or CY (Function F3)-
C1 reopening while closing. When the boom is closing,
opening the contact causes its movement to invert until fully
opened;
C4 obstruction wait. Stopping the boom, if it is moving, with
resumption of movement after the obstruction is removed.
C5 immediate closing. Closing the boom after a vehicle has
passed through the operating area of the safety devices.
C9 immediate closing with obstruction wait when closing.
Closing the boom after a vehicle has passed through the
operating area of the safety devices.
During the closing phase, the devices also perform the
function of C4 obstruction wait.
If unused, contacts CX and CY should be deactivated
during programming.
Barrier indicator light (contact rated for: 24 V AC - 3 W max).
It warns of the barrier status, see function F 10.
Luminous cord (Contact rated for: 24 V AC - 32 W max).
If flashes during the boom's opening and closing phases, see function F 15.
Flashing dome light (Contact rated for: 24 V AC - 25 W max).
It flashes during the barrier's opening and closing phases.
Alternatively, it is possible to connect a cycle or courtesy lamp. (Contact rated
for: 24 V AC - 25 W max).
An auxiliary external light can be connected and placed anywhere to increase
lighting in the driveway.
Cycle: it stays on from the moment the boom starts opening until it is fully
closed (including the automatic closing time).
Courtesy: it stays on for and adjustable time of between 60 and 180 seconds.
Warning devices

N.O.
N.C.
C.
+ - + -
DELTA
10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
FUSIBILE 200mA
TX 2
TX 2
10 2 TX C
-
+ -
NC
+ -
DIR / DELTA S
10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
N.O.
N.C.
C.
+ - + -
DELTA
10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
FUSIBILE 200mA
TX 2
TX 2
10 2 TX C
-
+ -
NC
+ -
DIR / DELTA S
10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
p.
16
16 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.
Sleep Mode
The Sleep mode function is for reducing energy consumption of the stand-by
photocells.
Select 1 from function F 60.
Photocell's safety connection
Upon each open or close command, the board verifies that the safety
systems work. Any malfunction inhibits any command.
Select, from Function F 5, on which inputs to activate.

~1°
~89°
+-
+
-


~1°
~89°
+
-
+
-


p.
17
17 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.
To correct the horizontal position:
- raise the boom;
- turn the mechanical closing stop clockwise to increase the boom travel or counter clockwise to reduce it .
Fasten the stop with a counter nut .
Establishing the endstop points
Close the inspection hatch and power up the system. Activate the barrier to check whether the boom is parallel to the road surface when closed
and at about 89° when open.
⚠The boom's opening and closing maneuvers must be performed with the inspection hatch closed.
To correct the boom's vertical position:
- lower the boom;
- open the inspection hatch;
- turn the opening mechanical stop clockwise to increase the boom's travel or counter clockwise to reduce it .
Fasten the stop with a counter nut .

Fi
Fi
F2
F3
0
i
03
i3
S1 GND
{
{
{
p.
18
18 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.
To enter the menu, keep the ENTER
button pressed for at least one
second.
To select menu items,
use the arrow keys ...
... then press ENTER
also for the submenus, use
the arrow keys to select ...
To increase or reduce the
value use the arrows...
... to exit the menu, wait 10 seconds or
press ESC.
... the press ENTER to
confirm ...
Browsing the menu
... then press ENTER
The ESC button is for:
- exiting menus;
- deleting changes.
The < > keys are for:
- moving from one item to another;
- increasing or decreasing values.
Display
The ENTER key is for:
- entering menus;
- confirming or memorizing set values.
Description of programming commands
⚠During programming, the barrier must not be moving.
PROGRAMMING

p.
19
19 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.
Functions map
F 1 Total stop function (1-2)
F 2 Function associated to input CX
F 3 Function associated to input CY
F 5 Safety test function
F 6 Maintained action function
F 9 Obstruction detection with motor idle function
F 10 Warning light function
F 11 Encoder exclusion
F 14 Sensor type selection function
F 15 Intermittent luminous cord function
F 18 Additional light function
F 19 Automatic closing time
F 21 Preflashing time
F 22 Working time
F 25 Courtesy light time
F 28 Adjusting opening speed
F 29 Adjusting closing speed
F 30 Adjusting opening slow-down speed
F 31 Adjusting closing slow-down speed
F 33 Adjusting calibration speed
F 34 Sensitivity during movement
F 35 Sensitivity during slow-down
F 37 Adjusting the opening slow-down starting point
F 38 Adjusting the closing slow-down starting point
F 49 Enabling serial connections
F 50 Saving data in memory roll
F 51 Reading memory roll data
F 52 Transferring parameters from Master to Slave
F 60 Sleep Mode function
F 61 Pre-flashing function
U 1 Type of command to associate to a user via radio control
U 2 Deleting single users
U 3 Deleting all users
A 1 Boom-type setting
A 2 Motor test
A 3 Calibrating boom travel
A 4 Resetting parameters
A 5 counting the number of maneuvers
H 1 Software version
Functions menu
F1 Total stop [1-2] 0 = Deactivated (default) / 1 = Activated
NC input - boom stop while excluding any automatic stop; to resume movement, use a control device. Connect the safety device to 1-2.
F2 Input [2-CX] 0 = Deactivated (default) / 1 = C1 / 4 = C4 / 5 = C5 / 9 = C9
NC Input - For associating: C1 = reopening during closing for photocells, C4 = obstruction wait, C5 = immediate closing, C9 = immediate
closing with obstruction wait when closing.
F3 Input [2-CY] 0 = Deactivated (default) / 1 = C1 / 4 = C4 / 5 = C5 / 9 = C9
NC Input - For associating: C1 = reopening during closing for photocells, C4 = obstruction wait, C5 = immediate closing, C9 = immediate
closing with obstruction wait when closing.
IMPORTANT! Start programming by first performing the following: A1 BOOM-TYPE SETTING, A2 MOTOR TEST, F1 TOTAL STOP
and A3 CALIBRATING BOOM TRAVEL.

p.
20
20 - Manual code: FA00132
- E N
-EN v.
2
2 08/2016 © CAME Cancelli Automatici S.p.A. -The data and information in this manual may be changed at any time and without notice.
F5 Safety test 0 = Deactivated (default) / 1 = CX / 2 = CY / 3 = CX+CY
After every opening or closing command, the board will check whether the photocells are working properly.
F6 Maintained action 0 = Deactivated (default) / 1 = Activated
The barrier opens and closes by keeping one button pressed. Opening button on 2-3 and closing button on 2-4. When this function is
activated, all other control devices, even radio ones, are excluded.
F9 Obstruction detection with motor idle 0 = Deactivated (default) / 1 = Activated
With the barrier closed, open or after a total stop, the operator stays still if the safety devices (photocells and sensitive edges) detect an
obstruction.
F10 Warning light 0 = lit with boom raised and moving (default) /
1 = flashes intermittently each half second when opening
when closing it flashes intermittently every second
permanently lit with the boom raised
o with the boom lowered
It warns of the barrier status. The light bulb is connected to 10-5.
F11 Excluding the encoder 0 = encoder activated (default) / 1 = encoder deactivated
It excludes management of slow downs, obstruction detection and sensitivity.
F14 Sensor type selection 0 = transponder sensor or magnetic card reader command
1 = control with keypad selector (default)
Setting the type of sensor for controlling the barrier.
F 15 Luminous cord intermittance 0 = Moving boom (default) /1= Moving and closed boom
It warns of the status of the barrier with intermittent lights.
F18 Additional light 0 = Flashing light(default ) / 1 = Cycle / 2 = Courtesy
Output on [10-E1].
The flashing light works when opening and closing.
The cycle lamp stays on from the moment in which the barrier starts opening until it closes completely (including the automatic closing time).
In case the automatic closing is not inserted, it stays on only during the movement.
The courtesy light stays on for a fixed 180 seconds or it can be adjusted, see function F 25.
F19 Automatic closing time 0 = Deactivated (default) / 1 = 1 s / 2 = 2 s / … / 180 = 180 s
The first automatic-closing wait starts when the opening endstop point is reached and can be set to between 1 and 180 seconds. The
automatic closing does not activate if any of the safety devices trigger when an obstruction is detected, after a total stop or during a power
outage.
F21 Preflashing time 0 = Deactivated (default) / 1 = 1 s / … / 5 = 5 s
After an opening or closing command, the flashing light connected to 10-E1, flashes from 1 to 10 seconds before the maneuver starts.
F22 Working time 5 = 5 s / ...../ 120 = 120 s (default)
Gearmotor working time during opening and closing.
The working time can be adjusted between 5 and 120 seconds.
F25 Courtesy light time 5 = 5 s / ...../ 120 = 120 s (default).
Supplementary light, that stays lit during the barrier's opening and closing movement.
The time may be adjusted between 5 and 120 seconds
F28 Opening maneuver speed 70 = Minimum speed / … / 100 = Maximum speed.
Setting the boom's opening speed, calculated as a percentage.
⚠Warning: the speed parameter fields vary depending on the type of boom:
- for jointed booms, of 2 m and 4 m, set the speed percentage to between 70 and 100;
- for booms of 6 m and 8 m, set the speed percentage to between 80 and 100.
F 29 Closing maneuver speed 70 = Minimum speed / … / 100 = Maximum speed.
Setting the boom's closing speed, calculated as a percentage.
⚠Warning: the speed parameter fields vary depending on the type of boom:
- for jointed booms, of 2 m and 4 m, set the speed percentage to between 70 and 100;
- for booms of 6 m and 8 m, set the speed percentage to between 80 and 100.
