CamNtech The Actiwave User manual

Actiwave User Guide - Issue 2.0.18 Page 1
The Actiwave
User Guide
Document Reference: 30105
Document Issue: 2.0.18
Date of current version: 12/01/2017
Author: Gary Ungless

Actiwave User Guide - Issue 2.0.18 Page 2
Regulatory Information
European Union
Manufacturer:

Actiwave User Guide - Issue 2.0.18 Page 3
IMPORTANT SAFETY INFORMATION
WARNINGS
Contains Lithium Battery –DO NOT ATTEMPT TO
DISSASEMBLE: No user serviceable parts, danger of chemical
hazard if battery is damaged.
Not Defibrillation proof.
Not indicated for use on areas of broken, damaged or irritated
skin.
Devices removed from subjects must be considered to be
contaminated –see Appendix 1.
Safety Classification Information:
The Actiwave is INTERNALLY POWERED EQUIPMENT.
The Actiwave mode of operation is CONTINUOUS OPERATION.
Device and Packaging Symbols and Markings:
The Actiwave is a TYPE B APPLIED
PART.

Actiwave User Guide - Issue 2.0.18 Page 4
Contents
Regulatory Information........................................................................................... 1
European Union ................................................................................................. 2
Manufacturer:..................................................................................................... 2
IMPORTANT SAFETY INFORMATION.................................................................... 3
WARNINGS ....................................................................................................... 3
Safety Classification Information:........................................................................ 3
Device and Packaging Symbols and Markings:.................................................. 3
1Introduction to the Actiwave System.............................................................. 6
1.1 An Overview of the Actiwave System......................................................... 6
Components required for a system............................................................ 6
The Actiwave Recorders............................................................................ 6
Actiwave Electrodes/Subject Connections................................................. 7
The Actiwave Interface Docks.................................................................... 8
1.2 Contraindications....................................................................................... 9
1.3 Required Skills, Training & Knowledge of Intended Users.......................... 9
1.4 General Principle of Operation................................................................... 9
2Installing the Actiwave Software................................................................... 11
2.1 System Requirements............................................................................ 11
2.2 Installing the Software.............................................................................. 11
2.3 Updating the software.............................................................................. 12
2.4 Installing the USB drivers for the Interface Dock...................................... 12
2.5 Running the Software for the first time..................................................... 13
3Connecting the Actiwave & Charging the Battery........................................ 14
3.1 Overview.................................................................................................. 14
3.2 Correct orientation and position in the dock............................................. 14
3.3 Charging the Actiwave from the PC......................................................... 15

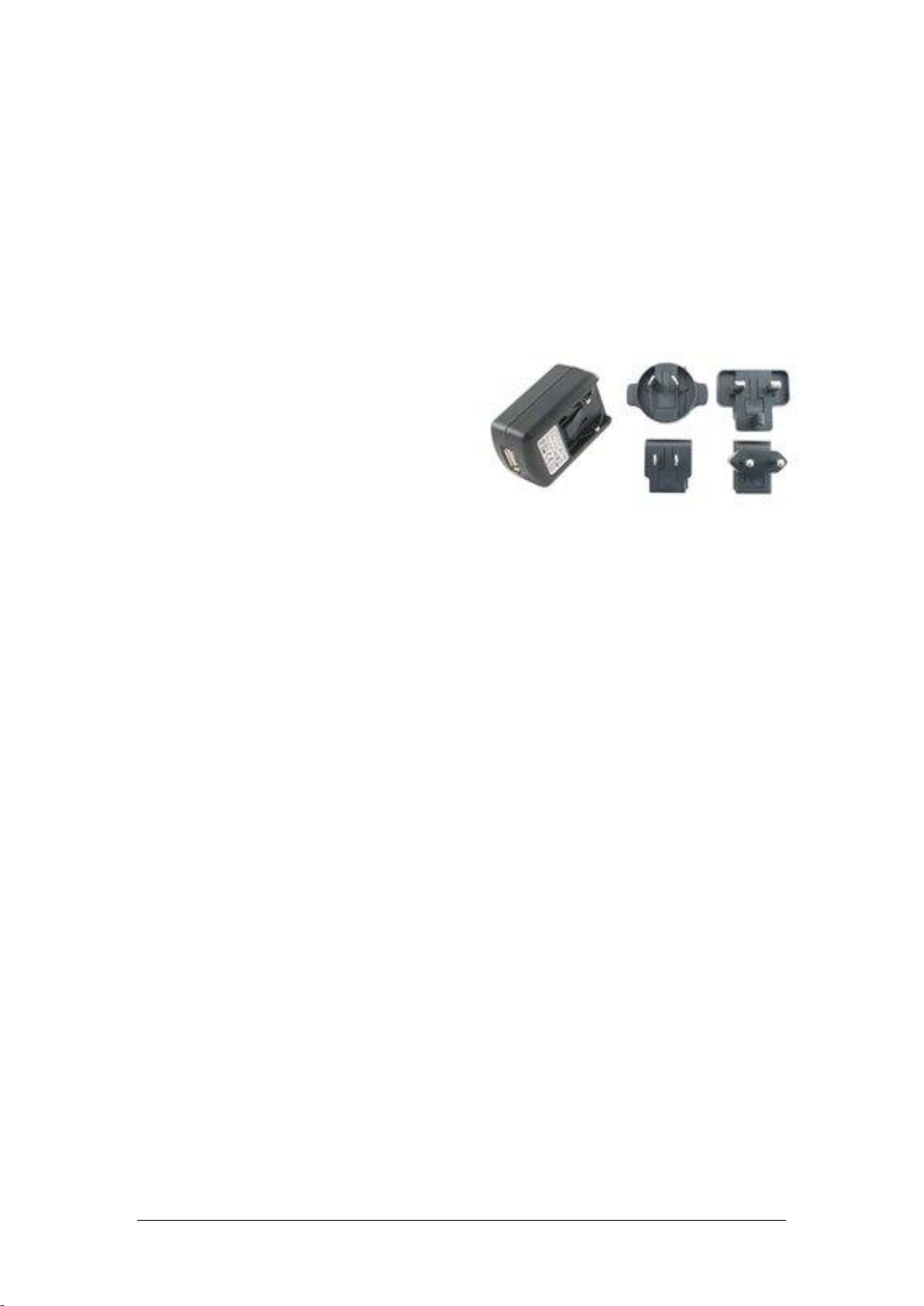

3.4 Charging using the Mains Power Supply.................................................. 16
4Selecting an Actiwave and Viewing Status................................................... 17
4.1 Selecting an Actiwave.............................................................................. 17
4.2 Viewing Actiwave Status.......................................................................... 17
17
5Setting up an Actiwave for a Recording....................................................... 18
5.1 Actiwave Set-up....................................................................................... 18
5.2 Additional Actiwave Cardio Options......................................................... 19
5.3 Additional Actiwave EMG Options............................................................ 19
5.4 Completing the setup............................................................................... 19
5.5 Erasing the Actiwave Memory.................................................................. 19
6Preparing for an Actiwave Cardio ECG Recording...................................... 21
6.1 Electrode pad selection............................................................................ 21
6.2 Skin Preparation...................................................................................... 21
Procedure for Skin Preparation................................................................ 21
6.3 Electrode Positioning............................................................................... 22
6.4 Positioning of the Actiwave cardio............................................................ 22
6.5 Use of the Actiwave Cardio in water ........................................................ 23
7Preparing for a 3 or 5 Channel ECG Recording ........................................... 24
7.1 Electrode pad Selection and Skin Preparation......................................... 24
7.2 Pad placement......................................................................................... 24
8Preparing for an EMG recording ................................................................... 26

Actiwave User Guide - Issue 2.0.18 Page 5
8.1 Electrodes................................................................................................ 26
8.2 Pad placement......................................................................................... 26
8.3 Signal level & Sampling........................................................................... 26
9Preparing for a MOTION recording ............................................................... 27
9.1 Mounting.................................................................................................. 27
9.2 Orientation............................................................................................... 27
9.3 Sampling.................................................................................................. 27
10 Downloading data........................................................................................... 28
10.1 Download options .................................................................................... 28
Notch Filter .............................................................................................. 28
Derived Signals / Annotations.................................................................. 28
End Cut-Off Time..................................................................................... 29
Adjust Sample Rate................................................................................. 29
Output File Format................................................................................... 29
10.2 Completing the Download........................................................................ 29
10.3 The ‘Download All’ Option........................................................................ 30
10.4 Viewing the Saved Data........................................................................... 30
Selecting a file to view ............................................................................. 30
Detailed Analysis of EDF files.................................................................. 30
Free EDF file viewers............................................................................... 31
11 FAQ & Troubleshooting................................................................................. 32
Appendix 1 - Handling & Environmental Information......................................... 34
A1.1 Decontamination...................................................................................... 34
A1.2 Battery Care............................................................................................. 34
A1.3 Disposal................................................................................................... 34
A1.4 ENVIRONMENTAL .................................................................................. 35
A1.5 EMC Guidance & Declaration................................................................... 35
A1.5.1 Electromagnetic Emissions........................................................... 35
A1.5.2 Electromagnetic Immunity............................................................. 36
Appendix 2 –Installing USB Drivers Manually.................................................... 38
Appendix 3 –Joining EDF Files........................................................................... 42

Actiwave User Guide - Issue 2.0.18 Page 6
1 Introduction to the Actiwave System
1.1 An Overview
of the
Actiwave
System The Actiwave system is designed to offer maximum
flexibility for the recording of physiological waveforms.
Instead of one bulky multi-channel recorder, the Actiwave
devices are available in 1, 2 or 4 channels and are
physically small enough to be located close to the
measuring electrodes.
Components required for a system
The Actiwave system consists of 3 main components:
One or more Actiwave recorders with appropriate
electrodes.
USB Interface Dock.
PC Software providing set-up, download and
maintenance functions.
The Actiwave Recorders
There are five variants of the Actiwave recorder; the basic
functionality of each variant is summarized in the table
below:
Actiwave Model
Functionality
Memory
Recording
Time *
EEG/ECG 1
[08-514]
Single channel
recorder for EEG
or ECG
waveforms.
16Mb
36 hours
EEG/ECG 2
[08-521]
Dual channel
recorder for 2 x
EEG or
2 x ECG or
1 of each type of
waveform.
24Mb
27 hours
EEG/ECG 4
[08-557]
Four channel
recorder for EEG
or ECG waveforms
in any combination.
24Mb
13 hours
1 Channel ECG/EEG
2 Channel EEG/ECG
4 Channel ECG/EEG

Actiwave User Guide - Issue 2.0.18 Page 7
EMG 2
[08-536]
Dual channel
recorder with range
and frequency
response optimized
for EMG recording.
24Mb
27 hours
MOTION
[08-565]
Three Axis
accelerometer
providing activity
and body position.
64Mb
6 days,
11
hours**
Cardio
[08-603]
Single channel
recorder for ECG
waveforms with
synchronized three
axis accelerometer
providing activity
and body position.
24Mb
31
hours***
* Example recording times are based on 128Hz sampling with
8 bit resolution unless otherwise specified
** Three axes acceleration sampled at 32Hz, 10 bit.
*** Three axes acceleration sampled at 32Hz, 8 bit.
Actiwave Electrodes/Subject
Connections
The Actiwave recorders (with the exception of the Cardio)
have 1mm male contact pins to mate with 1mm female
sockets attached to the electrode cables. The use of 1mm
pins/sockets helps to reduce the physical size of the
Actiwave in use.
There is a vast range of third party electrodes available to
suit specific applications. Typically third party electrodes
will be fitted with 1.5mm female sockets which are not
directly compatible with the Actiwave. To counter this,
CamNtech offer the following solutions:
Solution
Catalogue
Ref
Description
EEG/EMG
electrode pack
450mm
08-450
Pack of 6 gold plated ‘disc’
electrodes (11mm dia) with
450mm leads and 1mm
connector. Includes Abrasive
skin prep paste, Conductive
Adhesive paste and gauze.
EEG/EMG
electrode pack
08-100
As above but with 100mm
leads.
2 Channel EMG
Cardio
MOTION

Actiwave User Guide - Issue 2.0.18 Page 8
100mm
ECG/EMG 4mm
stud to 1mm socket
assembly
08-788
Available in cable lengths of
50mm to 600mm.
Self assembly
cable accessory kit
08-791
Pack of ten 1mm cable
sockets with 5m of 1.6mm
black cable to allow self
assembled leads.
1mm socket to
1.5mm plug
adaptor
#
Pack of 10 adaptors to allow
connection of standard 1.5mm
leads to the Actiwave.
Lead Customization
Service
*
Modification of customer
supplied leads to attach 1mm
sockets.
# Available Q3 2010 * Contact CamNtech for
details
The Actiwave Cardio is
designed to be worn on the
upper or lower chest (see
photo). The Cardio is equipped
with spring loaded contacts to
allow direct connection to the
standard 4mm studs found on
ECG electrode pads.
The choice of electrode pad will
depend upon the application. The Actiwave Cardio can be
comfortably worn for several days.
For further information regarding electrode types and
electrode placement, see section 6 of this manual.
The Actiwave Interface Docks

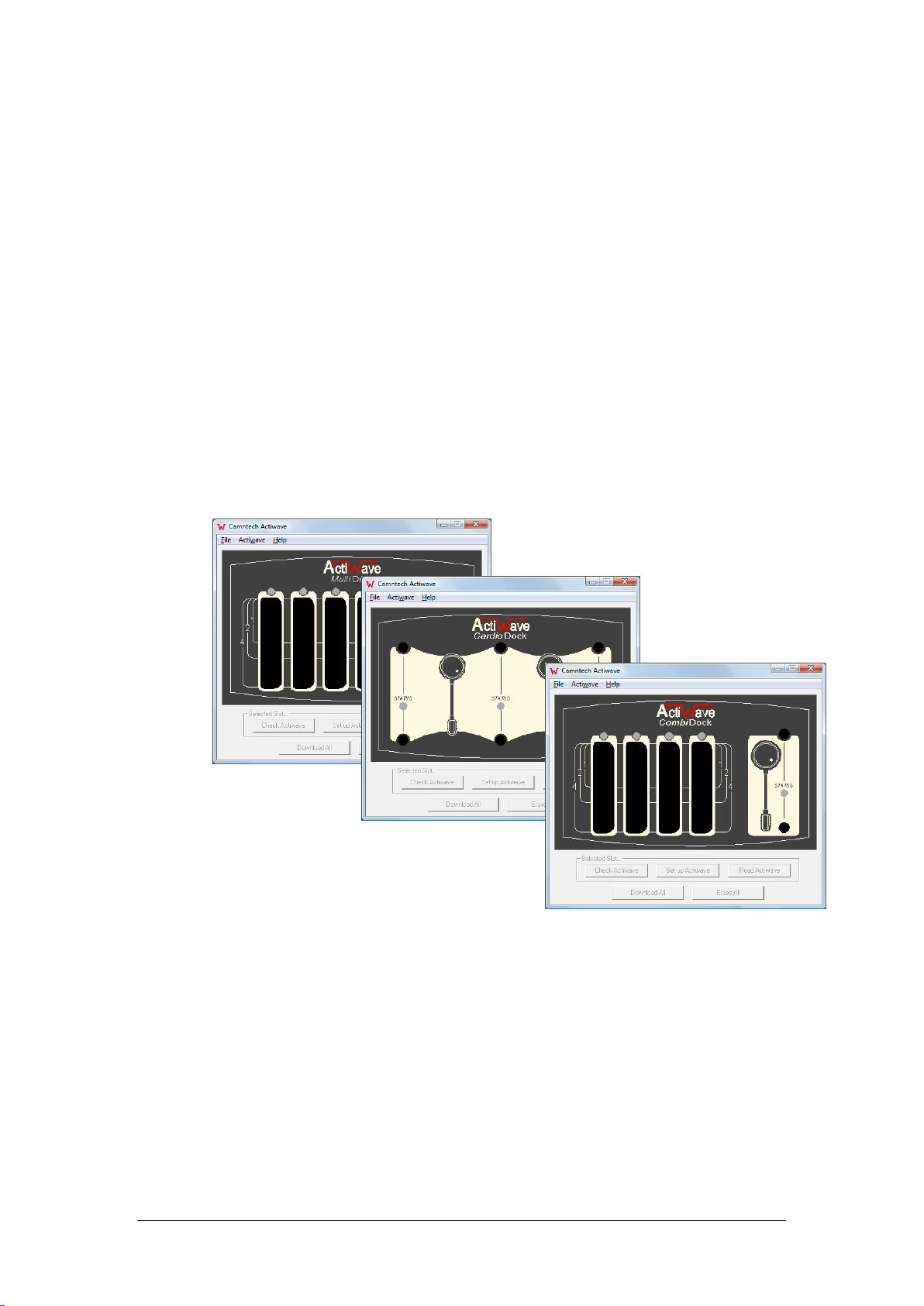

To provide flexibility for users of multiple Actiwave devices,
CamNtech offer 3 models of interface dock as summarized
in the table below:
Model
[catalog ref]
Description
MultiDock
[08-715]
Allows set-up, reading
and charging of up to
six Actiwave 1, 2 or 4
devices (Not Cardio).
USB interface for
connection to PC
(Cable supplied)
11
44 22
Dock Multi

Actiwave User Guide - Issue 2.0.18 Page 9
CardioDock
[08-733]
Allows set-up, reading
and charging of up to
three Actiwave Cardio
devices only. USB
interface for
connection to PC
(Cable supplied)
CombiDock
[08-727]
Allows set-up, reading
and charging of up to
four Actiwave 1, 2 or 4
devices plus one
Actiwave Cardio. USB
interface for
connection to PC
(Cable supplied)
MotionDock
[08-735]
Allows set-up, reading
and charging of up to
six Actiwave MOTION
devices. USB interface
for connection to PC
(Cable supplied)
1.2 Contraindications
1.3 Required Skills,
Training &
Knowledge of
Intended Users.
1.4 General Principle
of Operation
Dock Cardio
STATUS STATUSSTATUS
Dock Combi
11
44 22
STATUS
11
44 22
Dock Multi

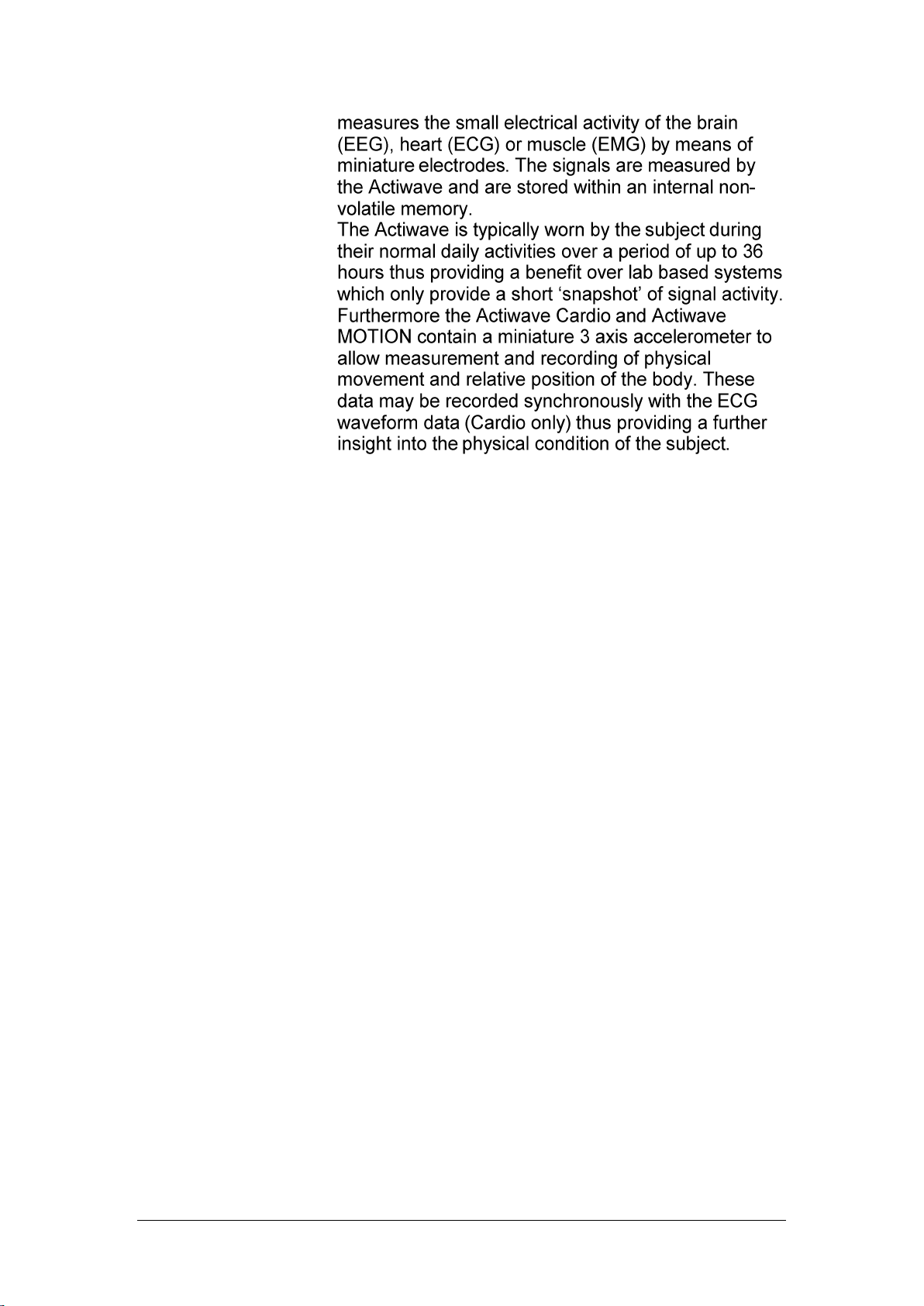

Actiwave User Guide - Issue 2.0.18 Page 10

Actiwave User Guide - Issue 2.0.18 Page 11
2 Installing the Actiwave Software
2.1 System
Requirements
The Actiwave software is supplied on a CD ROM
containing all of the components of the software package
including the USB drivers for the Interface Dock. The
following are the minimum requirements of a host PC for
installing the Actiwave software:
IBM compatible 1000MHz +
Windows XP, Vista, 7 or 8 operating system
100 MB hard disk space
USB port
A CD-ROM drive or equivalent
Graphics (1024 x 768 pixels minimum)
In general, a faster processor will provide superior
performance.
2.2 Installing the
Software
Place the CD ROM into the drive; the Actiwave software
installation menu should start automatically as shown
below:
If it does not start automatically (this functionality is
sometimes disabled for security reasons) you will need to
browse with Windows Explorer to view the CD ROM then
double-click on the file ‘SplashScreen.exe’.
Follow the installation wizard’s onscreen prompts until the
installation is complete. It is recommended that you install
the software in the default location. The operation of this

Actiwave User Guide - Issue 2.0.18 Page 12
software on a remote server is not guaranteed as network
settings vary considerably.
The software should not be started until you have
connected the reader and installed the drivers required by
the USB reader charger (see Section 2.4).
Please note the copyright warning. By accepting this, the
user is accepting the CamNtech terms and conditions of
use of the Actiwave software
2.3 Updating the
software.
If you are updating or reinstalling the software you should
remove the old version first when prompted by the
installation wizard. The installation has to then be
restarted by removing and re-inserting the CD ROM or by
double-clicking on the Actiwave.msi file.
2.4 Installing the
USB drivers
for the
Interface
Dock
This section on installing drivers only applies to new
installations.
Insert the supplied CD ROM into the CD/DVD drive on
the host PC and plug the Actiwave reader/charger into a
free USB Port.
The installation menu will automatically be displayed
(see Section 2.2).
Depending upon the operating system and current
driver status, the computer may display a message saying
‘Found New Hardware’ and should then load the drivers
with no user intervention. The installation menu can be
cancelled in this case.
If the drivers do not load automatically, or if you wish to
make sure they install correctly, you may choose ‘Install
CamNtech USB Drivers’ from the installation menu and
then carefully follow the instructions on-screen.
If you have difficulty, consult the procedure; ‘Installing
USB Drivers Manually’, which is included in Appendix 2 of
this manual.
A screen may appear that tells the user that the driver
is not digitally signed by Microsoft:
Select ‘Continue Anyway’ (Please note that this is NOT
a problem and just means that the Actiwave version of the
driver software has not been assessed by Microsoft. In
fact the actual drivers are Microsoft approved).

Actiwave User Guide - Issue 2.0.18 Page 13
The drivers will be installed and the computer will then
tell the user that the new hardware is ready to use. If you
change the USB port that the reader is plugged into then
the driver may be automatically re-installed by Windows.
This is an automatic process and the user need take no
action.
2.5 Running the
Software for
the first time
The USB drivers must be installed before using the software
for the first time.
Double clicking on the Actiwave icon on the desktop will
start the software. If a dock is plugged in it should be
detected and a view of it shown on screen. Three types of
interface dock are shown in the figures below:
Multi/Motion Dock
CombiDock
CardioDock

Actiwave User Guide - Issue 2.0.18 Page 14
3 Connecting the Actiwave & Charging the
Battery
3.1 Overview Before the Actiwave is used for data collection, the user
must ensure that it is fully charged. A depleted battery may
result in an incomplete recording as the Actiwave may shut
down before data collection is complete. If the battery is
below 3.7V, a warning message will be displayed if set-up
is attempted.
The Actiwave contains a lithium polymer rechargeable
battery. The expected duration of the battery from fully
charged is dependent on the type of Actiwave and the
recording mode but is always in excess of 2 days. The
Actiwave may be recharged via the USB port of the Host
PC or using a standard mains adaptor with a USB Type A
connection (e.g. those used with MP3 players etc.).
3.2 Correct
orientation
and position
in the dock The Actiwave devices must be correctly oriented and
located in the correct position within the slots of the
interface dock. The Actiwave devices (not Cardio) have a
profiled case to ensure correct orientation. Furthermore,
the Actiwave should always be fitted into the topmost
position within the slot (see figures below). Always take
care to align the pins with the holes inside the slot and do
not use excessive force or the pins may be damaged.
Single
Channel
Two
Channel &
Motion
Four
Channel
1
42
EEG / ECG
1
42
EEG / ECG 2
1
42
EEG / ECG 4

Actiwave User Guide - Issue 2.0.18 Page 15
3.3 Charging the
Actiwave
from the PC There are two modes of operation when the dock is
connected to the PC (and the PC is switched on):
1. Stand-alone mode: The Actiwave software is not
running; the Actiwave devices are charged and their
charge status is indicated by the LEDs on the dock. While
the Actiwave is charging, the LED will be RED. When the
Actiwave is charged, the LED will stay GREEN. Note that
the status will alternate between charged/charging as the
charge level rises, and occasionally show red in order to
maintain full battery charge.
2. Managed Mode: In this mode, the Actiwave software is
running on the PC. The main display will show a bar graph
of the approximate battery level on the respective channel.
An Actiwave which has been used should be left charging
on the reader for a period of several hours, if you require it
fully charged. The estimated battery level shown may not
be fully accurate during charging itself, so it is advisable to
leave the unit connected and charging for some time if the
indication has reached green after only a short period.
3.90V
3.55V
Approximate
Voltage
indicated by
charge gauge
CHARGED
CHARGED
CHARGING

Actiwave User Guide - Issue 2.0.18 Page 16
3.4 Charging
using the
Mains Power
Supply The Actiwave Dock is supplied with a 5V USB mains
power adaptor which is safety approved to EN60950-1 and
EMI standard EN55022 (also FCC part 15, Class B). This
adaptor is supplied with appropriate adaptors to suit mains
outlets in most world regions.
To charge the Actiwave devices using the mains adaptor
the USB cable provided should be plugged into the mating
socket on the mains adaptor.
The dock will operate in ‘stand alone mode’ with Actiwave
charge status indicated by means of the front panel LED’s
(see ‘Stand alone mode’ above).

Actiwave User Guide - Issue 2.0.18 Page 17
4 Selecting an Actiwave and Viewing Status.
4.1 Selecting an
Actiwave To select a docked Actiwave, click on the image of the
required device (see figure below). The selected Actiwave
will be outlined in red and the corresponding LED on the
dock will flash amber. The user may then either use the
options in the top menu bar, the buttons at the bottom of
the screen or right click to bring up a small menu.
4.2 Viewing
Actiwave
Status
Having selected the required Actiwave, click the ‘Check
status’ button (or right-click on the required Actiwave
image and select ‘Check
status’ from the pop-up
menu) will display the
window below.
This window provides
information about the
battery voltage, details of
the current device settings,
details of the previous
recording and technical
information about the
Actiwave.
Click anywhere within the
highlighted area to select
the Actiwave
The selected Actiwave has
a red border
Right Click in this region
to display a pop-up menu
with more options

Actiwave User Guide - Issue 2.0.18 Page 18
5 Setting up an Actiwave for a Recording
5.1 Actiwave
Set-up
Select the required Actiwave from the main screen and
then click ‘Set up Actiwave’. Note that the previous
recording will then be erased. The setup options shown
next are dependent on the unit type (Example shows an
EEG/ECG 4). Note that there is a limit of approximately 50
characters shared across the User ID, Full name, DOB,
recording ID and channel names. A warning message will
be displayed if the limit is exceeded and the set-up will not
be written to the device.
Required –Select the sample rate and
resolution:
8 bit = 1 in 256 resolution
9 bit = 1 in 512 resolution
10 bit = 1 in 1024 resolution
Note that these settings apply to all
enabled channels.
Required –Start date and time must be
entered. Start can be delayed for up to
1 month.
Total recording time will be displayed as
the settings are changed.
Required –enter user or subject
identification information.
Optional –When using an ID, the full
subject name can be entered here.
Optional –Select the subject gender
Optional –Enter subject DOB
Optional –Enter subject weight &
height
Optional –Enter information to uniquely
identify this recording
Required –Enable the required number
of channels, choose the signal type and
enter a channel name. Note that the
EDF format has a recommended
naming convention (click the [?] button
for information)

Actiwave User Guide - Issue 2.0.18 Page 19
5.2 Additional
Actiwave
Cardio
Options The Actiwave Cardio has additional settings related to the
in-built 3-axis accelerometer:
The accelerometer sample rate options will vary depending
upon the ECG sample rate. Please consult section 11
‘FAQ and Troubleshooting’ for details of recording times.
5.3 Additional
Actiwave
EMG
Options
The EMG setup offers the option of setting a low or high
range as EMG signals can vary considerably depending
upon electrode type and positioning.
Refer to section 8 for additional information regarding EMG
recordings.
5.4 Completing
the setup
Click on the ‘OK’ button to store the setup to the Actiwave
unit. The software will confirm when it is configured and
show the programmed start time.
The Actiwave can now be removed and attached to the
subject. If a long start delay has been set the Actiwave will
enter a low power sleep mode until it needs to start
logging.
5.5 Erasing the
Actiwave
Memory
Before set-up, the Actiwave memory must be erased - this
can take a few minutes to complete depending on the
Required –Enable the axes of
orientation and select the accelerometer
sample rate.
Required –Select EMG Range:
‘Low’ (500uV p-p)
‘High’ (8mV p-p)

Actiwave User Guide - Issue 2.0.18 Page 20
device and the amount of memory used in the previous
recording.
When preparing to set-up several Actiwave devices, a
faster option is to us the ‘Erase All’ button. This will begin
erasing the memory in all connected Actiwave devices
simultaneously. The Actiwave devices can now be
individually set-up as above, and there will be no delay for
the erase step.
NOTE: Beginning a new set-up or erasing the Actiwave
will result in loss of any existing stored data or set-up
information –please ensure that any required data has
been downloaded first.
The recording times will vary depending upon the Actiwave
model, number of channels and sampling settings. Please
consult section 11 ‘FAQ and Troubleshooting’ for details of
recording times.
