Camos CM-116FS User manual

INSTRUCTION MANUAL
+49 (0) 4154 / 80 83 - 0
+49 (0) 4154 / 80 83 - 20
[e-mail]
www.camos-multimedia.com
CAMOS Europe GmbH
Carl-Zeiss-Str. 3 D-22946 Trittau
Tel.
Fax.
E-mail
Internet
Address

INSTRUCTION MANUAL
PRINTED IN KOREA
ver. 1.0* Design and Specifications are subject to change without notice.
Thank you for purchasing this product.
For proper usages and application,
Please read this instruction manual thoroughly.

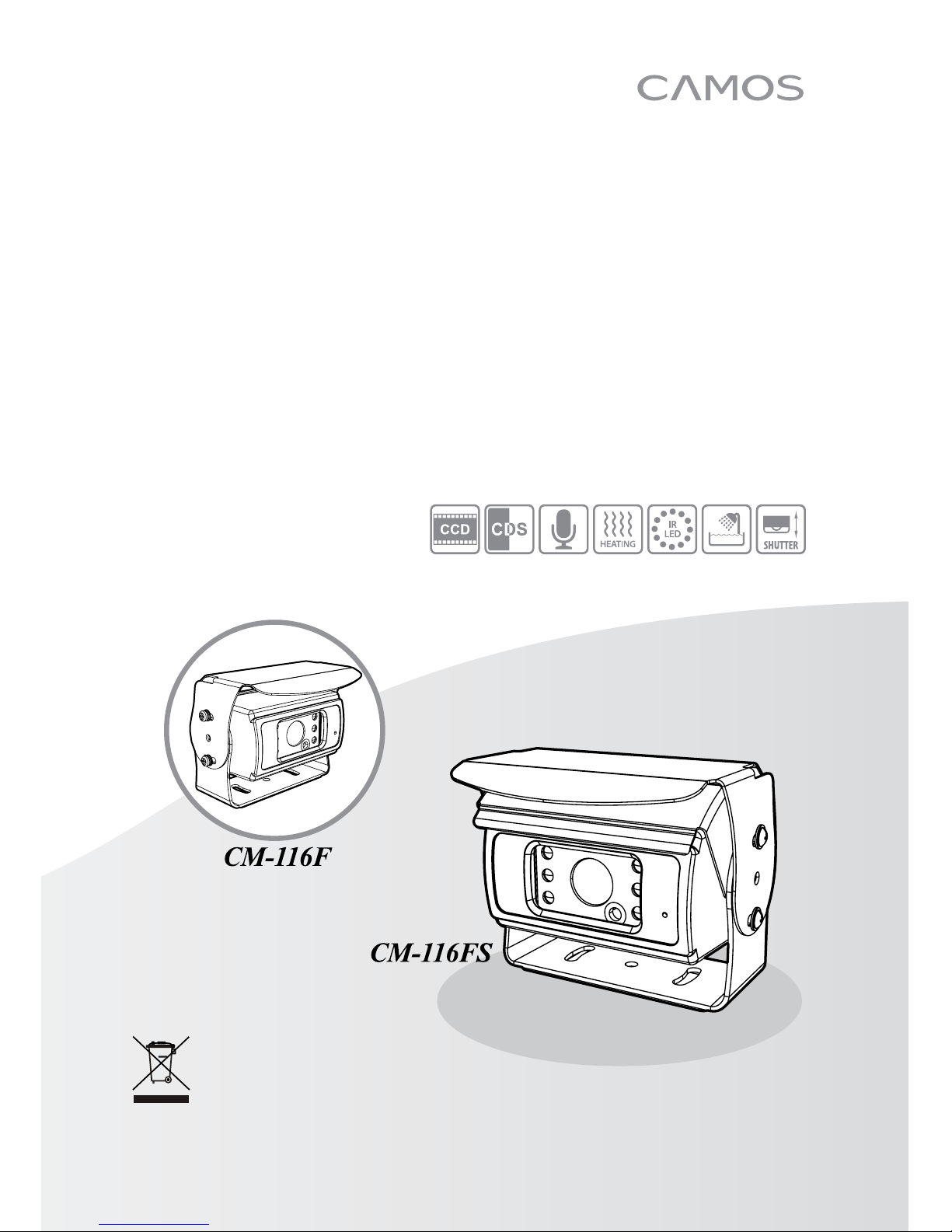

CM-116FS / CM-116F
SHUTTER CAMERA FOR VEHICLE

2
CONTENTS
SHUTTER CAMERA FOR VEHICLE
SAFEGUARD INSTRUCTIONS
FEATURE
BOX CONTENTS
INSTALLATION
CONNECTION
CLEANING and GENERAL MAINTENANCE
SPECIFICATIONS
.......................................................... 3
.....................................................................................................4
...................................................................................... 4
....................................................................................... 5
........................................................................................ 6
............................... 7
..................................................................................... 8

3
SAFEGUARD INSTRUCTIONS
SHUTTER CAMERA FOR VEHICLE
Please pay attention to the warnings and cautions listed in order to prevent the poten-
tial risks.
“WARNING” and “CAUTION” symbols are divided according to the different
level of risk.
CAUTION
WARNING
May cause damage or shorten usage time of product if
user ignores cautions in the safety rules.
May cause bodily harm or even death if user ignores
cautions in the safety rules.
WARNING
When the power cable cord touches a metal case, cover it with a friction tape.
- Short circuit or disconnection of wire may cause a re or accident.
Let professional engineers or the sale store install the camera.
- It require the experience and skills from professional engineers for proper
installation and wiring.
After installing the camera, check it break lamp, head lamp and wipe works
properly.
Install this camera to the vehicle with DC 12V.
CAUTION
Do not disassemble the device.
- It may cause a re or malfunction of device.
Do not use bolts or nots from a parts for vehicle.
- Using bolt or nuts from steering column or break may cause an accident.
Do not install the camera projected out from the vehicle.
- It may harm the pedestrians.
Do not let the extension cable pass through the seat rail. Properly wire the cables.
- It may cause a re or and accident.
Do not install the camera bracket on the surface of glass.
- Use the screws to install the camera bracket.

4
• 1/3”SONY COLOR CCD image sensor
• 6 pcs of IR LEDs for night.
• Audio Function(Option)
• Heating function Built-in
• Waterproof (IP-67)
• Aluminum die-casting housing
• Night vision using the CdS sensor.
• Automatic shutter open(close) while
moving reverse(forward).
FEATURE
1SHUTTER CAMERA FOR VEHICLE
Close Shutter
Shutter is closing while
moving forward.
Open Shutter
Shutter is opening while
putting into rear gear.
BOX CONTENTS
2SHUTTER CAMERA FOR VEHICLE
CM-116FS
Sun Visor Camera Bracket
Accessory Pack Extension Cable Instruction Manual
CM-116F
OR
x3
x3
x3
x4
* only CM-116FS

5
INSTALLATION
3SHUTTER CAMERA FOR VEHICLE
INSTALLATION
EXAMPLE
1. Determine a position and a direction of installation so that the rear view can be
effectively seen on the monitor screen.
2. Fix the camera bracket to the vehicle using the provided adhesive tape and tap-
ping screws.
3. Place a camera and sun visor to fixed bracket and assemble them with enclosed
screws.
4. Run the cable from the monitor to the camera.
* The installation is same way with CM-116FS/CM-116F.
CM-116FS Camera Connector
1.CAMERAB+(DC+12V)
2.HEATINGB+(DC+12V)
3.STANDBY
4.VIDEOOUT
5.AUDIOOUT(OPTION)
6.N.C
7.GND
* When you install the sun visor, please be careful not to touch with shutter
moving area.

6

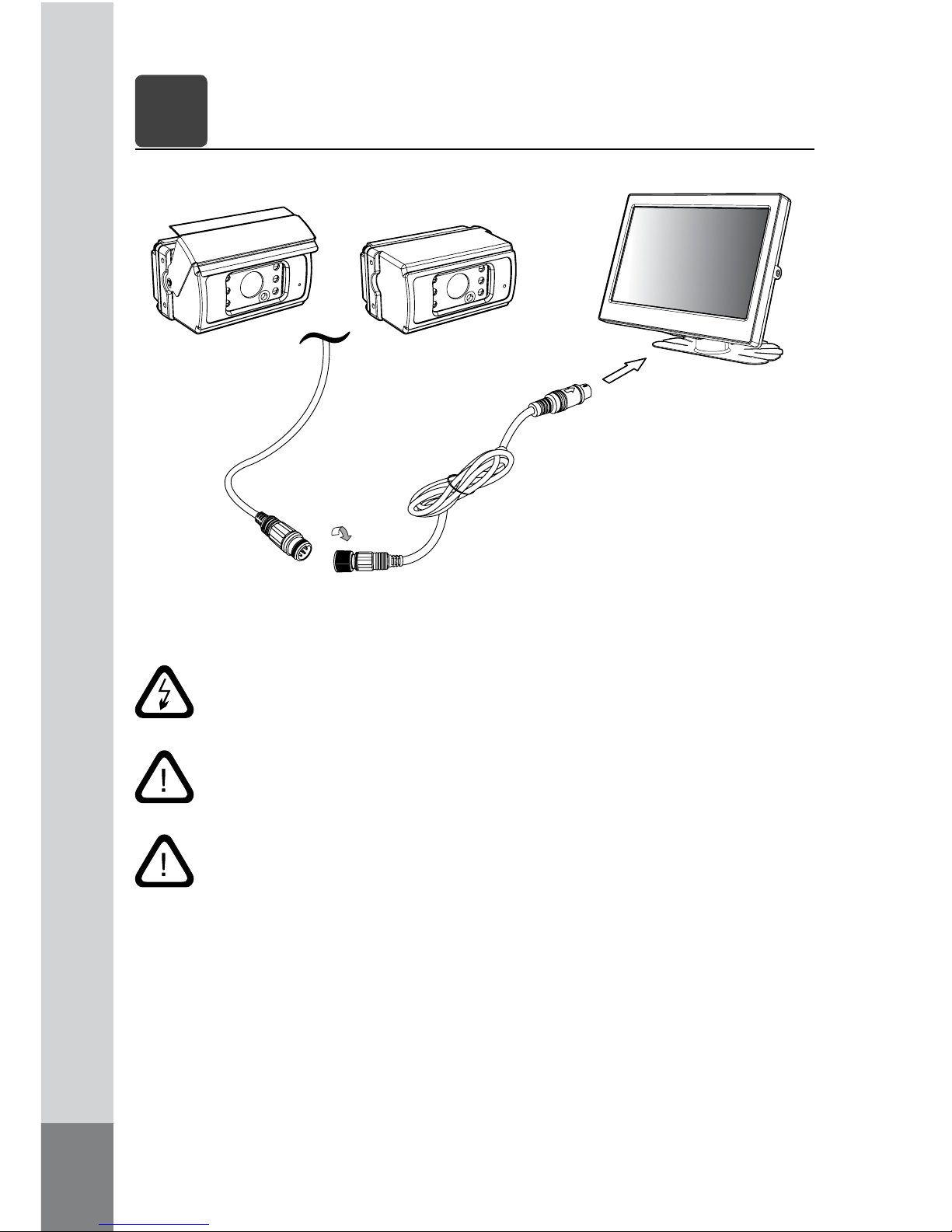

CONNECTION
4SHUTTER CAMERA FOR VEHICLE
CM-116FS
Monitor
(Option)
Extension Cable
Before making the connection, disconnect the ground terminal of the car
battery to avoid short circuiting.
Before inserting plug, should check pin specification and the plug should
insert to jack or connector firmly. If forced insert wrong direction, it may
cause malfunction.
When connect extension cable, turn it right direction as described arrow.
CM-116F
OR

* Design and specifications are subject to change without notice.
7
CLEANING and GENERAL MAINTENANCE
5SHUTTER CAMERA FOR VEHICLE
If your vehicle has been parked in direct sun light resulting in a considerable rise in
temperature inside the vehicle, allow the unit to cool off before operating.
Clean the unit with a slightly damp soft cloth. Use a mild household detergent.
Never use strong solvents such as thinner or benzine as they might damage the
finish of the unit.
•
•
OBJECT and LIQUID ENTRY
Never push obiects of any kind into this monitor equipment through holes
as they may touch dangerous voltage points or short-out parts that could
result in a fire of electric shock. Never spill liquid of any kind on the product.
SPECIFICATION
6SHUTTER CAMERA FOR VEHICLE
Pick-up device
View of angle
Minimum illumination
Input voltage
Operating temperature
Dimension
Weight
95˚(H) / 70˚(V) / 120˚(D)
0.1 lux
DC 12V / 200mA Max.
-10˚C ~ 60˚C
78(W) x 40(H) x 54(D) mm (Camera Only)
282g (Camera Only)
1/3”250,000 pixels COLOR CCD 1/3”290,000 pixels COLOR CCD
NTSC PAL
