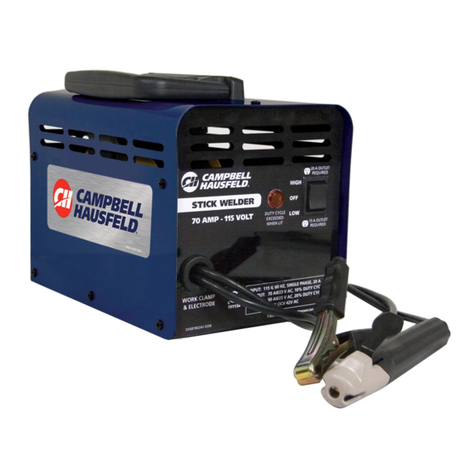

Campbell Hausfeld WS0970 Service manual

Campbell Hausfeld

Campbell Hausfeld WS0970 Service manual

Campbell Hausfeld WF2034 Instructions for use

Campbell Hausfeld

Campbell Hausfeld WF2034 Instructions for use

Campbell Hausfeld WT5000 Manual

Campbell Hausfeld

Campbell Hausfeld WT5000 Manual

Campbell Hausfeld WS0900 Instructions for use

Campbell Hausfeld

Campbell Hausfeld WS0900 Instructions for use

Campbell Hausfeld WG3020 Instructions for use

Campbell Hausfeld

Campbell Hausfeld WG3020 Instructions for use

Campbell Hausfeld WF2010 Instructions for use

Campbell Hausfeld

Campbell Hausfeld WF2010 Instructions for use

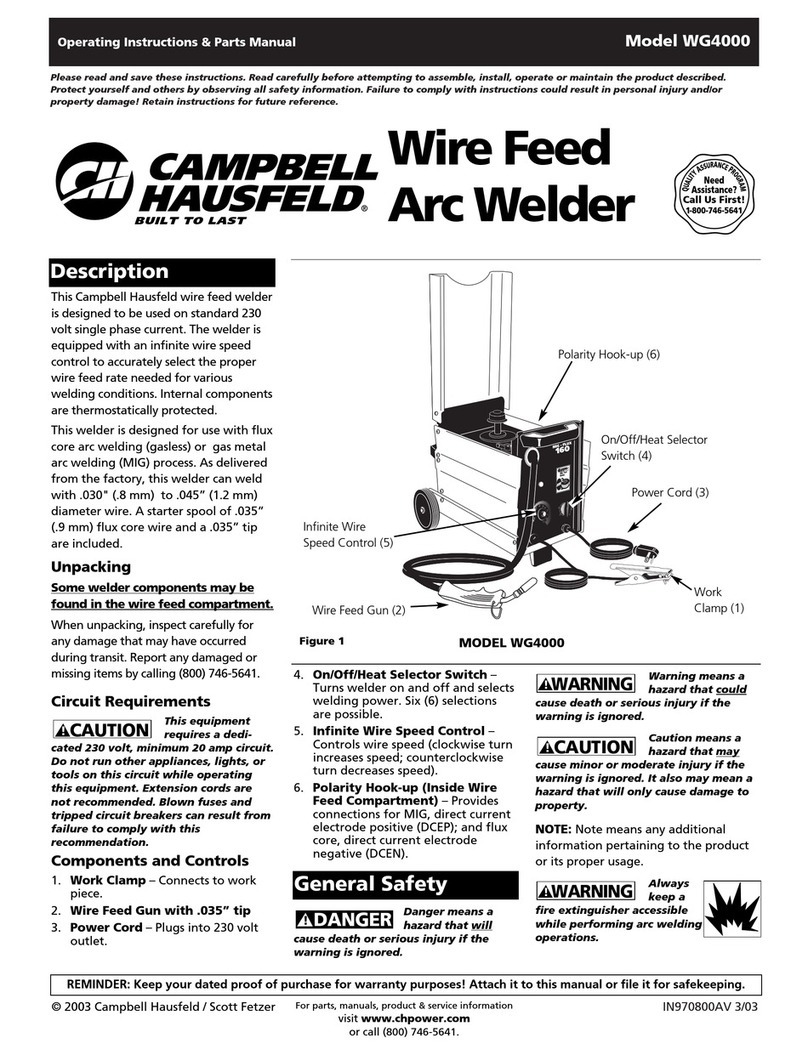

Campbell Hausfeld WG4000 Service manual

Campbell Hausfeld

Campbell Hausfeld WG4000 Service manual

Campbell Hausfeld WT2531 User manual

Campbell Hausfeld

Campbell Hausfeld WT2531 User manual

Campbell Hausfeld WT6000 User manual

Campbell Hausfeld

Campbell Hausfeld WT6000 User manual

Campbell Hausfeld WT2531 User manual

Campbell Hausfeld

Campbell Hausfeld WT2531 User manual

Campbell Hausfeld WG3080 Service manual

Campbell Hausfeld

Campbell Hausfeld WG3080 Service manual

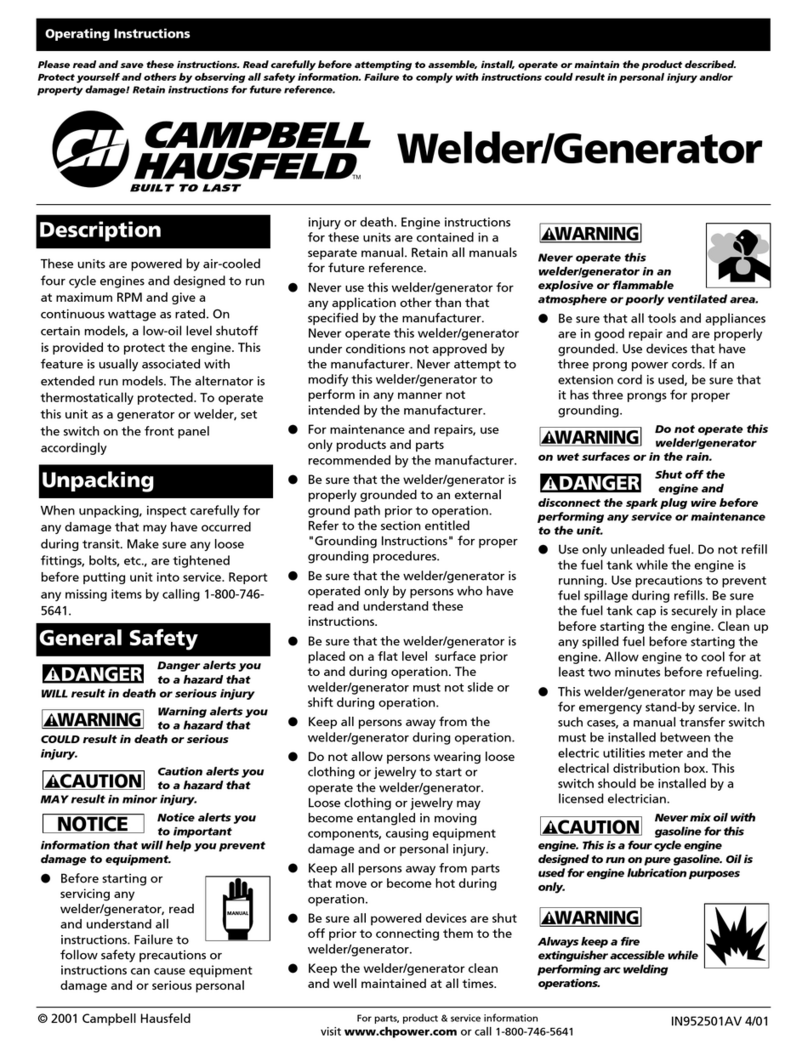

Campbell Hausfeld Welder / Generator GW4500 Service manual

Campbell Hausfeld

Campbell Hausfeld Welder / Generator GW4500 Service manual

Campbell Hausfeld WG3060 Instructions for use

Campbell Hausfeld

Campbell Hausfeld WG3060 Instructions for use

Campbell Hausfeld WS0970 Service manual

Campbell Hausfeld

Campbell Hausfeld WS0970 Service manual

Campbell Hausfeld WT2530 User manual

Campbell Hausfeld

Campbell Hausfeld WT2530 User manual

Campbell Hausfeld WG3013 Service manual

Campbell Hausfeld

Campbell Hausfeld WG3013 Service manual

Campbell Hausfeld IN973900AV Service manual

Campbell Hausfeld

Campbell Hausfeld IN973900AV Service manual

Campbell Hausfeld WF2050 Instructions for use

Campbell Hausfeld

Campbell Hausfeld WF2050 Instructions for use

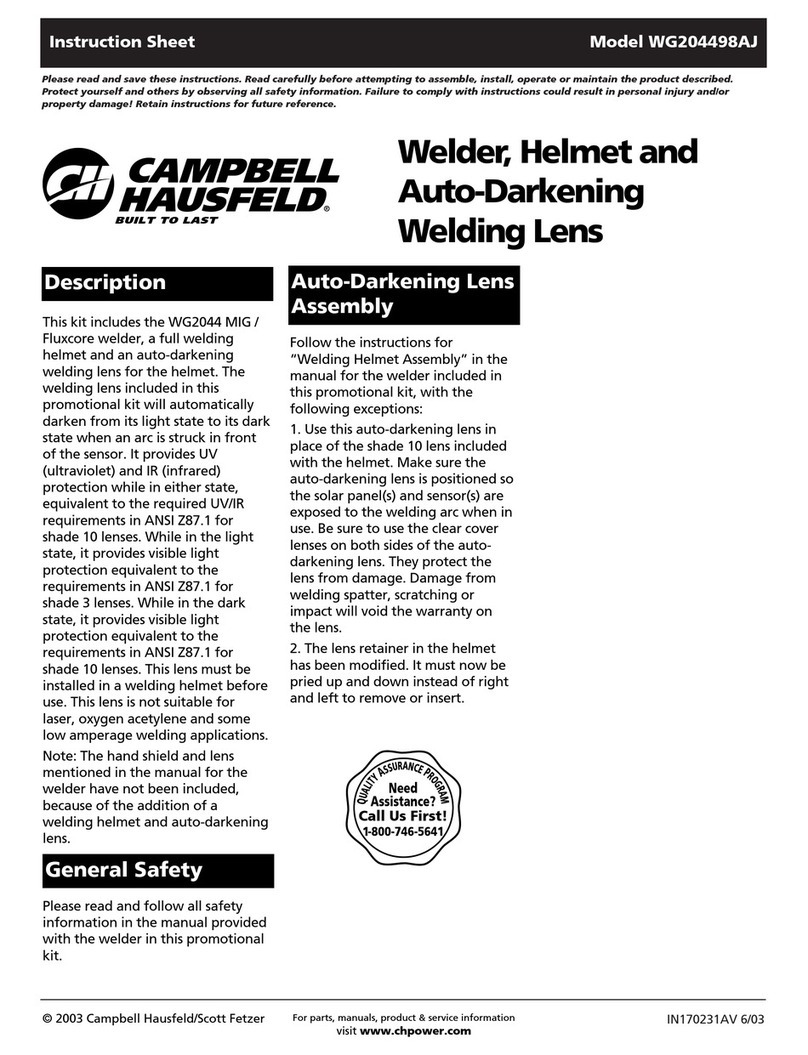

Campbell Hausfeld WG204498AJ User manual

Campbell Hausfeld

Campbell Hausfeld WG204498AJ User manual

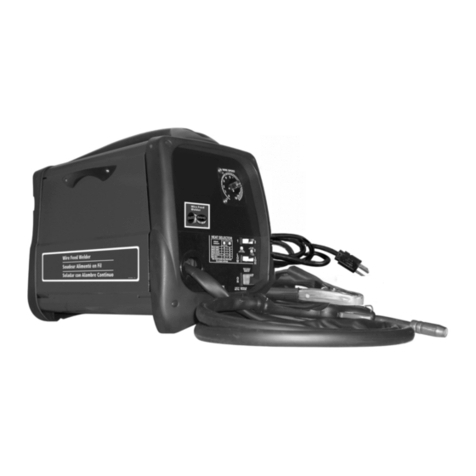

Campbell Hausfeld WG3000 Instructions for use

Campbell Hausfeld

Campbell Hausfeld WG3000 Instructions for use

Campbell Hausfeld WS0970 Service manual

Campbell Hausfeld

Campbell Hausfeld WS0970 Service manual

Campbell Hausfeld DW3130 Service manual

Campbell Hausfeld

Campbell Hausfeld DW3130 Service manual

Campbell Hausfeld WS2800 Instructions for use

Campbell Hausfeld

Campbell Hausfeld WS2800 Instructions for use

Popular Welding System manuals by other brands

Berner PLASMACUT 54 instruction manual

Berner

Berner PLASMACUT 54 instruction manual

Pro Spot PR-155 Assembly instructions

Pro Spot

Pro Spot PR-155 Assembly instructions

Forney 210 operating manual

Forney

Forney 210 operating manual

Thermal Arc 400S operating manual

Thermal Arc

Thermal Arc 400S operating manual

Lincoln Electric HANDYMIG 170I Operator's manual

Lincoln Electric

Lincoln Electric HANDYMIG 170I Operator's manual

GYS PROTIG 201 AC/DC Original instructions

GYS

GYS PROTIG 201 AC/DC Original instructions

TAFA 30*8B35 owner's manual

TAFA

TAFA 30*8B35 owner's manual

Lincoln Electric INVERTEC V350-PRO CE Technical specifications

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Technical specifications

ESAB Buddy Arc 145 instruction manual

ESAB

ESAB Buddy Arc 145 instruction manual

CIGWELD 636804 use instructions

CIGWELD

CIGWELD 636804 use instructions

Red-D-Arc DC-400 Operator's manual

Red-D-Arc

Red-D-Arc DC-400 Operator's manual

Hobart Welding Products Spool Gun DP 3035-10 owner's manual

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 owner's manual

Elettro HI-MIG 3000 SYNERGIC instruction manual

Elettro

Elettro HI-MIG 3000 SYNERGIC instruction manual

Sonics H520T instruction manual

Sonics

Sonics H520T instruction manual

Miller Big Blue 400D owner's manual

Miller

Miller Big Blue 400D owner's manual

NewArc RT2000 Operational manual

NewArc

NewArc RT2000 Operational manual

Hypertherm powermax1000 Operator's manual

Hypertherm

Hypertherm powermax1000 Operator's manual

Lincoln Electric POWER WAVE I400 Operator's manual

Lincoln Electric

Lincoln Electric POWER WAVE I400 Operator's manual

https://manuals.online logo
https://manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2026 Manuals.Online. All Rights Reserved.

Additional Model Instructions Model WS090001AV
Addendum to Owner’s Manual
IN170138AV 2/99
BUILT TO LAST
TM
Shielded Metal
Arc Welder
© 1999 Campbell Hausfeld/Scott Fetzer
Description
Thank you for purchasing the
Campbell Hausfeld 70 amp Arc Welder,
Model #WS090001AV. This instruction
sheet is to be used in conjunction with
the standard owner’s manual included
with the welder (IN198904AV). Please
refer to this sheet for WS090001AV
assembly instructions.
Please read all
warning instructions in
the owner’s manual
before operating.
Components
The WS090001 comes with the
following additional equipment:
• Automatic amperage adjustment -
low position for 1/16” rods and
high position for 5/64” rods--for
ease of use.
• Cable storage clips (shown in
Handle Assembly) for safer storage
of welding cables.
Handle Assembly
1. Align the end holes on the handle
with the holes on top of the welder,
then secure with screws (Figure 1).
!NOTICE
MANUAL
2. Insert cable clips by pressing inward
on sides of clip and pushing into
the slots on front of handle as
shown in Figure 2. Repeat for
opposite side of handle.
Electrode Holder Assembly
(Refer to Figure 3)
1. Remove insulation handle from the
holder body by pulling the two
pieces apart.
2. Slide the other weld cable through
the handle.
3. Loosen the wire clamping screw
and slide the bare cord wire under
the clamp block. Tighten the
clamping screw and make sure the
wire is secure.
4. Slide the handle over the electrode
holder body and press to stop.
Make sure the handle is secure and
there is no exposed metal on the
holder.
Figure 3 - Electrode Holder
Figure 2
Figure 1
For parts, product & service information
visit www.campbellhausfeld.com
Ref. Part Number
No. Description for WS090001 Qty
1Electrode holder assembly - cord not included (includes ref. # 2-7) WC200000AV 1
2 Electrode holder handle - cord not included WC200001AV 1
3 Electrode holder body WC200002AV 1
4 Insulation cap WC200003AV 1
5 #10-24 x .5” machine screw * 1
6 #10-24 x 7/16” square nut * 1
7 Work clamp WC100300AV 1
8 Handle WC301300AV 1
9 #8-36 x 3/4” pan head screw * 2
10 Safety decal (right) DK404300AV 1
11 Safety decal (left) DK404400AV 1
12 Welding cable 6 AWG (6 ft) * 2
13 Power cord 14-3 AWG (6 ft) Type SJT WC000100AJ 1
14 High/off/low thermal indicator WC401000AV 1
15 Strain relief WC102000AV 2
16 Cord storage clip WC301301AV 2
* Standard hardware item, available at local hardware or welder supply store
Additional Model Instructions WS090001
For Replacement Parts, call 1-800-746-5641
9
10
16
15
7
12
13
14
11
98
2
6
5
1
3
4
Address parts correspondence to:
The Campbell Group
Attn: Parts Department
100 Production Drive
Harrison, Ohio 45030
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as
shown in parts list
12
