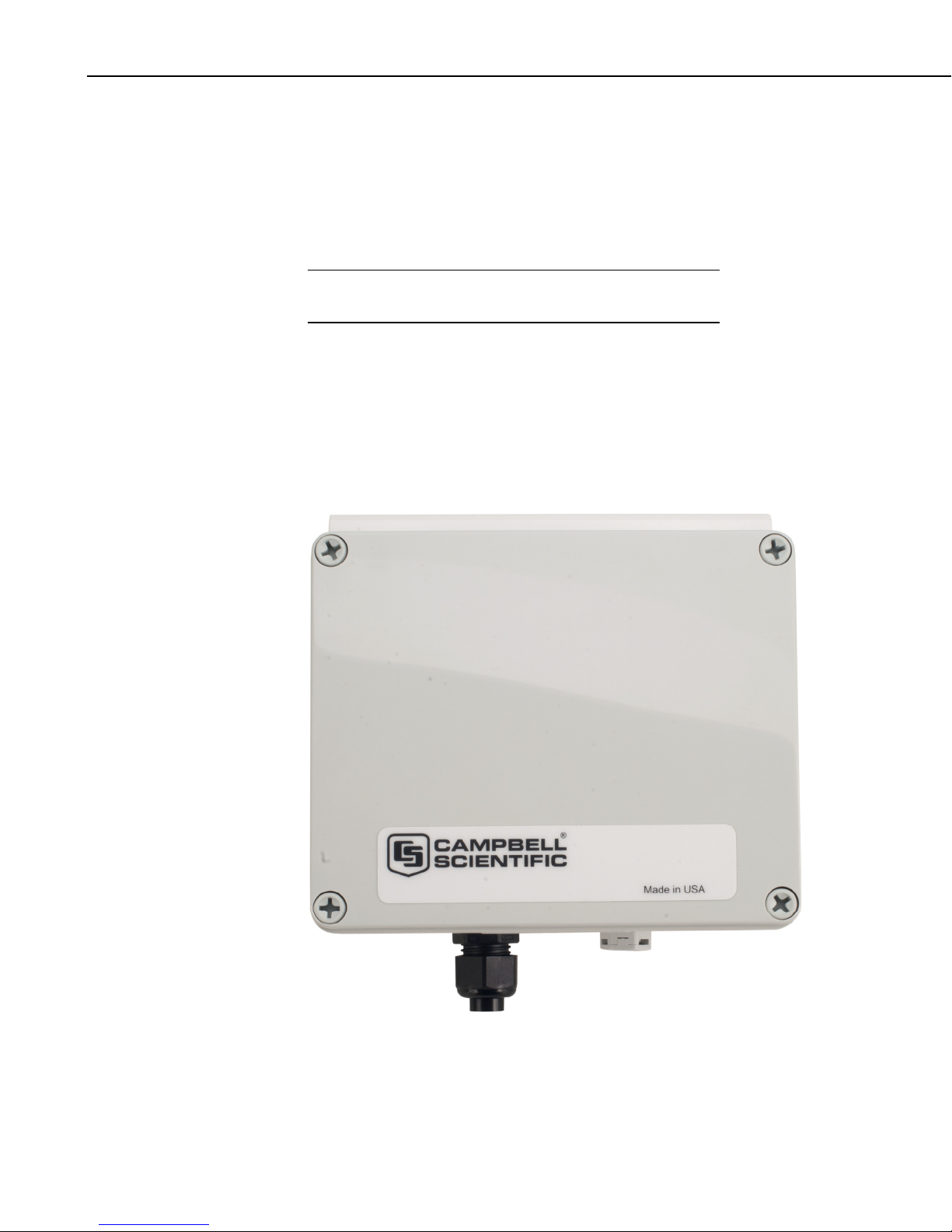

7-1. ENC100 is a very small enclosure that can house one CS100 ............ 8
7-2. CS100 as removed from the box ......................................................... 9

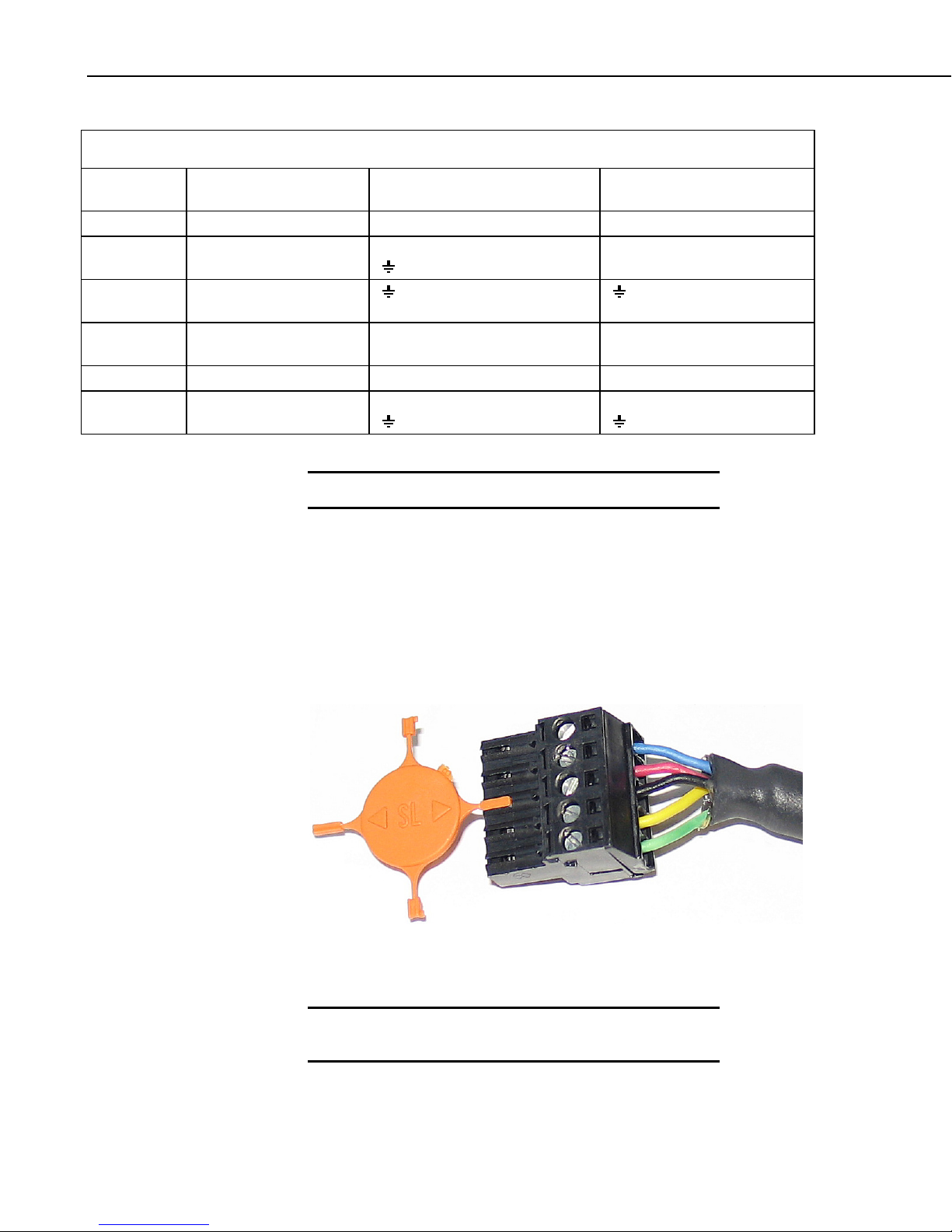

7-3. Connector key attached to 5-pin screw terminal plug connector....... 10
Tables
7-1. Signal and Ground Connectors for CS100 ........................................ 10
7-2. Conversion Factors for Alternative Pressure Units ........................... 11
7-3. Multipliers and Offsets ...................................................................... 11
7-4. Wiring for Example Programs........................................................... 12

CS100 Barometric Pressure Sensor
1. Introduction
The CS100 measures barometric pressure for the range of 600 to 1100 mb.
This range equates to from below sea level (as in a mine) up to 12,000 feet
above sea level. Designed for use in environmental applications, the CS100 is
compatible with all Campbell Scientific dataloggers.
Before using the CS100, please study
•Section 2, Cautionary Statements
•Section 3, Initial Inspection
•Section 4, Quickstart
More details are available in the remaining sections.
2. Cautionary Statements
•Warning: Failure to protect the sensor from condensation may result in
permanent damage.
•Warning: Improper wiring may damage the CS100 beyond repair.
•Care should be taken when opening the shipping package to not damage or
cut the cable jacket. If damage to the cable is suspected, consult with a
Campbell Scientific applications engineer.
•Although the CS100 is rugged, it should be handled as a precision
scientific instrument.
•The black outer jacket of the cable is Santoprene® rubber. This
compound was chosen for its resistance to temperature extremes, moisture,
and UV degradation. However, this jacket will support combustion in air.
It is rated as slow burning when tested according to U.L. 94 H.B. and will
pass FMVSS302. Local fire codes may preclude its use inside buildings.
3. Initial Inspection
•Upon receipt of the CS100, inspect the packaging and contents for
damage. File damage claims with the shipping company.
4. Quickstart
4.1 Step 1 — Mount Sensor to an Enclosure Backplate
The mounting holes for the sensor are one-inch-centered (three inches apart),
and will mount directly onto the holes on the backplates of the Campbell
Scientific enclosures. Mount the sensor with the pneumatic connector pointing
1

CS100 Barometric Pressure Sensor
vertically downwards to prevent condensation collecting in the pressure cavity,
and also to ensure that water cannot enter the sensor.
4.2 Step 2 — Use SCWin Short Cut to Program Datalogger
and Generate Wiring Diagram
The simplest method for programming the datalogger to measure the CS100 is
to use Campbell Scientific's SCWin Short Cut Program Generator.
1. Open Short Cut and click on New Program.
2. Select a datalogger and scan interval.
2

CS100 Barometric Pressure Sensor
3. Select CS100 Barometric Pressure Sensor then click the right arrow in
the middle of the page to add the sensor to the list of sensors to be
measured.
4. Define the name of the public variables. Variable defaults to BP_mmHg
that holds the barometric pressure measurements. Select the desired units
of measure, pressure range, sea level elevation correction, elevation
correction units, and whether the sensor should be measured hourly.
3

CS100 Barometric Pressure Sensor
5. Choose the outputs for the barometric pressure and then select finish.
6. Remove the yellow warning label from the pigtails and wire according to
the wiring diagram generated by SCWin Short Cut.
Improper wiring may damage the CS100 beyond repair.
WARNING
5. Overview
The CS100 is a capacitive pressure transducer that uses the Setra's electrical
capacitor technology for barometric pressure measurements over the 600 to
1100 millibar range. The transducer’s compact and rugged polyester housing
with stainless blackplate contains two closely-spaced, parallel, electrically-
4

CS100 Barometric Pressure Sensor
isolated metallic surfaces. One of the surfaces is essentially a diaphragm
constructed of a Setra’s proprietary compound of fused glass and ceramic
(Setraceram™) or a low-hysteresis material, such as 17-4 PH SS. The
diaphragm is capable of detecting a slight change in the applied pressure,
which is then converted to an analog voltage signal by Setra’s custom
Application Specific Integrated Circuit (ASIC). The analog signal generated
by the barometer can be directly measured by a Campbell Scientific datalogger.
The CS100 is supplied in the triggered mode, in which the datalogger switches
12 VDC power to the barometer before the measurement. The datalogger then
powers down the barometer after the measurements to conserve power.
Other measurement range options such as 500 to 1100 millibar, and 800 to
1100 millibar are also available. Please contact Campbell Scientific, Inc. for
ordering these special versions.
Campbell Scientific offers the CS100-QD, a version of the CS100 that includes
a connector for use with a RAWS-F or RAWS-P weather station (refer to the
RAWS-F and RAWS-P manuals for more information).
If the CS100 and datalogger will be housed in different enclosures, the
CABLE5CBL-L should be used instead of the cable that is shipped with the
CS100. The CABLE5CBL-L can terminate in:
•Pigtails that connect directly to a Campbell Scientific datalogger
(option –PT).
•Connector that attaches to a prewired enclosure (option –PW). Refer
to www.campbellsci.com/prewired-enclosures for more information.

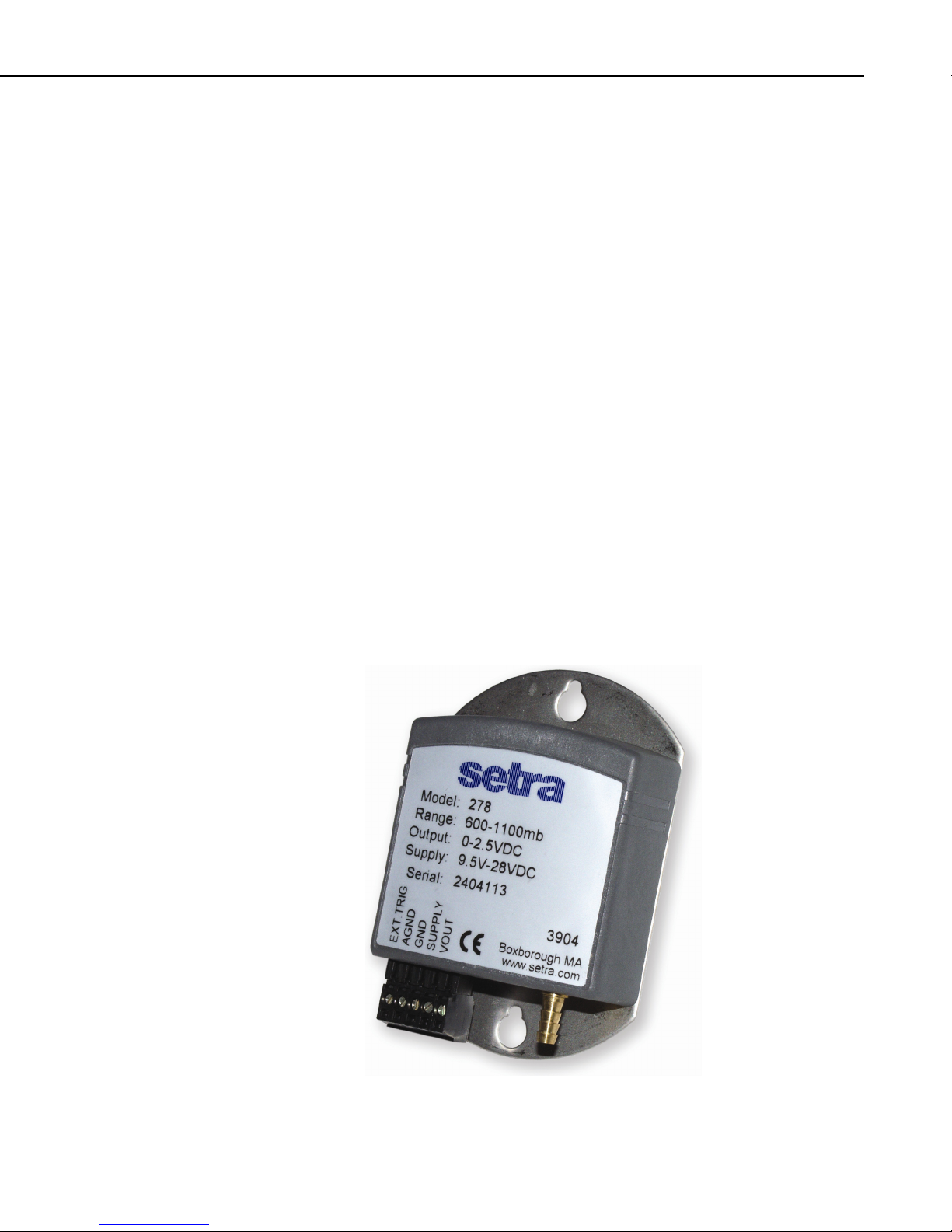

FIGURE 5-1. CS100 Barometric Pressure Sensor
5

CS100 Barometric Pressure Sensor
6. Specifications
Features:
•Integral switching circuit limits power consumption to measurement
cycle
•Compatible with all Campbell Scientific dataloggers (including the
CR200(X) series)
•Calibration NIST traceable
•Meets CE conformance standards
Compatibility
Dataloggers: CR200(X) series
CR800 series
CR1000
CR3000
CR5000
CR9000(X)
CR7X
CR510
CR10(X)
CR23X
21X
6.1 Performance
6.1.1 Performance for “Standard” Range Option
Measurement Range: 600 mb to 1100 mb (hPa)
Operating Temperature Range: -40° to +60°C (-40° to +140°F)
Storage Temperature Range: -60° to +120°C (-76° to +248°F)
Proof Pressure: 1500 mb
Burst Pressure: 2000 mb
Humidity Range: non-condensing (up to 95% RH)
Media Compatibility: non-corrosive, non-condensing air or gas
Resolution: 0.01 mb
Total Accuracy1:±0.5 mb @ 20°C
±1.0 mb @ 0° to +40°C
±1.5 mb @ -20° to +50°C
±2.0 mb @ -40° to +60°C
Linearity: ±0.4 mb
Hysteresis: ±0.05 mb
Repeatability: ±0.03 mb
Long-term Stability: ±0.1 mb per year
1The root sum squared (RSS) of end point non-linearity, hysteresis, non-
repeatability and calibration uncertainty.
6

CS100 Barometric Pressure Sensor
6.1.2 Performance for “500 to 1100 mb” Range Option
Measurement Range: 500 to 1100 mb
Total Accuracy2:±0.6 mb @ 20°C
±1.2 mb @ 0° to +40°C
±2.0 mb @ -20° to +50°C
±2.5 mb @ -40° to +60°C
Linearity: ±0.5 mb
Hysteresis: ±0.06 mb
Repeatability: ±0.04 mb
6.1.3 Performance for “800 to 1100 mb” Range Option
Measurement Range: 800 to 1100 mb
Total Accuracy3:±0.3 mb @ 20°C
±0.6 mb @ 0° to +40°C
±1.0 mb @ -20° to +50°C
±1.5 mb @ -40° to +60°C
Linearity: ±0.25 mb
Hysteresis: ±0.03 mb
Repeatability: ±0.02 mb
6.2 Electrical
Supply Voltage: 9.5 to 28 Vdc
Current Consumption: 3 mA nominal (operating mode)
1 µA quiescent (sleep mode)
Signal Output: 0 to 2.5 Vdc
Warm-up Time: <1 s from shutdown mode
Response Time: <100 ms
6.3 Physical
Dimensions (Main Box): 9.1 x 6.1 x 2.5 cm (3.6 x 2.4 x 1.0 in)
Weight: 135 g (4.8 oz)
Mounting Hole Centers: 7.62 cm (3 in)
Pressure Connector: 1/8 in ID barbed fitting
The black outer jacket of the cable is Santoprene® rubber. This
compound was chosen for its resistance to temperature extremes,
moisture, and UV degradation. However, this jacket will support
combustion in air. It is rated as slow burning when tested
according to U.L. 94 H.B. and will pass FMVSS302. Local fire
codes may preclude its use inside building.
NOTE
2 The root sum squared (RSS) of end point non-linearity, hysteresis, non-
repeatability and calibration uncertainty.
3The root sum squared (RSS) of end point non-linearity, hysteresis, non-
repeatability and calibration uncertainty.
7

CS100 Barometric Pressure Sensor
7. Installation
7.1 Enclosure Considerations
To prevent condensation, install the sensor in an environmentally protected
enclosure, complete with desiccant, which should be changed at regular
intervals.
Failure to protect the sensor from condensation may result
in permanent damage.
CAUTION
The CS100 is typically mounted in a Campbell Scientific enclosure next to the
datalogger. Campbell Scientific also offers the ENC100 for situations where it
is desirable to house the CS100 in its own enclosure. The ENC100 is a 6.7-in.
x 5.5-in. x 3.7-in. enclosure that includes a compression fitting for cable entry,
a vent for equalization with the atmosphere, a backplate for mounting the
CS100, and hardware for mounting the ENC100 to a tripod, tower, or pole (see
FIGURE 7-1).
FIGURE 7-1. ENC100 is a very small enclosure that can house one
CS100
8

CS100 Barometric Pressure Sensor
Remember that for the sensor to detect the external ambient pressure, the
enclosure must vent to the atmosphere (i.e., not be hermetically sealed).
Enclosures purchased from Campbell Scientific properly vent to the
atmosphere.
For user-supplied enclosures, it may be necessary to make a vent
hole on the outer wall. In this situation, do not make the hole on
one of the vertical side walls, as wind blowing around it can
cause transient changes in pressure.
NOTE
7.2 Wiring
7.2.1 Datalogger Connection
Before connecting the barometer to the datalogger, a yellow warning label
must be removed from the pigtails (see FIGURE 7-2). The warning label
reminds the user of the importance of properly connecting the barometer to the
datalogger. Proper wiring is shown in TABLE 7-1.
FIGURE 7-2. CS100 as removed from the box
Yellow Warning Label
9

CS100 Barometric Pressure Sensor
TABLE 7-1. Signal and Ground Connectors for CS100
Wire CS100 Terminal
Datalogger
Single-Ended Measurement
Datalogger
Differential Measurement
Blue VOUT S.E. Input High Side of Diff Input
Yellow AGND AG (CR10(X), CR500, CR510)
(Other Dataloggers)
Low Side of Diff. Input
Black GND (21X, CR7, CR9000(X))
G (Other Dataloggers)
(21X, CR7, CR9000(X))
G (Other Dataloggers)
Green EXT TRIG Control port (use to turn power
on/off)
Control port (use to turn power
on/off)
Red SUPPLY 12 VDC 12 VDC
Shield Shield G (CR10(X), CR500, CR510)
(Other Dataloggers)
G (CR10(X), CR500, CR510)
(Other Dataloggers)
Improper wiring may damage the CS100 beyond repair.
WARNING
7.2.2 5-pin Screw Terminal Plug Connector
The datalogger connects to the CS100 via a 5-pin screw terminal plug
connector. This connector is removable and may be replaced. The
replacement connector may come with a connector key attached to it to ensure
that the connector is plugged into the CS100 right side up (see FIGURE 7-3).
When the connector is right side up, it will easily plug into the barometer.
FIGURE 7-3. Connector key attached to 5-pin screw terminal plug
connector
A 5-pin screw terminal that is plugged in upside down
will damage the sensor—perhaps beyond repair.
WARNING
10

CS100 Barometric Pressure Sensor
7.3 Programming
The CS100 sensor is measured using the singled-ended voltage measurement
instruction (VoltSE() in CRBasic and Instruction 1 in Edlog).
Atmospheric pressure changes little with time. In most weather station
applications measuring pressure once an hour is adequate.
7.3.1 Conversion Factors
In the example programs, the pressure is reported in millibars (mb). To report
pressure in different units, multiply the measured pressure by the appropriate
conversion factor using the P37 (Z=X*F) instruction for CR500, CR510,
CR10(X), CR23X, 21X, and CR7, or by adding an expression for CR200(X),
CR800, CR850, CR1000, CR3000, CR5000, and CR9000(X) dataloggers. See
TABLE 7-2 below for conversion factors.
TABLE 7-2. Conversion Factors for
Alternative Pressure Units
To Find Multiply by
hPa 1.0
kPa 0.1
mm of Hg 0.75006
in of Hg 0.02953
Psi 0.0145
Atm 0.00099
Torr 0.75006
7.3.2 Multipliers and Offsets for Different Measurement Range Options
Please refer to the table below for proper multipliers and offsets.
TABLE 7-3. Multipliers and Offsets
Range Options Multiplier Offset
600 to 1100 mb
(Standard range)
0.2 600
500 to 1100 mb 0.24 500
800 to 1100 mb 0.12 800
11

CS100 Barometric Pressure Sensor
7.3.3 Program Examples
The CS100 wiring instructions for the example programs are shown in TABLE
7-4 below.
TABLE 7-4. Wiring for Example Programs
Wire Color Description CR10(X) CR1000
Blue VOUT – Pressure Signal Out SE6 SE15
Red SUPPLY – 12 Vdc Power In 12V 12V
Black GND – Power Ground G G
Yellow AGND – Signal Ground AG
Green ETX. TRIG. – External Trigger C8 C4
Clear Shield G G
7.3.3.1 CRBasic Example 1: CR1000 Program Using Sequential Mode
This CR1000 program uses the sequential mode, which is the simplest mode
and can be used for most meteorological applications. Although the example is
for the CR1000, other CRBasic dataloggers, such as the CR200(X), CR800,
CR850, CR3000, and CR9000(X) are programmed similarly. In the example,
the CR1000 measures the CS100 once an hour. To do this, the CR1000 uses a
control port to turn on the CS100 one minute before the top of the hour. On the
hour, the datalogger measures the CS100, and then turns the CS100 off.
'CR1000
'Declare Variables and Units
Public BattV
Public PTemp_C
Public BP_mmHg
Units BattV=Volts
Units PTemp_C=Deg C
Units BP_mmHg=mmHg
'Define Data Tables
DataTable(Table1,True,-1)
DataInterval(0,60,Min,10)
Sample(1,BP_mmHg,FP2)
EndTable
DataTable(Table2,True,-1)
DataInterval(0,1440,Min,10)
Minimum(1,BattV,FP2,False,False)
EndTable
'Main Program
BeginProg
'Main Scan
Scan(5,Sec,1,0)
'Default Datalogger Battery Voltage measurement 'BattV'
Battery(BattV)
'Default Wiring Panel Temperature measurement 'PTemp_C'
PanelTemp(PTemp_C,_60Hz)
'CS100 Barometric Pressure Sensor measurement 'BP_mmHg'
If IfTime(59,60,Min) Then PortSet(4,1)
If IfTime(0,60,Min) Then
VoltSE(BP_mmHg,1,mV2500,15,1,0,_60Hz,0.2,600)
BP_mmHg=BP_mmHg*0.75006
PortSet(4,0)
12

CS100 Barometric Pressure Sensor
EndIf
'Call Data Tables and Store Data
CallTable(Table1)
CallTable(Table2)
NextScan
EndProg
7.3.3.2 CRBasic Example 2: CR1000 Program Using Pipeline Mode
Although this example is for the CR1000, other CRBasic dataloggers, such as
the CR200(X), CR800, CR850, CR3000, and CR9000(X) are programmed
similarly. In the example, the CR1000 measures the CS100 once an hour in a
program that runs at 1 Hz. In order to keep the CR1000 running in a pipeline
mode, the measurement instruction is placed outside the “If” statement. The
measurement is made every scan, and the measured value is first written into a
temporary variable called "CS100_temp". Once the CS100 is turned on one
minute before the hour, the CS100 starts to make the correct pressure
measurements. At the top of the hour, the correct value is copied into the
current variable called "pressure", and the sensor is turned off immediately.
'CR1000 Datalogger
Public CS100_temp
Public pressure
Units pressure = mbar
DataTable (met_data,True,-1)
DataInterval (0,60,min,10)
Sample (1,pressure,IEEE4)
EndTable
BeginProg
Scan (1,sec,3,0)
'Measurement is made every scan outside the “If” statement
VoltSE (CS100_temp,1,mV2500,15,False,200,250,0.2,600)
'Turn on CS100 one minute before the hour
If (IfTime (59,60,min)) Then WriteIO (&b1000,&b1000)
'Copy the correct value to a current variable called “pressure” at the top of the
hour
'Turn off CS100 after measurement
If (IfTime (0,60,min)) Then
pressure = CS100_temp
WriteIO (&b1000,&b0)
EndIf
CallTable met_data
NextScan
EndProg
13

CS100 Barometric Pressure Sensor
7.3.3.3 Edlog Example — CR10X Program
Although this example is for a CR10X, other Edlog dataloggers, such as the
CR510, CR23X, CR7, and 21X are programmed similarly. In the example, the
CR10X datalogger turns on the CS100 one minute before the top of the hour
using a control port. On the hour, the datalogger measures the CS100, and then
it turns the CS100 off.
;{CR10X}
;
*Table 1 Program
01: 1 Execution Interval (seconds)
;Turn on CS100 one minute before the hour
;
1: If time is (P92)
1: 59 Minutes (Seconds --) into a
2: 60 Interval (same units as above)
3: 48* Set Port 8* High
;Measure CS100 at the top of the hour
;
2: If time is (P92)
1: 0 Minutes (Seconds --) into a
2: 60 Interval (same units as above)
3: 30 Then Do
3: Volt (SE) (P1)
1: 1 Reps
2: 15 2500 mV Fast Range
3: 6 SE Channel
4: 1 Loc [ P_mb ]
5: 0.2 Multiplier
6: 600 Offset
;Turn off CS100
;
4: Do (P86)
1: 58* Set Port 8* Low
5: End (P95)
6: If time is (P92)
1: 0 Minutes (Seconds --) into a
2: 60 Interval (same units as above)
3: 10 Set Output Flag High (Flag 0)
7: Real Time (P77)
1: 0110 Day,Hour/Minute (midnight = 0000)
;Store in high resolution mode to retain 0.01mb resolution
;
8: Resolution (P78)
1: 1 High Resolution
14
