HMP50 Temperature and Relative
Humidity Probe
1. General
The HMP50 Temperature and Relative Humidity probe contains a Platinum
Resistance Temperature detector (PRT) and a Vaisala INTERCAP® capacitive
relative humidity sensor.
The -L option on the model HMP50 Temperature and Relative Humidity probe
(HMP50-L) indicates that the cable length is user specified. Lead length is
specified when the sensor is ordered. Table 1 gives the recommended lead
length. This manual refers to the sensor as the HMP50.
TABLE 1. Recommended Lead Lengths
2 m Height Atop a tripod or tower via a 2 ft crossarm such as the CM202
Mast/Leg CM202 CM6 CM10 CM110 CM115 CM120 UT10 UT20 UT30
9' 11' 11' 14' 14' 19' 24' 14' 24' 37'
Note: Add two feet to the cable length if you are mounting the enclosure on the leg base of a light-weight tripod.
2. Specifications
Operating Temperature: -40°C to +60°C
Storage Temperature: -40°C to +80°C
Probe Length: 7.1 cm (2.8 in.)
Probe Body Diameter: 1.2 cm (0.47 in.)
Filter: 0.2 μm Teflon membrane
Filter Diameter: 1.2 cm (0.47 in.)
Housing Material: chrome-coated aluminum and
chrome-coated ABS plastic
Power Consumption: <2 mA
Supply Voltage: 7 to 28 VDC
Settling Time after power is switched on: 1 second
1

HMP50 Temperature and Relative Humidity Probe
2.1 Temperature Sensor
Sensor: 1000 ΩPRT, DIN 43760B
Temperature Measurement Range: -40°C to +60°C
Temperature Output Signal range: 0 to 1.0 VDC
Temperature Accuracy:
0
0.4
0.8
1.2
1.6
-0.4
-0.8
-1.2
-1.6 -20-40 0
Temperature( C)
o
( C)
Error o
20 40 60
2.2 Relative Humidity Sensor
Sensor: INTERCAP®
Relative Humidity Measurement Range: 0 to 98% non-condensing
RH Output Signal Range: 0 to 1.0 VDC
Accuracy at 20°C
±3% RH (0 to 90% Relative Humidity)
±5% RH (90 to 98% Relative Humidity)
Temperature Dependence of Relative Humidity Measurement:
0
0.5
1.0
1.5
-0.5
-1.0
-1.5
10 20 30 40 50 60 70 80 90 100
RH (%)
( %RH/ )
Temperature Dependence
60 C
o
-40 C
o
C
o
Typical Long Term Stability: Better than 1% RH per year
Response Time (at 20°C, 90% response to a steep change in humidity):
15 seconds with membrane filter
2

HMP50 Temperature and Relative Humidity Probe
3. Installation
3.1 Siting
Sensors should be located over an open level area at least 9 m (EPA) in
diameter. The surface should be covered by short grass, or where grass does
not grow, the natural earth surface. Sensors should be located at a distance of
at least four times the height of any nearby obstruction, and at least 30 m
(EPA) from large paved areas. Sensors should be protected from thermal
radiation, and adequately ventilated.
Standard measurement heights:
1.5 m +/- 1.0 m (AASC)
1.25 – 2.0 m (WMO)
2.0 m (EPA)
2.0 m and 10.0 m temperature difference (EPA)
See Section 9 for a list of references that discuss temperature and relative
humidity sensors.
3.2 Mounting and Assembly
Pull off the yellow shipping cap (see Figure 1).
The HMP50 must be housed inside a solar radiation shield when used in the
field. The 41303-5A 6-Plate Radiation Shield (Figures 2 and 3) mounts to a
tripod mast, UT10 tower leg, or CM202, CM204, or CM206 crossarm. The
HMP50 is held within the 41303-5A by a mounting clamp (Figure 3).
The UT6P 6-plate Radiation Shield mounts to a UT10, UT20, or UT30 tower
with the UT018 horizontal mounting arm.
The black outer jacket of the cable is Santoprene® rubber. This
compound was chosen for its resistance to temperature extremes,
moisture, and UV degradation. However, this jacket will
support combustion in air. It is rated as slow burning when
tested according to U.L. 94 H.B. and will pass FMVSS302.
Local fire codes may preclude its use inside buildings.
NOTE
3

HMP50 Temperature and Relative Humidity Probe

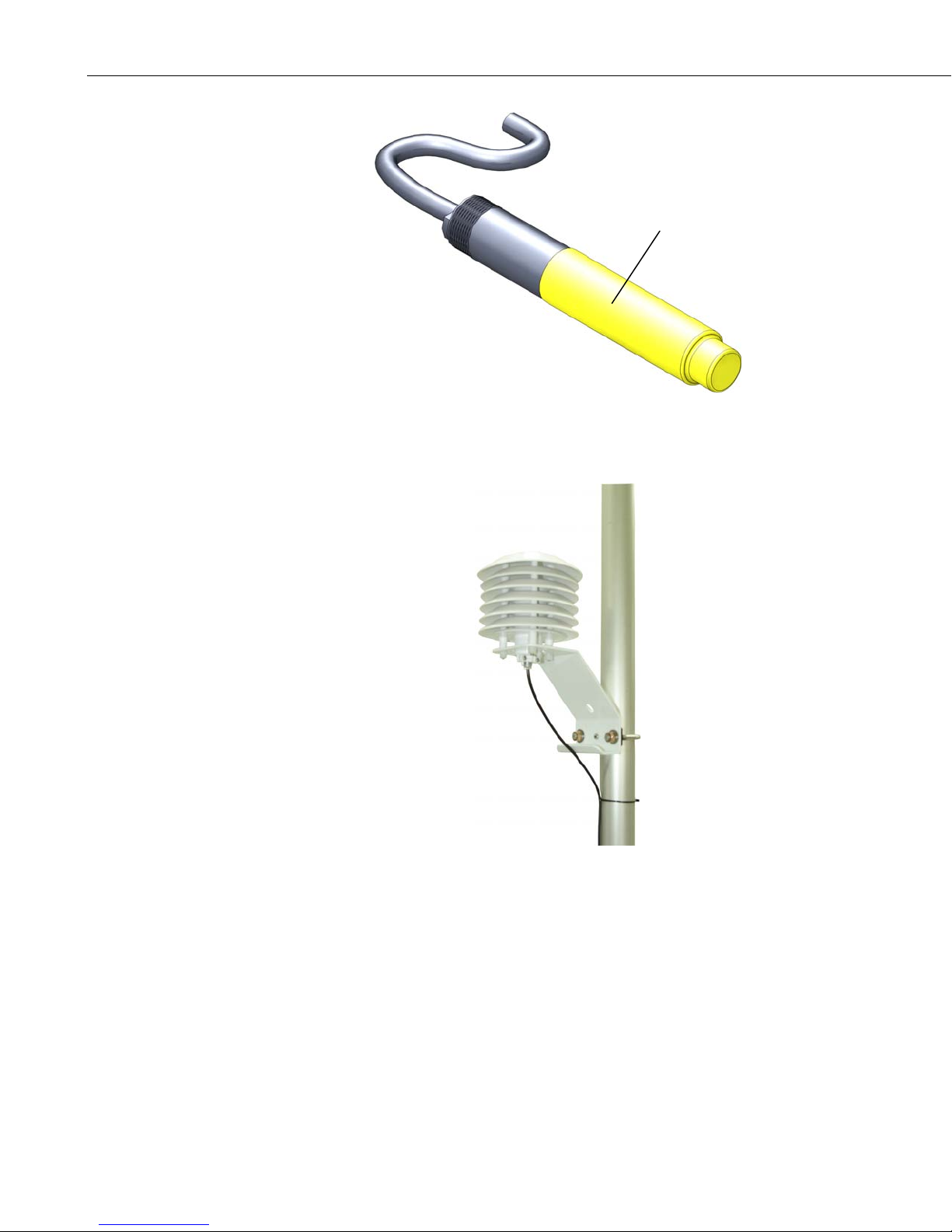

Yellow Shipping Cap
(remove before
installation
)
FIGURE 1. HMP50 as Shipped
FIGURE 2. HMP50 and 41303-5A Radiation Shield
on a Tripod Mast
4

HMP50 Temperature and Relative Humidity Probe
FIGURE 3. HMP50 and 41303-5A Radiation Shield
on a CM202 Crossarm
FIGURE 4. HMP50 and 41303-5A Radiation Shield
Mounting Clamp
5

HMP50 Temperature and Relative Humidity Probe
Black Temperature Signal
White Relative Humidity Signal
Blue Signal & Power Reference
Brown Power
Clear Shield
FIGURE 5. HMP50 Wiring
TABLE 2. Datalogger Connections
Wire Label Color
CR800, CR3000,
CR200, CR23X,
CR1000 CR10(X), CR510 21X, CR7
Temp Signal Black Single-Ended Input Single-Ended Input Single-Ended Input
RH Signal White Single-Ended Input Single-Ended Input Single-Ended Input
Power & Signal
Ground Blue G G
Power 12V Brown 12 V 12 V 12 V
Shield Clear G
4. Wiring
Connections to Campbell Scientific dataloggers are given in Table 2. The
probe is measured by two single-ended analog input channels, one for
temperature and one for relative humidity.
Always connect the Blue lead to the datalogger first,
followed by the Black, White, and Clear leads. Connect
the Brown (Power) lead last.
CAUTION
5. Example Programs
This section is for users who write their own datalogger programs. A
datalogger program to measure this sensor can be created using Campbell
Scientific’s Short Cut Program Builder Software. You do not need to read this
section to use Short Cut.
6

HMP50 Temperature and Relative Humidity Probe
The temperature and relative humidity signals from the HMP50 are measured
using two single-ended analog measurements (Instruction 1).
The probe output scale is 0 to 1000 millivolts for the temperature range of
-40°C to +60°C and for the relative humidity range of 0 to 100%. Tables 3
and 4 provide calibration information for temperature and relative humidity.
TABLE 3. Calibration for Temperature
Units Multiplier
(degrees mV-1) Offset (degrees)
Celsius 0.1 -40
Fahrenheit 0.18 -40
TABLE 4. Calibration for Relative Humidity
Units Multiplier
(% mV-1) Offset (%)
Percent 0.1 0
Fraction 0.001 0
TABLE 5. Wiring for CR1000 and CR10X Examples
Description Color CR1000 CR10(X)
Temperature Black SE 1 SE 3 (2H)
Relative Humidity White SE 2 SE 4 (2L)
Signal & Power Reference Blue G G
Power Brown 12 V 12 V
Shield Clear
G
5.1 Example for CR1000
'CR1000
'Created by SCWIN (2.1)
Public AirTC
Public RH
DataTable(Table1,True,-1)
DataInterval(0,60,Min,0)
Average(1,AirTC,FP2,0)
Sample(1,RH,FP2)
EndTable
7

HMP50 Temperature and Relative Humidity Probe
BeginProg
Scan(5,Sec,1,0)
'HMP50 Temperature & Relative Humidity Sensor measurements AirTC and RH:
VoltSE(AirTC,1,mV2500,1,0,0,_60Hz,0.1,-40.0)
VoltSE(RH,1,mV2500,2,0,0,_60Hz,0.1,0)
If (RH>100) And (RH<108) Then RH=100
CallTable(Table1)
NextScan
EndProg
5.2 Example for CR10X
;Measure the HMP50 temperature.
;
01: Volt (SE) (P1)
1: 1 Reps
2: 5 2500 mV Slow Range ;CR510 (2500 mV); CR23X (1000 mV); 21X,
CR7 (5000 mV)
3: 3 SE Channel ;Black wire (SE 3), Blue wire (G)
4: 1 Loc [ T_C ]
5: .1 Mult ;See Table 3 for alternate multipliers
6: -40 Offset ;See Table 3 for alternate offsets
;Measure the HMP50 relative humidity.
;
02: Volt (SE) (P1)
1: 1 Reps
2: 5 2500 mV Slow Range ;CR510 (2500 mV); CR23X (1000 mV); 21X,
CR7 (5000 mV)
3: 4 SE Channel ;White wire (SE 4), Blue wire (G)
4: 3 Loc [ RH_pct ]
5: .1 Mult ;See Table 4 for alternate multipliers
6: 0 Offset
;Limit the maximum relative humidity to 100%.
;
03: If (X<=>F) (P89)
1: 3 X Loc [ RH_pct ]
2: 3 >=
3: 100 F
4: 30 Then Do
04: Z=F (P30)
1: 100 F
2: 0 Exponent of 10
3: 3 Z Loc [ RH_pct ]
05: End (P95)
8

HMP50 Temperature and Relative Humidity Probe
6. Long Lead Lengths
Long lead lengths cause errors in the measured temperature and relative
humidity. The approximate error in temperature and relative humidity is
0.52°C and 0.52% per 100 feet of cable length, respectively.
When long lead lengths are required and the above errors in temperature and
relative humidity are unacceptable, use the HMP45C temperature and humidity
probe.
Understanding the following details are not required for the general operation
of the HMP50 with Campbell Scientific’s dataloggers. The signal reference
and the power ground (black) are the same lead in the HMP50. When the
HMP50 temperature and relative humidity are measured, both the signal
reference and power ground are connected to ground at the datalogger. The
signal reference/power ground lead serves as the return path for 12 V. There
will be a voltage drop along this lead because the wire itself has resistance. The
HMP50 draws approximately 2 mA when it is powered. The wire used in the
HMP50 (P/N 18159) has resistance of 26.2 Ω/1000 feet. Using Ohm’s law, the
voltage drop (Vd), along the signal reference/power ground lead, is given by
Eq. (1).
ft1000mV2.45
ft10006.22mA2
=
Ω∗=
∗= RI
Vd
(1)
This voltage drop will raise the apparent temperature and relative humidity
because the difference between the signal and signal reference, at the
datalogger, has increased by Vd. The approximate error in temperature and
relative humidity is 0.35°C and 0.35% per 100 feet of cable length,
respectively.
7. Absolute Humidity
The HMP50 measures the relative humidity. Relative humidity is defined by
the equation below:
RH e
e100
s
=∗ (2)
where RH is the relative humidity, e is the vapor pressure in kPa , and esis the
saturation vapor pressure in kPa. The vapor pressure, e, is an absolute measure
of the amount of water vapor in the air and is related to the dew point
temperature. The saturation vapor pressure is the maximum amount of water
vapor that air can hold at a given air temperature. The relationship between
dew point and vapor pressure, and air temperature and saturation vapor
pressure are given by Goff and Gratch (1946), Lowe (1977), and Weiss
(1977).
9

HMP50 Temperature and Relative Humidity Probe
When the air temperature increases, so does the saturation vapor pressure.
Conversely, a decrease in air temperature causes a corresponding decrease in
saturation vapor pressure. It follows then from Eq. (2) that a change in air
temperature will change the relative humidity, without causing a change in
absolute humidity.
For example, for an air temperature of 20°C and a vapor pressure of 1.17 kPa,
the saturation vapor pressure is 2.34 kPa and the relative humidity is 50%. If
the air temperature is increased by 5°C and no moisture is added or removed
from the air, the saturation vapor pressure increases to 3.17 kPa and the
relative humidity decreases to 36.9%. After the increase in air temperature,
there is more energy available to vaporize the water. However, the actual
amount of water vapor in the air has not changed. Thus, the amount of water
vapor in the air, relative to saturation, has decreased.
Because of the inverse relationship between relative humidity and air
temperature, finding the mean relative humidity is meaningless. A more useful
quantity is the mean vapor pressure. The mean vapor pressure can be
computed on-line by the datalogger. CRBasic dataloggers use the
VaporPressure instruction to calculate vapor pressure from temperature and
relative humidity measurements (see Section 7.1). Edlog dataloggers must first
calculate the saturation vapor pressure and then calculate vapor pressure (see
Section 7.2).
TABLE 6. Wiring for Vapor Pressure Examples
Description Color CR10(X) CR1000
Temperature Black SE 3 (2H) SE 1 (1H)
Relative Humidity White SE 4 (2L) SE 2 (2H)
Signal & Power Reference Blue G G
Power Brown 12 V 12 V
Shield Clear G
7.1 CR1000 Vapor Pressure Example
The VaporPressure instruction has the following syntax:
VaporPressure ( Dest, Temp, RH )
Where:
Dest—the variable in which the results of the instruction will be stored.
Temp—the program variable that contains the value for the temperature
sensor. The temperature measurement must be in degrees C.
RH—the program variable that contains the value for the relative humidity
sensor. The RH measurement must be in percent of RH.
10

HMP50 Temperature and Relative Humidity Probe
'CR1000
Public AirTC
Public RH
Public VP
DataTable(Table1,True,-1)
DataInterval(0,60,Min,0)
Average(1,AirTC,FP2,0)
Sample(1,RH,FP2)
Average(1,VP, FP2,0)
EndTable
BeginProg
Scan(5,Sec,1,0)
'HMP50 Temperature & Relative Humidity Sensor measurements AirTC and RH:
VoltSE(AirTC,1,mV2500,1,0,0,_60Hz,0.1,-40.0)
VoltSE(RH,1,mV2500,2,0,0,_60Hz,0.1,0)
If (RH>100) And (RH<108) Then RH=100
VaporPressure(VP,AirTC,RH)
CallTable(Table1)
NextScan
EndProg
7.2 Sample CR10(X) Program that Computes Vapor Pressure
and Saturation Vapor Pressure
;Measure the HMP50 temperature.
;
01: Volt (SE) (P1)
1: 1 Reps
2: 5 2500 mV Slow Range ;CR510 (2500 mV); CR23X (1000 mV); 21X,
CR7 (5000 mV)
3: 3 SE Channel ;Black wire (SE 3), Blue wire (G)
4: 1 Loc [ T_C ]
5: .1 Mult ;See Table 3 for alternate multipliers
6: -40 Offset ;See Table 3 for alternate offsets
;Measure the HMP50 relative humidity.
;
02: Volt (SE) (P1)
1: 1 Reps
2: 5 2500 mV Slow Range ;CR510 (2500 mV); CR23X (1000 mV); 21X,
CR7 (5000 mV)
3: 4 SE Channel ;White wire (SE 4), Blue wire (G)
4: 2 Loc [ RH_frac ]
5: .001 Mult ;See Table 4 for alternate multipliers
6: 0 Offset
11

HMP50 Temperature and Relative Humidity Probe
;Limit the maximum value of relative humidity
;to 1 (expressed as a fraction).
;
03: If (X<=>F) (P89)
1: 2 X Loc [ RH_frac ]
2: 3 >=
3: 1 F
4: 30 Then Do
04: Z=F (P30)
1: 1 F
2: 0 Exponent of 10
3: 2 Z Loc [ RH_frac ]
05: End (P95)
;Compute the saturation vapor pressure in kPa.
;The temperature must be in degrees Celsius.
;
06: Saturation Vapor Pressure (P56)
1: 1 Temperature Loc [ T_C ]
2: 3 Loc [ e_sat ]
;Compute the vapor pressure in kPa.
;Relative humidity must be a fraction.
;
07: Z=X*Y (P36)
1: 3 X Loc [ e_sat ]
2: 2 Y Loc [ RH_frac ]
3: 4 Z Loc [ e ]
8. Maintenance
The HMP50 Probe requires minimal maintenance. Check monthly to make
sure the radiation shield is free from debris. The white screen at the tip of the
probe should also be checked for contaminants.
When installed in close proximity to the ocean or other bodies of salt water
(e.g., Great Salt Lake), a coating of salt (mostly NaCl) may build up on the
radiation shield, sensor, filter and even the chip. NaCl has an affinity for
water. The humidity over a saturated NaCl solution is 75%. A buildup of salt
on the filter or chip will delay or destroy the response to atmospheric humidity.
The filter can be rinsed gently in distilled water. If necessary, the chip can be
removed and rinsed as well (see Figure 6 and Section 8.1). Do not scratch the
silver chip while cleaning. It might be necessary to repeat rinsing.
12

HMP50 Temperature and Relative Humidity Probe
Shipping Cap
(remove prior
to installation)
Protective Cap
and Filter
9598 RH Chip

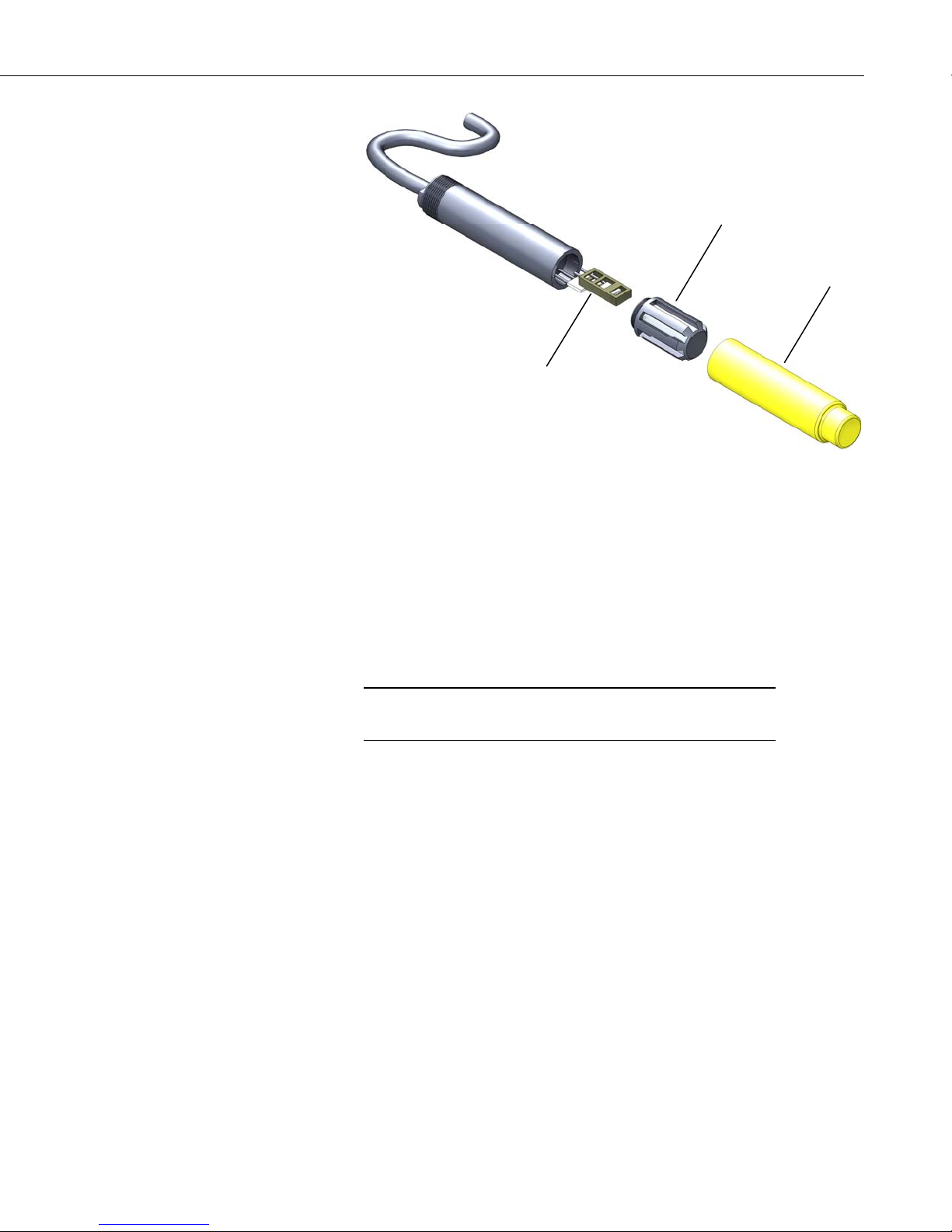

FIGURE 6. Exploded View of HMP50 (as shipped)
The offset and gain on the HMP50 electronics can not be adjusted as part of a
recalibration. Replace the RH chip as needed.
8.1 Procedure for Removing RH Chip
1. Unscrew the protective cap.
2. Hold the plastic sides of the RH chip and unplug it.
To prevent scratching, avoid touching the silver RH chip,
and handle the RH chip with care.
CAUTION
3. Rinse the RH chip or dispose of the old RH chip.
4. Hold the sides of the rinsed or new chip and plug it in.
5. Screw on the protective cap.
9. References
Goff, J. A. and S. Gratch, 1946: Low-pressure properties of water from -160°
to 212°F, Trans. Amer. Soc. Heat. Vent. Eng., 51, 125-164.
Lowe, P. R., 1977: An approximating polynomial for the computation of
saturation vapor pressure, J. Appl. Meteor., 16, 100-103.
Weiss, A., 1977: Algorithms for the calculation of moist air properties on a
hand calculator, Amer. Soc. Ag. Eng., 20, 1133-1136.
13

HMP50 Temperature and Relative Humidity Probe
14

Campbell Scientific Companies
Campbell Scientific, Inc. (CSI)
815 West 1800 North
Logan, Utah 84321
UNITED STATES
www.campbellsci.com • [email protected]
Campbell Scientific Africa Pty. Ltd. (CSAf)
PO Box 2450
Somerset West 7129
SOUTH AFRICA
www.csafrica.co.za • [email protected]
Campbell Scientific Australia Pty. Ltd. (CSA)
PO Box 444
Thuringowa Central
QLD 4812 AUSTRALIA
www.campbellsci.com.au • [e-mail]
Campbell Scientific do Brazil Ltda. (CSB)
Rua Luisa Crapsi Orsi, 15 Butantã
CEP: 005543-000 São Paulo SP BRAZIL
www.campbellsci.com.br • [e-mail]
Campbell Scientific Canada Corp. (CSC)
11564 - 149th Street NW
Edmonton, Alberta T5M 1W7
CANADA
www.campbellsci.ca • [e-mail]
Campbell Scientific Centro Caribe S.A. (CSCC)
300 N Cementerio, Edificio Breller
Santo Domingo, Heredia 40305
COSTA RICA
www.campbellsci.cc • [email protected]
Campbell Scientific Ltd. (CSL)
Campbell Park
80 Hathern Road
Shepshed, Loughborough LE12 9GX
UNITED KINGDOM
www.campbellsci.co.uk • [e-mail]
Campbell Scientific Ltd. (France)
Miniparc du Verger - Bat. H
1, rue de Terre Neuve - Les Ulis
91967 COURTABOEUF CEDEX
FRANCE
www.campbellsci.fr • [email protected]
Campbell Scientific Spain, S. L.
Psg. Font 14, local 8
08013 Barcelona
SPAIN
www.campbellsci.es • [email protected]
Please visit www.campbellsci.com to obtain contact information for your local US or International representative.
