CanadianSolar CSI-700TL1P-GI-FL User manual

CSI SERIES GRID-TIED PV Inverter
CSI-700TL1P-GI-FL & CSI-1KTL1P-GI-FL
CSI-1.5KTL1P-GI-FL & CSI-2KTL1P-GI-FL
CSI-2.5KTL1P-GI-FL & CSI-3KTL1P-GI-FL
INSTALLATION AND OPERATION MANUAL
VERSION 1.1
CANADIAN SOLAR INC.
Global Headquarters:
545 Speedvale Avenue, West Guelph, Ontario N1K 1E6, Canada
Tel: [phone]
Sales Inquiries Email: [email protected]
Technical Inquiries Email: [email protected]
CANADIAN SOLAR (USA) , INC.
North America Headquarters:
3000 Oak Road, Ste 400, Walnut Creek, CA 94596
Tel: [phone]
Sales Inquiries Email: [email protected]
Technical Inquiries Email: [email protected]
This manual is subject to change without prior notification. Copyright is
reserved. Duplication of any part of this issue is prohibited without written
permission.
Please adhere to the actual products in case of any discrepancies in this user manual.
Europe, Middle East & Africa
Canadian Solar EMEA GmbH
Landsberger Strasse 94, 80339 Munich, Germany
Tel.: [phone]
E-mail: [email protected]

1. Introduction
2. Safety Instructions
2.1 Safety Symbols
2.2 General Safety Instructions
2.3 Notice For Use
3. Overview
3.1 Front Panel Display
3.2 LED Status Indicator Lights
3.3 Keypad
3.4 LCD
4. Installation
4.1 Select Location for the Inverter
4.2 Mounting the Inverter
4.3 Electrical Connections
Contents
3
5
5
5
6
7
7
7
8
8
9
9
11
13
………………………
………………………………………
………………………………………………
………………………………
………………………
……………………………………………
…………………………………………………
………………………………………………
…………………
…………………………………
……………………………
6. Operation 24
………………………………………………
5. Start & Stop
5.1 Start the Inverter
5.2 Stop the Inverter
23
23
23
………………………………………………
…………………………………
………………………………………………
……………………………………
………………………………………
1.1 Product Description 3
…………………………………
1.2 Packaging 4
…………………………………………
4.3.1 Connect PV side of inverter 13
………………
4.3.2 Connect grid side of inverter 16
………………
4.3.3 External ground connection 18
………………
4.3.4 Max. overcurrent protection device (OCPD) 19
…
4.3.5 Inverter monitoring connection 19
……………
4.3.7 Meter Connection (optional) 20
21
4.3.6 Electrical connection diagram 20
…………
4.3.8 CT connections (optional)
6.1 Main Menu 24
……………………………………………
6.2.1 Lock screen 26
……………………………………
6.2 Information 24
……………………………………………
22
4.3.9 Logic interface connection (Only for UK)
………………
……………
…………………………………

1. Introduction
1.1 Product Description
.3.
6.3 Settings
6.3.1 Set Time
6.3.2 Set Address
6.4 Advanced Info.
6.4.1 Alarm Message
Contents
26
26
26
27
27
………………………………………………
………………………………………
……………………………………
………………………………………
………………………………
6.4.3 Version
6.4.4 Daily Energy
6.4.5 Monthly Energy and Yearly Energy
6.5 Advanced Settings
6.5.1 Select Standard
6.5.2 Grid ON/OFF
28
28
28
29
30
31
…………………………………………
……………………………………
…………
…………………………………
………………………………
…………………………………
6.4.2 Running Message 28
……………………………
32
……………………………
6.5.3 Clear Energy
6.5.4 Reset Password
31
31
………………………………
…………………………………
6.4.6 Daily Record
6.4.7 Communication Data
29
29
……………………………………
…………………………
6.5.5 Power Control
6.5.6 Calibrate Energy
32
32
………………………………
…………………………………
6.5.7 Special Settings
………………………
6.5.8 STD. Mode Settings
33
33
33
7. Maintenance
8. Troubleshooting
9. Specifications
38
38
41
………………………………………………
…………………………………………
……………………………………………
32
6.5.11 Export Power Set
6.5.9 Restore Settings
6.5.10 HMI Update
……………………………
…………………………………
……………………………
6.4.8 Warning Message 29
…………………………
376.5.12 Restart HMI …………………………………
6.5.13 Debug Parameter
6.5.14 DSP Update
6.5.15 Power Parameter
…………………………
…………………………
37
37
37
…………………………………
Figure 1.1 Front side view
DC input AC output
RS 485
LCD display
4 buttons
LED lights
CT or Meter
Figure 1.2a Bottom side view (0.7~3.0kW) Figure 1.2b Bottom side view (3.6kW)
DC Switch(optional)
Canadian Solar 4G mini series single phase inverters integrate DRM and backflow
power control function, thatcould suitable for smart grid requirement.
Mini Single phase 4G series inverter contain 6 models which are listed below:
CSI-700TL1P-GI-FL, CSI-1KTL1P-GI-FL, CSI-1.5KTL1P-GI-FL, CSI-2KTL1P-GI-FL,
CSI-2.5KTL1P-GI-FL, CSI-3KTL1P-GI-FL
10. Installation and commissioning checklist
48
……………

2.Safety Instructions
.5.
Improper use may result in potential electric shock hazards or burns. This manual
contains important instructions that should be followed during installation and
maintenance. Please read these instructions carefully before use and keep them for
future reference.
1. Introduction
.4.
1.2 Packaging
When you receive the inverter, ensure that all the parts listed below are included:
2.2 General Safety Instructions
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
CAUTION:
CAUTION, RISK OF ELECTRIC SHOCK symbol indicates important safety
instructions, which if not correctly followed, could result in electric shock.
CAUTION:
CAUTION, HOT SURFACE symbol indicates safety instructions, which if not
correctly followed, could result in burns.
NOTE:
NOTE symbol indicates important safety instructions, which if not correctly
followed, could result in some damage or the destruction of the inverter.
2.1 Safety Symbols
Safety symbols used in this manual, which highlight potential safety risks and important
safety information, are listed as follows:
WARNING:
WARNING symbol indicates important safety instructions, which if not
correctly followed, could result in serious injury or death.
WARNING:
Please don’t connect PV array positive(+) or negative(-) to ground, it could
cause serious damage to the inverter.
WARNING:
Only devices in compliance with SELV (EN 69050) may be connected to the
RS485 and USB interfaces.
WARNING:
Do not touch any inner live parts until 5 minutes after disconnection from
the utility grid and the PV input.
132
74 5 6 8
Part #
1
Description
PV grid tie inverter
2
Wall/pole bracket
3
Locking screws
Number
1
1
2
Table 1.1 Parts list
AC connector
4
1
WiFi/GPRS Stick （Optional）
Manual
5
6
8
1
1
1
DC connector 1 pair for 0.7~3.0kW
2 pairs for 3.6kW
RJ45 connector(Only for UK)
7
1
9CT with cable（Optional）

3. Overview

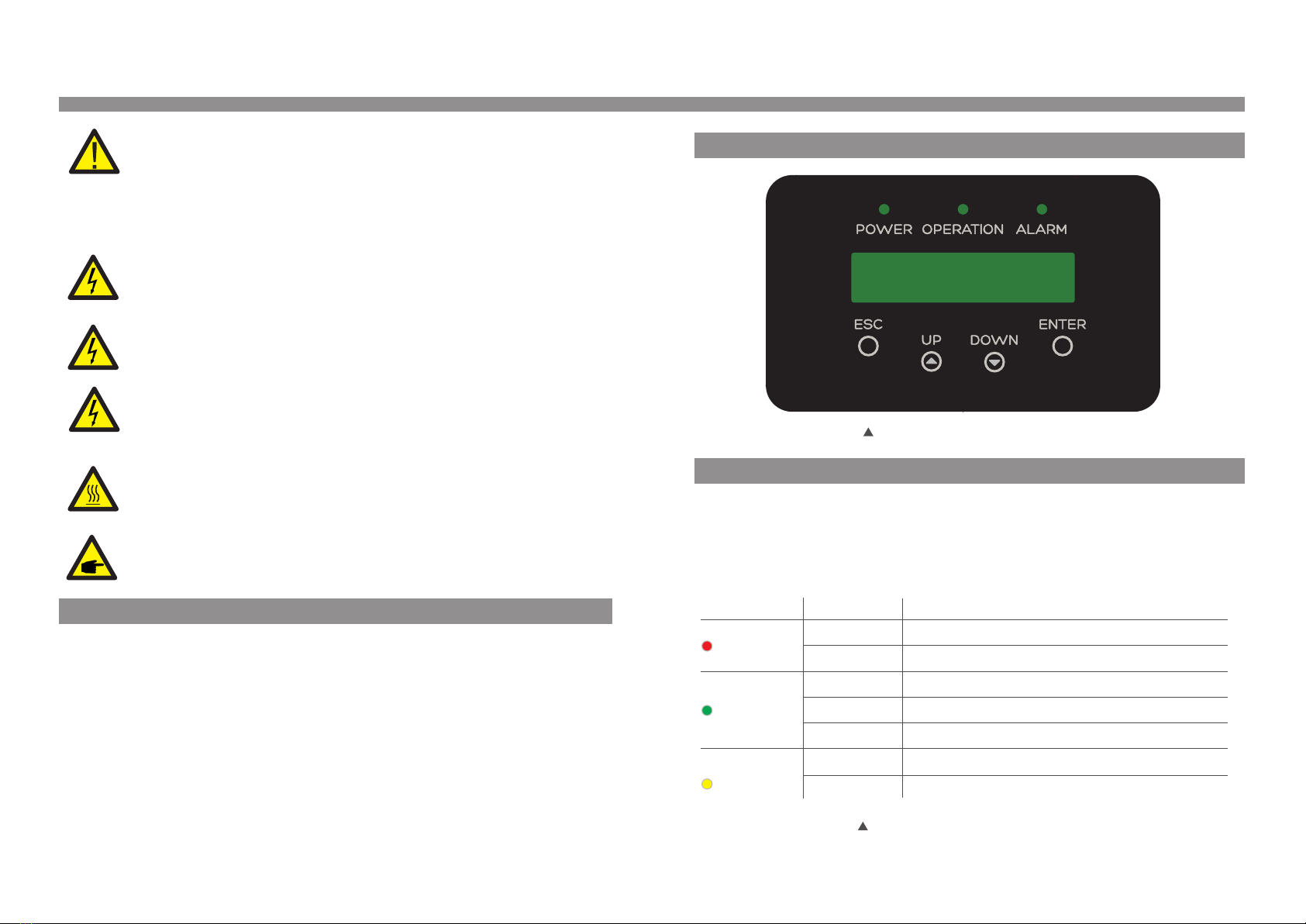

3.1 Front Panel Display
Figure 3.1 Front Panel Display
3.2 LED Status Indicator Lights
There are three LED status indicator lights in the front panel of the inverter. Left LED:
POWER LED (red) indicates the power status of the inverter. Middle LED: OPERATION
LED (green) indicates the operation status. Right LED: ALARM LED (yellow) indicates
the alarm status. Please see Table 3.1 for details
Description
The inverter can detect DC power
No DC power or low DC power
The inverter is operating properly.
The inverter has stopped to supply power.
The inverter is initializing.
Alarm or fault condition is detected.
Status
ON
OFF
ON
OFF
OFF
ON
FLASHING
Light
POWER
OPERATION
ALARM
Table 3.1 Status Indicator Lights
.7.
2.Safety Instructions
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
5. To startup the inverter, the Grid Supply Main Switch (AC) must be switched on, before
the solar panel's DC isolator shall be switched on. To stop the inverter, the Grid Supply
Main Switch (AC) must be switched off before the solar panel's DC isolator shall be
switched off.
.6.
CAUTION:
The PV array (Solar panels) supplies a DC voltage when they are exposed to
sunlight.
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter. Do not
remove cover for 5 minutes after disconnecting all power sources(service technician
only). Warranty may be voided if the cover is removed without unauthorized .
CAUTION:
The surface temperature of the inverter can reach up to 75℃ (167 F).
To avoid risk of burns, do not touch the surface of the inverter while it’s operating.
Inverter must be installed out of the reach of children.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the Inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic source
and output circuit conductors shall have disconnects that comply with the NEC
Article 690, Part II. All Canadian Solar single phase inverters feature an
integrated DC switch.
CAUTION:
Risk of electric shock. Do not remove cover. There is no user serviceable
parts inside. Refer servicing to qualified and accredited service technicians.
PV module used with inverter must have an IE C 61730 Class A rating.
2.3 Notice For Use
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications ONLY:
The inverter is operating without fault or alarm.

4. Installation
4.1 Select a Location for the Inverter
.9.
3.3 Keypad
3.4 LCD
There are four keys in the front panel of the Inverter(from left to right):
ESC, UP, DOWN and ENTER keys. The keypad is used for:
Scrolling through the displayed options (the UP and DOWN keys);
Access to modify the adjustable settings (the ESC and ENTER keys).
3. Overview
The two-line Liquid Crystal Display (LCD) is located on the front panel of the Inverter,
which shows the following information:
Inverter operation status and data;
Service messages for operator;
Alarm messages and fault indications.
.8.

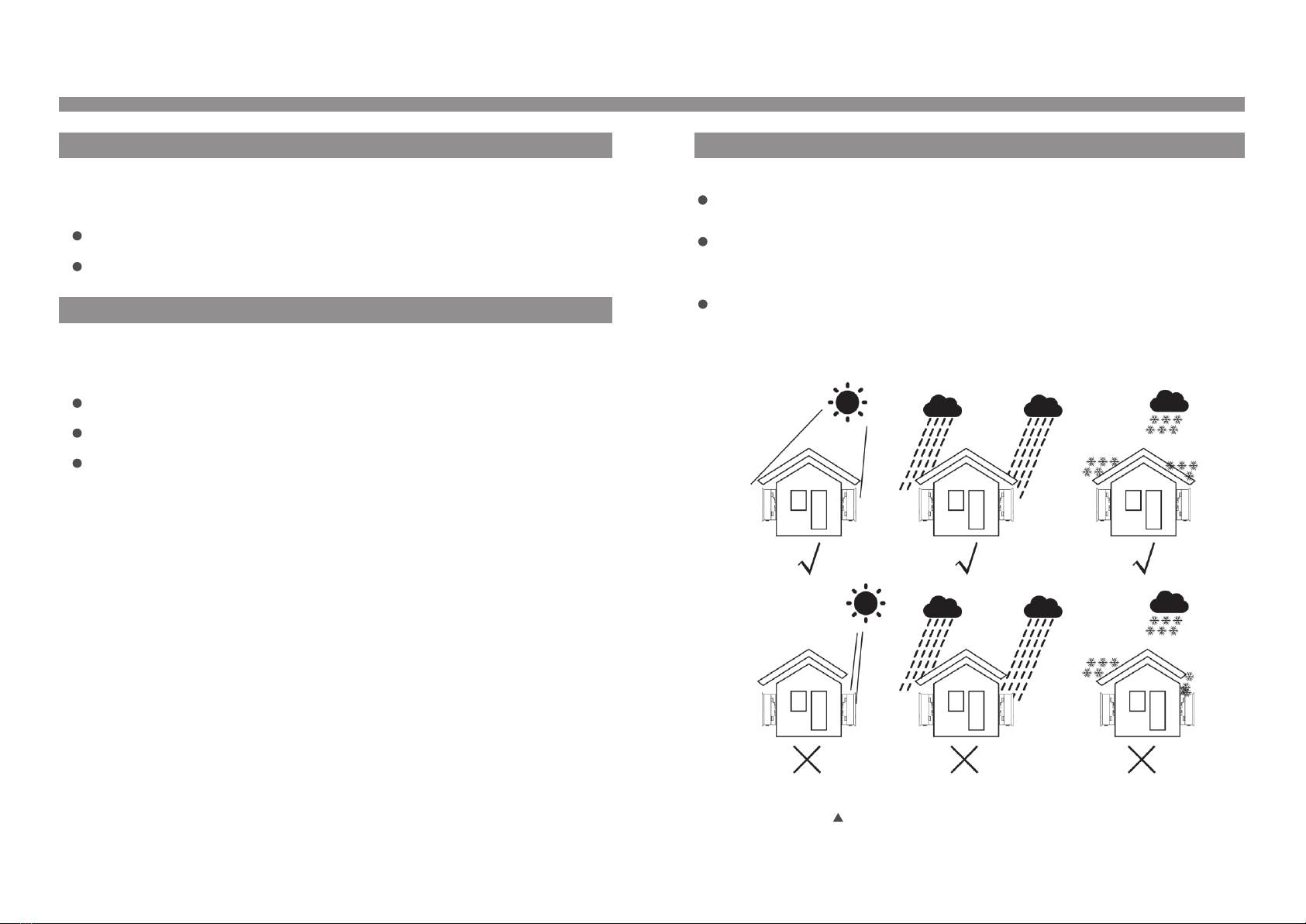

Figure 4.1 Recommended Installation locations
To select a location for the inverter, the following criteria should be considered:
Do not install in small closed spaces where air can not circulate freely. To avoid
overheating, always make sure the flow of air around the inverter is not blocked.
To avoid over heating ambient air temperature must be considered when choosing the
inverter installation location. Canadian Solar recommends using a sun shade minimizing
direct sunlight when the ambient air temperature around the unit exceeds 104°F/40°C.
Exposure to direct sunlight will increase the operational temperature of the inverter and
may cause output power limiting. Canadian Solar recommends inverter installed to avoid
direct sunlight or raining.

4. Installation4. Installation
Dimensions of wall bracket:
Please see Figure 4.4 and Figure 4.5 for instruction on mounting the inverter.
Figure 4.3 Inverter wall mounting
.10. .11.

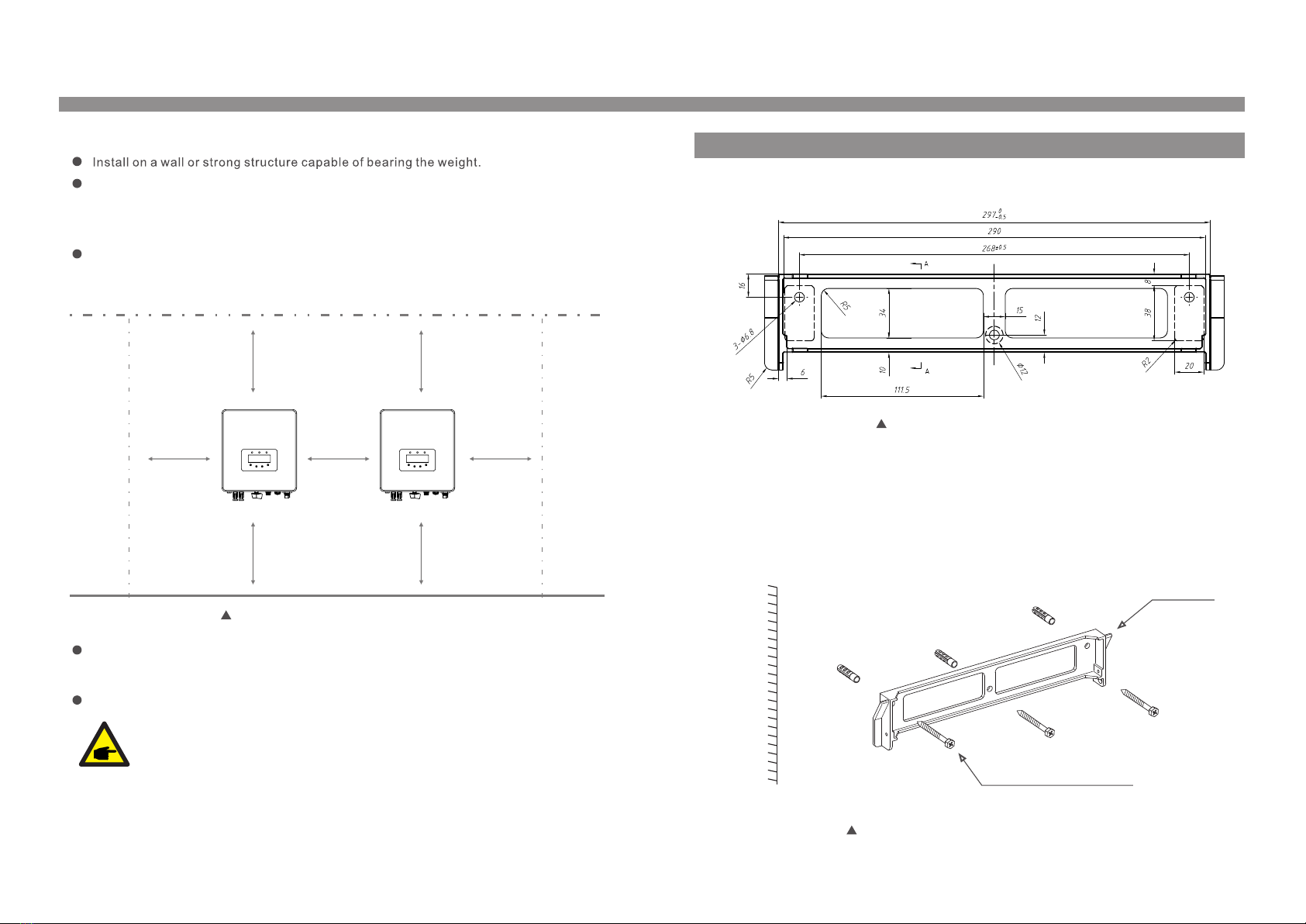

4.2 Mounting the Inverter
The inverter shall be mounted vertically. The steps to mount the inverter are listed below:
Suitable fixing screws
Bracket
1. According to the figure 4.2, select the mounting height of the bracket and mark the
mounting holes. For brick walls, the position of the holes should be suitable for the
expansion bolts.
Figure 4.4 Inverter wall mounting
When 1 or more inverters are installed in one location, a minimum 12inchs clearance
should be kept between each inverter or other object. The bottom of the inverter should
be 20inchs clearance to the ground.
Visibility of the LED status indicator lights and the LCD located at the front panel of
the inverter should be considered.
Adequate ventilation must be provided if the inverter is to be installed in a confined space.
NOTE:
Nothing should be stored on or placed against the inverter.
300mm
500mm 500mm
300mm 300mm
300mm 300mm
Figure 4.2 Inverter Mounting clearance
Install vertically with a maximum incline of +/- 5°.If the mounted inverter is tilted to an
angle greater than the maximum noted, heat dissipation can be inhibited, and may result
in less than expected output power.

.13.
4. Installation4. Installation
.12.

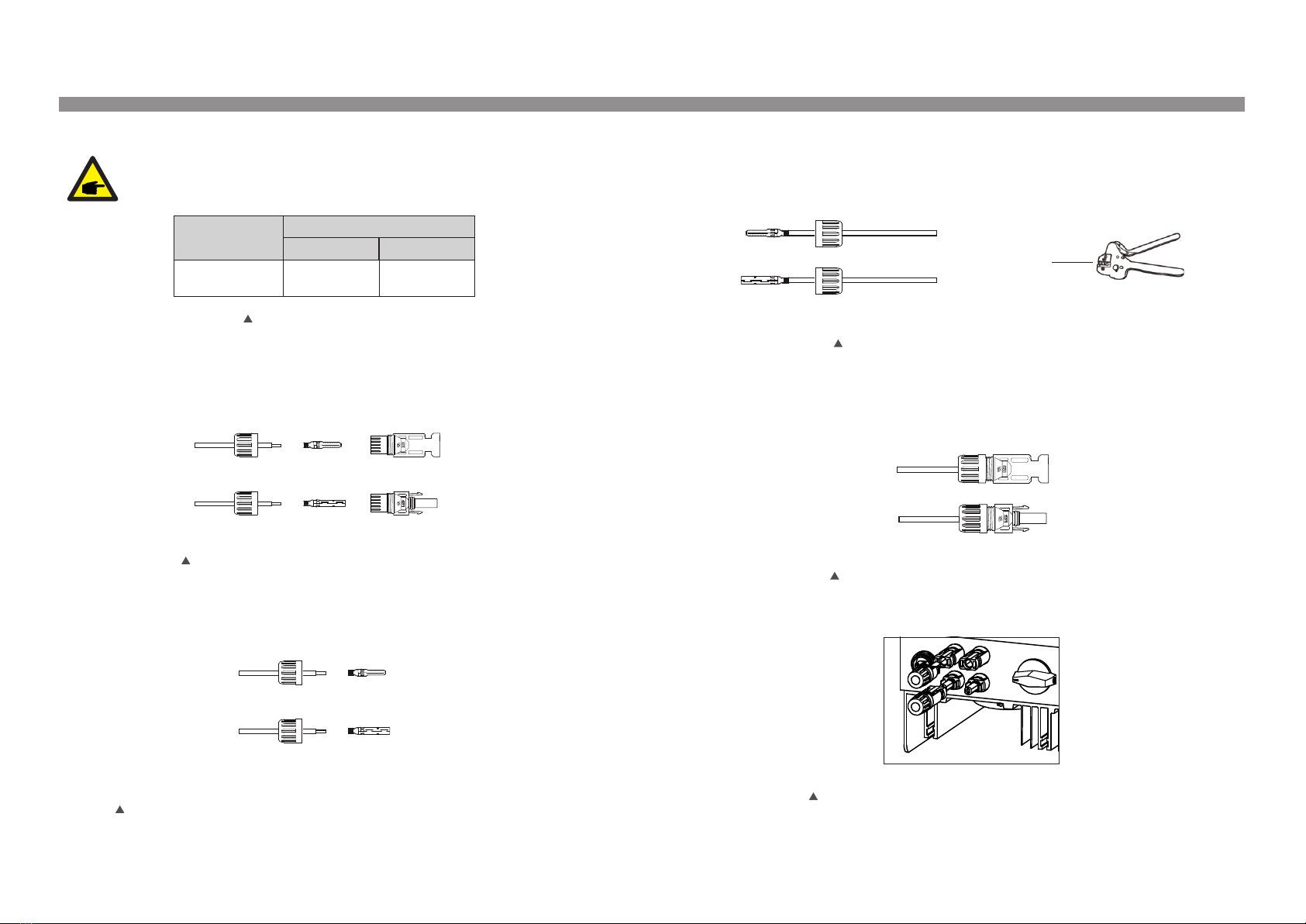

4.3.1 Connect PV side of inverter
The electrical connection of the inverter must follow the steps listed below:
1. Switch the Grid Supply Main Switch (AC) OFF.
2. Switch the DC Isolator OFF.
3. Assemble PV input connector to the Inverter.
Before connecting inverter, please make sure the PV array open circuit voltage is
within the limit of the inverter
Locking screws
Before connection, please make sure the polarity of the output voltage of PV array
matches the“DC+”and “DC-”symbols.
Please don’t connect PV array positive or negative pole to the ground, it could
cause serious damages to the inverter
Figure 4.6 DC+ Connector Figure 4.7 DC- Connector
WARNING:
The inverter must be mounted vertically.
4. Lift up the inverter (be careful to avoid body strain), and align the back bracket on the
inverter with the convex section of the mounting bracket. Hang the inverter on the
mounting bracket and make sure the inverter is secure (see Figure 4.5).
2.Make sure the bracket is horizontal and the mounting holes (in Figure 4.4 )
are marked correctly. Drill the holes into the wall or pillar at your marks.
3. Use the suitable screws to fix the bracket to the wall.
Figure 4.5 Wall Mount Bracket
5. Use M4*9 screws in accessory to lock the inverter to the mount bracket.
4.3 Electrical Connections
Maximum 600Voc for
CSI-700TL1P-GI-FL, CSI-1KTL1P-GI-FL, CSI-1.5KTL1P-GI-FL,
CSI-2KTL1P-GI-FL, CSI-2.5KTL1P-GI-FL, CSI-3KTL1P-GI-FL

4. Installation4. Installation
.15..14.
Please use approved DC cable for PV system.
Cable type
4.0~6.0
Cross section
Range
Industry generic PV cable
（model: P V1-F）
Recommended
value
4.0（12AWG）
（12~10AWG）
Table 4.1 DC cable
The steps to assemble the DC connectors are listed as follows:
I) Strip off the DC wire for about 7mm, Disassemble the connector cap nut.
ii) Insert the wire into the connector cap nut and contact pin.
Figure 4.8 Disassemble the Connector Cap nut
Figure 4.9 Insert the Wire into the Connector Cap nut and contact pin
iii) Crimp the contact pin to the wire using a proper wire crimper.
Figure 4.10 Crimp the contact pin to the wire
iv) Insert the contact pin to the top part of the connector and screw up the cap nut to
the top part of the connector.
Figure 4.11 Connector with Cap nut Screwed on
Figure 4.12 Connect the DC Connectors to the Inverter
v) Then connect the DC connectors to the inverter. Small click will confirm connection.
Crimping plier

Figure 4.14 AC Grid Terminal Connector
Figure 4.13 AC Grid Terminal Connector Inside
4. Installation
Each Canadian Solar Mini Single Phase Inverter is supplied with an AC grid terminal
connector.
There are symbols marked inside the connector , the Line
wire of grid must be connected to“L”terminal; the Neutral wireof grid must
be connected to“N”terminal; the Earth of grid must be connected
to“ ”(see Figure 4.13).
4. Installation
Cable type
2.5~6.0mm²
Cross section
Range
Industry generic
grid cable
Recommended
value
6mm²
Table 4.2 Grid cable size
.17..16.
WARNING:
The steps to assemble the AC grid terminal connectors are listed as follows:
a) Disassemble the AC connector. Strip the AC wires about 6mm.
Figure 4.15 Stripped AC Wires
c) Tighten up the cap on the terminal (see Figure 4.17).
Figure 4.17 Tighten up the Cap on the Terminal
b) Fix the green and yellow wire to the ground terminal. Fix the red(or brown) wire to L
(line) terminal. Fix the blue wire to N(Neutral). Tight the screws on the connector.
Please try to pull out the wire to make sure the it’s well connected.
Figure 4.16 Connect Wires to the Terminal
For all AC connections, 2.5- 6mm 105 ℃ cable is required to be used. Please make sure
2
the resistance of cable is lower than 1 ohm. If the wire is longer than 20m, it's recommended
to use 6mm cable.
2
4.3.2 Connect grid side of inverter

4. Installation
4. Installation
An external ground connection is provided at the right side of inverter.
Prepare OT terminals: M4. Use proper tooling to crimp the lug to the terminal.

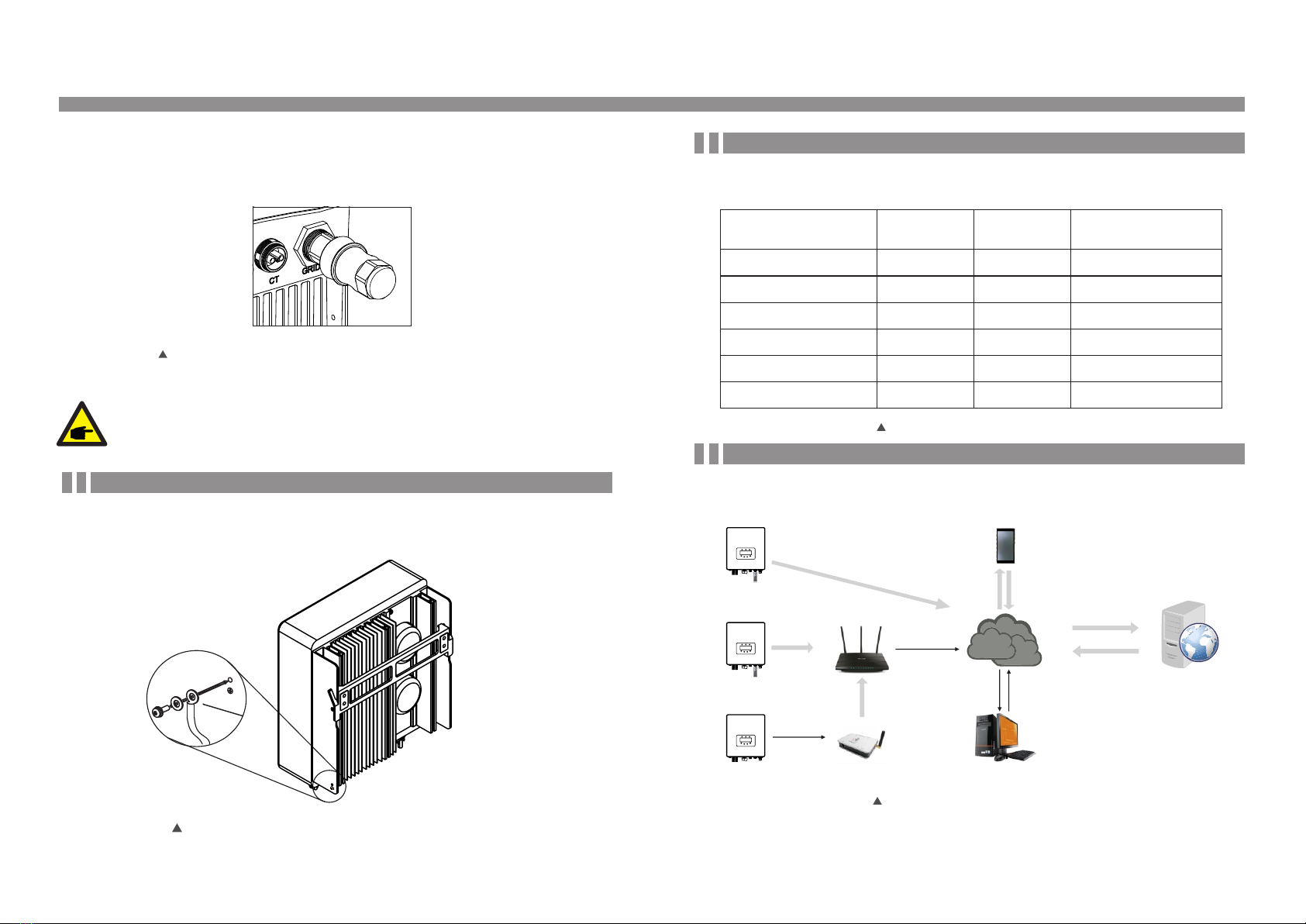

Figure4.19 Connect the external grounding conductor
.19..18.
4.3.4 Max. over current protection device (OCPD)
Note: Connection for Split phase grid.
When connect to 208/220/240V split phase, please connect L1 to “L” terminal,
L2 to “N” terminal. Also connect earth to ground terminal.
4.3.3 External ground connection
d) Connect the AC grid terminal connector to the inverter. Small click will confirm
connection.
Figure 4.18 Connect the AC Connector to the Inverter
4.3.5 Inverter monitoring connection
Figure 4.20 Communication function
Internet
GPRS monitoring
Wi-Fi monitoring
Smart phone monitoring
PC monitoring
Web server
Router
Wi-Fi monitoring
Wi-Fi box
To protect the inverter's AC grid connection conductors, Canadian Solar recommends
installing breakers that will protect against overcurrent. The following table defines OCPD
ratings for the Canadian Solar mini single phase inverters.
Inverter
CSI-700TL1P-GI-FL
Rated output
voltage(V)
Current for protection
device (A)
10
CSI-3KTL1P-GI-FL
CSI-2.5KTL1P-GI-FL
CSI-2KTL1P-GI-FL
CSI-1.5KTL1P-GI-FL
CSI-1KTL1P-GI-FL
20
15
15
10
10
Table 4.3 Rating of grid OCPD
220/230
220/230
220/230
220/230
220/230
220/230
Rated output
current (A)
3.2/3.0
4.5/4.3
6.8/6.5
9.1/8.7
13.6/13
11.4/10.9
The inverter can be monitored via Wi-Fi or GPRS. All Canadian Solar communication
devices are optional (Figure 4.20). For connection instructions, please refer to the Canadian
Solar Monitoring Device installation manuals.

4. Installation4. Installation
.21..20.

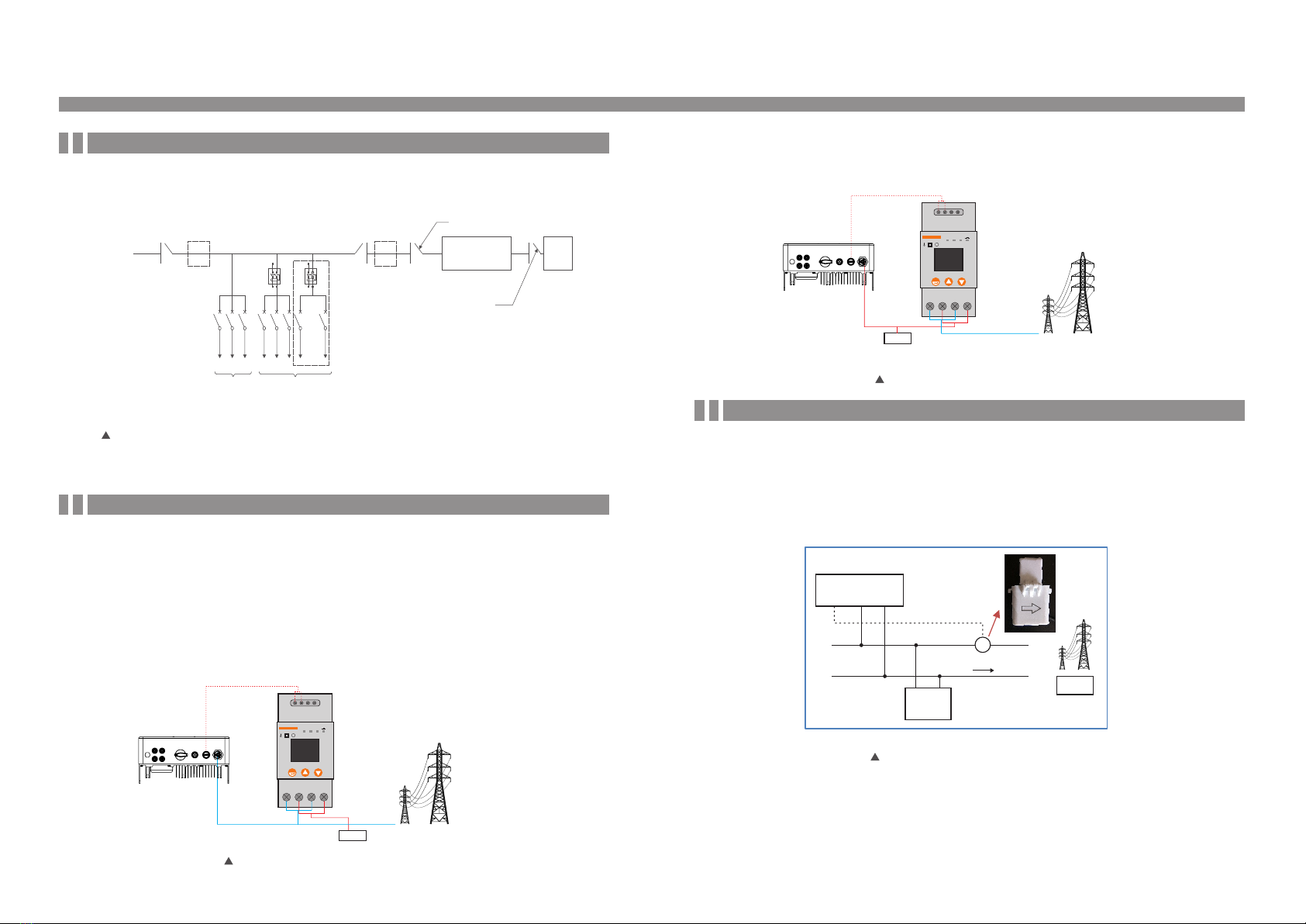

Figure 4.23 Meter in Grid
4.3.8 CT connections(optional)
This inverter has integrated export limitation functionality. To use this function, a CT must
be installed if use the CT please reference below picture. The CT should be fitted around , ,
the live conductor on the grid side of the main incoming consumer unit. Use the directional
flow indication arrow on the CT to ensure it is fitted in the correct orientation. The arrow
should be pointing towards the grid, not the load. when the inverter power on, please set the
corresponding configuration as sections 6.5.11.1.4.1 and 6.5.11.1.4.2.
Figure 4.24 Direction of CT
4.3.6 Electrical connection diagram
Figure 4.21 Guidance for a Simple Installation of an Inverter Solar Energy System
Isolation switch
Solar supply
main switch
Consumers
mains
(to grid)
Main
switch
MAIN SWITCHBOARD
Circuits not
protected by
RCDs
Circuits Protected
by RCDs
Isolation device
Inverter with
integral grid
Protection device
Solar
(PV)
array
11
2
1. The RCD should be in parallel connection between the consumers mains and the solar supply.
2. More than one RCD may be used. Each RCD can protect one or more circuits.
Refer to figure 4.21, which is a simple guidance for installing a solar system with PV inverter.
A DC isolator is required to be installed in the system between PV panels with inverter.
4.3.7 Meter Connection(optional)
Figure 4.22 Meter in Load
1
5 6 7 8
MENU
160 0 imp/k Wh
220 V~10 (60) A
T1 T2 T 3 DDS D135 2
L NL´N´
Communication
Grid
Load
A B
1
5 6 7 8
MENU
160 0 imp/k Wh
220 V~10 (60) A
T1 T2 T 3 DDS D135 2
L NL´N´
Communication
Grid
Load
A B
Inverter
CT Input L N
L N
Load
N
L
CT
Grid
The inverter has intergrated export limitation functionality.
To use this function a power meter or a CT must be installed if use the power meter it should , , ,
be installed in the load side or in the grid side Because the meter used in the single-phase ,
inverter is divided into two types: single-direction meter, and dual-direction meter.Therefore,
the wiring method is divided into two cases.The dual-direction meter corresponds to the meter
in grid connection mode; the single-direction meter corresponds to the meter in load connection
mode.see Figure 4.22 and 4.23. After the inverter power on please set the corresponding ,
configuration as sections 6.5.11.1.2 and 6.5.11.1.3.

4. Installation
.23..22.
5.1 Start the Inverter
To start up the Inverter, it is important that the following steps are strictly followed:
1. Switch the grid supply main Switch (AC) ON first.
2. Switch the DC switch ON. If the voltage of PV arrays are higher than start up voltage,
the inverter will turn on. The red LED power will light.
3. When both the DC and the AC sides supply to the inverter, it will be ready to generate
power. Initially, the inverter will check both its internal parameters and the parameters
of the AC grid, to ensure that they are within the acceptable limits. At the same time,
the green LED will flash and the LCD displays the information of INITIALIZING.
4. After 30-300 seconds (depending on local requirement), the inverter will start to
generate power. The green LED will be on continually and the LCD displays
GENERATING.
WARNING:
Do not touch the surface when the inverter is operating. It may be
hot and cause burns.
5.2 Stop the Inverter
To stop the Inverter, the following steps must be strictly followed:
1. Switch the Supply Main Switch (AC) OFF.
2. Wait 30 seconds. Switch the DC Switch OFF. All the LEDs of the inverter will be off in one
minute.
5. Start & Stop
5.1.1 Inverter working status
Generating:Inverter is working normally
LimByTemp: Inverter power limited by over ambient temperature.
LimByFreq: Inverter power limited by over grid frequency
LimByVg: Inverter power limited by over grid voltage
LimByVar: Inverter power limited by generating reactive power.
When inverter working normally,there would be 5 status :
Logic interface is required by G98 and G99 standard that can be operated by a simple switch
or contactor. When the switch is closed the inverter can operated normally. When the switch
is opened, the inverter will reduce it’s output power to zero within 5s.
Pin5 and Pin6 of RJ45 terminal is used for the logic interface connection.
4.3.9 Logic interface connection (Only for UK)
Please follow below steps to assemble RJ45 connector.
1. Insert the network cable into the communication connection terminal of RJ45.
(As shown in figure 4.25)

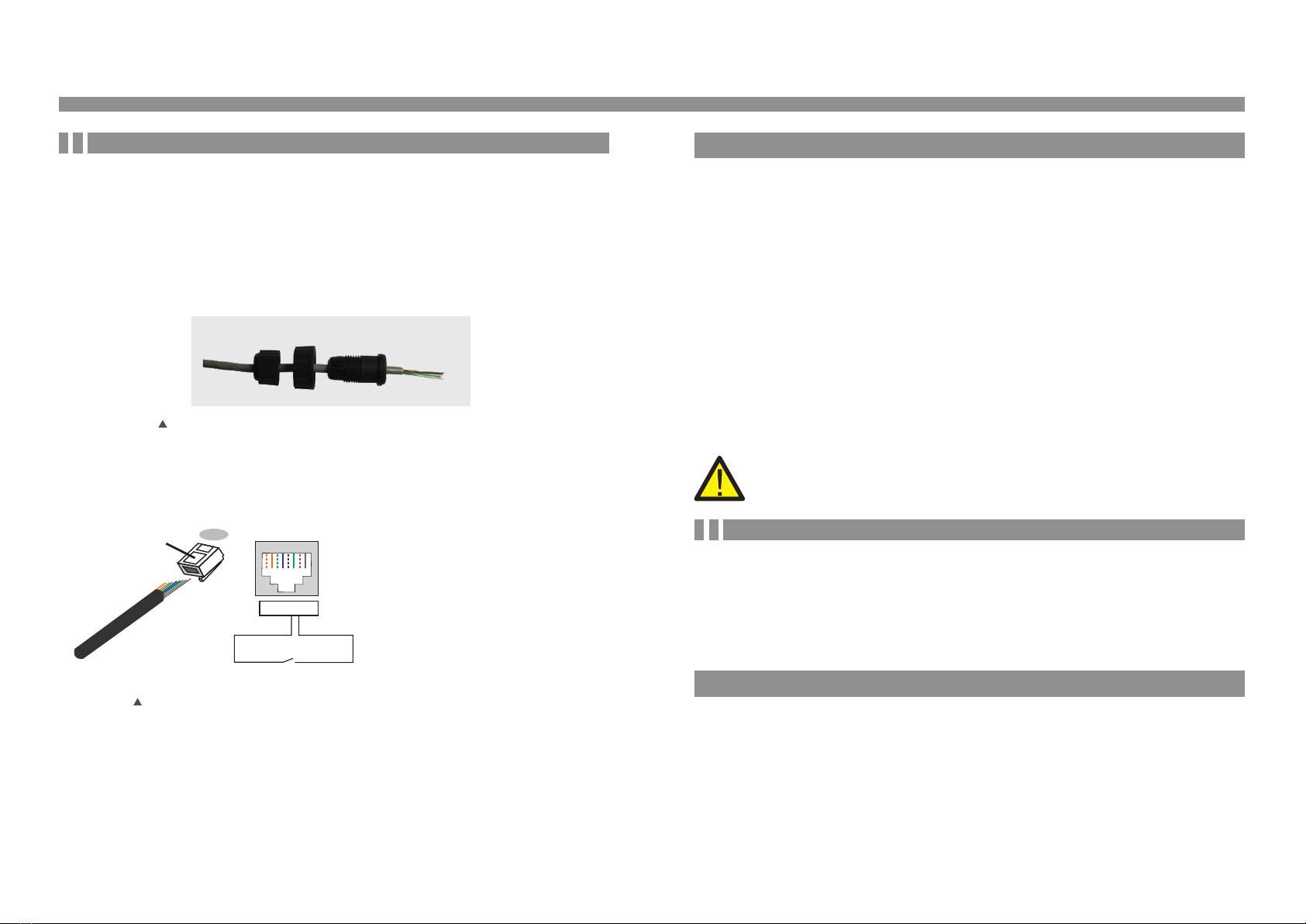

Figure 4.25 RJ45 communication connection terminals
3. Connect RJ45 to DRM (l ) . ogic interface
Figure 4.26 Strip the insulation layer and connect to RJ45 plug
Correspondence between the cables
and the stitches of plug, Pin5 and Pin6
of RJ45 terminal is used for the logic
interface, other Pins are reserved.
Pin 1: Reserved; Pin 2: Reserved
Pin 3: Reserved; Pin 4: Reserved
Pin 5: Switch_input1; Pin 6: Switch_input2
Pin 7: Reserved; Pin 8: Reserved
1--8
Rj45 plug
Rj45terminal
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
2. Use the network wire stripper to strip the insulation layer of the communication cable.
According to the standard line sequence of figure 4.26 connect the wire to the plug of
RJ45, and then use a network cable crimping tool to make it tight.
After wire connection, please refer chapter 6.5.8.1 to enable the logic interface function.
DRM(logic interface)
Switch_input1 Switch_input2

6. Operation
.25..24.
6. Operation
V_DC1 350.8V
I_DC1 5.1A
V_Grid 230.4V
I_Grid 8.1A
Status: Generating
Power: 1488W
Grid Frequency
F_Grid 50.06Hz
Total Energy
0258458 kwh
This Month: 0123kwh
Last Month: 0123kwh
Today: 15.1kwh
Yesterday: 13.5kwh
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
V_DC1: Shows input 01 voltage value.
I_DC1: Shows input 01 current value.
V_Grid: Shows the grid's voltage value
I_Grid: Shows the grid's current value.
Status: Shows instant status of the Inverter.
Power: Shows instant output power value.
F_Grid: Shows the grid's frequency value.
Total generated energy value
This Month: Total energy generated this month.
Last Month: Total energy generated last month.
Today: Total energy generated today.
Yesterday: Total energy generated yesterday.
Display Duration Description
Table 6.1 Information list
Inverter SN
00000000000000
Export_P: +0000W
Export_I: 00.0A
10 sec
10 sec
Display series number of the inverter.
Power of ERM.
Current of EPM.
10 sec Work Mode:The work mode of inverter.
DRM Number:Show the number 01-08.
Work Mode: NULL
DRM Number: 08
10 sec Meter EnergyP:The active power.
Meter EnergyP
0000000.00kWh
6.1 Main Menu
Figure 6.1 Operation Overview
5 sec
Start
Power 3424W
01-01-2014 12:04
Status: Generating
01-01-2014 12:04
Information
Settings
Advanced Info.
Advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
UP/DOWN or
auto-scroll
(10 sec)
Pressing the
ENTER key
gives access to
the main menu.
Pressing the
ESC key
calls back the
previous menu.
Main Menu
There are four submenus in the Main Menu (see Figure 6.1):
1. Information
2. Settings
3. Advanced Info.
4. Advanced Settings
6.2 Information
During normal operation, the display alternately shows the power and the operation
status with each screen lasting for 10 seconds (see Figure 6.1). Screens can also be
scrolled manually by pressing the UP and DOWN keys. Press the ENTER key to
access to the Main Menu.
The Canadian Solar Single Phase 4G Inverter main menu provides access to operational
data and information. The information is displayed by selecting "Information" from the menu
and then by scrolling up or down.

6. Operation
.27..26.
6. Operation
6.3 Settings
The following submenus are displayed when the Settings menu is selected:
1. Set Time
2. Set Address
6.3.1 Set Time
This function allows time and date setting. When this function is selected, the LCD will
display a screen as shown in Figure 6.3.
NEXT=<ENT> OK=<ESC>
01-01-2016 16:37
Figure 6.3 Set Time
Press the UP/DOWN keys to set time and data. Press the ENTER key to move from one
digit to the next (from left to right). Press the ESC key to save the settings and return to
the previous menu.
Figure 6.2 Locks and Unlocks the Screen of LCD
(b)(a)
Pressing the ESC key returns to the Main Menu. Pressing the ENTER key locks
(Figure 6.2(a)) or unlocks (Figure 6.2 (b)) the screen.
5.2 Stop the Inverter
6.2.1 Lock screen
6.3.2 Set Address
This function is used to set the address when muti inverters are connected to single monitor.
The address number can be assigned from “01”to “99”(see Figure 6.4). The default address
number of Canadian Solar Single Phase Inverter is “01”.
6.4 Advanced Info - Technicians Only
After enter the correct password the Main Menu will display a screen and be able to access
to the following information.
1. Alarm Message 2. Running Message 3.Version 4. Daily Energy 5. Monthly Energy
6. Yearly Energy 7. Daily Record 8. Communication Data 9.Warning Message
The screen can be scrolled manually by pressing the UP/DOWN keys. Pressing the ENTER
key gives access to a submenu. Press the ESC key to return to the Main Menu.
6.4.1 Alarm Message
The display shows the latest alarm messages (see Figure 6.6). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous
menu.
Alarm001: OV-G-V
Time: 27-11 Data: 7171
Figure 6.6 Alarm Message
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Enter menu “Advanced Info.” and “Advanced settings” （need password）.
YES=<ENT> NO=<ESC>
Password:0000
Figure 6.5 Enter password
Select “Advanced Info.” from the Main Menu. The screen will require the password as below
The default password is “0010". Please press “down” to move the cursor, press “up” to
select the number.
YES=<ENT> NO=<ESC>
Set Address: 01
Figure 6.4 Set Address
Press the UP/DOWN keys to set the address. Press the ENTER key to save the settings.
Press the ESC key to cancel the change and return to the previous menu.

6. Operation
.29..28.
6. Operation
6.4.2 Running Message
6.4.3 Version
The screen shows the model version and the software version of the Inverter
(see Figure 6.7).
Model: 08
Software Version: D20001
Figure 6.7 Model Version and Software Version
This function is for maintaince person to get running message such as internal temperature,
Standard NO. etc.
Screens can be scrolled manually by pressing the UP/DOWN keys.
6.4.4 Daily Energy
The function is for checking the energy generation for selected day.
Press DOWN key to move the cursor to day, month and year, press UP key to change the
digit. Press Enter after the date is fixed.
2015-02-22: 051.3kWh
2015-02-23: 061.5kWh
Press UP/DOWN key to move one date from another.
6.4.5 Monthly Energy and Yearly Energy
The two functions are for checking the energy generation for selected month and Year
Figure 6.8 Select date for daily energy
Figure 6.9 Daily energy
Figure 6.10 Select month for monthly energy Figure 6.11 Select year for yearly energy
YES=<EN T> NO=<ESC>
Select: 2015-02-23
YES=<EN T> NO=<ESC>
Select: 2015-02
YES=<EN T> NO=<ESC>
Select: 2015
6.4.7 Communication Data
The screen shows the internal data of the Inverter (see Figure 6.14), which is for service
technicians only.
01-05: 01 25 E4 9D AA
06-10: C2 B5 E4 9D 55
Figure 6.14 Communication Data
Press DOWN key to move the cursor, press UP key to change the digit.
Press Enter after the month/year is fixed.
2015-02: 0510kWh
2015-01: 0610kWh
Press UP/DOWN key to move one date from another.
2015: 0017513kWh
2014: 0165879kWh
Figure 6.12 Month energy Figure 6.13 Yearly energy
6.4.6 Daily record
The screen shows history of changing settings. Only for maintance personel.
6.4.8 Warning Message
The display shows the latest warn messages (see Figure 6.15). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous menu.
Msg000:
T: 00-00 00:00 D:0000
Figure 6.15 Warning Message
6.5 Advanced Settings - Technicians Only
Select Advanced Settings from the Main Menu to access the following options:
1. Select Standard 2. Grid ON/OFF 3.Clear Energy 4. Reset Password
5. Power Control 6.Calibrate Energy 7.Special Settings 8.STD. Mode Settings
9.Restore Settings 10.HMI Update 11.Export Power Set 12.Restart HMI
13.Debug Parameter 14.DSP Update 15.Power Parameter
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Please follow 6.4 to enter password to access this menu.

6. Operation
.31.
6. Operation
.30.
6.5.2 Grid ON/OFF
This function is used to start up or stop the power generation of Canadian Solar Single
Phase Inverter (see Figure 6.18).
Grid ON
Grid OFF
Figure 6.18 Set Grid ON/OFF
Screens can be scrolled manually by pressing the UP/DOWN keys. Press the ENTER key
to save the setting. Press the ESC key to return to the previous menu.
This function is used to set the new password for menu “Advanced info.” and “Advanced
information” (see Figure 6.19).
Enter the right password before set new password. Press the DOWN key to move the
cursor, Press the UP key to revise the value. Press the ENTER key to execute the setting.
Press the ESC key to return to the previous menu.
6.5.4 Reset Password
Figure 6.19 Reset password
YES=<ENT> NO=<ESC>
Password: 0000
6.5.3 Clear Energy
Clear Energy can reset the history yield of inverter
These two functions are applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
NOTE:
This function is for technicians use only.
Press the UP/DOWN keys to select the standard (AS4777-02,AS4777-15, VDE4105, VDE0126,
UL-240V-A, UL-208V-A, UL-240V, UL-208V, MEX-CFE, G83/2 (for 1-3.6kW models), G59/3
(for 4-5kW models), EN50438 DK, EN50438 IE, EN50438 NL and “User-Def” function).
Press the ENTER key to confirm the setting. Press the ESC key to cancel changes and returns
to previous menu.
Selecting the “User-Def” menu will access to the following submenu (see Figure 6.17),
Figure 6.17
Below is the setting range for “User-Def”. Using this function, the limits can be changed
manually.
NOTE:
The " User-Def" function can be only used by the service engineer and
must be allowed by the local energy supplier.
OV-G-V1: 240---270V O V-G-F1: 50.2-53Hz(60.2-64Hz)
OV-G-V1-T: 0.1---9S OV-G-F1-T: 0.1---9S
OV-G-V2: 240---300V O V-G-F2: 50.2-53Hz(60.2-64Hz)
OV-G-V2-T: 0.1---1S OV-G-F2-T: 0.1---9S
UN-G-V1: 170---210V UN-G-F1: 47-49.5Hz(56-59.8Hz)
UN-G-V1-T: 0.1---9S UN-G-F1-T: 0.1---9S
UN-G-V2: 110---210V UN-G-F2: 47-49Hz(56-59.8Hz)
UN-G-V2-T: 0.1---1S UN-G-F2-T: 0.1---9S
OV-G-V1: 260V
OV-G-V1-T: 1S
Press the UP/DOWN keys to scroll through items. Press the ENTER key to edit the
highlighted item. Press the UP/DOWN keys again to change the setting. Press the ENTER
key to save the setting. Press the ESC key to cancel changes and returns to the previous menu.
This function is used to select the grid's reference standard (see Figure 6.16).
YES=<ENT> NO=<ESC>
Standard:AS4777-02
Figure 6.16
6.5.1 Selecting Standard
Startup-T:10-600S Restore-T: 10-600S
NOTE:
This inverter inclding two level protections for voltage and frequency
under user-def mode; please set the same value both level one and
level two if the gird only have one level requriement, eg. Brazil...etc.

6. Operation6. Operation
.33..32.
Maintenance or replacement could clear or cause a different value of total energy. Use this
function could allow user to revise the value of total energy to the same value as before. If
the monitoring website is used the data will be synchronous with this setting automatically.
(see Figure 6.20).
Press the DOWN key to move the cursor, Press the UP key to revise the value. Press the
ENTER key to execute the setting. Press the ESC key to return to the previous menu.
6.5.6 Calibrate Energy
Figure 6.20 Calibrate energy
YES=<ENT> NO=<ESC>
Energy:0000000kWh
6.5.7 Special Settings
This function is applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
6.5.8 STD. Mode Settings
When select G98 or G99 standard to use the logic interface function, please follow below
settings to enable the DRM. DRM default setting is “OFF” , if DRM set “ON”, but the logic
interface un-connected to the switch or the switch is open, the inverter HMI will display “Limit
by DRM” and the inverter output power will be limited to zero.
1. Select Initial Settings
2. Select DRM and set it “ON”
There are 5 setting under STD. Mode settings.
1. Working mode 2. Power Rate limit 3. Freq. Derate set 4. 10mins OV-G-V set.
5.Initial Settings
This function is applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
6.5.8.1 Enable logic interface settings
6.5.11 Export Power Set
Select EPMSettings from the Main Menu to access the following options:
1. Model Select 2.Set Backflow Power 3.Fail safe ON/OFF
To access to this area is for fully qualified and accredited technicians only.
Pleasefollow6.4toenterpasswordtoaccessthismenu.
The default password is “0010". Please press “down” to move the cursor, press “up” to
selectthenumber.
6.5.9 Restore Settings
Thescreenshowsasbelow:
Figure 6.21 Restore Settings
Are you sure?
YES=<ENT> NO=<ESC>
PresstheEnterkeytosavethesettingaftersettinggridoff.
PresstheESCkeytoreturnthepreviousmean.
Restore setting could set all item in 6.5.7 special setting to default.
6.5.10 HMI Update
This function is used for update the LCD program.
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
Active and reactive power can be set through power setting button.
There are 5 item for this sub menu:
1. Set output power 2. Set Reactive Power 3. Out_P With Restore
4. Rea_P With Restore 5. Select PF Curve
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
6.5.5 Power Control

6. Operation6. Operation
.35..34.
6.5.11.1 Model Select
There are 4 settings in this menu as below:
1.OFF 2.Meter in Load 3.Meter in Grid 4.Current sensor
Figure 6.23
ON=<ENT> CANCEL=<ESC>
Meter in Load
6.5.11.1.2 Meter in Load
The submenu is used to set meter in Load as shown as 4.3.7 Meter connection(optional).
Figure 6.24
ON=<ENT> CANCEL=<ESC>
Meter in Grid
6.5.11.1.3 Meter in Grid
The submenu is used to set meter in Grid as shown as 4.3.7 Meter connection(optional).
Press Enter key to save the setting.
Press Enter key to save the setting.
Figure 6.25
ON=<ENT> CANCEL=<ESC>
Current Sensor
6.5.11.1.4 Current sensor
The submenu is used to set current sensor as shown as 4.3.8 CT connection(optional).
There are 2 modes shown as below: 1.CT Sampling Ratio 2.CT Link test
Figure 6.22
ON=<ENT> CANCEL=<ESC>
OFF
Press the ENTER key to set done.
Press the ESC key to the previous menu.
This function is used to shut down the Export Power Set.
6.5.11.1.1 OFF
6.5.11.1.4.1 CT Sampling Ratio
This function is used for change CT Sampling Ratio if customer select different CT.
The default radio is 3000:1.
-> CT Sampling Ratio
Figure 6.26 Set the CT Para of the EPM
Figure 6.27
YES=<ENT> NO=<ESC>
Ratio:3000:1
Press the UP/DOWN keys to set data.Press the ENTER key to set CT Para.
Press the ESC key to save the settings and return to the previous menu.
Figure 6.28 CT Link State
CT Link State
Correct
Press the ESC key to the previous menu.
Press the ENTER key to show the screen of CT Link Test .it will show as below when
the EPM was set ON :
NOTE:
There are three states in the CT Link State.
“Error” means CT reverse connection. Please change CT direction
“Can not judge” means load power is not enough, it should be more than 500W.
“Correct” means CT has been connected correctly.
Before pressing the CT Link Test menu, please check as follow:
1.Load power ≥ 500W
2.Inverter should be set Grid Off
3.CT should be connected
4.EPM should be set ON
6.5.11.1.4.2 CT Link Test

6. Operation6. Operation
.36. .37.
See figure 6.29. If CT test pass but inverter still can't achieve export power
(power is not controllable or always 0 power output).
Please check installation location of the CT.
Inverter
CT Input L N
L N
Load
N
L
CT
Grid
CT
CT √
×
×
6.5.11.2 Backflow Power
This submenu is used for set allowedpowerthatinvertercangeneratetogrid.
->Set Backflow Power
Figure 6. Set the power 30 backflow Figure 6.31
YES=<ENT> NO=<ESC>
P_Backflow:-0001W
Press the UP/DOWN keys to set data.Press the ENTER key to set backflow power
Then press DOWN keys to move the cursor, press UP to change the number.
Press the ESC key to save the settings and return to the previous menu.
Figure 6.29 CT loction
6.5.11.3 Fail safe ON/OFF
Figure 6.32 Set the Fail Safe ON/OFF
YES=<ENT> NO=<ESC>
Fail Safe Set:ON
Press the UP/DOWN keys to set ON/OFF.Press the ENTER key to set done .
Press the ESC key to the previous menu.
This function is used to remind whether the fail safe function is ON or not.
The default setting is ON.
6.5.12 Restart HMI
6.5.13 Debug Parameter
This function is used for manufacturer maintenance personnel only.
ThefunctionisusedforrestarttheHMI.
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
6.5.15 Power Parameter
The screen shows:
Figure 6.33 Power Rate Limit
YES=<ENT> NO=<ESC>
Power para:1.000
Press the Down key to move the cursor.
Press the Up key to change the digit.
Please press the Enter to save the setting and press the ESC key to return to
the previous menu.
This setting is used for grid operator, don't change setting under this manual.
This function is used for calibrate inverter output energy. It will not impact the energy count
for inverter with RGM.
6.5.14 DSP Update
The function is used for update the DSP.
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
ON: When CT is disconnected, the inverter will stop generate power and LC D show
"Fail Safe"
OFF: When C T is disconnected, the inverter will be limited to the power at the time CT is
disconnected. If restart, inverter will not limit output power.
