CanadianSolar CSI Series User manual

CANADIAN SOLAR INC.
Global Headquarters:
$ ~ CanadianSolar
545 Speedvale Avenue, West Guelph, Ontario N1 K 1 E6, Canada
Tel: [phone]
Sales Inquiries Email: [email protected]
Technical Inquiries Email: [email protected]
CANADIAN SOLAR (USA), INC.
North America Headquarters:
3000 Oak Road, Suite 400, Walnut Creek, CA94597
Tel: [phone]
Sales Inquiries Email: [email protected]
Technical Inquiries Email: [email protected]
Part No: 9.0020.0334
AO
This manual is subject to change without prior notification. Copyright is
reserved. Duplication
of any part of this issue is prohibited without written
permission.
$ ~ CanadianSolar
CSI SERIES GRID-TIED PV Inverter
CSI-50KTL-GS-FL & CSI-50KTL-GS
CSI-60KTL-GS & CSI-66KTL-GS
INSTALLATION AND OPERATION MANUAL
VERSION 1.2
~~ CanadianSolar
CANADIAN SOLAR INC.
Canada, 545 SpeedvaleAvenue West, Guelph, Ontario, Canada N1 K 1E6
www.canadiansolar.com

~ ~ CanadianSolar ~ ~ CanadianSolar
Important notes
• Productspecifications are subjectto change without notice. Every attempt has been made
to make this
document complete, accurate and up-to-date. Individuals reviewing this
document and installers or service personnel are cautioned, however, that Canadian Solar
reserves the right to make changes without notice and shall not be responsible for any
damages, including indirect, incidental or consequential damages caused by reliance
on the material presented including, but
not limited to, omissions, typographical errors,
arithmetical errors
or listing errors in the material provided in this document.
• Canadian
Solar accepts no liability for customers' failure to comply with the
instructions
for correct installation and will not be held responsible for upstream or
downstream systems Canadian Solar equipment has supplied.
• The customer is
fully liable for any modifications made to the system; therefore, any hardware
or software modification, manipulation, or alteration not expressly approved bythe
manufacturer shall result in the immediate cancellation of the warranty.
• Given the countless possible system configurations and installation environments, it is
essential to
verify adherence to the following:
• There is sufficient space suitable
for housing the equipment.
• Airborne noise produced depending on the environment.
• Potential
flammability hazards.
• Canadian
Solar will not be held liable for defects or malfunctions arising from:
•
Improper use of the equipment.
• Deterioration resulting from transportation
or particular environmental conditions.
• Performing maintenance incorrectly
or not at all.
• Tampering
or unsafe repairs.
• Use
or installation by unqualified persons.
• This product contains lethal voltages and should be installed by qualified electrical
or service
personnel having experience with lethal voltages.
.1.

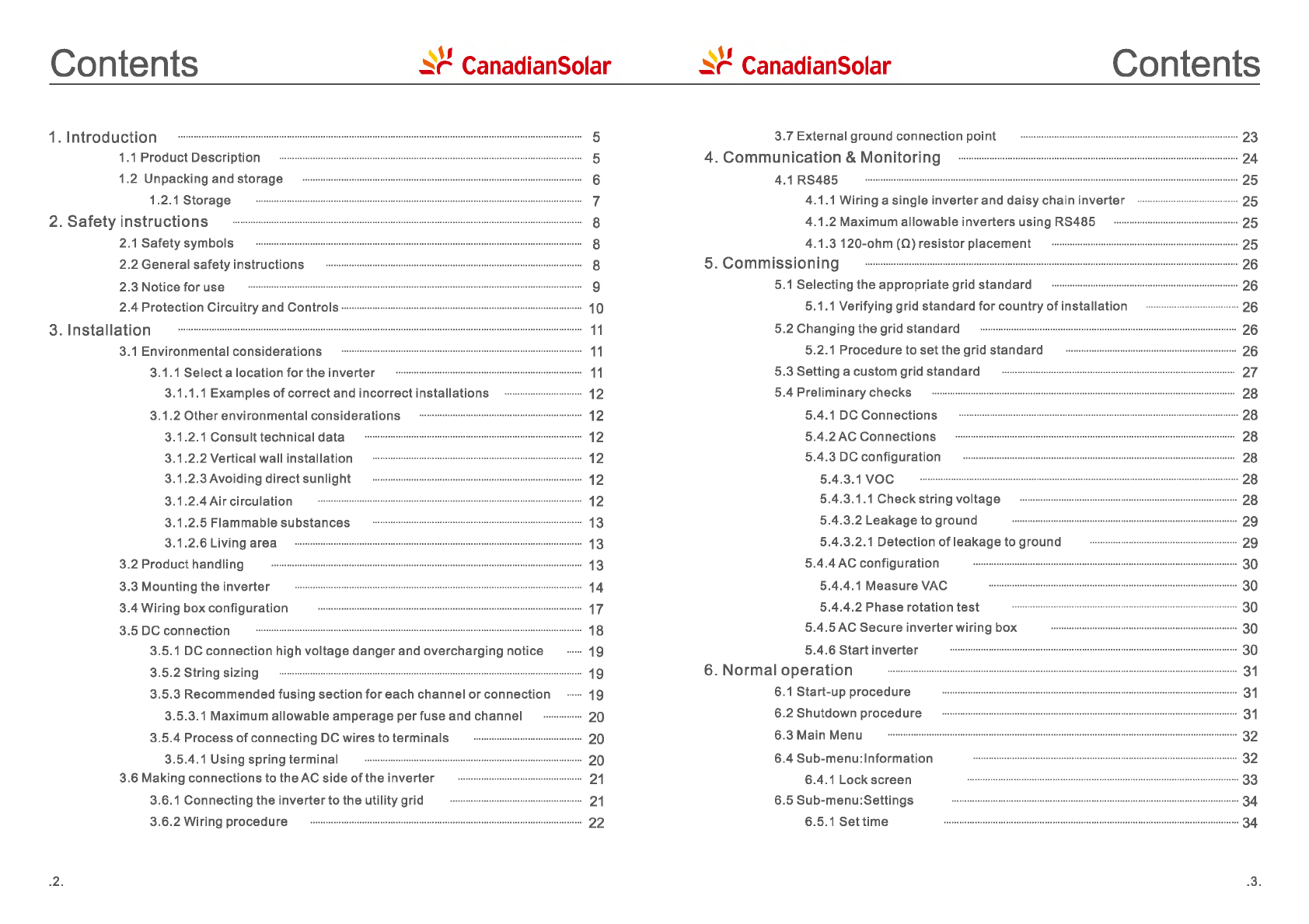

Contents
~ ~ CanadianSolar
1. Introduction ···························································································································································· 5
1.1 Product Description ····················································································································· 5
1.2 Unpacking and storage
············································································································ 6
1.2.1 Storage
······························································································································ 7
2. Safety instructions ······································································································································· 8
2.1 Safety symbols ······························································································································ 8
2.2 General safety instructions
··································································································· 8
2.3 Notice
for use ································································································································· 9
2.4 Protection Circuitry and
Controls····························································································· 10
3. Installation
............................................................................................................................................................ 11
.2.
3.1 Environmental considerations ····························································································· 11
3.1.1 Selecta location for the inverter ········································································ 11
3.1.1.1 Examples of correct and incorrectinstallations ······························ 12
3.1.2 Otherenvironmental considerations
............................................................... 12
3.1.2.1 Consulttechnical data
···················································································· 12
3.1.2.2 Vertical wall installation
················································································· 12
3.1.2.3Avoiding direct sunlight
················································································· 12
3.1.2.4
Air circulation
...................................................................................................... 12
3.1.2.5 Flammable substances
················································································· 13
3.1.2.6 Living area ··············································································································· 13
3.2 Product handling ························································································································ 13
3.3 Mounting the inverter ··············································································································· 14
3.4 Wiring box configuration
······································································································ 17
3.5 DC connection
······························································································································ 18
3.5.1 DC connection high voltage danger and overcharging notice ······ 19
3.5.2 String sizing ····················································································································· 19
3.5.3 Recommended fusing section for each channel or connection ······ 19
3.5.3.1 Maximum allowable amperage perfuse and channel ··············· 20
3.5.4 Process of connecting DC wires to terminals .......................................... 20
3.5.4.1 Using spring terminal ···················································································· 20
3.6 Making connections to theAC side of the inverter ................................................ 21
3.6.1 Connecting the inverterto the utility grid ··················································· 21
3.6.2 Wiring procedure ········································································································· 22
~ ~ CanadianSolar
Contents
3.7 External ground connection point ···················································································· 23
4. Communication & Monitoring ············································································································ 24
4.1 RS485 ················································································································································ 25
4.1.1 Wiring a single inverterand daisy chain inverter ······································· 25
4.1.2 Maximum allowable inverters using RS485 ................................................ 25
4.1.3 120-ohm (0) resistor placement ········································································ 25
5. Commissioning ················································································································································ 26
5.1 Selecting the appropriate grid standard ········································································ 26
5.1.1 Verifying grid standard for country of installation ···································· 26
5.2 Changing the grid standard ··································································································· 26
5.2.1 Procedure to setthe grid standard ·································································· 26
5.3 Setting a custom grid standard ·························································································· 27
5.4 Preliminary checks ····················································································································· 28
5.4.1 DC Connections ············································································································ 28
5.4.2AC Connections ············································································································ 28
5.4.3 DC configuration ········································································································· 28
5.4.3.1 voc
........................................................................................................................... 28
5.4.3.1.1 Checkstring voltage ···················································································· 28
5.4.3.2 Leakage to ground
....................................................................................... 29
5.4.3.2.1 Detection of leakage to ground
......................................................... 29
5.4.4AC configuration
5.4.4.1 Measure VAC
...................................................................................................... 30
................................................................................................ 30
5.4.4.2 Phase rotation test
....................................................................................... 30
5.4.5AC Secure inverterwiring box ········································································ 30
5.4.6 Start inverter ··············································································································· 30
6. Normal operation ······································································································································· 31
6.1 Start-up procedure ·················································································································· 31
6.2 Shutdown procedure ·················································································································· 31
6.3 Main Menu
....................................................................................................................................... 32
6.4 Sub-menu:lnformation ······································································································ 32
6.4.1 Lockscreen ········································································································· 33
6.5 Sub-menu:Settings ··············································································································· 34
6.5.1 Settime
··················································································································34
.3.

Contents
~ ~ CanadianSolar
6.5.2 Set Address
.................................................................................................................. 34
6.6 Sub-menu:Advanced Info- Technicians only ···························································· 35
6.6.1 Alarm message ·················································································································· 35
6.6.2 Running Message ········································································································· 36
6.6.3 Version ···································································································································· 36
6.6.4 Daily Energy ·················································································································· 36
6.6.5 Monthly Energy and Yearly Energy
............................................................... 36
6.6.6 Daily Record ························································································································ 37
6.6.7 Communication Data ····························································································· 37
6.6.8 Warning Message ······································································································
37
6.7 Advanced settings- Technicians only
38
6.7.1Selectstandard ···············································································································
38
6.7.2 Grid ON/OFF
6.7.3 Clear energy
6.7.4 Reset Password
6.7.5 Power Control
39
39
......................................................................................................... 40
......................................................................................................... 40
6.7.6 Calibrate Energy ··············································································································· 40
6.7.7 Special settings ··············································································································· 41
6.7.8 STD Mode Settings ·················································--·············································· 41
6.7.9 Restore Settings
6.7.10 HMI Updater
............................................................................................................ 42
............................................................................................................ 42
6.7.11ResetHMI ························································································································ 42
6.7.12DebugParameter ······································································································ 43
6.7.13FanTest ································································································································· 43
7. Maintenance ......................................................................................................................................................... 44
7.1 For inverter model with Fan ··································································································· 44
8. Troubleshooting
............................................................................................................................................. 47
8.1 Current alarm 47
8.1.1 Running messages
................................................................................................ 47
8.2Aiarm history ································································································································· 47
8.2.1 Viewing alarm history ····························································································· 47
8.3 Error messages
........................................................................................................................... 47
8.3.1 Troubleshooting guide ····························································································· 47
9. Specifications ··················································································································································· 51
10. Appendices ······················································································································································ 54
.4.
~ ~ CanadianSolar
1. Introduction
1.1 Product Description
Canadian SolarThree Phase Inverters convert DC powerfrom the photovoltaic {PV) array
into alternating current (AC) powerthat can satisfy local loads as well as feed the power
distribution grid.
This manual covers the
four {4) Canadian SolarThree Phase Invertermodels listed below:
CSI-SOKTL-GS-FL CSI-SOKTL-GS CSI-&OKTL-GS CSI-66KTL-GS
4 buttons
Figure 1.1 Front view
Hole
Vent
DC Switch AC Switch
DC Knockout
Communication Knockout
AC Knockout
Figure 1.2 Bottom view
.5.

1. Introduction
~ ~ CanadianSolar
1.2 Unpacking and storage
When unpacking the inverter, please verify all the parts listed below are included:
~
~
- li!i!il -
lo lol
PV grid tie Inverter x1 Wall mounting bracket x1 Locking screws x2
,. _
Manual x1
.6.
~ ~ CanadianSolar
1. Introduction
1.2.1 Storage
Ifthe inverter is not installed immediately, storage instructions and environmental conditions are below:
• Use the original box to repackage the inverter, seal with adhesive tape with the desiccant inside the
box.
• Store the inverter
in a clean and dry place, free of dust and dirt.
• The storage temperature must be between -16 and 140 F
(-26- 60C) and humidity should be
between 0 to 100%, non-condensing.
• Do not stack more than two (2) inverters high.
• Keep the box(es) away from corrosive materials to avoid damage to the inverter enclosure.
• Inspect the packaging regularly.
If packing is damaged (wet, pest damages, etc.), repackage the
inverter immediately.
• Store inverters
on a flat, hard surface-- not inclined or upside down.
• After long-term storage, the inverter needs to be fully examined and tested by qualified service
or
electrical personnel before using.
• Restarting after a long period
of non-use requires the equipment be inspected and, in some cases,
the removal
of oxidation and dust that has settled inside the equipment will be required.
DO NOT STACK
MORE 11-IAN 2 HIGH
Figure 1.3
.7.

2. Safety Instructions ~ ~ CanadianSolar
Improperuse may result in electric shock hazards or burns. This product manual contains
importantinstructions thatare required to be followed during installation and maintenance.
Please read these instructions carefully before use and keep them in an
easily locatable place
for future reference.
2.1 Safety symbols
Safetysymbols used in this manual, which highlight potential safety risks and importantsafety
information, are listed below:
WARNING
Symbol indicates important
safety instructions, which if not correctly
followed, could result in serious
injury or death.
NOTE
Symbol indicates
important safety instructions, which if not correctly
followed, could result in damage to
or the destruction ofthe inverter.
CAUTION, RISK OF ELECTRIC
SHOCK
Symbol indicates important safety instructions, which if not correctly
followed, could result in
electric shock
CAUTION, HOT SURFACE
Symbol indicates
safety instructions, which if not correctly
followed, could result in burns.
2.2 General safety instructions
.8.
WARNING
Do
not connect PVarray positive(+) or negative(-) to ground- doing
so could cause serious damage to the inverter.
WARNING
Electrical installations
must be done in accordance with local and
national electrical
safety standards.
~ ~ canadianSolar 2. Safety Instructions
WARNING
To reduce the risk of fire, branch circuit over-current protective
devices (OCPD) are required
for circuits connected to the Inverter.
CAUTION
The PV
array (solar panels) supplies a DC voltage when exposed to light.
CAUTION
Risk
of electric shockfrom energy stored in the inverter's capacitors.
Do
not remove cover until five (5) minutes after disconnecting all sources
of supply have passed, and this can only be done by a service technician.
The warranty may be voided
if any unauthorized removal of cover occurs.
CAUTION
The inverter's surface temperature can reach up to 75°C (167°F}.
To avoid
risk
of burns, do not touch the surfacewhen the inverter is operating.
Inverter
must be installed out of the reach of children.
WARNING
The
inverter can only accept a PV array as a DC input. Using any other
type of DC source could damage the inverter.
2.3 Notice for use
The inverterhas been constructed according to applicable safety and technical guidelines.
Use the inverterin installations that meetthe following requirements ONLY:
1).The inverter must be permanently installed.
2).The electrical installation must meetall the applicable regulations and standards.
3).The invertermust be installed according to the instructions stated in this manual.
4}.The system design must meet inverterspecifications.
To start-up the inverter, the Grid Supply Main Switch (AC) must be turned on, BEFORE the DC
Switch is turned on.
To stop the inverter, the Grid Supply Main Switch (AC) must be turned off
before the DC Switch is turned off.
.9.

2. Safety Instructions ~ ~ CanadianSolar
2.4 Protection Circuitry and Controls
To meet relevant codes and standards, the Canadian Solar three phase inverterline is
equipped with protective circuitry and controls. These includeArc Fault Circuit Interrupter
(AFCI) and Anti-Islanding Protection.
Arc Fault Circuit Interrupter AFCI:
Edition 2011 of the National Electrical Code®, Section 690.11, requires that all PV plants
attached to a building are fitted with a means
of detecting and interrupting serial electric
arcs in the PV wiring and array. An electric arcwith a power
of 300W or greatermust be
interrupted bythe AFCI in the time specified by UL
16998. A triggeredAFCI fault may only
be reset manually.
After clearing the source of the fault, theAFCI can be deactivated via
the inverterfront panel interface.
Anti-Islanding Protection:
.10.
Islanding is a condition where the invertercontinues to produce powereven when the grid
is not present. Circuitry, along with firmware, has been designed to determine
if the grid is
present byadjusting the outputfrequency
of the inverter. In the case of a 60Hz resonant
system where the
inverter is partially isolated from the grid, the inverterprogramming can
detect
if there is a resonant condition or if the grid is actually present. It can also
differentiate between inverters operating in parallel and the grid.
~ ~ CanadianSolar
3. Installation
3.1 Environmental considerations
3.1.1 Select a location for the inverter
When selecting a location for the inverter, consider the following:
• The temperature ofthe inverter heat-sink
can reach 167°F(75C).
•
The inverter is designed to work in an ambient temperature range between -13°F to 140°F(-25- 60C).
• Ifmultiple inverters are installed on site, a minimum clearance of20 inches should be kept between
each inverter
and all other mounted equipment. The bottom ofthe inverter should be at least 20
inches above ofthe ground orfloor (see Figure
3.1 ).
• The LED status indicator lights and the LCD located on the inverter's front panel should not be
blocked.
• Adequate ventilation must
be present ifthe inverter is to be installed in a confined space.
~ I ~ I
-
20in
ilJ.-..Iollr
- !i!i!i! -20in
illlc.MII.,Iollr
- !i!i!i! -20in
~
8
~ I ~ I
Figure 3.1 Distances required between inverters
NOTE
Nothing should be stored on
or placed againstthe inverter.
.11 .

3. Installation
~ ~ CanadianSolar
3.1.1.1 Examples of correct and incorrect installations
u I I
-b- -b-
/ ' / '
-6-
~/1'
0 I I
0
NEMA4X
0
~
-../ -../
X 0
u u
67
~/ ~/
Max
~
5
0 0
-../
X X
NOTE
~
Units with a fan may be mounted at 15-90 degrees off horizontal.
3.1.2 Other environmental considerations
3.1.2.1 Consulttechnical data
> -~~
~
~
v
'it~
e ~
~ ~
v
Consultthe specifications section (section 9) for additional environmental conditions
(protection rating, temperature, humidity, altitude, etc.).
3.1.2.2 Vertical wall installation
Canadian solar inverters are typically convection cooled and must be mounted vertically
(90 +/- 5 degrees
off horizontal). Units with a fan may be mounted at 15-90 degrees off
horizontal.
3.1.2.3Avoiding directsunlight
Installation
of the inverterin a location exposed to direct sunlight should to be avoided.
Direct exposure to sunlight could cause:
• Poweroutput limitation (with a resulting decreased energy production by the system).
• Premature wear
of the electrical/electromechanical components.
• Premature wear
of the mechanical components (gaskets) and userinterface.
3.1.2.4Air circulation
-../
Do not install in small, closed rooms where aircannot freely circulate. To prevent overheating,
always ensure thatthe airflow around the
inverter is not blocked.
.12.
~ ~ CanadianSolar
3. Installation
3.1.2.5 Flammable substances
Do not install nearflammable substances. Maintain a minimum distance
of three (3) meters
(1 0 feet) from such substances.
3.1.2.6 Living area
Do not install in a living area where the prolonged presence
of people or animals is expected.
Depending on where the
inverter is installed (forexample: the type of surface around the
inverter, the general properties
of the room, etc.) and the quality of the electricitysupply, the
sound level from the invertercan be quite high.
3.2 Product handling
Please review the instructions below for handling the inverter:
1).The red circles belowdenote cutouts on the product package. Push in the cutouts to
form handles
for moving the inverter (see Figure 3.2).
t '":;: - ::::~
I I I I
,, ______ , :_;
.... _______ ...
Figure 3.2 Handles used to move the inverter shown circled in red
2).Two people are required to remove the inverterfrom the shipping box. Use the handles
integrated into the heatsink to remove the inverterfrom the box (see Figure 3.3).
.13.

3. Installation
~ ~ CanadianSolar
Figure 3.3 Handles shown circled in red are used to
remove the
inverter from the shipping box
WARNING
Due to the weight of the inverter, contusions or bone fractures
could
occur when incorrectly lifting and mounting the inverter.
When mounting the inverter, take the
weight of the inverter
into consideration. Use a suitable lifting technique when mounting.
3.3 Mounting the inverter
The inverter can be mounted to a wall or metal array racking. The mounting holes should be
consistent with the size
of the bracket or the dimensions shown in Figure 3.4.
.14.
~ ~ CanadianSolar
3. Installation
400
3-10.Sx1S.S
Figure 3.4 Mounting bracket and dimensions
The invertermust be mounted
vertically(+/- 5•) following the steps below:
Inverterswith fans may be mounted at 15-90 degrees
off horizontal.
1
). Referring to Figure 3.4, selectthe mounting height of the bracket. For brick walls, the
position
of the holes should be suitable for expansion bolts.
2). Ensure the bracket is level and the mounting holes are in the correct positions
depending on the mounting surface. Markthe surface through the bracket holes and
drill the holes in the wall atthe marks.
3). Use suitable fasteners and expansion bolts
(if required) to attach the bracketto the wall.
Figure 3.5
Mount the bracketto the wall
.15.

4. Comm. & Monitoring ~ ~ canadianSolar
Overview
There are three (3) sets of terminals used for RS485 communication.
Terminal4 (Figure 3.1 0) has screwterminals for a multiple invertercommunication
solution using a standard MODBUS cable such as Belden stranded cable.
Terminal 5 is a standard RJ45 terminal and is used
for creating a daisy chain connection
between inverters as well as the wired data monitoring.
TerminalS is a 4-pin connectorwhich is matched with Canadian
Solar communication cables.
Monitoring system for multiple inverters
Multiples of inverters can be monitored in series using RS485 (as shown in Figure 4.1 ).
All 3 connectors supportthis type of inverterconnection.
Figure 4.1 Multi-invertermonitoring system
.24.
~ ~ canadianSolar 4. Comm. & Monitoring
RS485 communication connection of RJ45 network port
When using terminal 5 (RJ45 connector) to connect, use the following wiring sequence.
Connectthe Ethernet cable according to the
TIA/EIA568B standard. Insertthe wire into the
RJ45 plug and then use a standard networkcable crimping tool to crimp connectorto the cable.
4.1 RS485
4.1.1 Wiring a single inverterand daisy chain inverters
Correspondence between the
cables and the stitches of plug
Pin 1: white and orange; Pin 2: orange
Pin
3: white and green ; Pin 4: blue
Pin
5: white and blue ; Pin 6: green
Pin
7: white and brown ; Pin 8: brown
Pin 1 with 4 and 2 with 5 are
used for communication connection
Pin 1and 4 are connected with RS485+A
Pin 2 and 5 are connected with
RS485- B
Figure 4.2 Strip the insulation layer and connectto RJ45 plug
4.1.2 Maximum allowable inverters using RS485
The maximum allowable inverters per RS 485 daisychain is 32 pes. Please contact
monitoring supplier
for details.
4.1.3 120-ohm {0} resistor placement
1200 resistor placement for end of line communication
Please contact monitorsupplier
for details.
.25.

5. Commissioning
~ ~ CanadianSolar
5.1 Selecting the appropriate grid standard
5.1.1 Verifying grid standard for country of installation
Canadian Solar inverters are used worldwide and feature presetstandards for operating on
any grid. Although the grid standard is set atthe factory, it is essential the grid standard be
verified
for the country of installation before commissioning.
The menu
for changing the grid standard or for creating a custom standard is accessible as
described in Section 6.7 and below.
WARNING
Failure to set the correct grid standard could result in
improper operation
of the inverter, inverter damage or the inverter not operating at all.
5.2 Changing the grid standard
5.2.1 Procedure to set the grid standard
.26.
NOTE
This operation is
for service technicians only. The inverter is customized
according to the local grid standard before shipping. There should be no
requirement to
set the standard.
NOTE
The "User-Def" function can
only be used by the service engineer.
Changing the protection level must be approved bythe local utility.
1
). From the main screen on the display, select ENTER. There are 4 sub-menu options,
use the UP/DOWN arrows to highlightADVANCED SETTINGS. Press
enter to select.
lmi.iiufdttm1
Settings
Figure 5.1
2). The screen will showthat a password is required. The default password is "001 0",
press the DOWN key to move cursor, press the UP key to change the highlighted digit.
I
YES=<ENT> NO=<ESC> I
Password:0000
Figure 5.2
~ ~ CanadianSolar
5. Commissioning
3). Use the UP/DOWN keys to highlightthe SELECT STANDARD option. Press enter to
select.
~-mm~·nmnmm
Grid ON/OFF
Figure 5.3
4). Selectthe grid standard
for the country of installation.
IYES=<ENT> NO=<ESC> I
Standard:UL-480-A
Figure 5.4
Press the UP
or DOWN key to selectthe standard (AS4777, VDE4105, UL-1741, G59/3, CQC,
User-Deffunction, etc.). Press the ENTER key to confirm the setting. Press the ESC key to
cancel changes and return to the previous menu.
UL-480 is defaultsetting
for the U.S. and Canada markets. UL-480-Ais the standard for
inverters with AFCI function.
5.3 Setting a custom grid standard
WARNING
• Failure to setthe correct grid standard could result in improperoperation
of the inverter, inverter damage or the inverter not operating at all.
• Only certified personnel should
set the grid standard.
• Only
set the grid configuration that is approved by your location and
national grid standards.
1
). Please referto section 6.7 "Advanced Settings" for procedures to create a custom grid
configuration
for User-Defmenu option.
.27.

5. Commissioning
~ ~ CanadianSolar
5.4 Preliminary checks
WARNING
High Voltage.
AC and DC measurements should be made only by qualified personnel.
5.4.1 DC Connections
Verify DC connections.
1). Lightlytug on each DC cable to ensure it is fully captured in the terminal.
2). Visually check
for any straystrands that may not be inserted in the terminal.
3). Checkto ensure the terminal screws are the correct torque.
5.4.2AC Connections
VerifyAC connections.
1). Lightlytug on each AC cable to ensure it is
fully captured in the terminal.
2). Visually check
for any straystrands that may not be inserted in the terminal.
3). Checkto ensure the terminal screws are the correct torque.
5.4.3 DC configuration
Verify DC configuration.
5.4.3.1 VOC and Polarity
Measure VOC, and checkstring polarity.
5.4.3.1.1 Check string voltage
To measure the open circuit voltage (VOC) and polarity of the individual strings, perform
the following steps:
.28.
WARNING
When the fuse holders are closed, parallel strings on the same MPPT are
connected together.
If there is a voltage difference between the parallel
strings such as different string lengths, current will flow between the
parallel strings. Opening and closing the fuse
holder in this instance is the
same as opening and closing
under load. Damage to equipment and /or
injuryto personnel may occur.
1
). Ensure that all fuse holders are open.
2). Connectthe positive lead
of the meter to the positive string cable of the string under
test. Connectthe negative lead of the meterto the negative string cable of the
string
under test.
~ ~ CanadianSolar
5. Commissioning
3). Measure the voltage present between the positive and negative wires of each string.
If the open circuit voltage of the string is nearthe maximum value accepted by the
inverter, verify the string length. Lowambienttemperatures cause an increase in
the string voltage causing potential damage to the inverter.
4). Checkthe polarity
of the string. All digital meters have a negative("-") indicatorthat
indicateswhen a voltage is negative; in this case a string connected in reverse
polarity.
WARNING
Inputvoltages
higher than the maximum value accepted bythe inverter
(see "Specifications" in Section 9) may damage the inverter.
Although Canadian
Solar inverters feature reverse polarity protection,
prolonged connection in reverse polarity may damage these protection
circuits
and/or the inverter.
5.4.3.2 Leakage to ground
Measure leakage to ground.
5.4.3.2.1 Detection
of leakage to ground
Canadian Solar inverters are transformer-less and do not have an array connection to ground.
Any measurement
of a fixed voltage between ground and eitherthe positive or negative string
wiring indicates a leakage (ground fault) to ground and must be corrected priorto energizing
the inverter
or damage to the inverter may result.
To measure leakage to ground, perform the following steps:
1
). Ensure that all fuse holders are open.
2). Ensure that neithernegative norpositive
DC conductors are connected to the ground
strip.
3). Measure each string positive connection to ground.
4). Measure each string negative connection to ground.
5). Verify the voltage is "floating", nota consistent voltage to ground. Make sure you notice
the units
of the measurement. mV is notthe same as V.
6). Do notclose the fuse holder and connectthe strings if a leakage to ground has been
detected. Improperoperation and damage to the inverter may result.
Once all DC tests have been completed, close the fuse holders.
.29.

6. Normal operation
~ ~ CanadianSolar
During normal operation, the LCD shows the currentstatus of the inverter. The LCD will
displaycurrent powergeneration, total generation,
currentAC power in watts and other
data in rotation (See Table 6.1 ). Press the button labeled ESC to switch from the "home
dashboard" (i.e., the initial interface
for owners and operators) to other screens showing
details
of daily and monthlygeneration. Press the ENTER button to switch to the Main
Menu. Pressing the ESC button will always return to the previous screen. See Figure
6.1
for an operational flow overview.
Pressing th gr
ENTER key
gives access to
the main menu.
Figure 6.1 Operation Overview
6.3 Main Menu
There are four sub-menus options in the Main Menu (see Figure 6.1 ):
1.
Information.
2. Settings.
3. Advanced Info.
4. Advanced Settings.
6.4 Sub-menu: Information
The Canadian Solar inverter main menu provides access to operational data and
information. The information is displayed by selecting "Information" from the menu
and then by scrolling up
or down.
.32.
~ ~ CanadianSolar
6. Normal operation
Display Duration Description
I V
DC1 350.8V I V_DC1: Shows input
01 voltage value.
I_-DC1
5.1A
10sec
I_DC1: Shows input 01 currentvalue.
I V DC4 350.8V I V_DC4: Shows input 02 voltage value.
I_-DC4
5.1A 10sec
I_DC4: Shows input 02 currentvalue.
I V GridA 230.4V I V_GridA: Shows the grid's voltage value.
I_GridA 8.1A 10sec
I_GridA: Shows the grid's currentvalue.
I V_GridD 230.4V I
10sec
V_GridD: Shows the grid's voltage value.
I_GridD 8.1A I_GridD: Shows the
grid's currentvalue.
I Status: Generating I
Status: Shows instantstatus of the Inverter.
Power: 1488W
10sec
Power: Shows instantoutput powervalue.
I Grid Frequency I
10sec
F_Grid: Shows the grid's frequency value.
F_Grid 50.06Hz
I Total Energy I
10sec
Total generated energyvalue.
0258458 kwh
IThis Month: 0123kwh I
10sec
This Month: Total energy generated this month.
Last Month: 0123kwh Last Month: Total
energy generated last month.
IToday: 15.1 kwh I
10sec
Today: Total energy generated today.
Yesterday: 13.5kwh Yesterday: Total
energy generated yesterday.
IInverter SN
00000000000000 I
10sec
Display series number of the inverter.
Table
6.1 Information list
6.4.1 Lock screen
Pressing the ESC key returns to the Main Menu. Pressing the ENTER key locks
(Figure 6.2(a))
or unlocks (Figure 6.2 (b)) the screen.
a s
(a) (b)
Figure 6.2 Locks and Unlocks the Screen of LCD
.33.

6. Normal operation
~ ~ CanadianSolar
6.5 Sub-menu: Settings
The following sub-menus are displayed when the Settings menu is selected:
1.SetTime.
2.SetAddress.
6.5.1 SetTime
This function allows time and date setting. When this function is selected, the LCD will
display a screen as shown in Figure 6.3.
NEXT=<ENT> OK=<ESC>
01-01-2016 16:37
Figure 6.3
Set Time
Press the UP/DOWN keys to set time and date. Press the ENTER key to move from one
digit to the next (from left to right). Press the ESC key to save the settings and return to
the previous menu.
6.5.2 SetAddress
This function is used to setthe address when multiple inverters are connected to single monitor.
The address numbercan be assigned from
"01 "to "99"(see Figure 6.4 ). The default address
is "01".
IYES=<ENT> NO=<ESC> I
Set Address: 01
Figure 6.4 Set Address
Press the UP/DOWN keys to set the address. Press the ENTER key to save the settings.
Press the ESC key to cancel the change and return to the previous menu.
.34.
~ ~ CanadianSolar
6. Normal operation
6.6 Sub-menu: Advanced Info- Technicians Only
NOTE:
Access to this area is for fully qualified and accredited technicians only.
A
password is required to access "Advanced Info" and "Advanced Settings"
Select "Advanced Info." from the Main Menu. The screen will require a password as below.
IYES=<ENT> NO=<ESC> I
Password:0000
Figure 6.5 Enter password
The
default password is "001 0". Press "down" to move the cursor to the next digit, press "up"
to change the digit.
After entering the correct password, the LCD will display the following options:
1.
Alarm Message
2. Running message
3. Version
4. Daily Energy
5. Monthly Energy
6. Yearly Energy
7. Daily Record
8. DSP Communication Data
9. Warning Message
The screen can be scrolled manuallyby pressing the UP/DOWN keys. Pressing the ENTER
key gives access to a sub-menu. Press the ESC key to return to the Main Menu.
6.6.1 Alarm Message
The display shows the 100 latest alarm messages (see Figure 6.6). Screens can be scrolled
manually by pressing the
UP/ DOWN keys. Press the ESC key to return to the previous
menu.
I Alarm001: OV-G-V I
Time: 27-11 Data: 7171
Figure 6.6Alarm Message
.35.

6. Normal operation
~ ~ CanadianSolar
6.6.2 Running Message
This function is for maintenance personnel to getoperational data such as internal temperature,
Standard NO. etc.
Screens can be scrolled manually by pressing the UP/DOWN keys.
6.6.3 Version
The screen shows the model version and the software version of the Inverter (see Figure 6.7).
I Model: 08 I
SoftwareVersion: D20001
Figure
6. 7 Model Version and Software Version
6.6.4 Daily Energy
This option is for viewing the energy generation for a specific day.
YES=<ENT>NO=<ESC>
Select: 2015-02- ~
Figure 6.8 Select date for daily energy
Press DOWN key to move the cursor to day, month or year, press UP key to change the digit.
Press
Enter after the date is selected to display energy for that date.
2015-02-22: 051.3kWh
2015-02-23: 061.5kWh
Figure 6.9 Daily
energy
Press UP/DOWN key to move one date from another.
6.6.5 Monthly Energy and Yearly Energy
These two options are for viewing the energy generation for selected month or year.
YES=<ENT> NO=<ESC> YES=<ENT> NO=<ESC>
Select:
2015- ~ Select: 20 ~
Figure 6.1 0 Select month for monthly energy Figure 6.11 Selectyearforyearly energy
Press DOWN key to move the cursor, press UP key to change the digit.
Press Enter after the month/yearis selected.
.36.
~ ~ CanadianSolar
6. Normal operation
2015-02: 0510kWh
2015-01:
061 OkWh
2015:0017513kWh
2014:0165879kWh
Figure 6.12 Monthly energy Figure 6.13 Yearly energy
Press UP/DOWN key to move from one date from another.
6.6.6 Daily Record
The screen shows history of setting changes. It is only for maintenance personnel.
6.6.7 Communication Data
The screen shows the internal data of the Inverter (see Figure 7.14), which is for service
technicians only.
6.6.8 Warning Message
I
01-05:01 25 E4 9DAA I
06-10: C2 85 E4 9D 55
Figure 6.14 Communication Data
The screen shows the internal data
of the Inverter (see Figure 7.15), which is for service
technicians only.
MessageOO:
T: 27-11 D: 7171
Figure 6.15 Warning message
.37.
