CANARMNA 355-0494 User manual

PAGE: 1 / 12 PAGE: 2 / 12
Package Contents:
04-22
Unpack your fan and check the contents. You should have the following items.
A. 20 1/4 in. B. 19 3/4 in. C. 120 in. D. 5 7/8 in.
Dimension Reference (Installed with 4” Downrod):
10 11
5
68
12 13 14
34
2
1
9
1.) Mounting Bracket
2.) Canopy
3.) Downrod Assembly (Included
Hanger Ball, 12” Downrod, Hanger Pin
& Lock Pin
A
D
B
C
15
7
4.) Yoke Cover
5.) Housing Cover
6.) Fan Motor Assembly
7.) Blade Bracket
8.) Fan Blades (6 pcs)
9.) J-Hook
10.) Rubber Gasket
13.) Metal Washer
14.) Blade Bracket Screw
12.) Lock Washer
11.) Hex Nut
15.) Remote Control (Includes Transmitter
& wire nuts & screws & Wall Anchors
& Wall Bracket & Battery)
Model No.: # 355-0494,355-0495
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID , to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
instructions or REMOVAL Of the c.S.A. Sticker.
5 YEAR LIMITED WARRANTY
11/16
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID , to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
instructions or REMOVAL Of the c.S.A. Sticker.
5 YEAR LIMITED WARRANTY
11/16
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID , to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
instructions or REMOVAL Of the c.S.A. Sticker.
5 YEAR LIMITED WARRANTY
11/16
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID , to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in your area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
5 YEAR LIMITED WARRANTY
10/21
.rekcitSASCehtfoLAVOMERrosnoitcurtsni

PAGE: 3 / 12 PAGE: 4 / 12
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
TOOLS AND MATERIALS REQUIRED
-
-
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances, national electrical
codes, CEC, NEC and ANSI/NFPA 70.
3. Make sure the installation site you choose allows the fan blades to rotate freely
without any obstructions.
4. When mounting the fan on a ceiling outlet box, use an approved (CSA for Canada
and UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT". Ensure the outlet
box is securely installed in place such that it is able to support at least the fan weight.
5. Total Fan Weight For Reference: 120"approximate 15.0 kgs (33.08 lbs).
1. WARNING: RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY. THE
FAN IN THIS BOX MAY BE EITHER DIRECTLY SUPPORTED FROM A
STRUCTURAL FRAMING MEMBER OF A BUILDING AND/OR MAY BE MOUNTED
TO AN OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT OF 35 LBS
(15.9 KG) OR LESS. Most outlet boxes commonly used for the support of luminaires
may not be acceptable for fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
2. Mount with the lowest moving parts at least 3.05 Meters (10 Feet) above floor or
grade level.
3. DO NOT operate reversing switch while fan blades are in motion. Fan must be
turned off and rotating blades stopped, reverse chain pulled, the speed chain
pulled again to start in the opposite direction.

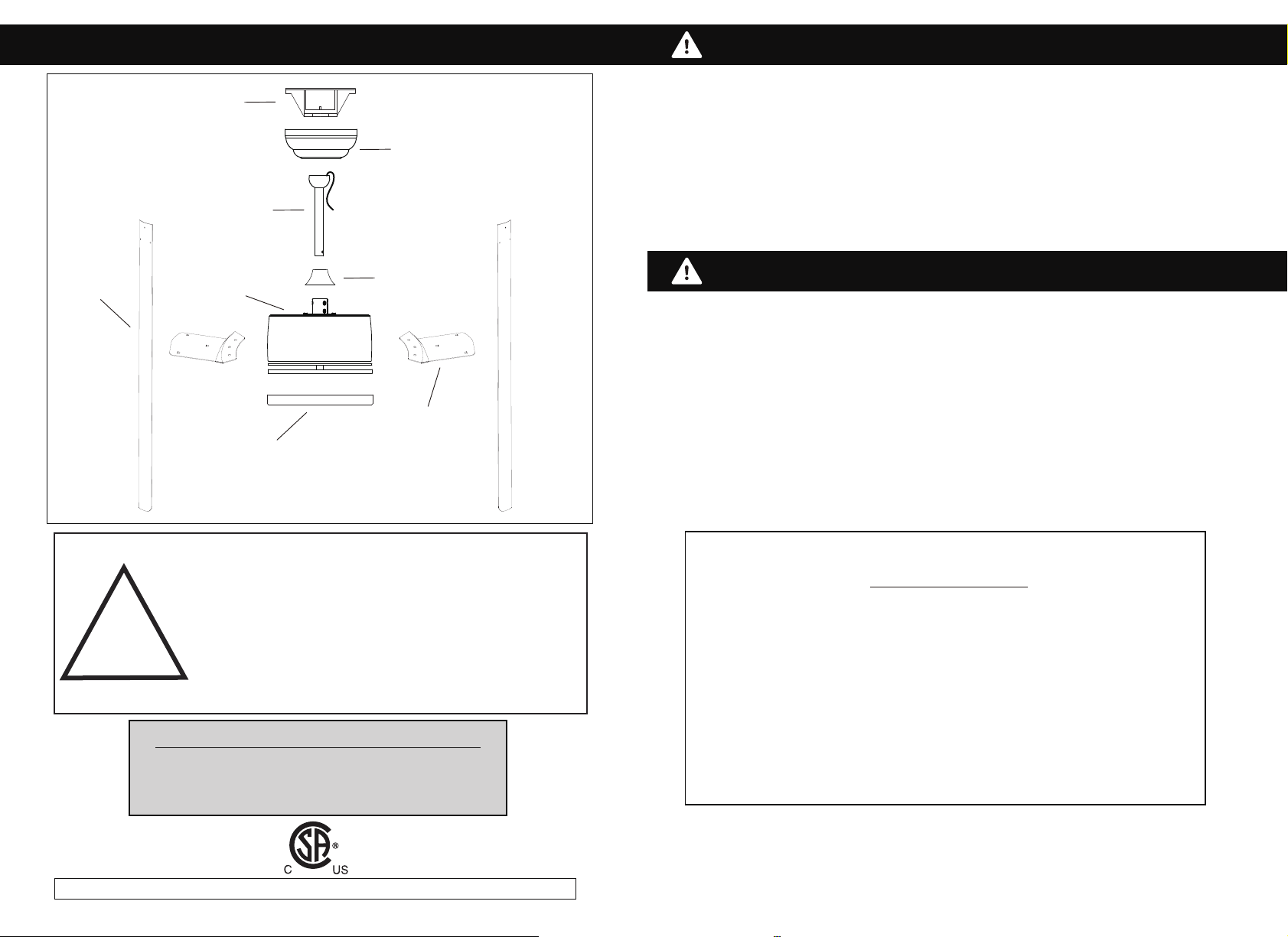

Exploded View Detail
Mounting Bracket
Canopy
Downrod
Yoke Cover
Fan Motor
Fan Blades
Housing Cover
Phillips Screwdriver
Blade Screwdriver
Blade Bracket

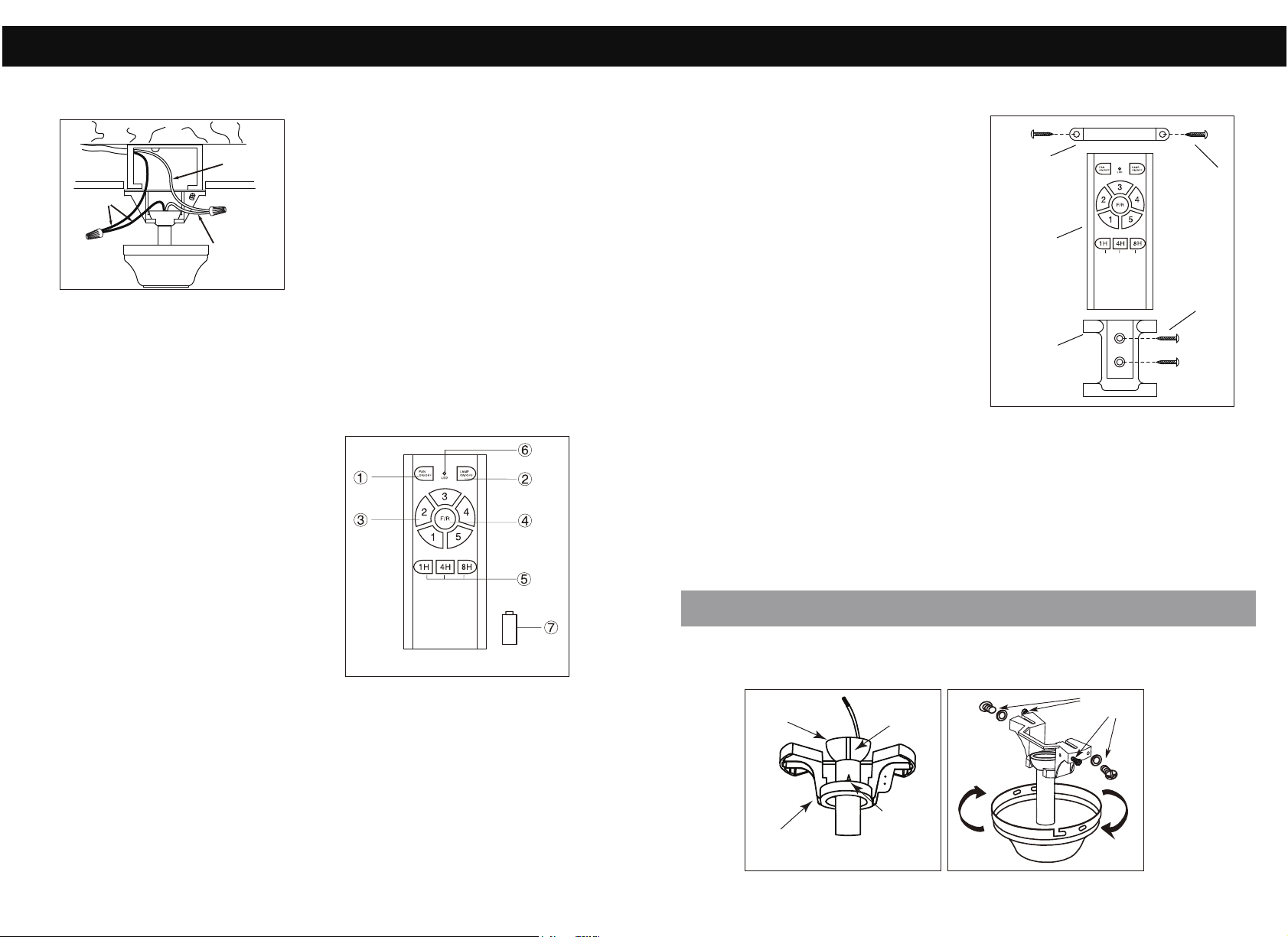

①ON/OFF the fan
②Short press: ON/OFF the light
Long press(hold for 3 seconds): Dimming
③Speed of the fan (①low speed —⑤high speed)
④Direction of the fan (reverse switch)
⑤Timing control of the fan
⑥LED indicated light
⑦12V battery should be used in emitter
REMOTE
CONTROL

PAGE: 5 / 12 PAGE: 6 / 12
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS (continued)
- Take out fan motor housing.

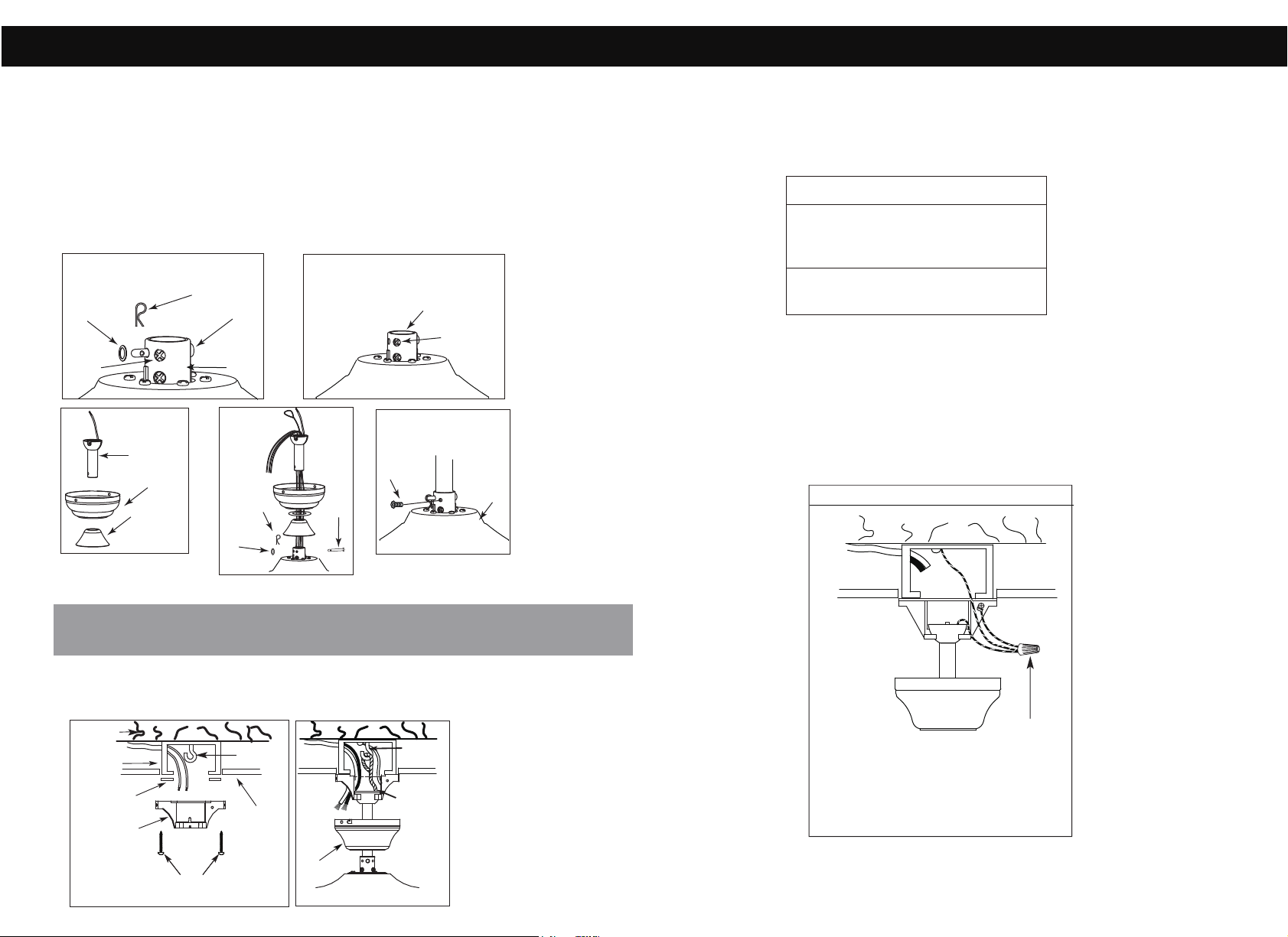

1. MOUNTING
DOWNROD MOUNT
a. b.
c. d. e.
- Remove cotter pin and bolt from yoke.
- Loosen jam screw in yoke until it is flush with the inside surface.
- Obtain downrod, canopy and yoke cover.
- Place downrod inside canopy and yoke cover.
- Route wires exiting motor through yoke cover, canopy and downrod.
- Insert bolt through hole in shaft and downrod. Be careful not to damage or cut the fan wires.
- Tighten flat washer and bolt. Secure with cotter pin through hole in the end of the bolt.
- Secure downrod in position by tightening jam screws. Slide yoke cover down so it is flush
with the motor housing.
Motor
Bolt
Yoke
Jam
Screw
Jam
Screw
Downrod
Canopy
Yoke
Cover
Bolt
Flat
Washer
Cotter Pin
Yoke
Jam
Screw
Cotter
Flat
Washer
Pin
2 . INSTALL MOUNTING BRACKET
- Install J-Hook through center of outlet box and into the wooden joist.
- Secure mounting bracket and rubber gaskets to outlet box.
- Hang fan on mounting bracket and install safety cable.
- Hang the safety cable onto the J-hook.
3. ELECTRICAL HOOK-UP
Wire Nut
ACONNECTING THE (GREEN) GROUND WIRE
a. b.
Ceiling
Outlet box Screws
(not provided)
J-Hook
Safety
Cable
Canopy
J-Hook
Wood
Joist
Outlet
Box
Rubber
Gasket
Mounting
Bracket
WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount
To UL/CSA Listed Outlet Box Marked Acceptable For Fan Support And Use Mounting
Screws Provided With The Outlet Box.
NOTE: Once ground wires are connected, carefully tuck wires and into the
outlet box making sure that the wires are clear of the hemisphere and
downrod when positioned in mounting bracket (Downrod Mount Only).
- Connect ground wire from outlet box
to green wire from mounting bracket
and downrod using a wire nut
(not supplied)
CAUTION
SEE SAFETY PRECAUTIONS ON
PG. #2 BEFORE WIRING
Green Wire - GROUND
Black Wire (Fan) - POWER
White Wire (Fan) - COMMON
- There are several different wiring combinations that can be used in
controlling your ceiling fan to meet your specific requirements. Should
the following method not meet your requirements call or visit your nearest
distributor for a full list of fan accessories.
After making the wire connections, ensure the wires should be spread
apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the ungrounded conductor
on the other side of the outlet box.
Ensure the splices after being made should be turned upward and
pushed carefully up into the outlet box
DOWNROD MOUNT
a.

PAGE: 7 / 12 PAGE: 8 / 12
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued)
3. ELECTRICAL HOOK-UP
B
- Place two screws and washers on mounting plate (marked B on diagram) which
correspond with slots in canopy. Screw in two turns.
- Position canopy to mounting plate aligning slots to screws (marked B on diagram)
then turn to lock.
- Position and tighten the two screws and washers (marked A on diagram) then tighten
the two screws (marked B on diagram).
4. MOUNTING FAN ASSEMBLY
CONNECTING BLACK,WHITE,AND (RED OR BLUE) WIRES
C
5. ENGAGE HEMISPHERE (Downrod Mount Only)
- Carefully rotate fan assembly until groove in hemisphere locks over tab of canopy assembly.
WARNING: Failure to seat tab in groove could cause damage to electrical wires and
possible shock or fire hazard.
NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket faces towards
the top of the slope. Depending on the slope, a longer downrod may be required to prevent
fan blades from hitting the ceiling.
FUNCTION INSTRUCTION OF EMITTER
- Learning code and matching mode is used between transmitter and receiver.
- Turn "ON" the supply power. Within 30 seconds, press "FAN ON/OFF" button on
the transmitter for 5 seconds. Transmitter
and receiver are connected after hearing
a long “beep".
- If the transmitter cannot control the fan,
check to ensure all wiring connections are
properly connected according to the
instruction manual. Check to ensure the
batteries are in the right position. Check
whether there are any similar remote
controls in use nearby. Check whether
they work with the same frequency.
- Low voltage of battery will affect the
sensitivity of the transmitter. The
indicator light (6) will flash when battery
voltage is low. Replace the batteries for better performance.
- Take out the batteries from the transmitter when leaving unused for long periods.
- Ensure to connect the ground wire accordingly
3. ELECTRICAL HOOK-UP
DINSTALLING THE REMOTE CONTROL WALL BRACKET
If desired, the wall bracket can be installed
to house the remote control.
- Use the screws to secure the wall
bracket at the desired mounting location.
- Place the remote control into the wall
- Mount the cap onto the top of remote
control as shown by the 2 screws if
necessary.
bracket.
Wall bracket
Screw
Remote control
Cap Screw
c.
d.
NOTE: Once wires are connected, carefully tuck wires and wire nuts into the
outlet box making sure that the wires are clear of the hemisphere
and downrod when positioned in mounting bracket
(Downrod Mount Only).
- Connect white wire from outlet box to white
wire from fan using wire nut (not supplied).
- Connect black wire from outlet box to black
wire from fan using a wire nut (not supplied).
Black Wire
White Wire
White Wire
b.
(B)
(B)
(A)
Washers
Hemisphere
Mounting
Bracket
Tab
a. b.
Groove

PAGE: 9 / 12 PAGE: 10 / 12
ASSEMBLY INSTRUCTIONS (continued) ASSEMBLY INSTRUCTIONS (continued)
. OPTIONAL FEATURE: LIGHT ADAPTABLE8
- This fan is light adaptable. Please approach your dealer for the light kit certified for
this model.
WARNING: BE SURE TO TURN OFF POWER BEFORE INSTALLING
- Carefully tuck electrical wires back into housing, align housing cover with
housing and secure with three housing screws and washers.
NOTE: All set screws must be checked and retightened where necessary,
before and after installation.
WARNING: Ensure that all connections, set screws and screws are securely tightened
before the next step.
7. MOUNTING BLADES TO MOTOR
7. MOUNTING BLADES TO MOTOR
a.
b.
6. MOUNT BLADE BRACKET TO BLADES
- Place blade bracket screw through flat washer, fiber washer and blade.
- Align with corresponding hole in blade bracket.
- Repeat with (2) remaining screws and tighten.
Blade
Blade
Bracket Screw
Blade
Bracket
Hex Nut
Metal Washer
Lock Washer
Motor Screw &
Lock Washer
- Insert the blade arm into the fan as shown.
- Tighten the blade arm to motor with the screw and lock washer as shown.
- Slightly turn the blade after installation and repeat the same step for the other blades.
Motor
Housing
Star washer
Housing Cover
Housing
Screws

PAGE: 11 / 12 PAGE: 12 / 12
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee
of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device contains licence-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: CANARMNA
Responsible Party
Canarm Inc.
709 East Main Street, Teutopolis, Illinois, USA 62467
1.800.267.4427
To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture
with a clean, soft cloth.
ASSEMBLY INSTRUCTIONS
CARE AND MAINTENANCE
TROUBLESHOOTING
- Check fuses and circuit breakers.
- Check wiring connections to fan.
- Check wiring connections in switch housing.
CAUTION: Turn power off for last two items.
- Check to make sure that all screws in motor housing are snug.
- Check to make sure that blade bracket screws are tight.
- Check to make sure that wire nuts in switch housing
are not rattling against wall of switch housing.
- If fan has a light kit make sure switch housing
screws and set screws are tight.
- Some fan motors are sensitive to signals from solid state
variable controls. If solid state controller is used, change to
an alternative control. (See a representative for a list of
available controls.)
- Allow a 24 hour break in period to eliminate most noises.
- Check that all blades are screwed firmly into blade brackets.
- Check that blade brackets are secured firmly to motor.
- Check distance from tip of blades to ceiling.
- Check distance between blade tip to blade tip. All
measurements should be equal. Loosen blade screws and
position blade until even then re-tighten.
- Check that the downrod hemisphere notch is engaged in canopy.
- Check to make sure that jam screws in downrod are tightened.
- Make sure canopy and mounting bracket are tightened securely
to wooden joist.
- Make sure warpage has not occurred in fan blades. If so,
contact the customer service department for replacement parts.
TROUBLE SUGGESTIONS
1. Fan will not start
2. Fan sounds noisy
3. Fan wobbles or
shakes excessively.
