CANARMNA CEPD200 User manual

WARNING
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with the homeowner.
CAUTION
CLEANING & MAINTENANCE
OPERATION
For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the
dusting brush attachment.The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive
or unusual noises, replace the motor with the exact service motor. The impeller should also be replaced.
Cod：0060302209
Model：CEPD140-4
a). Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b). Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power
from being switching on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
c). Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction codes and standards.
d). Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to
prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by
the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
e). When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
f ). Ducted fans must always be vented to the outdoors.
g). Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit
(ceiling installation only).
h). This unit must be grounded.
i). Not for Use in Kitchens.
j). To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces, or garages.
k). WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.
l). The fan must not be installed in a ceiling thermally insulated to a value greater than R40.
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up.
DO NOT MOUNT THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Please read specification label on product for further information and requirements.
*The manual in electronic format can be download in our company web, or obtained from our dealer.
WARNING -TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
See “CONNECT ELECTRICAL WIRING” for details.
The control box, located inside the fan housing:
(1) The low airflow knob adjusts the lower airflow from 40CFM up to the air flow
rate of the high fan speed (For CEPD140-4, the high fan speed is determined by
the toggle switch setting). The fan will not work when the knob turned between
OFF-40CFM.
(2) The time delay knob is adjustable from 3 to 30 minutes and will switch the fan
to the low speed setting after the switch is turned off for the set period of time.
(3) The toggle switch will adjust the upper fan speed setting from 80 to 140 CFM.
(Only for CEPD140-4)
Fan will run at the user-adjustable airflow rate continually;
turn on the switch, fan will turn to high speed;
turn off the switch, fan will continue to run at the certified airflow rate until the
user-adjustable time delay has passed, and then will automatically change to the
user-adjustable airflow rate.
VENTILATION FANS
1 2 3
Toggle switch
(only for CEPD140-4)
Control Box
Low airflow
knob
is the position of switch
time delay
knob
140
1 2 3
Switch position
Airflow (CFM) 110
1 2 3
90
1 2 3
80
1 2 3
TS
Max.
40CFM
30min
10min
20min
3min
140
1 2 3
Switch position
Airflow (CFM) 110
1 2 3
90
1 2 3
80
1 2 3
1 2 3
OFF
50%
70%
CEPD150
CEPD200
www.canarmna.com
CANARMNA

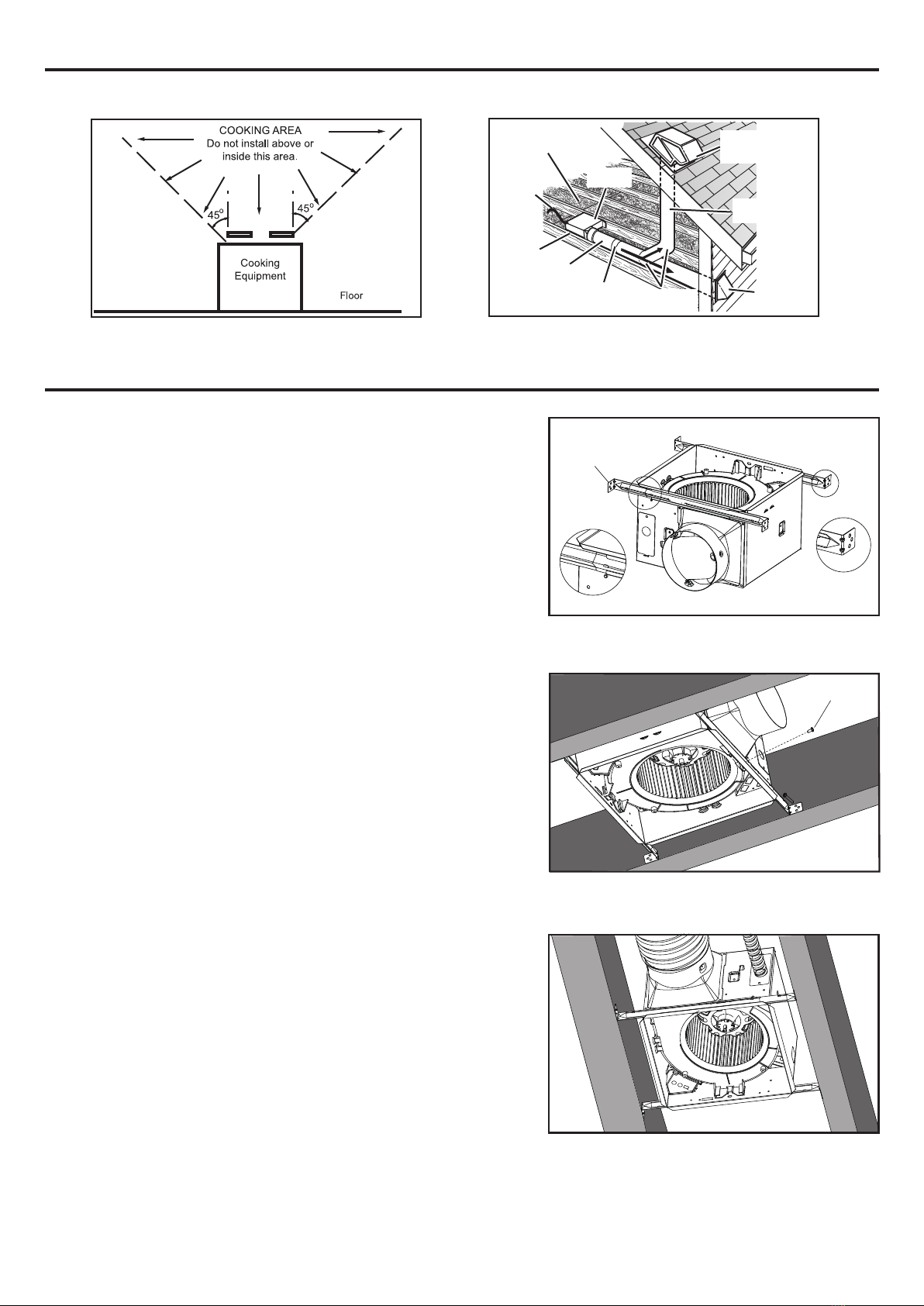

1. Do not use in a cooking area.
2. Two ways to connect ductwork to a factory-shipped unit.
2
ROOF CAP*
(with built-in
damper)
ROUND
DUCT* WALL CAP*
(with built-in
damper)
*Purchase
separately
POWER
CABLE*
INSULATION*
(Place around and
over Fan Housing.)
Seal gaps
around
Housing.
FAN
HOUSING
ROUND
ELBOW(S) *
Seal duct
joints with
tape.
Keep duct
runs short
PLAN THE INSTALLATION
ASSEMBLY INSTRUCTIONS
1.Sliding hanger bars have been provided, which allow the housing to be
positioned accurately anywhere between the framing. The bars span up to 24 in.
and can be used on all types of framing: I-joist, standard joist, and truss construc-
tion. Slide hanger bars onto housing and adjust as needed to fit between framing.
2.Extend the hanger bars to the width of the framing. Position the ventilator with
the bottom edge of the hanger bar tabs are flush with the bottom edge of the
framing, holding the ventilator in place.Secure hanger bars to framing using one
screw on each end of hanger bar.Select a proper hole and secure the hanger
bars together using one screw.
Hanger Bar
screw
3.INSTALL ROUND DUCTWORK
Connect the round ductwork (not included) to the damper/duct connector,and run
the ductwork to a roof or wall cap (not included). Using tape (not included),
secure all the ductwork connections so that they are air tight.
The ducting from this fan to the outside of building has a strong effect on the air
flow, noise and energy use of the fan.
Use the shortest, straightest duct routing possible for best performance, and
avoid installing the fan with smaller ducts than recommended. Insulation around
the ducts can reduce energy loss and inhibit mold growth. Fans installed with
existing ducts may not achieve their rated air flow.

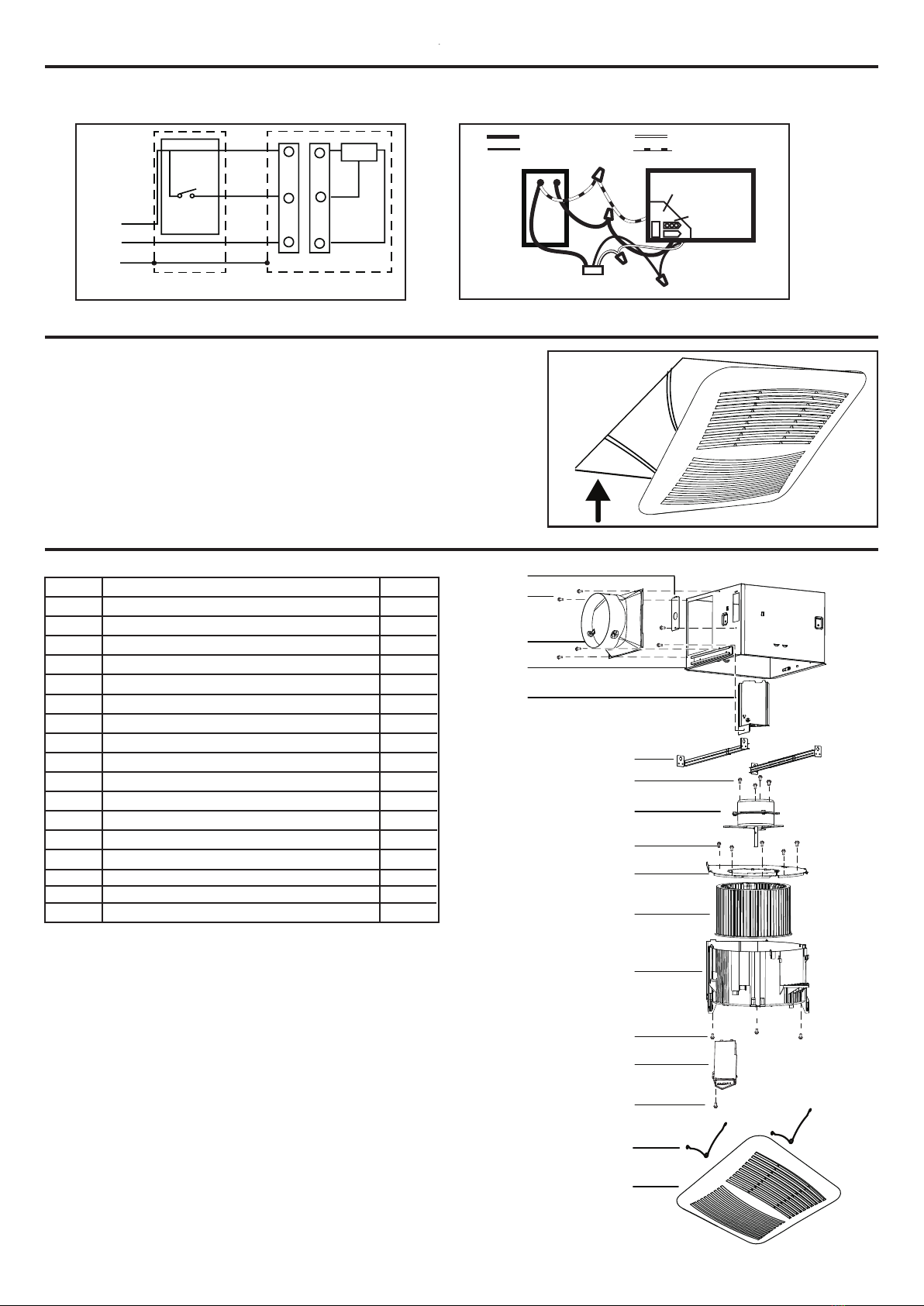

CONNECT ELECTRICAL WIRING
INSTALL GRILLE
3
Run 120 V AC house wiring to the location of the fan. Use only UL-approved connectors (not included) to attach the house wiring to the
wiring plate. Refer to the wiring diagram, and connect the wires as shown.
Install ceiling material to complete the ceiling construction.
Then, cut around the fan housing.
To attach the grille assembly to the fan housing. Pinch the grille springs on the
sides of the grille assembly, and position the grille into the housing with the grille
springs in the appropriate slots. Push the grille assembly towards the ceiling to
secure.
UNIT
BLACK (BLK)
SWITCH BOX
SWITCH
POWER SUPPLY
120V AC
GROUND (GRD)
WHITE (WHT)
FAN
RECEPTACLE
WIRE
PANEL
BROWN (BRN)
SERVICE PARTS
PART PART NAME Qty.
1
2
3
4
9
10
11
12
a
Housing
Wiring plate
Damper / Duct Connector
Screw
1
2
1
1
1
1
1
1
4
bScrew 5
cScrew 4
dScrew 6
Grille Assembly (includes part 2)
51
Blower
61
Blower Wheel
71
Motor Plate
84
Motor
Grille Spring
WARNING: Ensure that the fan is switched off from the supply
mains before replacing.
1
2
7
6
5
4
8
3
Wire Panel / Harness Assemblye
Hanger Bar Kit
Control Box
* Blower Assembly includes part 3, 4, 5, 6, 7, b, c
9
12
10
d
a
a
11
c
b
FAN
BRN
BLK
BLK
LINE
IN
WHT
WHT
GRD
UNITSWITCH BOX
GRD
SWITCH

This warranty covers all defects in workmanship or materials for:
The mechanical and electrical parts contained in this product, for a period of 12 months, from the date of purchase. You must keep and
be able to provide your original sales receipt as proof of the date of purchase. This warranty is covered the original retail purchaser of
this product. The manufacturer will repair or replace, in your home, any mechanical or electrical part which proves defective in normal
household use for a period of 12 months.
THIS WARRANTY DOES NOT COVER:
• Damages from improper installation
• Damages from shipping
• Damages from misuse, abuse, accident, alteration, lack of proper care and maintenance
• Damages from service by persons other than an authorized dealer or service center.
• Labor, service, transportation and shipping charges for the removal of defective parts and for installation of a replacement part,
beyond the initial 12-month period.
This warranty does not extend to fluorescent lamp starters and tubes.
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental
or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so this limitation may not
apply to you. Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
