9500M
SERIES MORTISE LOCK EXIT DEVICE (FIRE) - INSTALLATION INSTRUCTIONS
1. Device is factory pre-set as LHR 2. Knock out the pin in the direction (as shown), take
out the lever arm assembly
3. Rotate the chassis 180° and install the lever
arm and insert pin as shown
4. Device is converted to RHR
TO CHANGE HAND OF EXIT DEVICE CHASSIS:
TO CHANGE LOCK BODY HAND
OF FIELD REVERSIBLE MORTISE LOCK:
NOTES:
a) Prepare door and door frame as per supplied templates and
instructions on Sheet 2.
b) If no trim is used, install lock body and exit device only. Level railing
assembly and attach railing end mounting bracket to door using
through bolts (not supplied) and machine screws.
c) If trim is used, refer to sheet 2 and to trim installation instructions
to prepare door for the appropriate trim.
9500M-INS-EN-2015-02 1/2
If it is necessary to change handing, follow the instructions below:
1. Use hex key to unfasten the screw in the hole behind latch bolt (green label).
2. Pull latch bolt out from the front of the lock case.
3. Rotate latch bolt 180° to proper handing and push latch bolt back into lock case.
4. Securely tighten the screw in the hole and secure with Thread locker (Loctite 242).
5. Handing is now reversed.
LEFT HAND REVERSED (LHR) SHOWN
Right hand (or LHR) lock shown
for LHR exit device installation
Before installing the exit device, verify the following:
1. Door is properly fitted and hung.
2. Door surface on which the exit device will be installed is flush and flat.
3. Verify if the exit device length is suitable for the applicable door width. If the exit device mounting rail requires to be shortened see below:
a. The 3’ exit device model can be cut to fit doors from 30” (762mm) to 36” (914mm) in width (refer to section 4 on sheet 2.)
b. The 4’ exit device model can be cut to fit doors from 36” (914mm) to 48” (1219mm) in width (refer to section 4 on sheet 2.)
4. Exit device handing (refer to illustration below.)
5. Lock function and trim compatibility.
6 Review all templates and installation instructions prior to any door preparation.
NOTE: Mortise exit device is meant to be used with a compatible exterior trim. Refer to section 2 on page 2.
GENERAL NOTES
Through square hole
Hole (green label)
Latch bolt
Hex key
Push Pad
Sliding Cover
Main Chassis Cover
Mortise lock
(LHR shown)
Strike
Mortise lock
body screws
Inside Door
Surface
Screws
A-Machine screws
#10-24 UNC x 3/4”
B- Machine screws
#10-24 UNC x 3/4”
or wood screws
#10 x 1-1/4”
Strike
screws
Mounting Rail
Exit device location on door
must be flush and flat
Rail Mounting
Bracket
End Cap
Main Chassis

1-3/4”
(44 mm)
Provide minimum 1/2
“ (12.7 mm) overlap
with rail
backset & chassis
vertical reference line
single door (LHR)
Stile Width
Chassis vertical
centreline
Chassis horizontal
centreline
2 3/4” (70 mm) backset
2 3/4” (70 mm)
Backset
2 3/4” (70 mm)
Backset
2-3/4” (70 mm)
Backset
Backset & chassis
vertical reference line
INSIDE DOOR
SURFACE
Chassis Horizontal
Centreline
Chassis Horizontal
Centreline
Mortise Lock
Horizontal
Centreline
Mortise Lock
Horizontal
Centreline
Chassis Vertical
Centreline
Chassis Vertical
Centreline Door Thickness
Vertical
Centreline
OUTSIDE DOOR
SURFACE
Strike Horizontal
Centreline
Mortise Lock
Horizontal Centreline
Strike Vertical
Centreline
Door Frame
3/8”
(9.5 mm)
Machine
screws
Mortise lock
faceplate
#10-24 Machine
Screw
Cup Washer
REFERENCE
40-3/16”
(1021 mm)
5-1/2”
(140 mm)
3/8”
(9.5 mm)
Cut off & deburr
Don't cut closer than 1 3/4"
(44 mm) from lower pivot
(remove sliding cover to locate pivot)
Main chassis
cover
End Cap
Mounting Rail
Cover
machine screws
Machine screws
Finished Floor
Latch
Lock body
Latch
retraction Chassis
lever arm
Finished floor
Door
#14 Combo
Screws
Cylinder screw
Escutcheon
Trim
Gripset Trim
Chassis
#10-24, Pan Head
Machine Screws
Template
Tape
Door
Edge
Door
Edge
9500M
SERIES
2. EXIT DEVICE, MORTISE LOCK, TRIM & STRIKE INSTALLATION
A. GENERAL NOTES:
1. It is recommended to prepare the door and door frame for the mortise lock at the door fabrication shop.
2. Supplied installation instructions and templates are for wood door/frame applications. Metal door/frame applications will require appropriate door
reinforcement, door edge and frame preparation to accommodate the mortise lock and strike.
3. Surface on which the exit device will be installed must be flush and flat within 1/32” (0.8 mm).
4. It is important that all hole positions must be precise within 1/32” (0.8 mm).
5. The door stile width must be at least 5-1/2 (140 mm)” wide.
6. Study all supplied instructions and templates prior to start of drilling.
B. MORTISE LOCK AND TRIM
1. Determine the lock’s horizontal and vertical (backset) centrelines. NOTE: the lock’s horizontal centreline is 3/8” (9.5 mm) above the exit device
chassis horizontal centreline. The exit device mortise latch horizontal centerline is recommended to be located approximately 40-5/16“ (1023 mm)
above the finished floor.
2. Prepare door edge for the lock body using supplied template and dimensions.
3. Prepare outside door surface for the applicable trim using supplied trim template and dimensions.
4. Drill the trim mounting holes per applicable trim.
5. If required, Drill the cylinder hole only on the door outside surface.
C. EXIT DEVICE CHASSIS
1. Using the supplied template, mark and cutout hole on door interior surface for exit device lever arm.
2. Prior to drilling holes for the main chassis, verify that the exit device can activate and fully retract the mortise lock latch.
a. Temporarily fasten lock body into the door edge cavity and place the exit device flat on the door.
b. With push pad released (not pressed), ensure that the exit device chassis lever arm just touches the lock body (see Detail “A”) and does not
retract the latch.
c. With the push pad depressed, ensure that the mortise latch is fully retracted. Mark the chassis position and mounting holes.
3. Or prepare the chassis mounting holes using supplied template and dimensions (if preparing door in advance).
4. Remove lock body (if attached to door) and drill the required holes for the chassis.
5. Ensure holes in chassis align with holes in the trim post (If not, adjust slot height in exit device chassis). Refer to pictorial in section 2.
D. STRIKE
1. The strike horizontal centreline must be 3/8” (9.5 mm) higher than the lock centreline.
2. Position the strike vertical centreline as per supplied template and mark the strike outline on door frame.
3. Recess the door frame strike cutout depth as per template and depending if dust box is used.
4. Pre-drill in wood frame or drill and tap in metal frame for the strike mounting screws.
NOTE: Metal frames require appropriate preparation for the strike mounting. Refer to ANSI A156-115 or consult your mortise lock exit device supplier.
A. INSTALLATION
1. Verify that the mortise lock handing is appropriate for the installation. Reverse handing if required as indicated on sheet 1.
2. Insert the mortise lock into the door edge cavity and temporarily fasten with mounting screws.

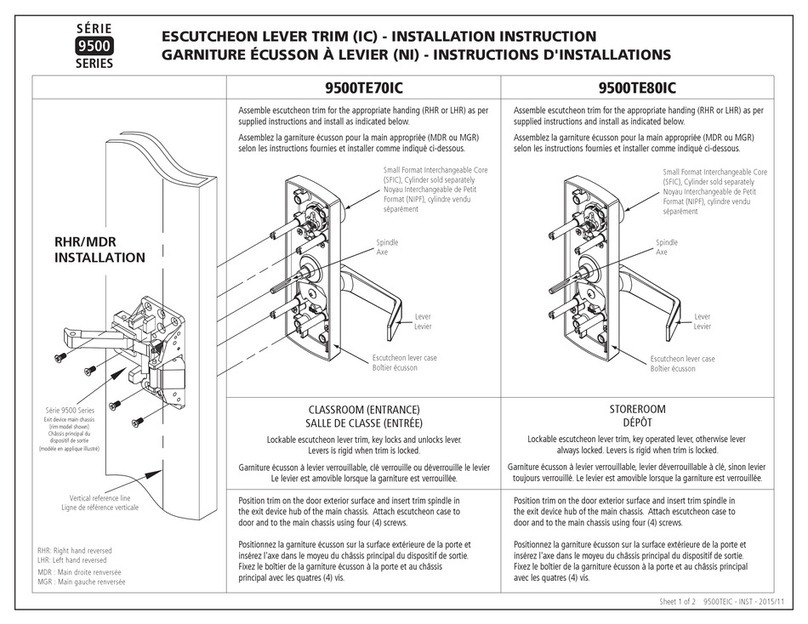

3. Insert exterior trim into prepared holes on the door’s exterior surface, then follow the installation instructions supplied with trim.
4. Install mortise cylinder and secure with cylinder screw. NOTE: Lock body dictates the position of the trim posts and exit device chassis.
5. Place exit device chassis on the door’s inside surface, ensure that the chassis lever engages properly with the lock and retracts the
latch. Fasten the chassis and trim using supplied machine screws. Verify that trim operates latch as per trim function.
6. Attach the chassis to door surface with #10 pan head wood or #10-24 machine screws.
7. Level the mounting rail, then mark and drill holes for the rail mounting bracket and fasten to door with supplied screws.
8. Tighten all mounting screws.
9. Install strike and dust box and fasten using supplied screws.
B. VERIFICATION
1. Verify that the exit device retracts the mortise lock latch when push pad is depressed and engages properly with strike.
2. Verify the lock function.
3. Verify that the trim operates the mortise lock and retracts the latch.
4. Ensure that there is no binding once all screws are tightened.
5. If lever does not spring back after it is pressed down, ensure that the all posts in the door holes have not been distorted due
to holes misalignment. Provide sufficient clearance for all holes.
4. RAIL MODIFICATION AND INSTALLATION
3. FACEPLATE & COVER INSTALLATION
1. Verify that all mounting screws are sufficiently tightened.
2. Install and attach the lock body faceplate.
3. Install and attach the main chassis cover.
4. Install and attach the railing end cap.
1. Confirm length of device and determine if cutting is required
2. Determine length 'X' by subtracting 1 3/4" (45mm) from 'Y'
Mark cut-off point on rail and sliding cover and cut-off
3. Deburr edges of rail and sliding cover and install as per Section 2
9500M-INS-EN-2015-02 2/2
