Candy CBG620/1W User manual

ENGLISH INSTALLATION AND USER’S MANUAL
ARABIC تﯾﺑﺛﺗﻟاو مدﺧﺗﺳﻣﻟا لﯾﻟد
CZECH NÁVOD K INSTALACI A OBSLUZE
GERMANY INSTALLATION UND BENUTZERHANDBUCH
FRENCH MANUEL D'INSTALLATION ET D'UTILISATION
ITALIAN MANUALE DI INSTALLAZIONE E USO
NERTHERLANDS HANDLEIDING VOOR INSTALLATIE EN
GEBRUIK
POLISH INSTRUKCJA MONTAŻU I OBSŁUGI
RUSSIAN РУКОВОДСТВО ПО УСТАНОВКЕ И
ЭКСПЛУАТАЦИИ
SLOVAK INŠTALÁCIA A PRÍRUČKA POUŽÍVATEĽA
SLOVENIAN NAVODILA ZA MONTAŽO IN UPORABO

2
CONTENT
INTRODUCTION.......................................................................3
SAFETYPRECAUTION..........................................................3-4
PREPARE FOR INSTALLATION..............................................5
SKPECIFICATIONS..................................................................5
INSTALLATION......................................................................6-7
OPERATION..........................................................................7-8
MAINTENANCE........................................................................8
TROUBLESHOOTING..............................................................9
ENVIRONMENTALPROTECTION............................................9
INSTALLATION AND USER’S MANUAL

3
INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
Instructions related to the installation, use and maintenance of the
appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.
The cooker hood use high quality materials, and is made with a
streamlined design. Equipped with large power electric motor and
centrifugal fan, it also provides strong suction power, low noise operation,
non-stick grease filter and easy assembly installation.
SAFETY PRECAUTION
 Never let the children operate the machine.
 The cooker hood is for home use only, not
suitable for barbecue, roast shop and other
commercial purpose.
 The cooker hood and its filter should be
clean regularly in order to keep in good
working condition.
 Clean the cooker hood according to the
instruction manual and keep the unit from
danger of burning. There is a fire risk if
cleaning is not carried out in accordance
with the instructions.
 Forbid the direct baking from the gas
cooker.
 Please keep the kitchen room a good
convection.
 If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent similarly qualified persons in order to
avoid a hazard.
 There shall be adequate ventilation of the
room when the range hoods used at the
same time as appliances burning gas or

4
other fuels;
 he air must not be discharged into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels;
 Regulations concerning the discharge of air
have to be fulfilled.
 This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved.
 Children should be supervised to ensure that
they do not play with the appliance.
 Cleaning and user maintenance shall not be
made by children without supervision.
 Do not flame under the range hood.
 CAUTION: Accessible parts may become
hot when used with cooking appliance.
 The warning shall be in the same part of the
instructions that include details of how to
mount the equipment.
Electrical Shock Hazard
 Only plug this unit into a properly earthed outlet. If
in doubt seek advice from a suitably qualified
engineer.
 Failure to follow these instructions can result in
death, fire, or electrical shock.

5
Prepare for installation:
a. If you have an outlet to the outside, your cooker hood can be connected
as below picture by means of an extraction duct (enamel, aluminum,
flexible pipe or inflammable material with an interior diameter of 150mm)
b. Before installation, turn the unit off and unplug it from the outlet.
c. The cooker hood should be placed at a distance of 65~75cm above the
cooking plane for best effect.

6
Specifications

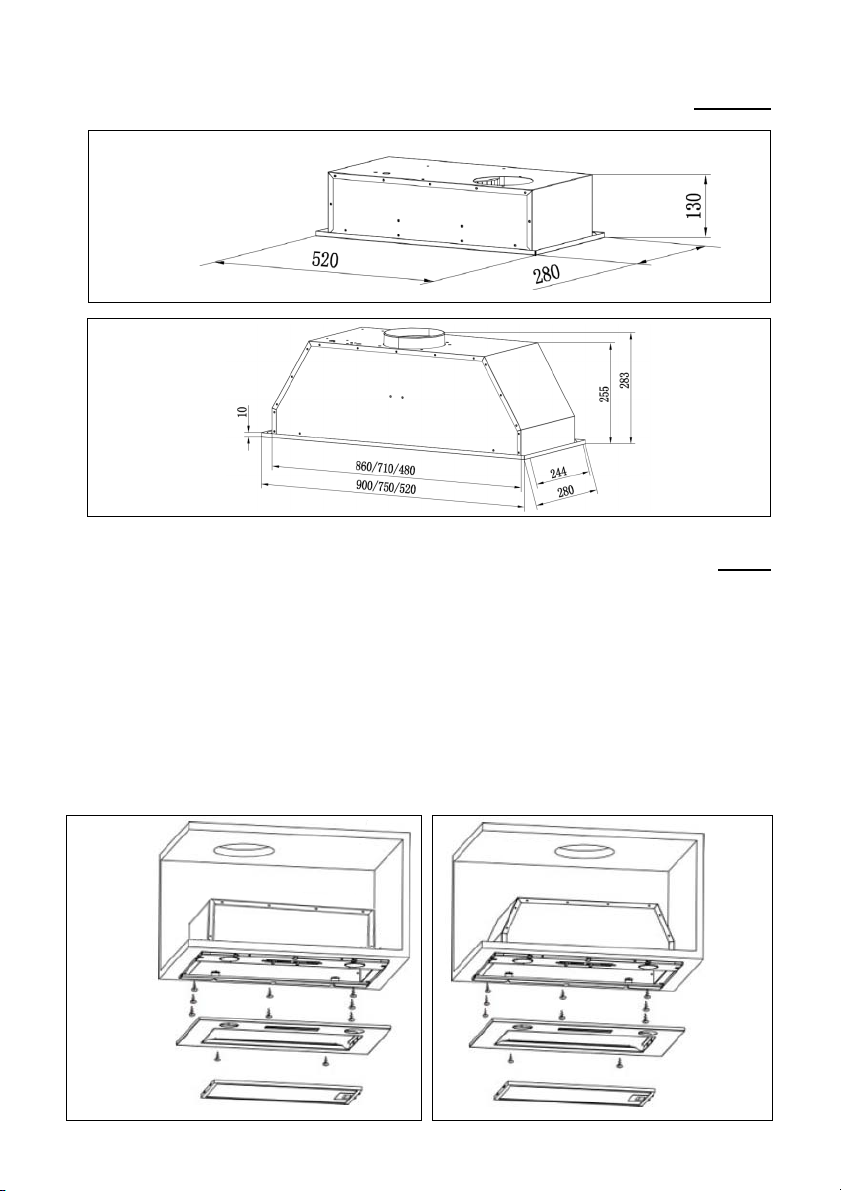

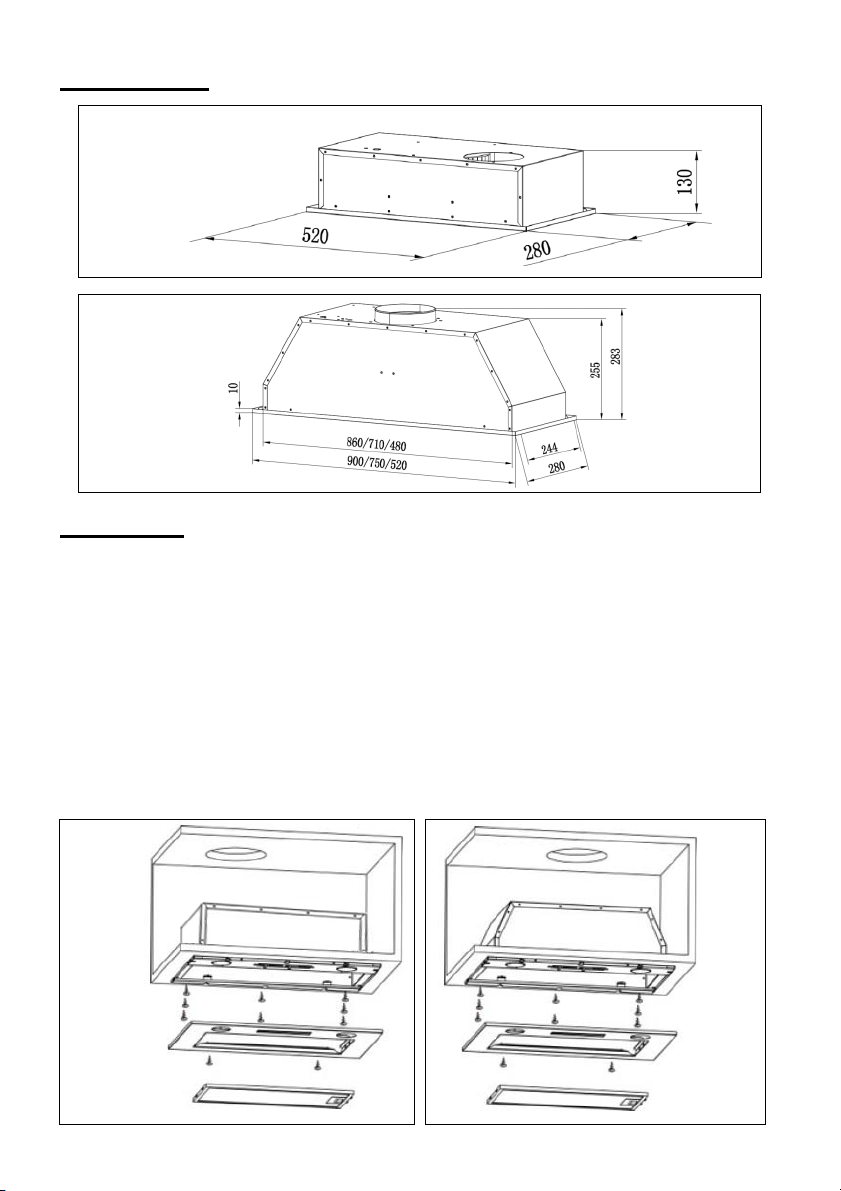

Installation
–The typical installation method for your range hood is into a purpose
built overhead/wall cabinet.
– Using a jigsaw, create the required cut-out for your range hood,
as 490 × 250mm
– Make sure the cut-out is at least 35mm from the cabinet edge.
– Remove the grease filter and remove the 2 screws on the panel.
– Screw the range hood into the cabinet using 8 screws (supplied).
– Re-fit the panel with the 2 screws (previously removed).
CBG620/1X
CBG620/1W
CBG620/1N
CBG625/1X
CBG625/1W
CBG625/1N
CBG640/2X
CBG6250/1X
CBG620/1X
CBG620/1W
CBG620/1N
CBG625/1X
CBG625/1W
CBG625/1N
CBG52SX
CBG640/2X
CBG6250/1X
CBG52SX

7

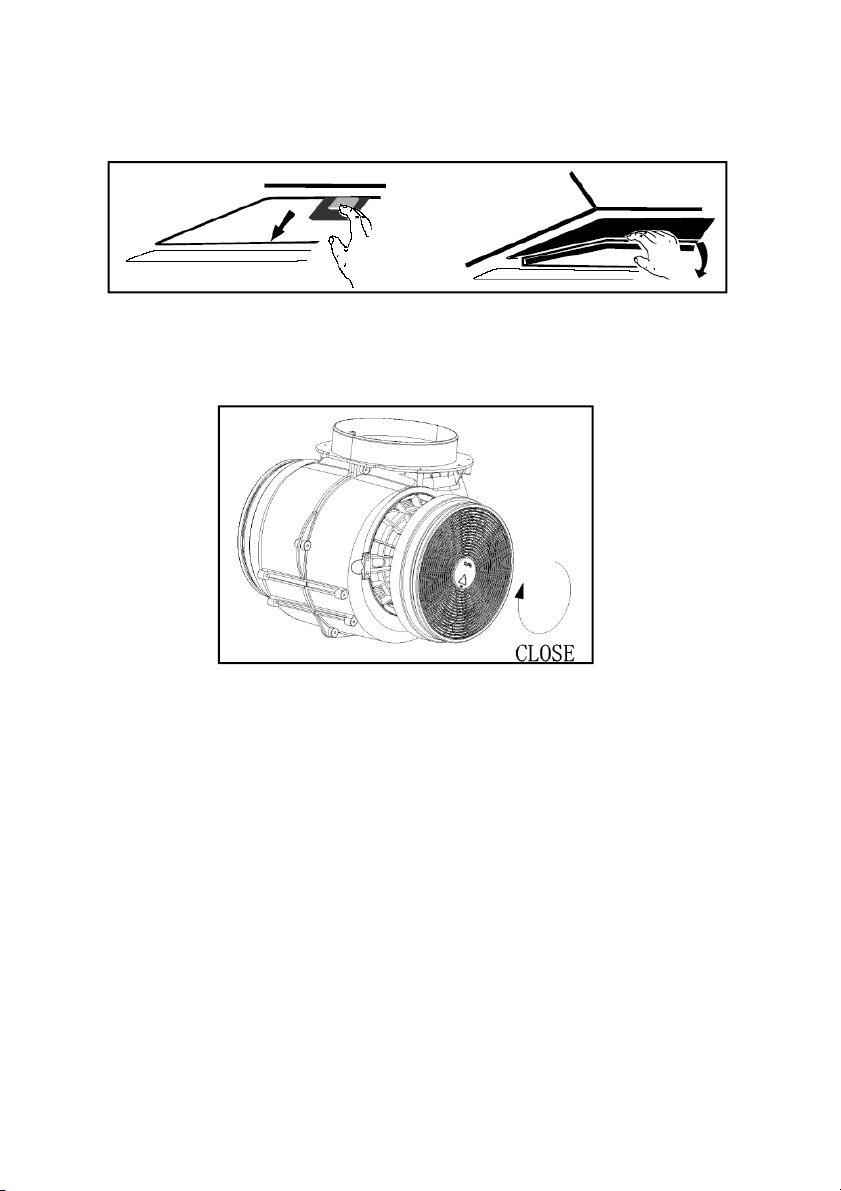

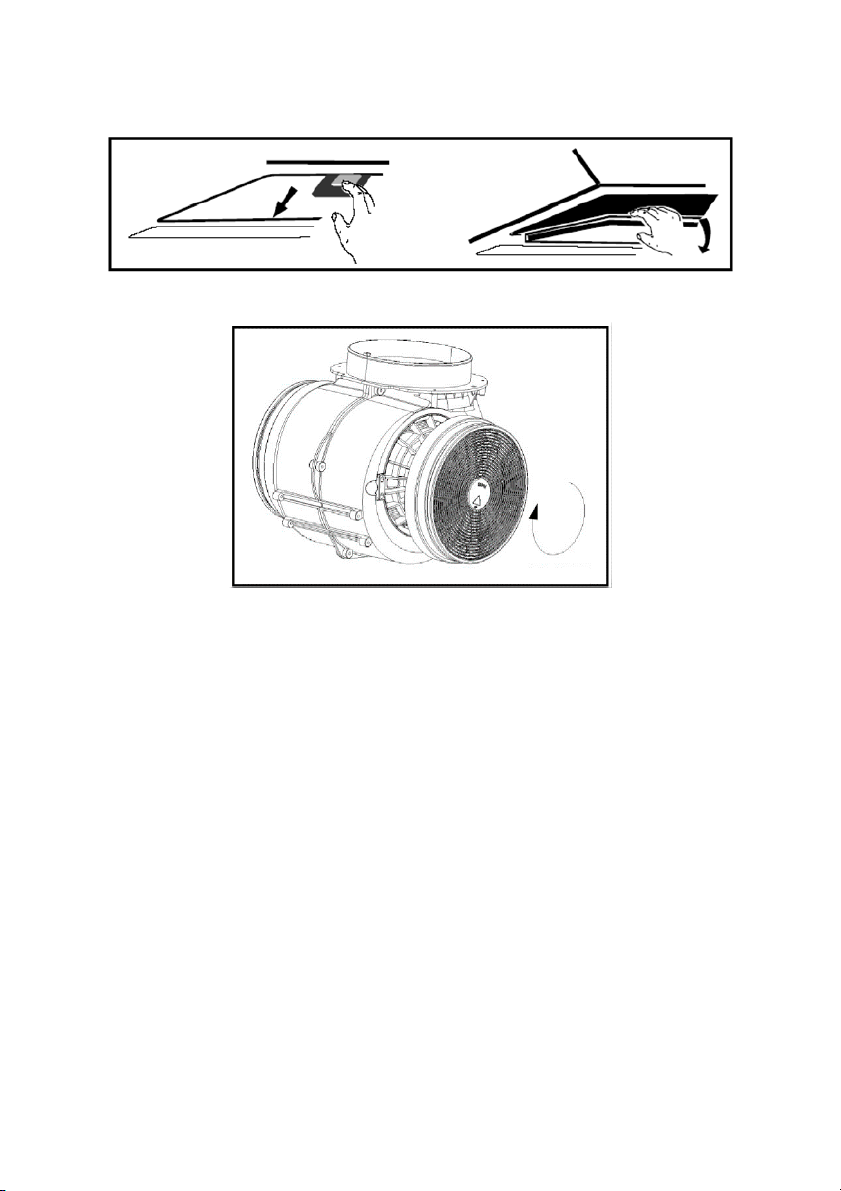

Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first. Press the lock and pull it downward.
Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side.
NOTE:
oMake sure the filter is securelylocked. Otherwise, it would
loosen and cause dangerous.
oWhen activated carbon filter attached, the suction power will
be lower.

8
DESCRIPTION OF COMPONENTS
OPERATION

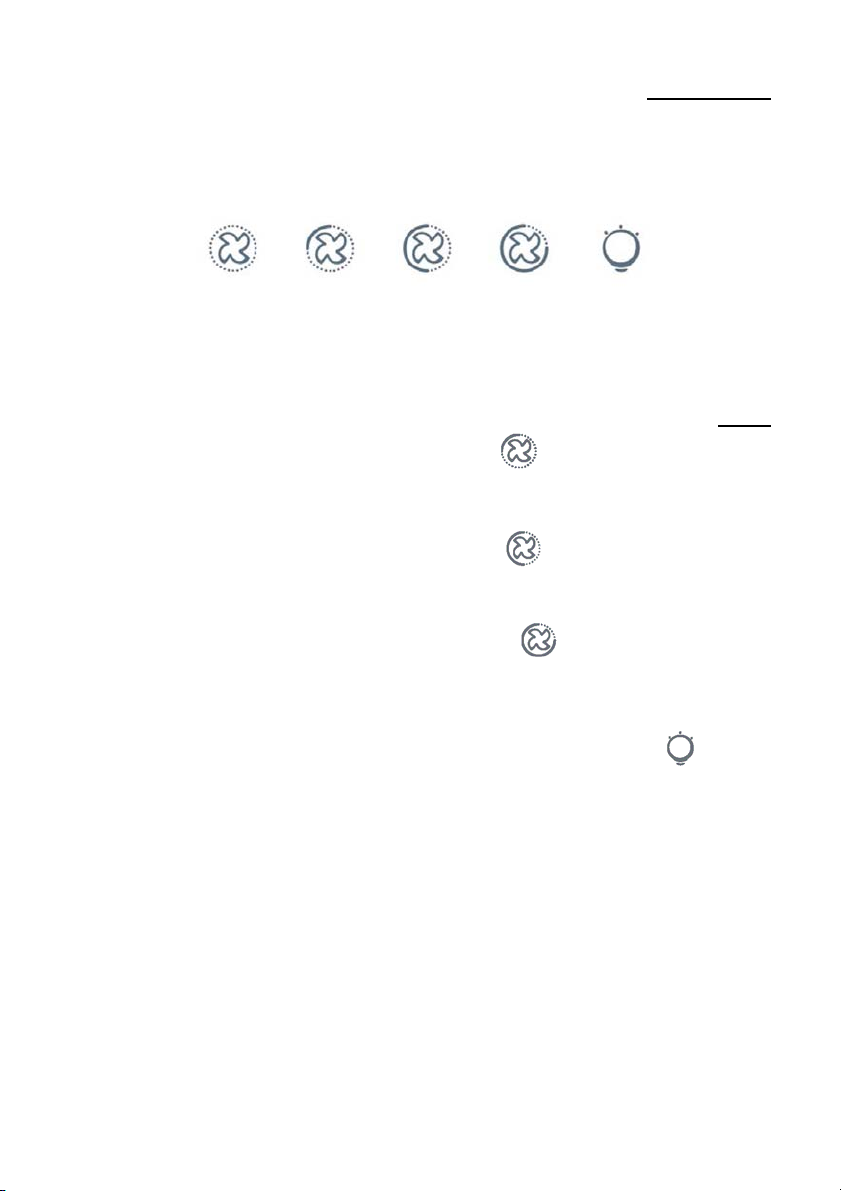

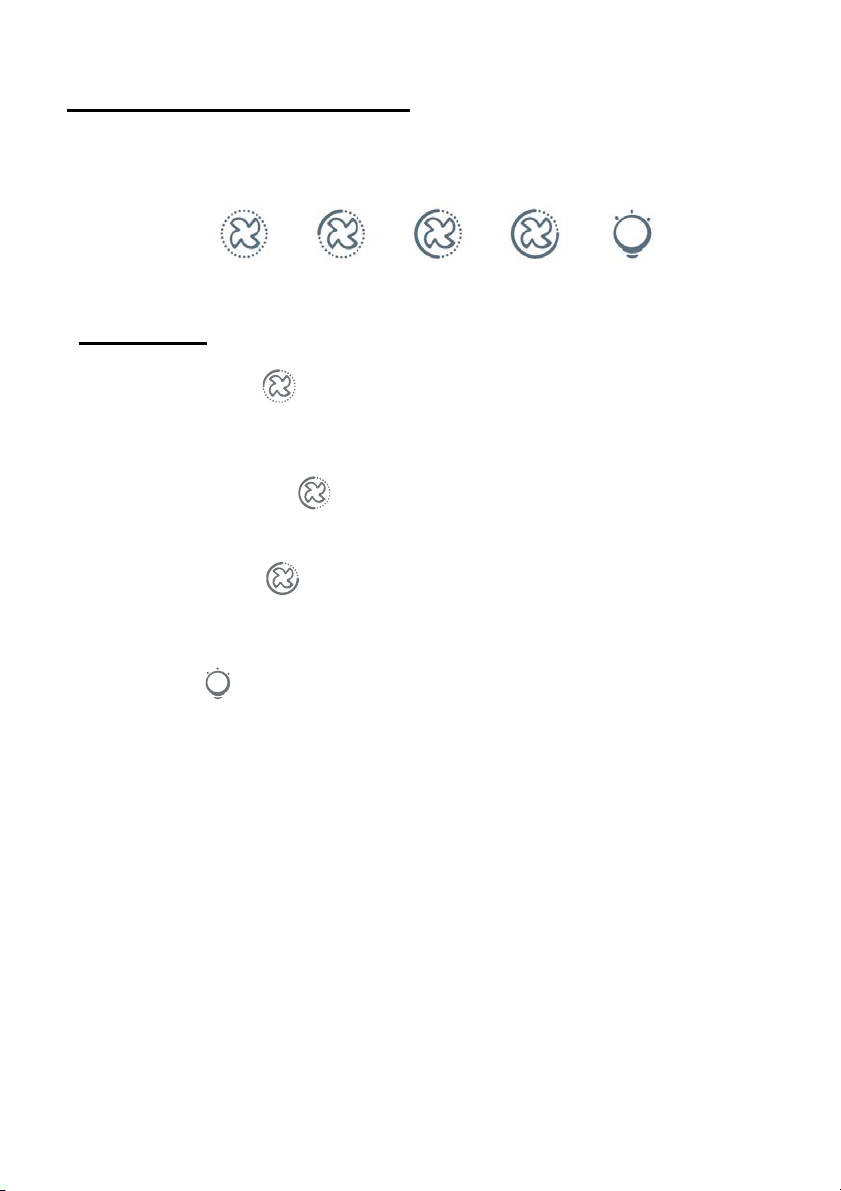

Low Speed button 1
It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking
which do not make much steam.
Medium Speed button 2
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button 3
When high density of smoke or steam produced, press high-speed button for
highest effective ventilation.
Light button
NOTE: If Low / Medium / High speed buttons are press at the same time, the
unit will only operate at the highest speed.

9
MAINTENANCE

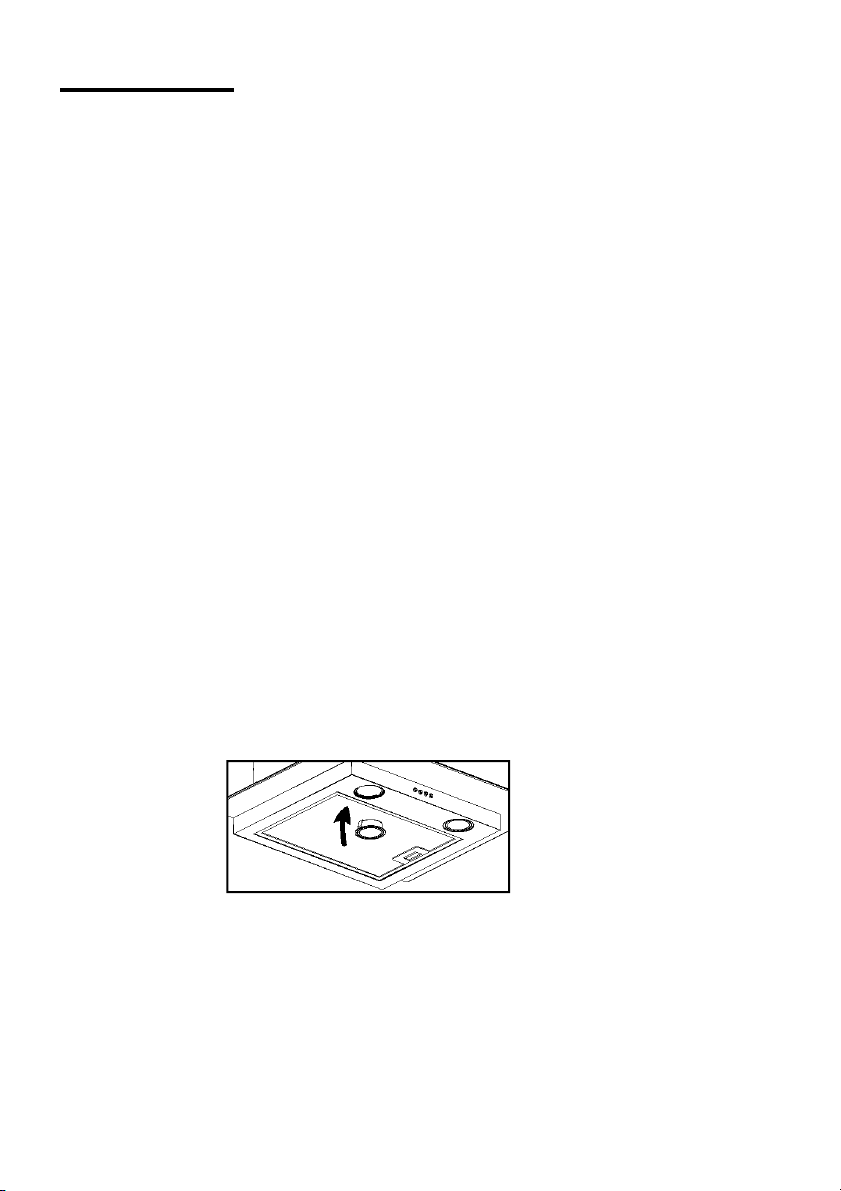

Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or household
cleaning detergent. Never use metal pads, chemical, abrasive material or stiff
brush to clean the unit.
II. Monthly Cleaning for Grease Filter
ESSENTIAL: Clean the filter every month can prevent any risk of fire.
The filter collects grease, smoke and dust…...so the filter is directly affecting
the efficiency of the cooker hood. If not cleaned, the grease residue (potential
flammable) will saturate on the filter. Clean it with household cleaning
detergent.
III. Annual Cleaning for Activated Carbon Filter
Apply SOLELY to unit that installed asa recirculation unit (not vented to the
outside). This filter traps odours and must be replaced at least once a year
depending on how frequent the cooker hood used.
III. Bulb Replacement
1.Switch the unit off and unplug the appliance.
2.Remove the lamp cover by unscrewing the 2 screws.
3.Unscrew the LED lamp
4.Replace with the same type and lamp
LED lamp (220V max,2W).

10
TROUBLESHOOTING
Fault Cause Solution
Light on, but fan
does not work
The fan blade is jammed.
Switch of the unit and repair by
qualified service personnel only.
The motor is damaged.
Both light and
fan do not work
light bulb burn. Replace the bulb with correct rating.
Power cord looses. Plug in to the power supply again.
Serious
Vibration of the
unit
The fan blade is
damaged.
Switch of the unit and repair by
qualified service personnel only.
The fan motor is not fixed
tightly.
Switch of the unit and repair by
qualified service personnel only.
The unit is not hung
properly on the bracket.
Take down the unit and check
whether the bracket is in proper
location.
Suction
performance
not good
Too long distance
between the unit and the
cooking plane
Readjust the distance to 65-75cm
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice.
This appliance is marked according to the European directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The symbol on the product indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment
Disposal must be carried out in accordance with local environmental regulations
for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.

11
