2. Introduction
2-1 PRODUCT FEATURES
Ergonomic and lightweight
Laser type, CCD type and RFID (support Mifare 13.56Mhz) available.
With 128 x 128 Color Display Screen.
7 Keys for easy operation and user interface friendly.
Build in memory for easy data transmission, and no extra software
needed for data transmission.
Memory can stored up to more than 100,000 barcode data with time
stamp ( bas-on EAN-13 barcode symbology)
IP54 standard for hospital, retail shop use.
Easy kernel and graphic update.
Development tool kit available for user to develop preferred
application.
2-1 PRODUCT FEATURES
2
.
Introduction

9
2. Introduction
2-2 PRODUCT SPECIFICATION
Model No. T110 Data Terminal
Microprocessor 32 bits CPU
Main battery operation
times
15,000 scans in Bluetooth Mode
( 5 sec /per scan)
Supported barcodes
Code 39, INT 25, Industrial 2 of 5, Matrix 2 of 5,
Codabar(NW7), Code 93, Code 128,EAN 128,
JAN/EAN/ UPC and fully RSS code (GS1
Databar )
Min. PCS value 0.45
Scan
Engine
CCD
Type
630nm Red LED LAMP, Linear CCD Image
Sensor
Scan rate : 100 scan/sec
Scan distance : 50mm~250mm
Laser
Type
Visible Laser Diode 650nm ±10 ( 25°C)
Scan rate : 100 scan/sec
Scan distance : 50mm~350mm
Main battery Built in Rechargeable Li-polymer battery
pack.,(3.7V, 420mAH) charging via USB port
Keys 7 keys, including Power, Scan, Function, Up,
Down, Enter and Return keys.
Beep indicator Buzzer can be disable or enable by
configuration
Temperature in
operation -10 ~ +40
℃
Environment Humidity
10%-90%RH
Certification FCC / CE / RoHS approved
Operation system Windows XP/2000/Vista/Win 7
Dimension (L x W x H) 89 x 40 x 17.5 mm
Weight CCD : 75g / Laser : 85g
Power consumption CCD : 90mA / Laser : 60mA
2-2 PRODUCT SPECIFICATION

10
2. Introduction
2-3 PACKAGE INFORMATION
The package included: Data terminal, , power adaptor (optional), Lanyard,
USB cable, Quick start guide, product CD.
Note: The product CD includes: Quick start guide, user manual,
Bluetooth setting software, barcode scanner setting software.
(Optional)
2-3 PACKAGE INFORMATION

11
2. Introduction
2-4 DEFAULT SYMBOLOGIES
Symbologies Default setting
EAN/ UPC
UPC-A Enabled
UPC-E Enabled
EAN-8 Enabled
EAN-13 Enabled
EAN-13(ISBN) Disabled
Code 39
Enabled
Interleaved 2/5
Disabled
Industrial 2/5
Disabled
Matrix 2/5
Disabled
Codabar/ NW7
Enabled
Code 128
Enabled
Code 93
Disabled
Code 11
Disabled
MSI/ Plessey
Disabled
UK/ Plessey
Disabled
Telepen
Disabled
GS1 Databar
(RSS)
RSS14 Disabled
RSS14 Limited Disabled
RSS 14 Stacked Disabled
RSS Expansion Disabled
RSS Expansion Stacked Disabled
2-4 DEFAULT SYMBOLOGIES

12
2. Introduction
2-5 FUNCTION KEYS
Important Notice:
Please be aware, flat battery will cause for data lost. Please back up your
data before total power lost.
2-5 FUNCTION KEYS
Enter Key: Option Selection
Escape Key: return to upper
page.
UP Key: Scrolling Up
Down Key: Scrolling
Down
Scan Key: Collect barcode
data
Function Key: In “collect
data Mode” this function
enables to erase single
barcode data.
Press the function key and
point to the previously
scanned barcode, this
action will erase the
previous saved barcode
data in the memory.
Power Switch:
1) Press and hold for few
seconds: Power ON /
OFF.
2) Press once: Data
terminal will turn into
sleep mode for power
saving.
3) Press and hold for 20
seconds: Data Terminal
Restart when system
crash.
LED display Screen: 128 x
128 LED screen
Mini USB port / Strap Hole.

13
3. Data Collector Operation
Chapter 3: Data Collector Operation
Data Collector Operation
3-1 Data Collector Operation Mode
3-1-1 Collect Data
3-1-2 Mass Storage
3-1-2-1 How to access and back up the barcode data.
3-1-3 Cabled Reader
3-1-4 Setting
3-1-4-1 Display mode
3-1-4-2 Color Theme
3-1-4-3 Beep Volume
3-1-4-4 Key Tone
3-1-4-5 Vibration
3-1-4-6 Back Light
3-1-4-7 Brightness
3-1-4-8 Date/ Time
3-1-4-9 Language
3-1-4-10 Return to Default
3-1-5 Information
3-1-5-1 Memory
3-1-5-2 Battery
3-1-5-3 Version
3-1-5-4 Last connection time
3-1-5-5 Delete All Data
3-2 How to update Kernel file

14
3. Data Collector Operation
3-1 Data Collector Operation Mode

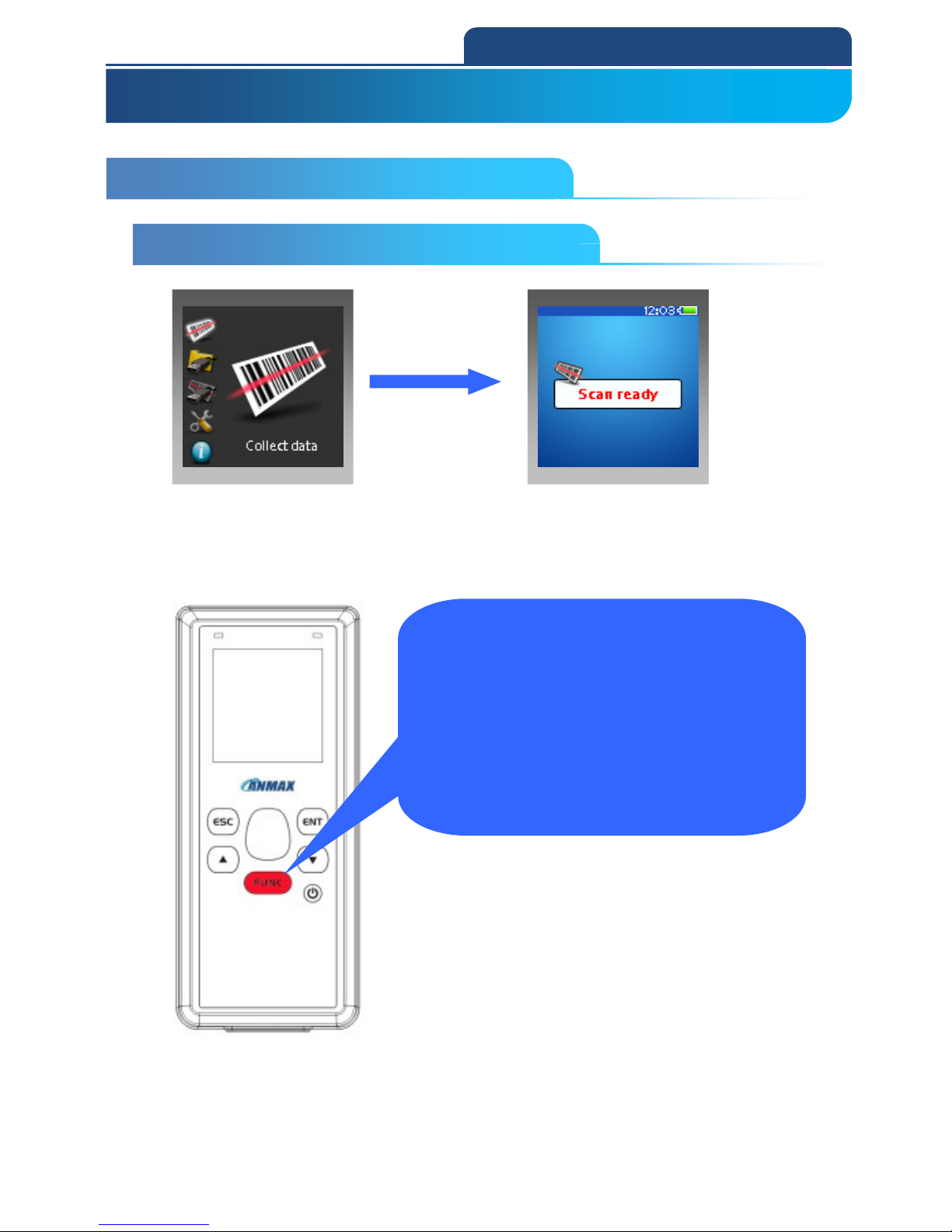

3-1-1 Collect data
Select “Collect Data” option, the data collector will be able to collect the
barcode data by pressing “Scan” key and save the data in the memory.
3. Data Collector Operation
3-1-1 Collect Data
3-1 Data Collection Mode
When collecting barcode data, user can
also use function key to erase the
mistaken scanned barcode data from the
memory.
Press Function key and aim to the barcode
label that had previously scanned, it will
erase that single previous scanned data.

15
3. Data Collector Operation
3-1-2 Mass Storage
Select
1. Mass Storage
2. Connect the USB cable between data terminal and PC.
3. When USB connection succeeded, the PC will display the external
removable disk.
After collecting the barcode data and access to mass storage option, the
PC will display the external “removable disk”, which contains your saved
barcode data.
3-1-2 Mass Storage

16
3. Data Collector Operation
3-1-2-1 How to access and back up the barcode data.
Procedure:
1) Access to Mass storage Option from data terminal and follow the
instruction on the data terminal screen.
2) On the PC, click “auto.bat” to compile the temporary saved barcode
data into a complete “barcode.dat” file.
3) Copy the “barcode.dat” file to your storage devices, and open the file
with any word processing software, for example, word, notepad, excel
to view the saved data.
3-1-2-1 How to access and back up the barcode data
(2) Click the “Auto.Bat” file, the
system will automatically
compile your temporary saved
barcode data into a complete
“barcode.dat” file.
(3) Copy the “barcode.dat” file
that compiled by”auto.bat” to
PC, and open the file with any
word processing software, for
example, word, notepad, or
Excel to view the saved
(1) Access to
1. Mass Storage
2. Connect the USB cable between
data terminal and PC.
3. when USB connection
succeeded, the following
dialogue box will be shown

17
3. Data Collector Operation
3-1-3 Cabled Reader
Select Cabled reader option, and plug in the USB cable, the data terminal
can switch into a USB type barcode reader. Simply open any word
processing software for example, Notepad, or Word to received the
barcode data.
3-1-4 Setting
3-1-4-1 Scan display mode
When collecting barcode data, there are three different types of
displaying mode on the screen.
1. Total sum of current barcode data.
2. Date/ Time display.
3. Barcode symbology type display.
3-1-3 Cabled Reader
3-1-4 Setting
3-1-4-1 Display Mode
Record
Time
Symbol

18
3. Data Collector Operation
3-1-4-2 Color Theme
There are four different color themes that can be choosing.
3-1-4-3 Beep Volume
Beep Volume is adjustable according to different
environment. Use up or down scrolling key to
adjust the volume.
3-1-4-4 Key Tone
Three different key tones can be selected.
Key Tone:
DaDa
Zhu Zhu
Mute
3-1-4-2 Color Theme
3-1-4-3 Beep Volume
3-1-4-4 Key Tone

19
3. Data Collector Operation
3-1-4-5 Vibration
This option enables to configure the vibration
function,
Please note that this function is only available when
optional purchased vibrator installed.
3-1-4-6 Back light
This option enables to configure the LED backlight
timing.
Adjustable Timing:
10 sec, 30 sec, 1 min, 2 min, 3 min
3-1-4-7 Brightness
This option enables to configure the brightness of
the LED screen. Use up or down scrolling key to
adjust the brightness level.
3-1-4-8 Date/ Time
This option enables to configure the date and time
for the data collector.
3-1-4-5 Vibration
3-1-4-6 Back Light
3-1-4-7 Brightness
3-1-4-8 Date / Time

20
3. Data Collector Operation
3-1-4-9 Language
There are four different kinds of language option for data collector
display language.
Language:
English
Chinese
Simplified Chinese
Japanese
3-1-4-10 Return to default
This option enables the data collector
configuration settings reset to default setting.
3-1-4-9 Language
3-1-4-10 Return to default
