Canofix Eco Friendly Canopy User manual

Installation Manual
Imported and Distributed by Kims Group Inc.
*Required Tools

2

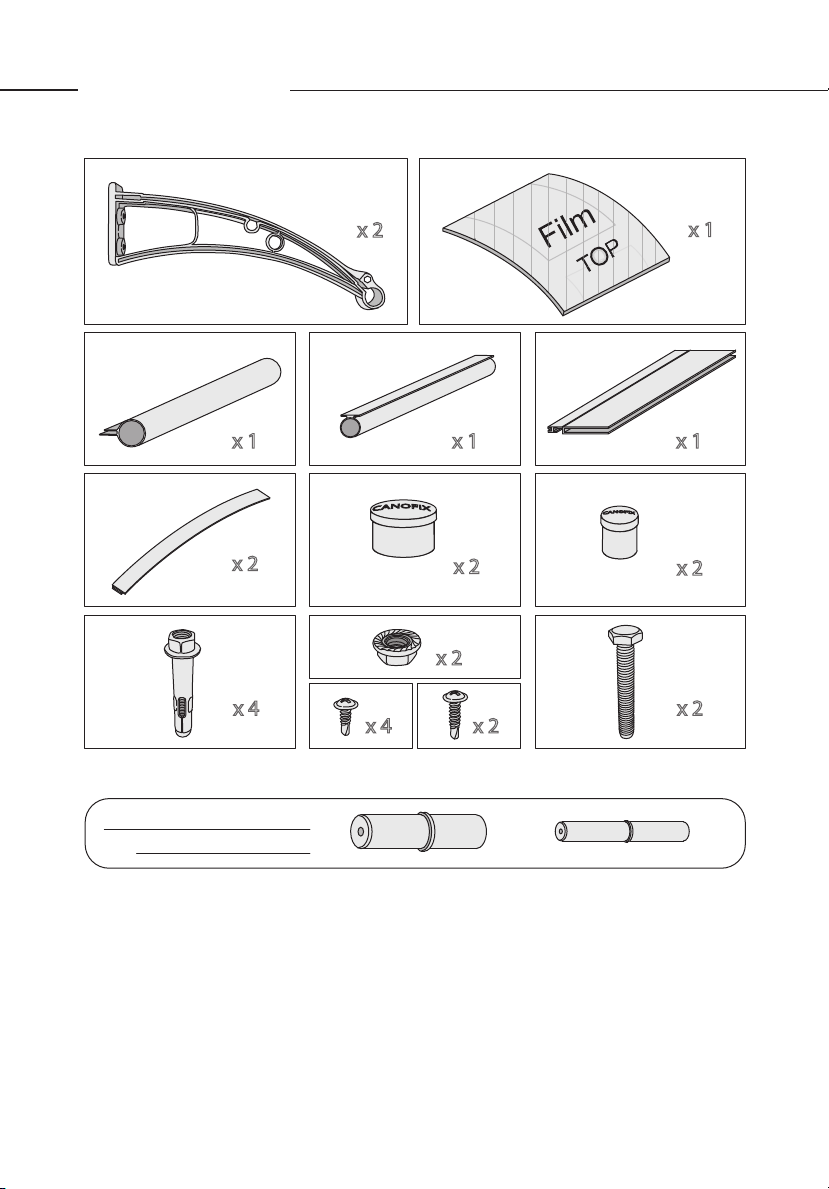

Assembly Contents
*Extensions are included
only over 48”models
*Note : You will receive more parts if you ordered over 40” model
Attention:
You are solely responsible for determining whether the handling, storage, assembly, installation or use of this
product is safe and appropriate in any location or for any given application. Kims Group Inc. is not responsible
for any damages or injury to you, any other person or any property resulting from the improper handling,
storage, installation, assembly or use of this product, or the failure to follow Kims Group Inc. written instructions
regarding the handling, storage, installation, assembly and use of this product. This product is intended for
normal residential use only. Do not use this product for any application that is not recommended in these
instructions or building codes in effect in location where this product will be used. Alway take care and use
appropriate safety equipment (including eye protection) when assembling or installing this product.

3
How to use Anchor Bolt
Use 1/2" hammer drill bit to drill
through the brick.
Drill hole to any depth exceeding
minimum embedment.
If you are using bolts not provided
by the distributor, please use the
correct drill bit accordingly.
Insert the anchor bolt onto the
bracket into the hole, so that
washer or head is flush with
materials to be fastened.
*DO NOT unscrew the head. Insert
it as is. If it is stiff, use hammer to
insert.
Expand anchor by tightening the
nut.
3.
2.
1.
Brick Wall
Brick Wall
Brick Wall

4
1 Anchor the Brackets
Use anchor bolt on brick wall.
Or use wood screw (not included) on other surfaces such as
wooden wall, studs behind sidings, etc.
Follow the instruction on page 02, how to use anchor bolt
Total width of Canofix Awning
Use leveler to
align brackets
Tip
Recommanded
1~3 inch space
Total width of Canox
Use wood
screw on
wooden wall
Tip
Use the following
x 2 x 4

5
2 Insert the base clip frame fully
Top
Bottom
3 Mark the base clip frame to cut with pen
Top View
4 Cut the mark with saw 5 Break the part between marks
wall

6
6 Insert the base clip frame fully
Top
Bottom
Top View
wall
Insert fully against the wall
Use the following
Insert fully against the wall

7
7 Insert aluminum bars
Over 48” model, use
extensions between bars
Top
Bottom
Use the following

8
8 Insert the Polycarbonate Panel
Remove the lm on Polycarbonate
sheet before insert
STEP 1
STEP 2
side view
side view
Use the following
Remove the lm on
Polycarbonate sheet
before insert
The transparent film
side should face the
bottom

9
9 Close the brackets
Use the following
Align the Polycarbonate sheet and bars before bolting brackets

10
10 Bolt on Bracket to hold bars and Polycarbonate Sheet
Straighten the Polycarbonate Panel and barsbefore bolting the brackets
STEP 1
bottom view
STEP 2
bottom view
Use the following
Tip
Using drill/driver, screw the
bracket to the support bars
L
S
S
L
S
S
L
L
S
S
S
You won't need to use
all screws in the package
as extras are provided.

11
11 Insert edge trims
Finalize with Caulking.
Only use caulking certified for
exterior purposes.
