Read this guide before setting up the wireless LAN
This guide describes the wireless LAN setup procedure and
problems encountered during the configuration.
After you finish reading this guide, store it in a safe place for
future reference.
Starter Guide
Troubleshooting
XXXXXX
XXXXXXXXX
？
P. 2 - 1P. 1 - 1
Wireless LAN Setting Guide
For procedures other
than printer installation
and wireless LAN setup,
please refer to the
[Starter Guide].
Setting the
wireless LAN

1-1
Setting the wireless LAN
For more information, see the instruction manual for the network device you are using, or contact the networking device manufacturer.

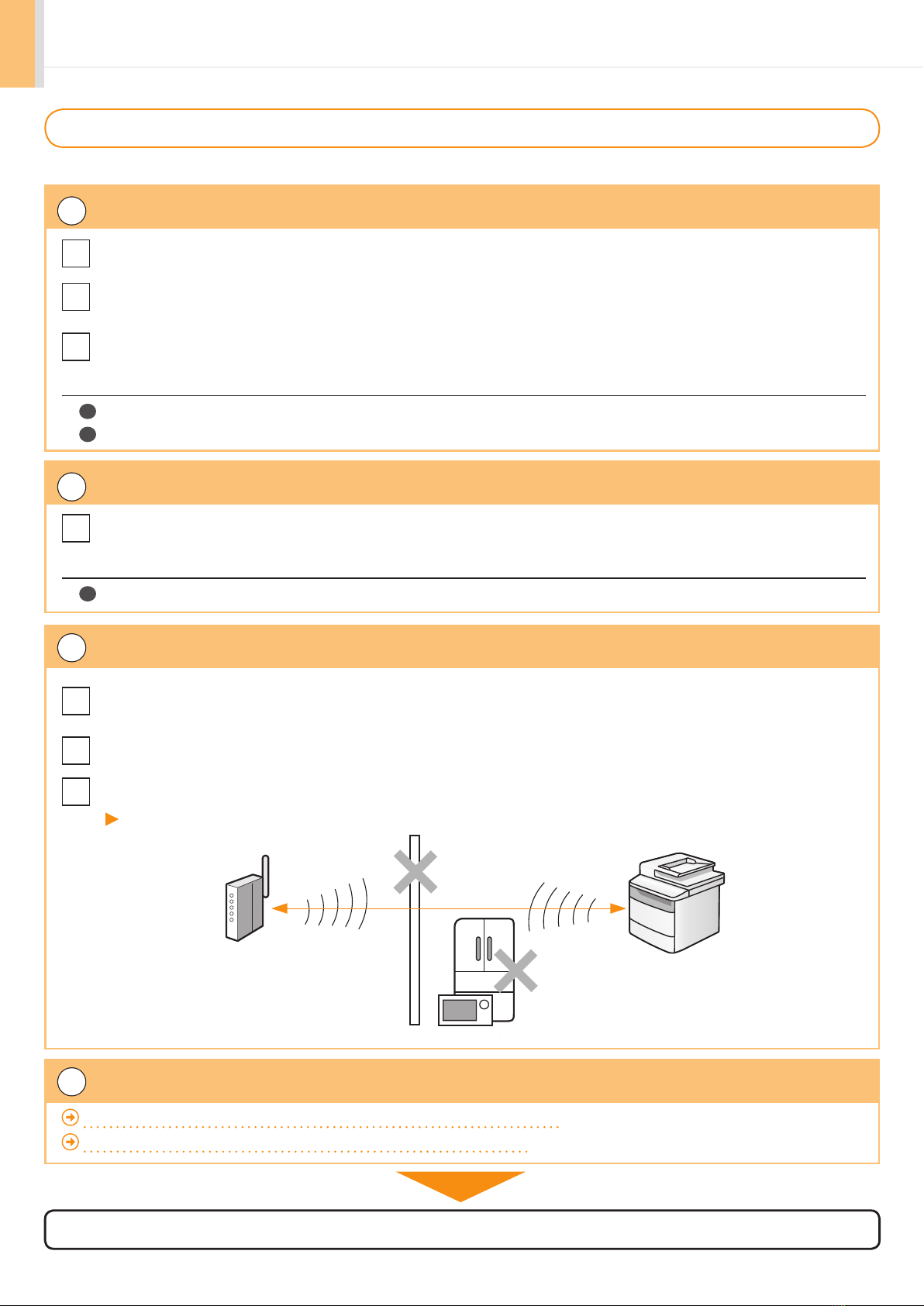

Step1 Checking Before the Setup
The setup of the computer and wireless LAN/access point should be completed.
If they are not set up, you will not be able to use the machine on the wireless LAN network even if you perform the following steps.
Once you have checked the connection settings, proceed to “Step2 Switching the Connection Method to Wireless LAN”
on the next page.
Precautions when connecting to a wireless LAN
• The structure of your computer or networked device, the existence of router functions, setting methods and security settings vary depending on your
environment.
• You can connect the machine to wireless LANs or wired LANs, but you cannot use both at the same time. When using a wireless LAN connection, do not
connect a LAN cable to the machine. This may cause the machine to malfunction.
• If using the machine in your office, consult with your network administrator.
Required Environment
Internet
Wireless LAN router
or
access point

1-2
Setting the wireless LAN

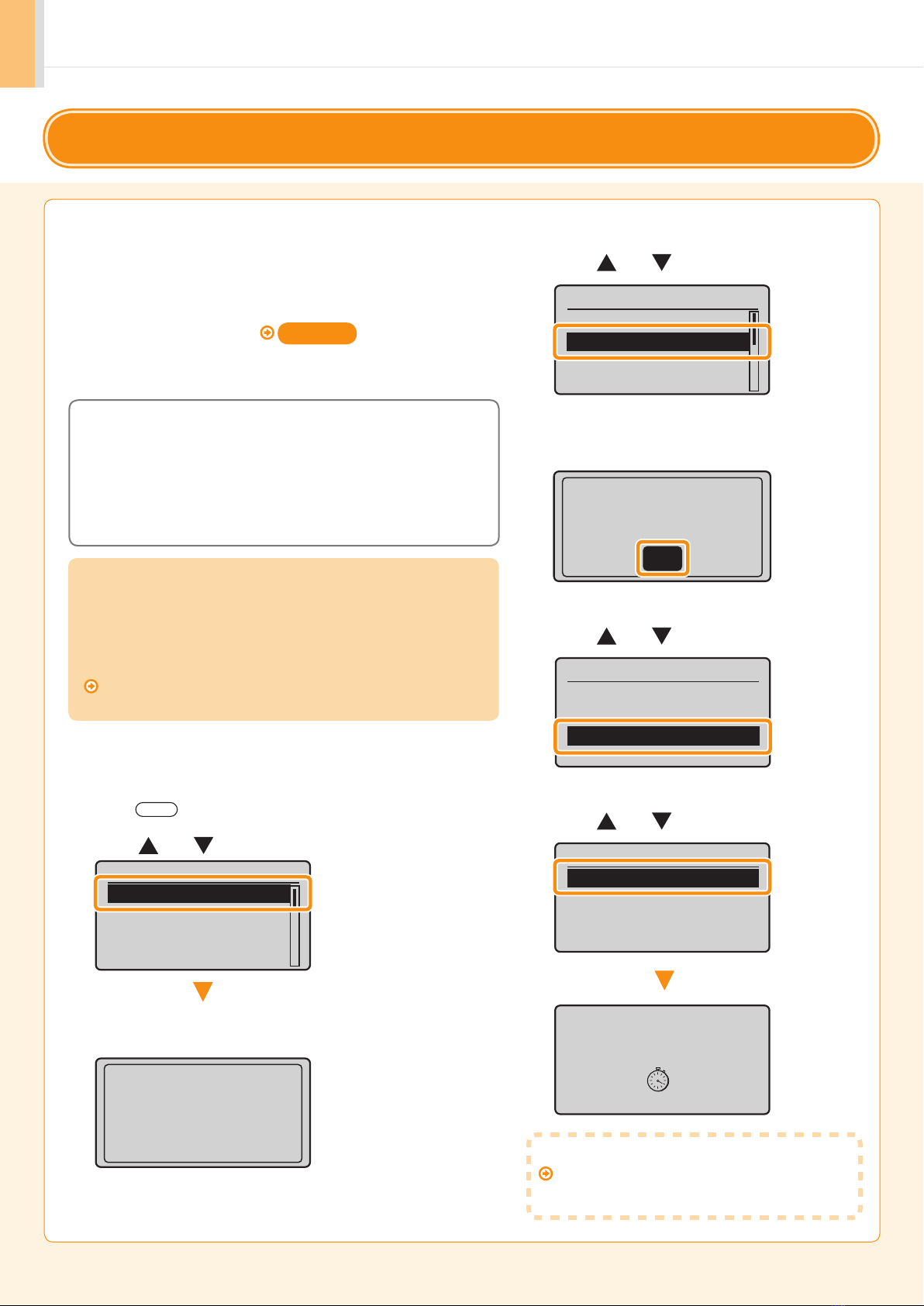

1. Press [ ] (Menu).
2. Press [ ] or [ ] to select, and press [OK].
The next screen is displayed for approximately 5
seconds.
It is not necessary to turn OFF/ON the main
power of the machine here. It will be done on
Step 5.
3. Press [ ] or [ ] to select, and press [OK].
4. Press [ ] or [ ] to select, and press [OK].
5. After the next screen disappears, turn OFF/ON the
machine.
Network Settings
Select Wired/Wireles
Wireless LAN Settin...
TCP/IP Settings
SNMP Settings
Select LAN
Wired LAN
Wireless LAN
Turn main power OFF
and ON to enable
Wired/Wireless LAN
selection.
Menu
Network Settings
Preferences
Timer Settings
Common Settings
Settings effective
after power is
turned OFF and ON.
When the check described on the previous page is completed, switch the connection method to wireless LAN using this
machine.
When the connection method has been changed,
proceed to “Step3 Selecting a Method for Setting the
Wireless LAN” on the next page.
It is necessary to turn OFF/ON the machine for the
settings to take effect.
ON
OFF
ON
OFF
Wait for 10 seconds at least
Step2 Switching the Connection Method to Wireless LAN

1-3
Setting the wireless LAN
Proceed to“Step4-A Setting the Machine Using the
WPS (Push Button Mode),” on P.1-4.
Proceed to “Step4-B Setting the Access
Point Manually and Connecting,” on
P.1-6.
No
YES
Is there a WPS button?
• For checking whether it supports the WPS, find the descriptions such as“...
supports WPS...” or shown on the wireless LAN router/access point or its
package.
• For further information, contact the manufacturer of the wireless LAN router/
access point.
Step3 Selecting a Method for Setting the Wireless LAN
Two methods are provided for connecting to the wireless LAN or access point, connecting using WPS (Wi-Fi Protected
Setup) function or connecting manually.
Refer to the following for“WPS PIN Code Mode”or manual setting such as security:
Proceed to e-manual’s “Network Settings” →”Basic Network Settings”→“Connecting to Wireless LAN”

1-4
Setting the wireless LAN

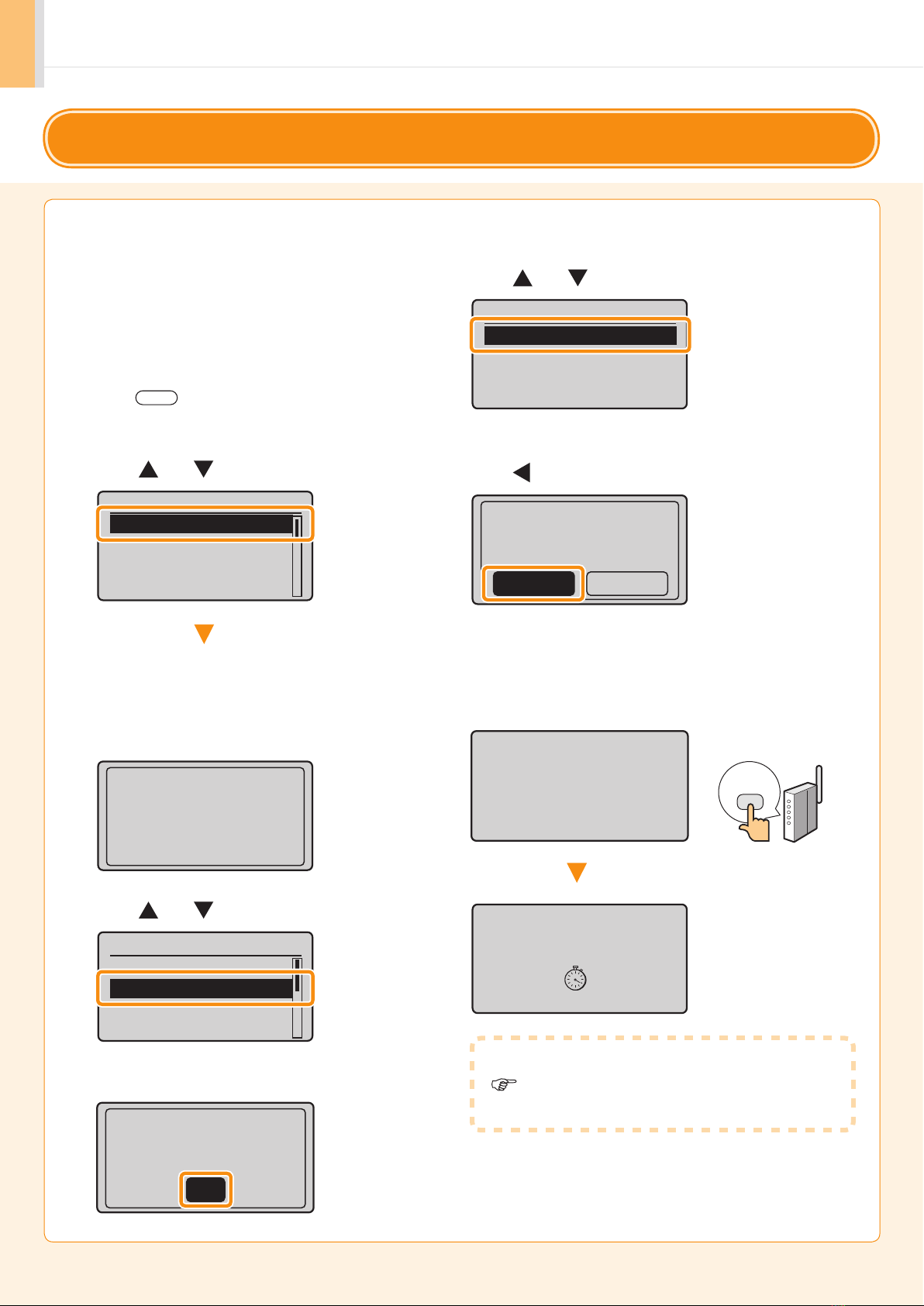

2. Press [ ] (Menu).
1. Make sure the procedure “Step2 Switching the
Connection Method to Wireless LAN” (P.1-2) is
completed.
3. Press [ ] or [ ] to select, and press [OK].
The next screen is displayed for approximately
5 seconds.
You do not need to turn the machine OFF and
ON at this stage.
6. Press [ ] or [ ] to select, and press [OK].
7. Press [ ] to select, and press [OK].
8. Within 2 minutes, press and hold the WPS button
on the wireless LAN router or access point for
approximately 5 seconds.
Wireless LAN Settings
WPS Push Button Mode
WPS PIN Code Mode
SSID Settings
Wireless LAN Informa...
Do you want to
connect with new
settings?
NoYes
Searching...
Press the access
point WPS button.
Cancel: Press Stop
Connecting...
Cancel: Press Stop
Menu
Network Settings
Preferences
Timer Settings
Common Settings

Settings effective
after power is
turned OFF and ON.
4. Press [ ] or [ ] to select, and press [OK].
Network Settings
Select Wired/Wirele...
Wireless LAN Setting
TCP/IP Settings
SNMP Settings
5. Press [OK].
See Wireless LAN
Setting Guide to
perform settings.
OK
Follow this procedure only if you selected Step4-A“Setting the Machine Using the WPS (Push Button Mode)” on the
previous page.
Step4-A Setting the Machine Using the WPS (Push Button Mode)
If “Cannot find access point” is displayed.
Press [OK] to close the screen and resume from
Step 6.

1-5

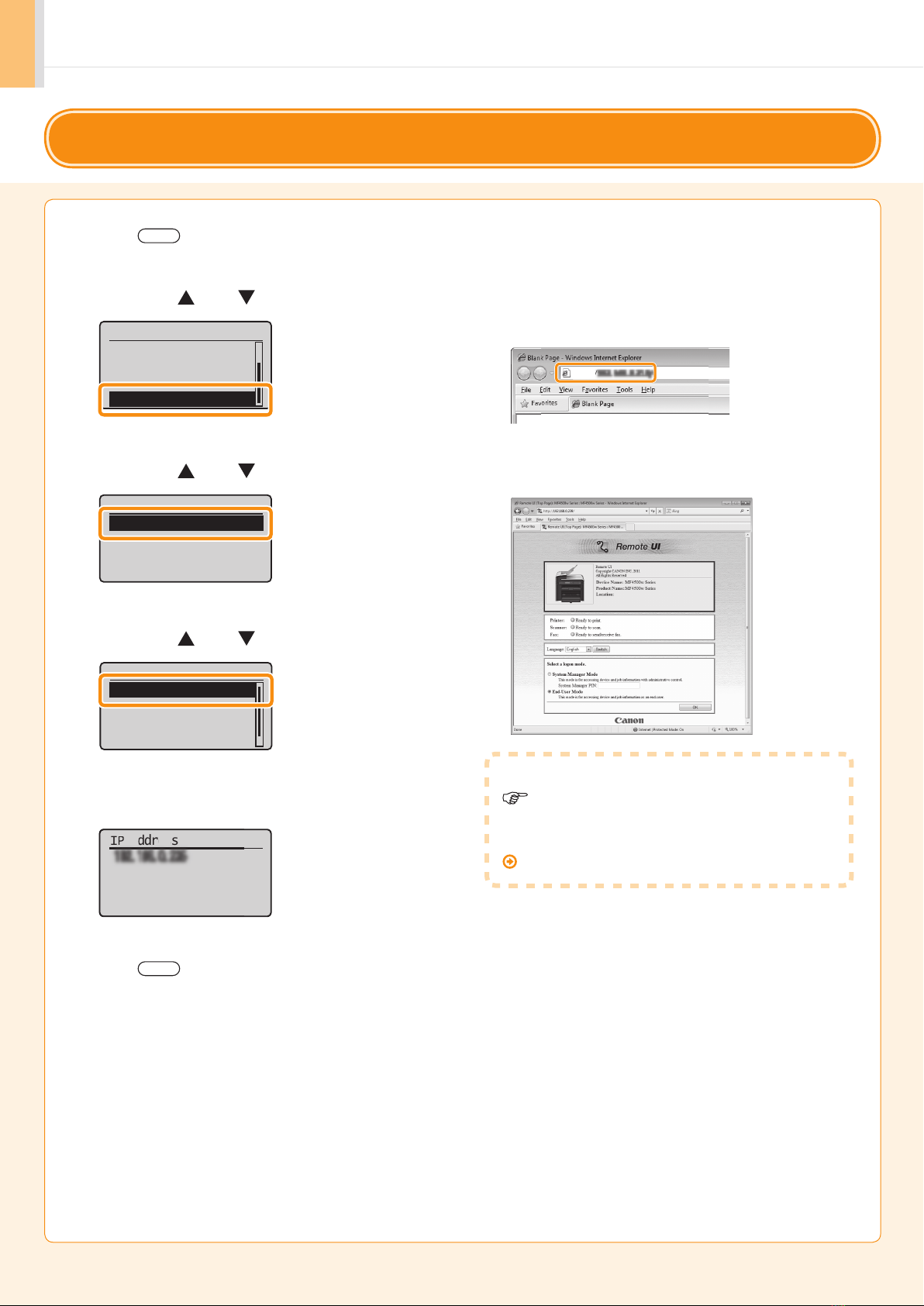

Setting the wireless LAN

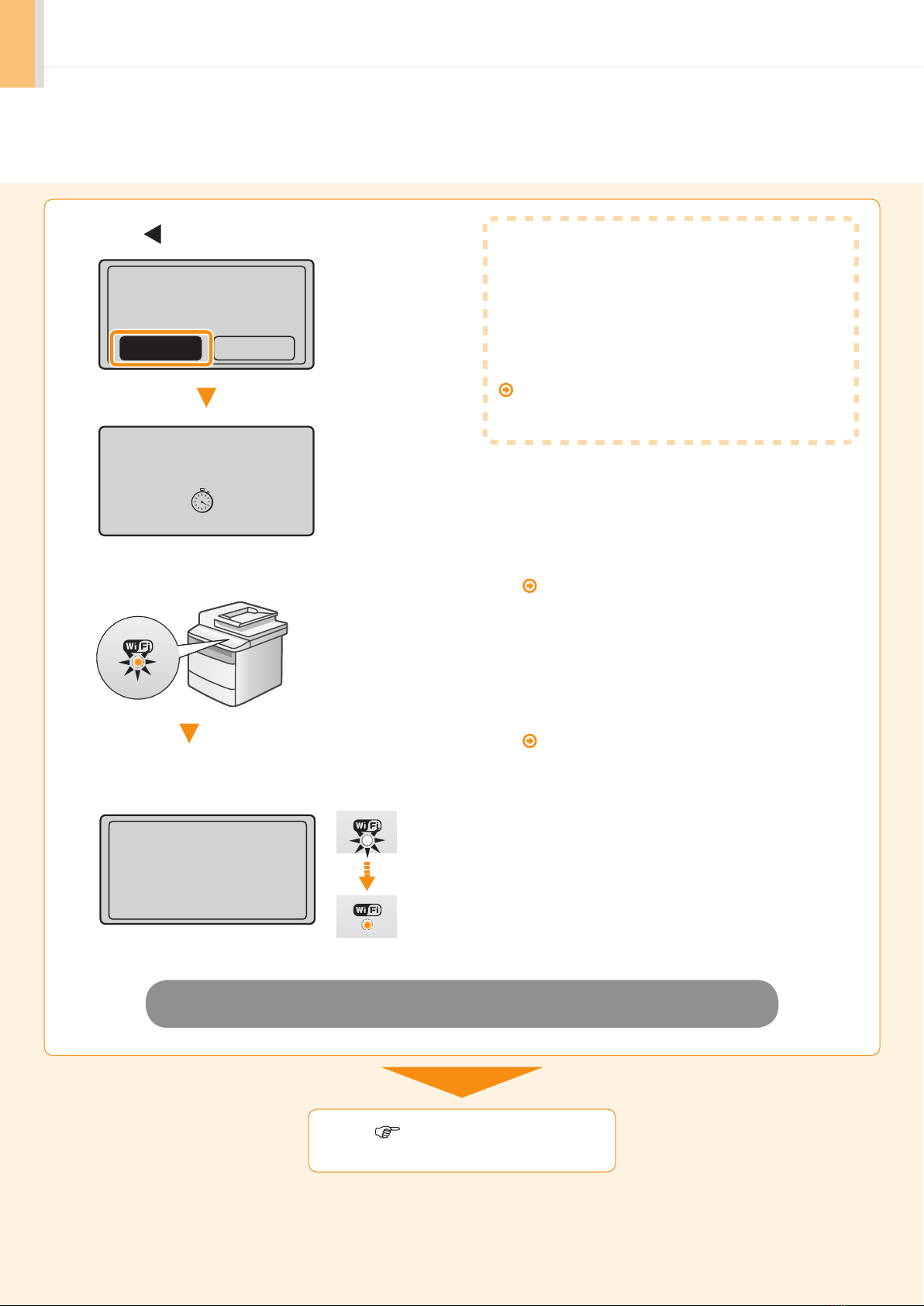

The next screen is displayed for approximately 2 seconds,
and the Wi-Fi indicator will start blinking.
10. Wait until the machine retrieves the IP
address automatically (approx. 2 minutes).
11. Check the network connections
If you want to set the IP address manually, see
the following.
e-Manual “Network Settings” -“Basic Network
Settings”- “Setting the IP Address”
Proceed to “Checking the Wireless LAN Setting
is Completed,” on p.Appendix-1.
Check the operation using a computer which is
connected to a network.
If an Error Message Appears
Press [OK] to close the screen, and repeat from
procedure 6.
If the access point cannot be detected even after
retrying, see the following.
Proceed to “When an Error Message Appears,” on P.2-2.
When the wireless LAN or access point is detected, the
WiFi indicator blinks.
Connected.
9. Check that the Wi-Fi indicator is blinking.
Next, install the software.
For details, please refer the“Starter Guide”.
The wireless LAN setting is completed.

1-6
Setting the wireless LAN
SSID
* May be indicated as name of access point or network.
Network Key / Number of characters in the
network key (number of digits)
* It is also possible that it is marked encryption key, WEP key, WPA/WPA2
passphrase, PSK or pre-shared key.
This information will be used on Step 9to 11.
3. Press [ ] (Menu).
2. Write down the required information for the wireless LAN
manual setting on P.1-7. ( MEMO )
1. Make sure the procedure “Step2 Switching the Connection
Method to Wireless LAN” (P.1-2) is competed.
4. Press [ ] or [ ] to select, and press [OK].
The next screen is displayed for approximately 5 seconds.
You do not need to turn the machine OFF and ON at this stage.
5. Press [ ] or [ ] to select, and press [OK].
6. Press [OK].
Menu
Network Settings
Preferences
Timer Settings
Common Settings
Network Settings
Select Wired/Wirele...
Wireless LAN Setting
TCP/IP Settings
SNMP Settings
Settings effective
after power is
turned OFF and ON.
7. Press [ ] or [ ] to select, and press [OK].
Wireless LAN Settings
WPS Push Button Mode
WPS PIN Code Mode
SSID Settings
Wireless LAN Informa...

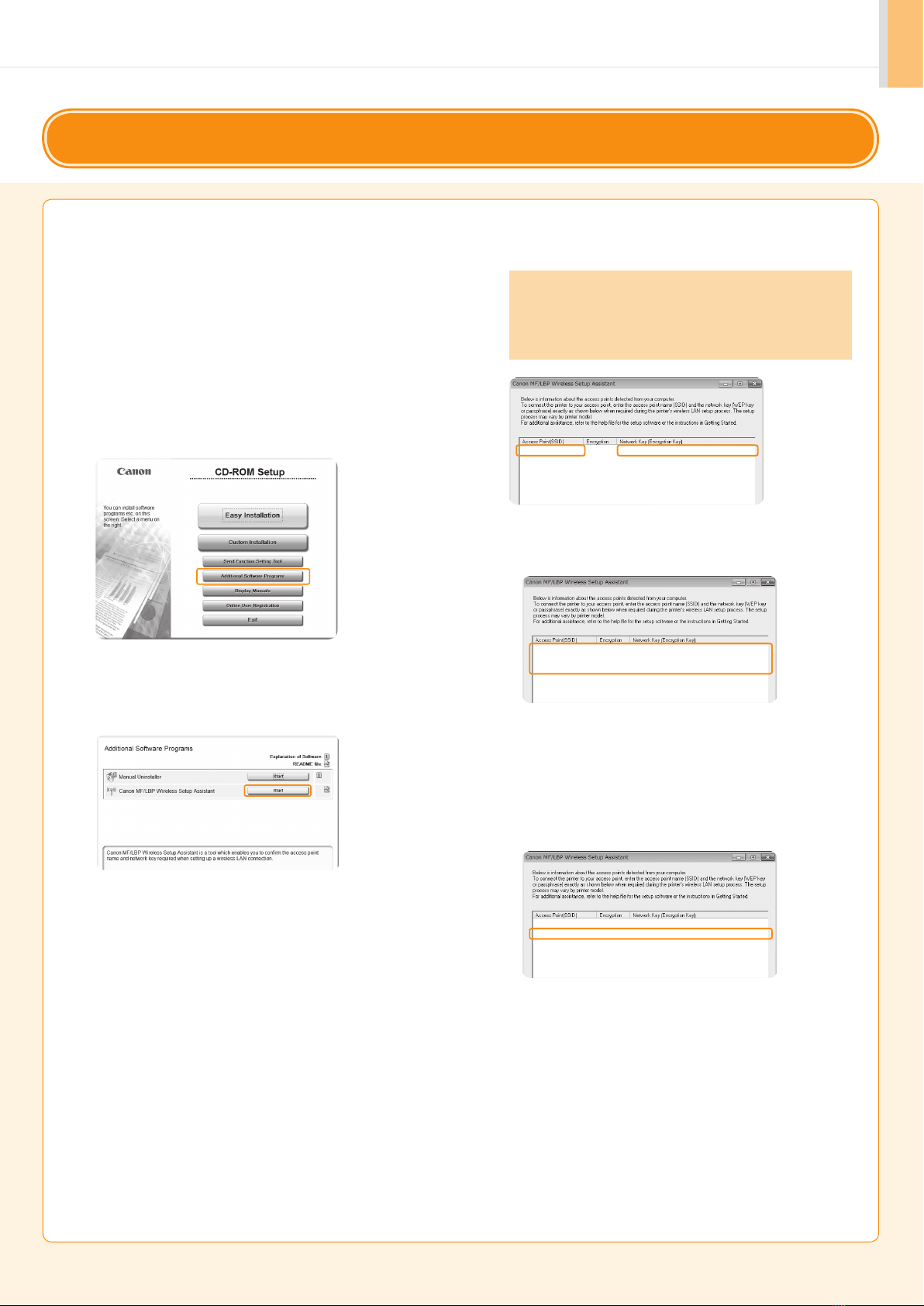

Checking SSID or Network Key
You can check SSID or the network key using “Canon MF/LBP
Wireless Setup Assistant” in the User Software CD-ROM that is
supplied with the machine.
If the setting of the wireless LAN router/access point is changed, or
the information you need is not provided; see the following:
Proceed to “Checking SSID or Network Key for a Wireless LAN
Router/Access Point,” on p.Appendix-2.
See Wireless LAN
Setting Guide to
perform settings.
OK
Step4-B Setting the Access Point Manually and Connecting
8. Press [ ] or [ ] to select, and press [OK].
SSID Settings
Select Access Point
Manual Settings
Searching...
If “Cannot find access point” is displayed.
Proceed to “When an Error Message Appears,”
on P.2-2.
Follow the procedure only if you select “Step4-B Setting the Access Point Manually and Connecting”on P.1-3.
* If you need further assistance, please contact your wireless LAN or access point
manufacturer.

1-7
Setting the wireless LAN

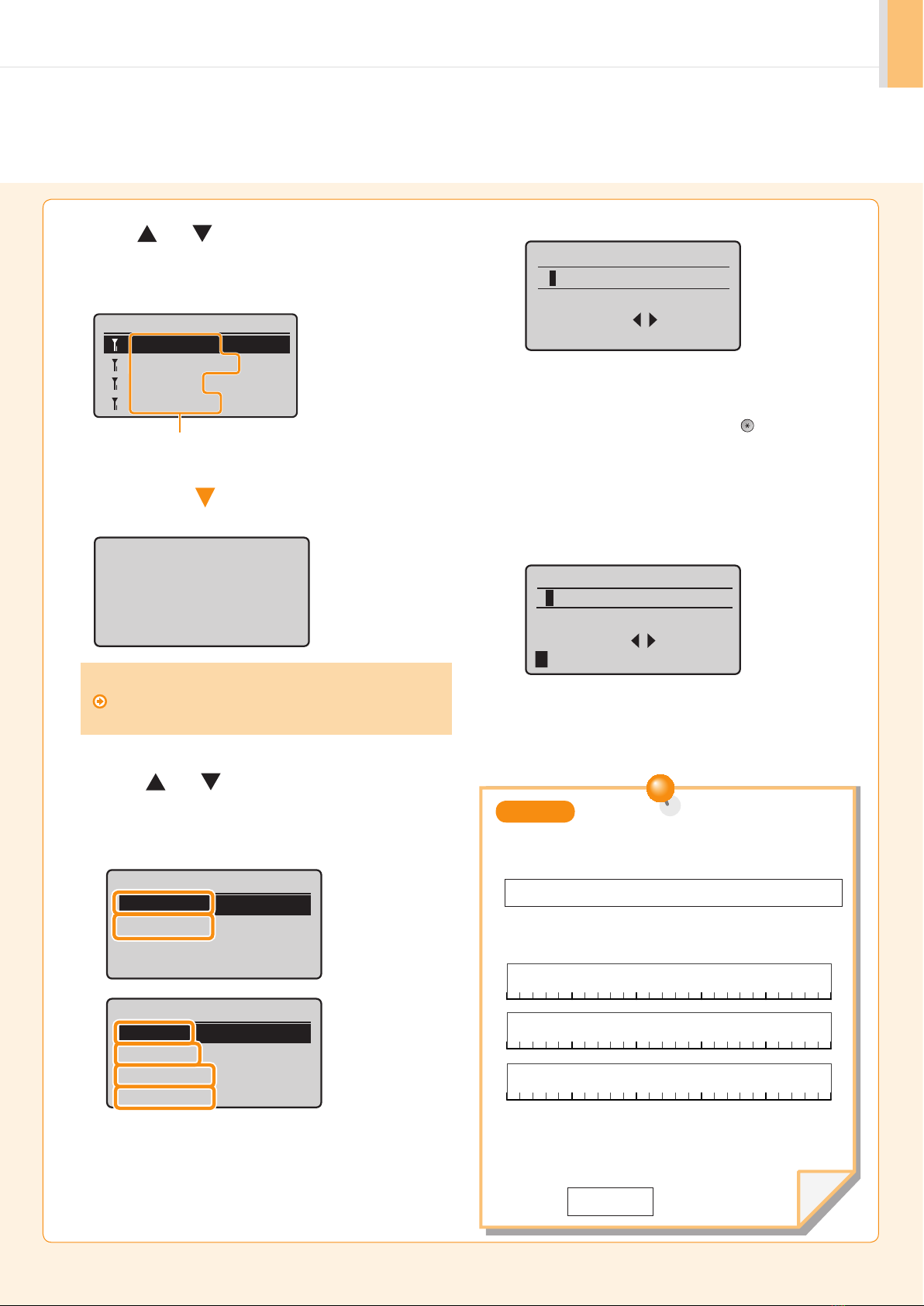

9. Press [ ] or [ ] to select the access point you
wrote down in step 2, and then press [OK].
Proceeding to
screen for entering
access point network
key.
Select Access Point
SampleABCD WEP 13
SampleEFGHIJ WPA-PS
SampleKL WPA2-PSK 9
SampleMNOP None 7
SSID is displayed in front of
"WEP" "WPA" "None".
10. Press [ ] or [ ] to select the entry format that
matches the number of characters or digits that you
wrote down in step 2, and press [OK].
11. Enter the network key that you wrote down in step 2.
Hexadecimal
ASCII text
WEP Key (5Char.)
<Apply>
<Entry: a> <BS>
a b c d e f g h i j
PSK (64 Digits)
<Apply>
<Entry: 1> <BS>
12 3 4 5 6 7 8 9 0
The following screen is displayed for approximately 5 seconds.
If multiple matched SSIDs are displayed, select the ID that
is listed first (the one with the strongest signal).
Either of the following screens is displayed.
Entry Format
8-63 Char. (ASCII)
64 Digits (Hex)
Entry Format
5 Char. (40bit ASCII)
13 Char. (104bit ASC...
10 Digits (40bit Hex)
26 Digits (104bit Hex)
characters (digits)
If you cannot find the SSID, refer to the section below:
Proceed to “Checking SSID or Network Key for a Wireless
LAN Router/Access Point,” on p.Appendix-2.
1) Select <Entry Mode> with [], and then press [OK].
Select entry mode with [] and [], and then press
[OK].
* You can also select entry mode with [ ]. (MF4580dw/
MF4570dw only)
2) Enter the network key.
* You can use the numeric keys. (MF4580dw/MF4570dw only)
3) Select <Apply> with [] and [], and then press
[OK].
1) Enter the network key.
*You can enter the key by selecting the characters with []
and [], and press [OK].
2) Select <Apply> with [] and [], and then press
[OK].
SSID
Network Key
Write down the name of the access point to be selected in step 9.
Write down the network key to be entered in step 11.
 Write down the number of
characters in the network key
(number of digits)
MEMO

1-8
Next, install the software.
For details, please refer the“Starter Guide”.
Setting the wireless LAN
12. Press [ ] to select, and press [OK].
13. Wait until the machine retrieves the IP address
automatically (approx. 2 minutes).
14. Check the network connections
Check the operation using a computer which is
connected to a network.
If you want to set the IP address manually, see the
following.
The Wi-Fi indicator blinks.
The next screen is displayed for approximately 2
seconds, and the Wi-Fi indicator will start blinking.
If an Error Message Appears
Press [OK] to close the screen, check if the network
key is correct, and follow the procedure from Step 7
again.
If the access point cannot be connected even after
retrying, see the following.
Proceed to “When an Error Message Appears,” on
P.2-2.
e-Manual “Network Settings” - “Basic Network
Settings”- “Setting the IP Address”
Proceed to “Checking the Wireless LAN Setting is
Completed,” on p.Appendix-1.
Do you want to
connect with new
settings?
NoYes
Connecting...
Cancel: Press Stop
Connected.
The wireless LAN setting is completed.

2-1
Troubleshooting
Troubleshooting
This section describes the causes and solutions for the problems occurred during wireless LAN settings.
To set and operate the wireless LAN router or access points
Please read the instruction manual for the wireless LAN router or access point, or contact the
manufacturer of the wireless LAN router/access point.
When an Error Message
Appears
"Cannot nd access point." .........................................................................................2-2
"Could not connect. More than one access point was detected." ................2-2
"WPS connection failed."..............................................................................................2-2
"Wireless connection failed." ......................................................................................2-3
"Open authentication failed. Check WEP settings."............................................2-3
"Could not connect. Check PSK settings."..............................................................2-3
If Problems Occur
The SSID of the wireless LAN router or
access point is not displayed in the list of access points. ...............................2-4
Cannot detect the SSID or network key of the wireless LAN router
or access point. ...............................................................................................................2-4
The Remote UI is not displayed. ...............................................................................2-5
<Wireless LAN Settings> cannot be selected
because it is grayed out in the Network Settings menu..................................2-5

2-2
Troubleshooting
When an Error Message Appears
“Could not connect. More than one access point was detected.”
Cause Other wireless LAN routers or access points within the connection range were detected.
Solution Wait a few moments and specify the settings again.
Proceed to “Step4-A Setting the Machine Using the WPS (Push Button Mode),” on P.1-4.
”WPS connection failed.”
Cause An error occurred while specifying the settings using the WPS function, resulting in a connection
failure.
Solution Check if the wireless LAN router or access point that you are using supports
the WPS function. ( Proceed to“Selecting a Method for Setting the Wireless LAN,” on P.1-3.)
[If it is supported] Check the network connection.
Proceed to “Checking Network Connections,” on P.2-6.
[If it is not supported] Set the access point manually.
Proceed to “Step4-B Setting the Access Point Manually and Connecting,” on P.1-6.
“Cannot nd access point.”
Cause When searching for an access point, the WPS button on the wireless LAN router or access point
was not pressed within 2 minutes.
Solution Specify the settings again.
Proceed to “Step4-A Setting the Machine Using the WPS (Push Button Mode),” on P.1-4.
Check the network connection if the message still appears.
Proceed to “Checking Network Connections,” on P.2-6.
WPS – When specifying the settings in push button mode
Cause The machine cannot detect the wireless LAN routers or access points because there is a problem
with the network connection.
Solution Check the network connection.
Proceed to “Checking Network Connections,” on P.2-6.
When setting by manually selecting an access point

2-3
Troubleshooting
”Could not connect. Check PSK settings.”
Cause The network key for the wireless LAN router or access point is not set to the machine correctly.
Solution Check the wireless LAN router or access point network key.
( Proceed to “Checking SSID or Network Key,” on P.1-6.)
[Correct settings] Check the network connection.
Proceed to “Checking Network Connections,” on P.2-6.
[Incorrect Settings] Enter the correct network key and specify the set-
tings again.
Proceed to “Step4-B Setting the Access Point Manually and Connecting,” on P.1-6.
”Wireless connection failed.”
Cause An error occurred on the machine while specifying the settings, resulting in a communication
failure.
Solution Turn the machine OFF and ON, then set the machine again.
Proceed to “Step4-A Setting the Machine Using the WPS (Push Button Mode),” on P.1-4.
Proceed to “Step4-B Setting the Access Point Manually and Connecting,” on P.1-6.
Check the network connection if the message still appears.
Proceed to “Checking Network Connections,” on P.2-6.
“Open authentication failed. Check WEP settings.”
Cause Connection failed because the authentication method is set to <Open System> for the machine
and “Shared Key” set for the wireless LAN router or access point you are using.
Solution Manually set the authentication method of this machine to <Shared Key>
according to the wireless LAN router or access point you are using.
Proceed to e-Manual “Network Settings”- “Basic Network Settings” -”Connecting to a Wireless
LAN”- “Setting by Manually Entering SSID”
Check the network connection if the message still appears.
Proceed to “Checking Network Connections,” on P.2-6.

2-4
Troubleshooting
If Problems Occur
Cannot detect the SSID or network key of the wireless LAN router or access point.
Howto
check: Proceed to “Checking SSID or Network Key,” on P.1-6.
The SSID of the wireless LAN router or access point is not displayed in the list of access
points.
Cause1 The SSID of the wireless LAN router or access point that you wrote down in P.1-7 is incorrect.
Solution Check the wiress LAN or access point’s SSID.
( Proceed to “Checking SSID or Network Key,” on P.1-6.
Specify the settings again.
Proceed to “Step4-B Setting the Access Point Manually and Connecting,” on P.1-6.
Cause2 The machine cannot detect the wireless LAN routers or access points because there is a problem
with the network connection.
Solution Check the network connection.
Proceed to “Checking Network Connections,” on P.2-6.

2-5
Troubleshooting
<Wireless LAN Settings> cannot be selected because it is grayed out in the Network Set-
tings menu.
Cause Connection method for the machine is set to <Wired LAN>.
Solution Switch the connection method to <Wireless LAN>.
Proceed to “Step2 Switching the Connection Method to Wireless LAN,” on P.1-2.
The Remote UI is not displayed.
Cause1 The machine’s IP address is not set correctly.
Solution
Cause2 The wireless LAN routers or accesspoint network key is not correctly specied to the machine.
Solution Check the wireless LAN routers or access point network key.
( Proceed to “Checking SSID or Network Key,” on P.1-6.
Specify the settings again.
Proceed to “Step4-B Setting the Access Point Manually and Connecting,” on P.1-6.
Cause3 Selected the wrong SSID.
Solution Check the wiress LAN or accesspoint’s SSID.
( Proceed to “Checking SSID or Network Key,” on P.1-6.
Specify the settings again.
Proceed to “Step4-B Setting the Access Point Manually and Connecting,” on P.1-6.
Enable the DHCP function for the wireless LAN router or access point, and
specify the setting again.
Proceed to “Step4-A Setting the Machine Using the WPS (Push Button Mode),” on P.1-4.
Proceed to “Step4-B Setting the Access Point Manually and Connecting,” on P.1-6.

2-6
Troubleshooting
Checking Network Connections
Check the following items to make sure that the machine is ready to be connected to a network.
1Check the status of the computer to make sure that it is ready to be connected to a network.
3
Check if the installation sites for the machine, the wireless LAN router, or access point meet the following conditions.
2Check the power on the machine.
4Specify the settings again after checking the items from ①to ③are complete.
Check Have the settings for the computer, the wireless LAN router, or access point been completed?
Check
Is the power cable or network cables for the wireless LAN router or access point disconnected?
* If the cables are loose, properly reconnect them.
Check Is the wireless LAN router or access point turned ON?
If you cannot connect to the Internet even after checking
1Turn OFF each device and turn it back ON.
2Wait a few moments, and check if you can connect to the Internet again.
Check
The distance between the machine and the wireless LAN router or access point is within 164' (50 m)
(may vary on the communication speed or environmental condition).
Check
There is no obstacle such as a wall between the machine and the wireless LAN router or access point.
Check Microwaves and refrigerators are not nearby.
Install the machine and the wireless LAN router or access point in locations that meet these requirements.
Check Is the power turned ON?
When the power is already turned ON
1Turn the power OFF and turn it back ON.
Proceed to “Step4-A Setting the Machine Using the WPS (Push Button Mode),” on P.1-4.
Proceed to “Step4-B Setting the Access Point Manually and Connecting,” on P.1-6.
Refer below if you cannot connect the machine to the network after checking all items
5m以内
壁 電子レンジ 冷蔵庫
本製品
無線LANルーター
アクセスポイント
The wireless LAN router
or access point
Within 164' (50 m)
Wall Microwave Refrigerator
machine

2-7
Troubleshooting
Did you change the wireless LAN routers or access points security settings?
If the following is the case, specify the settings manually.
If followings are the case, change the settings of the wireless LAN routers or access points
To set and operate the wireless LAN router or access points
Please read the instruction manual for the wireless LAN router or access point, or contact the manufacturer of the wireless LAN
router/access point.

e-manual “Network Setting” - “Basic Network Setting”- “Connecting to Wireless LAN” - “Setting
by Manually Entering SSID”
Stealth function: Enabled
A function that makes the wireless LAN router or access point invisible to the SSIDs on other devices.
Deny ANY: Enabled
A function that makes the wireless LAN router or access point deny connection when another device’s SSID is set to “Any”
or “Empty.”
WEP key number to use: Set to a number between 1 and 4.
WEP key (hexadecimal): Automatically generated by the wireless LAN router or access point
The MAC address ltering is enabled.
An encryption method only when communicating using IEEE802.11n: TKIP

Appendix-1
Appendix
1. Press [ ] (Status Monitor/Cancel).
2. Select with [ ] and [ ], and then press [OK].
Status Monitor/Cancel
TX Job
RX Job
Fax Forwarding Erro
...
Network Information
3. Select with [ ] and [ ], and then press [OK].
Network Information
IPv4
IPv6
Wireless LAN Informa ...
4. Select with [ ] and [ ], and then press [OK].
IPv4
IP Address
Subnet Mask
Gateway Address
Host Name
5. Take note of the IP address.
IP Address
I
P
A
P
d
A
A
d
r
es
s
6. Press [ ] (Status Monitor/Cancel) to close the
screen.
7. Start the web browser of a computer which is
connected to a network.
Checking the Wireless LAN Setting is Completed
8. Enter http://<IP address of the machine>/ in the
address field, and then press the [ENTER] key on your
keyboard.
The <IP address of the machine> is the address
noted in step 5above.
http://htt
p
:
//
/
/
/
/
/
9. Check that the screen of the Remote UI is displayed.
When the Remote UI is not displayed
Peform steps 1 to 9 again.
IF the RUI is still not displayed, please refer to
the following;
Proceed to “The Remote UI is not displayed,” on P.2-5.

Appendix-2
Appendix
You can check the SSID or the network key using “Canon
MF/LBP Wireless Setup Assistant.”
* “Canon MF/LBP Wireless Setup Assistant” is included in the
supplied User Software CD-ROM with the machine.
1. Insert the User Software CD-ROM into the CD slot on
your computer.
2. Click [Additional Software Programs].
3. Click the [Start] button next to “Canon MF/LBP
Wireless Setup Assistant.”
4. Read the License Agreement and click [Yes] to agree.
Checking SSID or Network Key for a Wireless LAN Router/Access Point
5. The Wireless LAN or access point’s information will be
displayed.
Write down the information (indicated in frames)
on P.1-7.
Afterwards, return to P.1-6 and continue the setup
procedure.
SampleEFGHIJ WPA-PSK 543210EDCBA
If multiple access points are displayed
1. Write down all SSIDs that are displayed.
SampleABCD WEP 01234567890123456789ABCDEF
SampleEFGHIJ WPA-PSK 543210EDCBA
SampleK WPA2-PSK 1234ABCD
2. Perform the procedure up to Step 8in“Setting the
Access Point Manually and Connecting”(P.1-6).
3. Select the SSID that matches the one you wrote down
from the displayed SSID in Step 8 .
4. Write down the network key for the SSID you
selected.
SampleABCD WEP 01234567890123456789ABCDEF
SampleEFGHIJ WPA-PSK 543210EDCBA
SampleK WPA2-PSK 1234ABCD
5. Perform the procedure from Step 9in“Setting the
Access Point Manually and Connecting”(P.1-7).
If the information for the wireless LAN router or access
point is not displayed
Click the [Refresh] button.
If the information is not displayed when you click the
[Refresh] button, check if the computer settings for a
wireless LAN router or access point are complete.

FT5-4305 (000) XXXXXXXXXX © CANON INC. 2011 PRINTED IN KOREA
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON MARKETING JAPAN INC.
16-6, Konan 2-chome, Minato-ku, Tokyo 108-8011, Japan
CANON U.S.A., INC.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
CANON EUROPA N.V.
Bovenkerkerweg, 59-61, 1185 XB Amstelveen, The Netherlands
CANON CHINA CO. LTD.
15F Jinbao Building No.89, Jinbao Street, Dongcheng District, Beijing 100005, PRC
CANON SINGAPORE PTE LTD
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON AUSTRALIA PTY LTD
1 Thomas Holt Drive, North Ryde, Sydney NSW 2113, Australia
CANON GLOBAL WORLDWIDE SITES
http://www.canon.com/
