Canon EF 70-200mm User manual

EF70-200mm f/4L IS II USM
Instructions
ENG

ENG-1
Thank you for purchasing a Canon product.
Canon’s EF70-200mm f/4L IS II USM is a
telephoto lens for use with EOS cameras.
 “IS” stands for Image Stabilizer.
 “USM” stands for Ultrasonic Motor.
Camera Firmware
Please use the latest version of rmware with the camera
in use. For details on whether the rmware is the latest
version or not, and for details on updating the rmware,
please check the Canon website.
Conventions used in this instruction
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.

ENG-2
Precautions to ensure that the camera is used
safely. Read these precautions thoroughly. Make
sure all details are observed in order to prevent
risks and injury to the user and other people.
Warning Details pertaining to risks that may
result in death or serious injury.
 Do not look at the sun or a bright light source
through the lens or single-lens reflex camera.
Doing so could result in loss of vision. Looking at the
sun directly through the lens is especially hazardous.
 Whether it is attached to the camera or not, do
not leave the lens under the sun without the
lens cap attached. This is to prevent the lens from
concentrating the sun’s rays, which could cause a re.
Caution Details pertaining to risks that may
result in injury.
 Do not leave the camera in locations subject to
high or low temperatures. This may result in the
camera becoming excessively hot or cold, which may
cause burns or other injuries when touched.
Caution Details pertaining to risks that may
result in damage to property.
 Do not leave the lens in excessive heat such as in a
car in direct sunlight. High temperatures can cause the
lens to malfunction.
Safety Precautions

ENG-3
Handling Precautions
 If the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation in
this case, rst put the lens into an airtight plastic bag
before taking it from a cold to warm environment. Then
take out the lens after it has warmed gradually. Do the
same when taking the lens from a warm environment
into a cold one.
 Please also read any lens related handling precautions
listed in your camera’s instruction manual.
General Precautions

ENG-4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Do not make any changes or modications to the equipment
unless otherwise specied in the instructions. If such
changes or modications should be made, you could be
required to stop operation of the equipment.
This equipment has been tested and found to comply with
the limits for a class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
CAN ICES-3 (B) / NMB-3 (B)

ENG-5
Filter mounting thread
(→ 16)
Focusing ring (→ 7)
Focus mode switch (→ 7)
Zoom position index (→ 8)
Image stabilizer switch (→ 10)
Hood mount (→ 14)
Image stabilizer mode selector switch
(→ 10)
Focusing distance range selector switch (→ 7)
Distance scale (→ 9)
Zoom ring (→ 8)
Rubber ring (→ 6)
Contacts (→ 6)
Lens mount index (→ 6)
Tripod mounting location (→ 13)
 For detailed information, reference page numbers are provided in parentheses (→ **).
Nomenclature

ENG-6
See your camera’s instructions for details on
mounting and detaching the lens.
 After detaching the lens, place the lens with
the rear end up to prevent the lens surface and
contacts from getting scratched.
 Contacts that are scratched, soiled, or have
ngerprints on them may result in faulty
connections or corrosion, which may lead to
malfunctions. If the contacts get soiled, clean
them with a soft cloth.

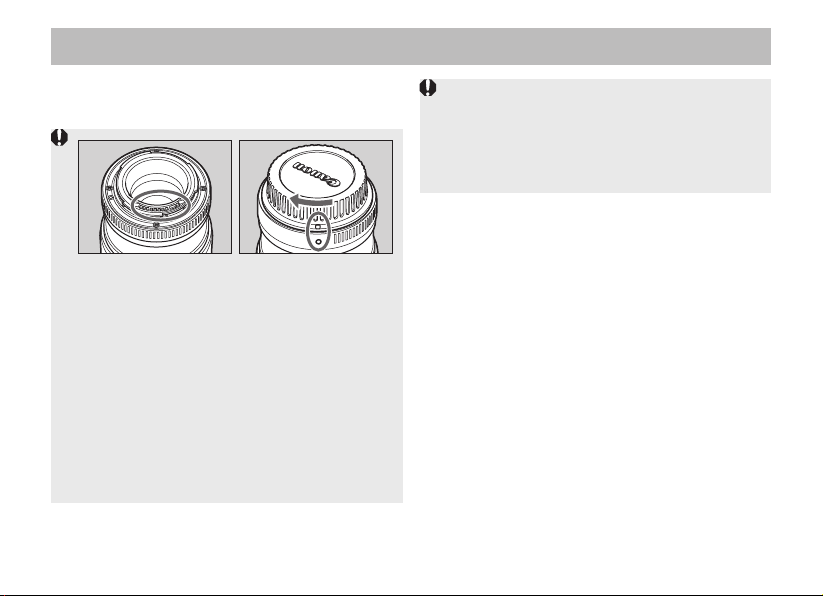

 Attach the lens cap and dust cap when
disconnecting the lens. When attaching the
dust cap, align the lens mount index with the 
index of the dust cap and rotate in a clockwise
direction as shown in the illustration. Follow the
reverse procedure to detach it.
The lens mount has a rubber ring for enhanced
dust- and water-resistance. The rubber ring may
cause slight abrasions around the camera’s lens
mount, but this will not cause any problems. If the
rubber ring becomes worn, it is replaceable by a
Canon Service Center at a cost.
1. Mounting and Detaching the Lens

ENG-7

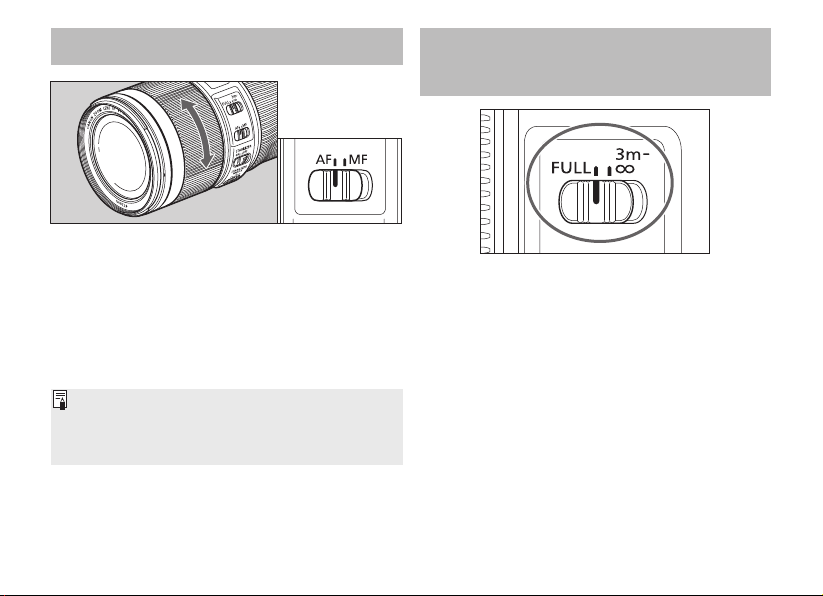

To shoot in autofocus (AF) mode, set the focus
mode switch to AF.
To use only manual focusing (MF), set the focus
mode switch to MF, and focus by turning the
focusing ring.
The focusing ring always works, regardless of
the focus mode.
When AF operation is set to [ONE SHOT], manual
focus is possible after autofocusing has been
completed by continuing to press the shutter button
halfway (Full-time manual focus).
2. Setting the Focus Mode 3. Switching the Focusing
Distance Range
You can set the focusing distance range with a
switch. By setting a suitable focusing distance
range, the actual autofocusing time will be
shorter.
Ranges
1. FULL (1 m/3.28 ft. - ∞)
2. 3 m/9.84 ft. - ∞

ENG-8
To zoom, turn the lens’ zoom ring.
Be sure to nish zooming before focusing. Zooming
after focusing can affect the focus.
4. Zooming

ENG-9

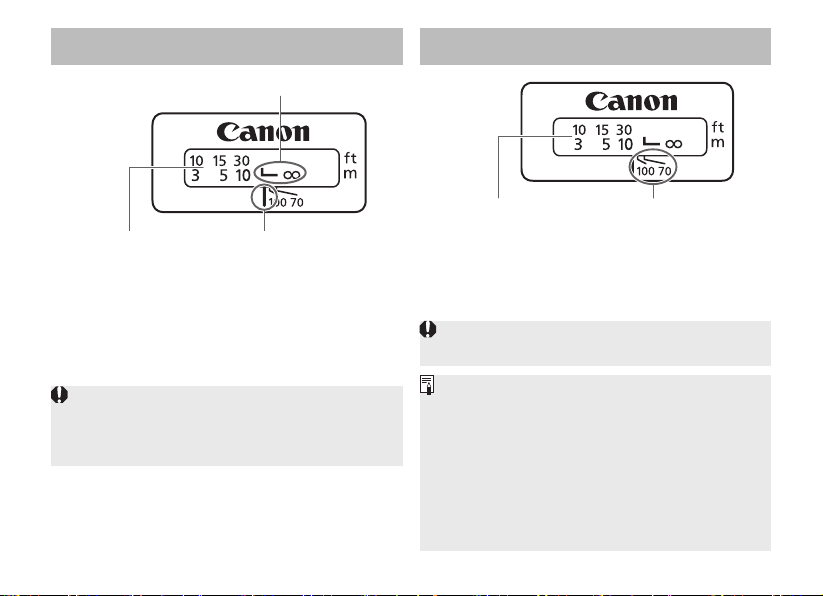

Distance index
Innity compensation mark
Distance scale
To compensate for shifting of the innity focus
point that results from changes in temperature,
there is a margin at the innity (∞) position.
The innity position at normal temperature is the
point at which the vertical line of the distance
scale L mark is aligned with the distance index.
For accurate manual focusing of subjects at innity,
look through the viewnder or look at the magnied
image* on the LCD screen while rotating the
focusing ring.
* For cameras with Live View shooting capability.
Infrared IndexDistance scale
The infrared index corrects the focus setting when
using monochrome infrared lm. Focus on the subject
manually, then adjust the distance scale indicated by
the distance index by moving the focusing ring to the
corresponding infrared index mark before shooting.
Some EOS cameras cannot use infrared lm. See
the instructions for your EOS camera.
 The infrared index position is based on a
wavelength of 800 nm.
 The compensation amount differs depending
on the focal length (large at the wide end, small
at the telephoto end). Use the 100 or 70 (mm)
infrared index position as a guide when setting
the compensation amount manually.
 Be sure to observe the manufacturer’s
instructions when using infrared lm.
 Use a red lter when you take the picture.
5.
Innity Compensation Mark
6. Infrared Index

ENG-10

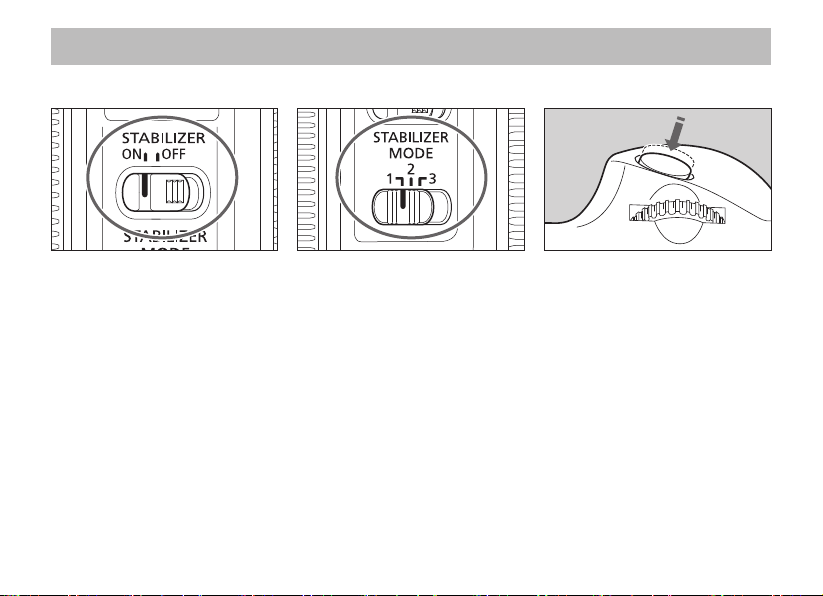

7. Image Stabilizer
You can use the image stabilizer in AF or MF mode.
1 Set the STABILIZER switch
to ON.
 If you are not going to use the
image stabilizer function, set
the switch to OFF.
2Select the stabilizer mode.
 MODE 1: Corrects vibrations in
all directions. It is mainly effective
for shooting still subjects.
 MODE 2: Corrects vertical
camera shake during
following shots in a horizontal
direction, and corrects
horizontal camera shake
during following shots in a
vertical direction.
 MODE 3: Corrects vibration
only during exposure. During
panning shots, corrects vibration
during exposure only in one
direction the same as MODE 2.
3First press the shutter
button down halfway, then
press down all the way to
take the picture.
 MODE 1, 2: Press the
shutter button down halfway
to stabilize the image in
the viewnder and enable
stabilization.
 MODE 3: Press the shutter
down halfway to initiate
computation of stabilization,
then press down all the way
to enable stabilization.

ENG-11
8. Tips on Using the Image Stabilizer
 In semi-darkened areas such as indoors or
outdoors at night.
 In locations where ash photography is
prohibited, such as art museums and theater
stages.
 In situations where your footing is uncertain.
 In situations where fast shutter settings
cannot be used.
 When panning subjects in motion.
MODE 3
 Since camera shake is stabilized only during
exposure, following a subject is easier such
as when shooting a fast and irregularly
moving player during sports photography.
MODE 1 MODE 2
OFF
ON
OFF
ON
The image stabilizer for this lens is effective for hand-held shots in the following conditions.

ENG-12
Tips on Using the Image Stabilizer
 The Image Stabilizer cannot compensate for a
blurred shot caused by a subject that moved.
 Set the STABILIZER switch to OFF when you
are taking pictures using the Bulb setting (long
exposures). If the STABILIZER switch is set to
ON, the Image Stabilizer may introduce errors.
 The Image Stabilizer might not be fully effective
in the following cases:
• You shoot from a violently moving vehicle.
• You move the camera dramatically for a
panning shot in Mode 1.
 The Image Stabilizer consumes more power
when set at ON than normal shooting at OFF,
resulting in fewer shots and a shorter movie
shooting time.
 The Image Stabilizer operates for about two
seconds even when your nger is off the
shutter button. Do not remove the lens while
the stabilizer is in operation. This will cause a
malfunction.
 With the EOS-1V/HS, 3, ELAN 7E/ELAN
7/30/33, ELAN 7NE/ELAN 7N/30V/33V, ELAN II/
ELAN II E/50/50E, REBEL 2000/300, IX, IX Lite/
IX7, and D30, the Image Stabilizer will not work
during self-timer operation.
 When you use a tripod, the Image Stabilizer
should be turned off to save battery power.
 Even with a monopod, the Image Stabilizer will
be as effective as during hand-held shooting.
However, depending on the shooting conditions,
there are cases in which the Image Stabilizer
effect may be less effective.
 The Image Stabilizer also operates when the
lens is used with an Extension Tube EF12 II or
EF25 II.
 Depending on the camera there may be image
shake, such as after releasing the shutter.
However, this does not affect shooting.
 If you set the camera’s Custom Function to
change the assigned button to operate the AF,
the Image Stabilizer will operate when you press
the newly assigned AF button.

ENG-13
This lens can be used with the A II (W II) tripod mount ring, sold separately.
Attaching the Tripod Mount
9. Tripod Mount (Sold Separately)
①
③
②
Collar
Lock
knob
1Open the collar of the tripod
mount
 Turn the lock knob
counterclockwise until it
becomes loose (about 3 turns)
().
 Pull the knob in the direction
of the arrow () to release the
collar ().
④Tripod
mounting
location
2Attach tripod mount to lens
 With the collar open, insert
the tripod mount into the
attachment area and close the
collar ().
⑦
⑤
⑥
3Fix tripod mount to lens
 While pulling the lock knob
(), insert the end of the
open collar until it reaches its
original position ().
 Turn and tighten the lock
knob, xing it securely to the
lens ().
When removing the tripod mount, hold the camera and lens and remove the mount following the
above procedure in reverse.
Adjusting the Tripod Mount
By turning and loosening the lock knob of the tripod mount, you can rotate the camera to set the
image for any vertical or horizontal position.

ENG-14
10. Hood
The ET-78B hood cuts out unwanted light and protects the front of the lens from rain, snow, and dust.
Attachment position mark
Stop position markAttachment position mark
Red dot
Red dotRed dot
● Attaching
Align the red attachment position mark on the
hood with the red dot on the front of the lens,
and then rotate the hood in the direction of the
arrow until you hear a click.
Button
● Removing
Keep your nger pressed down on the button
located on the side of the hood, and then rotate
the hood in the direction of the arrow until the
attachment position mark on the hood is aligned
with the red dot on the front of the lens to detach
it. The hood can be reverse-mounted on the lens
for storage.
 If the hood is not attached properly, vignetting (darkening of the perimeter of the picture) may occur.
 Grasp and rotate the base of the hood when attaching and detaching it. There are cases in which it may
become deformed if the hood is rotated with it grasped near to the rim.

ENG-15
11. Extenders (Sold Separately)
Lens specications when using extender EF1.4x III or EF2x III are as follows.
Extender EF1.4x III Extender EF2x III
WIDE TELE WIDE TELE
Focal length (mm) 98 280 140 400
Aperture f/5.6-45 f/5.6-45 f/8-64 f/8-64
Angle of view
Diagonal 25°20′ 8°50′ 16°20′ 6°10′
Vertical 13°50′ 4°55′ 9°10′ 3°30′
Horizontal 20°50′ 7°20′ 13°40′ 5°10′
Maximum magnication (x) 0.14 0.39 0.22 0.59
AF Photography k k *1*1
k: AF photography is possible.
*1: When using a camera*2 capable of AF at aperture value f/8, AF photography is possible.
When using any other camera, perform shooting using manual focus (MF).
*2: Please check the User's Manual of the camera as well as the Canon website.
 Attach the extender to the lens, and then attach the lens to the camera. To remove it, reverse the order.
Errors may occur if you attach the extender to the camera rst.
 Only one extender can be used.
When an extender is attached, the AF speed will become slower to retain proper control.

ENG-16
You can attach extension tube EF12 II or EF25
II for magnied shots. The focusing distance and
magnication are shown below.
Focusing Distance
Range (mm) Magnication (×)
Close
distance
Long
distance
Close
distance
Long
distance
EF12 II 70mm
530 629 0.25 0.16
200mm 882 3451 0.34 0.06
EF25 II 70mm
406 410 0.43 0.37
200mm 796 1780 0.43 0.14
MF mode is recommended for accurate focusing.
You can attach lters to the lter mounting
thread on the front of the lens.
 Only one lter may be attached.
 If you need a polarizing lter, use the Canon
Circular Polarizing Filter PL-C B (72 mm).
 Detach the hood when adjusting the polarizing
lter.
12. Filters
(Sold Separately)
14. Extension Tubes
(Sold Separately)
13. Close-up Lenses
(Sold Separately)
Attaching a 500D (72 mm) Close-up Lens
enables close-up photography.
It provides a magnication of 0.14x to 0.70x.
 Close-up Lens 250D cannot be attached
because there is no size that ts the lens.
 MF mode is recommended for accurate focusing.

ENG-17
Focal Length/Aperture 70-200mm f/4
Lens Construction 15 groups, 20 elements
Minimum Aperture f/32
Angle of View Diagonal: 34° - 12°, Vertical: 19°30′ - 7°, Horizontal: 29° - 10°
Min. Focusing Distance 1.0 m/3.28 ft.
Max. Magnification 0.27x (at 200 mm)
Field of View Approx. 354 x 236 - 129 x 87 mm/13.94 x 9.29 - 5.08 x 3.43 inch (at 1.0 m/3.28 ft.)
Filter Diameter 72 mm
Max. Diameter and Length 80 x 176 mm/3.15 x 6.93 inch
Weight Approx. 780 g/27.5 oz
Hood ET-78B
Lens Cap E-72 II
Case LP1224
 The lens length is measured from the mount surface to the front end of the lens. Add 24.2 mm when
including the lens cap and dust cap.
 The size and weight listed are for the lens only, except as indicated.
 Aperture settings are specied on the camera.
 All data listed is measured according to Canon standards.
 Product specications and appearance are subject to change without notice.
Specications

CT1-D023-A 1017Ni © CANON INC. 2017
