Canon POWERSHOT ELPH 530HS User manual

CaHOH
5IOHS
240 HS
Camera User Guide
Before use be sure to read this luide, the
3recautions. with how to use the camera
correctly.
Keep the guide handy for future reference.

Torestrictthefocustosubjectsatcloserange,setthecamerato_.For
detailsonthefocusingrange,see"Specifications"intheGetting Started
guide.
Touch FUNC.,choose AI_ in the menu, and
then choose _ (p. 41).
Once the setting is complete, _ is displayed.
(_ In the yellow bar display area below the zoom bar, _ will turn gray
and the camera will not focus.
..... opievenicaBeras_aFBou;_ii_gi_ec_erao_airipo n SBodi_g............
with the camera set to £'_(p. 55).
To restrict the focus to distant subjects, set the camera to _. For details on
the focusing range, see "Specifications" in the Getting Started guide.
Touch FUNC.,choose _ in the menu, and
then choose _, (p. 41).
Once the setting is complete, _, is displayed.
106

Shooting Range and Focusing
The focal length of the lens can be increased by approximately 1.4x or 2.3x.
The focal length of the lens can be increased by approximately 1.6x or 2.Ox.
This can reduce camera shake because the shutter speed is faster than it
would be if you zoomed (including using digital zoom) in to the same zoom
factor.
Touch FUN(:.,touch MENU,choose [Digital
Zoom] on the O tab, and then choose the
desired option (p. 42).
The view is enlarged and the zoom factor is
displayed on the screen.
Images will look grainy at a resolution of L(P. 68) when you use a
2.3x digital tele-converter. In this case, the zoom factor is shown in
blue.
The digital tele-converter cannot be used with digital zoom (p. 53)
and AF-point zoom (p. 71 ).
The digital tele-converter is only available when the aspect ratio is
4:3.
The respective focal lengths when using [1.4x] and [2.3x] are 39.2 - 470 mm
and 64.4 - 773 mm (35mm film equivalent).
ELPH320H$_IXUS240HS
The respective focal lengths when using [1.6x] and [2.0x] are 38.4 - 192 mm
and 48.0 - 240 mm (35mm film equivalent).
The shutter speed may be equivalent when you move the zoom lever aII the way
toward [-_3for maximum telephoto, and when you zoom in to enlarge the subject
to the same size following step 2 on p. 53.
107

Shooting Range and Focusing

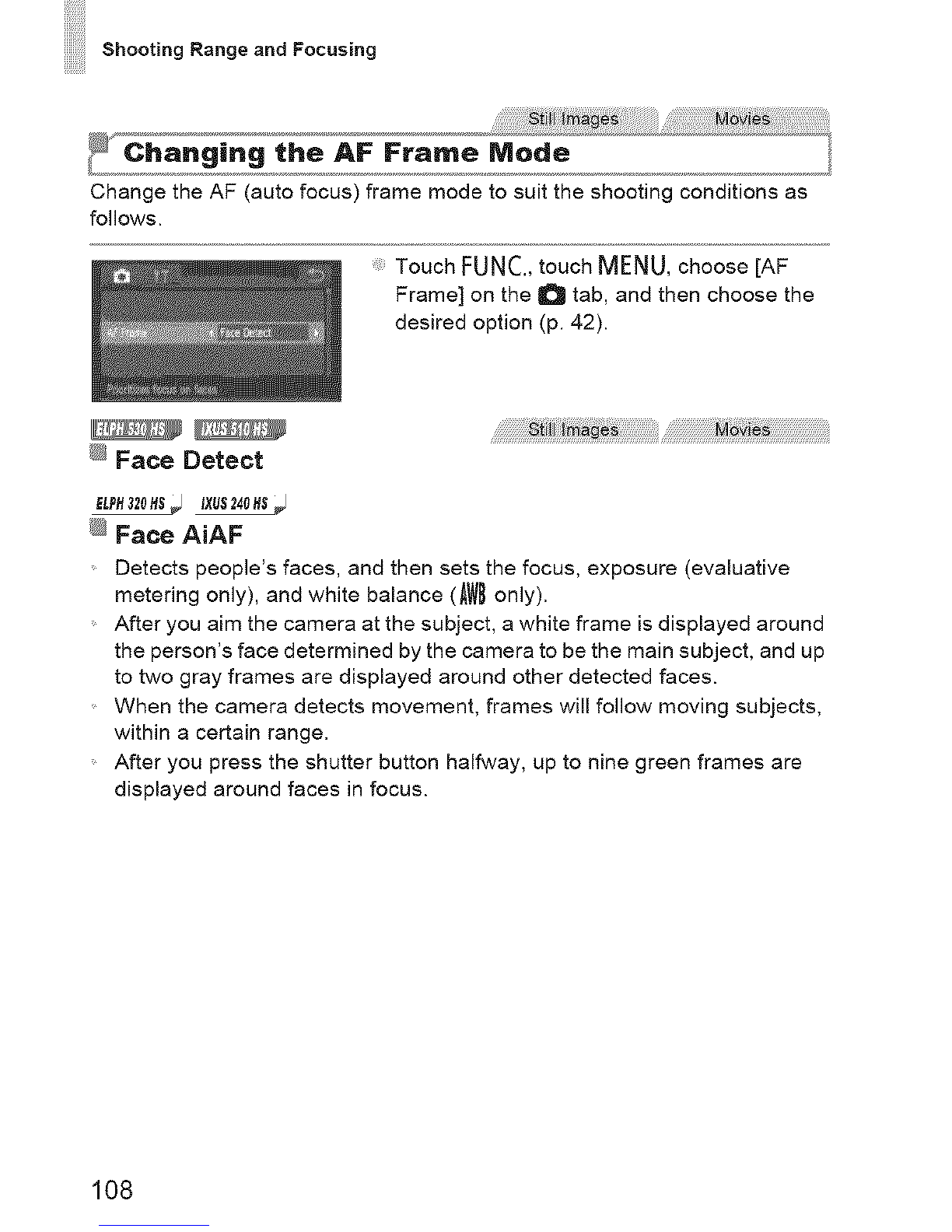

Change the AF (auto focus) frame mode to suit the shooting conditions as
follows.
Touch FUNC.,touch MENU,choose [AF
Frame] on the I_ tab, and then choose the
desired option (p. 42).
®Face Detect
_LPH32OHS_
®Face AiAF
Detects people's faces, and then sets the focus, exposure (evaluative
metering only), and white balance (AWBonly).
After you aim the camera at the subject, a white frame is displayed around
the person's face determined by the camera to be the main subject, and up
to two gray frames are displayed around other detected faces.
When the camera detects movement, frames will follow moving subjects,
within a certain range.
After you press the shutter button halfway, up to nine green frames are
displayed around faces in focus.
108

Shooting Range and Focusing

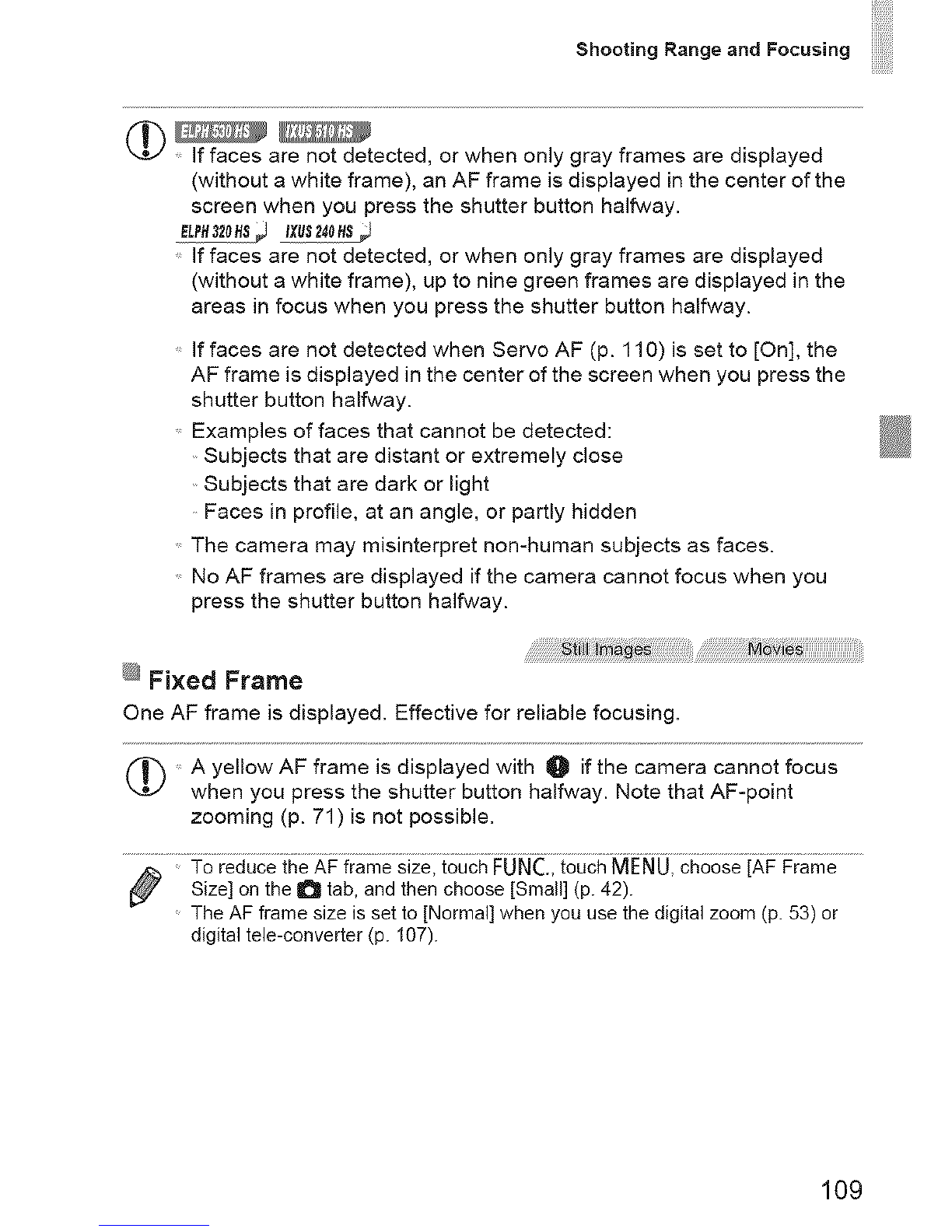

(_ If faces are not detected, or when only gray frames are displayed
(without a white frame), an AF frame is displayed in the center of the
screen when you press the shutter button halfway.
ELPH320H$_IXUS240H_
If faces are not detected, or when only gray frames are displayed
(without a white frame), up to nine green frames are displayed in the
areas in focus when you press the shutter button halfway.
If faces are not detected when Servo AF (p. 110) is set to [On], the
AF frame is displayed in the center of the screen when you press the
shutter button halfway.
Examples of faces that cannot be detected:
Subjects that are distant or extremely close
Subjects that are dark or light
Faces in profile, at an angle, or partly hidden
The camera may misinterpret non-human subjects as faces.
No AF frames are displayed if the camera cannot focus when you
press the shutter button halfway.
@Fixed Frame
One AF frame is displayed. Effective for reliable focusing=
(_ A yellow AF frame is displayed with O if the camera cannot focus
when you press the shutter button halfway. Note that AF-point
zooming (p. 71) is not possible.
_:: 7dre_it;ce_e_F_ia_esizel_uc_FUN_ii¸¸io_ci_MEN¸01¸¸¸c_oosei_FFi__e............
Size] on the O tab, and then choose [Small] (p. 42).
The AF frame size is set to [Normal] when you use the digital zoom (p. 53) or
digital tele-converter (p. 107).
109

Shooting Range and Focusing

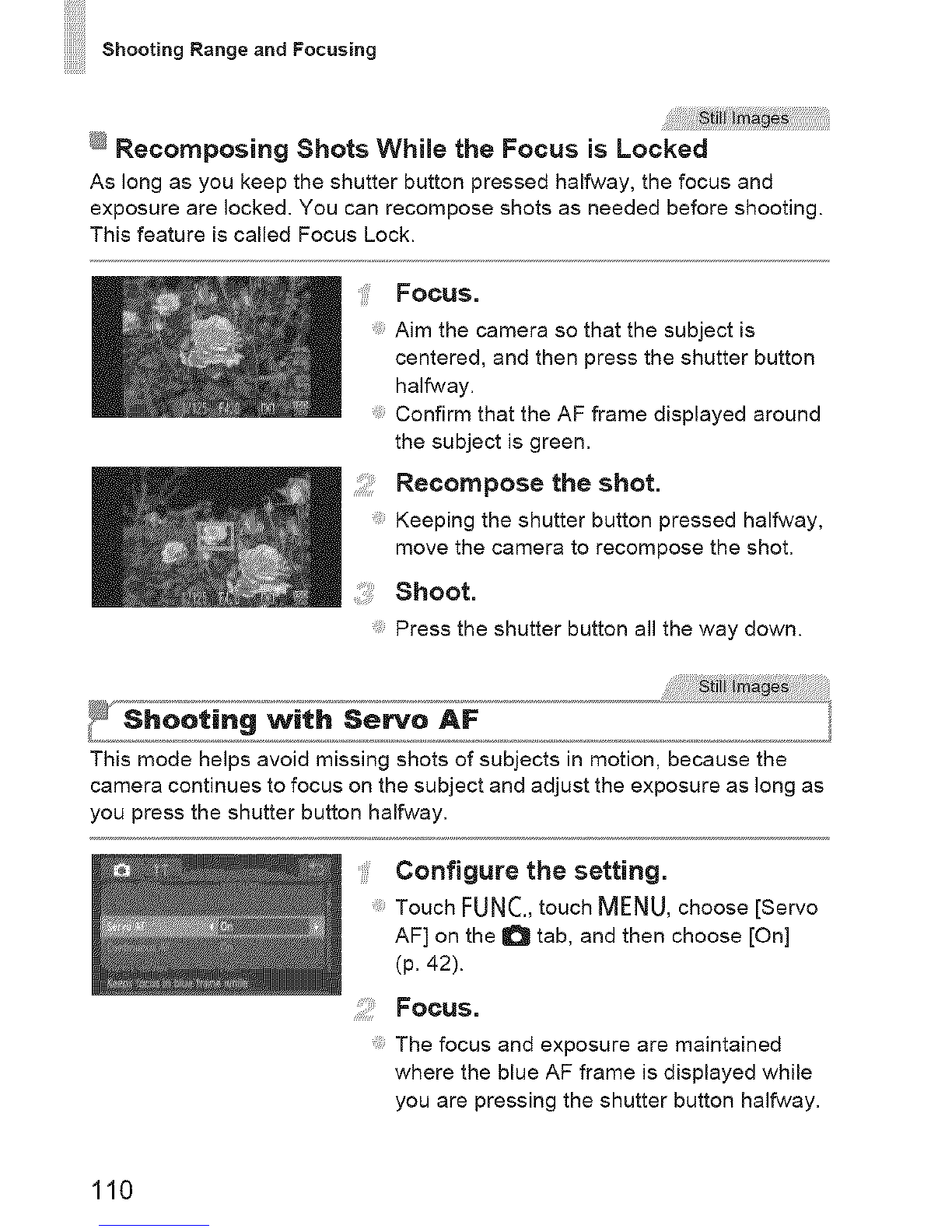

®Recomposing Shots While the Focus is Locked
As long as you keep the shutter button pressed halfway, the focus and
exposure are locked. You can recompose shots as needed before shooting.
This feature is called Focus Lock.
Focus.
Aim the camera so that the subject is
centered, and then press the shutter button
halfway.
Confirm that the AF frame displayed around
the subject is green.
Recompose the shot.
Keeping the shutter button pressed halfway,
move the camera to recompose the shot.
Shoot.
Press the shutter button all the way down.
_XShooting with Servo AF
This mode helps avoid missing shots of subjects in motion, because the
camera continues to focus on the subject and adjust the exposure as long as
you press the shutter button halfway.
Configure the setting.
Touch FUNC.,touch MENU,choose [Servo
AF] on the 0 tab, and then choose [On]
(p, 42).
Focus.
The focus and exposure are maintained
where the blue AF frame is displayed while
you are pressing the shutter button halfway.
110

Shooting Range and Focusing

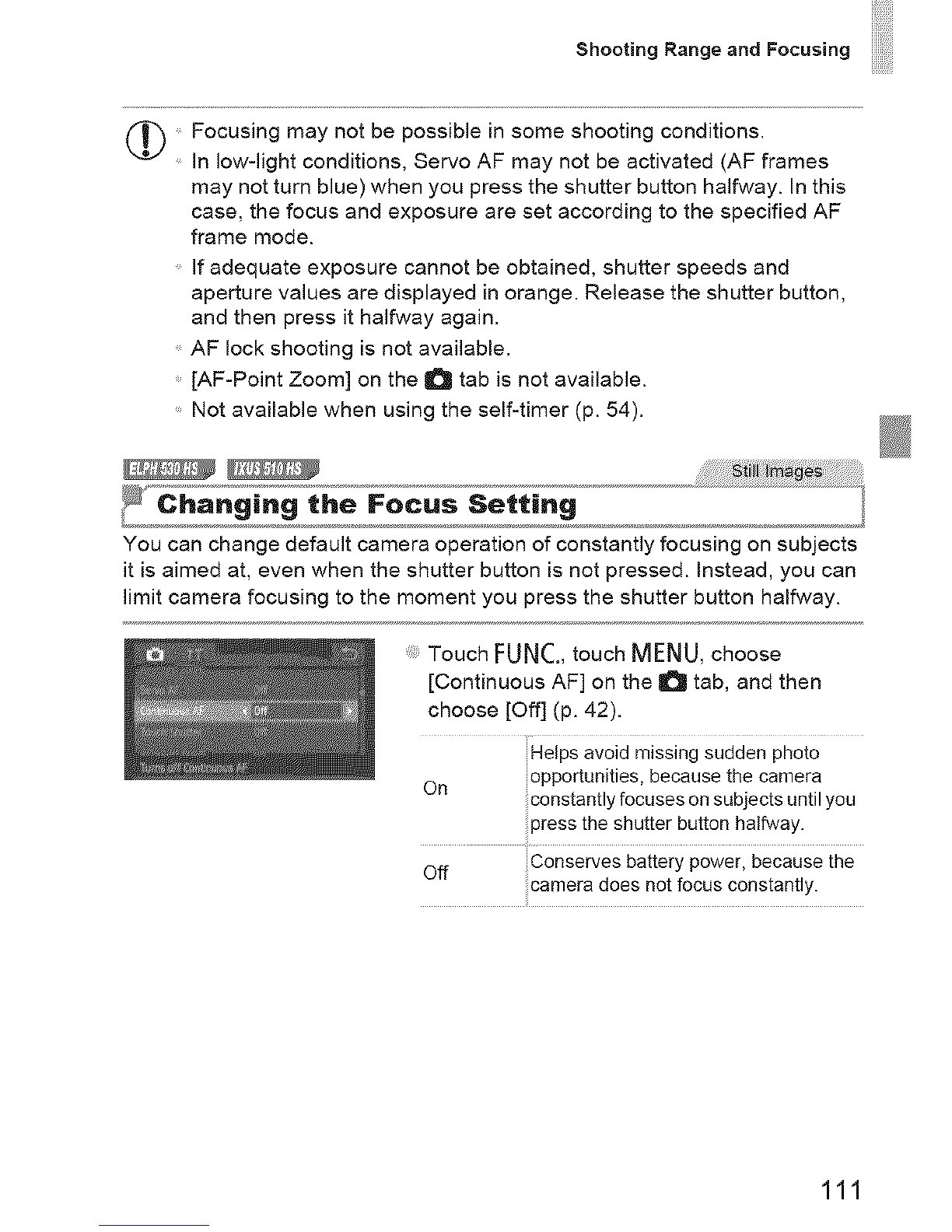

(_ Focusing may not be possible in some shooting conditions.
In low-light conditions, Servo AF may not be activated (AF frames
may not turn blue) when you press the shutter button halfway. In this
case, the focus and exposure are set according to the specified AF
frame mode.
If adequate exposure cannot be obtained, shutter speeds and
aperture values are displayed in orange. Release the shutter button,
and then press it halfway again.
AF lock shooting is not available.
[AF-Point Zoom] on the O tab is not available.
Not available when using the self-timer (p. 54).
You can change default camera operation of constantly focusing on subjects
it is aimed at, even when the shutter button is not pressed. Instead, you can
limit camera focusing to the moment you press the shutter button halfway.
Touch FUNC, touch MENU,choose
[Continuous AF] on the O tab, and then
choose [Off] (p. 42).
Helps avoid missing sudden photo
On opportunities, because the camera
constantly focuses on subjects until you
press the shutter button halfway.
Conserves battery power, because the
Off camera does not focus constantly.
111

Shooting Range and Focusing
You can shoot after the camera focuses on your selected subject, person's
face, or location shown on the screen.
Choose a subject, aperson's face,
or alocation to focus on.
Touch the subject or person on the screen,
I1_
When the AF frame mode is set to [Face
Detect], the camera beeps and displays _
when a face is detected. Focus is maintained
even if the subject moves.
ELPH320"S_IXU$240"S_
When the AF frame mode is set to [Face
AiAF], the camera beeps and displays _L
when a face is detected. Focus is maintained
even if the subject moves.
When the AF frame mode is set to [Fixed
frame], an AF frame is displayed where you
touched.
To cancel Touch AF, touch _D.
Shoot.
Press the shutter button halfway. The frame
in focus changes to a green [_.
Press the shutter button all the way down to
shoot.
112

Shooting Range and Focusing
(_ If Touch AF does not work, prepare the camera for Touch AF. Either
touch _ to change the mode to _ (p. 56) or touch FUNC., touch
MENU,and set [Touch Shutter) on the O tab to [Off].
If a border was displayed when you touched the screen, move the
camera to position the person's face or the subject inside the border
before touching the screen.
Tracking may not be possible when subjects are too small or move
too rapidly, or when there is inadequate contrast between subjects
and the background.
When shooting in _ or _ (p. 106) with the AF frame mode set to
[Face Detect], touching a location to focus on returns the camera to
_LPH320H$_IXUS240HS
When shooting in _ or _, (p. 106) with the AF frame mode set to
[Face AiAF], touching a location to focus on returns the camera to
If [Face ID] is set to [On], names will not display when registered
people are detected, but the names will be recorded in the still
images (p. 59). However, a name will display if the subject chosen to
focus on is the same as a person detected with Face ID.
_Shooting with the AF Lock
The focus can be locked. After you lock the focus, the focal position will not
change even when you release your finger from the shutter button.
Lock the focus.
With the shutter button pressed halfway,
touch the top of the screen (inside the frame
shown at left).
The focus is now locked, and AFLis displayed.
To unlock the focus, release the shutter
button and touch the screen again. In this
case, AFLis no longer displayed.
Compose the shot and shoot.
113

....._;_!;_!i_i_!i;_ii_ii_ii_ii_i!_i!!;i_iii_iii!ii;i!i!_!_!!;!_!_!!_!!i!i_i_i_i_i_i!!i!ii!iiiiii!iii_¸;_

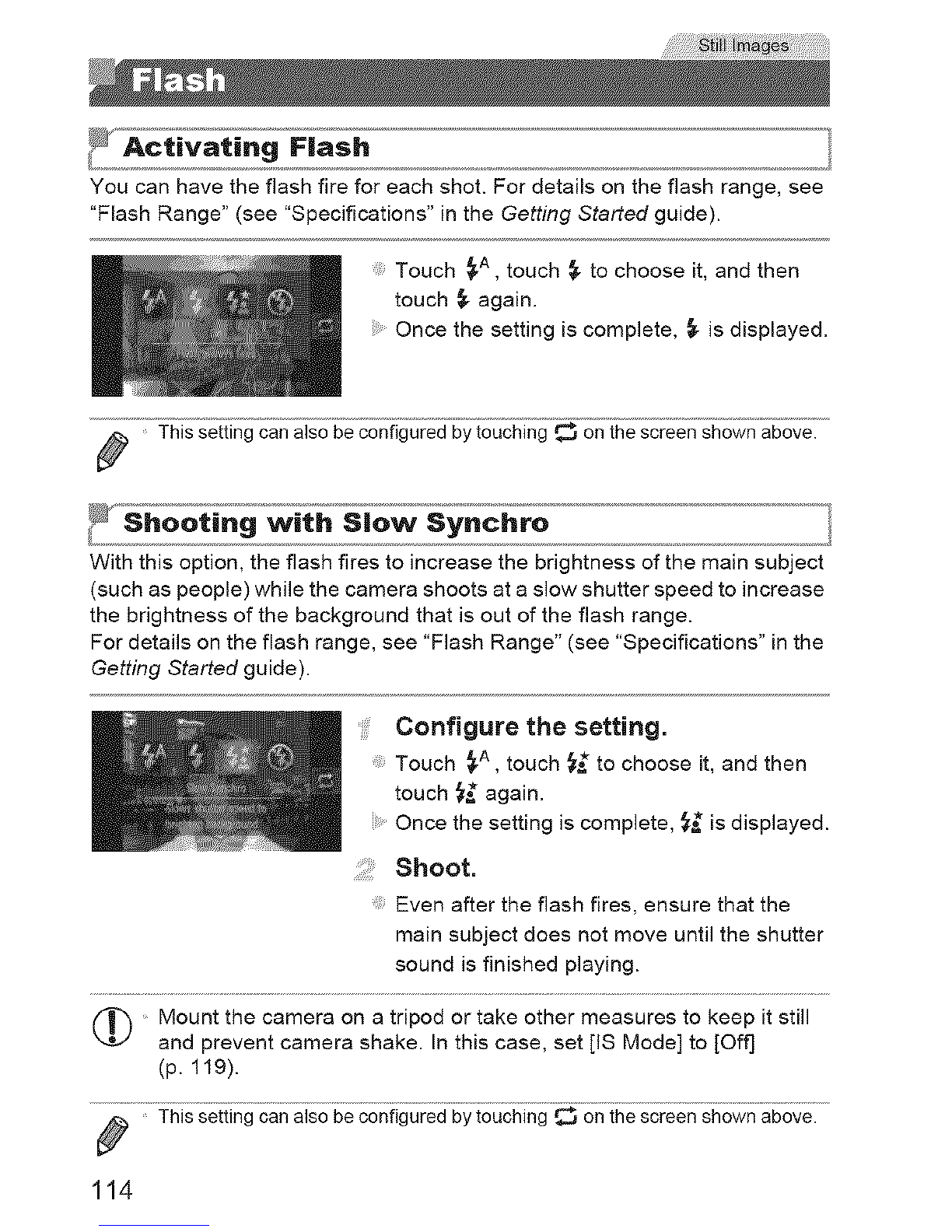

_JActivating Flash
You can have the flash fire for each shot. For details on the flash range, see
"Flash Range" (see "Specifications" in the Getting Started guide).
Touch _A touch _- to choose it, and then
touch _ again.
Once the setting is complete, }. is displayed.
_J Shooting with Slow Synchro
With this option, the flash fires to increase the brightness of the main subject
(such as people) while the camera shoots at a slow shutter speed to increase
the brightness of the background that is out of the flash range.
For details on the flash range, see "Flash Range" (see "Specifications" in the
Getting Started guide).
Configure the setting.
Touch _A touch _ to choose it, and then
touch _* again.
Once the setting is complete, _* is displayed.
Shoot.
Even after the flash fires, ensure that the
main subject does not move until the shutter
sound is finished playing.
__ ount the camera on a tripod or take other measures to keep it still
and prevent camera shake. In this case, set [IS Mode] to [Off]
(p. 119).
114

Flash
'/

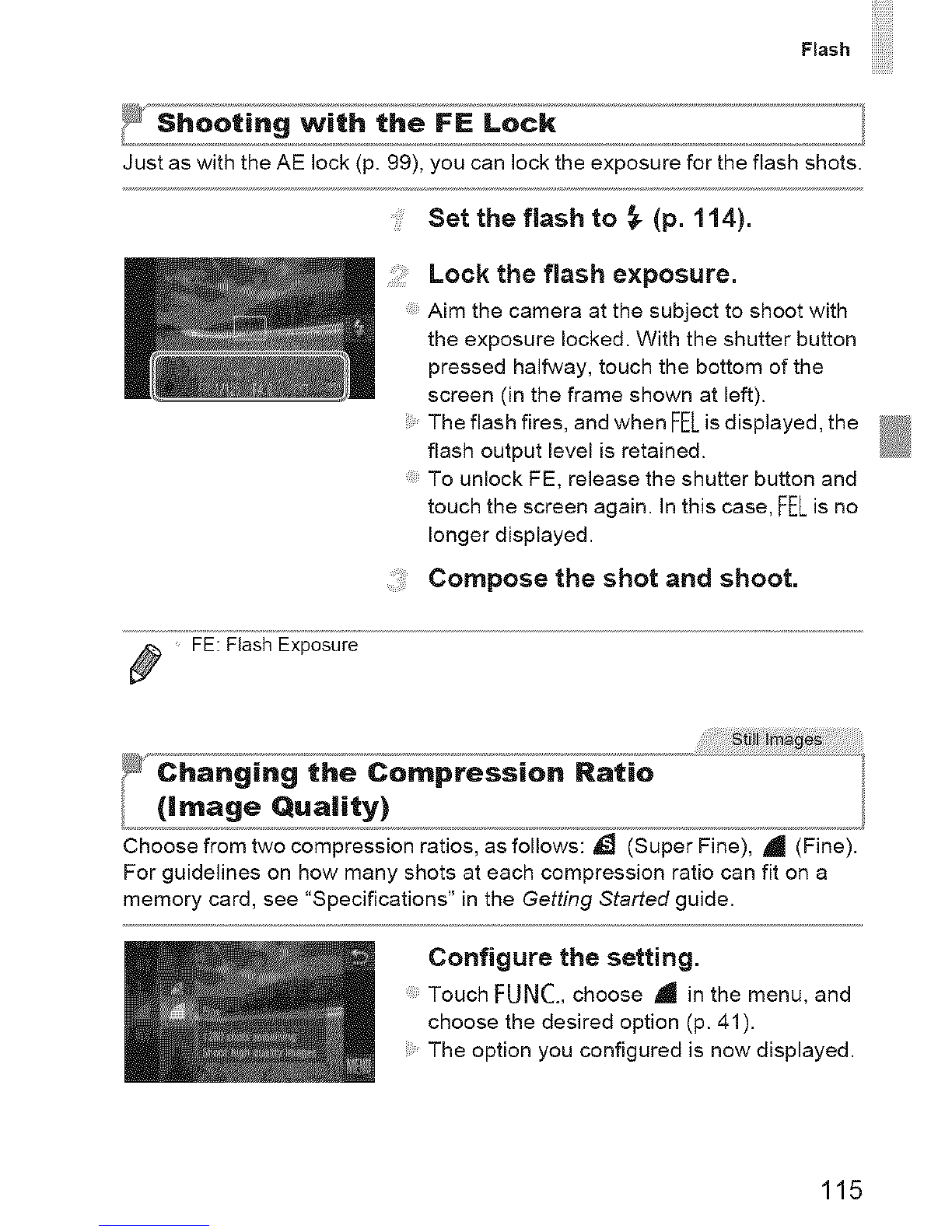

Just as with the AE lock (p. 99), you can lock the exposure for the flash shots.
Set the flash to _. (p. 114).
Lock the flash exposure.
Aim the camera at the subject to shoot with
the exposure locked. With the shutter button
pressed halfway, touch the bottom of the
screen (in the frame shown at left).
The flash fires, and when FELis displayed, the
flash output level is retained. _
To unlock FE, release the shutter button and
touch the screen again. In this case, FEEis no
longer displayed.
Compose the shot and shoot.
, E: Flash Exposure
Changing the Compression Ratio
(image Quality)
Choose from two compression ratios, as follows: Af_ (Super Fine), _ (Fine).
For guidelines on how many shots at each compression ratio can fit on a
memory card, see "Specifications" in the Getting Started guide.
Configure the setting.
Touch FUNC, choose _ in the menu, and
choose the desired option (p. 41 ).
The option you configured is now displayed.
115

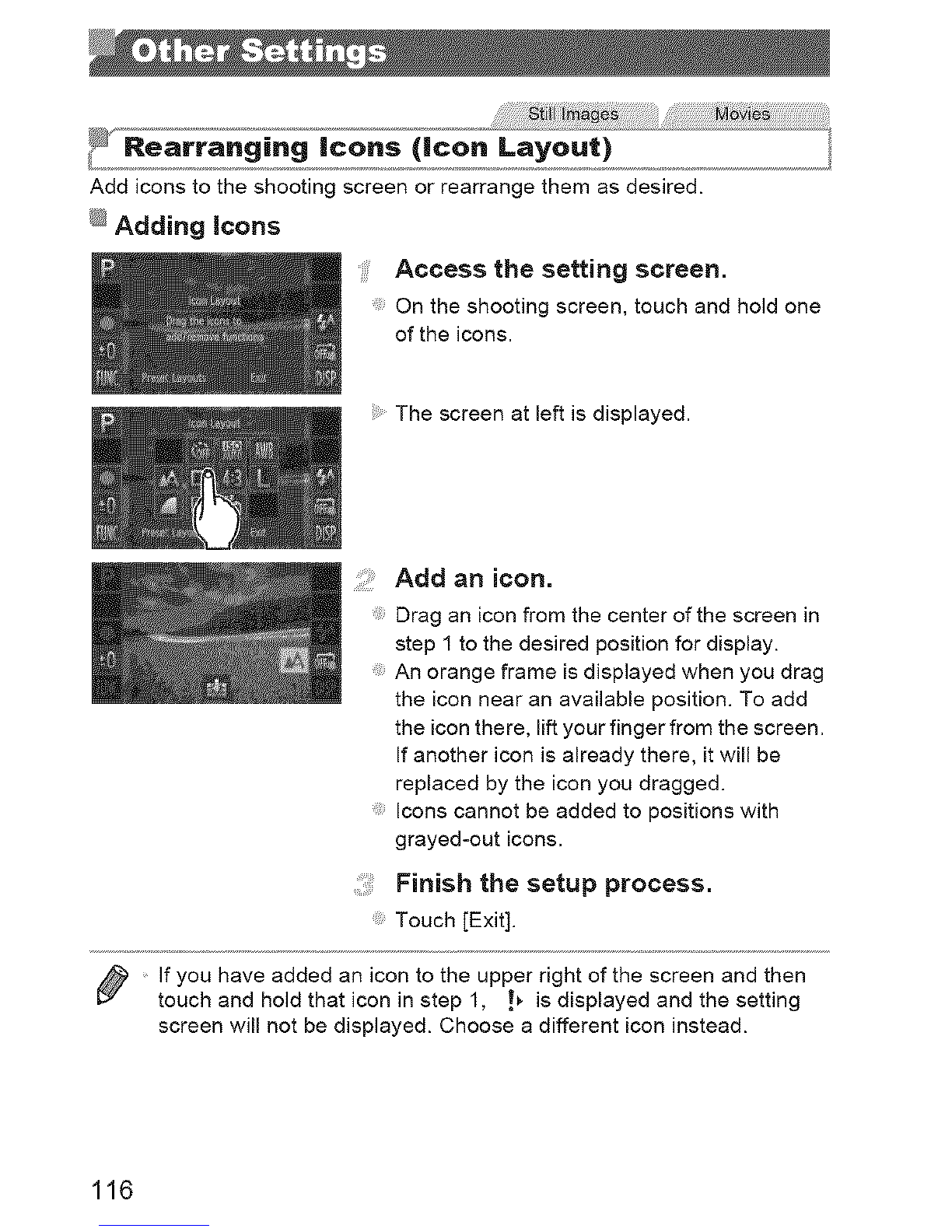

Add icons to the shooting screen or rearrange them as desired.
®Adding icons
Access the setting screen.
On the shooting screen, touch and hold one
of the icons.
The screen at left is displayed.
Add an icon.
Drag an icon from the center of the screen in
step 1 to the desired position for display.
An orange frame is displayed when you drag
the icon near an available position. To add
the icon there, lift your finger from the screen.
If another icon is already there, it will be
replaced by the icon you dragged.
Icons cannot be added to positions with
grayed-out icons.
Finish the setup process.
Touch [Exit].
If you have added an icon to the upper right of the screen and then
touch and hold that icon in step 1, 1_ is displayed and the setting
screen will not be displayed. Choose a different icon instead.
116

@Rearranging icons
@ Removing icons
Other Settings
On the setting screen in step 1 on p. 116,
drag an icon to the desired position to
rearrange the layout.
If another icon is already in that position, it wi[[
be replaced by the icon you dragged.
Drag the unwanted icon from the setting
screen in step 1 on p. 116 to the center of the
screen and then over the |_| icon that will be
displayed.
If |_| is not displayed when you drag an
icon, the icon cannot be removed.
@Changing Layouts
Choose from three preset icon layouts. Note that these layouts include only
default icons, not icons you have added.
Touch [Preset Layouts] on the setting screen
in step l on p. 116.
Touch the desired icon layout, and then touch
[OK].
If you prefer not to change the layout, touch
[Cancel]. The setting screen is displayed
again.
:'To_icanais cces h eitin creenbytoL;chii:_ 0"NCI andih E'N01..............
and then touching |Icon Layout] on the O tab.
117

Other Settings
Shoot|.g By Touching the Screen
{Touch Shutter)
Follow these steps to prepare the camera for Touch Shutter, which takes
shots when you touch the screen.
Touch FUNC.,touch MENU,choose [Touch
Shutter] on the O tab, and then choose [On]
(p. 42).
Follow steps 2 - 3 on p. 56 to shoot.
(_ The camera performs the same operations for touch-shutter shooting
as for regular shooting with the shutter button, but the following
features are not available.
AF Lock (p. 113), AE Lock (p. 99), FE Lock (p. 115)
When shooting in _ or AA (p. 106) with the AF frame mode set to
[Face Detect], using Touch Shutter returns the camera to _.
When shooting in _ or _, (p. 106) with the AF frame mode set to
[Face AiAF], using Touch Shutter returns the camera to _.
Even if _ mode (p. 92) orDJj (p. 104) is selected, when [Touch
Shutter] is [On], only one shot is taken.
118

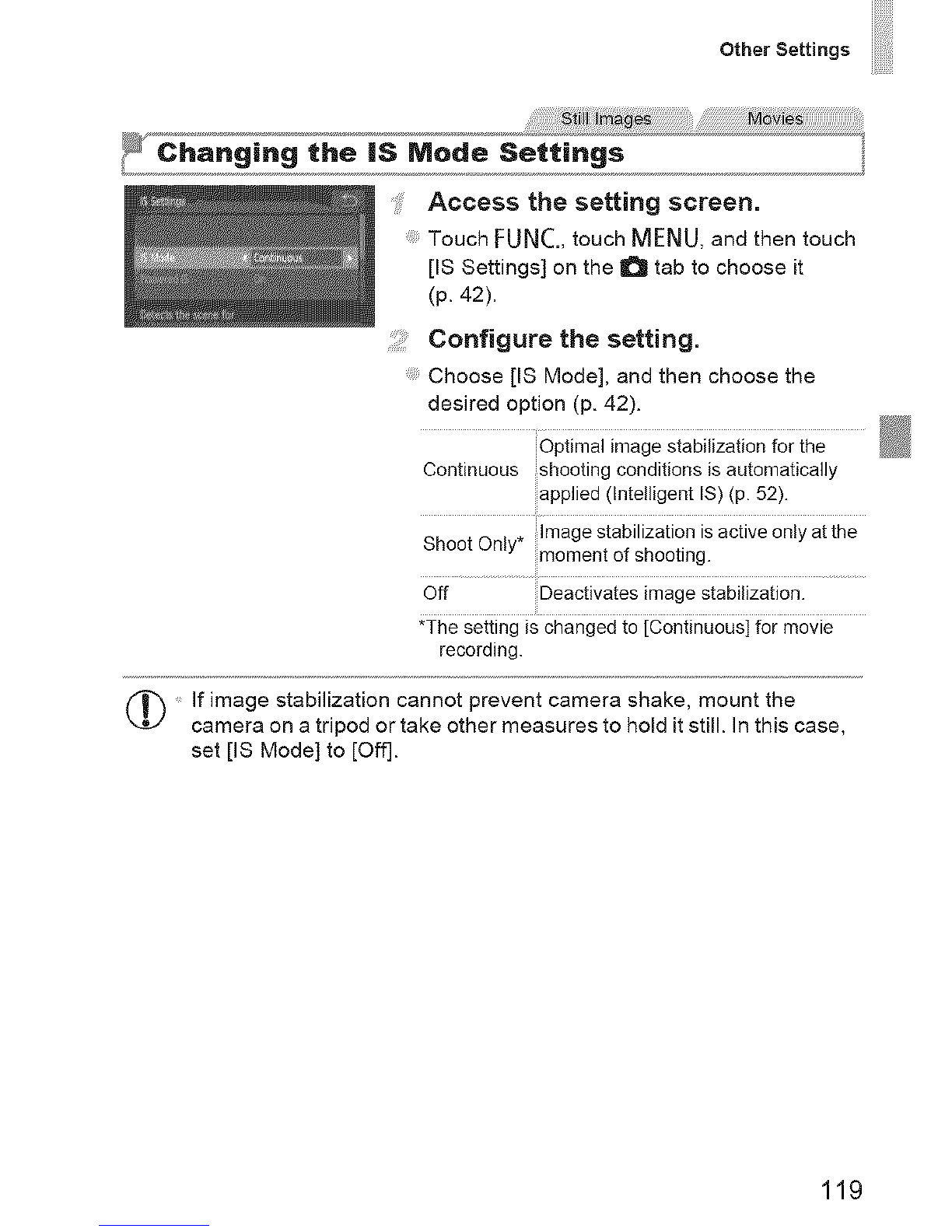

Other Settings
Access the setting screen.
Touch FUNC.,touch MENU,and then touch
[IS Settings] on the O tab to choose it
(p. 42).
Configure the setting.
Choose [IS Mode], and then choose the
desired option (p. 42).
Optimal image stabilization for the
Continuous shooting conditions is automatically
applied (Intelligent IS) (p. 52).
Image stabilization isactive only at the
Shoot Only* moment of shooting.
Off Deactivates image stabilization.
*The setting is changed to [Continuous] for movie
recording.
(_ If image stabilization cannot prevent camera shake, mount the
camera on a tripod or take other measures to hold it still. In this case,
set [IS Mode] to [Off].
119

Other Settings
_i;iii;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;ii¸_!_!_!!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_i_i_

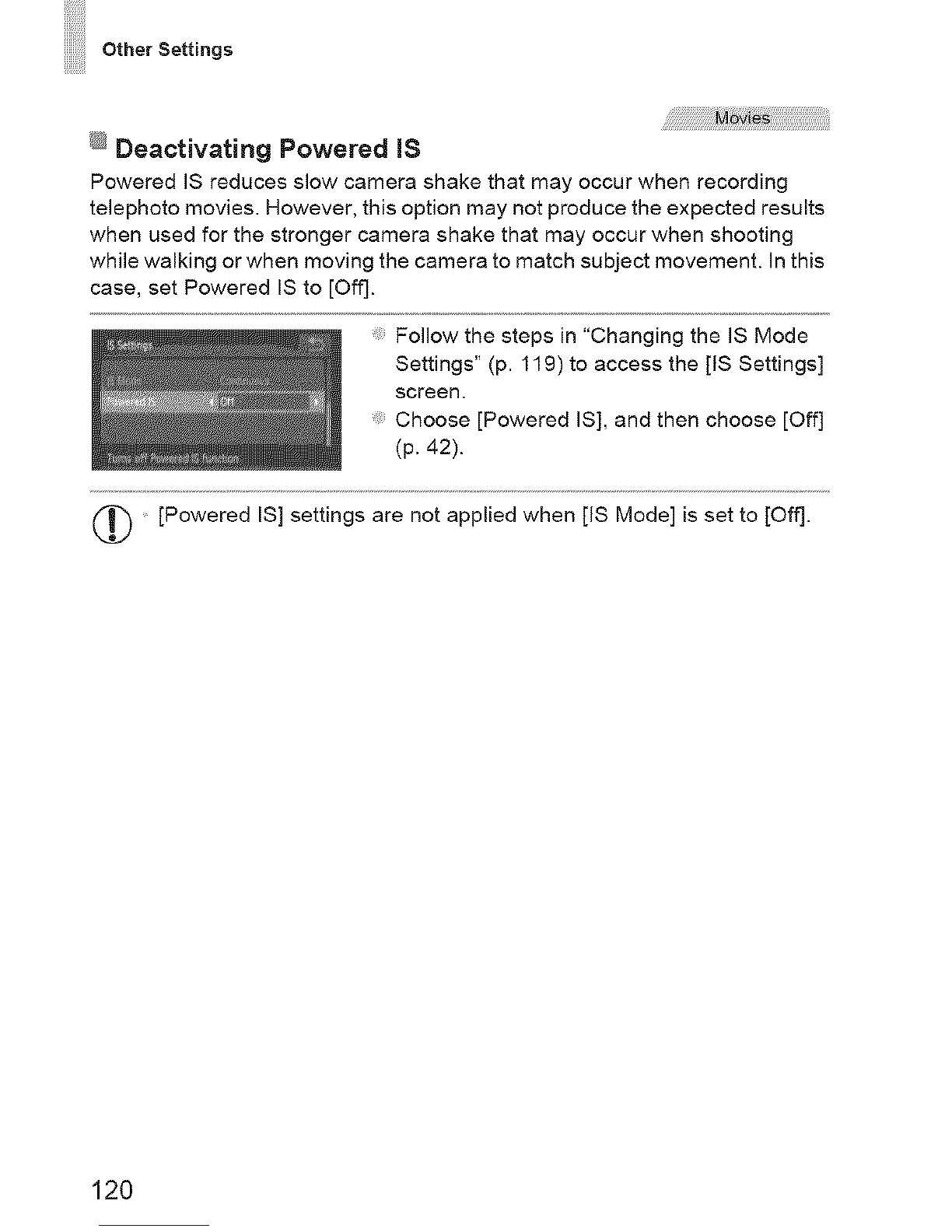

®Deactivating Powered iS
Powered IS reduces slow camera shake that may occur when recording
telephoto movies. However, this option may not produce the expected results
when used for the stronger camera shake that may occur when shooting
while walking or when moving the camera to match subject movement. In this
case, set Powered IS to [Off].
Follow the steps in "Changing the IS Mode
Settings" (p. 119) to access the [IS Settings]
screen.
Choose [Powered IS], and then choose [Off]
(p. 42).
(_ [Powered IS] settings are not applied when [IS Mode] is set to [Off].
120

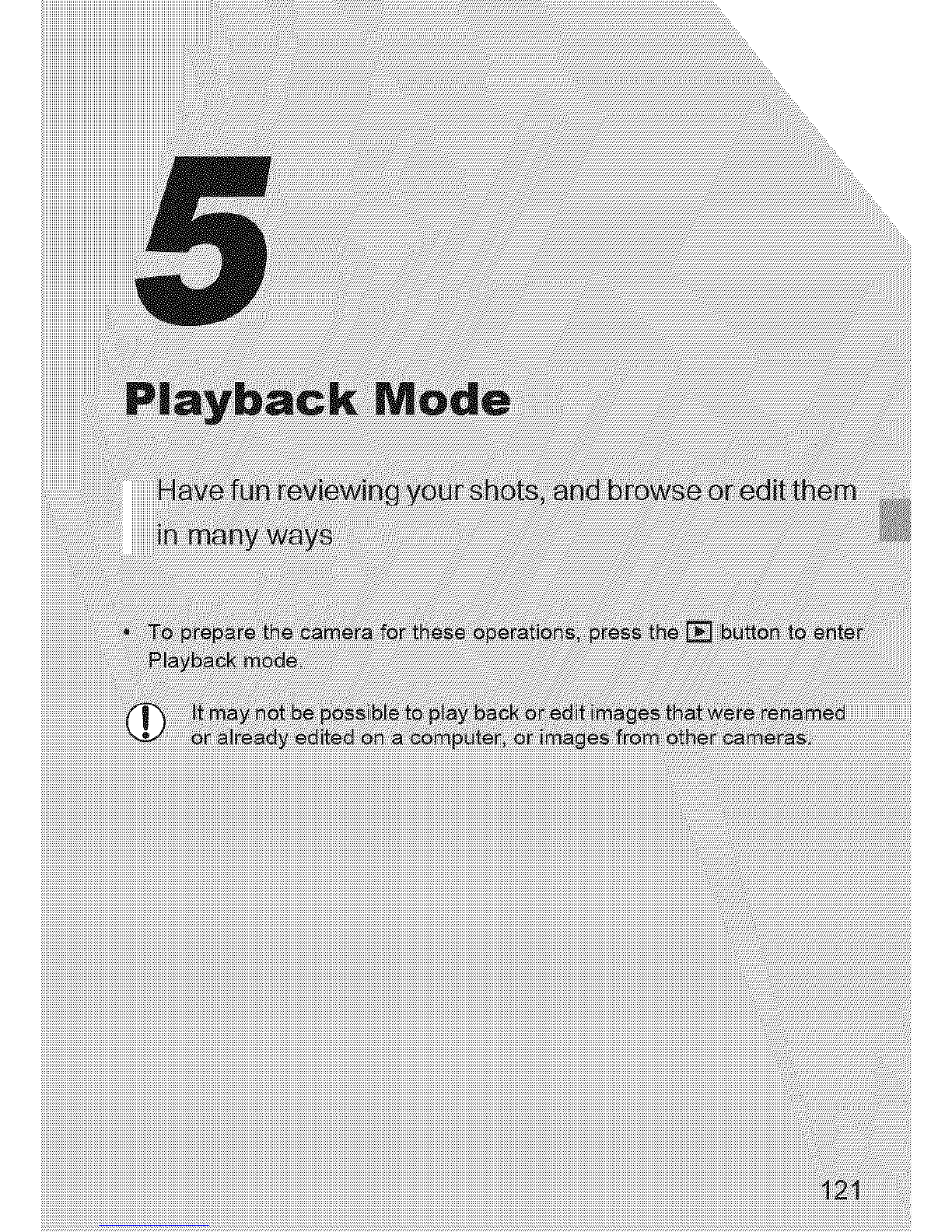

......_iiiiiiS_iiii!i!_i!_i!i_i_iiiii!i!!_!_!!i!_!_!_i_i!_,i;ii_i_!i!_i_ii_iiii!_:,__i_i_i_ii;iii_i_i_i!i!i!i!i_i_i_!_iiiiiiiii_i_ii!_i_!_!;_i_;_ii_ii_ii_ii_ii_ii_i!_!_i_i_i_!i_i_¸ii!ili!i!i_i_ii_ii:i_;_i!i;:,
After shooting images or movies, you can view them on the screen as follows.
E[_ _ Enter Playback mode.
Press the [] button.
......................' ::_ .... :_:: _ Your last shot is displayed.
122
Browse through your images.
To view the next image, drag right to left
across the screen, and to view the previous
image, drag left to right.
You can also view the next image by touching
the right edge of the screen (in the area
indicated by frame 1_ at left). In this case, _,
is displayed. Similarly, you can view the
previous image by touching the left edge of
the screen (in the area indicated by frame (_)
at left), and in this case, _ is displayed.
Display will switch to Scroll Display mode if
you continue scrolling.
In this mode, scroll left or right to choose an
image.
Touching the central image will restore
single-image display.
To browse images grouped by shooting date
in Scroll Display mode, scroll up or down.
Movies are identified by a (_ icon. To play
movies, go to step 3.

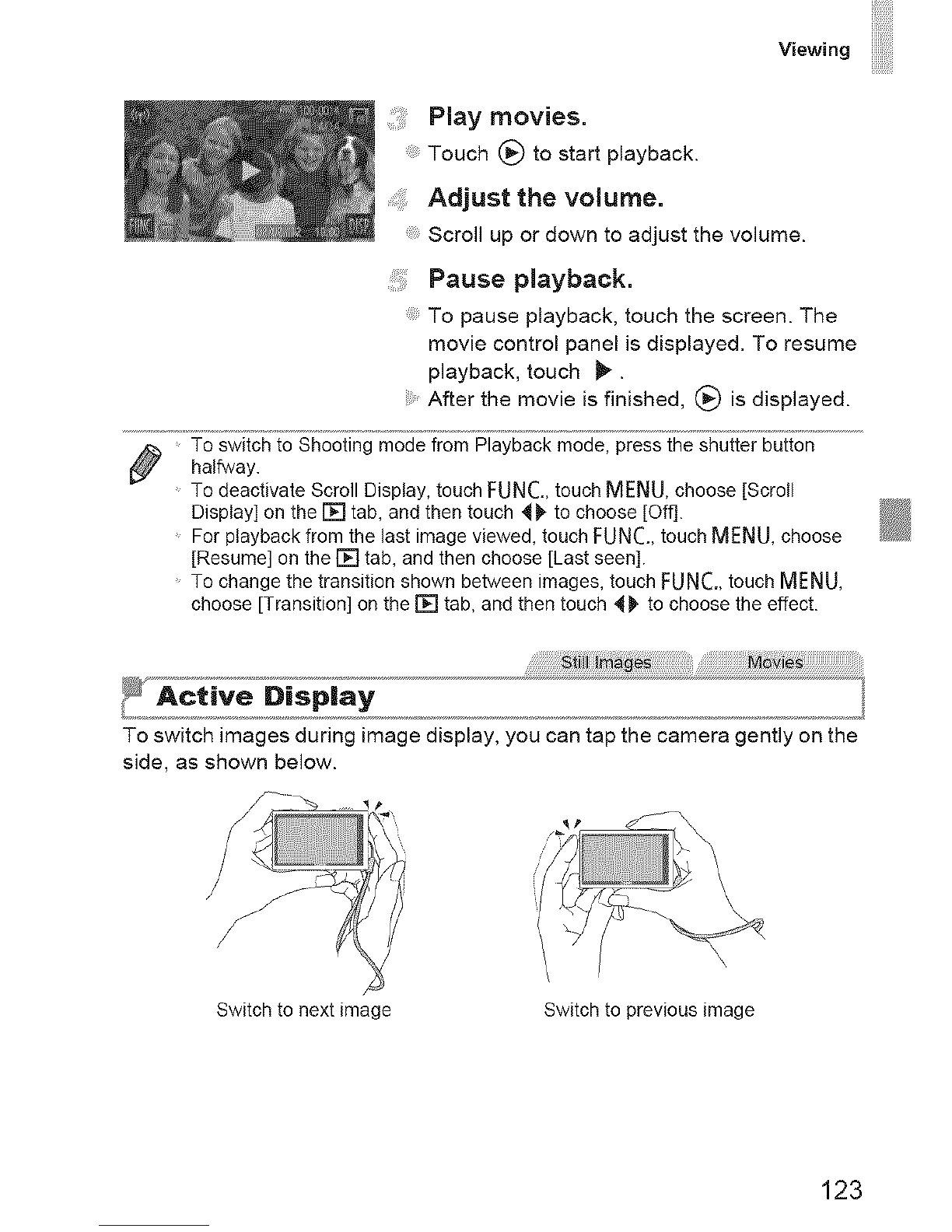

Viewing
Play movies.
Touch (_ to start playback.
Adjust the volume.
Scroll up or down to adjust the volume.
Pause playback.
To pause playback, touch the screen. The
movie control panel is displayed. To resume
playback, touch _.
After the movie is finished, (_ is displayed.
_z halfway.
To deactivate Scroll Display, touch FUNC., touch MENU, choose [Scroll
Display] on the [] tab, and then touch 4_' to choose [Off].
For playback from the last image viewed, touch FUNC., touch MENU, choose
[Resume] on the [] tab, and then choose [Last seen].
To change the transition shown between images, touch FUN(;., touch MENU,
choose [Transition] on the [] tab, and then touch _), to choose the effect.
To switch images during image display, you can tap the camera gently on the
side, as shown below.
Switch to next image Switch to previous image
123

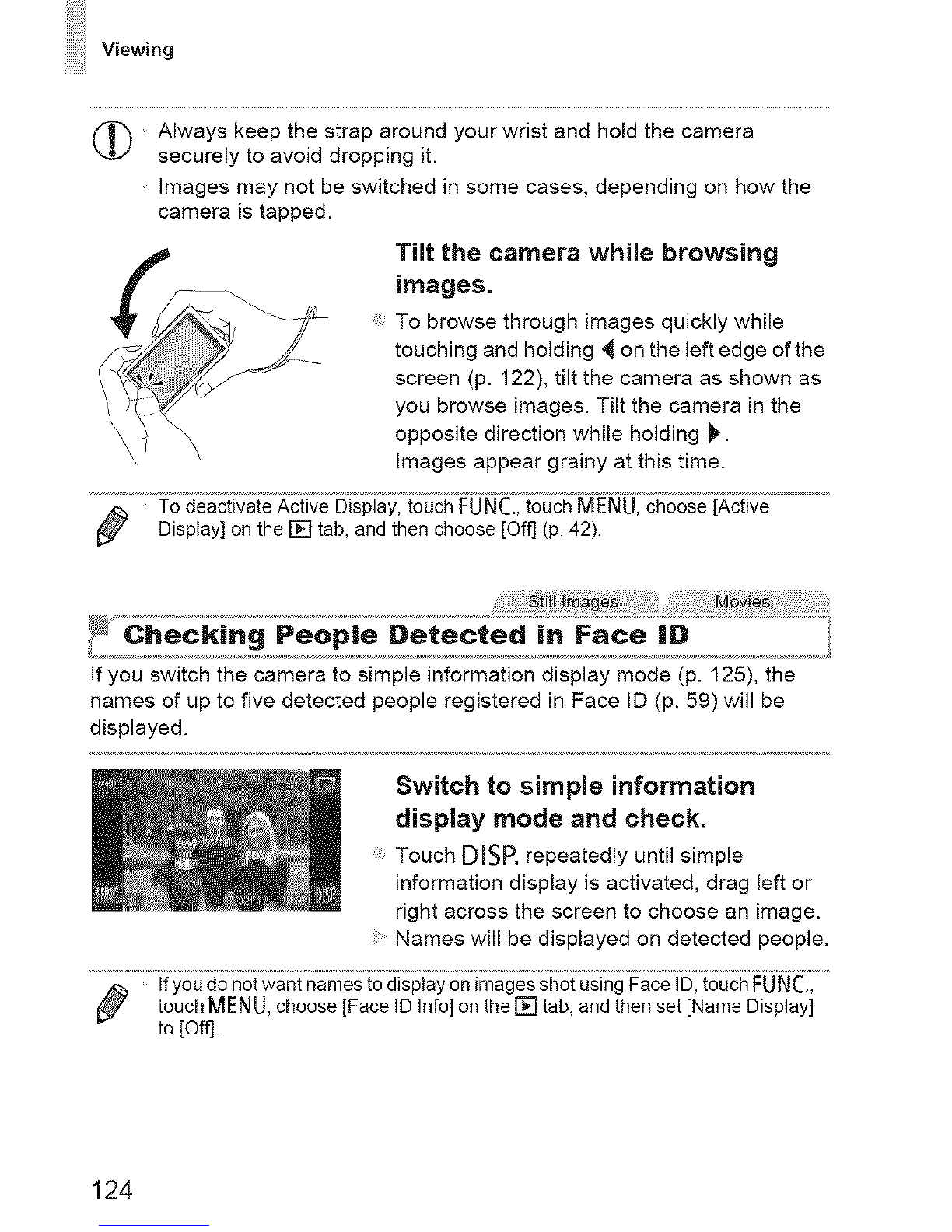

Viewing
(_ Always keep the strap around your wrist and hold the camera
securely to avoid dropping it.
Images may not be switched in some cases, depending on how the
camera is tapped.
Tilt the camera while browsing
images.
To browse through images quickly while
touching and holding 4 on the left edge of the
screen (p. 122), tilt the camera as shown as
you browse images. Tilt the camera in the
opposite direction while holding _.
Images appear grainy at this time.
o_eac_iva_e_ciiveSis_ia_i_o_c _.i_o_;c_M_i__ic_oosei_ciive.....
Display] on the [] tab, and then choose [Oft] (p. 42).
_Checking Detected in Face lid
People
If you switch the camera to simple information display mode (p. 125), the
names of up to five detected people registered in Face ID (p. 59) will be
displayed.
Switch to simple information
display mode and check.
Touch DISP.repeatedly until simple
information display is activated, drag left or
right across the screen to choose an image.
Names will be displayed on detected people.
touch MFNU, choose [Face ID Info] on the [] tab, and then set [Name Display]
to [Off].
124
