Service Manual

iPF800 series

Application

This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation, maintenance, and repair

of products. This manual covers all localities where the products are sold. For this reason, there may be information in this

manual that does not apply to your locality.

Corrections

This manual may contain technical inaccuracies or typographical errors due to improvements or changes in products. When

changes occur in applicable products or in the contents of this manual, Canon will release technical information as the need

arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new edition

of this manual.

The following paragraph does not apply to any countries where such provisions are inconsistent with local law.

Trademarks

The product names and company names used in this manual are the registered trademarks of the individual companies.

translated into another language, in whole or in part, without the written consent of Canon Inc.

Printed in Japan

Caution

Use of this manual should be strictly supervised to avoid disclosure of confidential information.

Introduction

Symbols Used

This documentation uses the following symbols to indicate special information:

Symbol Description

Indicates an item of a non-specific nature, possibly classified as Note, Caution, or Warning.

Indicates an item requiring care to avoid electric shocks.

Indicates an item requiring care to avoid combustion (fire).

Indicates an item prohibiting disassembly to avoid electric shocks or problems.

Indicates an item requiring disconnection of the power plug from the electric outlet.

Indicates an item intended to provide notes assisting the understanding of the topic in question.

Indicates an item of reference assisting the understanding of the topic in question.

Provides a description of a service mode.

Provides a description of the nature of an error indication.

Memo

REF.

Introduction

The following rules apply throughout this Service Manual:

1. Each chapter contains sections explaining the purpose of specific functions and the relationship between electrical and mechanical systems with refer-

ence to the timing of operation.

In the diagrams, represents the path of mechanical drive; where a signal name accompanies the symbol , the arrow indicates the

direction of the electric signal.

The expression "turn on the power" means flipping on the power switch, closing the front door, and closing the delivery unit door, which results in

supplying the machine with power.

2. In the digital circuits, '1'is used to indicate that the voltage level of a given signal is "High", while '0' is used to indicate "Low".(The voltage value, how-

ever, differs from circuit to circuit.) In addition, the asterisk (*) as in "DRMD*" indicates that the DRMD signal goes on when '0'.

In practically all cases, the internal mechanisms of a microprocessor cannot be checked in the field. Therefore, the operations of the microprocessors

used in the machines are not discussed: they are explained in terms of from sensors to the input of the DC controller PCB and from the output of the

DC controller PCB to the loads.

The descriptions in this Service Manual are subject to change without notice for product improvement or other purposes, and major changes will be com-

municated in the form of Service Information bulletins.

All service persons are expected to have a good understanding of the contents of this Service Manual and all relevant Service Information bulletins and be

able to identify and isolate faults in the machine."

Contents

Chapter 1 PRODUCT DESCRIPTION

1.1 Product Overview .......................................................................................................................................1- 1

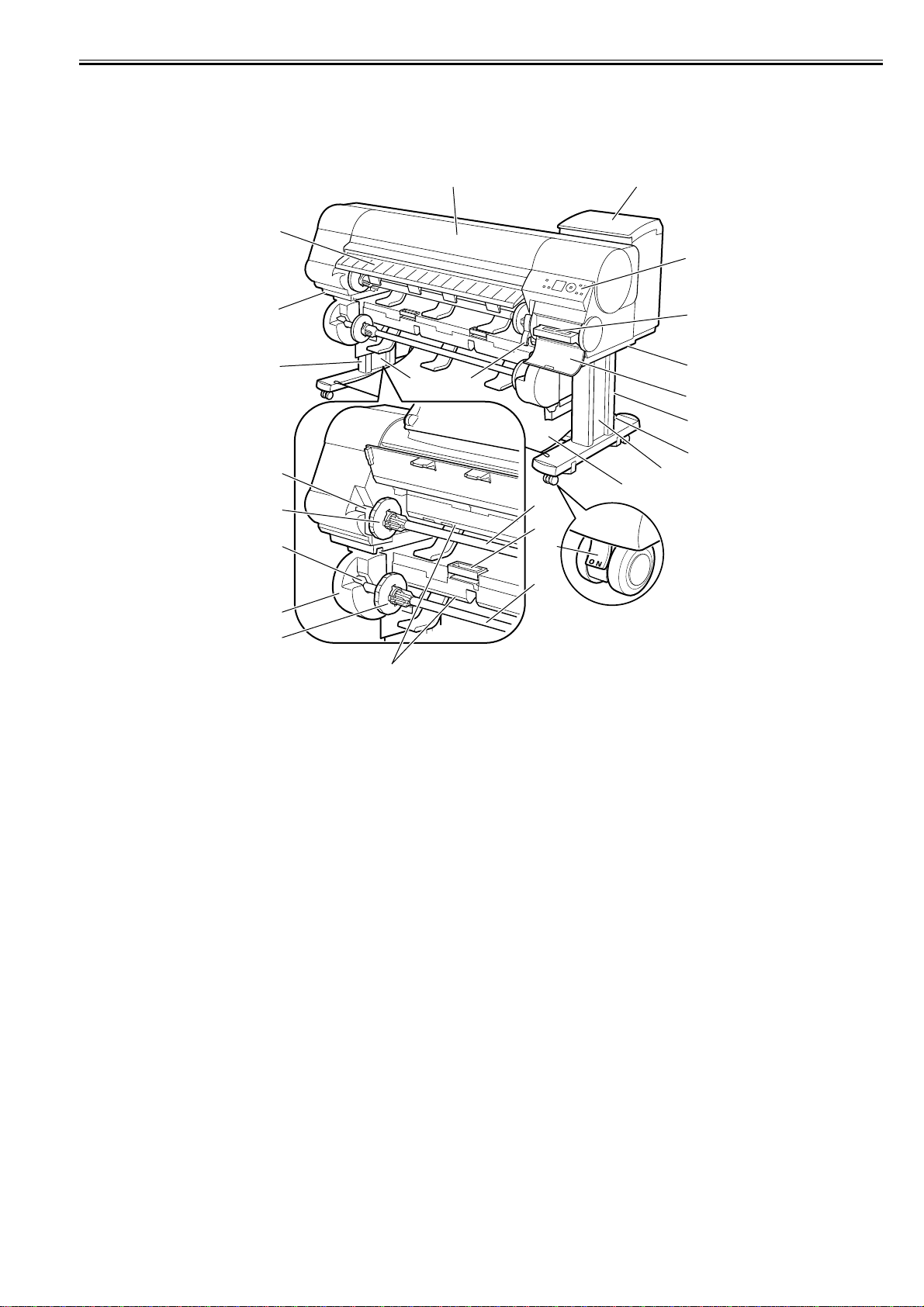

1.1.1 Product Overview....................................................................................................................................................1- 1

1.1.2 Product Overview....................................................................................................................................................1- 3

1.2 Features .....................................................................................................................................................1- 5

1.2.1 Features ..................................................................................................................................................................1- 5

1.2.2 Features ..................................................................................................................................................................1- 5

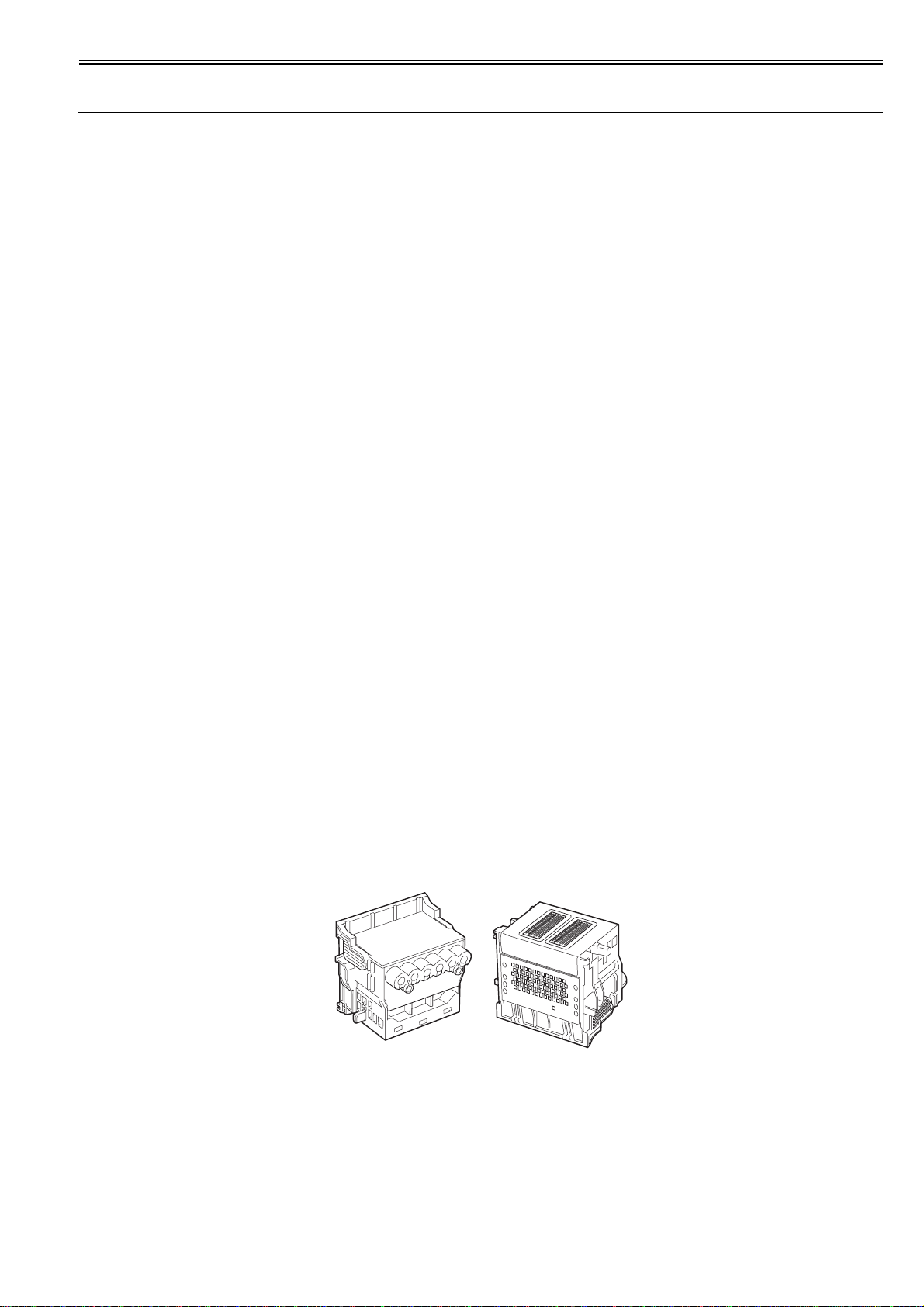

1.2.3 Printhead.................................................................................................................................................................1- 5

1.2.4 Ink tank....................................................................................................................................................................1- 5

1.2.5 Cutter.......................................................................................................................................................................1- 7

1.2.6 Roll holder ...............................................................................................................................................................1- 7

1.2.7 Stand.......................................................................................................................................................................1- 8

1.2.8 Stand.......................................................................................................................................................................1- 8

1.2.9 Wheeled output stacker...........................................................................................................................................1- 8

1.2.10 Media take-up unit.................................................................................................................................................1- 9

1.2.11 Hard disk drive.....................................................................................................................................................1- 11

1.2.12 IEEE1394 (FireWire) Board.................................................................................................................................1- 11

1.2.13 Consumables.......................................................................................................................................................1- 12

1.3 Product Specifications..............................................................................................................................1- 13

1.3.1 Product Specifications...........................................................................................................................................1- 13

1.3.2 Product Specifications...........................................................................................................................................1- 14

1.4 Detailed Specifications .............................................................................................................................1- 15

1.4.1 Print Speed and Direction......................................................................................................................................1- 15

1.4.2 Interface Specifications .........................................................................................................................................1- 22

1.5 Names and Functions of Components .....................................................................................................1- 23

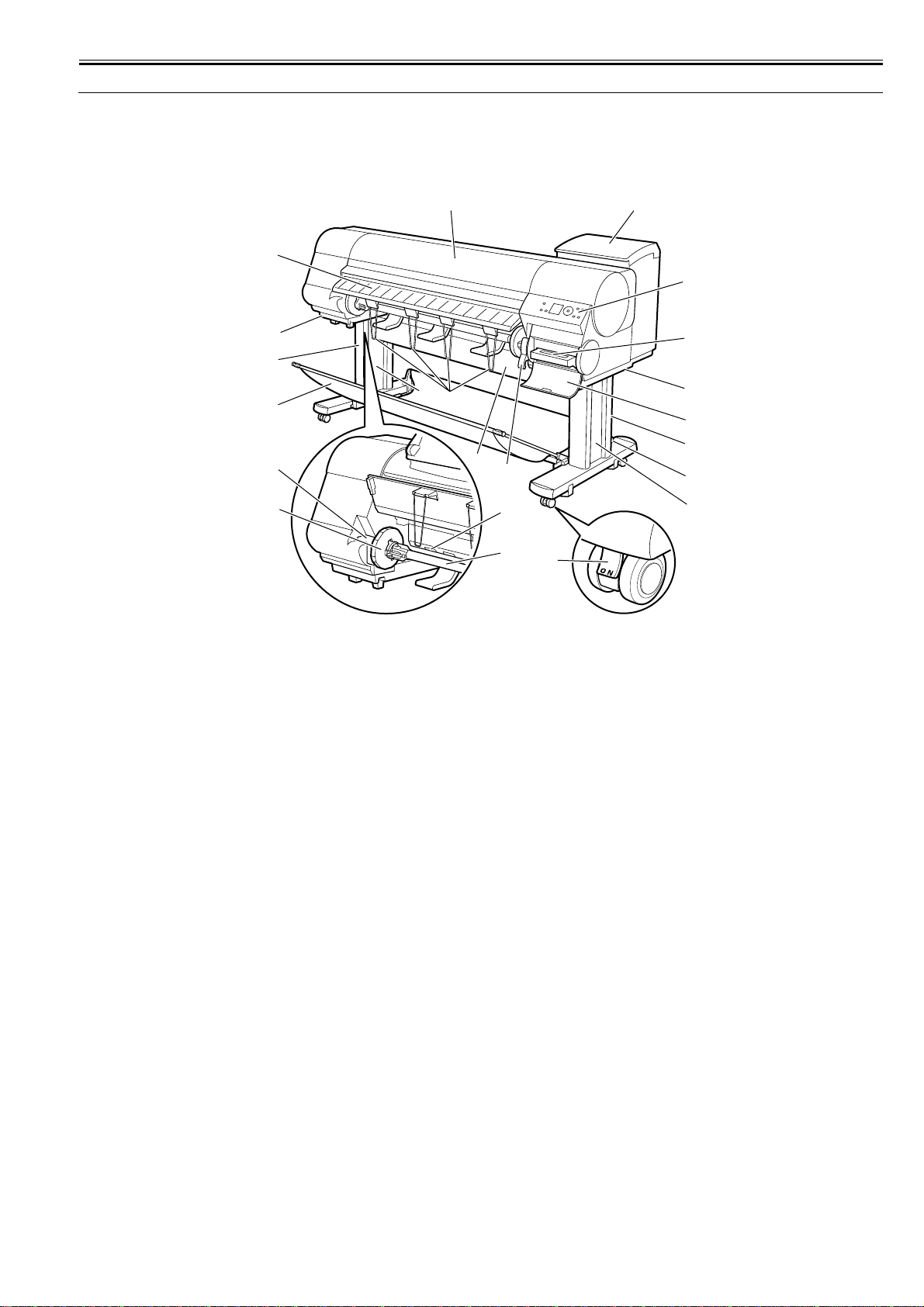

1.5.1 Front......................................................................................................................................................................1- 23

1.5.2 Front......................................................................................................................................................................1- 25

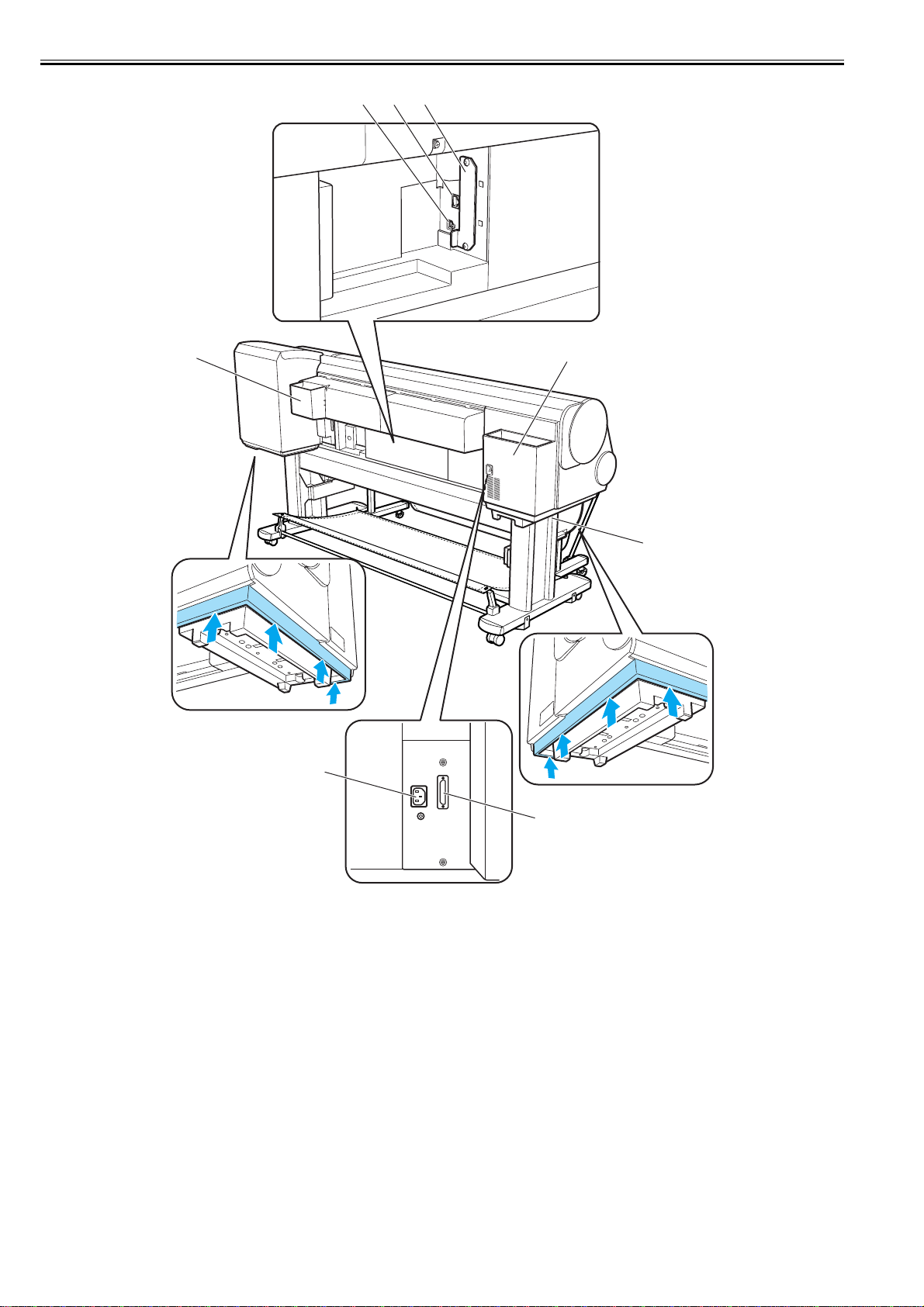

1.5.3 Rear.......................................................................................................................................................................1- 26

1.5.4 Rear.......................................................................................................................................................................1- 27

1.5.5 Top Cover (Inside).................................................................................................................................................1- 28

1.5.6 Carriage.................................................................................................................................................................1- 29

1.5.7 Ink Tank Cover (Inside).........................................................................................................................................1- 29

1.6 Basic Operation........................................................................................................................................1- 30

1.6.1 Operation Panel.....................................................................................................................................................1- 30

1.6.2 Main Menu.............................................................................................................................................................1- 31

1.6.3 Main Menu.............................................................................................................................................................1- 51

1.6.4 Basket Unit............................................................................................................................................................1- 71

1.7 Safety and Precautions ............................................................................................................................1- 77

1.7.1 Safety Precautions ................................................................................................................................................1- 77

1.7.1.1 Moving Parts..........................................................................................................................................................................1- 77

1.7.1.2 Adhesion of Ink ...................................................................................................................................................................... 1- 78

1.7.1.3 Electric Parts..........................................................................................................................................................................1- 80

1.7.2 Other Precautions..................................................................................................................................................1- 81

1.7.2.1 Printhead................................................................................................................................................................................ 1- 81

1.7.2.2 Ink Tank .................................................................................................................................................................................1- 82

1.7.2.3 Handling the Printer............................................................................................................................................................... 1- 83

1.7.3 Precautions When Servicing Printer......................................................................................................................1- 85

1.7.3.1 Notes on the Data Stored in the Printer................................................................................................................................. 1- 85

1.7.3.2 Confirming the Firmware Version ..........................................................................................................................................1- 85

1.7.3.3 Precautions against Static Electricity.....................................................................................................................................1- 85

1.7.3.4 Self-diagnostic Feature..........................................................................................................................................................1- 85

Contents

1.7.3.5 Disposing of the Lithium Battery ............................................................................................................................................1- 85

Chapter 2 TECHNICAL REFERENCE

2.1 Basic Operation Outline .............................................................................................................................2- 1

2.1.1 Printer Diagram........................................................................................................................................................2- 1

2.1.2 Printer Diagram........................................................................................................................................................2- 2

2.1.3 Print Signal Sequence .............................................................................................................................................2- 3

2.1.4 Print Driving .............................................................................................................................................................2- 4

2.2 Firmware ....................................................................................................................................................2- 6

2.2.1 Operation Sequence at Power-on............................................................................................................................2- 6

2.2.2 Operation Sequence at Power-off............................................................................................................................2- 7

2.2.3 Print Control.............................................................................................................................................................2- 8

2.2.4 Print Position Adjustment Function........................................................................................................................2- 15

2.2.5 Head Management ................................................................................................................................................2- 15

2.2.6 Printhead Overheating Protection Control.............................................................................................................2- 15

2.2.7 Pause between Pages...........................................................................................................................................2- 15

2.2.8 White Raster Skip..................................................................................................................................................2- 15

2.2.9 Sleep Mode............................................................................................................................................................2- 15

2.2.10 Hard Disk Drive....................................................................................................................................................2- 15

2.3 Printer Mechanical System.......................................................................................................................2- 17

2.3.1 Outline....................................................................................................................................................................2- 17

2.3.1.1 Outline....................................................................................................................................................................................2- 17

2.3.2 Ink Passage...........................................................................................................................................................2- 18

2.3.2.1 Ink Passage...........................................................................................................................................................................2- 18

2.3.2.2 Ink Tank Unit..........................................................................................................................................................................2- 19

2.3.2.3 Carriage Unit.......................................................................................................................................................................... 2- 21

2.3.2.4 Printhead................................................................................................................................................................................ 2- 24

2.3.2.5 Purge Unit.............................................................................................................................................................................. 2- 25

2.3.2.6 Maintenance Cartridge........................................................................................................................................................... 2- 29

2.3.2.7 Air Flow..................................................................................................................................................................................2- 30

2.3.3 Paper Path.............................................................................................................................................................2- 31

2.3.3.1 Outline....................................................................................................................................................................................2- 31

2.3.3.2 Paper Path............................................................................................................................................................................. 2- 32

2.3.3.3 Cutter Unit.............................................................................................................................................................................. 2- 35

2.4 Printer Electrical System ..........................................................................................................................2- 36

2.4.1 Outline....................................................................................................................................................................2- 36

2.4.1.1 Overview................................................................................................................................................................................ 2- 36

2.4.1.2 Overview................................................................................................................................................................................ 2- 38

2.4.2 Main Controller.......................................................................................................................................................2- 40

2.4.2.1 Main controller PCB components .......................................................................................................................................... 2- 40

2.4.3 Carriage Relay PCB...............................................................................................................................................2- 42

2.4.3.1 Carriage relay PCB components ........................................................................................................................................... 2- 42

2.4.4 Head Relay PCB....................................................................................................................................................2- 42

2.4.4.1 Head relay PCB components................................................................................................................................................. 2- 42

2.4.5 Motor Driver...........................................................................................................................................................2- 44

2.4.5.1 Media take-up PCB components ........................................................................................................................................... 2- 44

2.4.5.2 Lower roll unit PCB components............................................................................................................................................2- 44

2.4.6 Maintenance Cartridge Relay PCB........................................................................................................................2- 44

2.4.6.1 Maintenance cartridge relay PCB components......................................................................................................................2- 44

2.4.7 Power Supply.........................................................................................................................................................2- 45

2.4.7.1 Power supply block diagram..................................................................................................................................................2- 45

2.5 Detection Functions with Sensors............................................................................................................2- 46

2.5.1 Sensors for covers.................................................................................................................................................2- 46

2.5.2 Ink passage system...............................................................................................................................................2- 47

2.5.3 Carriage system.....................................................................................................................................................2- 49

2.5.4 Paper path system.................................................................................................................................................2- 51

2.5.5 Media take-up Unit.................................................................................................................................................2- 53

Contents

2.5.6 Others....................................................................................................................................................................2- 53

Chapter 3 INSTALLATION

3.1 Transporting the Printer..............................................................................................................................3- 1

3.1.1 Transporting the Printer...........................................................................................................................................3- 1

3.1.1.1 Transporting the Printer ........................................................................................................................................................... 3- 1

3.1.2 Reinstalling the Printer ..........................................................................................................................................3- 13

3.1.2.1 Reinstalling the Printer...........................................................................................................................................................3- 13

Chapter 4 DISASSEMBLY/REASSEMBLY

4.1 Service Parts ..............................................................................................................................................4- 1

4.1.1 Service parts............................................................................................................................................................4- 1

4.2 Disassembly/Reassembly...........................................................................................................................4- 2

4.2.1 Disassembly/Reassembly .......................................................................................................................................4- 2

4.3 Points to Note on Disassembly and Reassembly.......................................................................................4- 2

4.3.1 Note on locations prohibited from disassembly.......................................................................................................4- 2

4.3.2 Moving the carriage manually..................................................................................................................................4- 2

4.3.3 Units requiring draining of ink..................................................................................................................................4- 2

4.3.4 External Covers.......................................................................................................................................................4- 4

4.3.5 Drive Unit...............................................................................................................................................................4- 16

4.3.6 Cutter.....................................................................................................................................................................4- 18

4.3.7 Carriage Unit .........................................................................................................................................................4- 20

4.3.8 Ink Tube Unit.........................................................................................................................................................4- 24

4.3.9 Pick-up/Feed Unit..................................................................................................................................................4- 27

4.3.10 Pick-up/Feed Unit................................................................................................................................................4- 29

4.3.11 Purge Unit............................................................................................................................................................4- 32

4.3.12 Waste Ink Collection Unit.....................................................................................................................................4- 33

4.3.13 Ink Tank Unit........................................................................................................................................................4- 43

4.3.14 Multi Sensor.........................................................................................................................................................4- 45

4.3.15 Linear Encoder Sensor........................................................................................................................................4- 48

4.3.16 Head Management Sensor..................................................................................................................................4- 49

4.3.17 PCBs....................................................................................................................................................................4- 50

4.3.18 Opening the Cap/Moving the Wiper Unit.............................................................................................................4- 51

4.3.19 Opening and closing ink supply valves................................................................................................................4- 52

4.3.20 Draining the ink....................................................................................................................................................4- 53

4.4 Applying the Grease.................................................................................................................................4- 54

4.4.1 Applying the Grease..............................................................................................................................................4- 54

4.5 Adjustment and Setup Items ....................................................................................................................4- 57

4.5.1 Adjustment Item List..............................................................................................................................................4- 57

4.5.2 Procedure after Replacing the Carriage Unit or Multi Sensor ...............................................................................4- 57

4.5.3 Procedure after Replacing the Feed Roller or Feed Roller Encoder.....................................................................4- 57

4.5.4 Procedure after Replacing the Head Management Sensor...................................................................................4- 57

Chapter 5 MAINTENANCE

5.1 Periodic Replacement Parts.......................................................................................................................5- 1

5.1.1 Periodic Replacement Parts....................................................................................................................................5- 1

5.2 Consumable Parts......................................................................................................................................5- 1

5.2.1 Consumable Parts...................................................................................................................................................5- 1

5.3 Periodic Maintenance.................................................................................................................................5- 2

5.3.1 Periodic Maintenance..............................................................................................................................................5- 2

Chapter 6 TROUBLESHOOTING

Contents

6.1 Troubleshooting..........................................................................................................................................6- 1

6.1.1 Outline......................................................................................................................................................................6- 1

6.1.1.1 Outline of Troubleshooting....................................................................................................................................................... 6- 1

6.2 Location of Connectors and Pin Arrangement ...........................................................................................6- 1

6.2.1 Main controller PCB.................................................................................................................................................6- 1

6.2.2 Carriage relay PCB................................................................................................................................................6- 11

6.2.3 Head relay PCB.....................................................................................................................................................6- 16

6.3 Version Up................................................................................................................................................6- 20

6.3.1 Firmware Update Tool ...........................................................................................................................................6- 20

6.4 Service Tools............................................................................................................................................6- 21

6.4.1 Tool List .................................................................................................................................................................6- 21

Chapter 7 SERVICE MODE

7.1 Service Mode .............................................................................................................................................7- 1

7.1.1 Service Mode Operation..........................................................................................................................................7- 1

7.1.2 Map of the Service Mode.........................................................................................................................................7- 2

7.1.3 Details of Service Mode...........................................................................................................................................7- 8

7.1.4 Sample Printout .....................................................................................................................................................7- 17

7.2 Special Mode............................................................................................................................................7- 21

7.2.1 Special Modes for Servicing ..................................................................................................................................7- 21

Chapter 8 ERROR CODE

8.1 Outline........................................................................................................................................................8- 1

8.1.1 Outline......................................................................................................................................................................8- 1

8.2 Warning Table............................................................................................................................................8- 2

8.2.1 Warnings..................................................................................................................................................................8- 2

8.3 Error Table .................................................................................................................................................8- 4

8.3.1 Errors.......................................................................................................................................................................8- 4

8.4 Sevice Call Table .....................................................................................................................................8- 11

8.4.1 Service Call Errors.................................................................................................................................................8- 11

Chapter 1 PRODUCT DESCRIPTION

Contents

1.1 Product Overview ..........................................................................................................................................................1-1

1.1.1 Product Overview ........................................................................................................................................................................ 1-1

1.1.2 Product Overview ........................................................................................................................................................................ 1-3

1.2 Features..........................................................................................................................................................................1-5

1.2.1 Features........................................................................................................................................................................................ 1-5

1.2.2 Features........................................................................................................................................................................................ 1-5

1.2.3 Printhead ...................................................................................................................................................................................... 1-5

1.2.4 Ink tank ........................................................................................................................................................................................ 1-5

1.2.5 Cutter............................................................................................................................................................................................ 1-7

1.2.6 Roll holder ................................................................................................................................................................................... 1-7

1.2.7 Stand ............................................................................................................................................................................................ 1-8

1.2.8 Stand ............................................................................................................................................................................................ 1-8

1.2.9 Wheeled output stacker................................................................................................................................................................ 1-8

1.2.10 Media take-up unit..................................................................................................................................................................... 1-9

1.2.11 Hard disk drive......................................................................................................................................................................... 1-11

1.2.12 IEEE1394 (FireWire) Board.................................................................................................................................................... 1-11

1.2.13 Consumables............................................................................................................................................................................ 1-12

1.3 Product Specifications..................................................................................................................................................1-13

1.3.1 Product Specifications ............................................................................................................................................................... 1-13

1.3.2 Product Specifications ............................................................................................................................................................... 1-14

1.4 Detailed Specifications ................................................................................................................................................1-15

1.4.1 Print Speed and Direction.......................................................................................................................................................... 1-15

1.4.2 Interface Specifications.............................................................................................................................................................. 1-22

1.5 Names and Functions of Components .........................................................................................................................1-23

1.5.1 Front........................................................................................................................................................................................... 1-23

1.5.2 Front........................................................................................................................................................................................... 1-25

1.5.3 Rear............................................................................................................................................................................................ 1-26

1.5.4 Rear............................................................................................................................................................................................ 1-27

1.5.5 Top Cover (Inside)..................................................................................................................................................................... 1-28

1.5.6 Carriage...................................................................................................................................................................................... 1-29

1.5.7 Ink Tank Cover (Inside)............................................................................................................................................................. 1-29

1.6 Basic Operation............................................................................................................................................................1-30

1.6.1 Operation Panel.......................................................................................................................................................................... 1-30

1.6.2 Main Menu................................................................................................................................................................................. 1-31

1.6.3 Main Menu................................................................................................................................................................................. 1-51

1.6.4 Basket Unit................................................................................................................................................................................. 1-71

1.7 Safety and Precautions.................................................................................................................................................1-77

1.7.1 Safety Precautions...................................................................................................................................................................... 1-77

1.7.1.1 Moving Parts.................................................................................................................................................................................................1-77

1.7.1.2 Adhesion of Ink.............................................................................................................................................................................................1-78

1.7.1.3 Electric Parts .................................................................................................................................................................................................1-80

1.7.2 Other Precautions....................................................................................................................................................................... 1-81

1.7.2.1 Printhead .......................................................................................................................................................................................................1-81

1.7.2.2 Ink Tank ........................................................................................................................................................................................................1-82

1.7.2.3 Handling the Printer......................................................................................................................................................................................1-83

1.7.3 Precautions When Servicing Printer .......................................................................................................................................... 1-85

1.7.3.1 Notes on the Data Stored in the Printer.........................................................................................................................................................1-85

1.7.3.2 Confirming the Firmware Version................................................................................................................................................................1-85

1.7.3.3 Precautions against Static Electricity............................................................................................................................................................1-85

1.7.3.4 Self-diagnostic Feature..................................................................................................................................................................................1-85

1.7.3.5 Disposing of the Lithium Battery..................................................................................................................................................................1-85

Chapter 1

1-1

1.1 Product Overview

1.1.1 Product Overview

0020-5395

iPF810

This printer is a large-format printer that prints in a maximum width of 44 inches with high-speed photographic picture quality.

This printer is a stand-mounted type printer and is capable of output to either roll media or cut sheet.

F-1-1

T-1-1

[1] Upper Cover [11] Release Lever

[2] Ejection Guide [12] Maintenance Cartridge

[3] Roll Holder Slot [13] Carrying Handles

[4] Roll Holder [14] Maintenance Cartridge Cover

[5] Ejection Support [15] Stand

[6] Output Stacker [16] Stand L

[7] Paper Feed Slot [17] Stand R

[8] Holder Stopper [18] Stand Upper Stay

[9] Ink Tank Cover [19] Leg cover

[10] Operation Panel [20] Stopper

[2]

[3]

[10]

[1]

[8]

[4]

[18]

[9]

[7]

[6]

[13]

[16]

[11]

[19]

[19] [5]

[12]

[13]

[14]

[17]

[15]

[20]

Chapter 1

1-2

F-1-2

T-1-2

[1] Expansion Board Slot [5] Madia Take-up Unit Connector

[2] Ethernet Connector [6] Power Supply Connector

[3] USB Port [7] Carrying Handles

[4] Manual Pocket [8] Accessory Handles

[3] [2] [1]

[4]

[5]

[6]

[7]

[8]

Chapter 1

1-3

1.1.2 Product Overview

0020-5396

iPF820

This printer is a large-format printer that prints in a maximum width of 44 inches with high-speed photographic picture quality.

This printer is a stand-mounted type printer and is capable of output to either roll media or cut sheet.

F-1-3

T-1-3

[1] Upper Cover [11] Maintenance Cartridge

[2] Ejection Guide [12] Carrying Handles

[3] Roll Holder Slot [13] Maintenance Cartridge Cover

[4] Roll Holder [14] Stand

[5] Cut Sheet Protective Cloth [15] Stand L

[6] Paper Feed Slot [16] Stand R

[7] Holder Stopper [17] Leg Cover

[8] Ink Tank Cover [18] Stopper

[9] Operation Panel [19] Lower Roll Unit

[10] Release Lever [20] Lower Roll Unit Lever

[1]

[9]

[8]

[10]

[2]

[3]

[4]

[12]

[5]

[15]

[20]

[7]

[19]

[7]

[11]

[12]

[17] [13]

[16]

[14]

[17]

[18]

[6]

Chapter 1

1-4

F-1-4

T-1-4

[1] Expansion Board Slot [5] Power Supply Connector

[2] Ethernet Connector [6] Lower Roll Unit Connector

[3] USB Port [7] Carrying Handles

[4] Manual Pocket [8] Accessory Box

[3] [2] [1]

[4]

[5]

[6]

[7]

[8]

Chapter 1

1-5

1.2 Features

1.2.1 Features

0020-5397

iPF820

- Media pass in widths up to 44 inches (1117.6 mm).

- Large ink tanks save the need for their replacement.

- Uninterrupted printing from subtanks.

- BK and MBK inks are loaded concurrently to eliminate the need for their replacement.

- Durability will be added by maintenance kit.

- Large LCD panel displays more information and makes operations easier.

- High resolutions of 2400 x 1200 dpi maximum, coupled with the exceptionally light-fast, water-proof and ozone-proof five-color inks of Y, M, C, BK and MBK,

deliver high-quality photographic picture quality.

- USB2.0 Hi-speed interface and 10Base-T/100Base-TX in standard support of a TCP/IP network, plus optional support of IEEE1394.

- Barcodes printed on roll media make remaining roll media management possible.

- Borderless four-side printing support (roll media) removes laborious cutting work, easing the job of creating posters to a significant degree.

- High-speed printing with a 1-inch head for each color (1,280 nozzles), under bidirectional print control.

- Ink supply through tubing to a completely independent printhead and large-capacity ink tanks.

- Hard disk drive mounted for greater ease of job management and for driving on night time.

Functional enhancements new to this model include:

- Enhanced productivity

The product allows two roll medias to be loaded simultaneously, making it possible to mix different sizes or types of paper in a single print job or use two roll

medias of the same paper size to fulfill bulk print needs.

- Enhanced ease of operation

Ready for CAD drawings output on the HP-GL/2 and HP-RTL.

The product comes with a wheeled output stacker to print lengthy materials or load bulk print jobs.

1.2.2 Features

0020-5413

iPF810

- Media pass in widths up to 44 inches (1117.6 mm).

- Large ink tanks save the need for their replacement.

- Uninterrupted printing from subtanks.

- BK and MBK inks are loaded concurrently to eliminate the need for their replacement.

- Media take-up unit (option) is supported.

- Media take-up unit (option) can be mounted concurrently with a basket.

- Durability will be added by maintenance kit.

- Large LCD panel displays more information and makes operations easier.

- High resolutions of 2400 x 1200 dpi maximum, coupled with the exceptionally light-fast, water-proof and ozone-proof five-color inks of MBK, BK, C, M, and

Y, deliver high-quality photographic picture quality.

- USB2.0 Hi-speed interface and 10Base-T/100Base-TX in standard support of a TCP/IP network, plus optional support of IEEE1394.

- Barcodes printed on roll media make remaining roll media management possible.

- Borderless four-side printing support (roll media) removes laborious cutting work, easing the job of creating posters to a significant degree.

- High-speed printing with a 1-inch head for each color (1,280 nozzles), under bidirectional print control.

- Ink supply through tubing to a completely independent printhead and large-capacity ink tanks.

- Hard disk drive mounted for greater ease of job management and for driving on night time.

Functional enhancements new to this model include:

- Enhanced ease of operation

Ready for CAD drawings output on the HP-GL/2 and HP-RTL.

The product can be fitted with a wheeled output stacker as an option to print lengthy materials or load bulk print jobs.

1.2.3 Printhead

0013-2742

iPF810 / iPF820

The printhead that mounts on the carriage is an integrated six-color disposable printhead.

It has 2,560 nozzles for each color, comprising two trays of 1,280 nozzles each arranged in a zigzag pattern.

If print quality remains unimproved even after a specified cleaning operation, replace the printhead. Replacement about one year after the date of initial unpacking

is also recommended.

F-1-5

1.2.4 Ink tank

0020-5419

iPF810 / iPF820

Chapter 1

1-6

Ink tanks are disposable.

An ink tank should be replaced when an ink tank replacement prompt message appears or when six months expire after the date of initial unpacking, whichever

occurs earlier.

To install ink tanks, open the right cover of the printer. Ink tanks are furnished with a notch for preventing incorrect installation, which will allow the tanks to be
