Canon BJ-130E Instruction Manual

BJ-130e
PARTS
CATALOG
Canon

PartsCatalog BJ-130e
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
1 of 5
FIGURE 1 INTERNAL COMPONENT FIGURE 2 UPPER COVER ASS’Y
1 -1 QA1-3435-000 PLATE, GROUNDING, 2
2QA1-3394-000 COVER, REAR
3QA1-3428-000 GUIDE, I/F PCB
4QA1-3430-000 PLATE, SHIELD
5QA1-3395-000 PLATE, GROUNDING, 1 (2)
6QA1-3453-000 COVER, SAFETY
7QF3-3033-000 CORD, POWER
8QS1-1431-000 LABEL, FCC
9QS1-1390-000 LABEL, CAUTION
2 -1 QA1-3398-000 COVER, UPPER
2QA1-3399-000 COVER, PANEL
3QA1-3400-000 COVER, WINDOW
4QA1-3401-000 SUPPORT, PAPER
5QA1-3402-000 STACKER, PAPER
6QA1-2976-000 GUIDE, PAPER SUPPORT (3)
7QA1-2977-000 GUIDE, PAPER STACKER
8QA1-3397-000 COVER, TRACTOR ENTRANCE (2)
9QA1-3403-000 SUPPORT, PAPER STACKER
10 QH2-2064-000 OPERATION PANEL
11 QA1-3089-000 GUIDE, PAPER EJECT (2)

PartsCatalog BJ-130e
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
2 of 5
FIGURE 3 LOWER COVER ASS’Y FIGURE 4 PRINTER ASS’Y I
3-1 QA1-3408-000 COVER, FRONT
2QA1-3404-000 COVER, LOWER
3QA1-3405-000 PLATE, SHIELD
4QF1-1305-000 DOOR, FRONT
5QA1-2986-020 LEVER, DOOR LOCK (2)
6QA1-2987-000 ARM, DOOR OPEN (LEFT)
7QA1-2988-000 ARM, DOOR OPEN (RIGHT)
8QA1-3440-000 SPRING, COMPRESSION (2)
9QA1-2979-000 INK ABSORBER
11 EA6-0128-000 SPRING, TORSION (2)
12 NA1-3239-000 FOOT, RUBBER (2)
14 QA1-3100-000 DAMPER, RUBBER
15 QS1-1396-000 LABEL, INK CARTRIDGE WARNING
4 -1 QA1-2815-000 SPRING, TENSION (2)
2QA1-2816-000 SPRING, TORSION (2)
3QA1-2817-000 MOUNT, PAPER SWITCH (2)
4QA1-2818-000 ROLLER, PINCH (4)
5QA1-3480-000 PLATE, PINCH ROLLER (4)
6QA1-2820-000 ARM, PINCH ROLLER LIFTING (5)
7QA1-2821-000 SHAFT, PINCH ROLLER ARM
8QA1-2822-000 SHAFT, LF GEAR
9QA1-2823-000 GEAR, LF, 16T
10 QA1-2824-000 SPRING, COMPRESSION
11 QA1-2825-000 GEAR, LF, 38T
12 QA1-2826-000 ARM, LF GEAR
14 QA1-2833-000 SPRING, RING
15 QA1-2834-000 BUSHING (2)
16 QA1-2836-000 MOUNT, LF MOTOR
17 QA1-2838-000 GEAR, RELEASE, 16T
18 QA1-2839-000 RACK, RELEASE GEAR
19 QA1-2840-000 GEAR, LF, 28T/28T
20 QA1-2841-000 GEAR, LF, 68T/16T
21 QA1-2843-000 PULLEY, DELIVERY
23 QA1-3209-000 GEAR, 64T/16T
27 QA1-3210-000 GEAR, 56T
28 QA1-2851-000 LEVER, RELEASE
29 QA1-2852-030 ROLLER, DELIVERY
30 QA1-3208-000 ROLLER, FRICTION
31 QA1-2854-000 GUIDE, PAPER
32 QA1-3414-000 STACKER
33 QA1-2859-020 INSTALL PLATE, STACKER
34 QA1-2861-000 ARM PLATE, SOLENOID
35 QA1-2862-000 GEAR, PUMP, 34T
36 QA1-2863-000 GEAR, PUMP, 26T
37 QA1-2865-000 ARM, PUMP GEAR
38 QA1-2867-000 SPRING, COMPRESSION
39 QA1-2868-000 SPRING, COMPRESSION
40 QA1-2869-000 GEAR, PAPER PICK-UP, 68T/20T

PartsCatalog BJ-130e
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
3 of 5
FIGURE 4 PRINTER ASS’Y II FIGURE 4 PRINTER ASS’Y III
4 - 41 QA1-3451-000 GEAR, PAPER PICK-UP, 68T
42 QA1-3452-000 SHAFT, PAPER PICK-UP ROLLER
43 QA1-2873-000 GEAR, PAPER PICKUP, 50T/38T
44 QA1-2874-000 HOLDER, SPRING
45 QA1-3197-000 ARM, PAPER LIFTING GUIDE (2)
47 QA1-2877-000 GUIDE, CENTER (2)
48 QA1-2878-000 PLATE, HOLD-DOWN (RIGHT)
49 QA1-2879-000 PLATE, HOLD-DOWN (LEFT)
51 QA1-2881-000 SPRING, RING (3)
52 QA1-2882-000 BUSHING (4)
53 QA1-2883-000 SPRING, COMPRESSION (2)
54 QA1-2884-000 GEAR, RESET, 71T/28T
56 QG9-4466-020 ROLLER, PAPER PICK-UP (2)
57 QA1-3396-000 SHAFT, PAPER LIFTING
58 QA1-2888-020 LEVER, RELEASE
59 QA1-2892-000 SHAFT, SPUR
60 QA1-2893-020 ARM, SHAFT (RIGHT)
61 QA1-2894-000 ARM, SHAFT (LEFT)
62 QA1-2895-030 STOPPER, SHAFT (RIGHT)
63 QA1-2896-000 STOPPER, SHAFT (LEFT)
64 QA1-2897-000 SPRING, COMPRESSION (6)
65 QA1-3039-000 GUIDE, SPUR (6)
66 QA1-2901-030 SHAFT, CARRIAGE (FRONT)
67 QA1-2902-020 SHAFT, CARRIAGE (REAR)
68 QA1-3206-000 PULLEY, IDLER
69 QA1-2908-000 GEAR, SPUR LIFTING, 10T
70 QA1-2910-000 SPRING, COMPRESSION (5)
71 QA1-3450-000 PLATE, PAPER GUIDE
72 QA1-2912-000 COVER, BASE PLATE
73 QA1-2913-030 PLATE, BASE
75 QA1-3213-000 HOLDER, INK TUBE
78 QA1-2922-030 MOUNT, HEAD
79 QG1-1217-000 KNOB, PAPER FEED
80 QA1-2925-000 PLATE, PROTECTIVE
4 -81 QA1-2926-000 HOLDER, INK SENSOR
82 QA1-2927-000 GUIDE, INK CARTRIDGE (RIGHT)
83 QA1-2928-000 GUIDE, INK CARTRIDGE (LEFT)
84 QA1-3204-000 HOLDER, INK TUBE
85 QA1-2931-000 BELT, PAPER EJECT
86 QA1-2932-000 ROLLER, BELT
87 QF1-1321-000 LEVER, THICKNESS
88 QA1-3461-000 SHAFT, THICKNESS
89 QA1-3465-000 BUSHING (2)
90 QA1-3078-000 SPRING, LEAF (2)
91 QA1-2966-000 ELIMINATOR, STATIC CHARGE
92 QA1-3379-000 DRAIN, INK
93 QA1-1226-000 PLATE, NEEDLE
94 QA1-3099-000 DAMPER, RUBBER (6)
95 EA6-0171-000 SPRING, TORSION
96 QF3-3030-000 MOTOR, LF
97 QH4-4016-000 MOTOR, P/A
98 QA1-3048-000 SPRING, TORSION (6)
99 QA1-3026-000 ROLLER, BELT
100 QA1-3027-000 GROMMET
101 QA1-3044-000 GUIDE, SPUR (6)
102 EA6-0179-000 ARM, LOCK
103 EA6-0370-000 DAMPER
104 EA6-0118-000 SPRING, RING
105 QA1-3037-000 MOUNT, SPRING
106 QA1-3038-000 SPRING, TENSION
108 QH8-8257-000 PAPER SWITCH
109 QH8-8239-000 INK CARTRIDGE SWITCH
110 QH8-8258-000 HOME POSITION SWITCH
111 QH8-8256-000 SOLENOID
113 QH8-8240-000 INK SENSOR
114 QF1-1312-000 PLATE, PUMP MOTOR
115 QF1-1268-020 PLATE, BELT TENSION
116 QF1-1269-000 PLATE, BELT TENSION

PartsCatalog BJ-130e
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
4 of 5

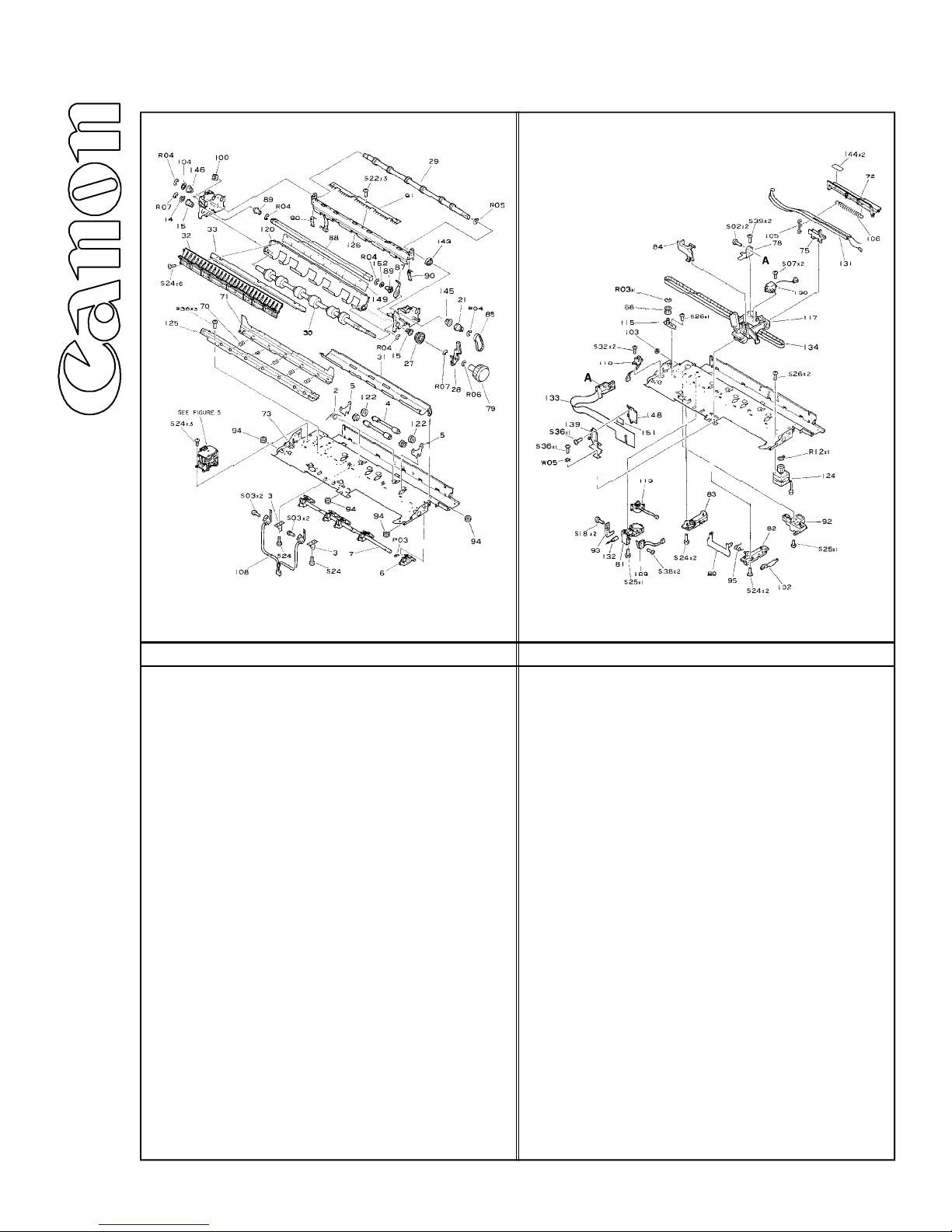

FIGURE 5 PURGE ASS’YFIGURE 4 PRINTER ASS’Y IV
4-117 QA1-3207-000 CARRIAGE
118 QA1-2890-000 BODY, PAPER PICK-UP (RIGHT)
119 QA1-2891-000 BODY, PAPER PICK-UP (LEFT)
120 QA1-2858-000 GUIDE, PAPER
121 QF1-1322-000 GUIDE, PAPER PICK-UP (RIGHT)
122 QA1-3481-000 BUSHING (8)
124 QF3-3032-000 MOTOR, CR
125 QF1-1279-020 HOLDER, PAPER GUIDE PLATE
126 QF3-3027-000 FIXING UNIT
127 QF1-1281-000 SPUR, LARGE (6)
128 QF1-1282-000 SPUR, SMALL (12)
130 AF6-1103-000 TANK, INK, SUB
131 AF6-1104-000 TUBE, INK
132 AF6-1105-020 NEEDLE, INK
133 QY6-0019-020 BUBBLE JET HEAD UNIT
134 QA1-2905-000 BELT, CARRIAGE
135 QF1-1265-000 PLATE, SIDE (LEFT)
136 QF1-1266-000 PLATE, SIDE (RIGHT)
138 QA1-3045-000 ROLLER, CARRIAGE (2)
139 QA1-3524-000 PLATE, SHIELD, 1
141 QS1-1383-000 LABEL, CAUTION
143 QA1-3094-000 RING, BUSHING
144 QA1-3095-000 TAPE, PROTECTION (2)
145 QA1-3185-000 BUSHING
146 QA1-3186-000 BUSHING
147 QF1-1323-000 GUIDE, PAPER PICK-UP (LEFT)
148 QA1-3525-000 PLATE, SHIELD, 2
149 QA1-3049-000 PLATE, GUIDE
150 QA1-3176-000 SRING, LEAF (2)
151 QA1-3431-000 TAPE
152 QA1-3462-000 SPRING, RING
153 QG2-2308-000 WIRE, GROUNDING
5- QG3-3317-000 PURGE ASSEMBLY
1QA1-2991-000 ROLLER
2QA1-2992-000 CAP, HEAD
3QA1-2993-000 HOLDER, HEAD CAP
4QA1-2994-000 SPRING, COMPRESSION
5QA1-2995-000 HOUSING, HEAD CAP
6QA1-2996-000 SPRING, COMPRESSION
7QA1-2997-000 CAM, HEAD CAP
8QA1-2998-000 COVER, MIDDLE
9QA1-2999-000 CAP, AIR
10 QA1-3000-000 SHAFT, LIFTING PLATE
11 QA1-3001-020 PLATE, LIFTING
12 QA1-3002-000 VALVE, AIR
13 QA1-3003-000 SPRING, COMPRESSION
14 QA1-3004-000 PLATE, PUSHING
15 QA1-3005-000 SHAFT, PUSHING PLATE
16 QA1-3006-000 COVER, TOP
17 QA1-3511-000 WIPER
18 QA1-3512-000 HOLDER, WIPER
19 QA1-3009-000 ARM, WIPER
24 QA1-3014-000 GEAR, WORM, 28T
25 QA1-3015-000 SHAFT, PUMP GEAR
26 QA1-3016-000 CAM, PUMP
27 QA1-3067-000 LEVER
28 QA1-3513-000 ABSORBER, INK
29 QA1-3019-000 TUBE, AIR
30 QA1-3068-000 HOLDER
31 QA1-3069-020 VALVE, INK
32 QA1-3070-000 CAP, INK
33 EA6-0347-000 TUBE, JOINT
34 EA6-0129-000 TUBE, INK DRAIN
35 QA1-2501-000 TUBE, INK SUCTION
36 XG8-1100-601 BALL, STEEL
37 QG2-2277-000 CAP SWITCH
38 QY5-0068-020 PUMP UNIT
39 QA1-3071-000 SPRING, TENSION
40 QA1-3072-000 HOLDER, INK ABSORBER

PartsCatalog BJ-130e
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
5 of 5
FIGURE 6 MAIN PCB ASS’Y
5-41 QA1-3073-000 ABSORBER, INK
42 QA1-3074-000 TUBE, AIR VALVE
43 QA1-3075-000 PAD, RUBBER
44 QA1-3076-000 SPRING, COMPRESSION
45 QA1-3152-000 CAP, INK
46 QA1-3505-000 COVER, TUBE
6- QG2-2307-000 MAIN PCB ASS’Y
