1
Chapter 1: Basic Printing
Congratulations on purchasing your new Canon
®
S200 Color Bubble Jet™ Printer!
With this printer, you can print basic business documents in color or black &
white, as well as print on a variety of specialty media, such as Canon High
Resolution Paper (ideal for documents that include large numbers of color
illustrations), Canon Glossy Photo Paper or Canon Photo Paper Pro (for digital
photographs) and Canon Transparencies (for presentations). For a full list of the
Canon specialty media that can be used with your S200 printer, see “Specialty
Media” on page 3.
Turning Your Printer On and Off
To turn your printer on, plug the power cord into an
electrical outlet.
To turn your printer off, simply unplug the power cord
from the back of the printer.
This Quick Start Guide describes some of the features of your
S200 printer and how to use them. For more information, view
and/or print the S200 User’s Guide on the Setup Software &
User’s Guide CD-ROM, or use the online help in your printer interface:
While in the printer’s Properties window, press the F1 key, or click
in the upper right corner then click the feature you want to
know more about, or click the button when displayed.
Turn Bubble Help on by selecting Help , then Show
Bubble Help .
Driver features and screen shots described in this guide reflect
Windows
®
98 and may be different for Windows XP™, Me and 2000 users.
S200 QS.book Page 1 Tuesday, September 18, 2001 9:02 AM

2
Basic Printing
What Is a Printer Driver?
Most computers require special software to link the software applications you use
to create documents or images with your printer. This software, called a printer
driver , converts information from the application into a format that the printer can
understand. The Canon S200 printer driver also provides other features, such as
monitoring the printer’s paper supply and ink levels.
Selecting the S200 Printer for Use
If the S200 is the only printer connected to your computer, it will automatically be
set as the default (main) printer. However, if your computer has access to multiple
printers, you can set the S200 as the default printer.
To set the S200 as the default printer in Windows
®
:
1.
Click Start , then Settings , then Printers .
2. Right-click the Canon S200 printer icon, then click Set as Default . The Canon
S200 printer icon will display a check mark indicating that it is the
default printer.
To select the S200 from within a Windows application:
Even if another printer is set as the default printer, you can still select the Canon
S200 for a specific print job from within most Windows applications.
1.
From the File menu, click Print .
2.
Select Canon S200 from the Name drop-down list, then click OK .
To select the S200 in Mac
®
OS:
1.
Click Apple , then Chooser .
2.
Click the S200 printer icon. The S200 will remain the default printer until
another is selected.
Menus vary between applications. Consult your application user
documentation if the Print option is not listed.
S200 QS.book Page 2 Tuesday, September 18, 2001 9:02 AM

Basic Printing
3
Recommended Paper Use
Two steps are recommended for getting the best output for your printed
documents:
•
Set the printer thickness lever inside the printer cover for the media used.
(See “Load Limit and Paper Thickness Lever Position” on page 4.)
•
Select the correct media setting in the printer driver from your computer.
(See “Chapter 2: Advanced Print Features” on page 9.)
General Business Printing
For everyday paper printing, use plain paper (17 to 28 lb.). Use standard #10
envelopes with your S200 printer.
Specialty Media
For optimum results, Canon recommends that you use genuine Canon media with
your S200 printer. Follow the instructions that come with any specialty media on
storing, handling and printing.
Specialty media available for use with the S200 include:
•
Canon High Resolution Paper
•
Canon Transparencies
•
Canon Banner Paper
•
Canon Glossy Photo Paper
•
Canon Photo Paper Pro
•
Canon Glossy Photo Cards
•
Canon High Gloss Photo Film
•
Canon T-Shirt Transfers
Handle media carefully by its edges. Dirt or fingerprints on the print surface will
adversely affect print quality.
For instructions on loading and handling specialty media, see the
instructions that come with that media type or see the S200
User’s Guide on the Setup Software & User’s Guide CD-ROM.
S200 QS.book Page 3 Tuesday, September 18, 2001 9:02 AM

4
Basic Printing
Media to Avoid
Do not use the following types of media with your S200 as they could produce
poor quality print images, or jam or damage the printer:
•
Paper that is folded, excessively curled, wrinkled or wrapped
•
Damp paper
• Excessively thin or thick paper
•
Paper with pasted photos, stickers, etc.
•
Envelopes with overlapping flaps or self-sealing flaps
•
Tractor feed paper, perforated paper or 3-hole punched paper, or paper with
any type of attached fasteners, ribbons, etc.
Loading Paper and Other Media
Load Limit and Paper Thickness Lever Position
Media Type Paper Rest
Load Limit
Paper Thickness
Lever Position
Plain paper up to 50 sheets (17 lb.) Left
High Resolution Paper up to 40 sheets Left
Photo Paper Pro 1 sheet Left
Photo Paper Pro (4 x 6) 1 sheet Left
High Gloss Photo Film 1 sheet Left
Glossy Photo Paper 1 sheet Left
Glossy Photo Cards 1 sheet Left
Transparencies up to 20 sheets Left
#10 Envelopes up to 5 envelopes Right
Banner Paper 1 sheet (can print up to 6 connected sheets) Right
T-Shirt Transfers 1 sheet Right
S200 QS.book Page 4 Tuesday, September 18, 2001 9:02 AM

Basic Printing
5
The S200 can print on paper ranging from standard
copier paper (usually 17–28 lb.) to specialty media
paper and envelopes.
The paper thickness lever is located inside the front
cover, on the printhead holder. It controls the paper
feed for the type and weight of the media on which
you are printing.
For envelopes (see “To load envelopes:” on
page 6), banners and T-Shirt Transfers.
For regular paper and other media with a left position in the table (see
“Load Limit and Paper Thickness Lever Position” on page 4).
Use the chart on the previous page to ensure that the paper thickness lever is set
correctly for the type of media you are using.
To load paper or other media:
1.
Make sure the paper thickness lever is set
correctly for the media used.
2.
Slide the paper guide completely to the left.
3.
Fan the edges of the sheets to remove static
cling and avoid paper jams, then tap the
edges of the stack against a flat surface so
the stack is aligned.
4.
Insert the media into the paper rest, with the
print side facing up.
5.
Slide the paper guide to the edge of the media until it is firmly in place.
Some papers, especially specialty media, have specific sides for
printing. The print side is usually the glossier side or the brighter
white side. When using specialty media, do not touch the print side.
You can load up to 50 sheets of plain (17 lb.) paper or 40 sheets
of Canon High Resolution Paper in the paper rest at one time.
Never load the paper above the load limit mark.
Load limit mark
Print side
S200 QS.book Page 5 Tuesday, September 18, 2001 9:02 AM

6
Basic Printing
To load envelopes:
1.
Open the front cover and set the paper thickness lever to the envelope mark.
Close the cover.
2.
Slide the paper feed guide to the left.
3.
Press down on the corners
and sides of the envelopes to
make them as flat as possible
by expelling all of the air.
To avoid paper jams, make
sure envelopes are flat before
you load them into the
paper tray.
4.
With the address side facing down and pointed in
the direction shown in the illustration, align the
stack with the right side of the paper rest, then
insert the stack into the printer.
5.
Slide the paper guide to the edge of the
envelopes until it is firmly in place.
Make sure that none of the flaps overlap. If the envelope edges
are not flat, crease them with the side of a pen.
Do not allow more than 5 envelopes to stack on the paper output tray.
When printing envelopes, be sure to
select Envelope as the Media Type
on the Main tab of the Properties
window. For more information, see
page 9 (Windows) or page 11
(Mac OS) of this guide, or refer to the
S200 User’s Guide on the Setup
Software & User’s Guide CD-ROM.
Flap side of envelope faces up
S200 QS.book Page 6 Tuesday, September 18, 2001 9:02 AM

Basic Printing
7
Cancelling a Print Job
There are several ways to cancel a print job in progress:
To cancel a print job from the printer:
While a job is printing, press the RESUME/CANCEL
button on the printer. The print job will be
cancelled and the paper ejected.
To cancel a print job from the BJ Status Monitor:
The BJ Status Monitor launches
automatically when data is sent to
the printer.
1.
Click the Canon BJ Status Monitor
icon on the Task Bar.
2.
Click Cancel Printing .
The print job will be cancelled and the
paper ejected.
To cancel a print job from Windows:
1.
Click Start , then Settings , then Printers .
2.
Double-click Canon S200 , click the print job, then press the Delete key.
The print job will be cancelled and the paper ejected.
To cancel a print job in Mac OS when using foreground printing:
On your keyboard, press the Apple™ Command key ( ) and the period key ( . )
at the same time.
The print job will be cancelled and the paper ejected.
RESUME/CANCEL button
S200 QS.book Page 7 Tuesday, September 18, 2001 9:02 AM

8
Basic Printing
To cancel a print job in Mac OS when background printing is enabled:
1. While a job is printing, go to the
BJ Print Monitor window (click
Finder, then BJ Print Monitor).
2. Highlight the job to be cancelled.
3. Click the Stop Printing icon in
the Print Queue dialog box.
The print job will be cancelled and the
paper ejected.
S200 QS.book Page 8 Tuesday, September 18, 2001 9:02 AM

9
Chapter 2: Advanced
Print Features
Improving Printed Images
Two important factors control the quality and output of your printed images:
Paper and Ink Using recommended paper or specialty media for printing graphic
images or photographs can significantly improve the quality of your printout.
(See “Recommended Paper Use” on page 3.) Also, always use the specific Canon
inks for your S200 printer, as noted on the inside back cover.
Printer Driver Settings There is a variety of settings you can use to enhance the
quality of the print, the colors and the way in which the document comes out of
the printer.
Adjusting Print Quality
Two of the features that affect the appearance and quality of your printed
documents can be controlled with the printer driver.
Media Type The S200 automatically adjusts printer settings to improve print
quality based on the media type (plain paper, Glossy Photo
Paper, etc.) you select.
Print Quality When you select a media type, print quality is automatically set
for that media. You can change print quality settings if desired.
S200 QS.book Page 9 Tuesday, September 18, 2001 9:02 AM

10
Advanced Print Features

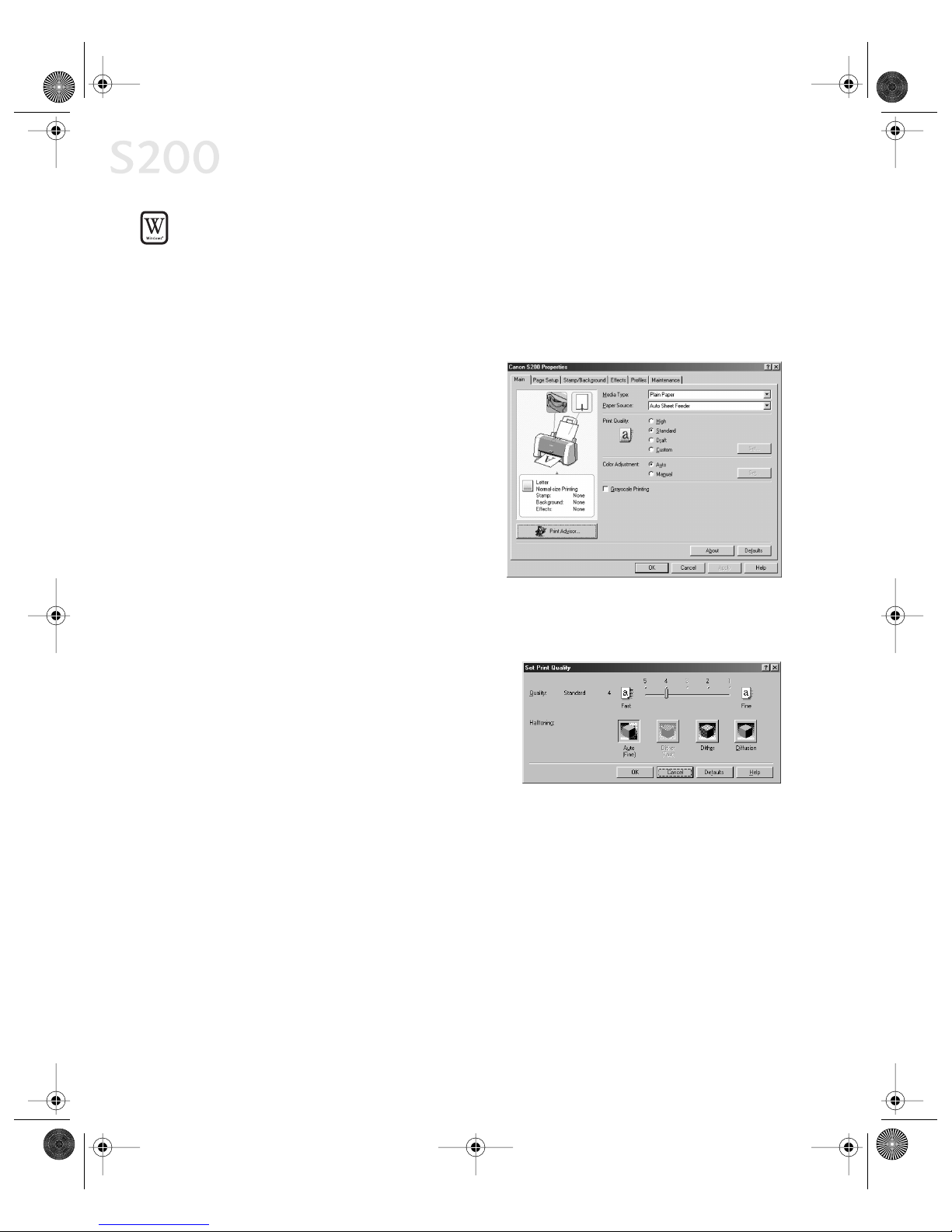

To manually adjust print quality settings in Windows:
1. From an application File menu, select Print.
2. With Canon S200 as the selected printer, click Properties. The S200
Properties window will open to the Main tab.
3. Select the appropriate Media Type from the drop-down menu.
4. Each media type has a default
quality, but you can select a different
Print Quality:
High Forhighqualitywhenprintinga
color document.
Standard For high quality when
printing text.
Draft For high speed when printing
text drafts.
Custom Allows for more precise control.
If you select Custom, the Set button becomes active. Click Set to open the Set
Print Quality dialog box. There are two features you can control:
Quality The printer driver
provides five settings for custom
print quality, ranging from Fast at
the far left (which means faster
printing and less ink) to Fine.
Halftoning This controls the
pattern in which the ink is laid
down during printing for graphic images.
5. When done, click OK.
S200 QS.book Page 10 Tuesday, September 18, 2001 9:02 AM

Advanced Print Features
11

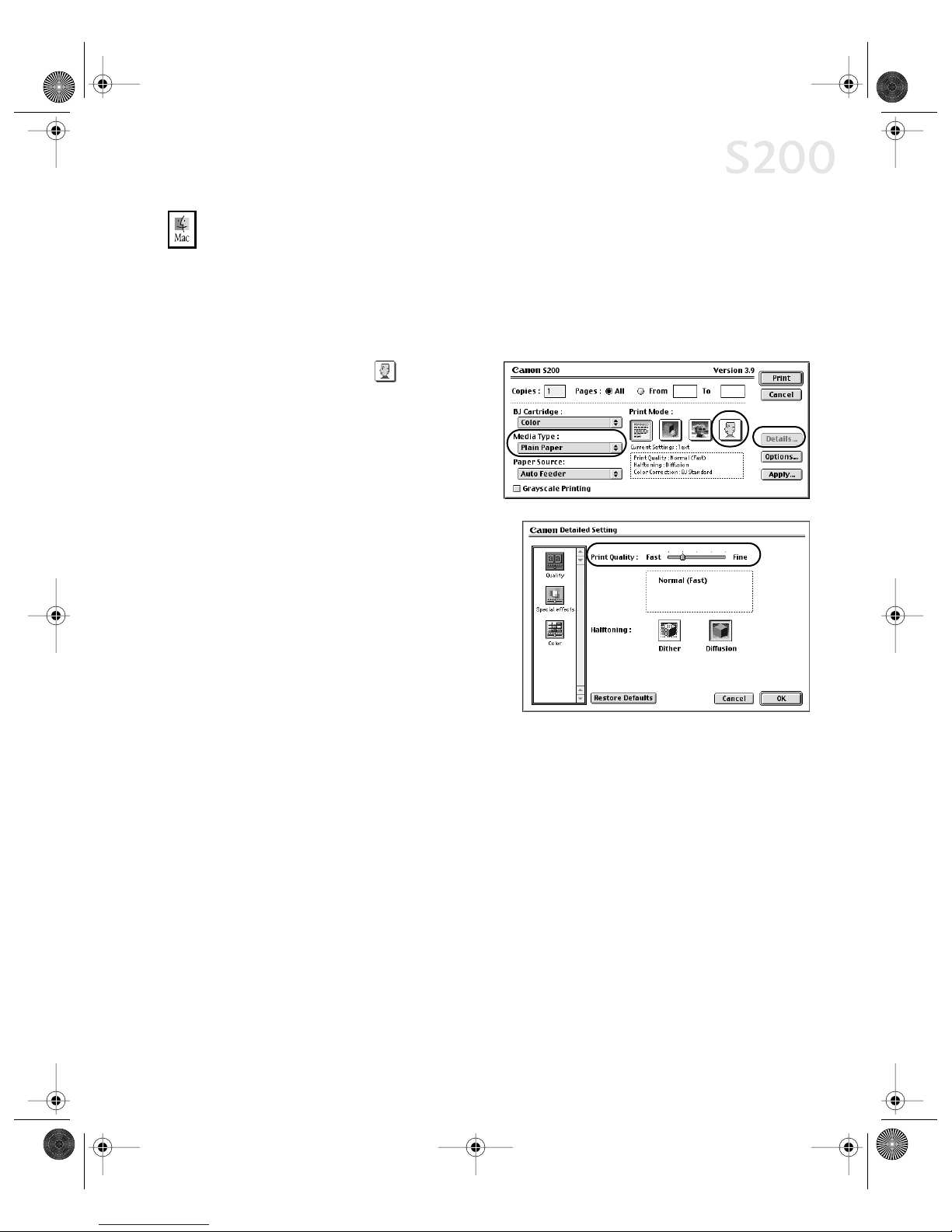

To manually adjust print quality settings in Mac OS:
1. Make sure that the S200 is the selected printer (from the Apple menu, select
Chooser, then S200).
2. From an application File menu, click Print.
3. Select a media type from the Media Type drop-down menu.
4. Click the Manual print mode
icon, then click the Details
button. The Detailed Setting
dialog box will open. Make sure
Quality is selected.
5. Click and drag the Print Quality
slide bar to select your preferred
output quality.
6. When done, click OK, then Print.
S200 QS.book Page 11 Tuesday, September 18, 2001 9:02 AM

12
Advanced Print Features
To select best print quality with the Print Advisor wizard:
Print Advisor is a wizard that helps you select the optimum media type and print
quality for your print job.
1. From an application File menu,
select Print.
2. With Canon S200 as the selected
printer, click Properties. The S200
Properties window will open to the
Main tab.
3. Click the Print Advisor button. The
wizard dialog box will open.
4. Follow the on-screen instructions to
select the appropriate driver
settings for your print job.
5. Click OK to save the setting and close the S200 Properties window.
To automatically make images smoother in Windows:
Image Optimizer smooths jagged edges
formed when enlarging a photo or
graphic from its original size. It is most
effective when used with low-resolution
images.
1. From an application File menu,
select Print.
2. With Canon S200 as the selected
printer, click Properties.
3. Click the Effects tab, then click the
Image Optimizer check box.
4. Click OK to save this setting and close the S200 Properties window.
S200 QS.book Page 12 Tuesday, September 18, 2001 9:02 AM

Advanced Print Features
13
Adjusting Color Balance, Intensity and Brightness
You can enhance color printing by adjusting the color balance, intensity
(saturation) and brightness.

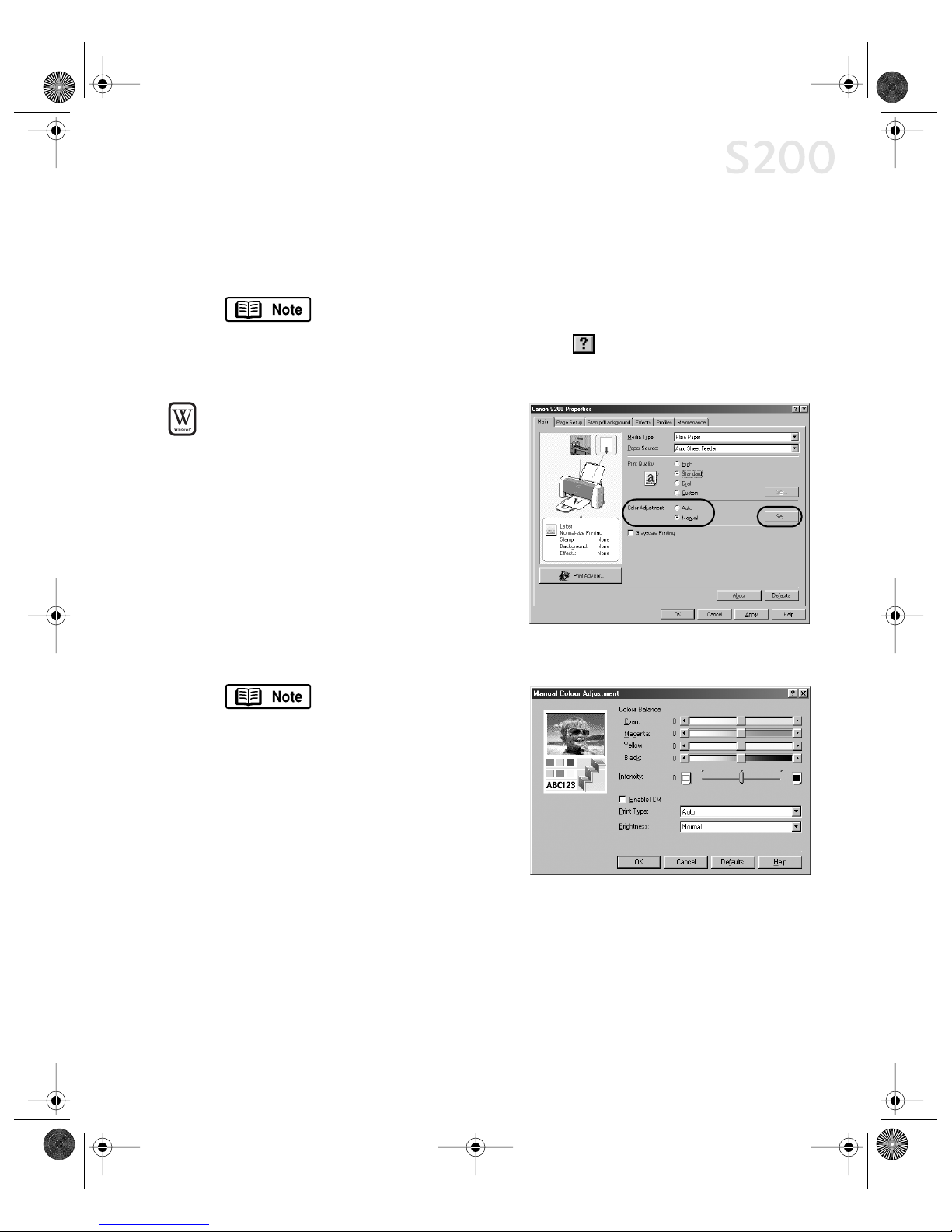

To manually adjust color settings in
Windows:
1. From an application File menu,
select Print.
2. With Canon S200 as the selected
printer, click Properties.
3. On the Main tab, under Color
Adjustment, select Manual. The Set
button will become active.
4. Click Set, and the Manual Color
Adjustment dialog box will open.
To print in black only,
check the Grayscale
Printing box. This will
convert color images to grayscale when
printing, without changing the original
colors in the document.
5. Click and drag the Color Balance
slide bar for each color to adjust
the color settings. The results
will preview.
6. Click and drag the Intensity slide bar to change the intensity (saturation) for
the image. The results will preview.
7. Image Color Management (ICM) is a feature that automatically adjusts the
image colors.
For more information on these settings, see the S200 User’s
Guide on the Setup Software & User’s Guide CD-ROM, or access
the online help (press F1 or click in Windows; turn on Bubble
Help in Mac) while in the printer driver interface.
S200 QS.book Page 13 Tuesday, September 18, 2001 9:02 AM

14
Advanced Print Features
To use ICM for automatic color adjustment, click the Enable ICM
check box. All other features on this tab (except Intensity) will
become inactive.
8. Under Print Type, select Photo when printing photographs. This allows for a
wider range of tones. Set to Graphic when printing graphic images for crisper,
cleaner graphic images.
9. Select a Brightness setting to determine how light or dark the image will
appear when printed.
10.When done, click OK.

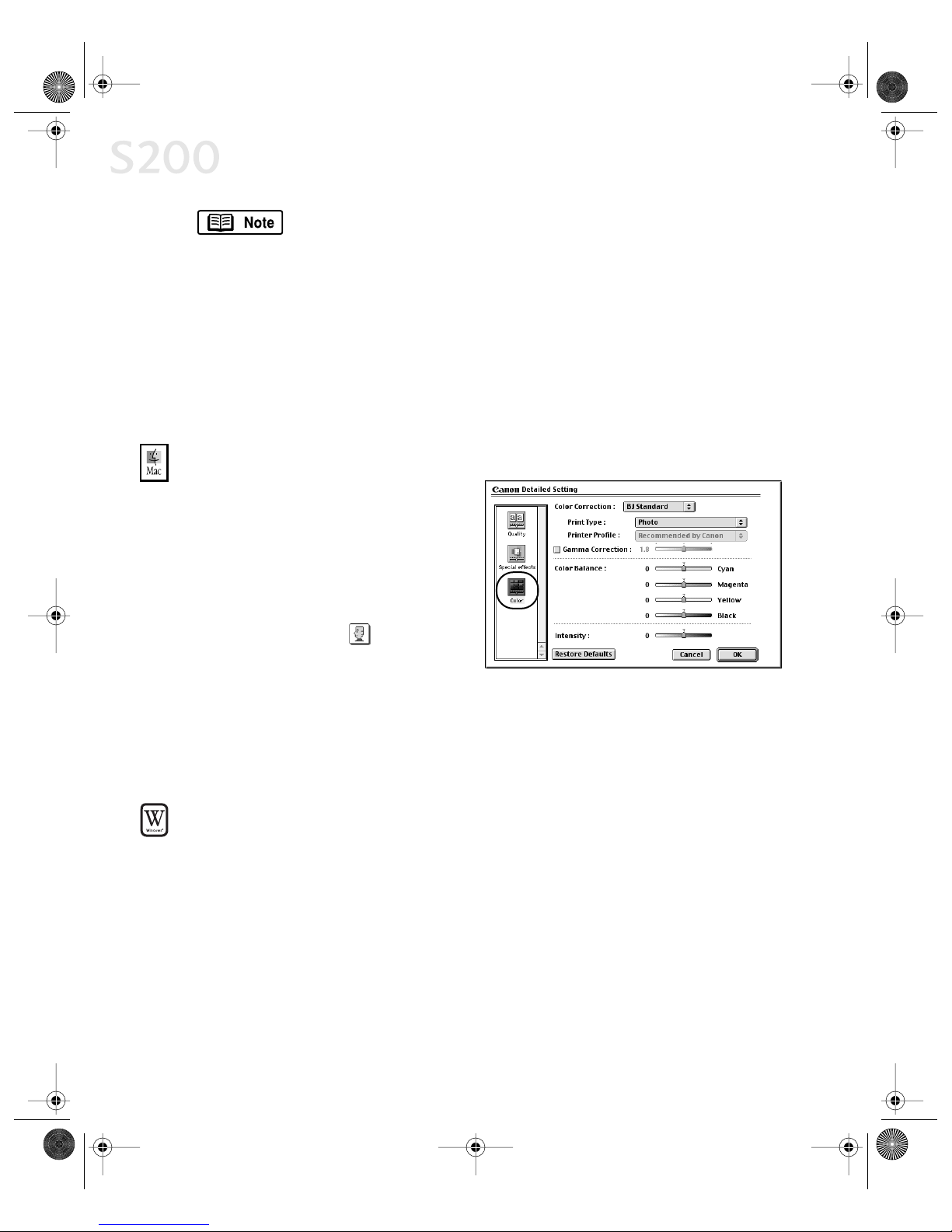

To manually adjust color settings in Mac OS:
1. Make sure that the S200 is the
selected printer. (From the
Apple menu, select Chooser,
then S200.)
2. From an application File menu,
click Print.
3. Click the Manual print mode
icon, then click Details.
4. Click the Color icon.
5. Adjust the Color Correction, Print Type, Gamma Correction, Color Balance and
Intensity settings for your image.
6. When done, click OK, then Print.
To automatically optimize the image in Windows:
Photo Optimizer PRO automatically adjusts a photographic image created with a
digital camera. Use this feature to compensate for unsatisfactory color balance
and over- or under-exposure before printing.
1. From an application File menu, select Print.
2. With Canon S200 as the selected printer, click Properties.
3. Select the Effects tab.
S200 QS.book Page 14 Tuesday, September 18, 2001 9:02 AM

Advanced Print Features
15
4. Click to check the Photo Optimizer
PRO check box.
When Photo Optimizer PRO is
checked, the Apply Throughout
Page option becomes active. If this
box is left unchecked, the S200 will
optimize each image individually. If
checked, all images will be
corrected automatically with the
same settings.
5. When done, click OK.
Changing the Page Setup
You can change how the image is printed without affecting the original image file.
To change page setup in Windows:
1. From an application File menu, select Print.
2. With Canon S200 as the selected printer, click Properties.
3. Click the Page Setup tab.
4. From this tab, you can change the following options:
Page Size Defaults to the page size set in the original document, but can be changed.
Orientation Lets you select either
portrait or landscape orientation.
Printer Paper Size The page size
used by the printer. This defaults
to match the page size. However, a
different printer paper size can be
selected if a Printing Type other
than normal is selected (see below).
S200 QS.book Page 15 Tuesday, September 18, 2001 9:02 AM

16
Advanced Print Features
Printing Type Defaults to Normal-size Printing. Click the drop-down arrow to select a
different Printing Type:
Fit-to-Page Printing This option automatically rescales the image to fit into
a specified page size.
Scaled Printing With this option you can set the scale of the printed image
down to 20% or up to 400% of the original.
Page Layout Printing Lets you set the number of pages to print on a single
sheet. Click Specify to set the number of pages to a sheet of paper (1 to 16),
the print order for those pages (left to right or right to left) and whether you
want to print a border around each page.
Booklet Printing Data is printed on both sides of paper in such a manner
that pages can be collated properly in the order of page numbers when the
printed sheets are folded and stapled at the center.
Poster Printing Lets you print an oversized image on multiple pages that
can then be manually joined together. Click Specify to set the image
divisions (how many tiles the image will break up into).
Banner Printing Used for printing banners on special banner paper.
Duplex Printing The document can be printed on both sides of the paper.
When printing is complete, reload paper properly, according to the
displayed message, and then click OK. The document will be printed on the
opposite side.
5. When done, click OK.
For more feature descriptions, see the S200 User’s Guide on the Setup Software &
User’s Guide CD-ROM or access the online help.
S200 QS.book Page 16 Tuesday, September 18, 2001 9:02 AM
