Quick Setup

Before starting the installation
• Remove all of the tape.
• Do not remove the sticker that covers the USB
port.
Sticker
Installation requirements
Provide a space of 4" (100 mm) or more around
the machine.
14 5/8"
(370 mm)
18 1/4"
(464 mm)
2 3/4"
(71 mm)
19 1/2"
(494 mm)
10 3/4"
(272 mm)
17 3/4"
(452 mm)
15 3/8"
(390 mm)
5 1/8"
(130 mm)
Paper feeder (optional)
Toner cartridge (included with the machine)
3
Installation of the Machine
Installing the MachineItems Included with the Machine
Quick Setup

4
5
6
1
2
3
4
Installation of the Machine
Quick Setup

7
8
9
10
11
Up to here
12
5
Quick Setup

13
Install the paper feeder (optional).
6
Installation of the Machine
Quick Setup

Next, proceed to configure the machine.
Back side
14
1
2
7
Quick Setup
En
Fr
Es

Conguring the Method of
Connecting to a Computer
About Application Library*
Application Library is an application
that allows you to use useful functions
for routine jobs or other convenient
functions in a one-touch operation
without necessity of making functional
settings every time. You can access each
registered function by simply pressing
the appropriate button displayed in
the Home screen. For the respective
function, see the description displayed in
the Setup Guide.
* This function may not be available, depending
on the model of the machine.
1.
2. Configure the initial settings, according to the
screen.
• Set the language and country/region.
• Set the time zone and current date/time.
Before starting the configuration
• The machine cannot be connected to
both wired and wireless LANs at the
same time.
• If the machine is connected to an
unsecured network, your personal
information might be leaked to a third
party. Please be aware and careful of this.
• The machine does not come with a
router. Please have one ready, if necessary.
• Even in an environment without wireless
LAN router, you can use Access Point
Mode to make a wireless connection to
the machine directly from your mobile
device (Direct Connection).
User's Guide
Specifying the connection method
• To connect via wireless LAN : <Yes>
• To connect via wired LAN or USB : <No>
To connect via wireless LAN
1. Make sure that the computer is connected to a
router properly.
2. Check the network settings on the computer.
8
Conguring the Machine
Conguring the Initial Settings of
the Machine
Configure the settings in the following order.
Quick Setup
En

For details
"Setting Up Using the Setup Guide" in the User's Guide
3. Take note of the SSID and network key.
• Check the label on the router. User's Guide
• The setting operation is easier if the router is
provided with a WPS mark. User's Guide
4. Set the access point and network key
according to the screen below.
1. Select <OK>.
2. Select <SSID Settings>.
3. Select <Select Access Point>.
4. Select the access point (SSID), and select
<Next>.
5. Select <OK>.
6. Enter a network key, and select <Apply>.
7. Select <Yes>.
• Wait until message <Connected.> is
displayed.
8. Select <Close>.
• The IP address will be automatically
configured in a few minutes.
5. Install the driver and software.
P.10 "Installing the software"
To view a video guide on the process
You can find a video and guide to assist the
process for the Wireless Network connection
from the URL below. Viewing these guides will
ensure a smooth setup of the device into your
existing wireless environment.
https://www.usa.canon.com/WirelessHelp
To connect via wired LAN
The machine does not come with a LAN cable.
Please have one ready, if necessary.
1. Make sure that the computer is connected to a
router properly.
2. Check the network settings on the computer.
3. Connect the LAN cable.
• After connecting the cable, wait a few minutes
(until the IP address is set automatically).
• If a static IP address has been set on the
computer, set the machine's IP address
manually.
4. Install the driver and software.
P.10 "Installing the software"
Now you are finished with the
configuration of the initial settings.
Proceed to configuring the fax
settings. P.11
9
Quick Setup
En

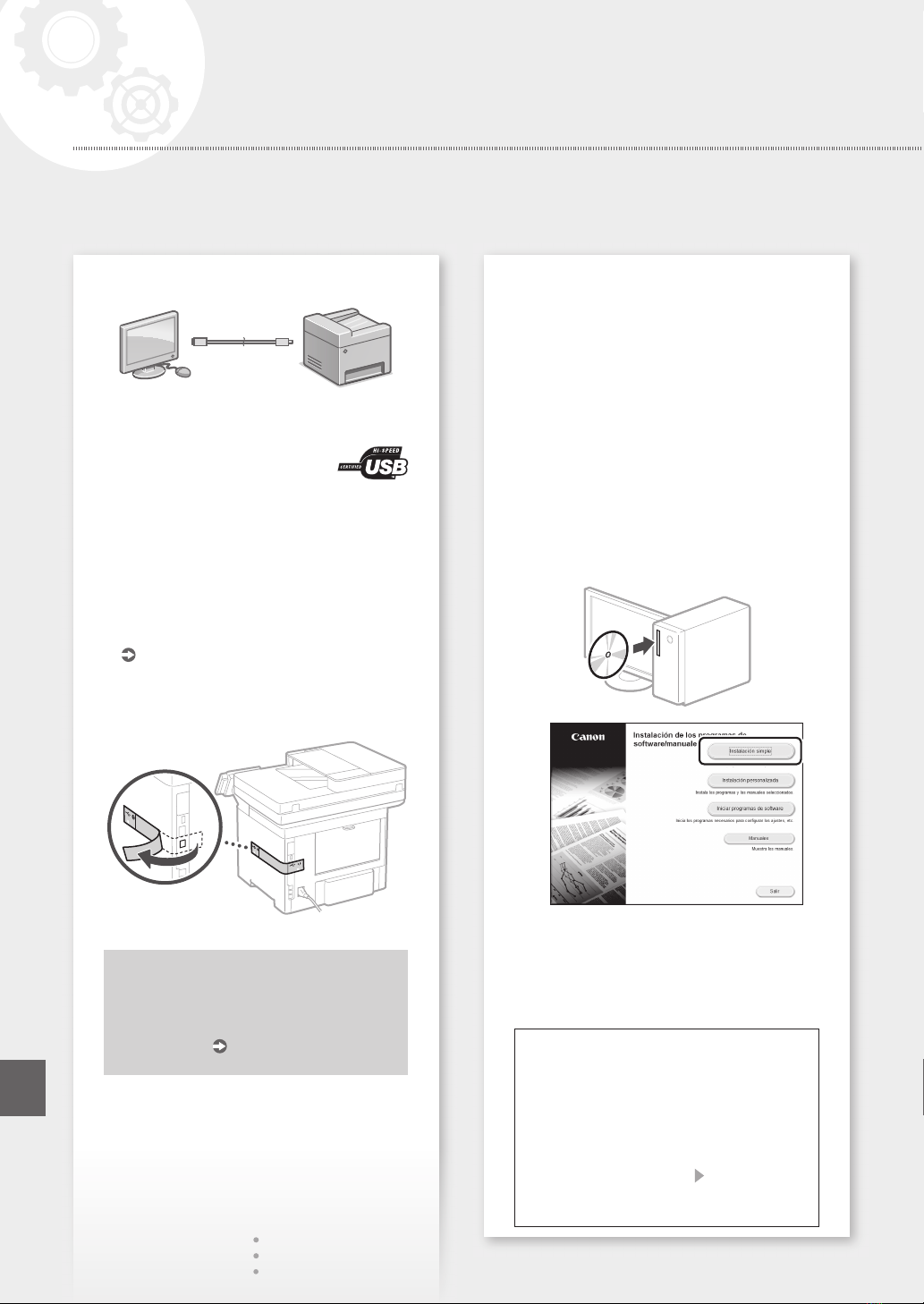

To connect via USB
• The machine does not come with a USB cable.
Please have one ready, if necessary.
• Make sure that the USB cable you
use has the following mark.
• Do not connect the USB cable before installing
the driver. If you did, disconnect the USB cable
from the computer, close the dialog box, and then
perform the following procedure from step 1.
1. Install the driver and software.
P.10 "Installing the software"
• When a screen with instructions for
connecting the USB cable to the machine is
displayed, remove the sticker that covers the
USB port.
Now you are finished with the
configuration of the initial settings.
Proceed to configuring the fax
settings. P.11
Installing the software
• The procedure described here is only applicable
when your computer runs on the Windows OS.
For more details on the software installation
procedure, see the driver's manual.
• For the installation when your computer runs on
the macOS, see the driver's manual.
• Your machine may not come with the driver for
the macOS, depending on the time of purchase.
New drivers are uploaded to the Canon website,
and you can download and use the latest one.
1.
2.
If the screen is not displayed properly, re-
insert the CD-ROM/DVD-ROM or search for
"D:\MInst.exe" on the Windows platform (This
description assumes that "D:" is the CD-ROM/
DVD-ROM drive name).
Using the scanner conveniently
Configuring the network settings with "Send
Function Setting Tool" allows you to directly
send scanned originals with e-mail or I-Fax
or store them in a shared folder or on the FTP
server.
In the screen displayed in step 2, select [Start
Software Programs] [Send Function Setting
Tool] to start the Send Function Setting Tool.
10
Conguring the Machine
Quick Setup
En
