Canon WUX6500 User manual

 WUX6500 (1/14) 
LCOS Power Projector WUX6500 
■ Outline of Product
This device is a 3-plate LCOS projector adopting the 0.71-type Liquid Crystal on Silicon (LCOS). The projector is
equipped with a digital interface HDBaseT that enables transmission distance of up to 100 meters long, enabling
integration of system equipment. In addition to video footage, the projection of video data up to WUXGA size (1920
dots x 1200 dots) is possible.
*The “projection lens” for this product is sold separately. 
■ Product specifications (Specifications and appearance may change without prior notice for reasons such as manufacturing and changes of components.)
Used power
Consumed power
Standby power
Picture element
Projection lens
Light source lamp
Projected image size
Light output*
Peripheral contrast*
Contrast ratio*
Input signal resolution
Corresponding scanning
frequency
Lens shift
Lens position
Keystone correction range
Projection method
Video signal
Connection terminal
AC100 - 240 V 50Hz/60Hz
Lamp mode in Standard mode: 500W /in Eco mode: 410W (power of the Eco mode is calculated value therefore
it is not guaranteed as specifications)
2.0-0.3W (varies depending on the HDBaseT and network setting combination, see page 12)
0.71-type LCOS panel (aspect ratio 16:10)
Number of pixels: 2,304,000 pixels (1920 dots x 1200 dots, WUXGA)
(Separately sold) *A lens is not provided with this device.
<Standard zoom lens (RS-IL01ST)>
Lens configuration: 11 groups, 14 elements, F value: 1.89 - 2.65, Focus distance: 23.0 - 34.5mm, Projection
distance range: 1.3 - 29m, 100-inch projection distance: 3.2 - 4.8m, Zoom ratio: 1.5 x (electric), Focus: electric
<Long zoom lens (RS-IL02LZ)>
Lens configuration: 11 groups, 15 elements, F value: 1.99 - 2.83, Focus distance: 34.0 - 57.7mm, Projection
distance range: 1.9 – 48.5m, 100-inch projection distance: 4.7 - 8.0m, Zoom ratio: 1.7 x (electric), Focus:
electric
<Fixed short focus lens (RS-IL03WF)>
Lens configuration: 10 groups, 14 elements, F value: 2.0, Focus distance: 12.8mm, Projection distance range: 0.7
- 5.2m, 100-inch projection distance: 1.73m, Zoom ratio: 1.0 x, Focus: electric
<Ultra Long Zoom Lens (RS-IL04UL)>
Lens configuration: 11 groups, 16 elements, F value: 2.34-2.81, Focus distance: 53.4-105.6mm, Projection
distance range: 4.6 -89.0m, 100-inch projection distance: 3.2-4.8m, Zoom ratio: 1.95 x (electric), Focus: electric
<Wide Zoom Lens (RS-IL05WZ)>
Lens configuration: 11 groups, 15 elements, F value: 2.09-2.34, Focus distance: 15.6-23.3mm,
Projection distance range: 0.9-19.5m, 100-inch projection distance: 2.2-3.2m, Zoom ratio: 1.5 x (electric), Focus:
electric
340-NSHA lamp (Output Standard : 370W / Quiet: 300W)
40-type (0.86m×0.54m) to 600-type (12.9m×8.1m) (when an optional RS-IL01ST lens is used at 16:10 aspect
ratio)
Standard: 6500lm/Quiet: 5270lm (when an optional RS-IL01ST lens is used)
88% (when an optional RS-IL01ST lens is used)
2000:1 (All white / All black; when an optional RS-IL01ST lens is used with lamp control function set to ON)
WUXGA to VGA
DVI input (digital PC): (H)31KHz
〜 75KHz (V)50Hz 〜 60Hz (dot clock) below 162MHz
HDMI input (digital PC): (H)31KHz
〜 75KHz (V)59Hz 〜 60Hz (dot clock) below 162MHz
HDMI input (digital video): (H)31.469KHz (V)59.940Hz
 [480p]
 (H)31.250KHz (V)50.000Hz  [576p]
 (H)37.500KHz/45.000KHz (V)50.000Hz/60.000Hz  [720p]
 (H)28.125KHz/33.750KHz (V)50.000Hz/60.000Hz  [1080i]
 (H)56.250KHz/67.500KHz (V)50.000Hz/60.000Hz  [1080p]
Analog RGB input
： (H)31KHz 〜 75KHz (V)50Hz 〜 60Hz (dot clock) below 162MHz
Component video input
： (H)15.734KHz (V)59.940Hz  [480i]
 (H)31.469KHz (V)59.940Hz  [480p]
 (H)15.625KHz (V)50.000Hz  [576i]
 (H)31.250KHz (V)50.000Hz  [576p]
 (H)37.500KHz/45.000KHz (V)50.000Hz/60.000Hz  [720p]
 (H)28.125KHz/33.750KHz (V)50.000Hz/60.000Hz  [1080i]
 (H)56.250KHz/67.500KHz (V)50.000Hz/60.000Hz  [1080p]
Vertical -15% to 55%, horizontal -10% to 10% (when an optional RS-IL01ST lens is used)
Position memory functions: Zoom, Focus, Lens shift, Keystone, Screen aspect, Screen color adjustment, Digital
image shift
V ±20°, H ±20°(when an optional RS-IL01ST lens is used)
Front ceiling / floor-mounted front / rear ceiling / floor-mounted rear
Analog/digital PC input: WUXGA/UXGA/WSXGA+/SXGA+/WXGA+/FWXGA/WXGA/SXGA/XGA/SVGA/VGA
Digital video input: 1080p/1080i/720p/576p/480p
Component video input: 1080p/1080i/720p/576p/576i/480p/480i
HDBaseT input: Same as Digital PC input and Digital Video input
USB data transfer: JPEG still image
Network connection: NMPJ image transmission (Canon proprietary protocol)
DVI-I
： Digital PC/analog PC input,HDMI ： Digital PC/Digital Video input (Deep color compatible),RJ-45
(HDBaseT): HDBaseT input (video, audio, control, network) Mini Dsub 15
： Analog PC/component video
input,Mini jack x3
： Audio in x2, video out x1, Mini jack x1 ： Wired remote connection,Dsub9: RS-232C
connection,
 USB Type A ： USB connection,RJ-45 ： Network connection (1000BASE-T / 100BASE-TX /
10BASE-T)
* This indicates the overall average value of the product at the time of shipping, and it is listed in accordance with pattern for data projectors JIS X 6911:2003.
The measurement method and measurement conditions are based on the Annex.

 WUX6500 (2/14) 
Accessories ●Power cord ... 1 ●Computer connection cable (Mini Dsub 15-pin) ... 1*
1
●Wireless remote connector (RS-RC04) ... 1 ●AAA size batteries ... 2
Sold separately ●Ceiling mounting brackets*
2
(RS-CL11) ●Ceiling pipe [400 - 600mm] (RS-CL08) ●Ceiling pipe [600 - 1000mm] (RS-CL09)
●Top cover (RS-TC01) ●Remote controller (capable of connecting a wire*
3
) (RS-RC05) ●Wireless remote controller (RS-RC04)
Replacement products ●Replacement-use lamp (RS-LP09) [Recommended replacement time*
4
; 340W: 3000H/264W: 4000H]
●Replacement air filter (RS-FL01)
*1: Computer cable is not equipped in some models.
*2: Always use the specified bracket. Consult a professional installer for location of installation and have the work done by technical experts.
*3: Use third-party audio cable for connection (3.5 diagram stereo mini plug) *4: When it has a 50% survival rate and can maintain a 50% light retention ratio.

■ External dimensions diagram












(Note) This diagram is not drawn to scale.
<Side terminals> (Unit: mm)
Terminal Signal
Video
input
(1) DVI-I Digital PC/Analog PC1
(2) HDMI HDMI (including audio input)
(3) RJ-45 (HDBaseT) HDBaseT
(4) Mini Dsub 15-pin Analog PC2/Component video
Audio
output
(5) Mini jack Stereo audio
(6) Mini jack Stereo audio
(7) Mini jack Stereo audio
Control (8) USB type A USB connection
(9) RJ-45 1000BAST-T/100BASE-TX/
10BASE-T
(10) Dsub9 RS-232C connection
(11) RJ-45 Wired remote connection










Cabinet
External dimensions
Weight
Noise level
Environmental conditions
Supplied remote control

Molded plastic
Width 380mm Height 170mm (including extrusions) Depth 430mm
About 8.5kg (excluding projection lens)
Lamp mode in Standard mode: 43 dB/in Eco mode: 39 dB
Use environment: 0°C to 40°C
Storage environment:-30°C to 60°C
Power supply used: DC 3V (2 AAA type batteries)
Operation distance (for wireless): About 8m (receiver front ±25°), Supports 4 channels

 WUX6500 (3/14) 

■Names






Projector operation unit
Intake vent
Remote control light receiving unit
A
ir filter
I
/
O terminal
Exhaust vent
Lam
p
cover
Remote control light receiving unit
Screw holes for attaching ceiling
mounting brackets
A
d
j
ustable feet
Lock hole for theft prevention
Power cord connection unit
Lens

■Proj
e
(Note) Thi
s
<Request>
●Have the
w
●When att
a
between
t

e
ction-rel
a
s
diagram is not d
r
w
ork done by tec
h
a
ching to the ceili
n
t
he ceiling mounti
Projection
d
a
ted dime
r
awn to scale.
h
nical experts.
n
g, use the dedic
a
ng brackets and
c
d
istance (L)
nsions
a
ted mounting bra
c
eiling.
194
194
ckets. Also, to pr
e
Side view
Top view
mm 236
m
mm 236
m
80 mm
183 m
m
e
vent swaying or
f
m
m
m
m
m
f
alling, stretch the
Screw holes (
X 6) for attach
i
ceiling mount
i
brackets
WU
X
wire supplied wit
h
Front vi
e
M4
i
ng
i
ng
X
6500 (4/14
)

h
the projector
e
w
)


 WUX6500 (5/14) 


■Projection distance per interchangeable lens
(Unit: m)
Lens 100-type image 200-type image 300-type image 400-type image 500-type image 600-type image
RS-IL03WF 1.7 3.4 5.2
RS-IL05WZ 2.2 - 3.2 4.3 – 6.5 6.5 – 9.7 8.6 – 13.0 10.8 – 16.3 12.9 – 19.5
RS-IL01ST 3.2 - 4.8 6.4 – 9.6 9.6 – 14.5 12.9 – 19.3 16.1 – 24.1 19.3 – 29.0
RS-IL02LZ 4.7 – 8.0 9.5 – 16.1 14.2 - 24.2 19.0 – 32.3 23.8 – 40.4 28.5 – 48.5
RS-IL04UL 7.6 - 14.9 15.2 – 29.8 22.7 – 44.6 30.2 – 59.4 37.7 – 74.2 45.2 – 89.0
Image size (16:10) Projection distance (L)[Screen to lens tip]
Type Width Height
Standard zoom lens
(RS-IL01ST)
Telephoto zoom lens
(RS-IL02LZ)
Fixed short
focus
lens
(RS-IL03WF)
Wide lens Tele lens Wide lens Tele lens
40 0.9 0.5 1.3 1.9 1.9 3.2 0.7
60 1.3 0.8 1.9 2.9 2.8 4.8 1.0
80 1.7 1.1 2.6 3.9 3.8 6.4 1.4
100 2.2 1.4 3.2 4.8 4.7 8.0 1.7
150 3.2 2.0 4.8 7.2 7.1 12.1 2.6
200 4.3 2.7 6.4 9.6 9.5 16.1 3.4
250 5.4 3.4 8.0 12.1 11.9 20.2 4.3
300 6.5 4.0 9.6 14.5 14.2 24.2 5.2
350 7.5 4.7 11.3 16.9 16.6 28.3 
400 8.6 5.4 12.9 19.3 19.0 32.3 
450 9.7 6.1 14.5 21.7 20.9 35.6 
500 10.8 6.7 16.1 24.1 23.8 40.4 
550 11.9 7.4 17.7 26.6 26.1 44.5 
600 12.9 8.1 19.3 29.0 28.5 48.5 


Image size (16:10) Projection distance (L)[Screen to lens tip]
Width Height Width
Ultra Long
Zoom Lens（RS-IL04UL）
Wide Zoom
Lens（RS-IL05WZ）
Wide lens Tele lens Wide lens Tele lens
40 0.9 0.5 0.9 1.3
60 1.3 0.8 4.6 9.0 1.3 1.9
80 1.7 1.1 6.1 12.0 1.7 2.6
100 2.2 1.4 7.6 14.9 2.2 3.2
150 3.2 2.0 11.4 22.3 3.2 4.9
200 4.3 2.7 15.2 29.8 4.3 6.5
250 5.4 3.4 18.9 37.2 5.4 8.1
300 6.5 4.0 22.7 44.6 6.5 9.7
350 7.5 4.7 26.4 52.0 7.5 11.4
400 8.6 5.4 30.2 59.4 8.6 13.0
450 9.7 6.1 34.0 66.8 9.7 14.6
500 10.8 6.7 37.7 74.2 10.8 16.3
550 11.9 7.4 41.5 81.6 11.8 17.9
600 12.9 8.1 45.2 89.0 12.9 19.5
* As for the value of L, a margin of error within ± 5% may be generated depending on the projection lens. The numbers in the
table are rounded approximations.


 WUX6500 (6/14) 


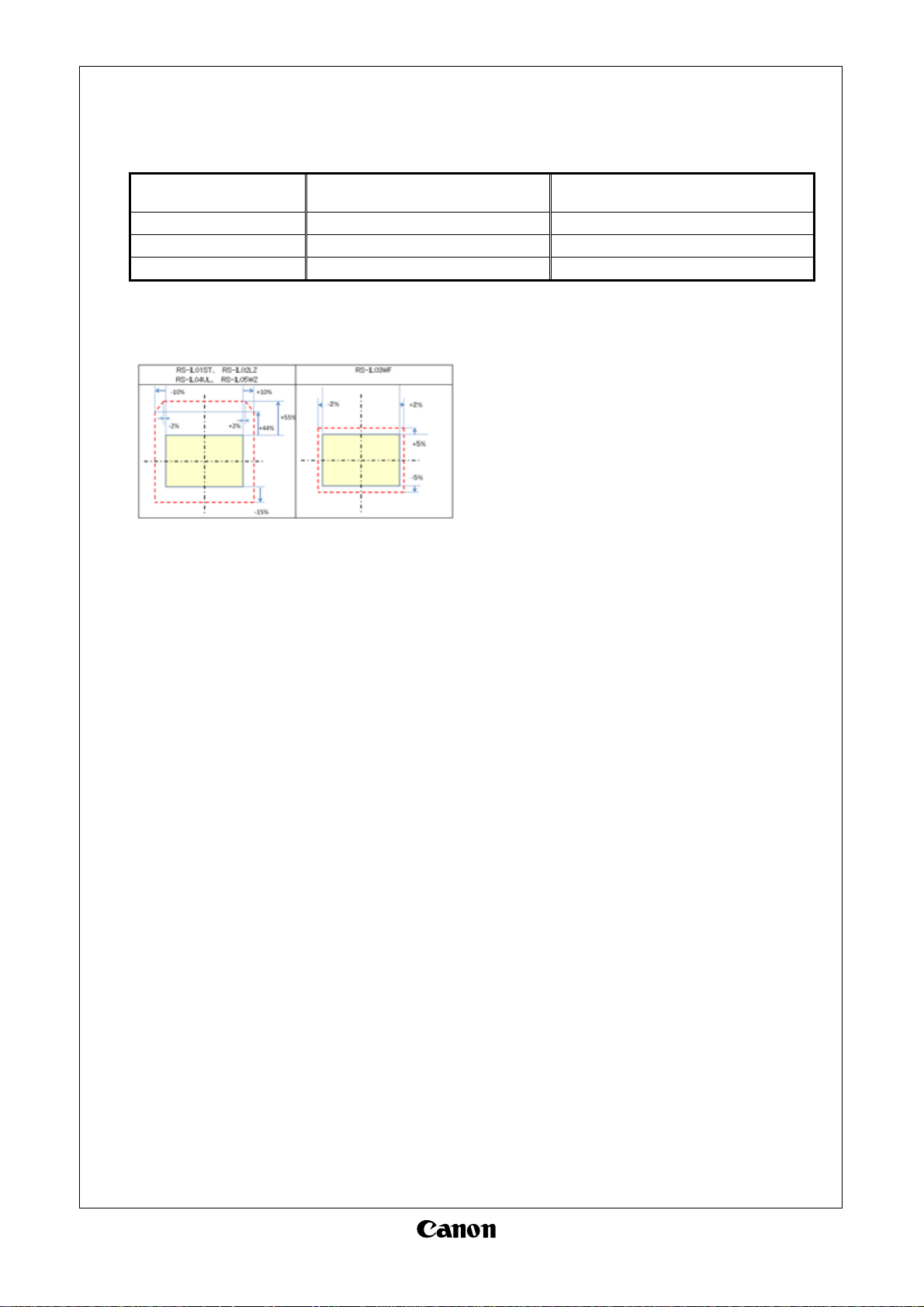

■Adjustable range of optical axis shift

A motorized lens shift function that can shift the image position vertically and horizontally is installed on
this product. The lens shift specification per lens is as follows.
Lens shift RS-IL01ST、 RS-IL02LZ
RS-IL04UL、 RS-IL05WZ RS-IL03WF
Volume (V) -15%〜55%, (H) -10%〜10% (V) -5%〜5%, (H) -2%〜2%
Ratio (V) 3.5:6.5〜10.5:-0.5, (H) 6:4〜4:6 (V) 4.5:5.5〜5.5:4.5, (H) 5.2:4.8〜4.8:5.2
Home position*
1
(V) 50%/0%*
2
, (H) 0％(V) 0％, (H) 0％
*1: Position where the lens returns at reset. *2: Selected from menu.


Variable range of the image with the combination of projection lens are shown below:

Image will move within the red dotted lines.
Center of the crossed line is the optical axis of the lens.



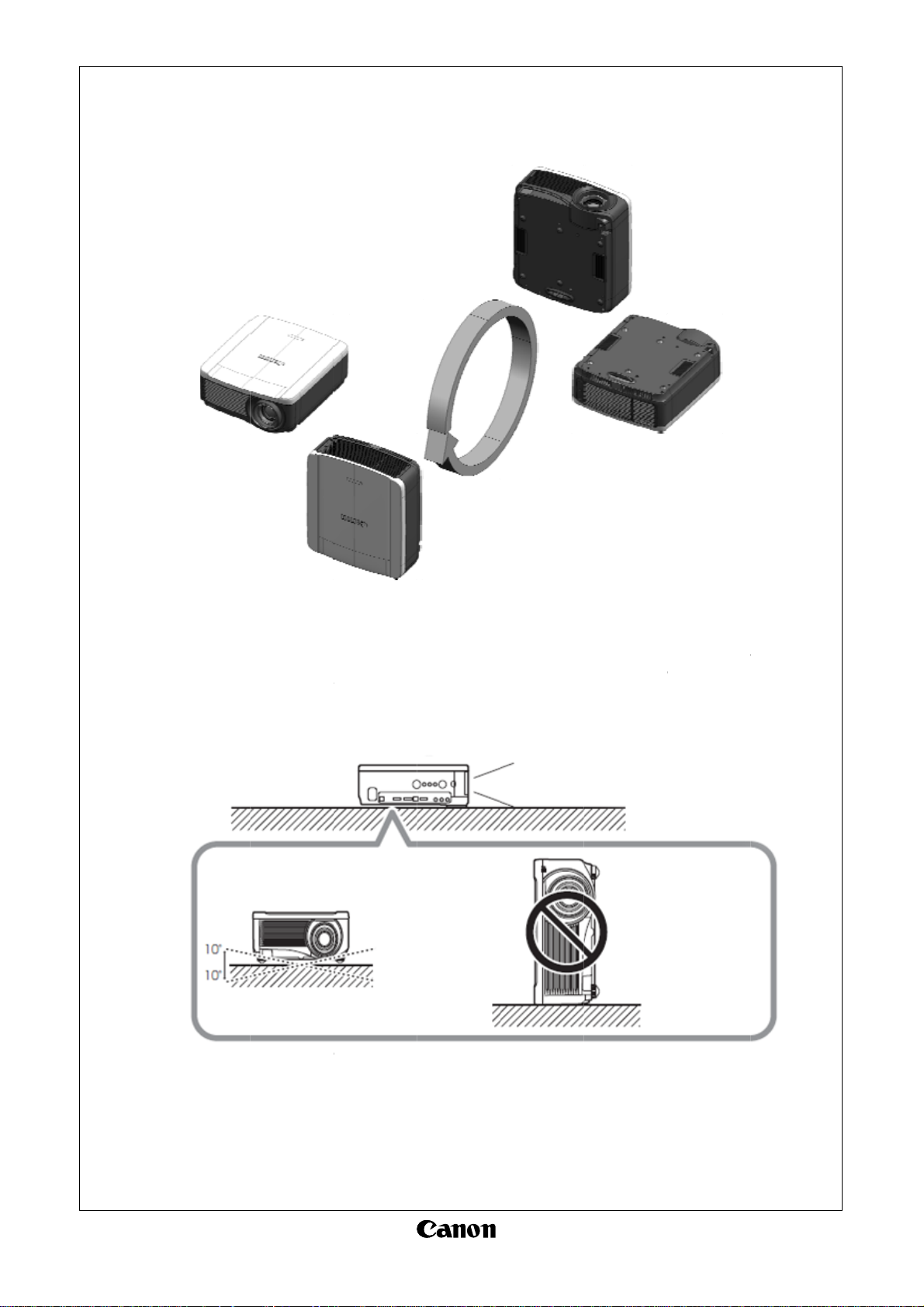

■Inst
a




































a
llable an
g
* This prod
u
Note: The l
a
When usin
g
placement
u
* T
h
g
le
u
ct can be insta
a
mp life may b
e
g
the projector i
n
u
nder Upright
P
h
e lamp may bec
o
lled to allow for
e
shortened wh
e
n
such position
s
P
rojection menu
When i
ceiling
not tilt
10° lef
t
rightw
a
o
me damaged.

free rotation in
e
n the projector
s
, select a rang
e
. This selection

nstalling on a
or floor, do
it more than
t
ward/
a
rd*
all directions o
f
is positioned s
t
e
of angles (±4
5
of the settings
c
f
360 degrees
a
t
anding straight
5
° upward or d
o
c
hanges the co
Do not st
a
side.*
WU
X
a
s shown in the
upward or do
w
o
wnward) from t
oling fan opera
t
a
nd it on its
X
6500 (7/14
)
diagram.
w
nward.
h
e projector
t
ion.

)


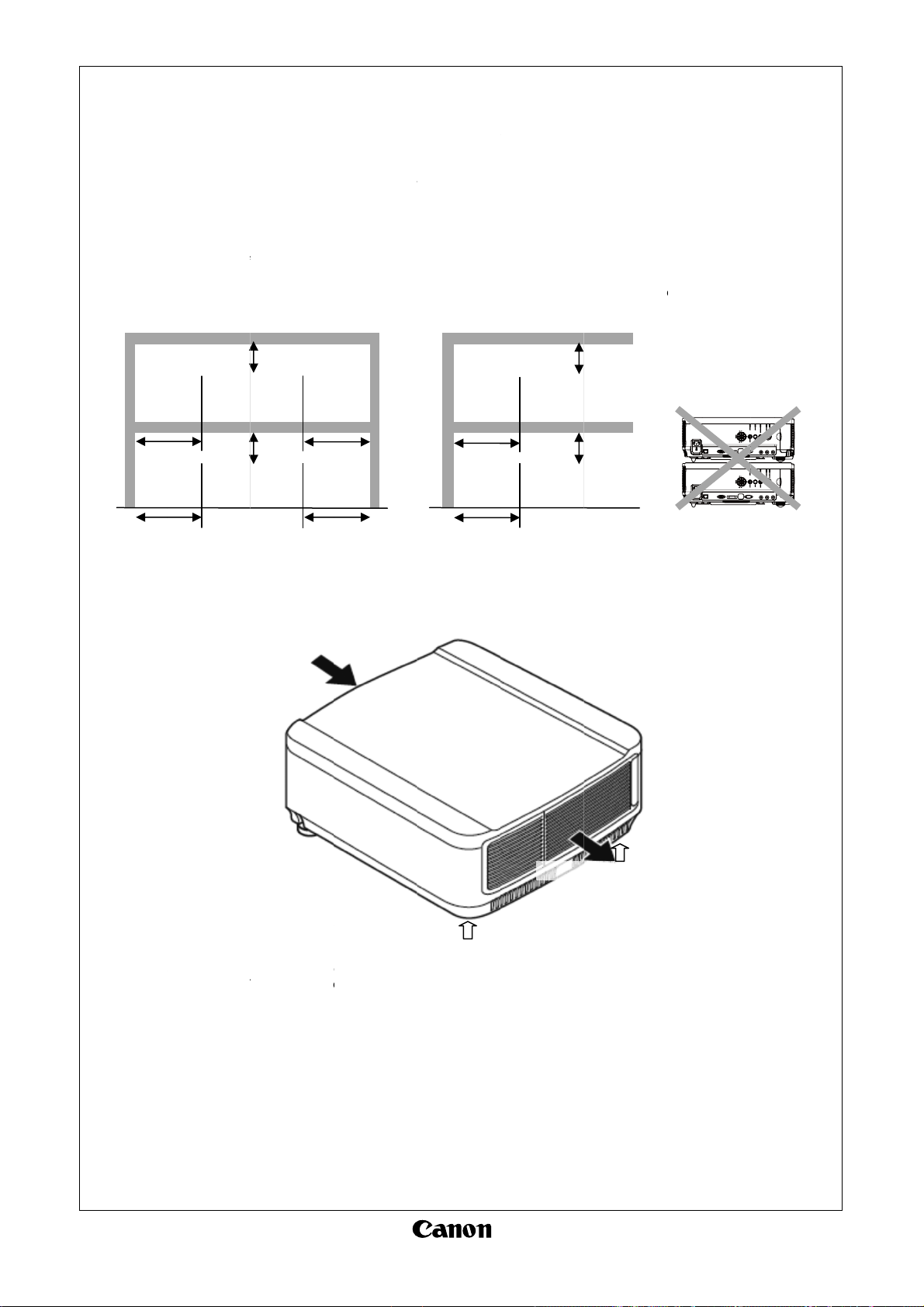

■Adj
The
p
Lift t
h

The
a
Angl
e
ustable f
e
p
rojector ha
s
h
e adjustabl
e
a
ngle of the
e
can be se
t
e
et
s
two adjus
t
e
feet on th
e
projector is
t
up to 6 de
g
Rotat
e
t
able feet o
n
e
lens side
t
adjusted b
y
g
rees betwe
e
n
the lens si
d
t
o adjust th
e
Lens
s
y
rotating th
e
en the bas
e
d
e of the bo
e
angle of th
e
s
ide
e
adjustabl
e
e
and the pr
o
A
dju
s
ttom.
e
projector.
e
feet.
o
jector.
s
table feet
WU
X
Simulated
Max. 6°
X
6500 (8/14
)
)


 WUX6500 (9/14) 
■List of supported signals
The video signals that can be input in this product are described in the tables below.
●DVI input (digital PC) ●HDMI input (digital PC, digital video)
Signal
format
Horizontal
frequency
[KHz]
Vertical
frequency
[Hz]
Dot clock
[MHz] Signal format
Horizontal
frequency
[KHz]
Vertical
frequency
[Hz]
Dot clock
[MHz]
640×480 31.469 59.940 25.175 640×480 31.469 59.940 25.175
720×480 31.469 59.940 27.000 800×600 37.879 60.317 40.000
720×576 31.250 50.000 27.000 1024×768 48.363 60.004 65.000
800×600 37.879 60.317 40.000 1280×800 49.702 59.810 83.500
1024×768 48.363 60.004 65.000 49.306 59.910 71.000
1280×720 37.500 50.000 74.250 1280×1024 63.981 60.020 108.000
45.000 60.000 74.250 1366×768 47.712 59.790 85.500
1280×800 49.702 59.810 83.500 1400×1050 64.744 59.948 101.000
49.306 59.910 71.000 65.317 59.978 121.750
1280×1024 63.981 60.020 108.000 1440×900 55.935 59.887 106.500
1366×768 47.712 59.790 85.500 55.469 59.901 88.750
1400×1050 64.744 59.948 101.000 1600×900 60.000 60.000 108.000
65.317 59.978 121.750
1600×1200 75.000 60.000 162.000
1440×900 55.935 59.887 106.500 1680×1050 64.674 59.883 119.000
55.469 59.901 88.750 65.290 59.954 146.250
1600×900 60.000 60.000 108.000 1920×1200 74.038 59.950 154.000
1600×1200 75.000 60.000 162.000
1680×1050 64.674 59.883 119.000 480p 31.469 59.940 27.000
65.290 59.954 146.250 576p 31.250 50.000 27.000
1920×1080 27.000 24.000 74.250 720p 37.500 50.000 74.250
56.250 50.000 148.500 45.000 60.000 74.250
67.500 60.000 148.500 1080i 28.125 50.000 74.250
1920×1200 74.038 59.950 154.000 33.750 60.000 74.250
1920×1080 27.000 24.000 74.25 1080p 27.000 24.000 74.250
PsF 28.125 25.000 74.25 56.250 50.000 148.500
33.750 30.000 74.25 67.500 60.000 148.500
●HDBaseT input
Signals that are transmitted can be displayed in the same resolution and frequencies as the
HDMI input as shown in the above chart.
HDBaseT signals are signals specified by the HDBaseT standards.
The signal is transmitted as HDBaseT signal through the cable and converted to HDMI signal when
inputted to the projector.
Proper display is not guaranteed when receiving HDBaseT signal that cannot be converted back to any of
the HDMI signal listed above.
Notes: Always use STP cable that is above CAT5e specified by the TIA (Telecommunications Industry
Association) of the United States. The length of 100 meters contains the length of patch cable and connectors.
However, proper projection performance may not be achieved even within the specified distance, depending on
the type of cable used and installation conditions.

 WUX6500 (10/14) 
●Analog PC input (1, 2) ●Component video input
Signal format
Horizontal
frequency
[KHz]
Vertical
frequency
[Hz]
Dot clock
[MHz] Signal format
Horizontal
frequency
[KHz]
Vertical
frequency
[Hz]
Dot clock
[MHz]
640×480 31.469 59.940 25.175 480i 15.734 59.940 13.500
720×480 31.469 59.940 27.000 480p 31.469 59.940 27.000
720×576 31.250 50.000 27.000 576i 15.625 50.000 13.500
800×600 37.879 60.317 40.000 576p 31.250 50.000 27.000
848×480 31.020 60.000 33.750 720p 37.500 50.000 74.250
1024×768 48.363 60.004 65.000 45.000 60.000 74.250
1280×768 47.776 59.870 79.500 1080i 28.125 50.000 74.250
47.396 59.995 68.250 33.750 60.000 74.250
1280×800 49.702 59.810 83.500 1080p 56.250 50.000 148.500
49.306 59.910 71.000 67.500 60.000 148.500
1280×960 60.000 60.000 108.000 1080PsF 27.000 24.000 74.25
1280×1024 63.981 60.020 108.000 28.125 25.000 74.25
1366×768 47.712 59.790 85.500 33.750 30.000 74.25
1400×1050 64.744 59.948 101.000
Analog/digital PC signals in this specification refer to RGB
video signal. This is because signals that are outputted
from PC in most cases are in that format.
Component video/digital video signals in this specification
refer to color-difference signal because signals that are
outputted from video equipment in most cases are in that
format.
Please note that Composite video and S video signals are
not included.
65.317 59.978 121.750
1440×900 55.935 59.887 106.500
55.469 59.901 88.750
1600×900 60.000 60.000 108.000
1600×1200 75.000 60.000 162.000
1680×1050 64.674 59.883 119.000
65.290 59.954 146.250
1920×1080 56.250 50.000 148.500
67.500 60.000 148.500
1920×1200 74.038 59.950 154.000

Specifications in above charts are subject to change without notice.
Notes: If the analog PC signal of the dot clock is greater than 162MHz, the images are not projected correctly.
Use VGA cable with all pins connected. Images may not project properly if the correct VGA cable is not used.




USB video signal (only for still images)
Images that are stored in a USB memory can be projected as still images by inserting the USB
memory into the projector.
File type JPEG
Format Standard DCT method (Baseline)
Max. pixels 10912 x 8640
Only JPEG files can be read by the projector with maximum pixels of 10912 x 8640.
It also supports Standard DCT method (baseline) format. Optimized, progressive and reversible
methods are not supported.
Note that when JPEG still image is inputted, digital zoom operation from display menu will not be
supported.
Slideshow setting for video input via USB is done from the video setting menu; use USB file browser
to display the video input via USB.
Network video input (only for still images)
The projector will receive still images from a computer (when NMPJ in operation) via LAN network.
Still images are output to the projector by converting the image to the number of pixels of the LCOS
device used for the projector.



 WUX6500 (11/14) 


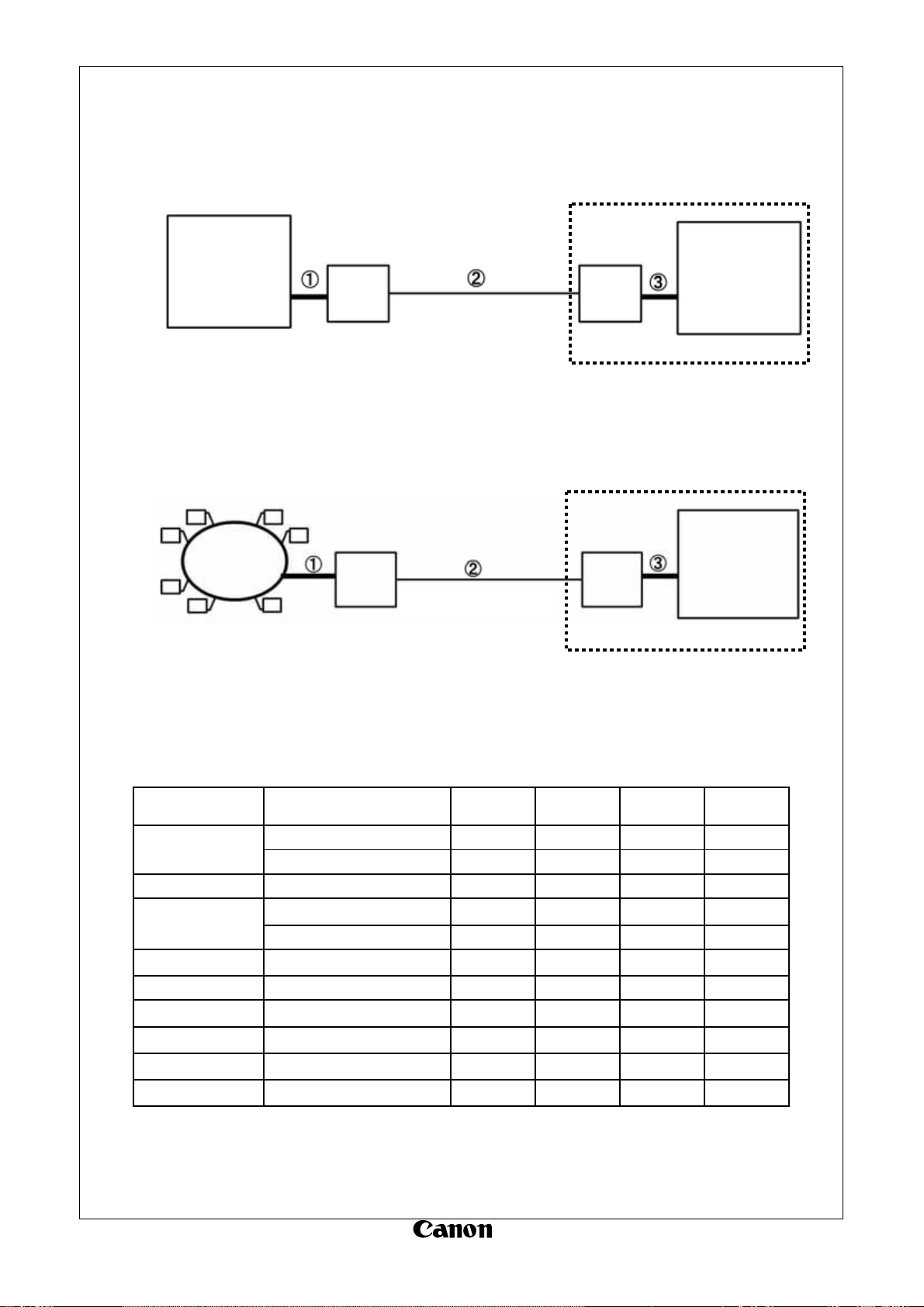

■HDBaseT specifications
HDBaseT is used to transfer video signal and network data. HDBaseT transmitter equipment can be
connected directly to the projector using a network cable as the projector is equipped with a receiver.
●For video signals (HDMI cable is used for connection ①)
Output device Transmitter Receiver Display device
①Video signal is sent to the transmitter from an output device such as Blu-ray player.
②Transmitter then converts the video signal into HDBaseT signal and sends out.
③Receiver receives the HDBaseT signal and converts to an HDMI signal and sends out.
④Display device will display the HDMI signal.
●For network communications (Network cable is used for connection ①)
Network Transmitter Receiver Display device
①Network data is sent to the transmitter from a secured network.
②Transmitter then converts the network data into HDBaseT signal and sends out.
③Receiver receives the HDBaseT signal and converts to a network data and sends out.
④Network data from a display device can transmit in the same manner in reverse direction.
List of HDBaseT transmitters (TX) confirmed to work with the WUX6500
Manufacturer Model Name Video Audio LAN Serial
Crestron
DM-TX-201C Yes Yes Yes N o
DM-TX-401C Yes Yes Yes No
AMX DX-TX Yes Yes Yes Yes
Kramer
TP-581T Yes
※1
Yes Yes Yes
TP-582T Yes Yes Yes Yes
Extron
※2
XTP T USW 103 No No No No
Gefen GEF-HDCAT5-ELRPOL
Yes Yes
No
※
3
No
Atlona AT-HDTX-RSNET Yes
※1
Yes Yes No
CYP PU-507-KIT Yes
※1
Yes Yes Yes
IDK HDC-TH100-C Yes Yes Yes No
※4
IMAGENICS CRO-DE20TX Yes Yes No No
※4
※1 When a certain input device is connected, the picture may not be displayed in intended resolution.
※2 Extron XTP is not supported.
※3 LAN transmission disabled when the projector is in Standby mode (Tx is incompatible with LPPF2 mode)
※4 Serial transmission disabled when the projector is in Standby mode.
WUX6500
WUX6500
Network cable
Network cable

 WUX6500 (12/14) 

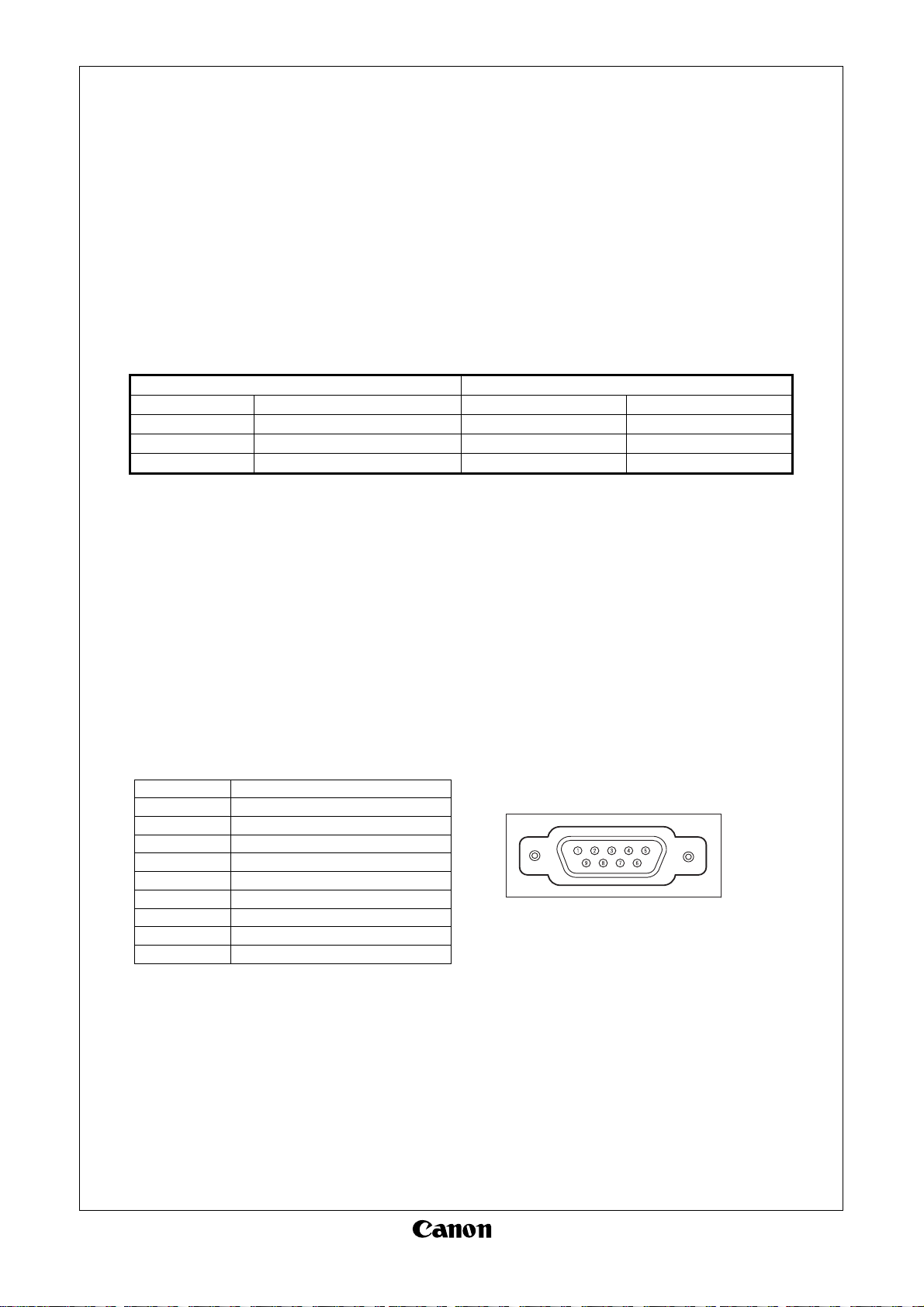

●HDBaseT cable and transmission distance
Theoretically HDBaseT is designed for data transmission of up to 100 meters in length however
depending on the type of network and transmitter used, the said length may not be met. This is likely
when signals with extensive data capacity are transferred. We recommend using shielded type
cables (TIA-specified CAT6 or CAT7 cable).
●Others regarding network transmission
Transmission speed of 100BASE-T/10BASE-T is supported on the HDBaseT network. On the
contrary, RJ-45 terminal exclusive for network use supports 1000BASE-T; thus the transmission
speed is slower when compared to RJ-45 terminal. The advantage of HDBaseT is the capability to
transfer video signal and network communication data simultaneously, which contributes to reducing
the number of cables.
Standby power for the projector setup and network setup will change accordingly:
Interface setup Network function
HDBaseT Selection of a wired network On (Eco) Off
ON LAN port 2.0W 1.9W
ON HDBaseT 2.0W 1.9W
OFF LAN port 0.7W 0.3W

■NMPJ1.3
Video data from the computer can be shared and distributed via network.
●The latest functions can be enjoyed with the Auto Update feature.
●Use DNS to search for a projector with its host name.
●Compatible with Windows 10
■List of supported signals
The serial terminals conform to RS-232C. To control the projector with a PC, prepare communication
software and input data based on the following communication conditions and basic format.
<Serial input terminals>
●Pin array
Pin number Signal
1 OPEN
2 RxD
3 TxD
4 OPEN
5 GND
6 OPEN
7 OPEN
8 OPEN
9 OPEN
●Communication format
Communication method: RS-232-C asynchronous half-duplex communication
Communication speed: 19200bps
Character length: 8-bit
Stop bit: 2-bit
Parity: No
Flow control: No


 WUX6500 (13/14) 

●List of control commands
Command type ASCII notation Binary notation
Power supply
Power ON POWER ON<CR> 50h 4Fh 57h 45h 52h 20h 4Fh 4Eh 0Dh
Power OFF POWER OFF<CR> 50h 4Fh 57h 45h 52h 20h 4Fh 46h 46h 0Dh
Power supply
status
acquisition
GET POWER<CR> 47h 45h 54h 20h 50h 4Fh 57h 45h 52h 0Dh
Input source
DigitalPC INPUT=D-RGB<CR> 49h 4Eh 50h 55h 54h 3Dh 44h 2Dh 52h 47h 42h 0Dh
DigitalVideo INPUT=HDMI<CR> 49h 4Eh 50h 55h 54h 3Dh 48h 44h 4Dh 49h 0Dh
AnalogPC INPUT=A-RGB<CR> 49h 4Eh 50h 55h 54h 3Dh 41h 2Dh 52h 47h 42h 0Dh
Component INPUT=COMP<CR> 49h 4Eh 50h 55h 54h 3Dh 43h 4Fh 4Dh 50h 0Dh
Input source
acquisition
GET INPUT<CR> 47h 45h 54h 20h 49h 4Eh 50h 55h 54h 0Dh
Image mode
STANDARD IMAGE=STANDARD<CR> 49h 4Dh 41h 47h 45h 3Dh 53h 54h 41h 4Eh 44h 41h 52h 44h 0Dh
PRESENTATION IMAGE=PRESENTATION<CR>
49h 4Dh 41h 47h 45h 3Dh 50h 52h 45h 53h
45h 4Eh 54h 41h 54h 49h 4Fh 4Eh 0Dh
VIVID PHOTO IMAGE=VIVID_PHOTO<CR>
49h 4Dh 41h 47h 45h 3Dh 56h 49h 56h 49h 44h 5Fh
50h 48h 4Fh 54h 4Fh 0Dh
PHOTO sRGB IMAGE=PHOTO_SRGB<CR>
49h 4Dh 41h 47h 45h 3Dh 50h 48h 4Fh 54h 4Fh 5Fh
53h 52h 47h 42h 0Dh
DYNAMIC IMAGE=DYNAMIC<CR> 49h 4Dh 41h 47h 45h 3Dh 44h 59h 4Eh 41h 4Dh 49h 43h 0Dh
VIDEO IMAGE=VIDEO<CR> 49h 4Dh 41h 47h 45h 3Dh 56h 49h 44h 45h 4Fh 0Dh
CINEMA IMAGE=CINEMA<CR> 49h 4Dh 41h 47h 45h 3Dh 43h 49h 4Eh 45h 4Dh 41h 0Dh
Image mode
USER1 IMAGE=USER_1<CR> 49h 4Dh 41h 47h 45h 3Dh 55h 53h 45h 52h 5Fh 31h 0Dh
USER2 IMAGE=USER_2<CR> 49h 4Dh 41h 47h 45h 3Dh 55h 53h 45h 52h 5Fh 32h 0Dh
USER3 IMAGE=USER_3<CR> 49h 4Dh 41h 47h 45h 3Dh 55h 53h 45h 52h 5Fh 33h 0Dh
USER4 IMAGE=USER_4<CR> 49h 4Dh 41h 47h 45h 3Dh 55h 53h 45h 52h 5Fh 34h 0Dh
USER5 IMAGE=USER_5<CR> 49h 4Dh 41h 47h 45h 3Dh 55h 53h 45h 52h 5Fh 35h 0Dh
Image mode
acquisition GET IMAGE<CR> 47h 45h 54h 20h 49h 4Dh 41h 47h 45h 0Dh
Brightness Brightness value
setting BRI=< Numerical value><CR> 42h 52h 49h 3Dh < Numeric code> 0Dh
Brightness
acquisition GET BRI<CR> 47h 45h 54h 20h 42h 52h 49h 0Dh
Sharpness Sharpness value
setting SHARP=< Numerical value><CR> 53h 48h 41h 52h 50h 3Dh < Numeric code> 0Dh
Sharpness
acquisition GET SHARP<CR> 47h 45h 54h 20h 53h 48h 41h 52h 50h 0Dh
Contrast Contrast value
setting CONT=< Numerical value ><CR> 43h 4Fh 4Eh 54h 3Dh < Numeric code> 0Dh
Contrast
acquisition GET CONT<CR> 47h 45h 54h 20h 43h 4Fh 4Eh 54h 0Dh
Aspect
Auto ASPECT=AUTO<CR> 41h 53h 50h 45h 43h 54h 3Dh 41h 55h 54h 4Fh 0Dh
4:3 ASPECT=4:3<CR> 41h 53h 50h 45h 43h 54h 3Dh 34h 3Ah 33h 0Dh
16:9 ASPECT=16:9<CR> 41h 53h 50h 45h 43h 54h 3Dh 31h 36h 3Ah 39h 0Dh
Zoom ASPECT=ZOOM<CR> 41h 53h 50h 45h 43h 54h 3Dh 5Ah 4Fh 4Fh 4Dh 0Dh
Real ASPECT=TRUE<CR> 41h 53h 50h 45h 43h 54h 3Dh 54h 52h 55h 45h 0Dh
Full ASPECT=FULL<CR> 41h 53h 50h 45h 43h 54h 3Dh 46h 55h 4Ch 4Ch 0Dh
Aspect GET ASPECT<CR> 47h 45h 54h 20h 41h 53h 50h 45h 43h 54h 0Dh
Lamp mode
Standard LAMP=NORMAL<CR> 4Ch 41h 4Dh 50h 3Dh 4Eh 4Fh 52h 4Dh 41h 4Ch 0Dh
Quiet LAMP=SILENT<CR> 4Ch 41h 4Dh 50h 3Dh 53h 49h 4Ch 45h 4Eh 54h 0Dh
Lamp mode
acquisition GET LAMP<CR> 47h 45h 54h 20h 4Ch 41h 4Dh 50h 0Dh
Blank
Execute BLANK=ON<CR> 42h 4Ch 41h 4Eh 4Bh 3Dh 4Fh 4Eh 0Dh
Cancel BLANK=OFF<CR> 42h 4Ch 41h 4Eh 4Bh 3Dh 4Fh 46h 46h 0Dh
Blank
acquisition GET BLANK<CR> 47h 45h 54h 20h 42h 4Ch 41h 4Eh 4Bh 0Dh


■ Pre
c
High wa
t
(1) Do
(2) Se
c
(3) Wh
Se
c
(4) Do
Als
o
co
n
(5) Wh
wit
h
35°
the










■ Con
c
2 re
a





500
or
m
500
or
m
T
w
f
o
c
o
c
autions
w
t
tage lamps
not set anythin
g
c
ure space of a
t
en using stack
c
ure the same
s
not block the i
n
o
, install the pr
o
n
ditioning.
en operating th
h
in the range o
f
C or lower, the
exhaust heat.
S
c
erning t
h
a
r mounti
I
mm
m
ore
mm
m
ore
T
o improve ins
t
w
hen installing i
t
o
r installing in t
h
c
eiling mountin
g
o
f the projector.
T
w
hen inst
a
are used in
t
g
on top of the
p
t
least 0.5 mete
projection, sec
u
s
pace also whe
n
n
take and exha
u
o
jecto
r
so that
t
e projector ins
e
f
5°C to 35°C. A
protection circu
S
ufficiently con
s
h
e directi
o
ng feet
50
0
or
m
I
ntake ven
t
100mm
or more
50
0
or
m
t
allation stabili
t
t
on a shelf, etc
h
e 2 screw hol
e
g
brackets at b
o
T
hese feet are
o
100mm
or more
a
lling/usi
n
t
he projecto
r
p
rojector. Also
d
r from the exha
u
re the followin
g
n
operating an
y
u
st vents of the
t
he intake and
e
e
rted in a box,
e
lso, do not bloc
it of the project
o
s
ider the ambie
n
o
n of inta
k
0
mm
m
ore
t
0
mm
m
ore
t
y of the proje
., feet are avail
a
e
s for attaching
o
th ends of the
r
o
ptional.
n
g
r
, and it bec
o
d
o not project
w
usts vents of th
g
space. Open
u
y
one of them a
n
projector.
e
xhaust vents
a
e
nsure that the
k the intake an
d
o
r may function
n
t temperature
e
k
e/exhaus
500mm
o
more
500 mm
or more
ctor
a
ble
the
r
ear
o
mes very h
o
w
ith projectors s
t
e projector.
u
p the lens sid
e
n
d stacking and
a
re not subjecte
ambient tempe
d
exhaust vents
and shut down
e
nvironment w
h
t vents, a
t
o
r
Hot
a
o
t. Take care
t
acked directly
o
e
as shown belo
installing one f
o
d directly to w
a
rature within th
e
. Even when th
e
the projector d
u
h
en installing th
e
t
tachmen
t

E
a
i
r
100 mm
or more
100 mm
or more
WUX
6
as follows.
o
n top of each
o
w.
o
r backup.
ar
m air and col
d
e
box during o
p
e
ambient tem
p
u
e to internal r
e
e
projector.
t
of optio
n
E
xhaust v
e
Do not st
a
projectors
themselves
o
each other
a
them.
6
500 (14/14
)
o
ther.
d
air of air
p
eration is
p
erature is
e
tention of
n
al
e
nt
a
ck the
o
n top of
a
nd use
)

