Canon LV-S4 User manual

E
English
Multimedia Projector
Owner’s Manual
LV-S4

2
Features and Design
◆Compact Design
This projector is designed compact in size and weight. It is
easy to carry and work anywhere you wish to use.
◆Compatibility
The projector widely accepts various video and computer
input signals including; Computers, 6 Color systems (PAL,
SECAM, NTSC, NTSC4.43, PAL-M, PAL-N), Component
Video, S-video and RGB scart.
◆Simple Computer System Setting
The projector has the Multi-scan system to conform to
almost all computer output signals quickly. (See page 25.)
◆Auto PC Adjustment
Incoming computer signals are recognized and the best
adjustment is automatically set by the Auto PC Adjustment.
No complicated setup is necessary and the projection is
always precise. ( See page 26. )
◆Blackboard Function
A blackboards✳can be used as a projection screen.
✳The board color is limited to Green.
(See page 29 and 34)
◆Digital Zoom (for Computer)
The Digital zoom function expands (to approx. 16 times of
screen size) or compresses the image size, allowing you to
focus on crucial information at a presentation.
(See page 31.)
◆Film Function
The Film function reproduces pictures faithful to the original
film quality from 3-2 pull-down video contents.
(See page 36.)
◆Multi-Language Menu Display
Operation menu is available in 12 languages; English,
German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Russian, Chinese, Korean, or Japanese.
(See page 38.)
◆Keystone Adjustment
The keystone correction function is provided to correct
distortion of the projected image allowing you to use the
projector without locational constraints.
(See page 22 and 38.)
◆Power Management Function
The Power management function reduces power
consumption and maintains the lamp life. (See page 41.)
◆User's Logo
A projected image can be captured and used for the
starting display of the projector with the Capture function.
You can also display the captured image in an interval
during your presentation instead of blackout the image with
the No show function. (See page 22 and 40.)
◆Selectable Lamp Mode
Brightness of the projection lamp can be selected in the
Setting menu. (See page 41.)
◆Key Lock Function
Provided to lock the operation of the projector. This
function protects the projector from being tampered with
by third persons. (See page 42)
◆PIN Code Lock Function
The PIN code lock function prevents others except users
from using the projector. (See page 17 and 43.)
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector
utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

3
Table of Contents
Features and Design . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . .3
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . . . . . . .5
Air Circulation 6
Installing the Projector in Proper Position 6
Moving the Projector 6
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .7
Part Names and Functions . . . . . . . . . . . . . .8
Front 8
Back 8
Bottom 8

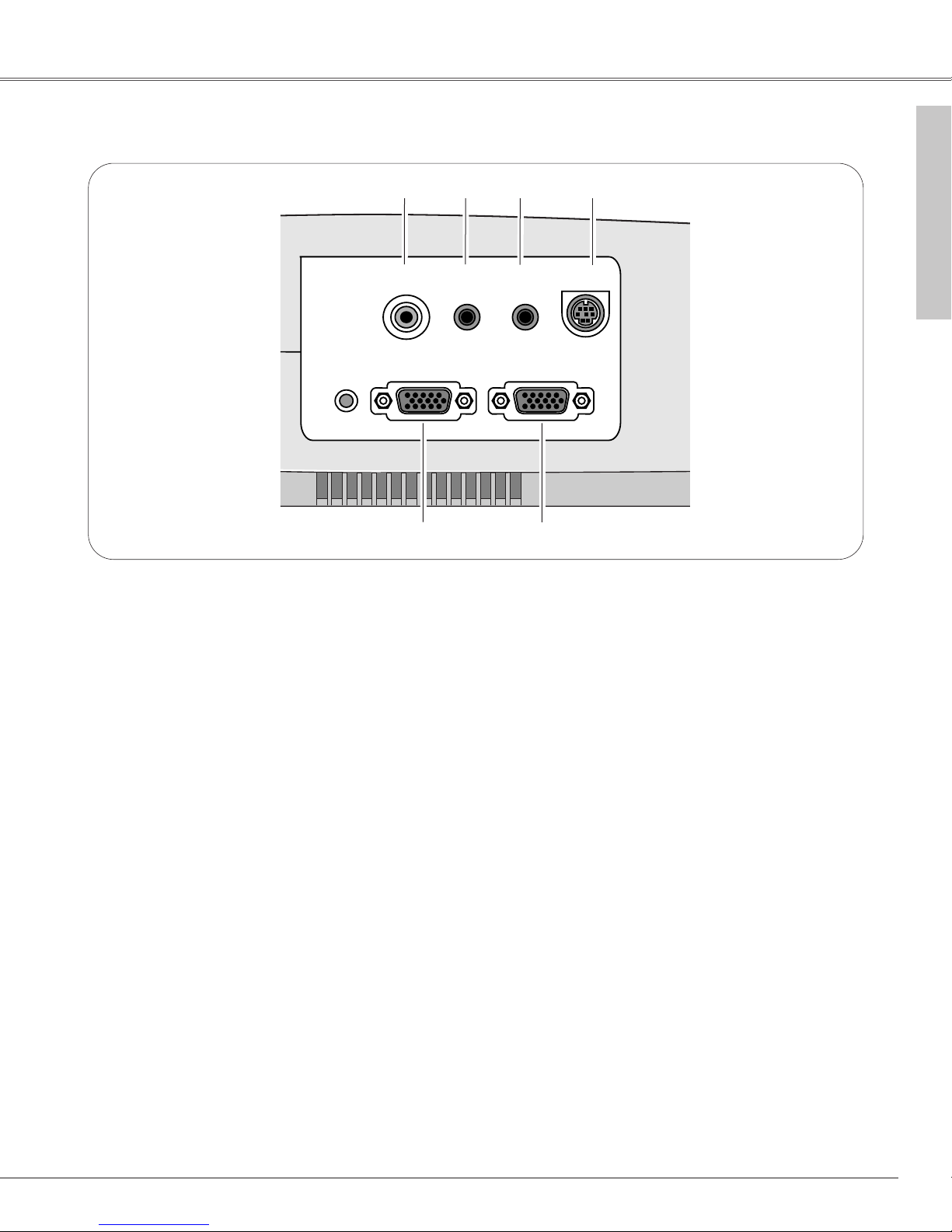

Rear Terminal 9
Top Control 10

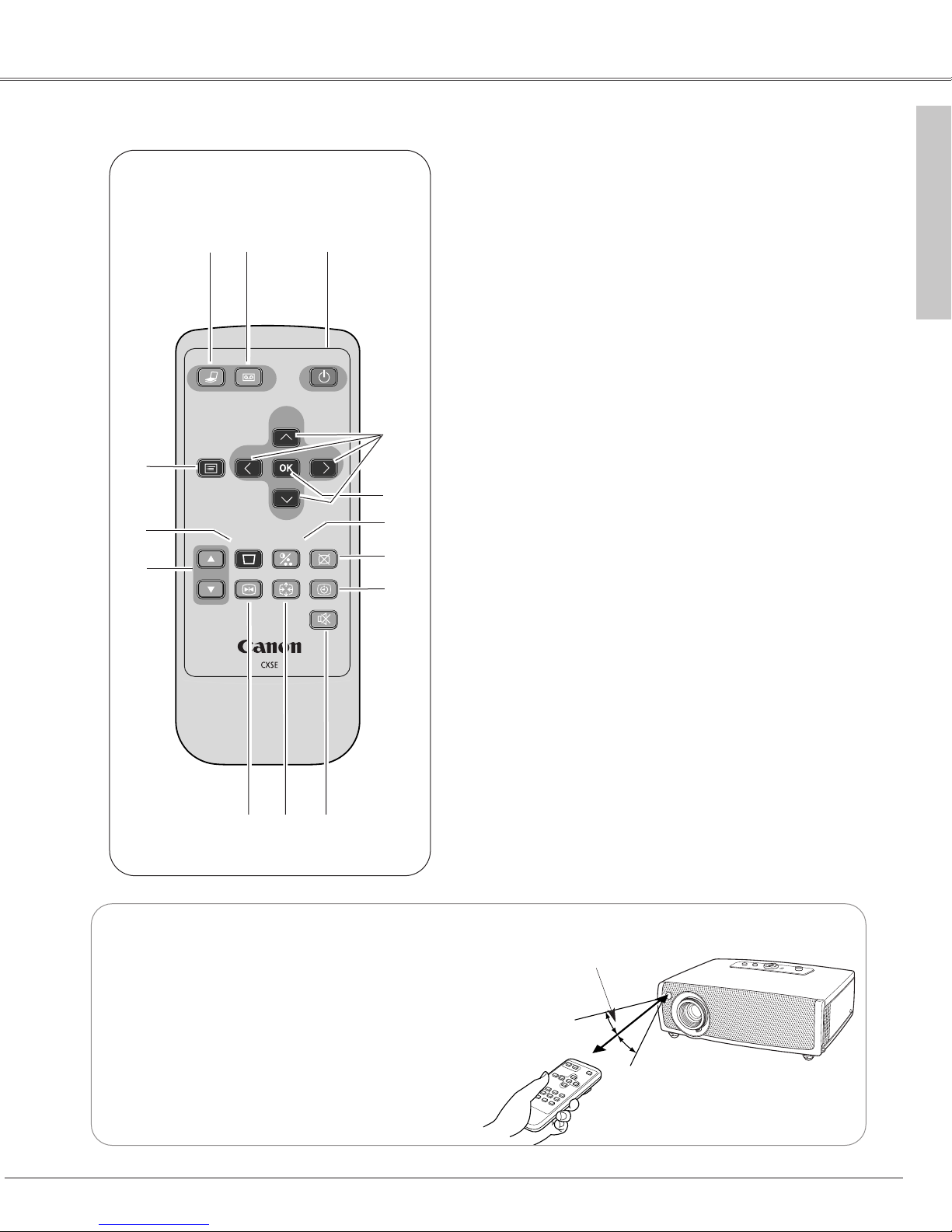

Remote Control Unit 11
Operating Range 11
Remote Control Unit Battery Installation 12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .13
Positioning the Projector 13
Adjustable Feet 13

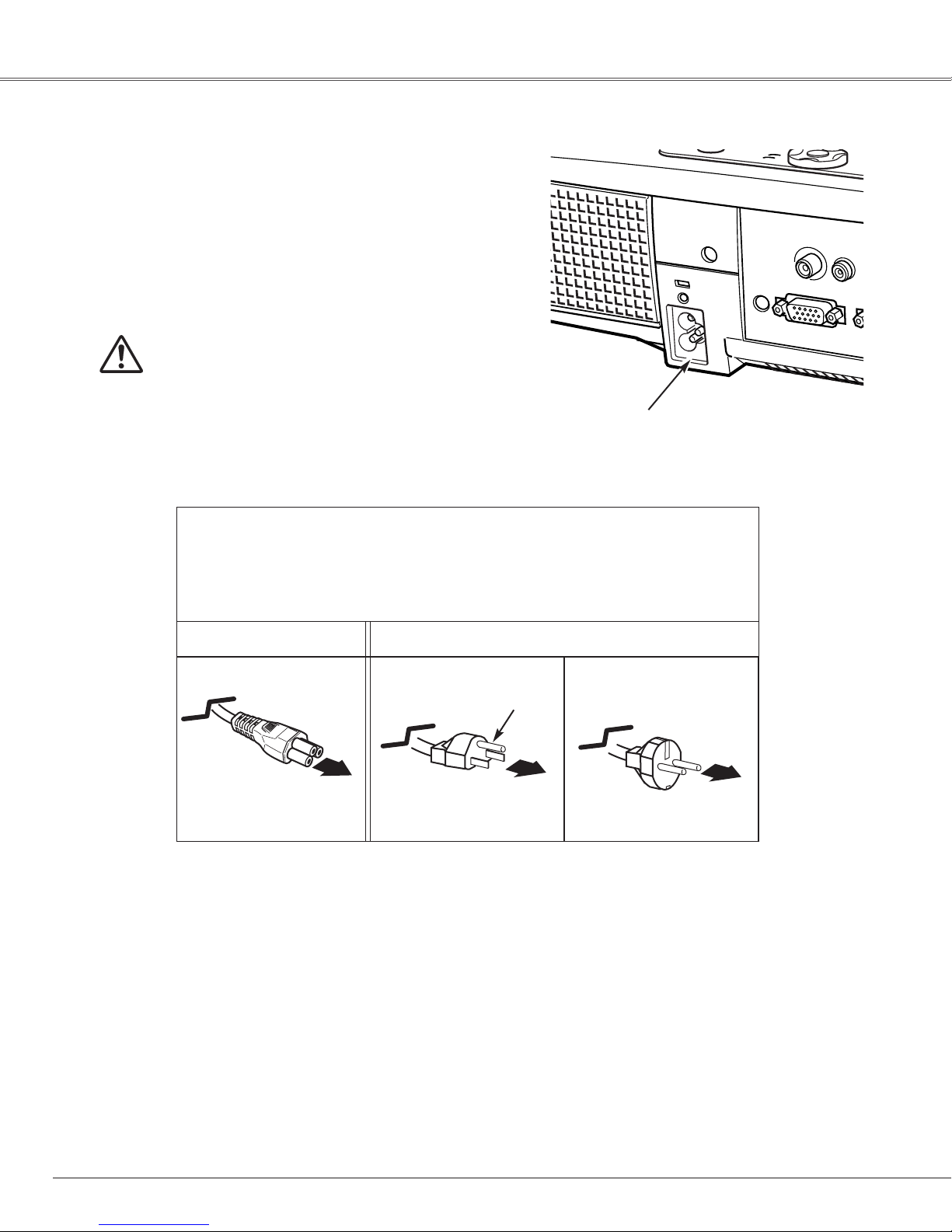

Connecting the AC Power Cord 14
Connecting to a Computer 15

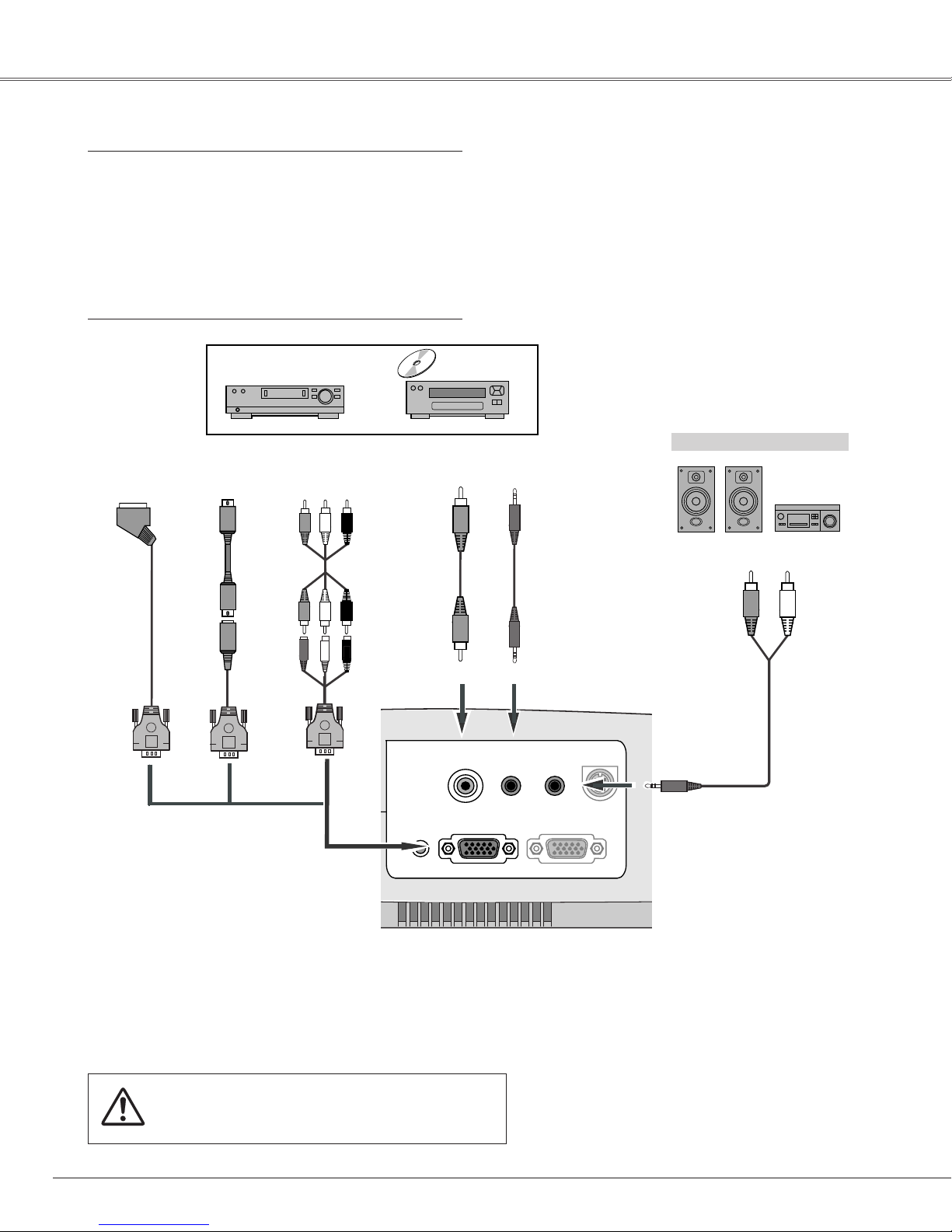

Connecting to Video Equipment 16
Basic Operation . . . . . . . . . . . . . . . . . . . . . .17
Turning On the Projector 17
Turning Off the Projector 18
Zoom and Focus Adjustment 19

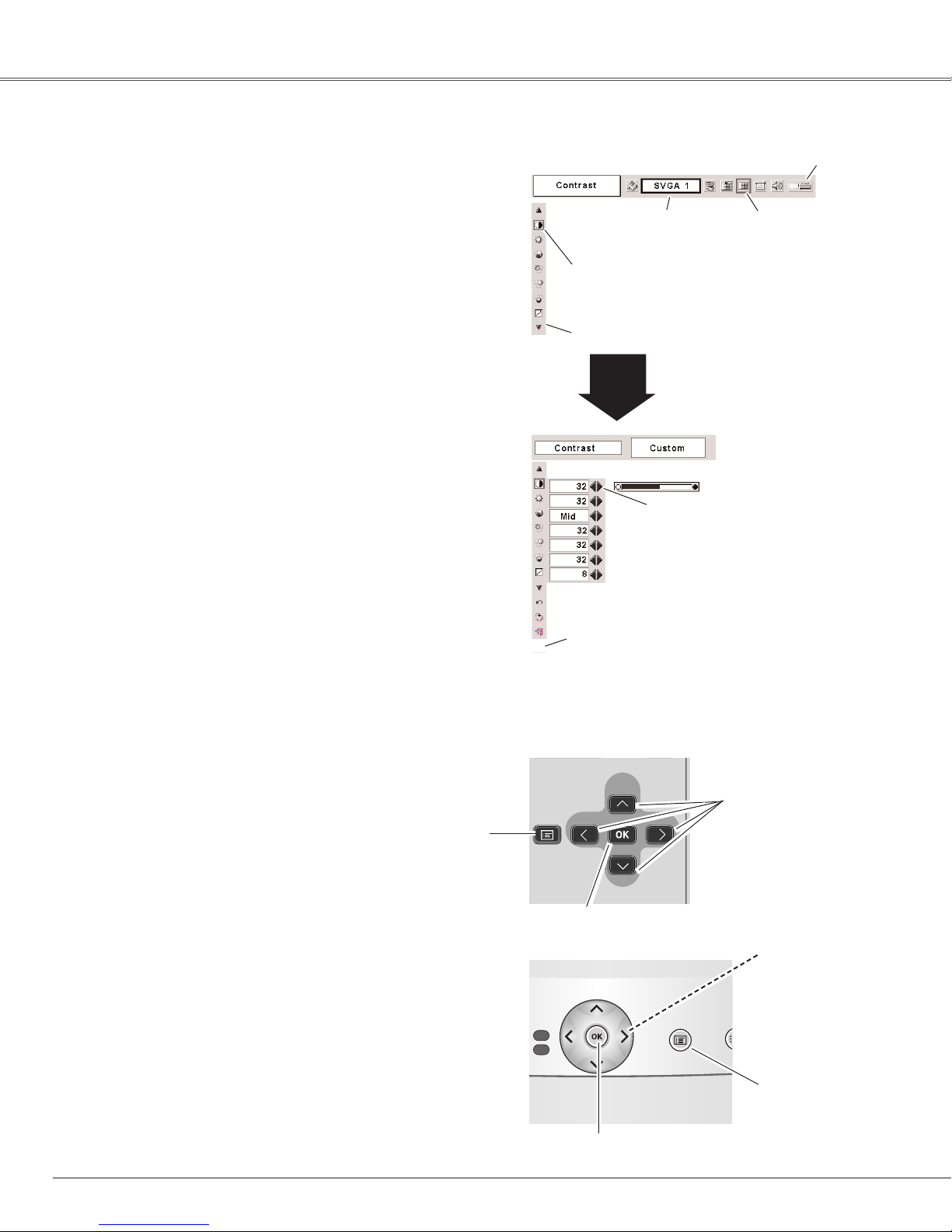

How to Operate the On-Screen Menu 20
Menu Bar 21
Keystone Adjustment 22
Picture Freeze Function 22
No Show Function 22
P-Timer Function 23
Sound Adjustment 23
Computer Input . . . . . . . . . . . . . . . . . . . . .24
Input Source Selection 24
Computer System Selection 25
Auto PC Adjustment 26
Manual PC Adjustment 27
Image Level Selection 29
Image Level Adjustment 30
Screen Size Adjustment 31
Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .32
Input Source Selection 32
Video System Selection 33
Image Level Selection 34
Image Level Adjustment 35
Screen Size Adjustment 37
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Setting 38
Maintenance and Cleaning . . . . . . . . . . . . .45
Warning Indicator 45
Cleaning the Air Filters 46
Cleaning the Projection Lens 47
Cleaning the Projector Cabinet 47
Attaching the Lens Cover 47
Lamp Replacement 48
Lamp Replace Counter 49
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Troubleshooting 50
Menu Tree 52
Indicators and Projector Condition 54
Compatible Computer Specifications 55
Technical Specifications 56
Optional Parts 57
Configurations of Terminals 58
PIN code label 59
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective
corporation.

4
To the Owner
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Before operating this projector, read this manual thoroughly
and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for
a considerable time.
Improper operation may result in not only shortening the
product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections and try
the solutions in the “Troubleshooting” section in the end of
this booklet. If the problem still persists, contact the dealer
where you purchased the projector or the service center.
Safety Precaution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
–This projector produces intense light from the projection
lens. Do not stare directly into the lens as possible. Eye
damage could result. Be especially careful that children do
not stare directly into the beam.
–Install the projector in a proper position. If not, it may
result in a fire hazard.
–Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearance must be maintained. If the
projector is to be built into a compartment or similarly
enclosed, the minimum distances must be maintained. Do
not cover the ventilation slot on the projector. Heat build-
up can reduce the service life of your projector, and can
also be dangerous.
–Do not put any flammable object or spray can near the
projector, hot air is exhausted from the ventilation holes.
–If the projector is not to be used for an extended time,
unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER
USE.
3'
(
1m
)3
'
(1m) 3
'
(1m)
3'(1m)
SIDE and TOP REAR
CAUTION
Not for use in a computer room as defined in the Standard for
the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle que
définie dans la norme ANSI/NFPA 75 Standard for Protection
of Electronic Computer/Data Processing Equipment
NOTE FOR CUSTOMERS IN THE US
Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY
AND MUST BE RECYCLED OR DISPOSED OF ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS.

5
Safety Instructions
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to ensure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest
on the power cord. Do not locate this projector where the
cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.

6
Safety Instructions
USE CAUTION IN CARRYING OR
TRANSPORTING THE PROJECTOR
–Do not drop or bump the projector, otherwise damages or
malfunctions may result.
–When carrying the projector, use a suitable carrying case.
–Do not transport the projector by using a courier or transport
service in an unsuitable transport case. This may cause
damage to the projector. To transport a projector through a
courier or transport service, consult your dealer for their
information.
Moving the Projector
CAUTION
Carrying Bag (supplied) is intended for protection from dust
and scratches on the surface of a cabinet, and it is not
designed to protect an appliance from external forces. Do not
transport the projector through a courier or transport services
with this bag, otherwise the projector can be damaged. When
handling the projector, do not drop, bump, subject it to strong
forces or put other things on the cabinet.
When moving the projector, replace the Lens Cover and
retract Adjustable Feet to prevent damage to the lens and
cabinet.
When the projector is not in use for an extended period, put it
into the supplied case (carrying bag) with lens side up.
Do not tilt the projector more than 20
degrees above and below.
Do not point the projector up to
project an image.
Do not point the projector down to
project an image.
Do not put the projector on either
side to project an image.
Install the projector properly. Improper Installation may reduce
the lamp life and cause a fire hazard.
Installing the Projector in Proper Position
Openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it from
overheating, and these openings must not be blocked or
covered.
CAUTION
Hot air is exhausted from the exhaust vent. When using or
installing the projector, the following precautions should be
taken.
– Do not put any flammable objects near the vent.
– Keep the exhaust vent at least 3’(1m) away from any
objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic part. This area will become
hot while the projector is being used.
– Do not put anything on the projector. The materials put on
the cabinet will not only get damaged but also cause fire
hazard by heat.
Cooling fans are provided to cool down the projector. This
projector monitors internal temperature and control the
running speed of the cooling fans.
Air Circulation
20˚
20˚
Air Intake Vent
Exhaust Vent
(Hot air exhaust)

7
Compliance
Federal Communication Commission Notice
Multimedia Projector, Model : LV-S4E and LV-S4U
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or
modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. [phone]
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and
certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into
the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the
outlet, contact your electrician.
GROUND
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
AC Power Cord Requirement
Canadian Radio Interference Regulations
This Class B digital apparatus complies with Canadian ICES-003.
Réglementation canadienne sur les intérferences radio
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

8
qFocus Ring
wInfrared Remote Receiver
eProjection Lens
rZoom Lever
tLens Cover
yAir Intake Vent
uExhaust Vent
qAir Intake Vent
wTerminals and Connectors
ePower Cord Connector
rExhaust Vent
tTop Controls and Indicators
qAir Filters
wAir Intake Vents
eAdjustable Feet
e
w
q
u
y
t
r
i
w
q
t
r
CAUTION
Hot air is exhausted from the exhaust vents.
When using or installing the projector, the
following precautions should be taken.
– Do not put any flammable objects near these
vents.
– Keep front grills at least 3’(1m) away from any
objects, especially heat-sensitive objects.
– Do not touch this area, especially screws and
metallic part. This area will become hot while
the projector is being used.
This projector detects internal temperature and
will automatically adjust the running speed of the
cooling fans.
Bottom
w
CAUTION
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
iSpeaker
CAUTION
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
e
e
q
Back
Front
Part Names and Functions

9
Part Names and Functions
A built-in micro processor which controls this unit may occasionally
malfunction and need to be reset. This can be done by pressing the RESET
button with a pen, which will shut down and restart the unit. Do not use the
RESET function excessively.
Rear Terminal
wAUDIO IN (Stereo)
Connect the audio output from computer or video
equipment connected to qor yto this jack. (p15, 16)
tMONITOR OUT
This terminal outputs the signal coming from
COMPUTER / S-VIDEO / COMPONENT IN terminal.
(This terminal cannot output RGB(Scart) signal from
COMPUTER / S-VIDEO / COMPONENT IN terminal.)
(p15)
yCOMPUTER / S-VIDEO / COMPONENT IN
Connect S-video output, RGB Scart 21-pin video output,
component video output or computer output to this
connector. (p15,16)
eAUDIO OUT(VARIABLE)
Connect an external audio amplifier to this jack.
(p15, 16)
This terminal outputs sound from AUDIO IN terminal.
Part Names and Functions
✽
qVIDEO
Connect the composite video output from video
equipment to VIDEO jack. (p16)
rSERVICE PORT
This jack is used to service this projector.
✔Note:
• Audio out and Monitor out terminal works only when the projector is under operation and do not work when the projector is in stand-by state or Power
management mode (p41).
COMPUTER/ S-VIDEO/
COMPONENT IN
AUDIO IN
VIDEO SERVICE PORT
RESET
AUDIO OUT
(VARIABLE)
MONITOR OUT
yt
rw eq

MENU INPUT
VOL VOL
-
WARNING
+
LAMP REPLACE
POWER
10
Part Names and Functions
Top Control
ew
q y
t
r
POWER indicator
Flash red until the projector gets ready to be turned
on. It turns red when the projector is in the stand-by
mode. It remains green while the projector is under
operation. (p17, 18, 54)
qPOWER button
Turn the projector on or off. (p17, 18)
r OK button
Execute the item selected. It is also used to expand/
compress the image in Digital zoom +/– mode. (p31)
t MENU button
Open or close the On-Screen Menu. (p20)
y INPUT button
Select the input source. (p24, 32)
Point eedd7 8 ( VOL
+ / – )
button
Select an item or adjust the value in the On-Screen
Menu. These are also used to pan the image in the
Digital zoom + mode. (p31)
Point 7 8 button are also used as VOL +/– button. (p23)
wLAMP REPLACE indicator
Turn yellow when the life of the projection lamp draws
to an end. (p48, 54)
eWARNING indicator
Emit red light when the projector is in the abnormal
condition. This indicator also flashes red when the
internal projector temperature goes up over the
operating range. (p45, 54)

11
Part Names and Functions
Part Names and Functions
30°
30°
Point the remote control unit toward the projector (Infrared
Remote Receiver) whenever pressing any button. Maximum
operating range for the remote control unit is about 16.4’
(5m) and 60° in front of the projector.
16.4’
(5 m)
Operating Range
P-TIMER
FREEZE
COMPUTER
OMPUTER
VIDEO
INPUT
D.ZOOM
MUTE
VOL
-
MENU
NO SHOW IMAGE
VOL
+
KEYSTONE
AUTO PC
POWER
y
e
!3
!4
t
r
!0
!2
!1
qPOWER button
Turn the projector on or off. (p17, 18)
wVIDEO button
Select the VIDEO input. (p32)
eCOMPUTER button
Select the COMPUTER input source. (p24, 32)
rMENU button
Open or close the On-Screen Menu. (p20)
t KEYSTONE button
Correct the keystone distortion. (p22, 38)
yD.ZOOM eeddbuttons
Select the Digital zoom +/– mode and resize the image.
(p31)
uFREEZE button
Freeze the picture. (p22)
!2 IMAGE button
Select the image level. (p29, 34)
o MUTE button
Mute the sound. (p23)
!0 P-TIMER button
Operate the P-timer function. (p23)
!1 NO SHOW button
Temporarily turn off the image on the screen. (p22)
!4 Point eedd7788( VOL
+ / – )
buttons
Select an item or adjust the value in the On-Screen Menu.
These are also used to pan the image in the Digital zoom +
mode. (p31)
Point 7788buttons are also used as VOL +/– mode.
(p23)
!3 OK button
Execute the selected item, or to expand or compress
the image in Digital zoom +/– mode. (p31)
qw
iAUTO PC button
Automatically adjust the computer image to its
optimum setting. (p26)
Remote Control Unit
iu o
✔Note:
• See p42 for changing the remote control unit code.

12
Part Names and Functions
To insure safe operation, please observe the following precautions :
●Use (2) AAA, SUM-4 or LR03 type alkaline batteries.
●Replace two batteries at the same time.
●Do not use a new battery with a used battery.
●Avoid contact with water or liquid.
●Do not expose the remote control unit to moisture or heat.
●Do not drop the remote control unit.
●If the battery has leaked on the remote control unit, carefully wipe the case clean and install new batteries.
●Risk of explosion if battery is replaced by an incorrect type.
●Dispose of used batteries according to the instructions.
Remove the battery
compartment lid.
Slide the batteries into
the compartment.
Replace the compartment
lid.
Two AAA size batteries
For correct polarity (+ and
–), be sure battery terminals
are in contact with pins in
the compartment.
12 3
Remote Control Unit Battery Installation

13
Installation
Projection angle can be adjusted up to 8.0 degrees with the
adjustable feet.
Lift the front of the projector and pull upward the feet lock
latches on both sides of the projector.
1
Adjustable Feet
Feet Lock Latches
Release the feet lock latches to lock the adjustable feet and
rotate the adjustable feet to adjust the position and tilt.
2
To retract the adjustable feet, lift the front of the projector
and pull and undo the feet lock latches.
Keystone distortion of the projected image can be adjusted
by the Menu operation. (p22, 38)
3
Adjustable Feet
✔Note:
• The brightness in the room has a great influence on the picture quality. It is recommended to limit ambient lighting in order to obtain the best image.
• The values shown above are approximate and may vary from the actual size.
Positioning the Projector
Installation
40”
100”
150”
200”
169”
127”
83”
34”
21.3' (6.5m)
16.1' (4.9m)
10.6' (3.2m)
4.3' (1.3m)
Max. Zoom
Min. Zoom
A : B = 9 : 1
Screen Size
(W x H) mm
4 : 3 aspect ratio
Zoom (min)
34”
Zoom (max)
691 x 518
4.3' (1.3m)
––-––
40”
813 x 610
4.9' (1.5m)
4.3' (1.3m)
100”
2032 x 1524
12.5' (3.8m)
10.6' (3.2m)
150”
3048 x 2286
19.0' (5.8m)
16.1' (4.9m)
200”
4064 x 3048
––-––
21.3' (6.5m)
(Inch Diagonal)
This projector is designed to project on a flat projection surface and can be focused from 4.3’(1.3m) - 21.3’(6.5m). Refer to
the figure and the table below for the screen size and the distance between the projector and the screen.
(Center)
A
B

14
NOTE ON THE POWER CORD
AC power cord must meet requirement of the country where you use the projector.
Confirm the AC plug type with the chart below and proper AC power cord must be used.
If supplied AC power cord does not match your AC outlet, contact your sales dealer.
Installation
To the power cord connector
on your projector.
Projector side AC outlet side
Ground
To the AC outlet.
(120 V AC)
For Continental Europe For the U.S.A. and Canada
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce risk of electrical
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power being supplied.
Connect the projector with all peripheral equipment before turning
the projector on. (See page 15, 16 for connection.)
CAUTION
For safety, unplug the AC power cord when the projector is not
in use. When this projector is connected to an outlet with the
AC power cord, it is in Stand-by mode and consumes a little
electric power.
Connecting the AC Power Cord
Connect the AC power cord (supplied) to the
projector.
The AC outlet must be near this equipment and
must be easily accessible.
To the AC outlet.
(200 - 240 V AC)

15
Installation
Installation
Connecting to a Computer
COMPUTER/ S-VIDEO/
COMPUTER/ S-VIDEO/
COMPONENT IN
AUDIO IN
VIDEO SERVICE PORT
RESET
AUDIO OUT
(VARIABLE)
MONITOR OUT
MONITOR OUT
Cables used for connection
• VGA Cable (HDB 15 pin) (Only one cable is supplied)
• Audio Cable (Mini Plug: stereo) ✽
(✽= Not supplied with this projector.)
External Audio Equipment
VGA cable VGA cable
Note:
When connecting the cable, the power cords of both the projector and
the external equipment should be disconnected from AC outlet.
✔Note:
• When connecting AUDIO OUT to external audio equipment, the projector's built-in
speaker is disconnected.
• Audio out and Monitor out terminal works only when the projector is under
operation and do not work when the projector is in the stand-by state or the Power
management mode (p41).
• See p57 for ordering optional parts.
Audio Cable
(Stereo) ✽
Audio Cable
(Stereo) ✽
AUDIO IN
Audio output
(Stereo)
Monitor output
COMPUTER /
S-VIDEO /
COMPONENT IN
MONITOR OUT
AUDIO OUT
(VARIABLE)
Monitor input
Audio output

16
COMPUTER/ S-VIDEO/
COMPUTER/ S-VIDEO/
COMPONENT IN
AUDIO IN
VIDEO SERVICE PORT
RESET
AUDIO OUT
(VARIABLE)
MONITOR OUT
MONITOR OUT
Installation
Connecting to Video Equipment
Cables used for connection
• Scart-VGA Cable (Separately supplied as LV-CA31) ✽
• S-VIDEO-VGA Cable (Separately supplied as LV-CA33) ✽
• S-VIDEO Cable ✽
• Component-VGA Cable (Separately supplied as LV-CA32) ✽
• Component Cable ✽
• Video Cable ✽
• Audio Cables (Mini Plug: stereo) ✽
(✽= Not supplied with this projector.)
Note:
When connecting the cable, the power cords of both the projector and
the external equipment should be disconnected from AC outlet.
✔Note:
• When connecting AUDIO OUT to external audio equipment, the projector's built-in
speaker is disconnected.
• Audio out and Monitor out terminal works only when the projector is under
operation and do not work when the projector is in the stand-by state or the Power
management mode (p41).
• See p57 for ordering optional parts.
External Audio Equipment
Audio cable ✽
(stereo)
VIDEO
S-Video-
VGA cable✽
S-Video
Output
AUDIO IN
Audio Input
AUDIO OUT
(VARIABLE)
Scart-VGA
cable ✽
Component-
VGA cable ✽
Video
cable ✽
Audio
cable ✽
(stereo)
COMPUTER /
S-VIDEO /
COMPONENT IN
RGB Scart
21-pin
Output
Component
Video Output
(Y, Pb/Cb, Pr/Cr)
Audio
Output (Stereo)
Video
Output
Component
cable✽
S-Video
cable✽

17
Connect the projector's AC power cord into the AC outlet.
The POWER indicator blinks red in a moment and emits red
light.
Press the POWER button on the top control or on the
remote control unit. The POWER indicator turns green
lighting and the cooling fans start to operate. The
preparation display appears on the screen and the count
down starts.
2
3
1
16
The preparation display disappears after 30 seconds.
4After the count-down, the image level that was selected last
and the Lamp mode status icon (see page 41) appear on the
screen. (See page 41 for Lamp mode.)
Selected Image Level and Lamp Mode
Complete peripheral connections (with a computer, VCR,
etc.) before turning on the projector.
Lamp mode
What is PIN code?
PIN code is a security code using Personal Identification Number that
allows the person who knows it to operate the projector. Setting the PIN
code prevents others except the specific users from operating the
projector.
A PIN code consists of a four-digit number. Refer to the PIN code lock
function in Setting on page 43 for locking operation of the projector with
your PIN code.
Pointer
After the OK icon
disappears, you can
operate the projector.
PIN code Input Dialog Box
Tu rning On the Projector
Basic Operation
Enter a PIN code
Select a number by pressing the Point 7 8 buttons and fix the number
with the OK button. The number will change to "✳". If you fixed an
incorrect number, move the pointer to "Set" or "Clear" once by pressing the
Point ddbutton, then return to "PIN code". Enter the correct number again.
Repeat this step to complete entering a four-digit number.
When the four-digit number is fixed, the pointer will automatically move to
"Set". Press the OK button so that you can start to operate the projector.
If you entered an incorrect PIN code, "PIN code" and the number (✳✳✳✳)
will turn red and disappear. Enter a correct PIN code all over again.
Basic Operation
✔Note:
• If the projector is locked with a PIN code, the PIN code Input Dialog Box will
appear. Enter the PIN code as instructed below.
• When the On start function is on, this projector is turned on automatically by
connecting the AC power cord to an AC outlet. (See page 41 for the On start
function.)
Image Level

18
Basic Operation
Press the POWER button on the top control or on the
remote control unit, and a message "Power off?" appears on
the screen.
Press the POWER button again to turn off the projector. The
POWER indicator starts to blink red, and it continues while
the cooling fans are operating for about 90 seconds. (About
120 seconds when the fan mode is L2. See page 44.)
1
2
TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU
TURN PROJECTOR ON, WAIT AT LEAST 5 MINUTES
BEFORE TURNING IT OFF.
DO NOT DISCONNECT AC POWER CORD WHILE
COOLING FANS ARE RUNNING OR BEFORE THE
POWER INDICATOR EMITS RED LIGHT. OTHERWISE
IT WILL RESULT IN SHORTENING THE LAMP LIFE.
3When the projector has cooled down enough to be turned on
again, the POWER indicator emits red light. Then you can
disconnect the AC power cord.
The message disappears after 4 seconds.
✔Note:
• The projector cannot be turned on during the cooling period with the POWER
indicator blinking red. You can turn it on again after the POWER indicator emits red
light.
• Do not operate the projector continuously without rest. Continuous use may result
in shortening the lamp life. Turn off the projector and give it a rest about an hour in
every 24 hours.
• This projector monitors internal temperature and automatically controls the
running speed of the cooling fans.
• If the WARNING indicator blinks or emits red light, see “Warning Indicator” on page
45.
Tu rning Off the Projector

19
Basic Operation
Rotate the Zoom Lever to zoom in and out.
Rotate the Focus Ring to adjust the projected picture focus. Zoom Lever
Focus Ring
Zoom and Focus Adjustment
Basic Operation

20
Basic Operation
Menu bar Pointer
(red frame)
Menu icon
Item data
Press the Point 7 8 buttons
to adjust the value.
OK
button
Pointer (red frame)
Press the Point dbutton to
move the pointer.
Item
How to Operate the On-Screen Menu
On-Screen Menu
Quit
Exit this menu.
The projector can be adjusted or set via the On-Screen Menu.
Refer to the following pages regarding each adjustment and
setting procedure.
Press the Point 7 8 buttons to select a Menu icon to adjust.
Press the Point ed buttons to select an item to adjust.
Press the OK button to show the item data. Press the Point
7 8 buttons to adjust the data. Refer to the following pages
for respective adjustment.
Press the MENU button to display the On-Screen Menu.
✔Note:
• The selected item is not active until the OK button is pressed.
1
2
3
P-TIMER
FREEZE
COMPUTEROMPUTER VIDEO
INPUT
D.ZOOM
MUTE
VOL
-
MENU
NO SHOW IMAGE
VOL
+
KEYSTONE
AUTO PC
POWER
OK button
Point buttons
Remote Control Unit
MENU button
MENU IN
P
VOL VOL
-
G
+
E
Used to select the item.
OK button
Used to move the
Pointer up/ down /
right / left.
Point button
Top Control
MENU button
