CanyCom SC45 User manual

Read this manual completely before operating or maintaining this machine.
Failure to follow safety precautions could result in serious injury or death.
Keep this manual for future reference by you and by all those who operate
and maintain this machine.
Off-road Rubber Track Carrier
SC45
Operator's Manual
3577 6107 000

http://www.canycom.jp/
All rights reserved. Unauthorized use or reproduction of this material is prohibited.
Authorized Dealer
CHIKUSUI CANYCOM, INC.
90-1 Fukumasu, Yoshii-machi,
Ukiha-shi, Fukuoka, Japan 839-1396
Sales Headquarters (International) TEL [phone]
FAX [phone]

Notice to Users and Maintenance Personnel
• This machine can be very dangerous if the safety precautions in this manual
and on labels attached to this machine are not followed. Read and understand
this manual and safety labels on machine thoroughly before using this machine.
Always follow the instructions and safety precautions, or serious injury or
death could result.
• This machine should only be used for its intended purpose: hauling and
dumping. Any other use could be dangerous.
• This machine may not be operated on public road or what is considered to
be public road. It is the sole responsibility of the operator to consult the local
regulations.
• Do not modify this machine, or do not operate this machine with safety covers
removed or open. A serious accident could result.
Thank you for purchasing this machine.
This manual provides information needed for safe and effective use of this machine to
those who operate or maintain this machine. Make sure to read and understand this manual
thoroughly before operating this product. Also make sure to read the separate operator's
manual for the engine.
• Store this manual in a safe, accessible place for easy reference.

Warning Term Denition
Indicates an imminently hazardous situation which will result
in death or serious injury if the user does not follow the
procedures or the instructions.
Indicates a potentially hazardous situation which could result
in death or serious injury if the user does not follow the
procedures or the instructions.
Indicates a potentially hazardous situation which could result
in minor to moderate injury or damage to the machine if the
user does not follow the procedures or the instructions.
Indicates important information which needs particular
attention.
In this manual, the following four warning terms are used to signal the four levels of hazard (or
seriousness of possible accidents). Read and understand what they mean and always follow
the instructions in this manual.
Warning Terms Used in this Manual
NOTE
Notice to Owner
• Be sure that everyone who uses this machine, including those who rent or
lease this machine, receives a copy of this Operator's Manual and understands
the importance of reading and following the information in this manual.

Warranty and After-Sales Service
CHIKUSUI CANYCOM, INC. provides a warranty through your local CANYCOM dealer. A
copy of this warranty is attached to the back of this manual.
Warranty
Consult your local CANYCOM dealer or our company’s sales department regarding service
orders or any questions or problems that may arise when using this machine. Please make
sure to have the product name, serial number, and the make and type of engine handy at
the time of contact. The model and serial number can be found on the model label as shown
below, and the make and type of engine can be found in Chapter 3 "Specications" of this
manual (Page11).
After-Sales Service

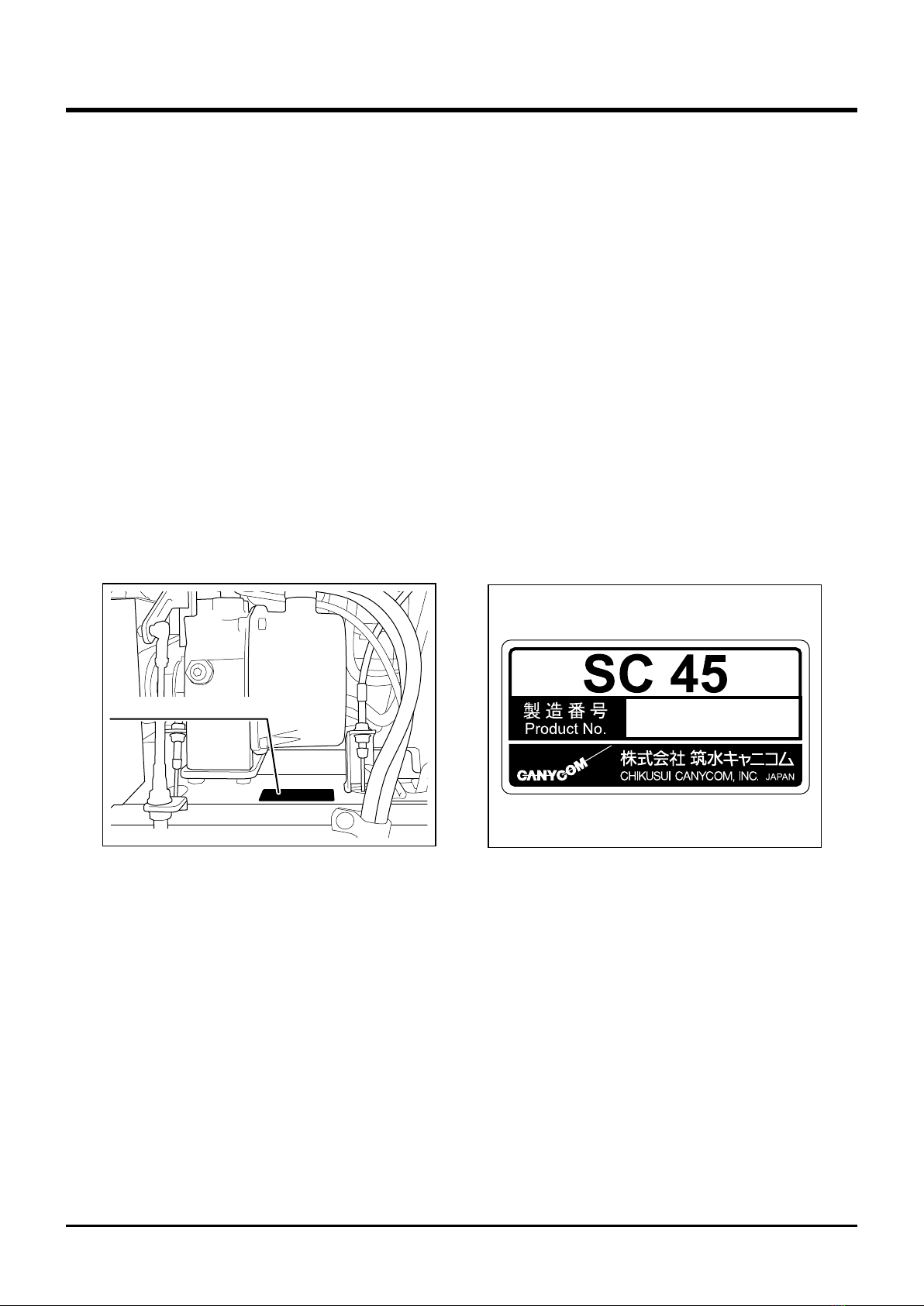

Location of Model Label Model Label
The replacement or repair parts for this product shall remain available for nine years after the
production of this type of machine is discontinued.
Availability of Spare Parts
3577M-0005-010US
Location of Model Label
3577M‑0005‑020US
○○○○○○○

This product meets the applicable emissions and evaporative regulations as required by the
United States Environmental Protection Agency or the California Air Resources Board. The
relevant information is provided in the label shown below.
Emission Control Information
Location of Emissions Label Emissions Label
3577M-0005-031US
Emissions Label
5355M-0005-050US
Month and Year of Manufacture
THIS EQUIPMENT
MEETS U.S. EPA EVAP
STANDARDS.
Equipment Model
Equipment Family No.
Engine
Engine Model
EPA Emissions Family No.
○○○○○○○○○○○○○○
○○○○○○○○○○○○○○
○○○○○○○○○○○
○○○○○○○○○○○
Japan
○○.○○○○
Sample label shown. Emission control
information is subject to change each model-
year. Please refer to the actual emissions
label on the machine for details.

Contents
1. Safety 1
Safety Labels ...................................1
Safety Precautions...............................2
Training .......................................................2
Preparation ....................................................3
Operation .....................................................3
Servicing ......................................................8
2. Controls and Components 9
Name and Function of Controls ....................9
3. Specications 11
Product Specications ..........................11
Contents of the Tool Bag ........................13
4. Operation 14
Preparation ....................................14
Pre-start up Inspection .........................................14
Checking and Filling Fuel .......................................14
Adjusting Handle Lever Angle ...................................15

Driving........................................16
Starting ......................................................16
Driving .......................................................19
Stopping .....................................................22
Shifting ......................................................23
Parking ......................................................24
Working .......................................25
Dumping .....................................................25
Using Safety Lock Plate ........................................28
5. Maintenance 29
Maintenance Schedule ..........................29
Engine .......................................................29
Chassis ......................................................30
List of Fluids and Lubricants .....................32
List of lubricants ...............................33
List of Consumables and Spares ..................34
Removing and Installing Body Panels ..............35
Fender .......................................................35
Belt Cover ....................................................35
Engine ........................................36
Engine Oil ....................................................36
Air Cleaner ...................................................37
Spark Plug ...................................................38
Fuel Filter ....................................................38

Drive Train.....................................39
Track. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Transmission Oil...............................................40
Drive Belt .....................................................41
Parking Brake .................................................42
Side Clutch ...................................................43
Lubrication ...................................................43
Hydraulic System ...............................44
Hydraulic Package .............................................44
Hydraulics Belt ................................................45
Loading Deck ..................................46
Lubrication ...................................................46
After Use Care .................................47
After Normal Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
After Cold Weather Use .........................................47
Storage .......................................48
6. Troubleshooting 49
Troubleshooting ................................49
7. Transporting 53
Hauling .......................................53
Loading and Unloading .........................................53

Warranty
Warranty Certicate is attached at the end of this manual.
* Have the warranty certicate signed and sealed after you have received and fully
understood the instructions for handling this machine and received the receipt.
Appendix
• Operator's Manual for the Engine
* Be sure to read and understand it together with this manual .

Safety 1
-1-
Safety Labels

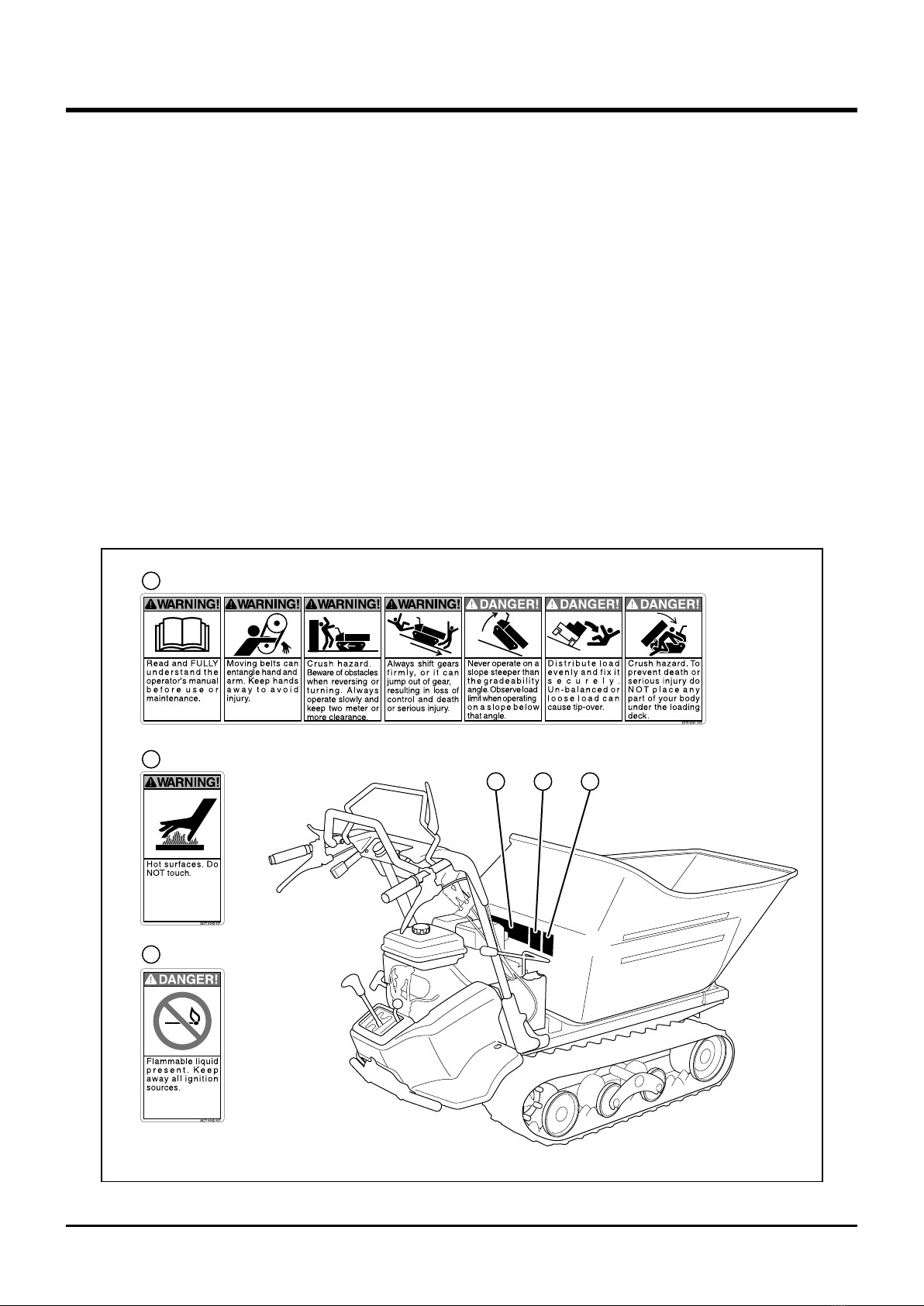

The safety labels shown below are attached to the machine. See the illustration for the
location and the content of each label on the machine.
• Locate all the warning labels attached to this machine. Read and follow the
instructions and precautions in them. Failure to do so could result in serious injury
or death to the operator or bystanders.
• Keep the labels clean and legible. Do not use solvents or gasoline to clean the
labels.
• Replace these labels immediately if they have been removed, have fallen off or
become illegible. Use the part number, on the label or shown in this manual, to
order a replacement label from your CANYCOM representative.
3577M-6107-0101-010
3573 6061 0001
3677 5043 001
2
3677 5042 001
3
1 2 3

Safety
-2-
1
This section contains safety precautions to follow when operating and maintaining machine.
Read and understand the precautions in this section as well as throughout this manual and
follow them when operating or maintaining machine. Failure to follow safety precautions
could result in property damage, serious injury or death to the operator or bystanders.
Safety Precautions
All operators should be familiar with the following issues when using this machine. In case
machine is used by a hired worker or is rented, the employer or renter shall give practical
instructions covering the following issues to the user.
• It is essential to familiarize yourself with controls, safety labels and the proper use
of machine.
• Never allow people unfamiliar with these instructions to operate or service machine.
Do not let anyone under 18 years of age to operate this machine. Local regulations
may restrict the minimum age for operating a machine. Consult your local authority.
• This machine is not intended to carry a person. Do not ride or carry a person on the
loading deck.
• The operator is responsible for the accidents or hazards caused to other people or
their property.
• Always keep in mind that care and concentration is required when working with a
load-carrying machine.
• Loss of control on a slope cannot be regained by the application of brake. Main
reasons for the loss of control are:
→ insufcient grip of tracks.
→ excessive speed.
→ misjudging of the ground conditions, especially inclination.
→ excessive load.
→ incorrect distribution of load.
Training

Safety 1
-3-
• Always wear protective footwear, long trousers, hardhat, safety glasses and ear
protection when operating or servicing machine. Proper clothing will minimize
the chance of injury. Do not operate machine if you have long hair, loose clothing,
or jewelry; all of which can get tangled in moving parts. Do not operate machine
barefoot or with open sandals.
• Prepare beforehand the working rules and procedures such as signaling and trac
control for the work place. Following such rules will reduce the risk of accidents.
• Perform daily pre-startup inspection (see Preparation, page 14) before starting
machine. Repair or replace damaged parts before starting machine.
• Fuel is highly flammable. See Checking and Filling Fuel, page 14, for important
safety information on handling fuel; keep fire and spark away. Stop engine when
refueling.
• Never handle oil or grease, service engine, or recharge battery in the presence of
re or spark.
Preparation
Operation
The stability of machine is affected by speed, rate of steering, terrain and load. Always pay
close attention to these factors or loss of control or tipping over could occur, resulting in
property damage, serious injury or death.

Safety
-4-
1
General Driving
• Do not operate engine in a confined space where dangerous carbon monoxide
fumes can accumulate.
• Do not touch engine, mufer or exhaust pipe while engine is running or soon after it
has stopped. These areas will be very hot and can cause burns.
• Do not operate machine under the influence of alcohol or drugs. Do not operate
machine when you are tired, ill, or not t to operate machine.
• Before starting engine and moving machine, scan around your surroundings and
make sure all persons and other vehicles are a safe distance away from machine.
• Never operate on terrain that you are not comfortable with. Avoid terrain that is so
rough, slippery or loose that you feel like machine could tip over.
• Always check for obstacles before operating on new terrain.
• Always travel slowly and use extra caution when operating on unfamiliar terrain. Be
alert when traveling on changing terrain.
• Set handle lever to t the operator's physique. Always hold handle grips with both
hands to keep a posture when operating machine.
• Drive at a safe speed, taking into account surface gradient, surface conditions and
load.
• Do not make sudden maneuvers. Sudden start, stop, or turn can make machine lose
control and could cause a tip over. Be especially cautious when traveling on soft or
wet ground.
• Never drive machine with its loading deck in raised position. Make certain that
loading deck is in the lowest and locked position when driving.

Safety 1
-5-
• On a slippery surface, travel slowly and exercise caution to reduce the chance of
skidding or sliding out of control. Never operate on ice.
• Always make certain that there is no obstacle or person behind machine when
backing up. Make certain that it is safe to back up, then move slowly and avoid
sharp turns.
• To reduce the risk of tipping over, pay special attention when encountering an
obstacle or a slope, or when braking on a slope or during a turn. See Driving on a
slope below.
• Never attempt to drive over a large obstacle such as rock or fallen tree.
• Do not operate machine near the edge of a cliff, an overhang or a landslide area.
• Use an observer to help direct machine when visibility is poor, terrain is rugged or
hilly, or maneuvering room is limited. An observer should be able to see machine
and its immediate surroundings, and should give pre-arranged signals to direct the
operator.
Driving on a Slope
• Driving on a slope can be dangerous. It can result in a tip over and cause serious
injury or death. Always follow proper procedures for driving on a slope as
described in this manual.
• When carrying no load, do NOT use machine on a slope steeper than 20 degrees.
When carrying a load, observe the load limit according to the inclination (see
Loading and Driving with the Load, page 7). Do not dump on a slope.
• Driving on a slope in a wrong manner can cause a loss of control or a vehicle tip
over. Check terrain carefully before attempting to drive on a slope.

Safety
-6-
1
• Never drive on a slope that you are not comfortable with. Avoid a slope that is so
rough, slippery, or loose that you feel like machine could tip over.
• When driving down a slope, stop and shift to lowest gears (auxiliary transmission in
Low). Go down at a reduced speed. Use engine speed to help keep machine speed
low.
• When driving up a slope, proceed at a steady rate of speed and throttle position.
• Never move throttle lever or operate side clutch suddenly.
• Drive straight up or down a slope. Avoid turning on a slope. Avoid driving machine
across a slope.
• If engine stalls or loses traction during a climb and cannot make it to the top of a
slope, do not try to turn machine around. Carefully back down slowly, straight down
a slope.
• When going over the top of a slope, go slow; an obstacle, a sharp drop, or another
vehicle or person could be on the other side of the crest.
• Without a load, drive machine backwards up a slope (operator's handle toward the
top) when climbing, and drive it forward when going down a slope.
• With a load, drive machine forward up a slope (operator's handle away from the
top) when climbing, and drive it backwards when going down a slope. Be especially
cautious when operating on a slope with a load.

Safety 1
-7-
Loading and Driving with a Load
• The maximum payload for SC 45 is 992lb (450kg). Do not exceed this maximum
payload under any circumstance.
• Do not operate on a slope steeper than 20 degrees. Do not carry more than 496lb
(225kg) with SC 45 when operating on a slope between 15 and 20 degrees.
• Place a load in loading deck so that the weight is evenly distributed. When carrying
a load, strap it to loading deck to prevent it from shifting. Ensure that the load does
not obstruct the operator's eld of view.
• When carrying a load, drive at a reduced speed. Allow greater distance for braking.
• Before crossing a bridge or an overpass, make certain that the total combined
weight of machine, load and operator is within the stated weight limit of the bridge
or the overpass. Then, proceed carefully and at a constant speed.
Dumping
When dumping material from loading deck, take the following precautions.
• Always follow the proper procedures for dumping as described in this manual.
• Perform dumping operation on a at, level and stable surface. Do not dump on a
slope or on a rough terrain.
• Make certain that all persons are at a safe distance away from machine when raising
or lowering loading deck.
• Do not move machine or leave it unattended with loading deck in the raised position.
• Engage loading deck lock plate if you must place any part of your body under
loading deck in the raised (dump) position. Never place any part of your body under
loading deck in the raised (dump) position without engaging loading deck lock
plate.

Safety
-8-
1
Parking
• Park machine on a at, level and stable surface. Do not park in a dangerous place.
Never park machine on a slope steeper than 15 degrees. Avoid parking on a slope
less than 15 degrees. If parking on a slope less than 15 degrees is unavoidable,
block tracks at the lower end of machine.
→ Without a load, park machine with operator's handle uphill
→ With a load, park machine with operator's handle downhill
→ Do not park sideways on a slope.
• Observe all the previous precautions for general driving, riding machine, driving on
a slope, loading and driving with a load, and dumping.
• Whenever you park machine, disengage clutch and stop engine.
• Gasoline is highly ammable and can be explosive. When parking machine indoors,
make certain that the building is well ventilated and that machine is not close to any
source of ame or spark, including appliances with pilot lights.
Servicing
• Do not service machine when engine is running. If it is absolutely necessary to run
engine while servicing, keep hands, feet, clothing and any part of the body away
from any moving part, especially belts at the side of engine.
• Do not operate engine in a confined space where dangerous carbon monoxide
fumes can accumulate.
• Engage loading deck lock plate if you must place any part of your body under
loading deck in the raised position. Never place any part of your body under loading
deck in the raised (dump) position.
• Check all fuel lines on a regular basis for fit and wear. Tighten or repair them as
needed.
• Do not touch engine, mufer, or exhaust pipe while engine is running or soon after
it has stopped. These areas will be very hot and can cause burns.
• Engine must be shut off before checking or adding oil.

-9-
Controls and Components 2

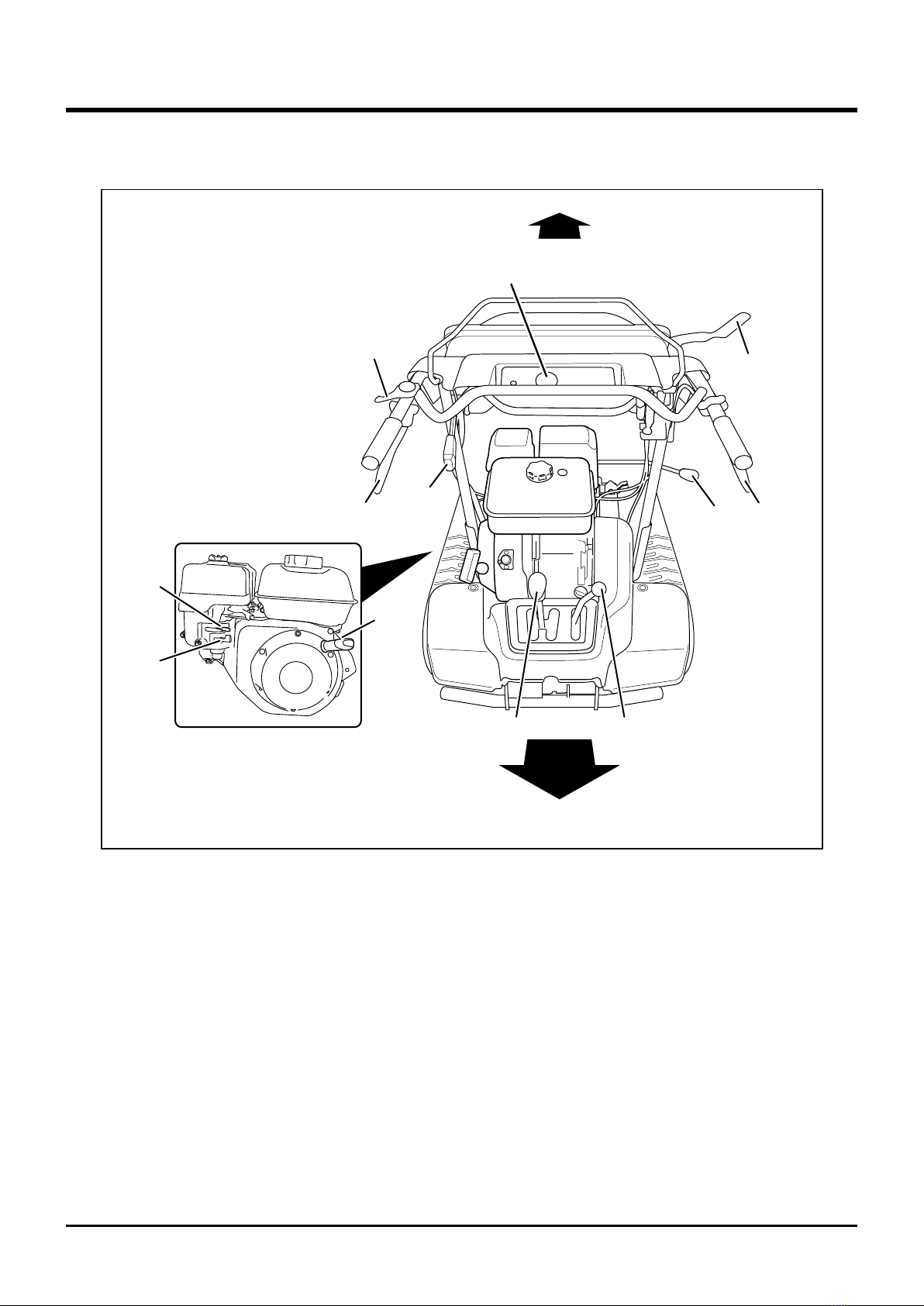

Name and Function of Controls
3577M-6107-0201-010
12
33
4
6
8 9
10
10
5
7
Front
Rear
1 Throttle Lever . . . . . . . . . . . . Throttle Lever is used to control engine speed.
2 Drive Clutch Lever . . . . . . . . Drive Clutch Lever is used to engage or disengage drive
clutch.
3 Side Clutch Lever . . . . . . . . Side Clutch Lever is used to steer machine by engaging
side clutch.
4 Main Switch . . . . . . . . . . . . . Main Switch is used to start or stop engine.
5 Choke Lever . . . . . . . . . . . . . Choke Lever is used to help start engine by closing choke
valve.

Controls and Components
-10-
2
Shift Lever
6 Starter Handle. . . . . . . . . . . . Starter Handle is used to start engine.
7 Fuel Valve Lever. . . . . . . . . . Fuel valve lever opens or shuts fuel ow.
8 Shift Lever. . . . . . . . . . . . . . . Shift Lever is used to shift gears.
9 Auxiliary Transmission . . . . Auxiliary Transmission Shift Lever is used to select fast or
slow driving mode.
10 Dump Levers . . . . . . . . . . . . Dump Lever is used to dump loading deck. Dump Lever
raises or lowers loading deck. Dump Lever raises loading
deck for dumping or lowers it from that position. There are
two dump levers; one behind loading deck (deck lever)
and one on the handlebar (handlebar lever).
